计算机工程 ›› 2019, Vol. 45 ›› Issue (10): 46-51.doi: 10.19678/j.issn.1000-3428.0053289

• 体系结构与软件技术 • 上一篇    下一篇

城市内涝三维可视化应急管理信息系统

姜仁贵, 杨思雨, 解建仓, 严栋飞, 王小杰

  1. 西安理工大学 省部共建西北旱区生态水利国家重点实验室, 西安 710048
  • 收稿日期:2018-12-03 修回日期:2019-01-11 出版日期:2019-10-15 发布日期:2019-01-24
  • 作者简介:姜仁贵(1985-),男,副教授,主研方向为应急管理信息系统;杨思雨,硕士研究生;解建仓(通信作者),教授、博士生导师;严栋飞,博士研究生;王小杰,硕士研究生。
  • 基金项目:
    国家重点研发计划(2016YFC0401409);国家自然科学基金(51509201,51679188);陕西省自然科学基础研究基金(2018JM5031)。

Three-dimensional Visualization Emergency Management Information System of Urban Waterlogging

JIANG Rengui, YANG Siyu, XIE Jiancang, YAN Dongfei, WANG Xiaojie

  1. State Key Laboratory of Eco-hydraulics in Northwest Arid Region of China, Xi'an University of Technology, Xi'an 710048, China
  • Received:2018-12-03 Revised:2019-01-11 Online:2019-10-15 Published:2019-01-24

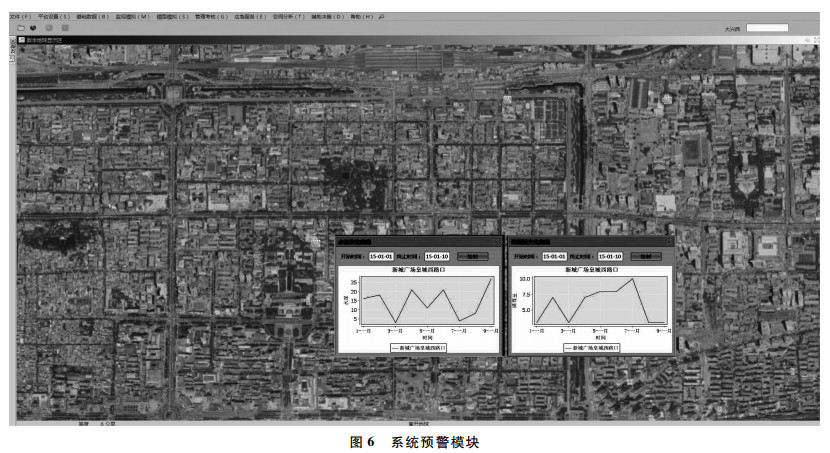

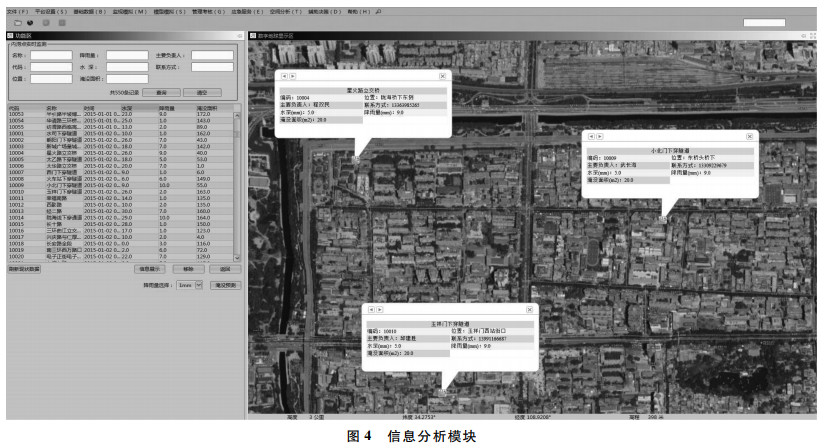

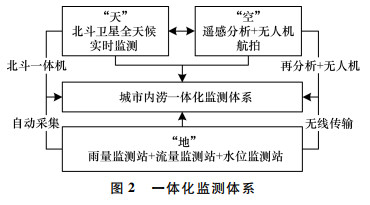

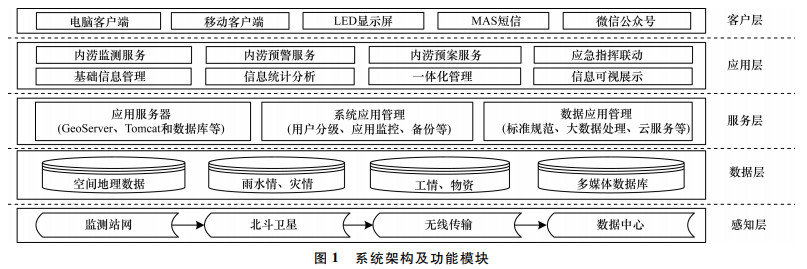

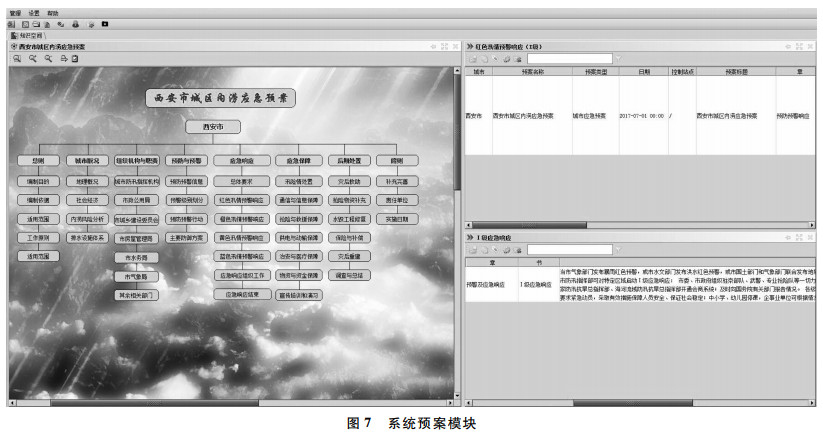

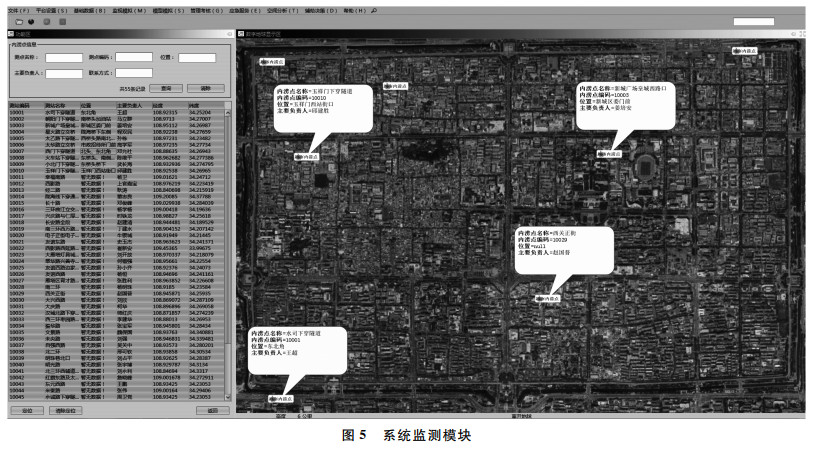

摘要: 为提升城市防洪减灾能力,通过融合北斗卫星监控、大数据分析、云服务和综合集成等技术,设计城市内涝三维可视化应急管理信息系统。构建包含感知层、数据层、服务层、应用层和客户层的系统体系架构,采用北斗技术实现多源信息的全天候、多维度动态监测与传输,同时基于Hadoop平台对海量数据资源进行分析和存储,构建城市三维可视化集成环境,利用综合集成技术为用户提供个性化的内涝应急管理服务。以西安市为研究区域,实现系统多源信息资源分析、内涝监测、内涝预警和内涝预案等功能模块。应用结果表明,该系统可提供全天候、多方位的内涝应急管理服务,适用性强、可扩展性好,能够为科学应对城市内涝提供决策支持。

关键词: 城市内涝, 管理信息系统, 三维可视化, 监测预警, 应急管理

Abstract: In order to improve the urban flood control and disaster relief capabilities,a three-dimensional visualization emergency management information system of urban waterlogging is designed integrating information technologies including Beidou satellite monitoring,big data analysis,cloud services and comprehensive integration,et al.The system architecture consists of perception layer,data layer,service layer,application layer and client layer.The Beidou technology is used to implement all-weather multi-dimensional dynamic monitoring and transmission of multi-source information.Massive data is analyzed and stored based on the Hadoop platform to propel the construction of the three-dimensional visualization integrated enviro.This system takes Xi'an city as a study object,providing function modules including multi-source information resource analysis,waterlogging monitoring,alarming and preplan.The results indicate that this system can provide all-weather,all-round waterlogging emergency management services.It has advantages such as strong usability and good scalability,which can provide decision support for scientific urban waterlogging response.

Key words: urban waterlogging, management information system, three-dimensional visualization, monitoring and alarming, emergency management
