计算机工程 ›› 2020, Vol. 46 ›› Issue (11): 214-222,230.doi: 10.19678/j.issn.1000-3428.0055742

• 移动互联与通信技术 • 上一篇    下一篇

战术通信网中EIGRP路由协议的应用研究

韩婷婷, 刘强, 孙延涛, 郭首江

  1. 北京交通大学 计算机与信息技术学院, 北京 100044
  • 收稿日期:2019-08-14 修回日期:2019-11-09 发布日期:2019-11-15
  • 作者简介:韩婷婷(1995-),女,硕士研究生,主研方向为战术通信网、数据链技术;刘强、孙延涛,副教授;郭首江,硕士研究生。
  • 基金项目:
    中央高校基本科研业务费专项资金(2018JBM012)。

Application Research of EIGRP Routing Protocol in Tactical Communication Network

HAN Tingting, LIU Qiang, SUN Yantao, GUO Shoujiang

  1. School of Computer and Information Technology, Beijing Jiaotong University, Beijing 100044, China
  • Received:2019-08-14 Revised:2019-11-09 Published:2019-11-15

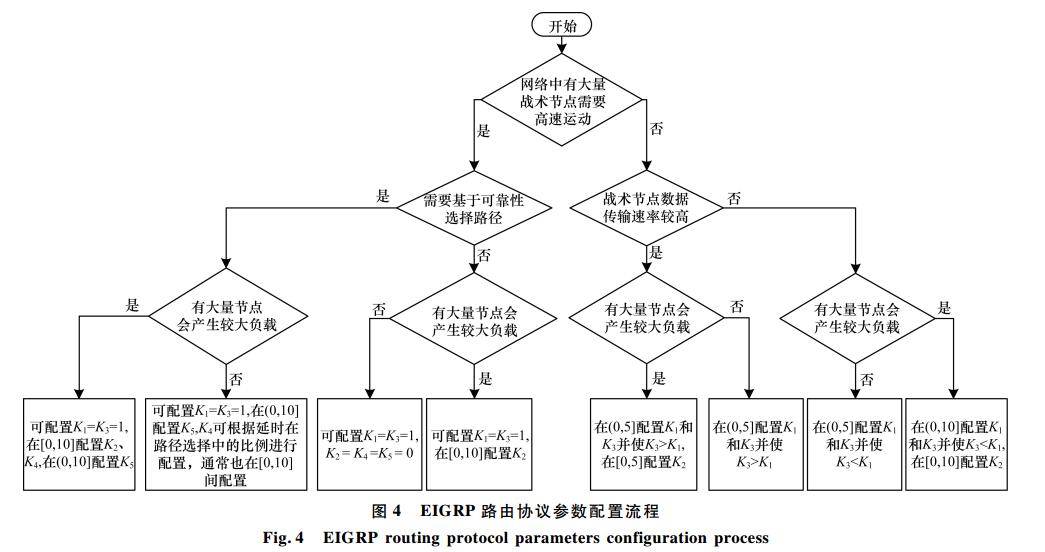

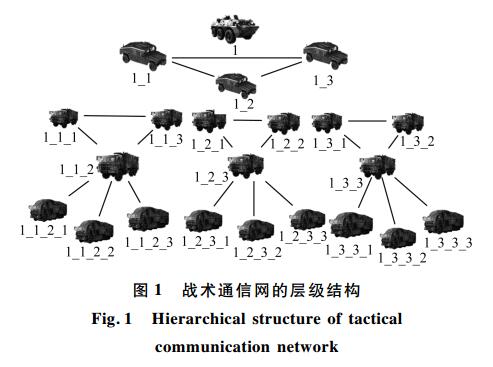

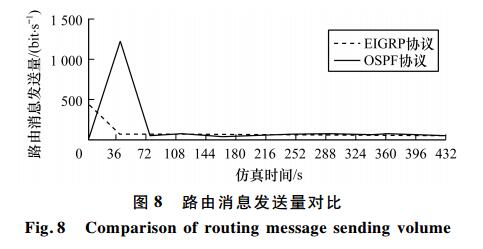

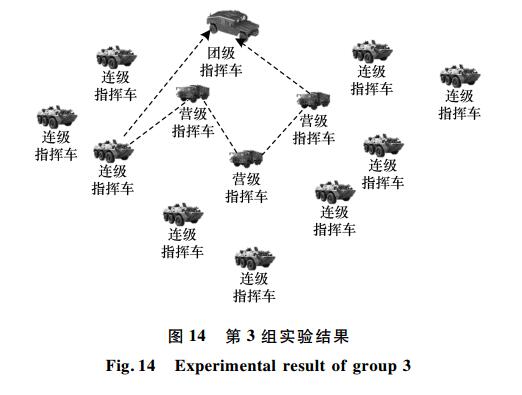

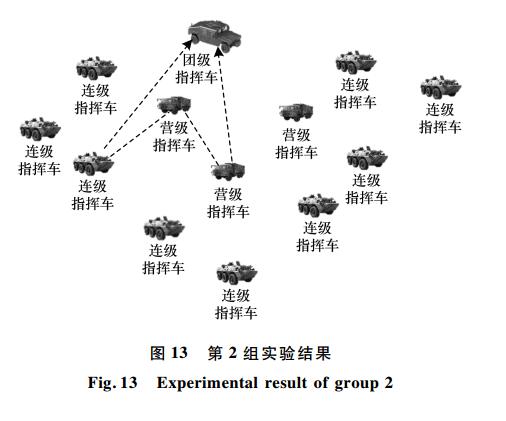

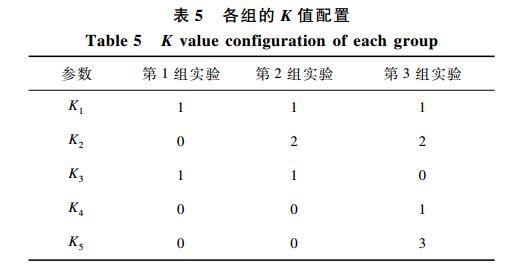

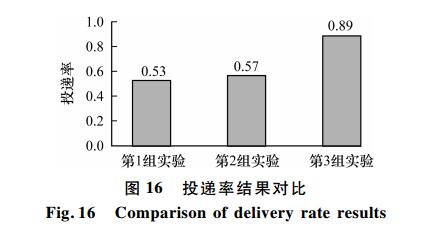

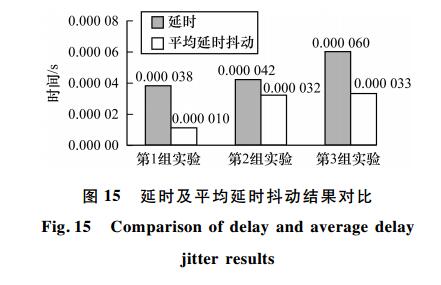

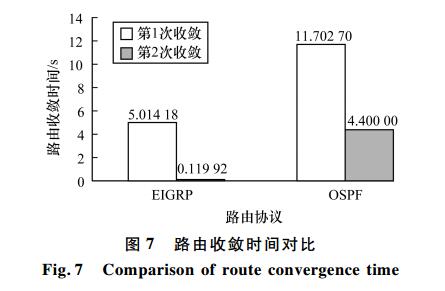

摘要: 为了提升战场环境下的通信质量,根据战术通信网的异构网络特点,将EIGRP路由协议与战术通信网相结合,依据典型战术建制总结归纳战术通信网的体系结构并构建战术通信网层级结构中的节点逻辑模型,在此基础上,提出一种战术通信网中的EIGRP路由协议参数配置基本原则。基于OPNET仿真工具进行实验对比,结果表明,相比OSPF路由协议,EIGRP路由协议在战术通信网中的网络恢复时间更短,路由峰值更低,且不同的参数配置可以产生符合不同需求的选路结果。

关键词: EIGRP路由协议, 战术通信网, OPNET仿真工具, 路径计算, 节点逻辑模型

Abstract: In order to improve the communication performance in the battlefield environment,this paper combines the EIGRP routing protocol with the tactical communication network according to the features of the heterogeneous tactical communication network.Based on the typical tactical organization system,this paper summarizes the architecture of the tactical communication network,and constructs the logic model of nodes in the hierarchical structure of the tactical communication network.On this basis,the basic principles of configuring the parameters of the EIGRP routing protocol in tactical communication network is proposed.Experiments in comparison are carried out by using the OPNET simulation tools.The results show that compared with the OSPF routing protocol,the EIGRP routing protocol provides reduced network recovery time and routing peak in tactical communication network.Also,it can produce routing results that meet different requirements by using different parameter configurations.

Key words: EIGRP routing protocol, tactical communication network, OPNET simulation tool, path calculation, logic model of node
