基于二元指数后退算法的LoRaWAN协议

doi:10.19678/j.issn.1000-3428.0053199

计算机工程 ›› 2019, Vol. 45 ›› Issue (12): 103-108,133. doi: 10.19678/j.issn.1000-3428.0053199

基于二元指数后退算法的LoRaWAN协议

屈春晓, 任久春, 朱谦

复旦大学信息科学与工程学院, 上海 200433

收稿日期:2018-11-22 修回日期:2018-12-27 发布日期:2019-12-10
作者简介:屈春晓(1994-),女,硕士研究生,主研方向为无线通信、物联网技术;任久春,讲师;朱谦,副教授。
基金资助:
上海市体育科技"综合计划"项目（162019）。

LoRaWAN Protocol Based on Binary Exponential Backoff Algorithm

QU Chunxiao, REN Jiuchun, ZHU Qian

School of Information Science and Technology, Fudan University, Shanghai 200433, China

Received:2018-11-22 Revised:2018-12-27 Published:2019-12-10

摘要/Abstract

摘要： 通过对LoRaWAN协议信道接入过程进行分析，发现其在网络负载大的情况下数据传输成功率较低。考虑到提高传输成功率能够有效减少终端重传的次数，降低功耗从而延长终端寿命，因此将LoRaWAN协议与二元指数后退算法相结合，提出一种改进协议。采用简单状态机描述原始协议和改进协议的数据传输过程，并利用概率分析进行数学建模。基于MATLAB的仿真结果表明，改进协议能够有效提升网络传输成功率，虽然网络平均延时相应增加，但可通过增大带宽补偿此方面不足。

关键词: 低功耗广域网, LoRaWAN协议, LoRa调制, 二元指数后退算法, 信道接入

Abstract: Analysis on the channel access of the LoRaWAN protocol indicates that the success rate of data transmission is low under heavy network load.However,a high success rate of data transmission is required to save energy and extend the life of terminal devices by reducing retransmission times.To address the problem,this paper proposes an improved protocol combining the LoRaWAN protocol and the binary exponential backoff algorithm.Data transmission of the original protocol and the improved protocol are described by using simple state machines,and modeled mathematically by using probability analysis.Matlab-based simulation results show that the constructed mathematical model matches actual states of the system,and the improved protocol can efficiently increase the success rate of network transmission.Though the average network delay is also increased,it can be offset by adding bandwidth.

Key words: Low-Power Wide-Area Network(LPWAN), LoRaWAN protocol, LoRa modulation, binary exponential backoff algorithm, channel access

中图分类号:

TP393

屈春晓, 任久春, 朱谦. 基于二元指数后退算法的LoRaWAN协议[J]. 计算机工程, 2019, 45(12): 103-108,133.

QU Chunxiao, REN Jiuchun, ZHU Qian. LoRaWAN Protocol Based on Binary Exponential Backoff Algorithm[J]. Computer Engineering, 2019, 45(12): 103-108,133.

http://www.ecice06.com/CN/Y2019/V45/I12/103

图/表 10

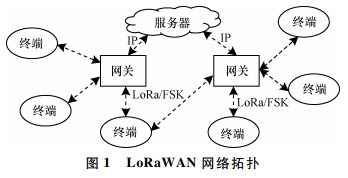

20191214132136

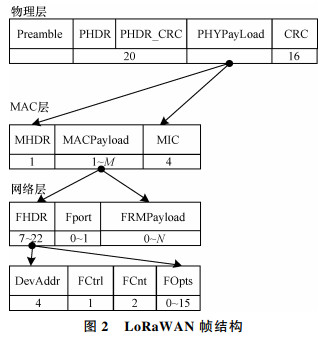

20191214132141

20191214132145

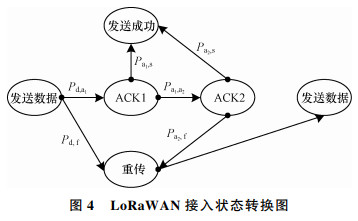

20191214132149

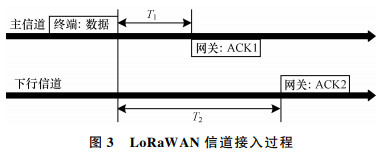

20191214132152

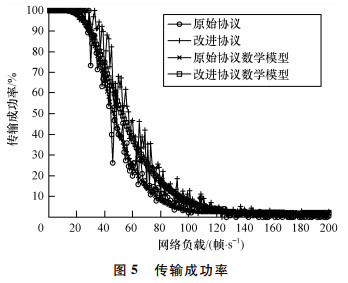

20191214132154

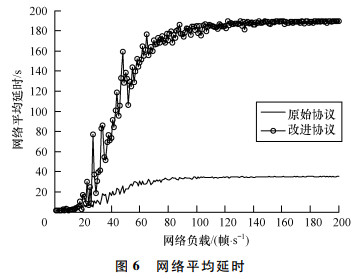

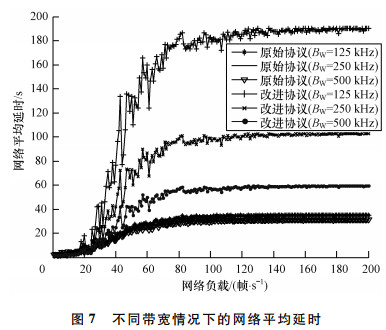

20191214132157

20191214132200

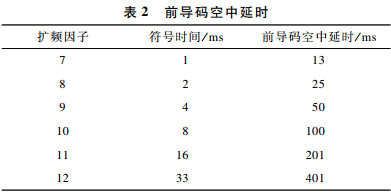

20191214132208

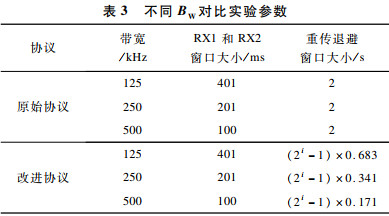

20191214132211

参考文献

[1] ZHENG Ning,YANG Xi,WU Shuangli.A survey of low-power wide-area network technology[J].Information and Communications Technologies,2017(1):47-54.(in Chinese) 郑宁,杨曦,吴双力.低功耗广域网络技术综述[J].信息通信技术,2017(1):47-54.
[2] ZHAO Jing,SU Guangtian.Analysis on LoRa wireless network technology[J].Mobile Communications,2016,40(21):50-57.(in Chinese) 赵静,苏光添.LoRa无线网络技术分析[J].移动通信,2016,40(21):50-57.
[3] TIAN Jingbo.LPMA IoT technology[J].Communications Technology,2017,50(8):1747-1751.(in Chinese) 田敬波.LPWA物联网技术发展研究[J].通信技术,2017,50(8):1747-1751.
[4] CENTENARO M,VANGELISTA L,ZANELLA A,et al.Long-range communications in unlicensed bands:the rising stars in the IoT and smart city scenarios[J].IEEE Wireless Communications,2015,23(5):60-67.
[5] VANGELISTA L,ZANELLA A,ZORZI M.Long-range IoT tchnologies:the dawn of LoRa^TM[C]//Proceedings of International Conference on Future Access Enablers of Ubiquitous and Intelligent Infrastructures.Berlin,Germany:Springer,2015:51-58.
[6] GOURSAUD C,GORCE J M.Dedicated networks for IoT:PHY/MAC state of the art and challenges[J].EAI Endorsed Transactions on Internet of Things,2015,1(1):10-15.
[7] BANKOV D,KHOROV E,LYAKHOV A.On the limits of LoRaWAN channel access[C]//Proceedings of International Conference on Engineering and Telecommuni-cation.Washington D.C.,USA:IEEE Press,2017:10-14.
[8] ADELANTADO F,VILAJOSANA X,TUSET-PEIRO P,et al.Understanding the limits of LoRaWAN[J].IEEE Communications Magazine,2017,55(9):34-40.
[9] BANKOV D,KHOROV E,LYAKHOV A.Mathematical model of LoRaWAN channel access[C]//Proceedings of IEEE International Symposium on a World of Wireless,Mobile and Multimedia Networks.Washington D.C.,USA:IEEE Press,2017.
[10] TOUSSAINT J,RACHKIDY N E,GUITTON A.Performance analysis of the on-the-air activation in LoRaWAN[C]//Proceedings of Information Technology,Electronics and Mobile Communication Conference.Washington D.C.,USA:IEEE Press,2016:1-7.
[11] TANG Shan.Research and implementation of wide-area Internet of things technology based on LoRaWan[D].Chengdu:University of Electronic Science and Technology of China,2018.(in Chinese) 唐山.基于LoRaWan的广域物联网技术研究及实现[D].成都:电子科技大学,2018.
[12] LI Lingyi.Research on maritime data monitoring system and self-organizing network protocol based on LoRa technology[D].Shanghai:Fudan University,2018.(in Chinese) 李凌翎.基于LoRa技术的海上数据监测系统及自组织网络协议研究[D].上海:复旦大学,2018.
[13] AUGUSTIN A,YI Jiazi,CLAUSEN T,et al.A study of LoRa:long range & low power networks for the Internet of things[J].Sensors,2016,16(9):1466.
[14] YAO Cheng.Research on wireless network media access control protocol[D].Hefei:University of Science and Technology of China,2009.(in Chinese)姚程.无线网络媒体访问控制协议研究[D].合肥:中国科学技术大学,2009.
[15] TANENBAUM A S.Computer networks[M].Translated by PAN Aiming.Beijing:Tsinghua University Press,2004.(in Chinese) TANENBAUM A S.计算机网络[M].潘爱民,译.北京:清华大学出版社,2004.
[16] LIAO Chunhao,ZHU Guibing,KUWABARA D,et al.Multi-hop LoRa networks enabled by concurrent transmission[J].IEEE Access,2017,5:21430-21446.
[17] WAN Fen.Discussion on LoRa Internet of things technology and application[J].Telecom World,2017(2):91-92.(in Chinese)万芬.浅谈LoRa物联网技术及应用[J].通讯世界,2017(2):91-92.
