计算机工程 ›› 2021, Vol. 47 ›› Issue (7): 146-154. doi: 10.19678/j.issn.1000-3428.0058072

• 移动互联与通信技术 • 上一篇    下一篇

面向密集热点区域的多层异构网络建模方案

吕亚平1, 贾向东1,2, 陈玉宛1, 路艺1

  1. 1. 西北师范大学 计算机科学与工程学院, 兰州 730070;
    2. 南京邮电大学 江苏省无线通信重点实验室, 南京 210003
  • 收稿日期:2020-04-15 修回日期:2020-06-02 发布日期:2020-06-24
  • 作者简介:吕亚平(1994-),女,硕士研究生,主研方向为无线通信、深度学习;贾向东,教授、博士;陈玉宛、路艺,硕士研究生。
  • 基金资助:
    国家自然科学基金(61861039,61561043);甘肃省科技计划“无人机关键技术研究”(18YF1GA060);西北师范大学青年教师科研能力提升计划创新团队项目“下一代无线网络关键技术”。

Modeling Scheme of Multi-Layer Heterogeneous Network for Dense Hotspot Area

Lü Yaping1, JIA Xiangdong1,2, CHEN Yuwan1, LU Yi1

  1. 1. College of Computer Science and Engineering, Northwest Normal University, Lanzhou 730070, China;
    2. Wireless Communication Key Lab of Jiangsu Province, Nanjing University of Posts and Telecommunications, Nanjing 210003, China
  • Received:2020-04-15 Revised:2020-06-02 Published:2020-06-24

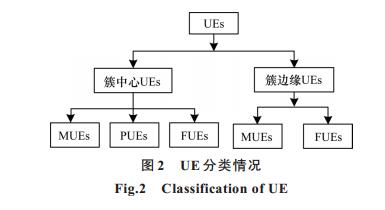

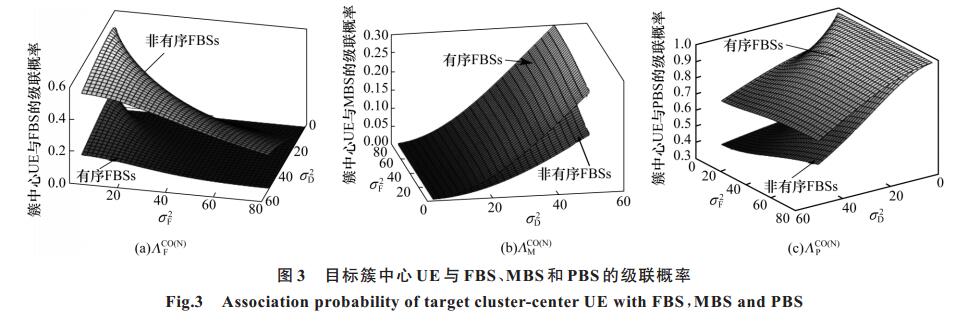

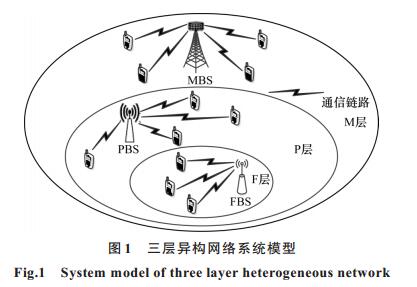

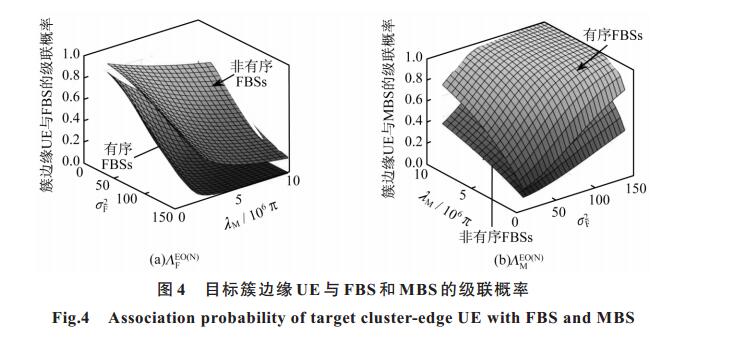

摘要: 针对5G/B5G网络热点通信场景中基站(BS)部署的异构性以及用户设备(UE)与BS之间的耦合问题,提出一种面向密集热点区域的三层异构网络建模方案。将宏BS (MBS)和微微BS (PBS)的位置建模为泊松点过程,将分散在热点中心的UE和低功耗毫微微BS (FBS)建模为泊松簇过程,将PBS覆盖范围之外的UE和FBS建模为两个独立的泊松洞过程。在此基础上,设计UE分类和级联准则,推导簇中心和簇边缘UE的级联概率与级联距离的统计表达式,并考虑有序FBS和非有序FBS的两种级联情况。实验结果表明,当目标UE与FBS级联时,非有序FBS情况下的级联概率优于有序FBS情况,当目标UE与MBS或PBS级联时,有序FBS情况下的级联概率优于非有序FBS情况。

关键词: 5G/B5G异构网络, 用户设备分类, 泊松点过程, 泊松簇过程, 泊松洞过程, 级联概率

Abstract: To address the heterogeneity in Base Station(BS) deployment and the coupling between User Equipment (UE) and BS in the hotspot communication scenario of the fifth-generation(5G)/beyond 5G(B5G) networks,this paper proposes a three-layer heterogeneous network modeling scheme for dense hotspot areas.The locations of MBS and PBS are modeled as Poisson Point Processes(PPP),the UEs and low-power FBS scattered around the centers of hotspots are modeled as Poisson Cluster Process(PCP),and the UE and FBS outside the coverage of PBS are modeled as two independent Poisson Hole Processes(PHP).On this basis,this paper constructs the criteria of UE classification and association,and derives the statistical descriptions of the association probability and association distance of UEs in the cluster center and the cluster edge,considering two association cases of ordered FBS and non-ordered FBS.The experimental results show that when the target UE is associated with FBS,the association probability in the case of non-ordered FBS is higher than that in the case of ordered FBS.When the target UE is associated with MBS or PBS,the association probability in the case of ordered FBS is higher than that in the case of non-ordered FBS.

Key words: 5G/B5G heterogeneous network, user equipment classification, Poisson Point Process(PPP), Poisson Cluster Process(PCP), Poisson Hole Process(PHP), association probability
