基于滑动时间窗的物联网设备流量分类算法

doi:10.19678/j.issn.1000-3428.0064882

摘要/Abstract

摘要：

现有的物联网设备流量分类方案多依赖完整的流或流的前几个数据包。依赖完整的流会使流量数据增多，从而增加计算复杂度与存储资源的消耗，但物联网设备的存储空间与CPU性能都十分有限；而依赖流的前几个数据包，若其部分数据包丢失就会导致分类效果变差。针对上述问题，提出一种基于滑动时间窗口的随机森林物联网设备流量分类算法，利用物联网流量信息来表征各种设备的属性。首先，基于物联网设备流量时间依赖性的特点，利用滑动时间窗口将流划分为多个时间周期为T的子流；然后，基于物联网设备流量的加密特性，从子流中提取流信息与流头部的数据包信息建立特征向量；最后，基于随机森林随机抽样和随机选特征的特性构建分类模型，以增强模型的泛化能力，进一步提高分类性能。在公开数据集UNSW上的实验结果表明，该算法的分类准确率为96.23%、精确率为94.8%、召回率为91.47%、F1值为93%，具有较好的分类效果。

关键词: 物联网, 流量分类, 网络安全, 随机森林, 设备管理, 服务质量

Abstract:

Existing traffic classification schemes for Internet of Things(IoT) devices rely mostly on the complete flow or the first few packets of the flow.If the scheme relies on the complete flow, this will lead to more data, thus increasing the computing complexity and storage resource consumption, however, the storage space and CPU performance of IoT devices are very limited; if the scheme relies on the first few packets of the flow, if some of the first several packets that depend on the flow are lost, the classification effect is poor. To solve these problems, this paper proposes a random forest traffic classification algorithm for IoT devices based on sliding time window.This algorithm uses IoT traffic information to characterize the attributes of various devices.First, based on the time-dependent characteristics of the flow of IoT devices, the flow is divided into several sub-flows with a period of T using a sliding time window. Second, based on the encryption characteristics of the IoT device traffic, the flow and packet information of the flow head are extracted from the sub-flow to establish the feature vector. Finally, a classification model is constructed based on the characteristics of random sampling and randomly selected features of the random forest to enhance the generalization ability of the model and further improve the classification performance. The experimental results on the public dataset UNSW show that the classification accuracy, precision, recall rate, and F1 value are 96.23%, 94.8%, 91.47%, and 93%, respectively, indicating good classification accuracy.

Key words: Internet of Things(IoT), traffic classification, network security, random forest, device management, Quality of Service(QoS)

余长宏, 陆雅, 王海鑫, 高明. 基于滑动时间窗的物联网设备流量分类算法[J]. 计算机工程, 2023, 49(7): 259-268.

Changhong YU, Ya LU, Haixin WANG, Ming GAO. Traffic Classification Algorithm for IoT Device Based on Sliding Time Window[J]. Computer Engineering, 2023, 49(7): 259-268.

http://www.ecice06.com/CN/Y2023/V49/I7/259

图/表 16

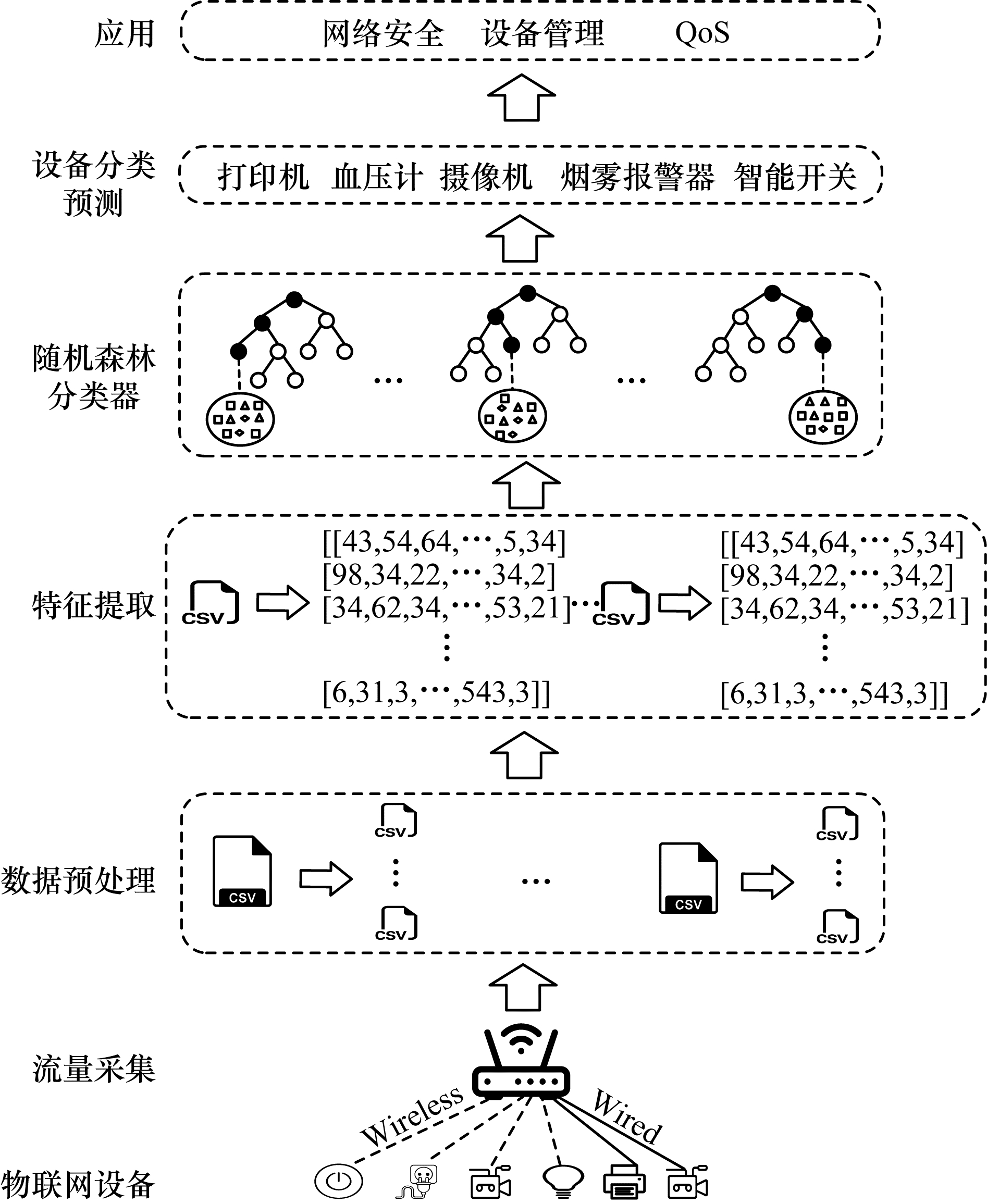

图1 物联网设备流量分类流程

Fig.1 IoT device traffic classification procedure

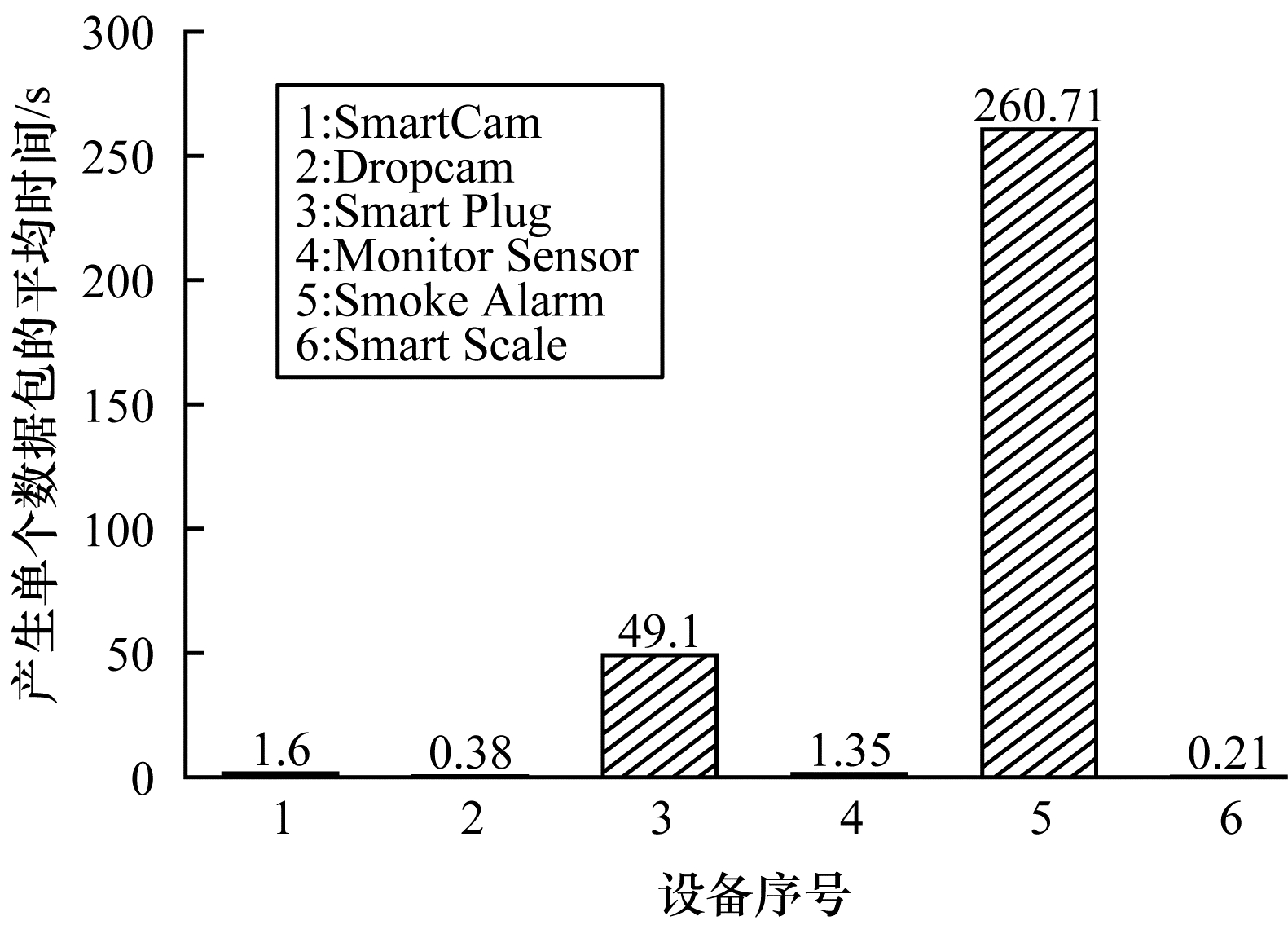

图2 设备产生单个数据包的平均时间

Fig.2 The average time for the device to generate a single packet

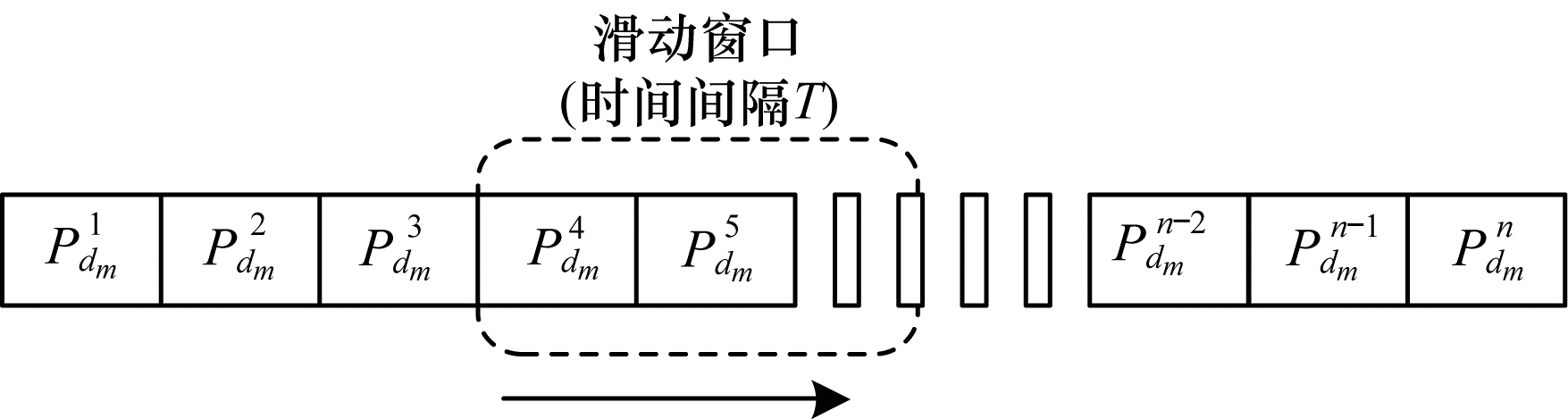

图3

$ {\mathit{S}}_{{\mathit{d}}_{\mathit{m}}}^{\mathit{j}} $

流量分割过程

Fig.3

$ {\mathit{S}}_{{\mathit{d}}_{\mathit{m}}}^{\mathit{j}} $

traffic splitting process

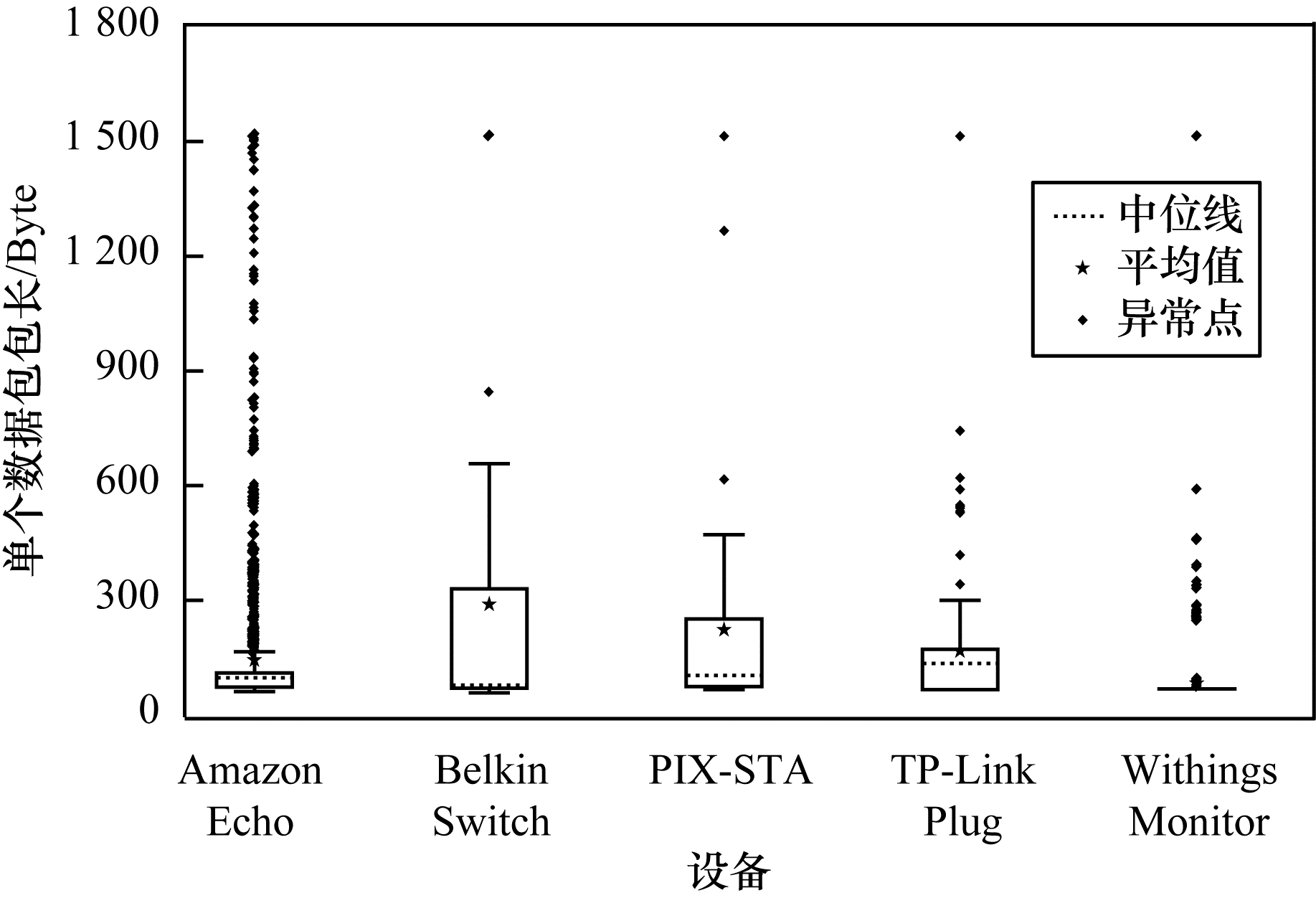

图4 单个数据包包长分布

Fig.4 Packet length distribution of a single data packet

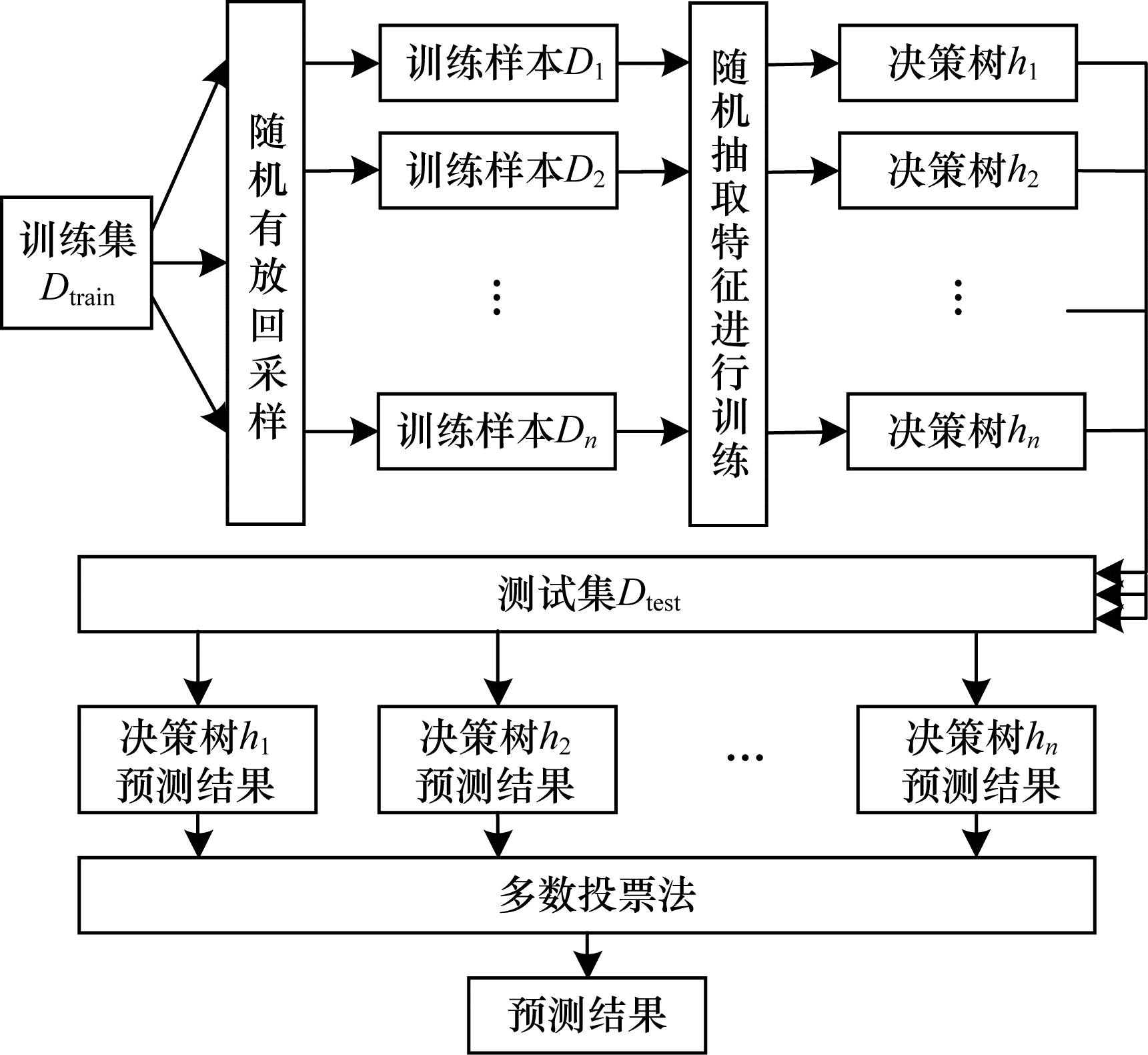

图5 随机森林模型

Fig.5 Random forest model

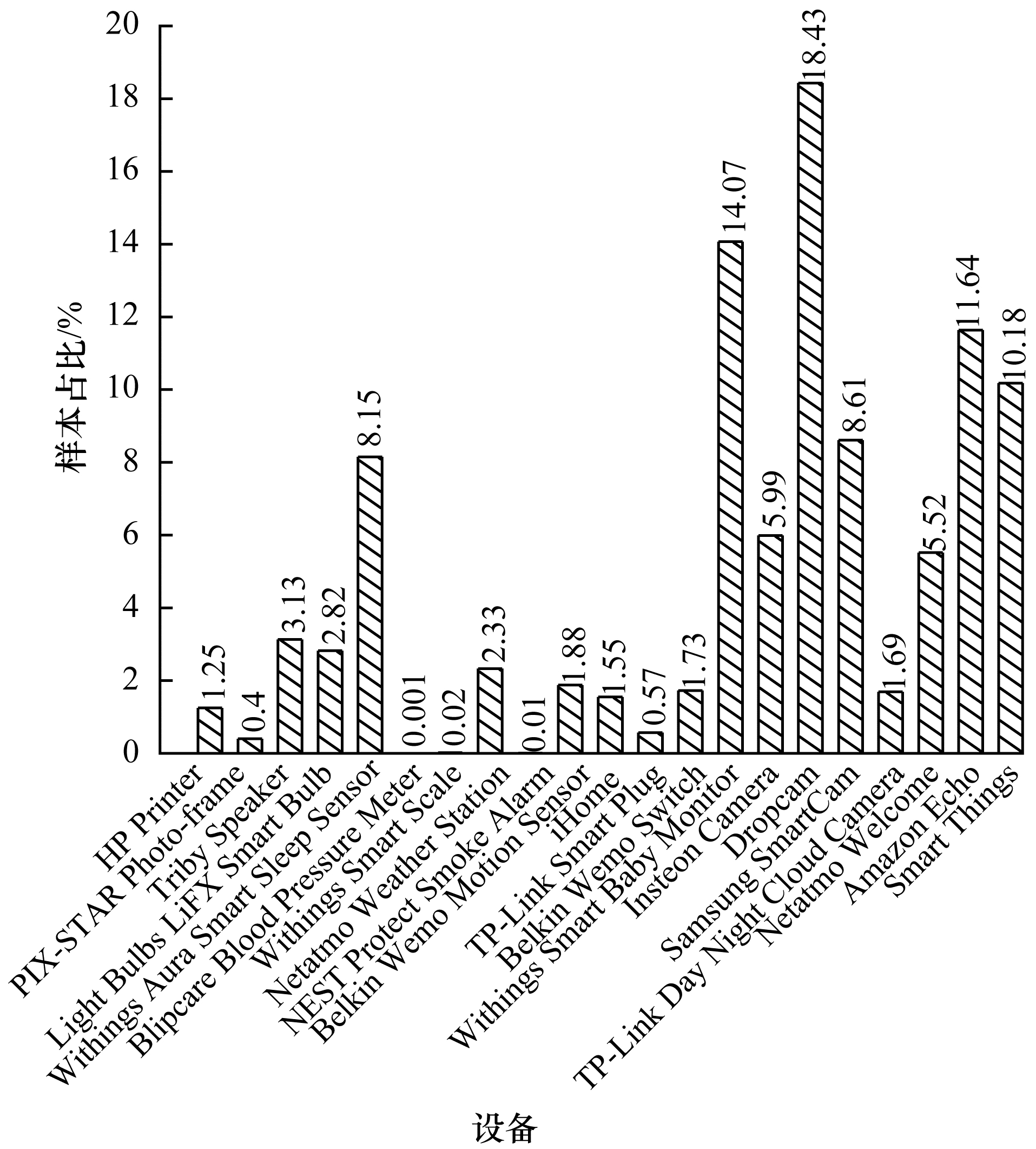

图6 样本分布

Fig.6 Sample distribution

图7 样本分类情况

Fig.7 Sample classification

表1 算法分类效果

Table 1 Algorithm classification effect %

序号	设备名称	精确率	召回率	F1值
1	Smart Things	97	98	98
2	Amazon Echo	80	94	86
3	Netatmo Welcome	95	73	83
4	TP-Link Day Night Cloud Camera	100	100	100
5	Samsung SmartCam	100	100	100
6	Dropcam	99	97	98
7	Insteon Camera	98	95	97
8	Withings Smart Baby Monitor	87	79	83
9	Belkin Wemo Switch	100	76	86
10	TP-Link Smart Plug	100	98	99
11	iHome	96	100	98
12	Belkin Wemo Motion Sensor	100	82	90
13	NEST Protect Smoke Alarm	99	97	98
14	Netatmo Weather Station	97	100	99
15	Withings Smart Scale	100	90	95
16	Blipcare Blood Pressure Meter	100	97	99
17	Withings Aura Smart Sleep Sensor	79	81	80
18	Light Bulbs LiFX Smart Bulb	100	100	100
19	Triby Speaker	94	96	95
20	PIX-STAR Photo-frame	99	86	92
21	HP Printer	71	82	76
平均值		95	91	93

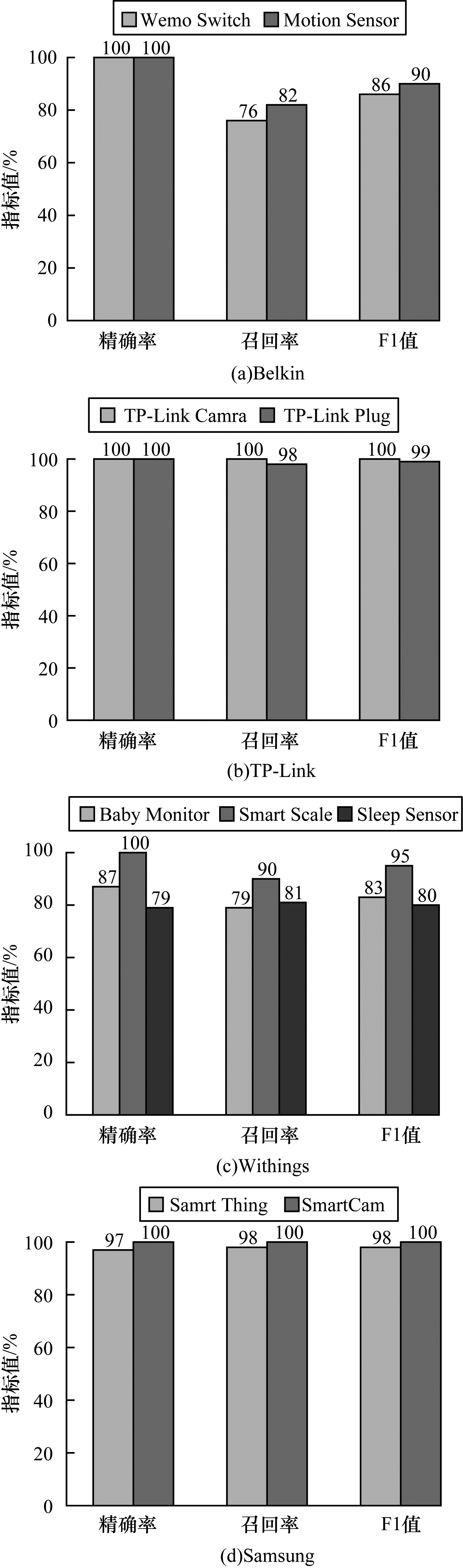

图8 相同厂家不同设备性能对比

Fig.8 Performance comparison of different equipments from the same manufacturer

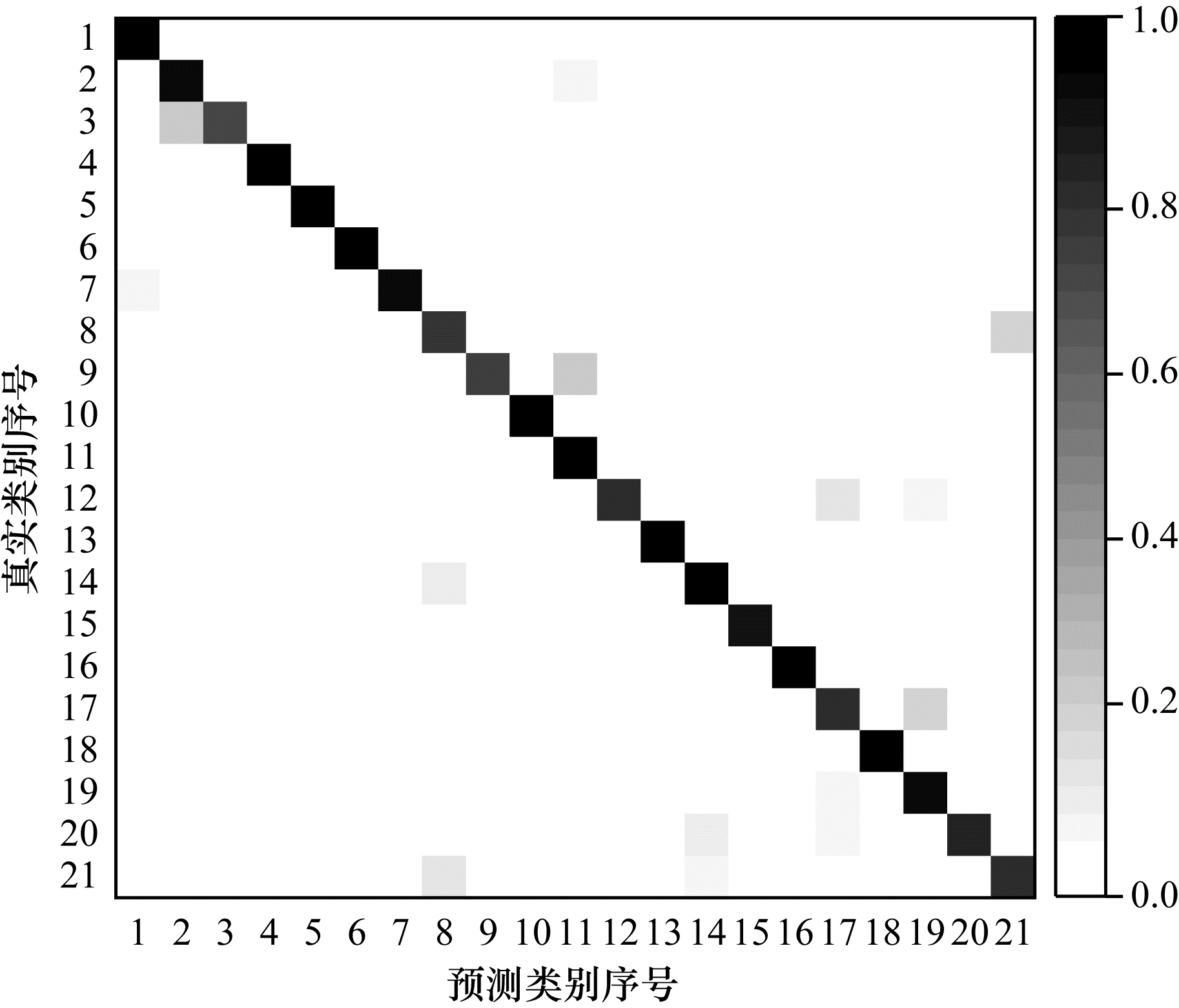

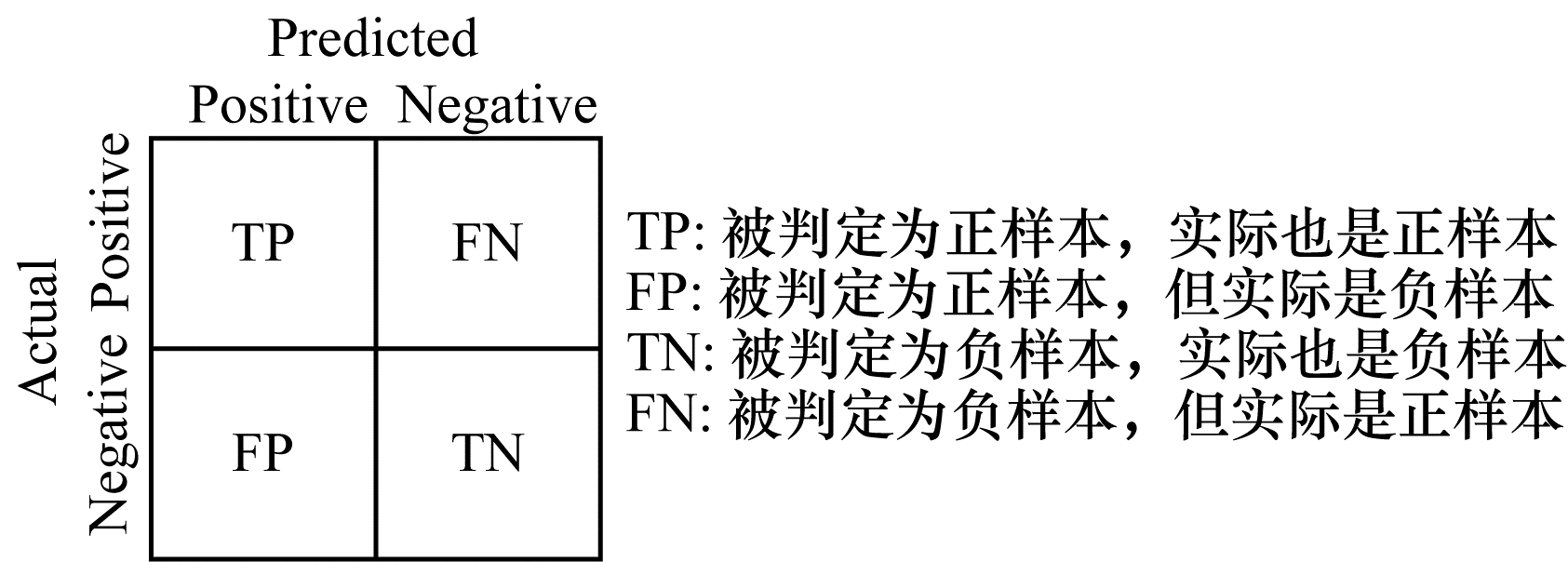

图9 混淆矩阵

Fig.9 Confusion matrix

表2 流量分类效果对比

Table 2 Comparison of traffic classification effect

算法	准确率/%	召回率/%	F1值/%	运算时间/s
本文算法(21类)	96.23	91.47	93	20
本文算法(14类)	98.00	94.00	96	—
文献[25]算法	96.00	96.00	96	—
文献[27]算法	82.00	67.00	74	18

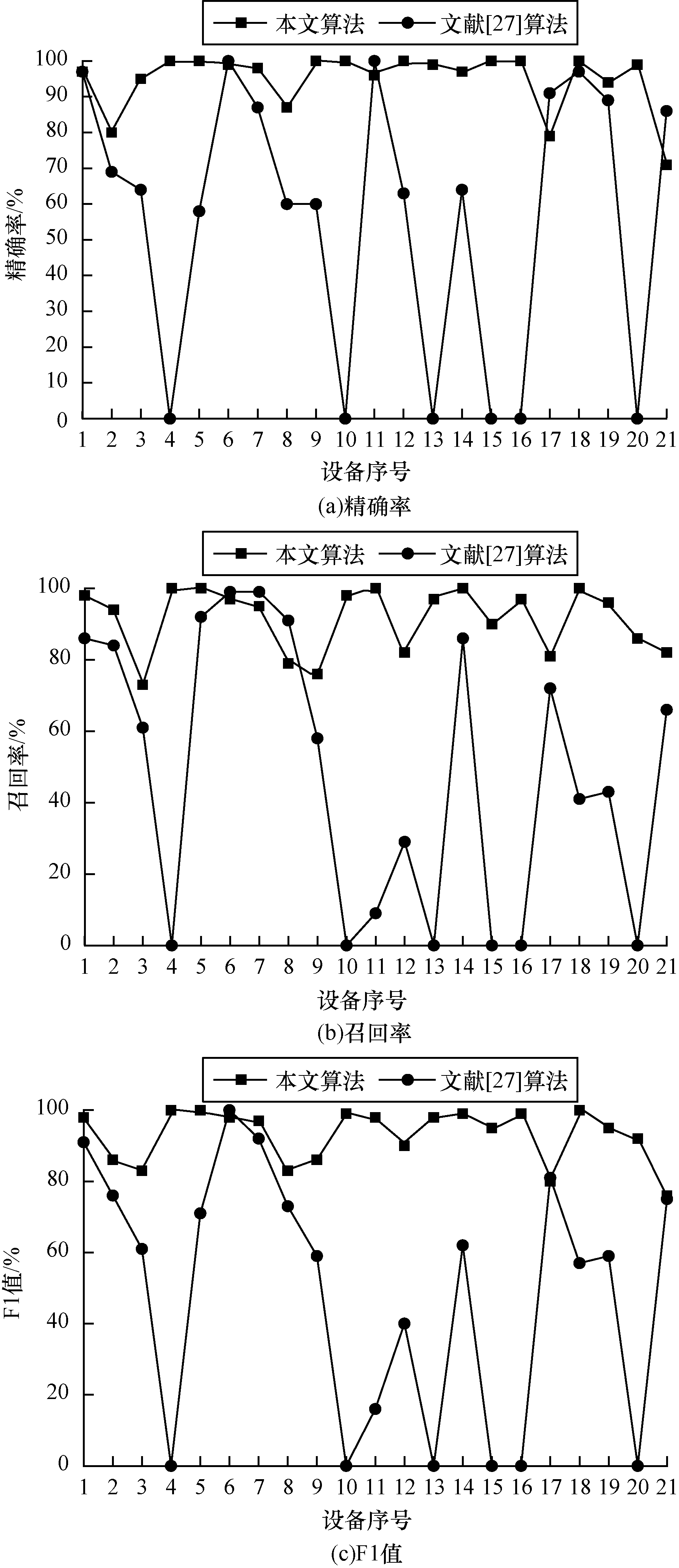

图10 各设备分类效果对比

Fig.10 Comparison of each equipment classification effect

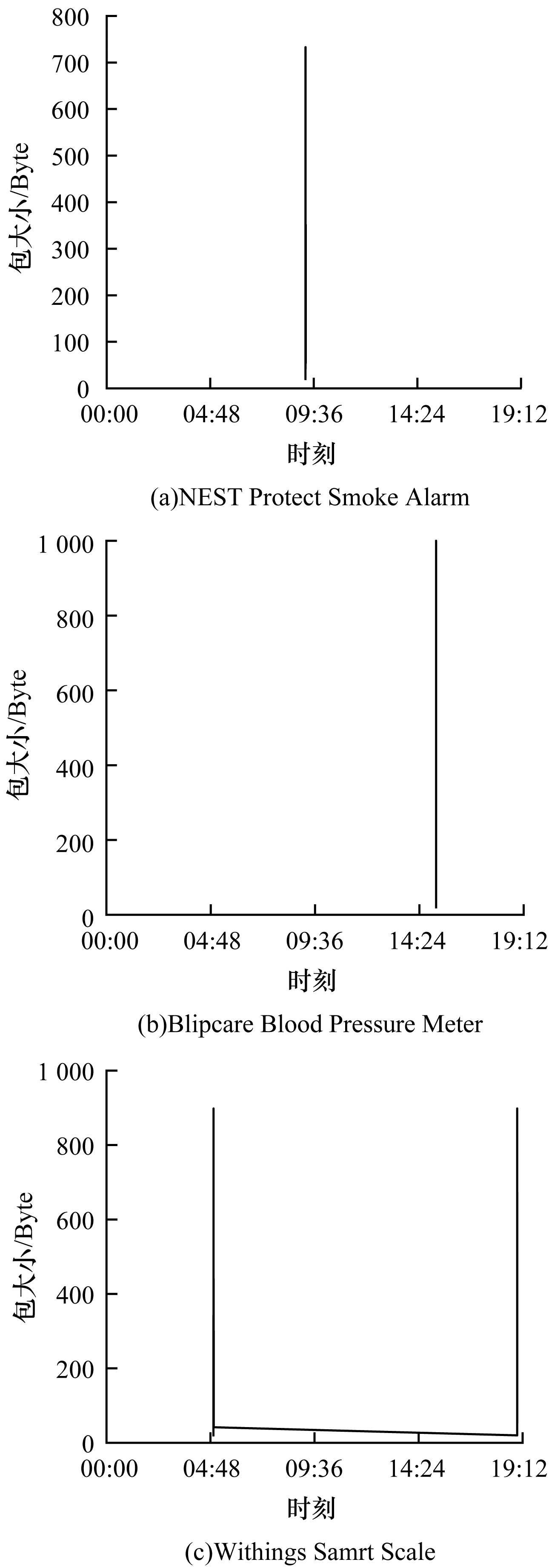

图11 流量统计图

Fig.11 Traffic statistics diagram

表3 流信息对比

Table 3 Flow information comparison %

特征向量	准确率	精确率	召回率	F1值
流信息特征	98	98	94	96
无流信息特征	96	96	94	95

表4 分类模型对比

Table 4 Classification model comparison

模型	准确率/%	精确率/%	召回率/%	F1值/%	训练时间/s
决策树	96.00	95.8	90.30	93	2.10
随机森林	96.23	94.8	91.47	93	12.23
KNN	95.68	87.0	85.00	86	6.50
SVM	93.15	93.0	86.15	89	7 865.00

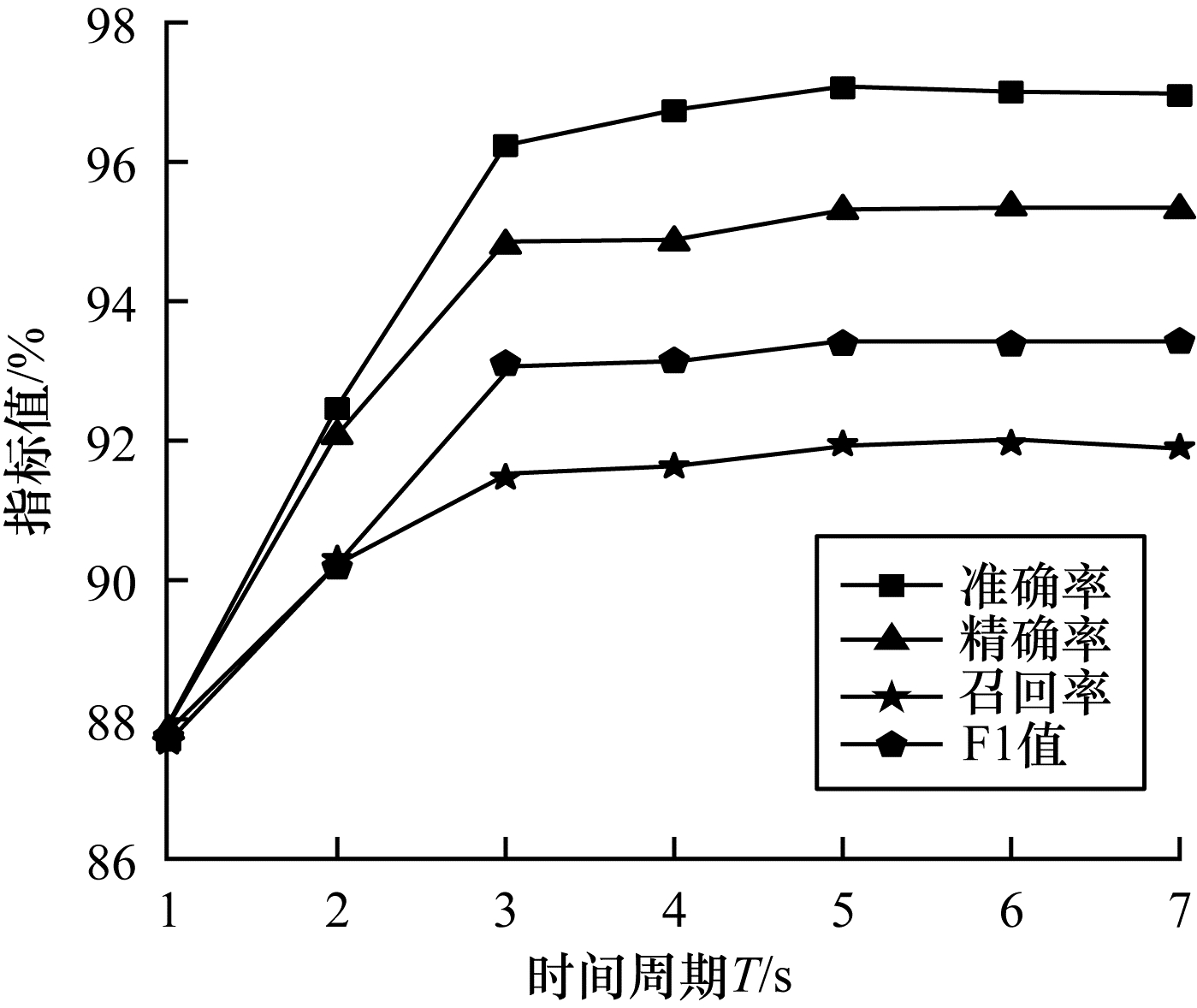

图12 时间窗口对比

Fig.12 Comparison of time window
