基于多尺度时空特征和软注意力机制的交通流预测方法

doi:10.19678/j.issn.1000-3428.0068659

摘要/Abstract

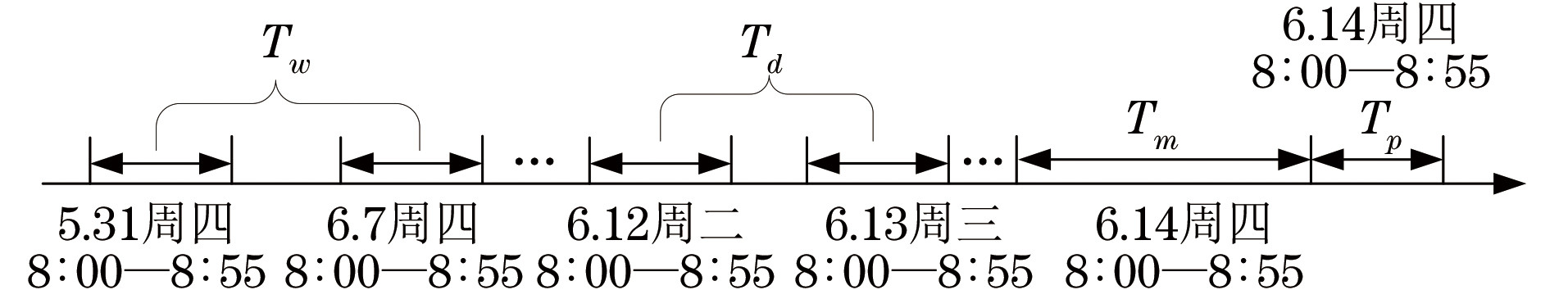

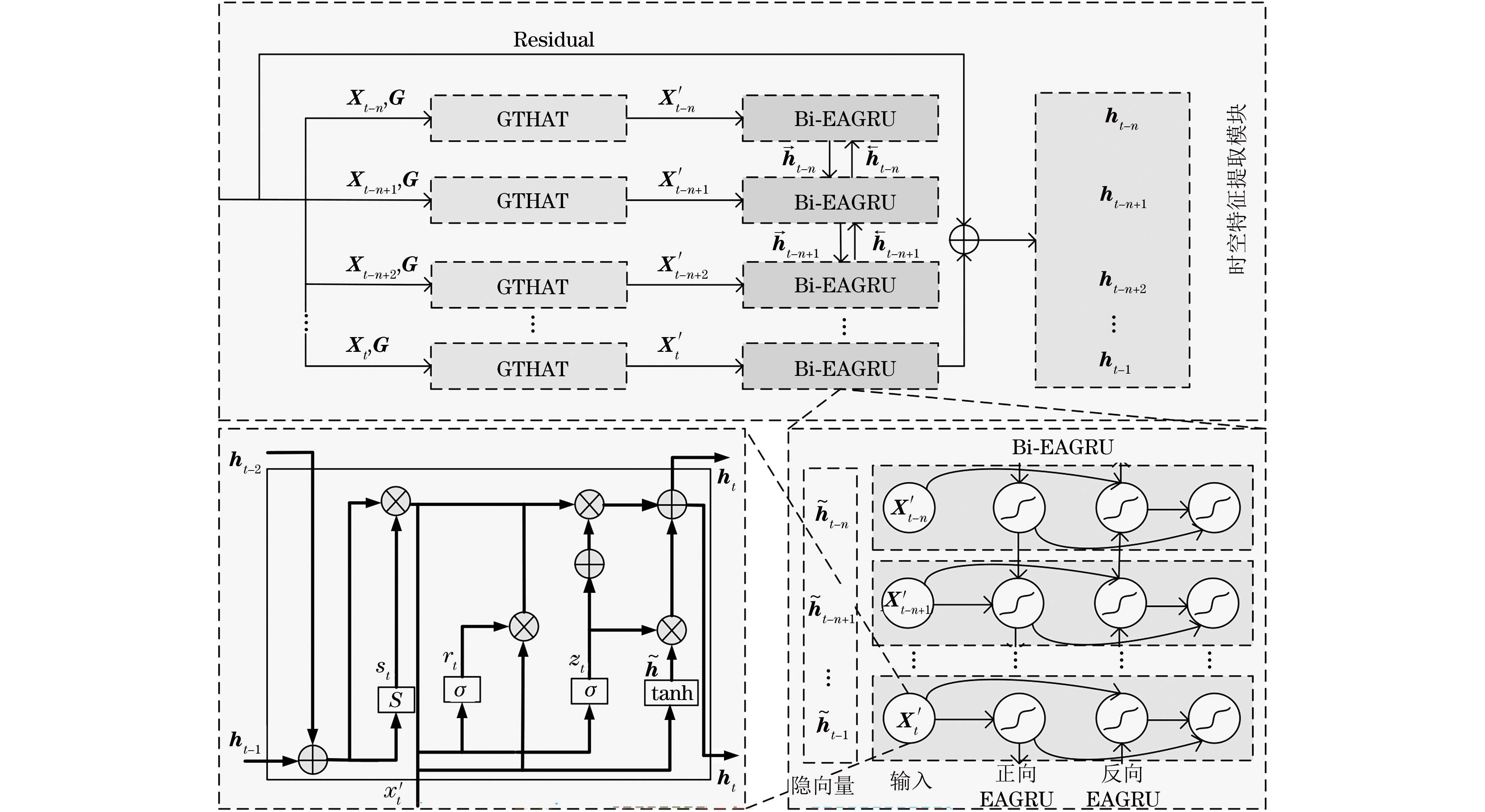

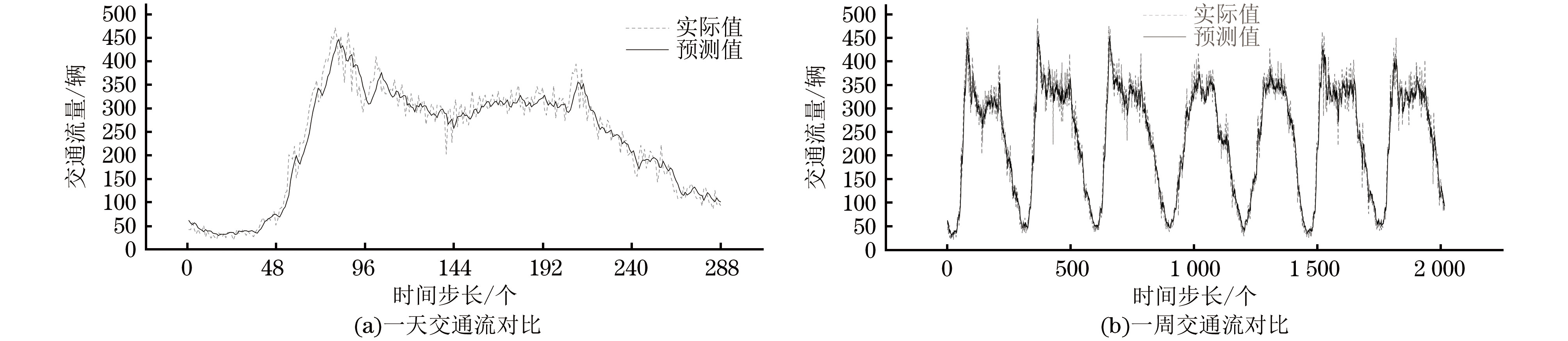

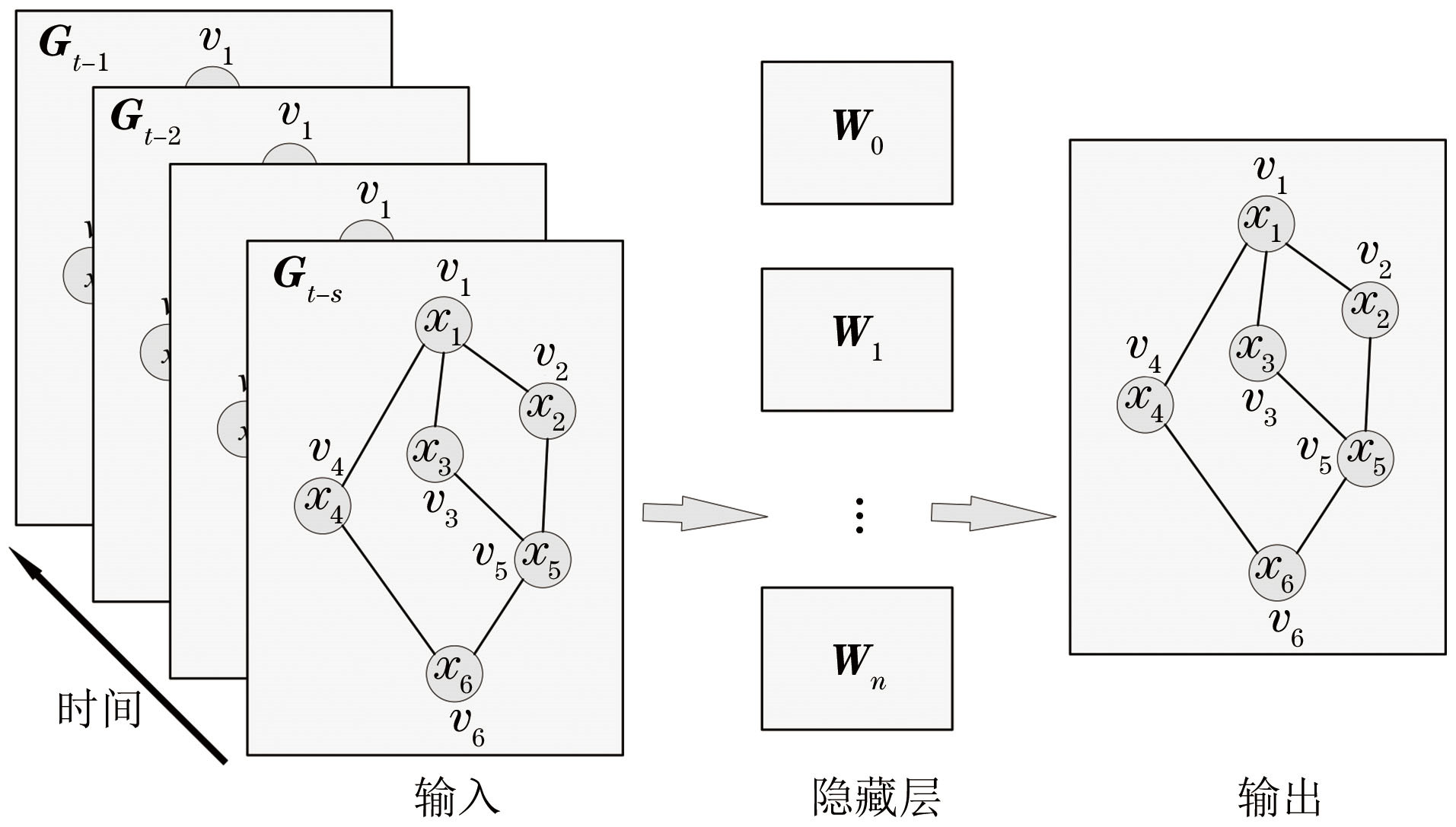

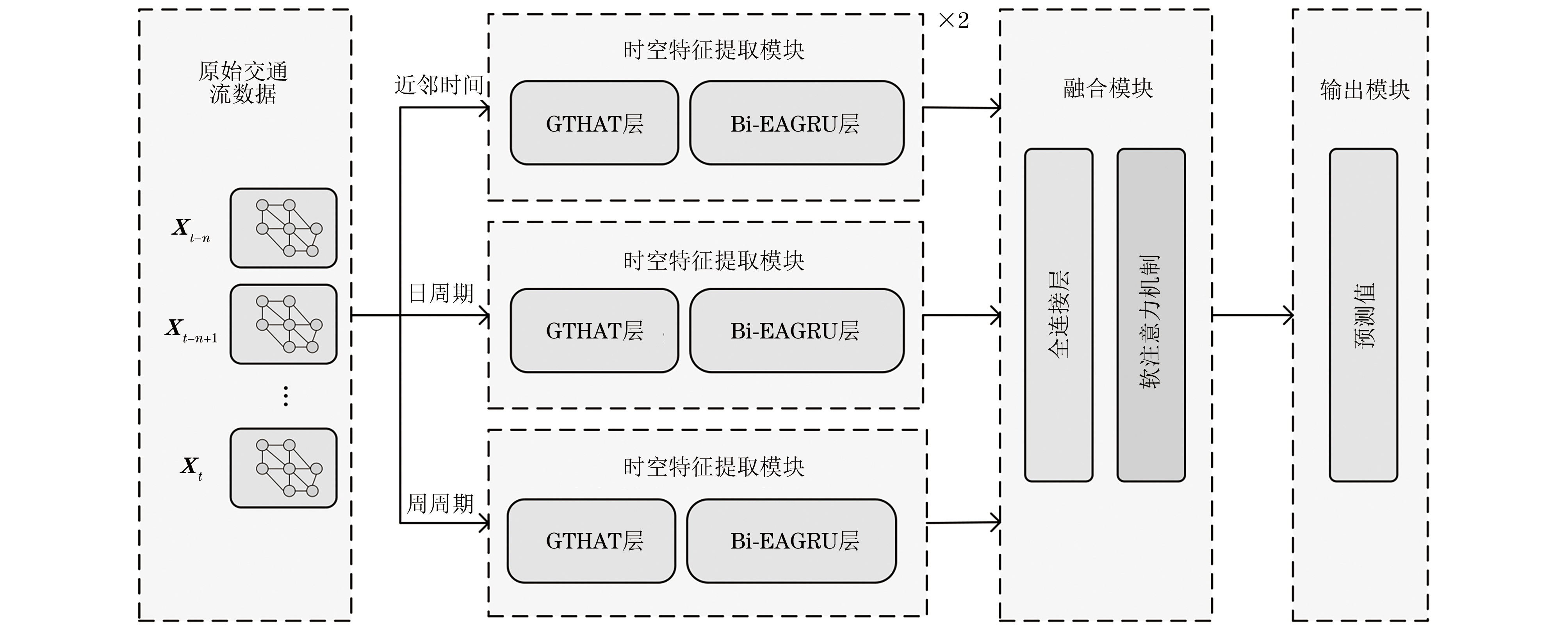

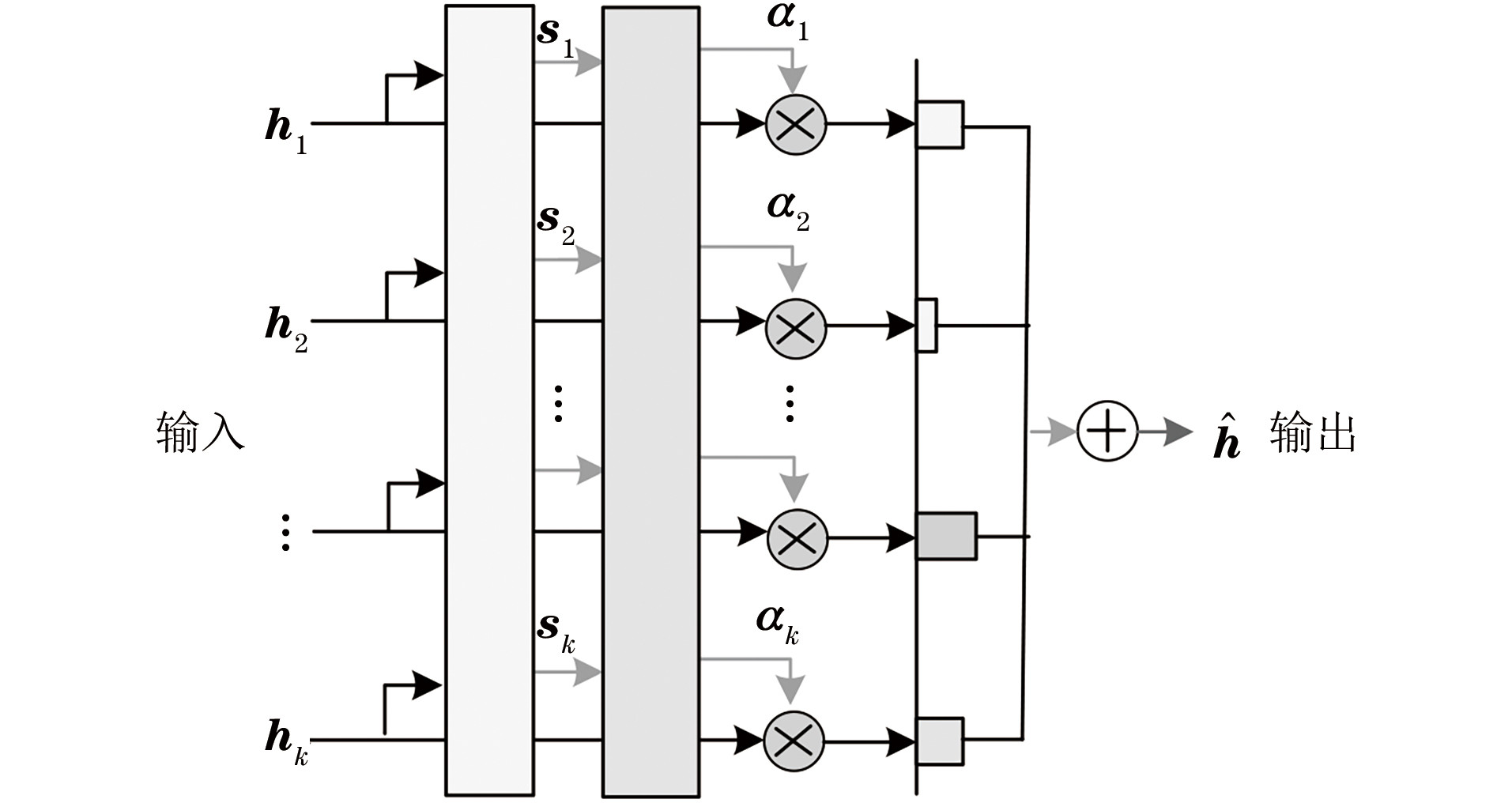

摘要： 通流预测在规划交通系统、优化道路资源和缓解交通拥堵等方面具有重要意义。本文针对交通流预测中时间周期性特征提取不充分导致预测精度提升受限的问题，提出了一种基于多尺度时空特征和软注意力机制的交通流预测方法（MSTFSA）。该方法首先利用图交谈注意力网络（GTHAT）提取空间数据的非欧几里得结构特征，通过分配动态权重表征不同时间相邻道路交通流的影响程度；其次利用双向增强注意力门控循环单元结构（Bi-EAGRU）提取时间数据的连续性关联特征，增强每个时刻的时间特征与上下时刻的联系；然后基于软注意力机制融合周周期、日周期和近邻时间三个尺度下的相似交通流趋势，实现对时间周期性特征的充分提取，最后结合高速公路数据集PeMS04和PeMS08验证MSTFSA的预测精度。实验结果表明，MSTFSA的交通流预测精度表现出良好效果，与基线模型STSGCN和ASTGCN相比，其预测均方根误差（RMSE）分别降低7.15%和3.8%，平均绝对误差（MAE）分别降低7.79%和3.99%。由此可见，MSTFSA能较好的提取并融合交通数据的多时间尺度时空特征，在交通流预测精度提升方面表现出一定的优势。

Abstract: Traffic flow prediction has considerable worth in designing transportation systems, optimizing road resources, and mitigating traffic congestion, among other aspects. Aiming at the issue of limited prediction accuracy due to insufficient extraction of temporal periodic features in traffic flow forecast, this paper proposes a traffic flow forecast method based on Multi-scale Spatial and Temporal Features and Soft Attention mechanism (MSTFSA). Firstly, the Graph Talking Head Attention Network (GTHAT) is used to extract the non-Euclidean structural features of spatial data, and the dynamic weights are calculated to represent the influence of traffic flow on adjacent roads at different times. Secondly, the Bidirectional Enhance Attention Gated Recurrent Unit (Bi-EAGRU) is utilized to capture the continuity correlation features of temporal data, enhancing the temporal features of each moment and the continuity between adjacent moments. Then, the similar traffic flow trends at three scales of weekly periodicity, daily periodicity and nearest-neighbor time are fused based on soft attention to implement the comprehensive extraction of temporal periodic features. Finally, the prediction accuracy of MSTFSA is verified by the highway datasets of both PeMS04 and PeMS08. Experimental results demonstrate that MSTFSA has exhibited the distinct advantage in the prediction accuracy of traffic flow. Compared with the baseline methods of STSGCN (Spatial-temporal Synchronous Graph Convolutional Networks) and ASTGCN (Attention-based Spatial-temporal Graph Convolutional Networks), MSTFSA not only can reduce the Root Mean Square Error (RMSE) by 7.15% and 3.8%, but also can decrease the Mean Absolute Error (MAE) by 7.79% and 3.99%, respectively. In summary, MSTFSA can efficiently extract and merge the multi-temporal and spatial attributes of traffic data, and perform the considerable advantage in improving the prediction accuracy of traffic flow.

史昕, 曹凤腾, 纪艺, 马峻岩. 基于多尺度时空特征和软注意力机制的交通流预测方法[J]. 计算机工程, doi: 10.19678/j.issn.1000-3428.0068659.

SHI Xin, CAO Fengteng, JI Yi, MA Junyan. Traffic Flow Prediction Based on Multi-scale Spatiotemporal Features and Soft Attentions Mechanism[J]. Computer Engineering, doi: 10.19678/j.issn.1000-3428.0068659.

参考文献

[1] 姚俊峰, 何瑞, 史童童, 等. 基于机器学习的交通流预测方法综述[J]. 交通运输工程学报, 2023, 23(03): 44-67. YAO J F, HE R, SHI T T, el al. Review on machine learning-based traffic flow prediction methods[J]. Journal of Traffic and Transportation Engineering, 2023, 23(03): 44-67. (in Chinese).
[2] 谭娟, 王胜春. 基于深度学习的交通拥堵预测模型研究[J]. 计算机应用研究, 2015, 32(10): 2951-2954. TAN J, WANG S C. Research on prediction model for traffic congestion based on deep learning[J]. Application Research of Computers, 2015, 32(10): 2951-2954. (in Chinese).
[3] ALI A, ZHU Y M, ZAKARYA M. Exploiting dynamic spatio-temporal graph convolutional neural networks for citywide traffic flows prediction[J]. Neural networks, 2022, 145: 233-247.
[4] LI D, LASENBY J. Spatiotemporal attention-based graph convolution network for segment-level traffic prediction[J]. IEEE Transactions on Intelligent Transportation Systems, 2021, 23(7): 8337-8345.
[5] GUO S N, LIN Y F, FENG N, et al. Attention based spatial-temporal graph convolutional networks for traffic flow forecasting[C]// Proceedings of the Thirty-Third AAAI Conference on Artificial Intelligence, California, USA: AAAI Press, 2019: 922-929.
[6] SONG C, LIN Y F, GUO S N, et al. Spatial-temporal synchronous graph convolutional networks：a new framework for spatial-temporal network data forecasting[C]// Proceedings of the Thirty-Fourth AAAI Conference on Artificial Intelligence, California, USA: AAAI Press, 2020: 914-921.
[7] SMITH B L, WILLIAMS B M, OSWALD R K. Comparison of parametric and nonparametric models for traffic flow forecasting[J]. Transportation Research Part C: Emerging Technologies, 2002, 10(4): 303-321.
[8] 杨立宁, 李艳婷. 基于SVD和ARIMA的时空序列分解与预测[J]. 计算机工程, 2021, 47(3): 53-61. YANG L N, LI Y T. Spatio-temporal sequence decomposition and prediction based on SVD and ARIMA[J]. Computer Engineering, 2021, 47(3): 53-61. (in Chinese).
[9] CHANDRA S R, AL-DEEK H. Predictions of freeway traffic speeds and volumes using vector autoregressive models[J]. Journal of Intelligent Transportation Systems, 2009, 13(2): 53-72.
[10] VLAHOGIANNI E I, KARLAFTIS M G, GOLIAS J C. Statistical methods for detecting nonlinearity and non-stationarity in univariate short-term time-series of traffic volume[J]. Transportation Research Part C: Emerging Technologies, 2006, 14(5): 351-367.
[11] VAN LINT J W C, HOOGENDOORN S P, VAN ZUYLEN H J. Freeway travel time prediction with state-space neural networks: Modeling state-space dynamics with recurrent neural networks[J]. Transportation Research Record, 2002, 1811(1): 30-39.
[12] ZHAO Z, CHEN W, WU X, et al. LSTM network: a deep learning approach for short-term traffic forecast[J]. IET Intelligent Transport Systems, 2017, 11(2): 68-75.
[13] WU Q, JIANG Z, HONG K W, et al. Tensor-based recurrent neural network and multi-modal prediction with its applications in traffic network management[J]. IEEE Transactions on Network and Service Management, 2021, 18(1): 780-792.
[14] MA X L, TAO Z M, WANG Y H, et al. Long short-term memory neural network for traffic speed prediction using remote microwave sensor data[J]. Transportation Research Part C: Emerging Technologies, 2015, 54: 187-197.
[15] SCHUSTER M, PALIWAL K K. Bidirectional recurrent neural networks[J]. IEEE transactions on Signal Processing, 1997, 45(11): 2673-2681.
[16] ASIF N A, SARKER Y, CHAKRABORTTY R K, et al. Graph neural network: A comprehensive review on non-euclidean space[J]. IEEE Access, 2021, 9: 60588-60606.
[17] YAN H Y, MA X L, PU Z Y. Learning dynamic and hierarchical traffic spatiotemporal features with transformer[J]. IEEE Transactions on Intelligent Transportation Systems, 2021, 23(11): 22386-22399.
[18] MA X L, DAI Z, HE Z B, et al. Learning traffic as images: a deep convolutional neural network for large-scale transportation network speed prediction[J]. Sensors, 2017, 17(4): 818-834.
[19] CUI Z Y, HENRICKSON K, KE R M, et al. Traffic graph convolutional recurrent neural network: A deep learning framework for network-scale traffic learning and forecasting [J]. IEEE Transactions on Intelligent Transportation Systems, 2019, 21(11): 4883-4894.
[20] GUO S N, LIN Y F, LI S J, et al. Deep spatial–temporal 3D convolutional neural networks for traffic data forecasting[J]. IEEE Transactions on Intelligent Transportation Systems, 2019, 20(10): 3913-3926.
[21] LI P, CHEN Z K, YANG L T, et al. An improved stacked auto-encoder for network traffic flow classification[J]. IEEE Network, 2018, 32(6): 22-27.
[22] TIAN Y, WEI C C, XU D W, et al. Traffic flow prediction based on stack autoencoder and long short-term memorynetwork[C]// IEEE.2020 IEEE 3rd International Conference on Automation, Electronics and Electrical Engineering (AUTEEE). New York, USA: IEEE Press, 2020: 385-388.
[23] WANG X, MA Y, WANG Y, et al. Traffic flow prediction via spatial-temporal graph neural network[C]//Proceedings of the web conference 2020. New York, USA: Association for Computing Machinery, 2020: 1082-1092.
[24] LI M, ZHU Z. Spatial-temporal fusion graph neural networks for traffic flow forecasting[C]//Proceedings of the AAAI conference on artificial intelligence. Washington D. C., USA: AAAI Press, 2021, 35(5): 4189-4196.
[25] ZHENG C, FAN X, WANG C, et al. Gman: A graph multi-attention network for traffic prediction[C]//Proceedings of the AAAI conference on artificial intelligence. Washington D. C., USA: AAAI Press, 2020, 34(01): 1234-1241.
[26] LV Y S, DUAN Y J, KANG W W, et al. Traffic flow prediction with big data: A deep learning approach[J]. IEEE Transactions on Intelligent Transportation Systems, 2014, 16(2), 865-873.
[27] YU B, YIN H T, ZHU Z X. Spatio-temporal graph convolutional networks: a deep learning framework for traffic forecasting [C]// Proceedings of the 27th International Joint Conference on Artificial Intelligence. Washington D. C., USA: IEEE Press, 2018: 3634-3640.
[28] ZHAO Y P, XU Y P, HE X T, et al. Spatiotemporal Graph Attention Networks for Urban Traffic Flow Prediction[C]// 2022 IEEE 33rd Annual International Symposium on Personal, Indoor and Mobile Radio Communications (PIMRC). Kyoto, Japan: IEEE Press, 2022: 340-345.
