5G系统中一种改进的PSS定时同步算法

doi:10.19678/j.issn.1000-3428.0057247

计算机工程 ›› 2020, Vol. 46 ›› Issue (12): 27-35. doi: 10.19678/j.issn.1000-3428.0057247

5G系统中一种改进的PSS定时同步算法

王宗伟¹, 石晶林^2,3,4, 冯雪林⁴, 勾志杭¹

1. 重庆邮电大学通信与信息工程学院, 重庆 400065;
2. 移动计算与新型终端北京市重点实验室, 北京 100190;
3. 中国科学院计算技术研究所无线通信技术研究中心, 北京 100190;
4. 中国科学院大学, 北京 100190

收稿日期:2020-01-16 修回日期:2020-03-24 发布日期:2020-12-10
作者简介:王宗伟(1994-),男,硕士研究生,主研方向为物理层基带信号处理;石晶林,研究员、博士生导师;冯雪林,高级工程师;勾志杭,硕士研究生。
基金资助:
中科院弘光专项"空天地一体化网络卫星移动通信终端芯片研发及产业化"（KFJ-HGZX-002）。

An Improved PSS Timing Synchronization Algorithm in 5G Systems

WANG Zongwei¹, SHI Jinglin^2,3,4, FENG Xuelin⁴, GOU Zhihang¹

1. School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China;
2. Beijing Key Laboratory of Mobile Computing and Pervasive Device, Beijing 100190, China;
3. Wireless Communication Technology Research Center, Institute of Computing Technology, Chinese Academy of Sciences, Beijing 100190, China;
4. University of Chinese Academy of Sciences, Beijing 100190, China

Received:2020-01-16 Revised:2020-03-24 Published:2020-12-10

摘要/Abstract

摘要： 符号定时同步是5G系统初始小区搜索的关键步骤，针对传统定时同步算法抗频偏性能差、计算复杂度高的问题，提出一种适用于5G系统的主同步信号（PSS）定时同步改进算法。在分段相关算法的基础上，对PSS序列预置归一化频偏，利用PSS序列的共轭对称特性将其分段处理后预存于终端，结合卷积和重叠保留分块方法实现各分段相关窗的快速相关，并对分段相关值作时延累加后进行门限判决，从而完成定时同步和粗频偏的联合检测。仿真结果表明，与差分相关算法、分段相关算法相比，该算法能够有效提升系统的抗频偏性能，降低计算复杂度，满足5G系统对定时同步的要求。

关键词: 5G系统, 定时同步, 分段相关算法, 频偏预置, 重叠保留

Abstract: Symbol timing synchronization is a key step in the initial cell search of 5G systems.To address the poor frequency offset resistance and high calculation complexity of traditional timing synchronization algorithms,this paper proposes an improved timing synchronization algorithm based on Primary Synchronization Signal(PSS) for 5G systems.Based on the piecewise correlation algorithm,the proposed algorithm presets the normalized frequency offset for the PSS sequence,and utilizes the conjugate symmetry characteristic of the PSS sequence to pre-store it in the terminal after piecewise processing.In addition,the algorithm combines the convolution and overlap-preserving blocking methods to achieve fast correlation of the correlation windows of each segment,and then makes a threshold judgment after accumulating correlation value delays to complete the joint detection of timing synchronization and coarse frequency offset estimation.Simulation results show that,compared with the differential correlation algorithm and the piecewise correlation algorithm,the proposed algorithm effectively improves the anti-frequency offset performance of the system,reduces the computational complexity,and meets the timing synchronization requirements of 5G systems.

Key words: 5G systems, timing synchronization, segment correlation algorithm, frequency offset presetting, overlapping reservation

中图分类号:

TN929.5

王宗伟, 石晶林, 冯雪林, 勾志杭. 5G系统中一种改进的PSS定时同步算法[J]. 计算机工程, 2020, 46(12): 27-35.

WANG Zongwei, SHI Jinglin, FENG Xuelin, GOU Zhihang. An Improved PSS Timing Synchronization Algorithm in 5G Systems[J]. Computer Engineering, 2020, 46(12): 27-35.

http://www.ecice06.com/CN/Y2020/V46/I12/27

图/表 12

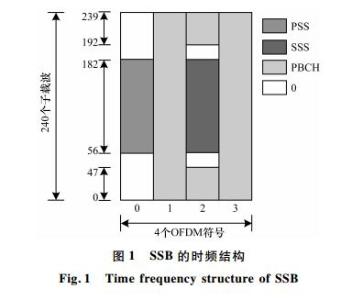

20201216140208

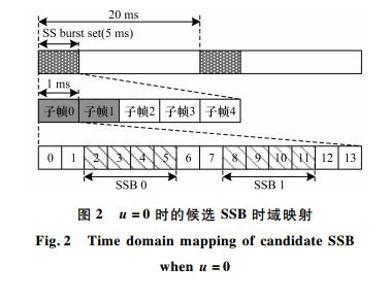

20201216140211

20201216140214

20201216140218

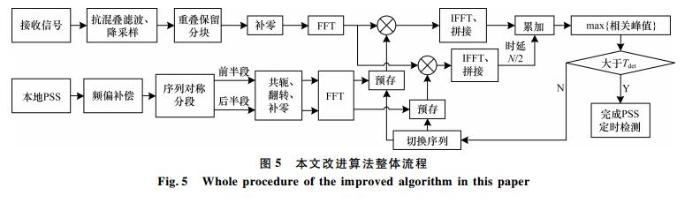

20201216140221

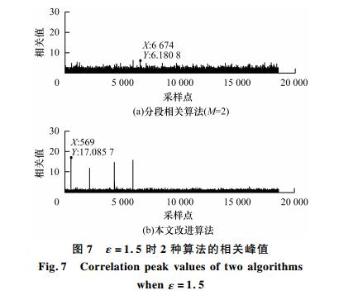

20201216140225

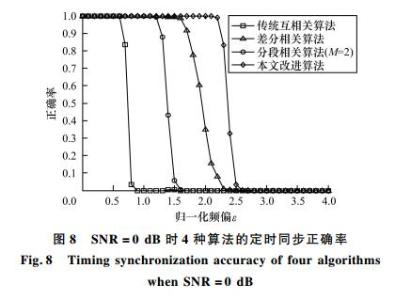

20201216140228

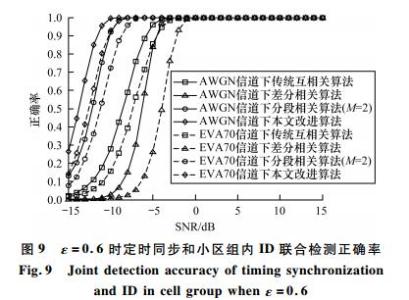

20201216140231

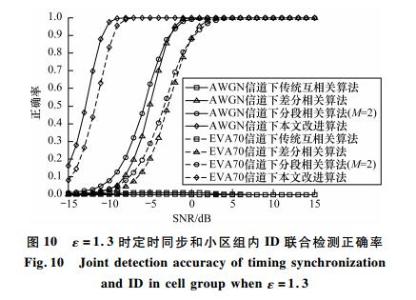

20201216140234

20201216140238

20201216140241

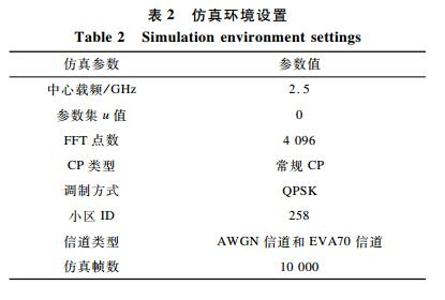

20201216140244

参考文献

[1] NA Zhengyu,ZHANG Mengshu,XIONG Mudi,et al.Pseudo-noise sequence based synchronization for generalized frequency division multiplexing in 5G commu-nication system[J].IEEE Access,2018,6:14812-14819.
[2] FILIPPINI I,SCIANCALEPORE V,DEVOTI F,et al.Fast cell discovery in mm-wave 5G networks with context information[J].IEEE Transactions on Mobile Computing,2018,17(7):1538-1552.
[3] LIN J C,SUN Y T,POOR H V.Initial synchronization exploiting inherent diversity for the LTE sector search process[J].IEEE Transactions on Wireless Communi-cations,2016,15(2):1114-1128.
[4] SCHMIDL T M,COX D C.Robust frequency and timing synchronization for OFDM[J].IEEE Transactions on Communications,1997,45(7):1800-1805.
[5] PARK B,CHEON H,KANG C,et al.A novel timing estimation method for OFDM systems[J].IEEE Communications Letters,2003,7(5):239-241.
[6] OMRI A,SHAQFEH M,ALI A,et al.Synchronization procedure in 5G NR systems[J].IEEE Access,2019,7:41286-41295.
[7] TSAI Y,ZHANG G D,GRIECO D,et al.Cell search in 3GPP long term evolution systems[J].IEEE Transactions on Vehicular Technology,2009,2(2):23-29.
[8] LIU X Q,CHEN H H,LYU B,et al.Symbol cyclic shift equalization PAM-OFDM-a low complexity CP-free OFDM scheme[J].IEEE Transactions on Vehicular Technology,2017,66(7):5933-5946.
[9] GUL M,MA X L,LEE S.Timing and frequency synchronization for OFDM downlink transmissions using Zadoff-Chu sequences[J].IEEE Transactions on Wireless Communication,2015,14:1716-1729.
[10] ZHANG Zhongshan,LIU Jian,LONG Keping.Low-complexity cell search with fast PSS identification in LTE[J].IEEE Transactions on Vehicular Technology,2012,61(4):1719-1729.
[11] NASSRALLA M H,MANSOUR M M,JALLOUL L M A.A low-complexity detection algorithm for the primary synchronization signal in LTE[J].IEEE Transactions on Vehicular Technology,2016,65(10):8751-8757.
[12] YANG Xiumei,XIONG Yong,JIA Guoqing,et al.PSS based time synchronization for 3GPP LTE downlink receivers[C]//Proceedings of 2011 IEEE International Con-ference on Communication Technology.Washington D.C.,USA:IEEE Press,2011:930-933.
[13] ABDZADEH-ZIABARI H,ZHU W P,SWAMY M N S.Joint maximum likelihood timing,frequency offset,and doubly selective channel estimation for OFDM systems[J].IEEE Transactions on Vehicular Technology,2018,67(3):2787-2791.
[14] JABBARVAZIRI F,ALIZADEH M,MOHAMMADI A,et al.Low-complexity method for primary synchronisation in the third generation partnership project long term evolution downlink system[J].IET Communications,2016,10(10):1229-1235.
[15] LI Lu,TIAN Zengshan,ZHOU Mu.Fast synchronization algorithm in PSS frequency domain for TD-LTE system[J].Science Technology and Engineering,2016,16(10):174-177.(in Chinese)李路,田增山,周牧.TD-LTE系统中主同步信号频域快速同步算法[J].科学技术与工程,2016,16(10):174-177.
[16] HU Chunjing,ZHANG Yueliang.5G NR primary synchro-nization signal detection with low hardware resource occupancy[C]//Proceeding of 2018 IEEE/CIC International Conference on Communications.Washington D.C.,USA:IEEE Press,2018:304-308.
[17] ZHANG Demin,LI Xiu,CHEN Jiatian.Research on timing synchronization algorithm of primary synchronization signal in 5G system[J].Study on Optical Communications,2019,213(3):59-64.(in Chinese)张德民,李秀,陈嘉田.5G系统中主同步信号定时同步算法的研究[J].光通信研究,2019,213(3):59-64.
[18] MORELLI M,MORETTI M.A robust maximum likelihood scheme for PSS detection and integer frequency offset recovery in LTE systems[J].IEEE Transactions on Wireless Communication,2016,15(2):1353-1362.
[19] JEON Y,PARK H,CHOI E.Synchronization and cell search procedure in 3GPP 5G NR systems[C]//Proceedings of the 21st International Conference on Advanced Communication Technology.Washington D.C.,USA:IEEE Press,2019:475-478.
[20] OTA K,SAWAHASHI M,NAGATA S.Physical cell ID detection probability using synchronization signals for NR radio interface below 6 GHz[C]//Proceeding of IEEE VTS Asia Pacific Wireless Communications Symposium.Washington D.C.,USA:IEEE Press,2019:1-5.
