基于深度学习的道路小目标检测综述

doi:10.19678/j.issn.1000-3428.0065984

摘要/Abstract

摘要：

复杂道路场景下的小目标检测能够提高车辆对于周边环境的感知能力，是计算机视觉和智慧交通领域的重要研究方向。随着深度学习技术的发展，将深度学习方法与道路小目标检测相结合能够有效提高检测精度，使车辆快速对周边环境做出反应。从经典及最新的道路小目标检测的研究成果出发，给出小目标的两种定义方式，分析造成道路小目标检测困难的原因，阐述数据增强、多尺度策略、生成超分辨率细节信息、加强上下文信息联系、改进损失函数等5类基于深度学习的提高道路小目标检测精度的优化方法，总结归纳各类方法的核心思想及目前国内外最新的研究进展。介绍常用于道路小目标检测的大型和公共数据集，提供相应的用于评估小目标检测性能的指标，对比分析各类方法在不同数据集上的性能检测结果，指出道路小目标检测研究目前仍存在的问题，并结合这些问题从多个角度对其未来研究方向进行展望。

关键词: 小目标检测, 深度学习, 数据增强, 特征融合, 检测精度

Abstract:

Small target detection in complex road scenes can improve the vehicle's perception of the surrounding environment. Thus, it is an important research direction in the field of computer vision and intelligent transportation. With the development of deep learning technology, a combination of deep learning and small target detection on roads can effectively improve detection accuracy, allowing the vehicle to quickly respond to the surrounding environment. Starting with the latest classic research results in small target detection, this research provides two definitions for small targets and analyzes the reasons for the difficulty encountered in small target detection on roads. Subsequently, five types of optimization methods based on deep learning are expounded upon to improve detection accuracy of small targets on roads. The optimization methods include enhanced data, multi-scale strategy, generated Super-Resolution(SR) detail information, strengthened contextual information connection and improved loss function. The core ideas of various methods and the latest research progress at home and abroad are summarized. Large and public datasets commonly used in road small target detection are introduced along with corresponding indicators to evaluate the performance of small target detection. In comparing and analyzing the performance detection results of various methods on different datasets, this research presents the current research on road small target and associated problems, looking forward to future research directions from multiple perspectives.

Key words: small target detection, deep learning, data enhancement, feature fusion, detection accuracy

曹健, 陈怡梅, 李海生, 蔡强. 基于深度学习的道路小目标检测综述[J]. 计算机工程, 2023, 49(10): 1-12.

Jian CAO, Yimei CHEN, Haisheng LI, Qiang CAI. Survey of Small Target Detection on Roads Based on Deep Learning[J]. Computer Engineering, 2023, 49(10): 1-12.

http://www.ecice06.com/CN/Y2023/V49/I10/1

图/表 14

图1 MixUp、CutOut、CutMix数据增强方法的示例图

Fig.1 Example diagrams of MixUp, CutOut, and CutMix data enhancement methods

图2 Mosaic数据增强方法的示例图

Fig.2 Example diagrams of Mosaic data enhancement method

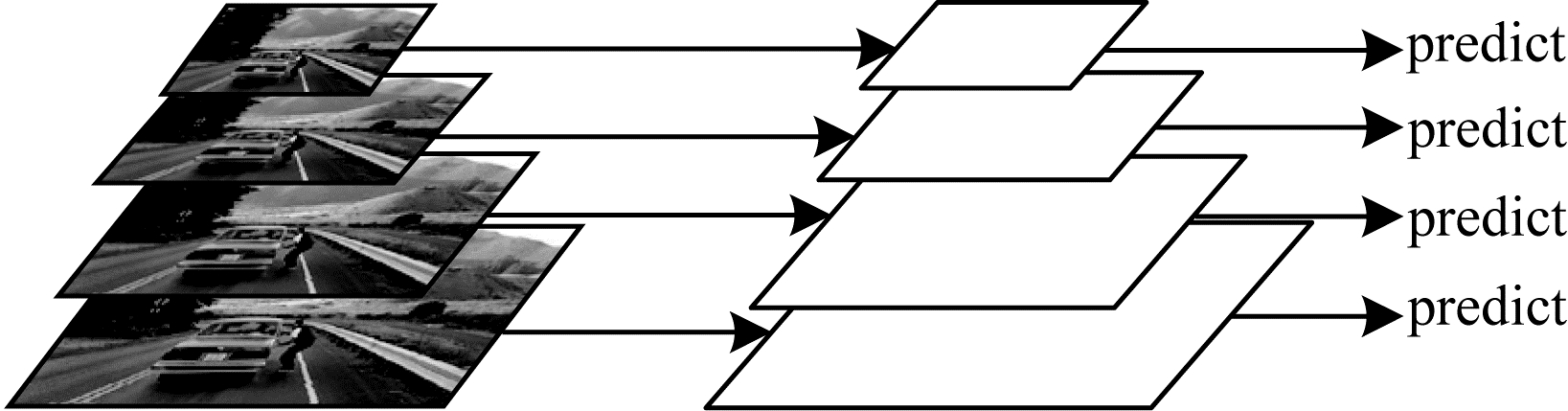

图3 图像金字塔结构

Fig.3 Structure of image pyramid

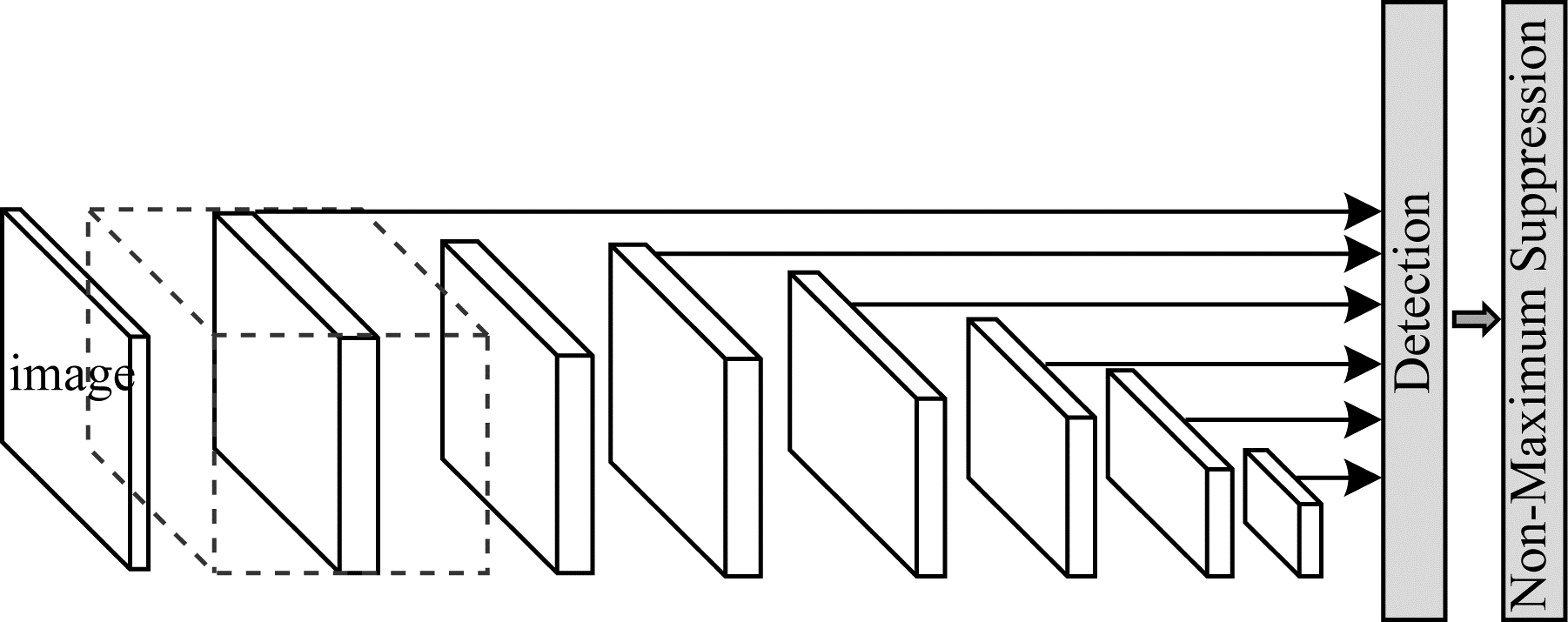

图4 SSD算法的多尺度检测

Fig.4 Multi-scale detection of SSD algorithm

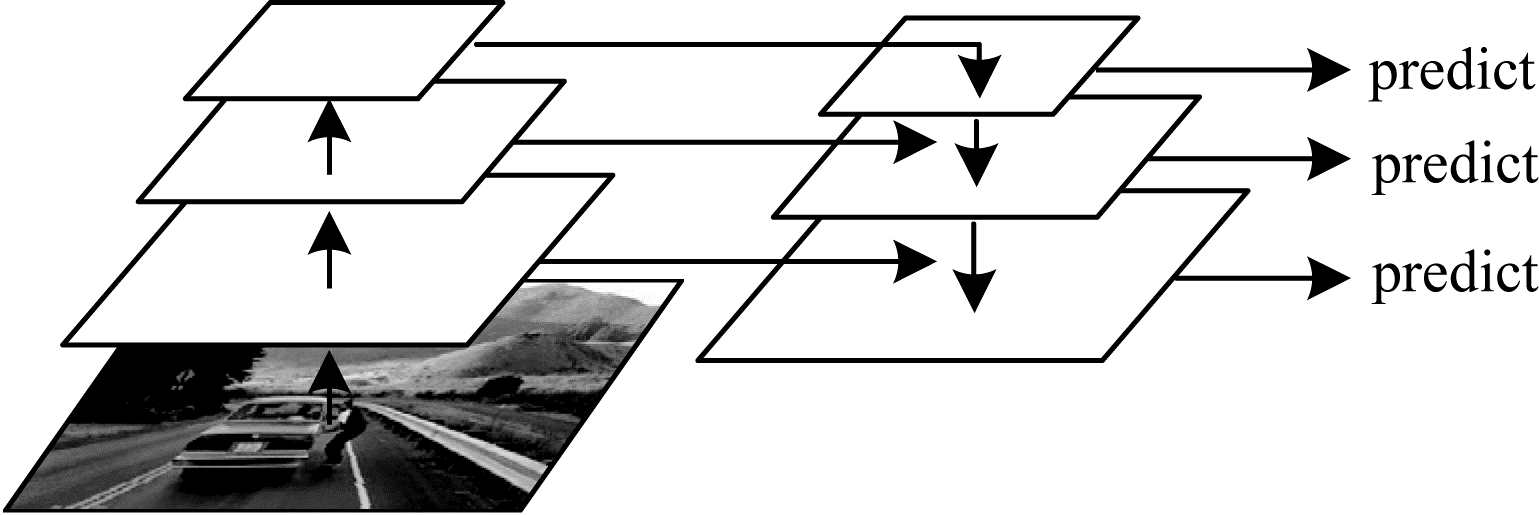

图5 特征金字塔结构

Fig.5 Structure of feature pyramid

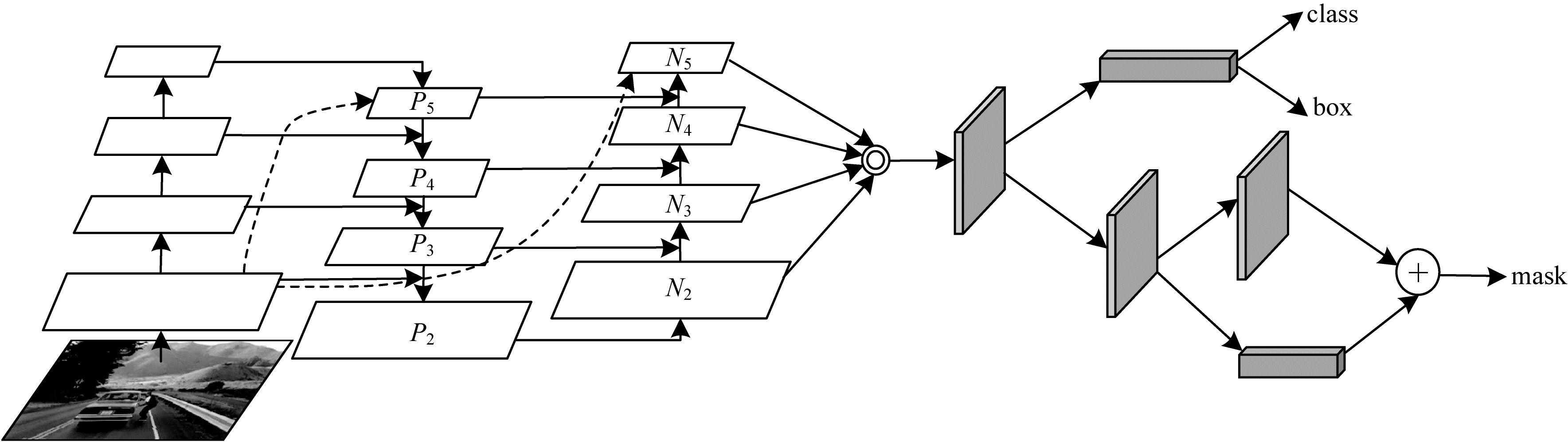

图6 PANet结构

Fig.6 Structure of the PANet

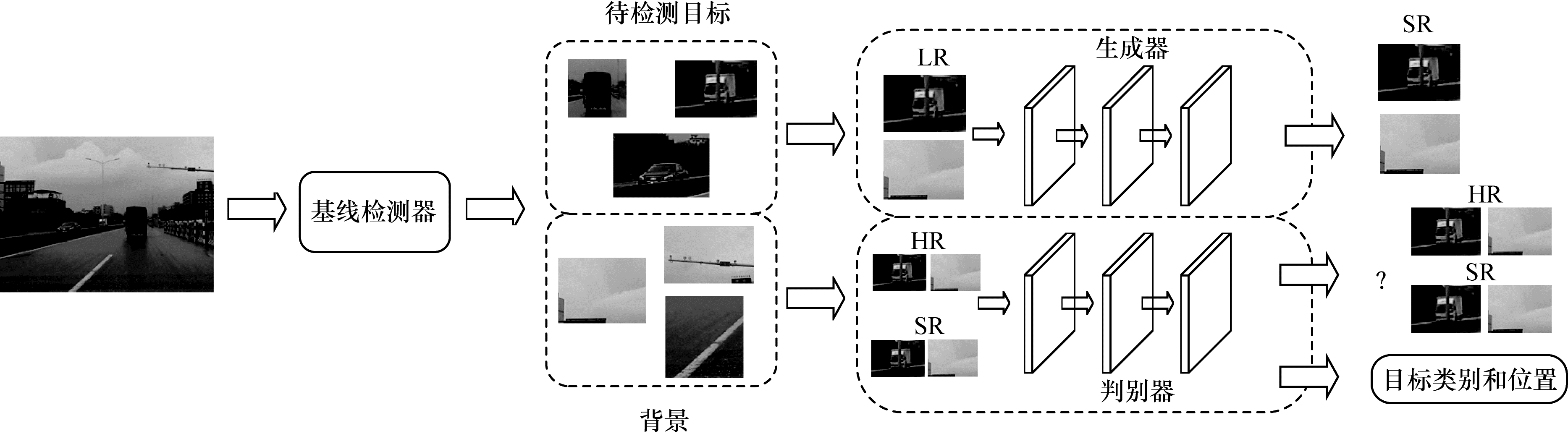

图7 基于GAN的细节信息生成流程

Fig.7 Procedure of detail information generation based on GAN

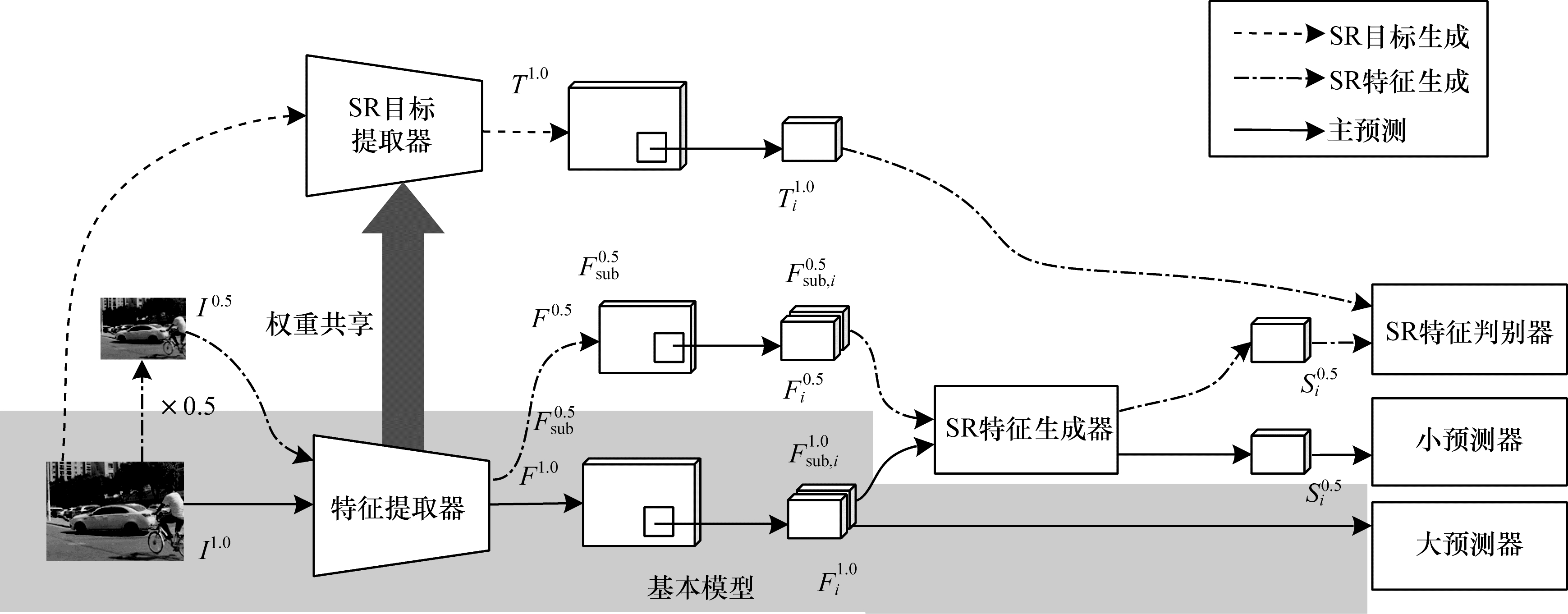

图8 特征级超分辨率图像生成模型结构

Fig.8 Structure of feature-level super-resolution image generation model

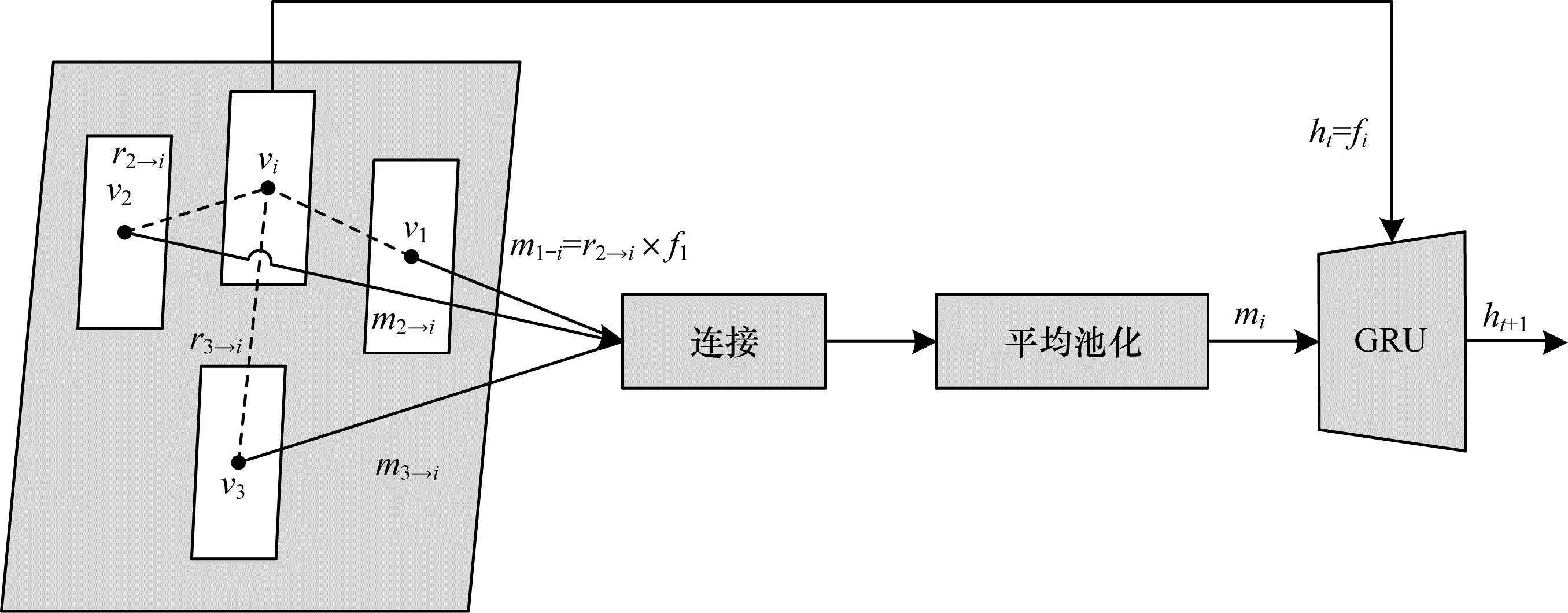

图9 关系上下文结构

Fig.9 Structure of relational contexts
