结合对比感知损失和融合注意力的图像去雾模型

doi:10.19678/j.issn.1000-3428.0065255

摘要/Abstract

摘要：

基于深度学习的图像去雾方法主要是通过增加网络的深度或宽度来提升算法的性能，但是这样需要更多的计算资源，并且现有的去雾模型仅将无雾图像作为正样本来指导网络的训练，未能充分利用负样本即雾天图像。为了进一步利用雾天图像和无雾图像对之间的特征差异，并且更灵活地处理不同尺度、位置、范围、角度等区域特征，对重要的特征赋予更大的权重，在DehazeFormer-T模型基础上加入对比感知损失和融合注意力机制，提出改进的CFFormer模型。以L1损失函数度量真实图像和预测图像之间的重建损失，采用对比感知损失函数提取固定的预训练网络VGG16的权重，提升对比学习的能力，并将真实无雾图像和雾天图像分别作为正负样本，拉近预测图像和清晰图像，同时推远有雾图像。此外，将尺度注意力、空间注意力和通道注意力进行融合，在特征图的不同维度上分别应用注意力机制，使网络关注更重要的信息。实验结果表明，CFFormer在RESIDE的ITS数据集上PSNR和SSIM指标比DehazeFormer-T分别提高9.4%和0.6%，验证了模型的有效性。

关键词: 图像去雾, 深度学习, DehazeFormer模型, CFFormer模型, 对比感知损失, 融合注意力

Abstract:

Existing deep learning-based image dehazing methods mainly expand the depth or width of a network to improve its performance, requiring more computational resources. In addition, current dehazing models only adopt haze-free images as positives to guide the training of the network, leaving the negatives, that is hazy images, unattended.Therefore, it is crucial to further exploit the feature differences between hazy and haze-free image pairs in mainstream image dehazing models and deal with regional features of different scales, locations, ranges, and angles more flexibly, thus giving more attention and weight to important features.To this end, this study proposes CFFormer, an improved DehazeFormer-T model that adopts the Contrastive Perceptual Loss(CPL) and Fusion Attention(FA) mechanism.The L1 loss function is used as the reconstruction loss between the ground-truth image and the predicted image. Moreover, the CPL function is introduced because, using fixed pre-trained weights of VGG16, CPL increases the network's ability to learn contrastively. Furthermore, CPL considers real haze-free and a hazy images as positive and negative samples, respectively, bringing the predicted image closer to the clear image while pushing it away from the hazy image. The FA fuses three types of attention: scale, spatial, and channel attentions.These attention mechanisms are separately applied to different dimensions of the feature maps to ensure that the network pays more attention to important information. On the ITS dataset of RESIDE, the experimental results show that with respect to the PSNR and SSIM metrics, the proposed model is 9.4% and 0.6% higher than DehazeFormer-T, respectively, confirming the effectiveness of the proposed model.

Key words: image dehazing, deep learning, DehazeFormer model, CFFormer model, Contrastive Perceptual Loss(CPL), Fusion Attention(FA)

王可铮, 徐玉芬, 周尚波. 结合对比感知损失和融合注意力的图像去雾模型[J]. 计算机工程, 2023, 49(8): 207-214.

Kezheng WANG, Yufeng XU, Shangbo ZHOU. Image Dehazing Model Combined with Contrastive Perceptual Loss and Fusion Attention[J]. Computer Engineering, 2023, 49(8): 207-214.

http://www.ecice06.com/CN/Y2023/V49/I8/207

图/表 7

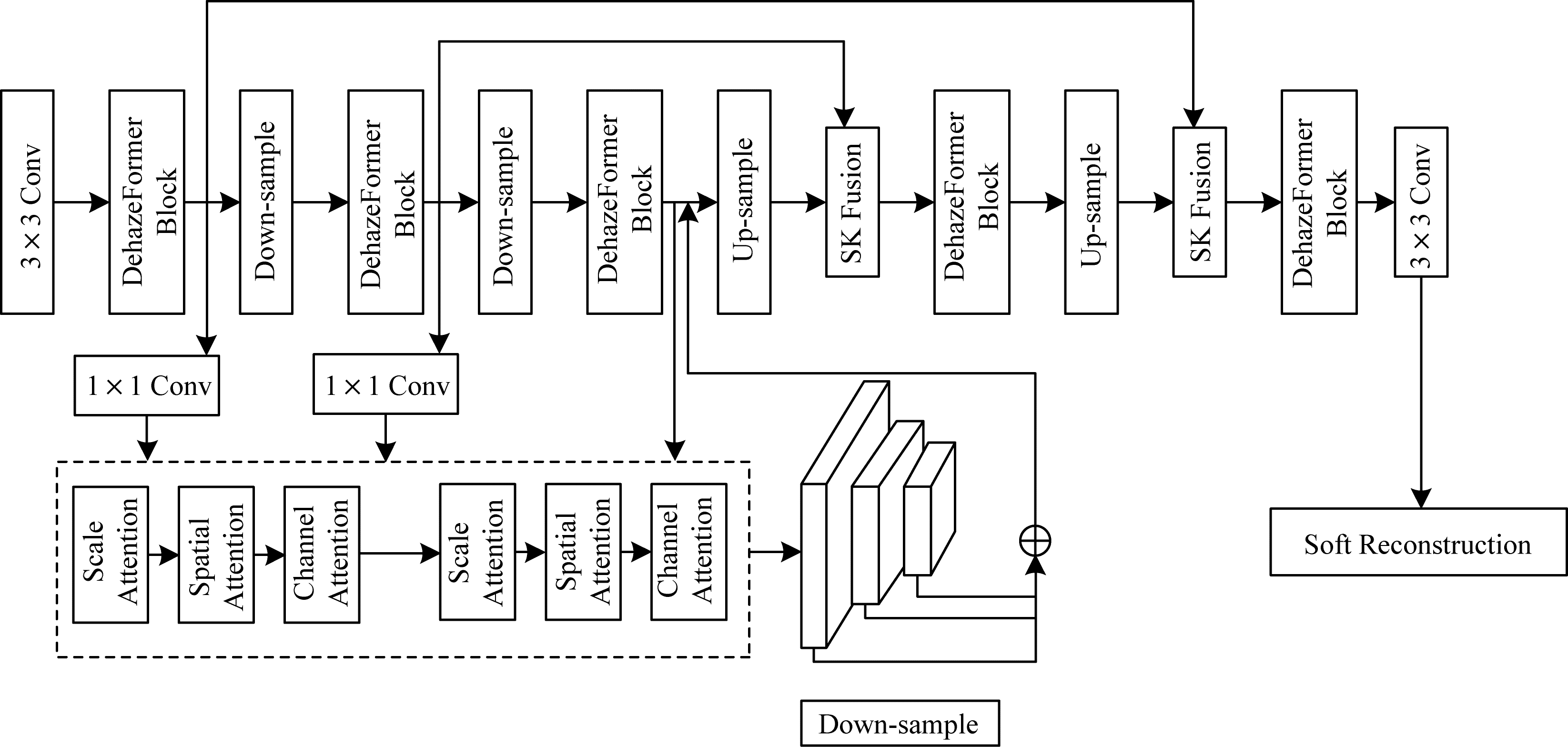

图1 CFFormer网络架构

Fig.1 Architecture of CFFormer network

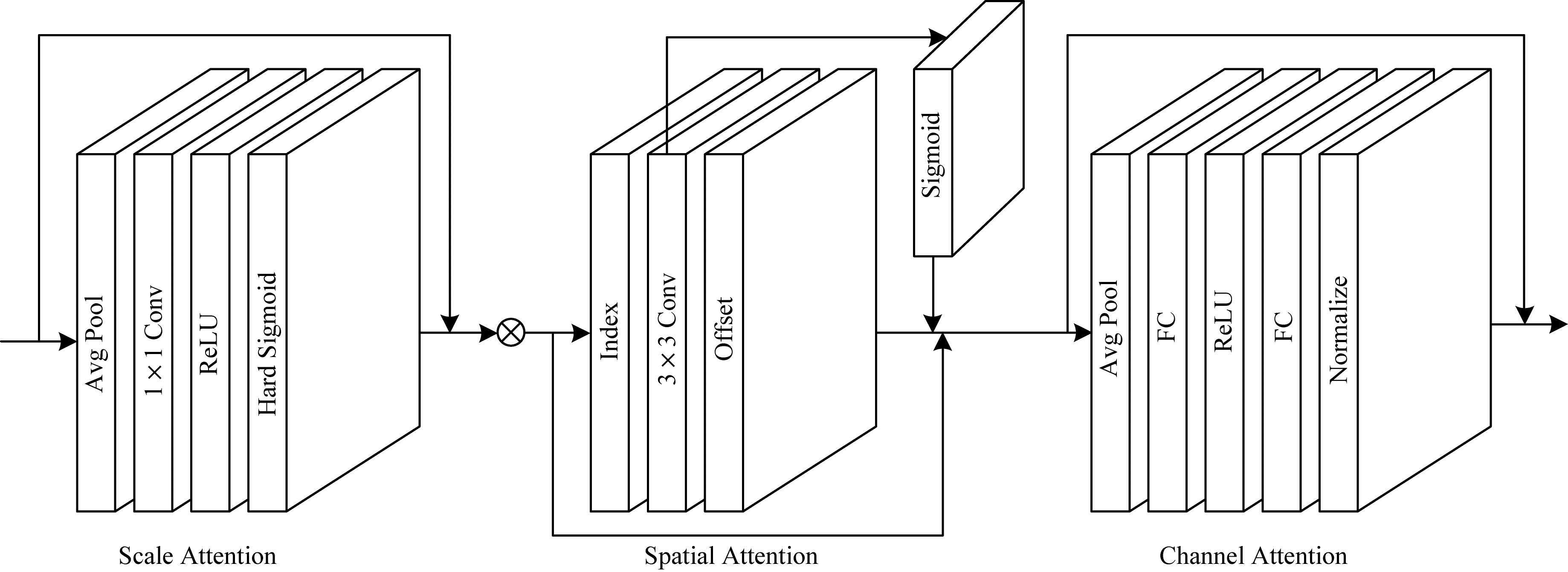

图2 融合注意力块的实现方式

Fig.2 Implementation method of fusion attention block

表1 融合注意力块数n取值实验结果

Table 1 Experimental results of number n values of fusion attention block

n	PSNR/dB	SSIM	参数量/10⁶
0	35.15	0.989	0.686
1	35.46	0.990	1.160
2	36.54	0.992	1.160
3	36.84	0.992	1.730

图3 4组SOTS室内图像在不同模型上的去雾结果

Fig.3 Defogging results of different models on four sets of SOTS indoor images

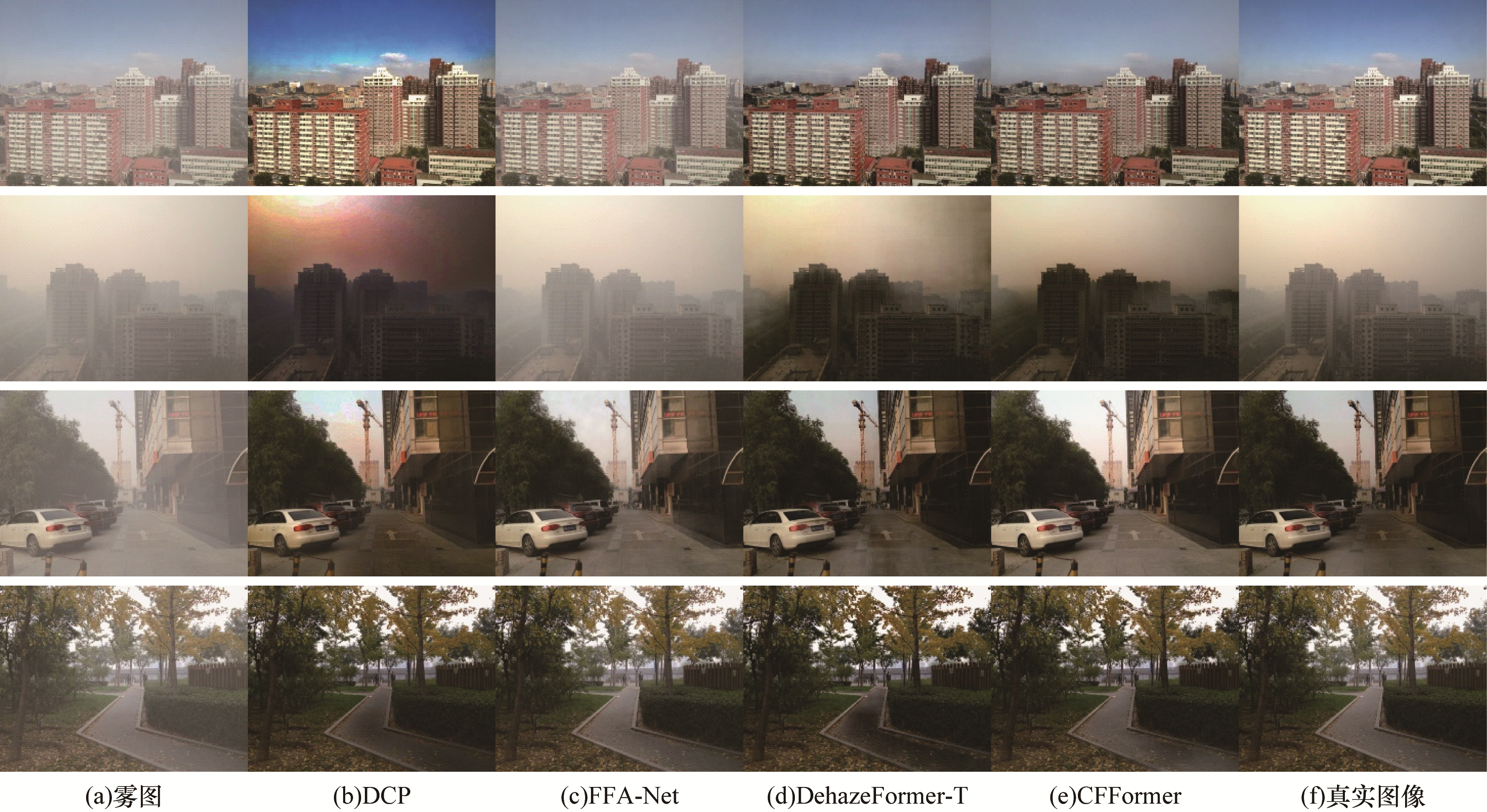

图4 4组SOTS室外图像在不同模型上的去雾结果

Fig.4 Defogging results of different models on four sets of SOTS outdoor images

表2 各模型与CFFormer的评价指标与网络规模对比

Table 2 Comparison of evaluation indicator and network scale between each model and CFFormer

模型	PSNR/dB	SSIM	参数量/10⁶
DCP^[2]	16.62	0.818	—
DehazeNet^[5]	19.82	0.821	0.009
MSCNN^[6]	19.84	0.833	0.008
AOD-Net^[7]	20.51	0.816	0.002
FFA-Net^[8]	36.39	0.989	4.456
DehazeFormer-T^[11]	35.15	0.989	0.686
DehazeFormer-S^[11]	36.82	0.992	1.283
DehazeFormer-B^[11]	37.84	0.994	2.514
DehazeFormer-M^[11]	38.46	0.994	4.634
DehazeFormer-L^[11]	40.05	0.996	25.440
CFFormer	38.45	0.995	1.160

表3 对比感知损失和融合注意力的有效性验证

Table 3 Effectiveness validation of contrastive perceptual loss and fusion attention

CPL	FA	PSNR/dB	SSIM
		35.15	0.989
√		37.03	0.993
	√	36.54	0.992
√	√	38.45	0.995
