面向无人机遥感场景的轻量级小目标检测算法

doi:10.19678/j.issn.1000-3428.0066677

摘要/Abstract

摘要：

在基于深度学习的目标检测算法中，YOLO算法因兼具速度与精度的优势而备受关注，但是将其应用于无人机遥感领域时存在检测速度较慢、计算资源要求较高、小目标检测精度不佳等问题。为此，提出基于YOLO的轻量级小目标检测算法SS-YOLO。使用轻量的主干网络提升算法的推理速度，根据特征金字塔网络分治思想，加入下采样倍数为4的高分辨特征图P2用于检测微小目标。为解决高分辨率特征图（P2、P3）中语义信息不足的问题，构建结合自适应融合因子的语义增强上采样模块。针对定位损失函数中IoU度量方法对目标尺寸敏感所带来的影响小目标定位精确性的问题，设计结合归一化Wasserstein距离度量方法与中心点距离惩罚项的L_CNWD定位回归损失函数。实验结果表明，与YOLOv5s以及最新的YOLOv7-tiny相比，改进后的SS-YOLO模型参数量分别减少了31.3%和20.6%，与YOLOv7-tiny相比，mAP在VisDrone与AI-TOD数据集上分别提升了7.5和7.0个百分点；与YOLOv5s相比，mAP分别提升了2.3和3.6个百分点。当输入图片尺寸为800×800像素时，SS-YOLO的FPS为110帧/s，能够在满足无人机等边缘设备实时检测的同时，显著提升小目标的检测结果。

关键词: 小目标检测, YOLO网络, 轻量级网络, 双向特征金字塔, 定位损失函数

Abstract:

In the field of deep learning, particularly in object detection algorithms, the YOLO algorithm stands out for its speed and accuracy. However, its application in Unmanned Aerial Vehicle(UAV)remote sensing encounters challenges such as slow detection speed, high computational demands, and decreased accuracy in detecting small objects. To overcome these limitations, this paper introduces SS-YOLO, a lightweight variant of YOLO optimized for small object detection. SS-YOLO utilizes a lightweight backbone network to enhance the algorithm's inference speed. It adopts the divide-and-conquer approach of the Feature Pyramid Network(FPN) and integrates a high-resolution feature map, P2, with a downsampling factor of four, specifically for small target detection. The paper also proposes a semantic enhancement upsampling module combined with adaptive fusion factors to address the semantic information deficiency in high-resolution feature maps(P2, P3). Moreover, SS-YOLO features an innovative L_CNWD localization regression loss function. This function merges the Normalized Wasserstein Distance(NWD) measurement method with a center point distance penalty term. This integration effectively addresses the sensitivity of the Intersection over Union(IoU) measurement method to target size in the localization loss function, which impacts the accuracy of small target localization. Experimental results indicate that SS-YOLO surpasses YOLOv5s and YOLOv7-tiny in efficiency. It reduces the parameter count by 31.3% and 20.6% respectively, compared to these models. On the VisDrone and AI-TOD datasets, SS-YOLO shows an increase of 7.5 and 7.0 percentage points in mean Average Precision(mAP), respectively, when compared to YOLOv7-tiny. Against YOLOv5s, the mAP increases by 2.3 and 3.6 percentage points, respectively. Notably, with an input image size of 800×800 pixels, SS-YOLO achieves a Frames Per Second(FPS) of 110 frame/s, demonstrating its capability to significantly improve the detection of small objectts while meeting the real-time detection requirements of edge devices such as drones.

Key words: small object detection, YOLO network, lightweight network, bidirectional feature pyramid, localization loss function

胡清翔, 饶文碧, 熊盛武. 面向无人机遥感场景的轻量级小目标检测算法[J]. 计算机工程, 2023, 49(12): 169-177.

Qingxiang HU, Wenbi RAO, Shengwu XIONG. Lightweight Small Object Detection Algorithm for UAV Remote Sensing Scene[J]. Computer Engineering, 2023, 49(12): 169-177.

http://www.ecice06.com/CN/Y2023/V49/I12/169

图/表 17

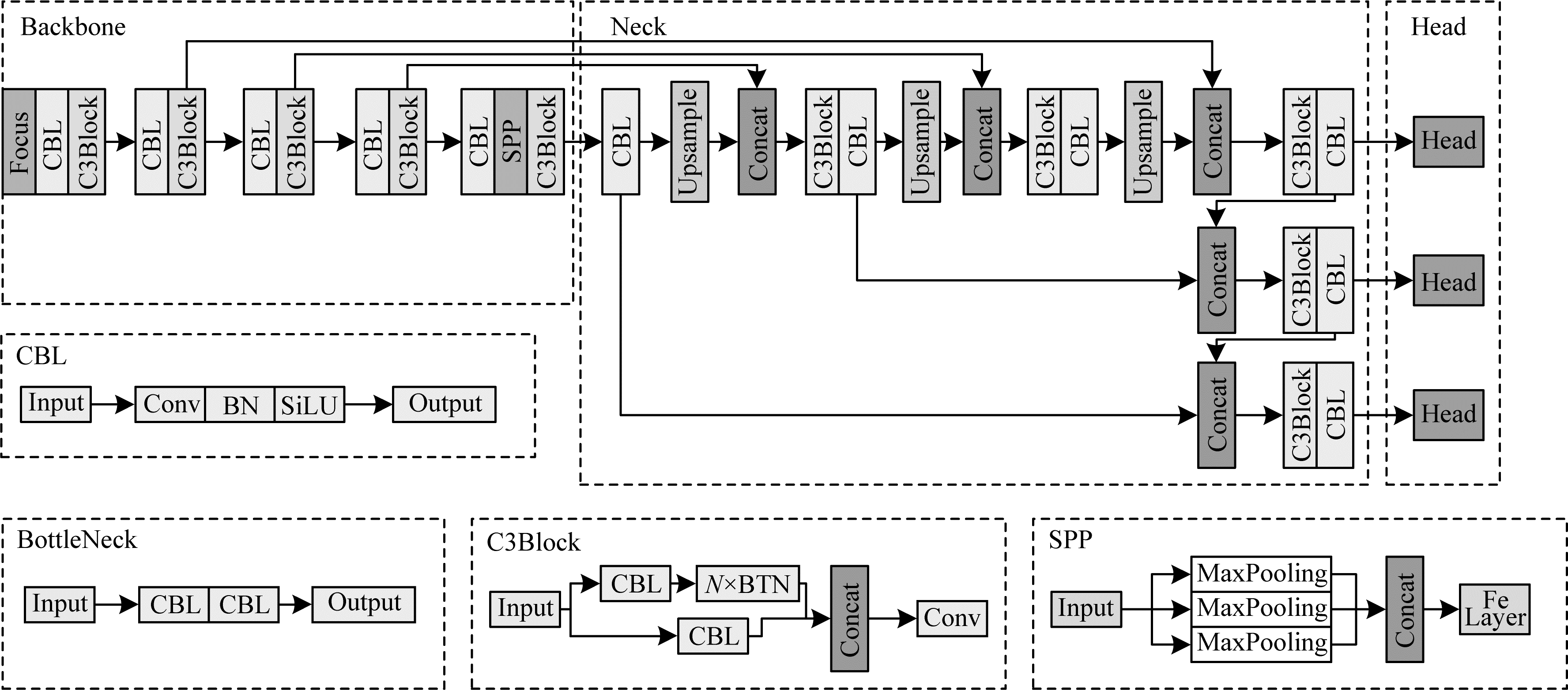

图1 YOLOv5网络模型结构

Fig.1 Structure of YOLOv5 network model

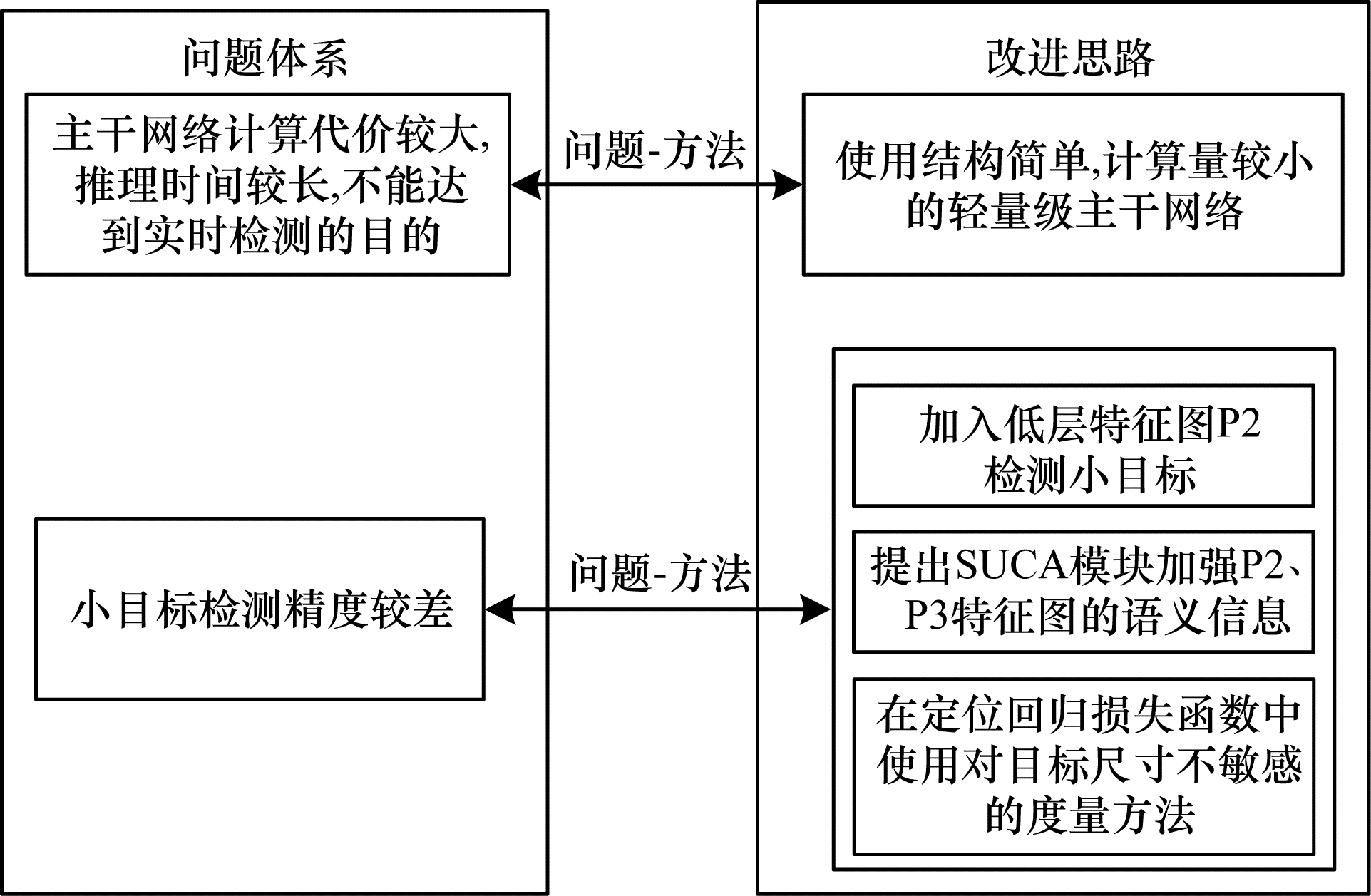

图2 本文的改进思路示意图

Fig.2 Schematic diagram of improvement ideas in this paper

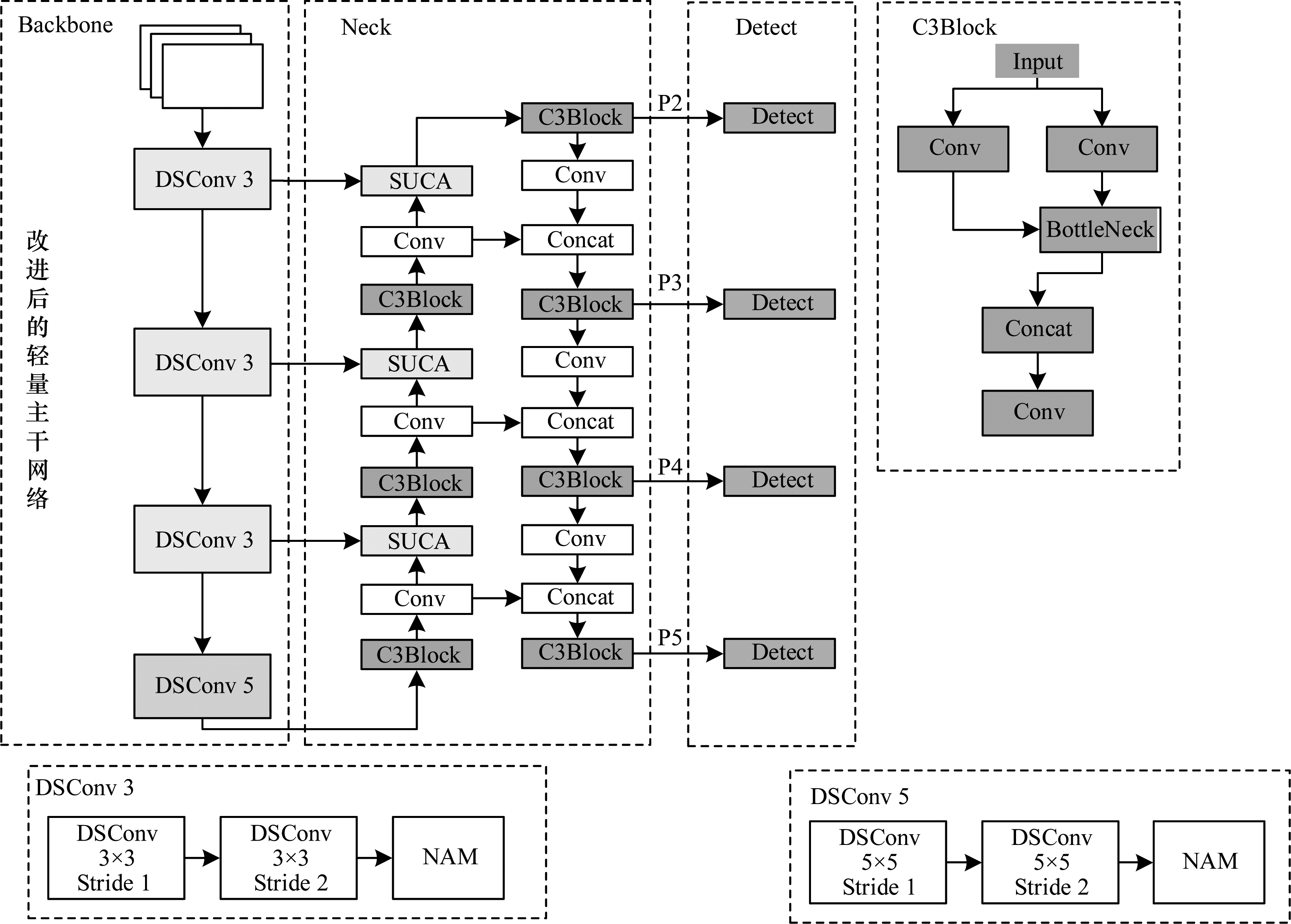

图3 SS-YOLO网络模型结构

Fig.3 Structure of SS-YOLO network model

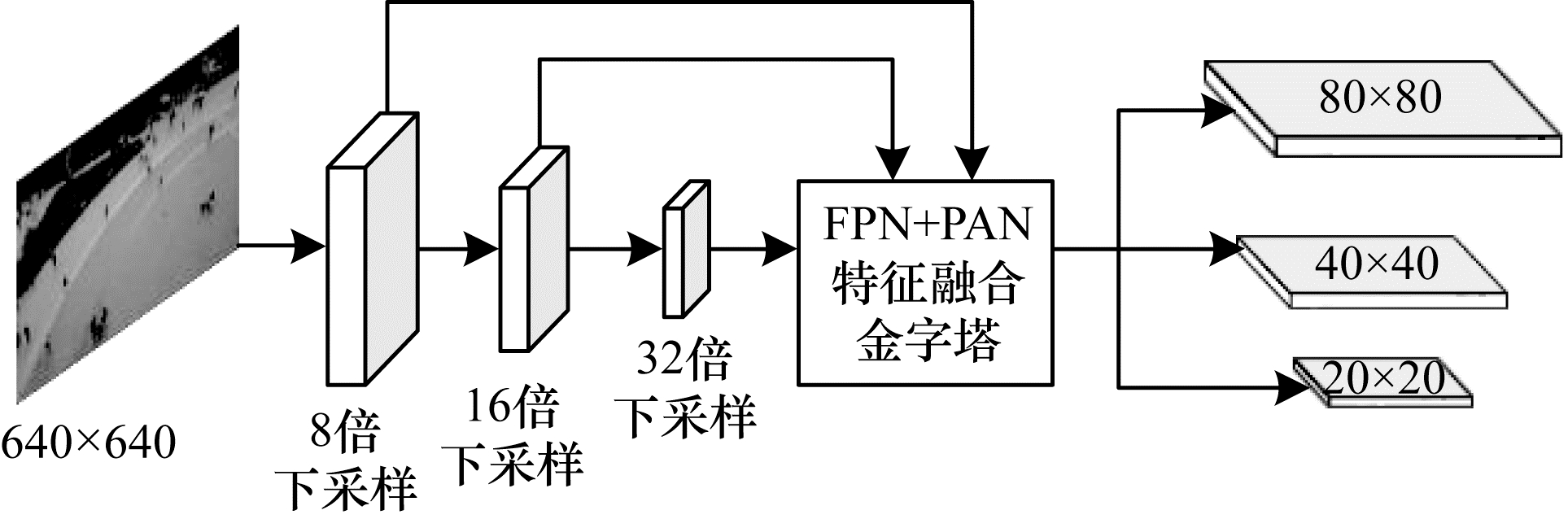

图4 原始特征提取网络模型结构

Fig.4 Structure of original feature extraction network model

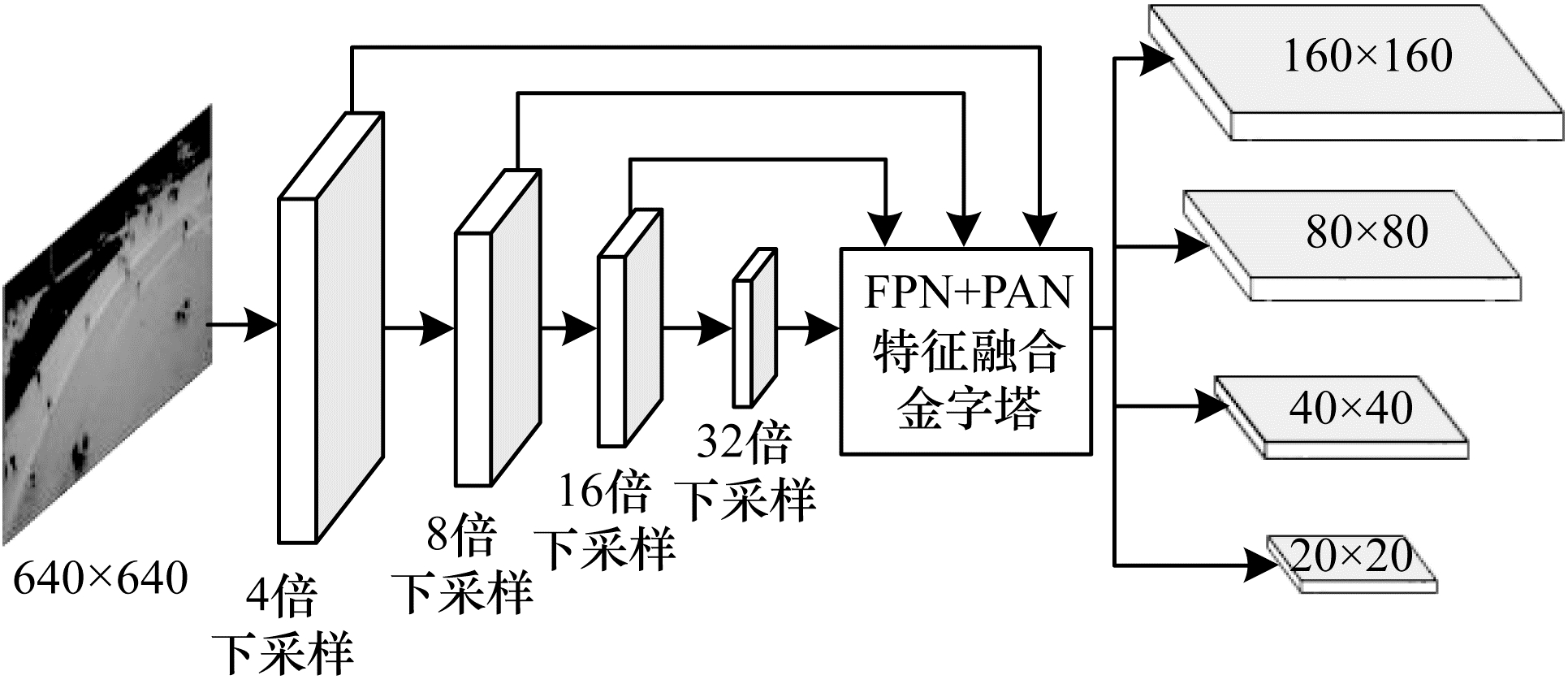

图5 增加极小尺寸后的特征提取网络模型结构

Fig.5 Structure of feature extraction network model with minimal size addition

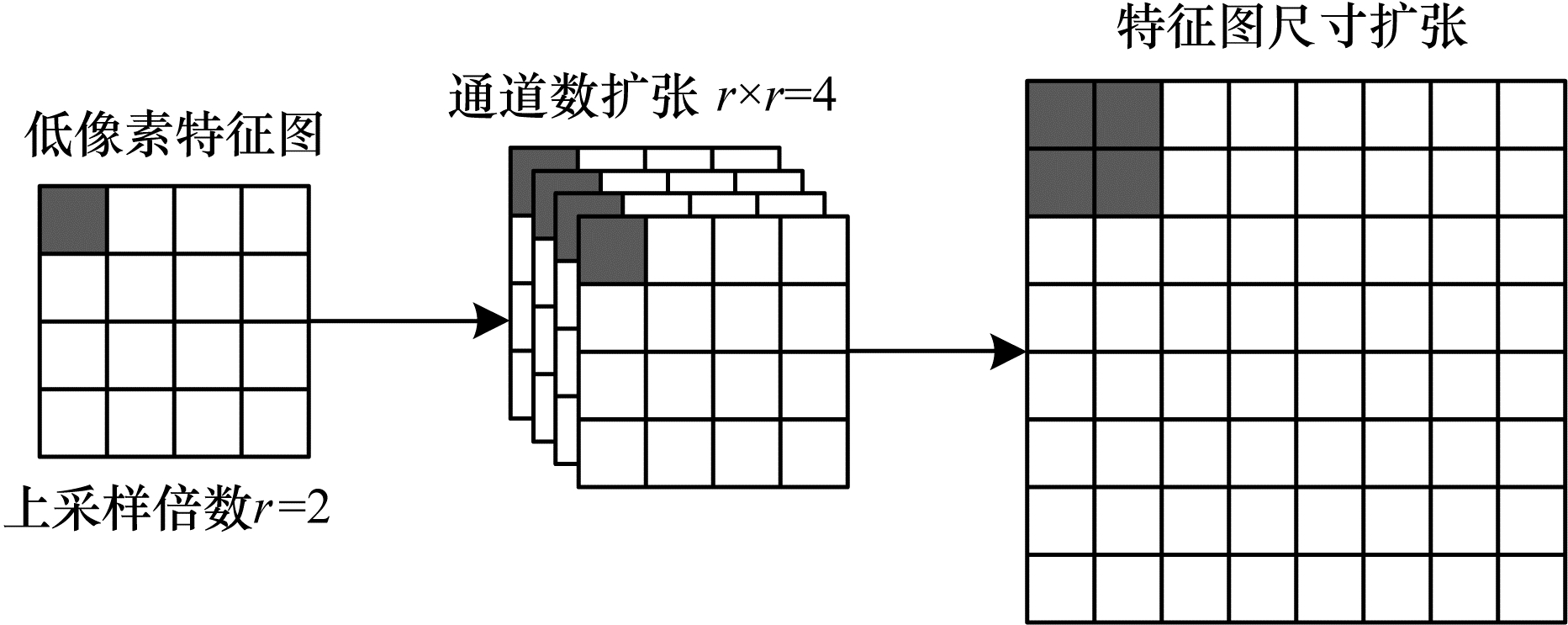

图6 亚像素卷积像素重排过程

Fig.6 Rearrangement process of subpixel convolution pixel

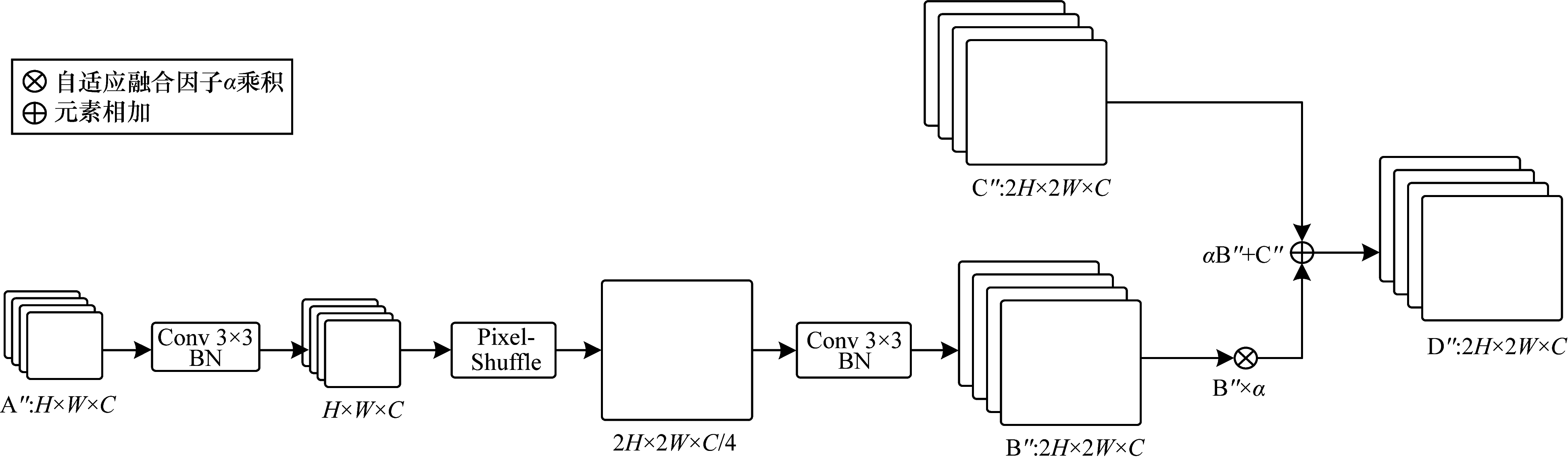

图7 SUCA模块结构

Fig.7 Structure of SUCA module

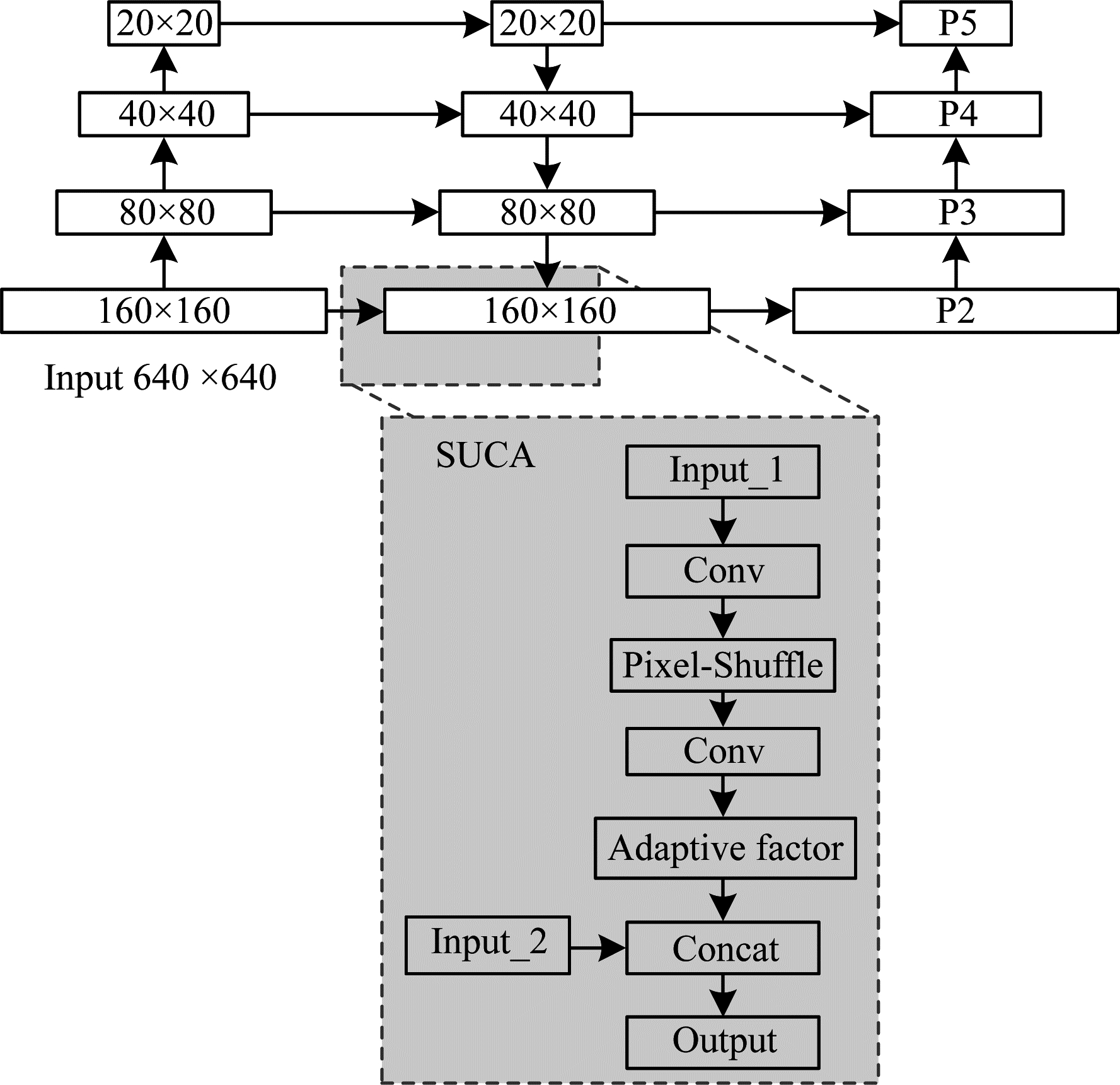

图8 加入SUCA模块后特征提取网络模型结构

Fig.8 Structure of feature extraction network model with SUCA module

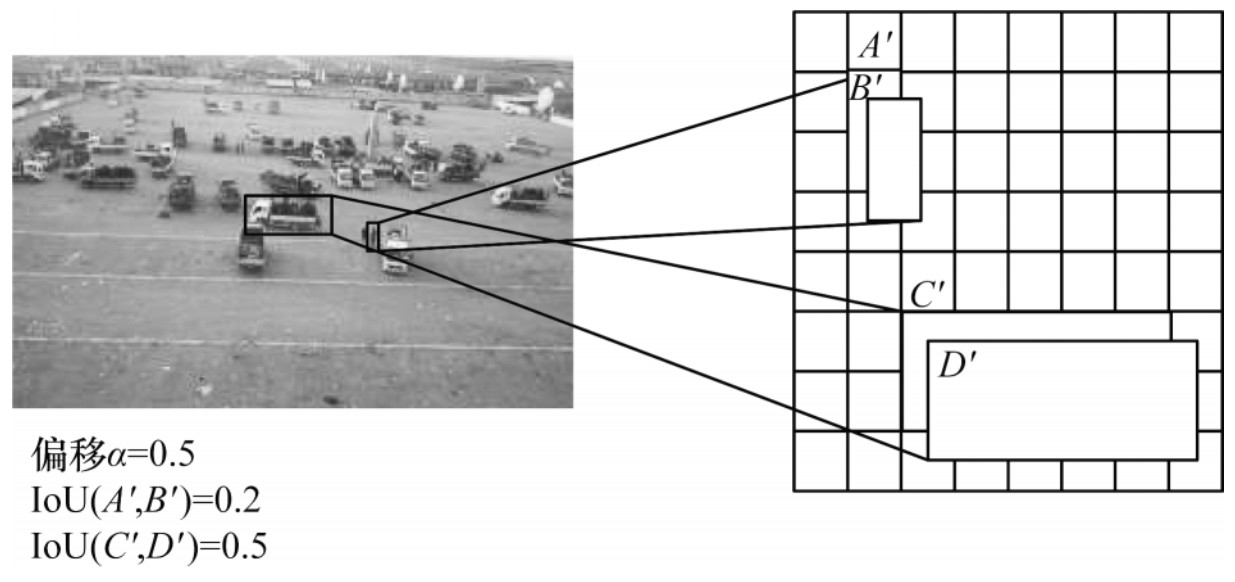

图9 IoU对目标尺寸的敏感性

Fig.9 Sensitivity of IoU to object size

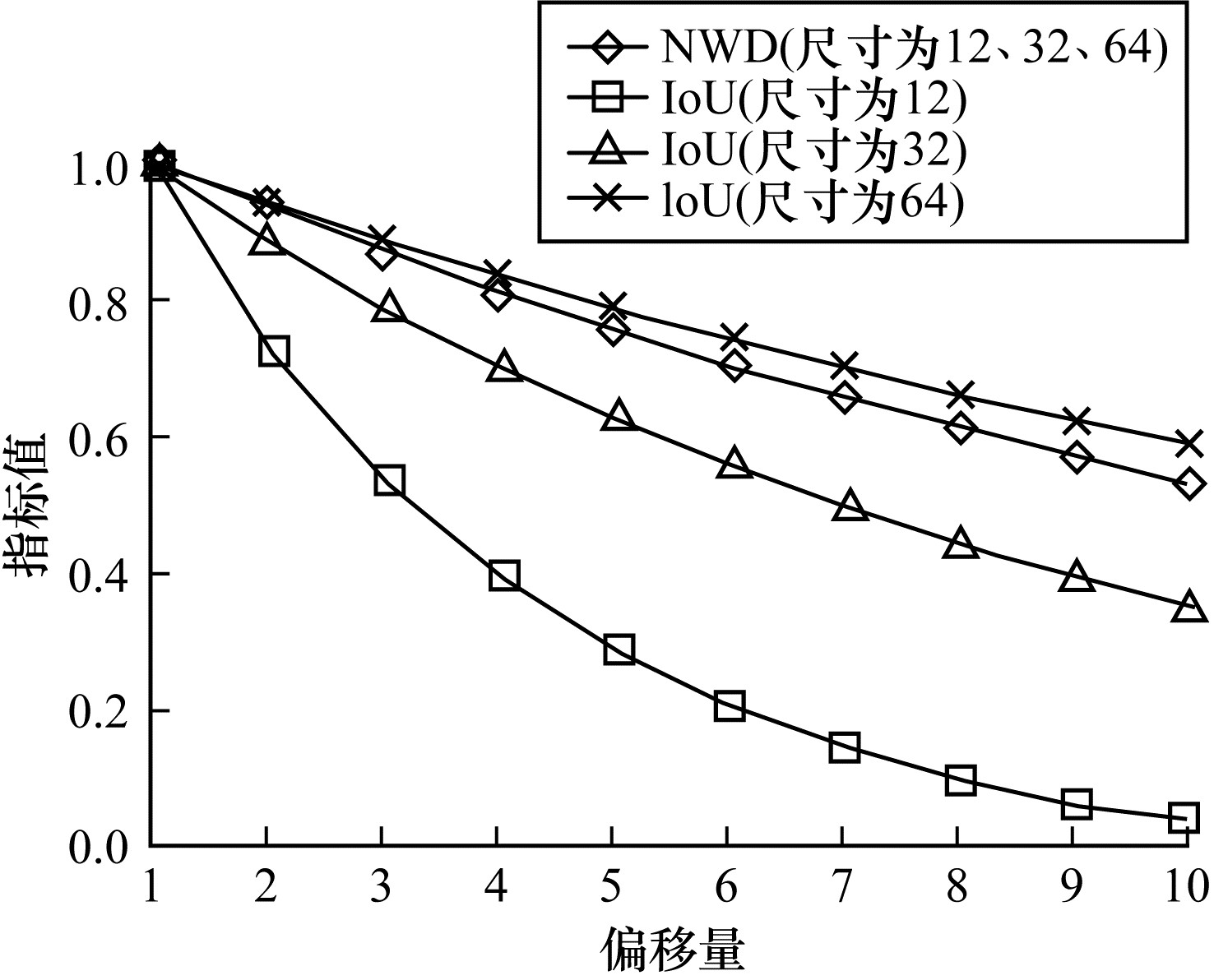

图10 尺寸为（12，32，64）的目标在相同偏移量下的IoU与NWD对比

Fig.10 IoU and NWD comparison of object with size (12, 32, 64) at the same offset

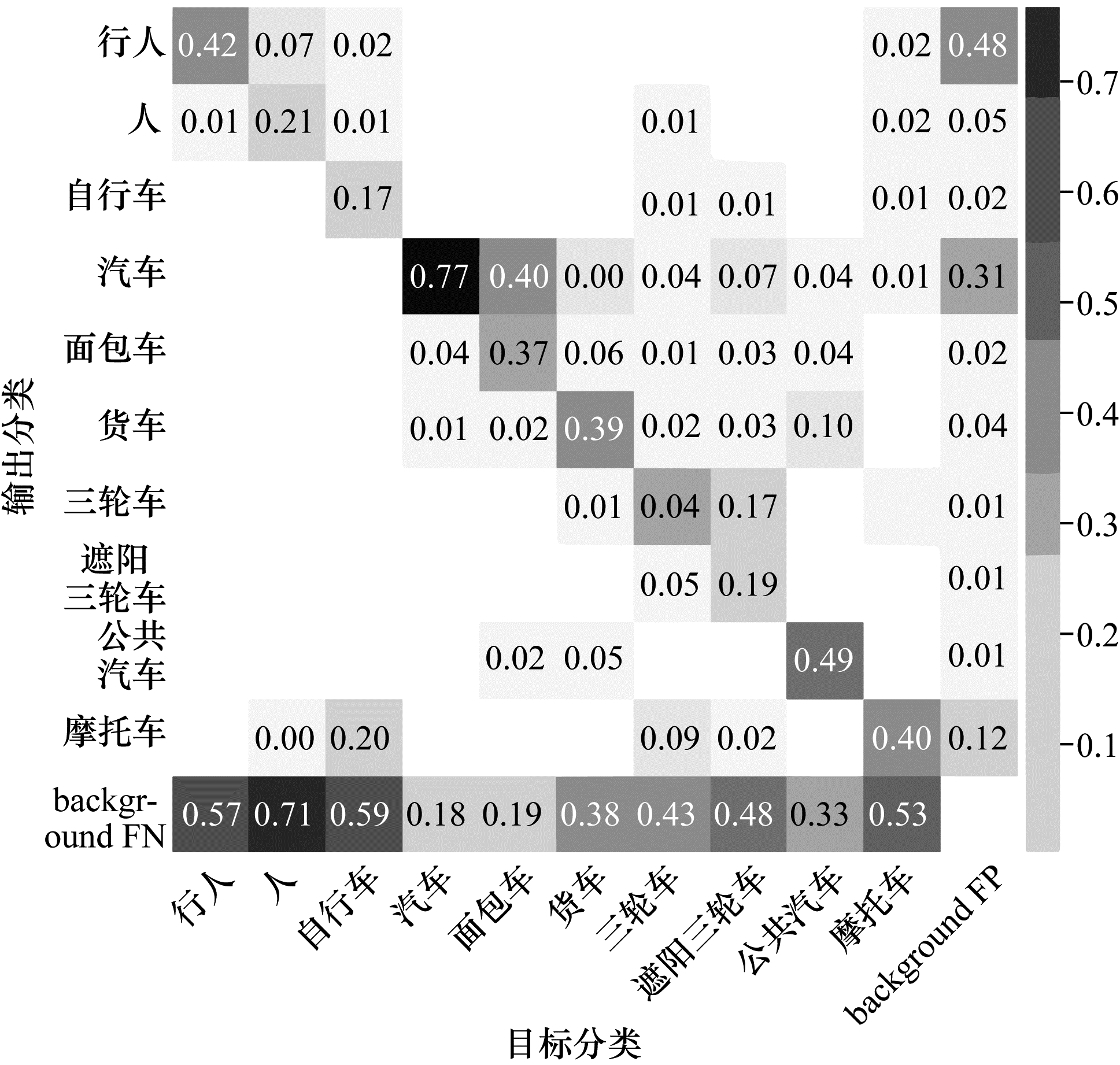

图11 混淆矩阵

Fig.11 Confusion matrix

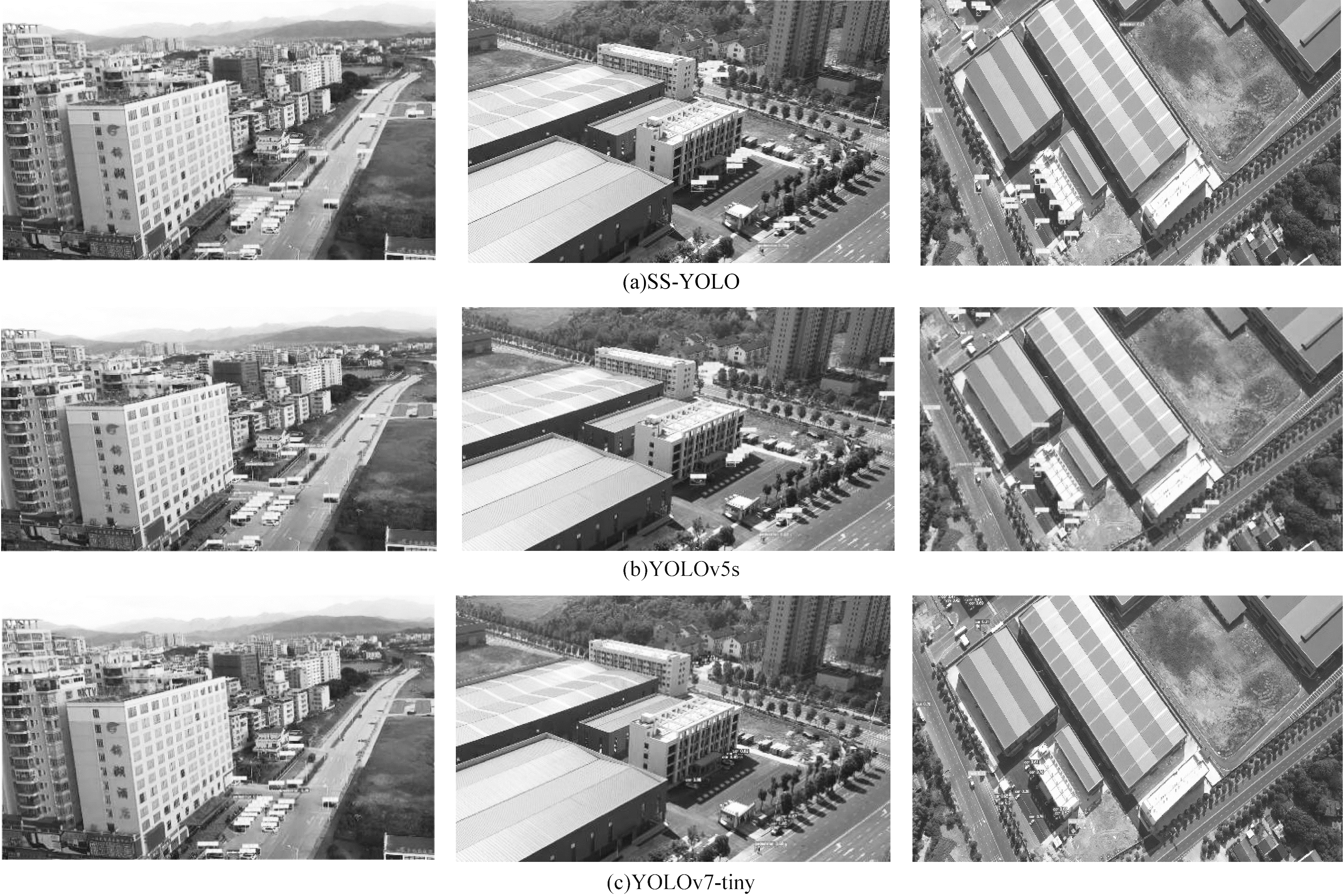

图12 不同算法的检测结果对比

Fig.12 Comparison of detection results among different algorithms
