基于交替循环神经网络的水下防御态势预测方法

doi:10.19678/j.issn.1000-3428.0065183

摘要/Abstract

摘要：

时间序列在军事战术对抗等领域应用广泛，通过战场观测到的时间序列态势信息预测对抗目标的趋势是制定决策方案的重要前提。以潜艇防御声自导鱼雷攻击为背景，针对环境不明、目标不明、解算要素不明等导致水下态势获取困难的问题，提出一种基于循环神经网络的交替不完全时间序列预测方法。融合单变量自回归横向趋势与外部趋势，对观测变量进行趋势预测。针对多变量间存在非线性复杂关系的特点，将纵向多变量间关系特征提取与横向趋势预测相结合，采用插补数据集训练与趋势输出预测的方式实现纵向预测。最后，使用加权分配器对横向趋势预测和纵向预测结果进行融合，提高模型对不完全时序态势的学习能力，实现对未来态势的预测。实验结果表明，在不完全信息条件下，所提方法在缺失30%和60%数据、3种不同预测时间窗口长度条件下，在仿真数据集和电力公测数据集上的平均均方误差、平均绝对误差均达到了最优或次优结果，能够实现态势评估，为充分利用并融合多特征态势数据进行决策提供科学有效的参考。

关键词: 交替循环神经网络, 缺失数据, 水下防御, 注意力机制, 自回归

Abstract:

Time series are widely used in military tactics confrontation and other fields. Predicting the trend of confrontation targets through the time series situation information observed in the battlefield is an important prerequisite for decision-making plans. Based on the background of submarine defense against acoustic homing torpedo attack, an alternative incomplete time series prediction method based on a recurrent neural network is proposed to solve the problems of unknown environment, unknown target, unknown solution elements, etc. The proposed method integrates univariate autoregressive lateral trend prediction with external trends to perform trend prediction on observed variables. In response to the characteristics of nonlinear and complex relationships between multiple variables, the feature extraction of vertical multivariate relationships is combined with horizontal trend prediction, and longitudinal prediction is achieved through interpolation dataset training and trend output prediction. Finally, a weighted allocator is used to fuse the horizontal and vertical trend prediction results, improving the learning ability of incomplete time series situations and enabling prediction of future situations. The experimental results show that under the conditions of 30% and 60% missing data and three different lengths of prediction time window, the proposed method achieves optimal or near-optimal Mean Square Error(MSE)and Mean Absolute Error(MAE) on the simulation data set and electric power open test data set, can realize situation assessment, and can provide more effective decision-making reference for making full use of and fusing multi-feature situation data.

Key words: alternating recurrent neural network, missing data, underwater defense, attention mechanism, auto regression

杨静, 陆铭华, 马洁琼, 吴金平, 刘星璇. 基于交替循环神经网络的水下防御态势预测方法[J]. 计算机工程, 2023, 49(9): 69-78.

Jing YANG, Minghua LU, Jieqiong MA, Jinping WU, Xingxuan LIU. Underwater Defense Posture Prediction Method Based on Alternating Recurrent Neural Network[J]. Computer Engineering, 2023, 49(9): 69-78.

http://www.ecice06.com/CN/Y2023/V49/I9/69

图/表 11

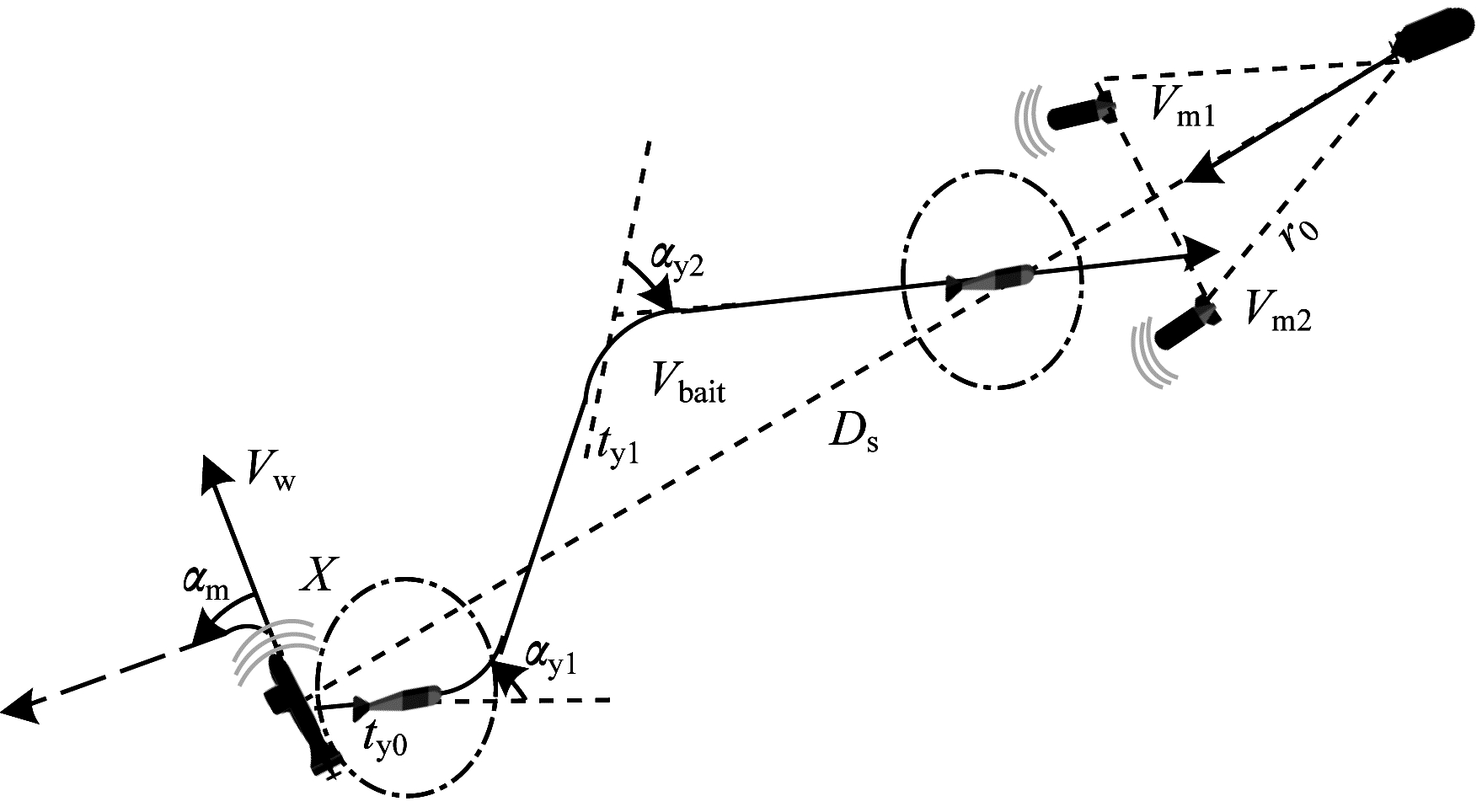

图1 潜艇防御鱼雷示意图

Fig.1 Schematic diagram of submarine defense torpedo

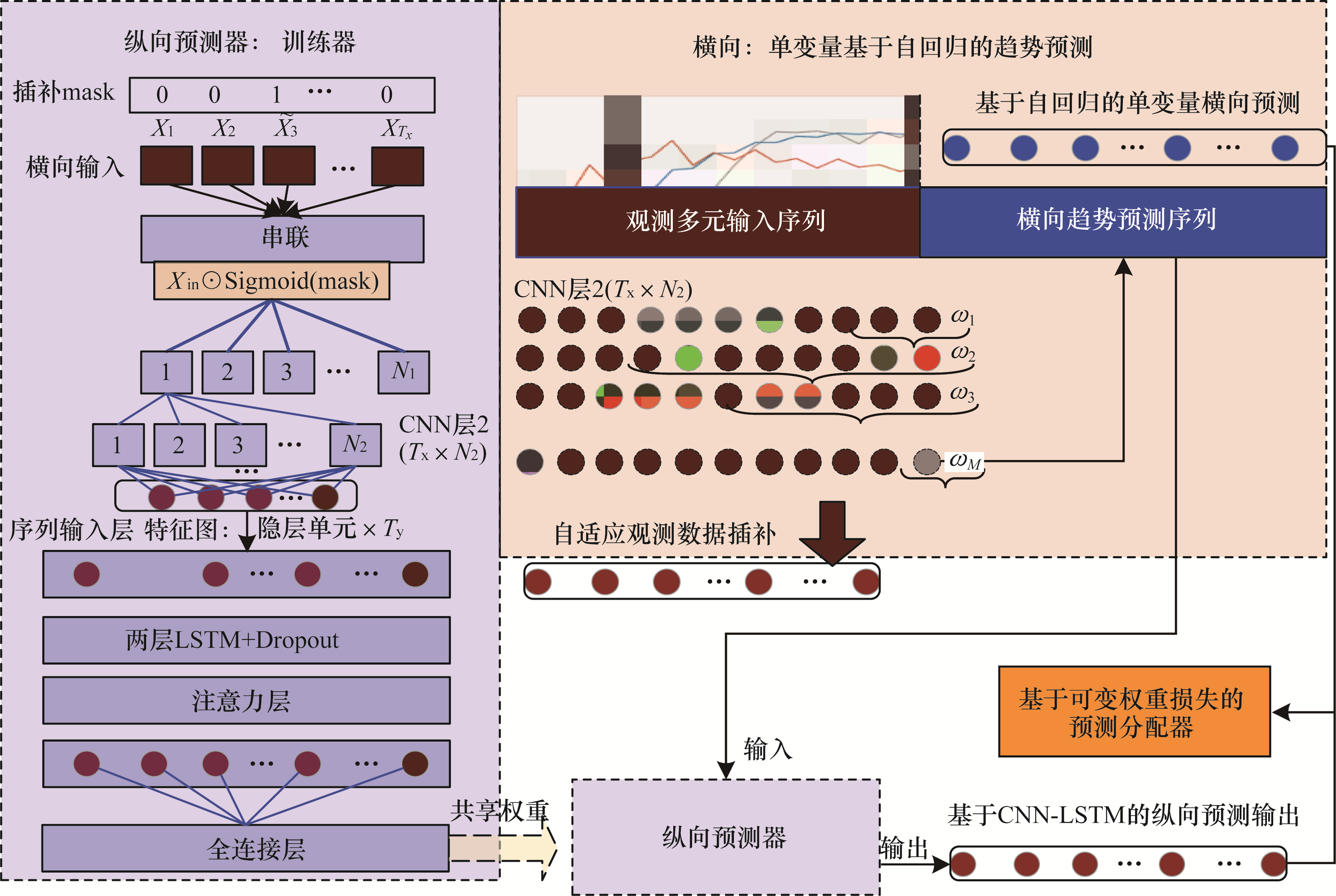

图2 交替循环神经网络的结构

Fig.2 Structure of alternating recurrent neural network

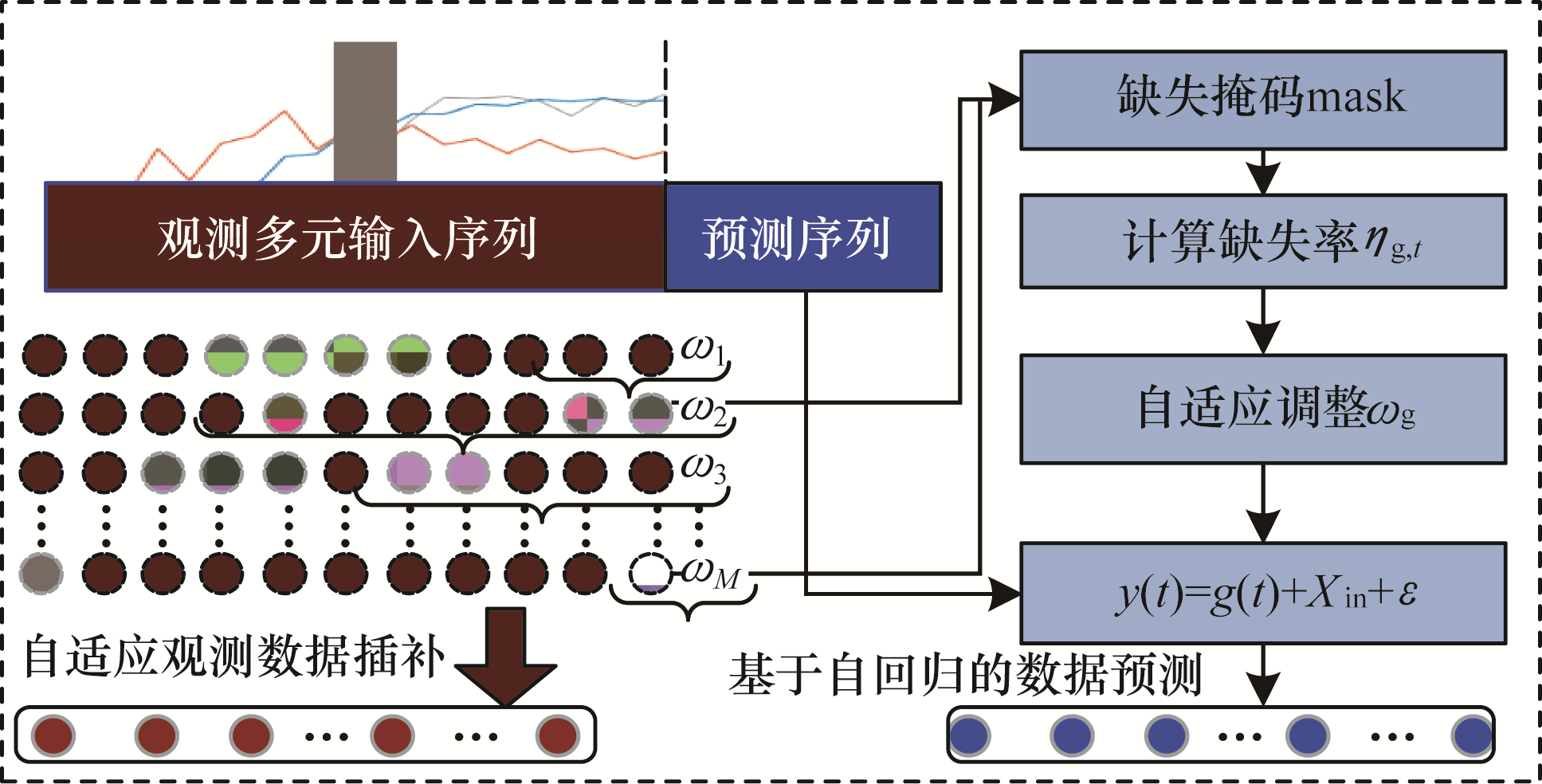

图3 基于自回归的横向预测

Fig.3 Horizontal prediction based on auto regression

图4 基于横向填充的纵向长序列预测流程

Fig.4 Procedure of vertical long sequence prediction based on horizontal filling

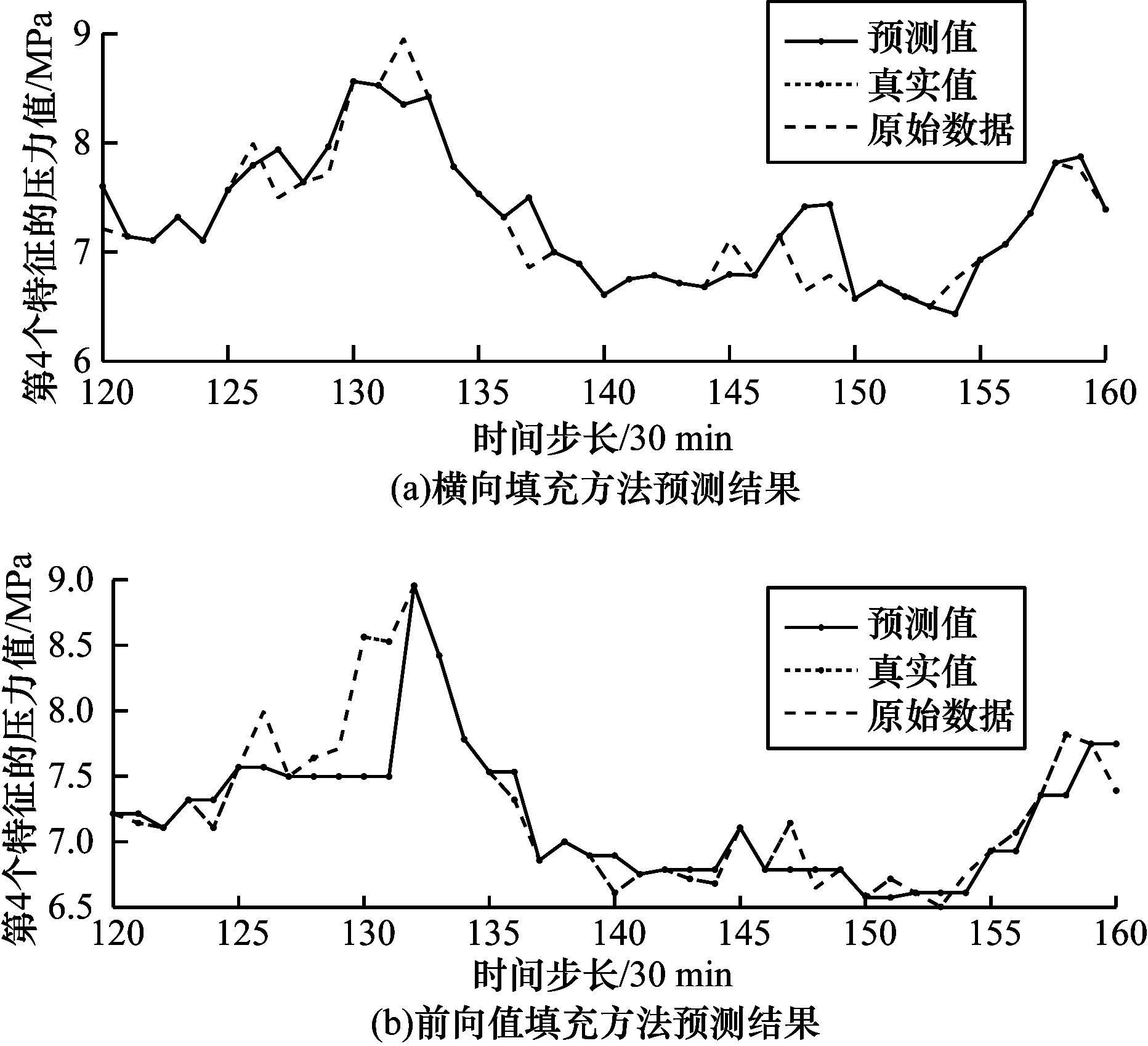

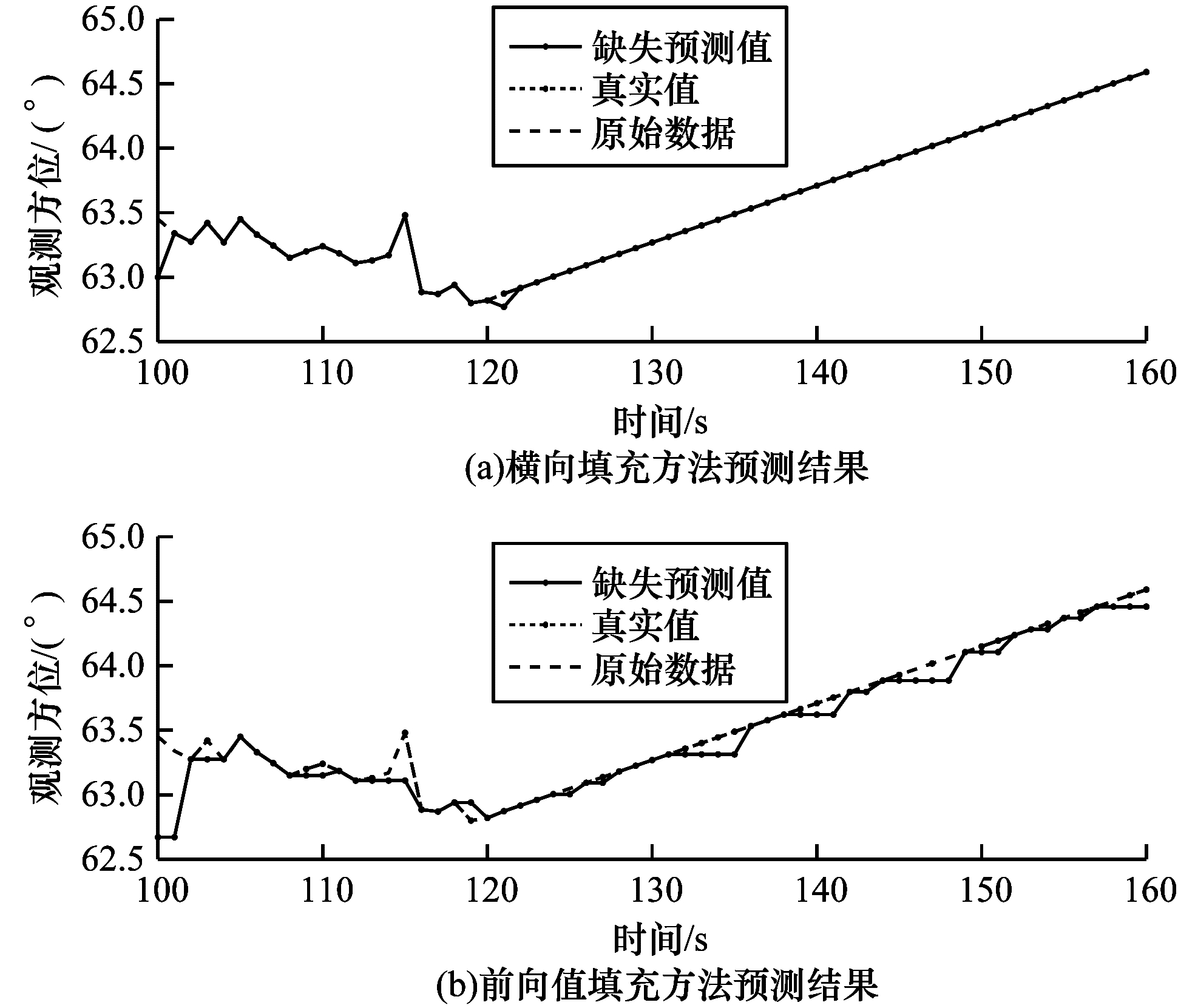

图5 60%数据缺失条件下ETT-m数据集的预测结果对比

Fig.5 Comparison of prediction results of ETT-m date set under 60% data missing conditions

图6 60%数据缺失条件下仿真数据集的预测结果对比

Fig.6 Comparison of prediction results of simulation data set under 60% data missing conditions

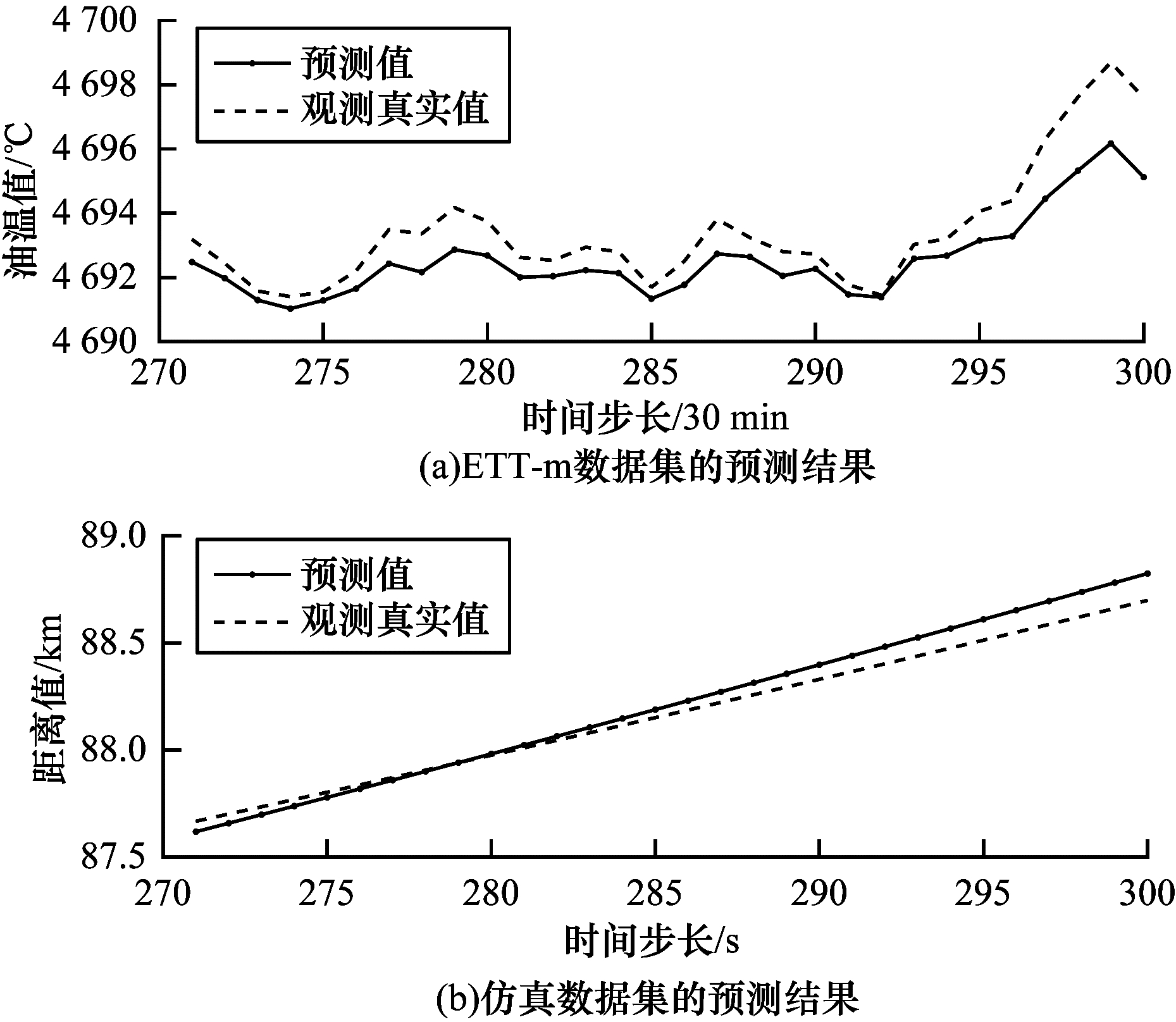

图7 30%数据缺失条件下不同数据集的预测结果

Fig.7 Prediction results of different data set under 30% missing data conditions

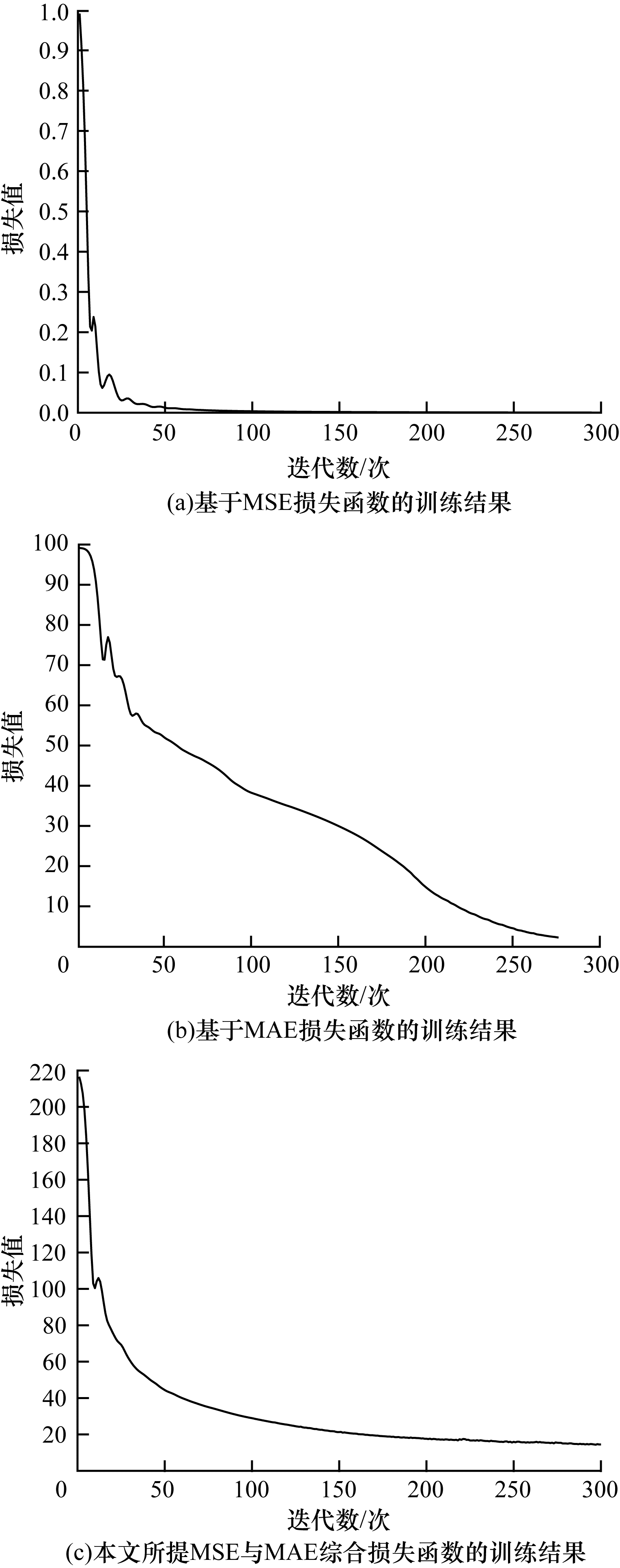

图8 不同损失函数对应的训练损失值

Fig.8 Training loss values corresponding to different loss functions
