基于自适应关键点的破损旋转绝缘子检测方法

doi:10.19678/j.issn.1000-3428.0065725

计算机工程 ›› 2023, Vol. 49 ›› Issue (9): 272-278. doi: 10.19678/j.issn.1000-3428.0065725

基于自适应关键点的破损旋转绝缘子检测方法

龙玉江¹, 卫薇¹, 舒彧¹, 张正刚², 王道累², 李峰²^,*

1. 贵州电网有限责任公司信息中心, 贵阳 550000
2. 上海电力大学电气工程学院, 上海 201306

收稿日期:2022-09-13 出版日期:2023-09-15 发布日期:2023-09-14
通讯作者: 李峰
作者简介:
龙玉江(1976—)，男，高级工程师，主研方向为信息技术
卫薇，高级工程师、硕士
舒彧，高级工程师、硕士
张正刚，硕士研究生
王道累，教授、博士
基金资助:
国家自然科学基金(61502297)

Detection Method for Damaged Rotating Insulator Based on Adaptive Key Points

Yujiang LONG¹, Wei WEI¹, Yu SHU¹, Zhenggang ZHANG², Daolei WANG², Feng LI²^,*

1. Information Center, Guizhou Power Grid Co., Ltd., Guiyang 550000, China
2. College of Electric Power Engineering, Shanghai University of Electric Power, Shanghai 201306, China

Received:2022-09-13 Online:2023-09-15 Published:2023-09-14
Contact: Feng LI

摘要/Abstract

摘要：

在输电线路检测图像中受绝缘子方向不确定、背景复杂、遮挡物等因素影响，导致漏检和定位准确率降低。提出一种基于自适应关键点的破损旋转绝缘子检测方法。将Oriented RepPoints目标检测算法作为Baseline并加以改进。针对Oriented RepPoints算法的方向信息感知较弱以及特征表示能力差的问题，结合递归特征金字塔和坐标注意力机制，构建递归强化特征金字塔网络(Re-FPN)。其中，CA模块从2个方向聚合特征，捕获方向感知和位置敏感信息，提升模型的定位和识别能力，Re-FPN在经典特征金字塔网络基础上进行递归式特征提取，将输入图像特征进行反复提取，使得目标检测的错误回传信息能够更直接反馈以调整主干网络参数，从而提升提取特征对检测的适用性。在自建绝缘子图像数据集上进行训练和测试，实验结果表明，该方法的绝缘子检测准确率达到96.1%，相比Oriented RepPoints算法提升2.1个百分点，同时该算法性能表现优于现有主流目标检测算法，具有较高的工程应用价值。

关键词: 绝缘子, 旋转框, 目标检测, 特征金字塔网络, 注意力机制

Abstract:

Aiming at the problems of missing detection and inaccurate positioning caused by uncertain insulator direction, complex background, and occlusion in transmission line detection images, this study proposes a detection method for damaged rotating insulator based on adaptive key points. The Oriented RepPoints target detection algorithm is selected as the baseline and improved. To solve the problems of weak directional information perception and poor feature representation in the Oriented RepPoints algorithm, this study proposes a Recursive-enhanced Feature Pyramid Network (Re-FPN) based on the Recursive Feature Pyramid (RFP) and Coordinate Attention (CA) mechanism. The CA module improves the positioning and recognition capability of the model by aggregating features from two directions to capture directional perception and location-sensitive information. The Re-FPN performs recursive feature extraction based on the classic FPN, repeatedly purifying the features of the input image so that the error feedback information of target detection can more directly feedback and adjust the parameters of the backbone, greatly improving the applicability of extracted features for detection. Training and testing are conducted on a self-built insulator image dataset. The experimental results showed that the accuracy of insulator detection by the proposed method reached 96.1%, which is 2.1 percentage points higher than that of the baseline Oriented RepPoints algorithm. At the same time, the improved algorithm performs better than the existing mainstream target detection and calculation methods and has a high engineering application value.

Key words: insulator, rotating frame, object detection, Feature Pyramid Network (FPN), attention mechanism

龙玉江, 卫薇, 舒彧, 张正刚, 王道累, 李峰. 基于自适应关键点的破损旋转绝缘子检测方法[J]. 计算机工程, 2023, 49(9): 272-278.

Yujiang LONG, Wei WEI, Yu SHU, Zhenggang ZHANG, Daolei WANG, Feng LI. Detection Method for Damaged Rotating Insulator Based on Adaptive Key Points[J]. Computer Engineering, 2023, 49(9): 272-278.

http://www.ecice06.com/CN/Y2023/V49/I9/272

图/表 9

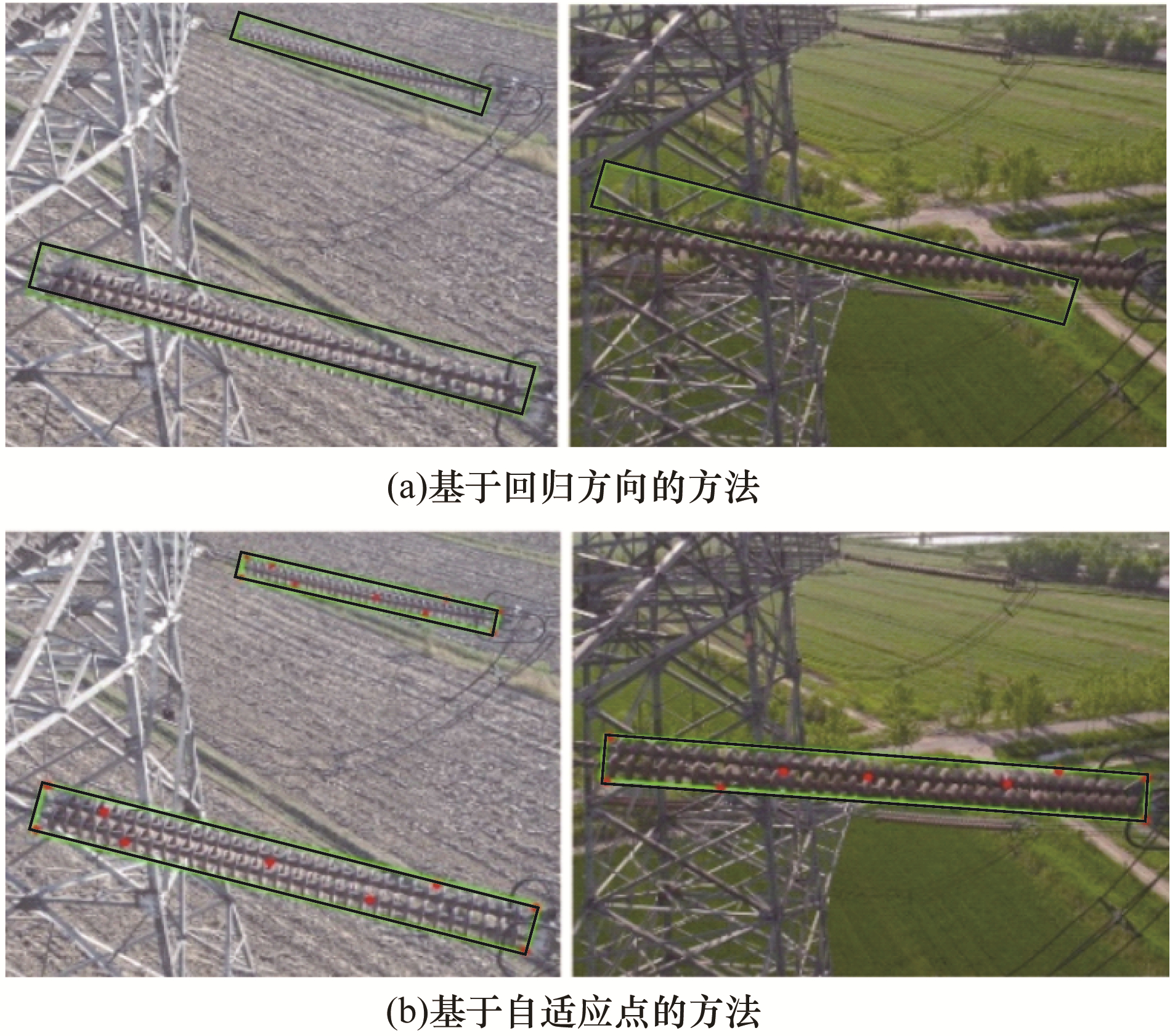

图1 不同旋转框生成方法的提取效果对比

Fig.1 Extraction effect comparison among different rotation box generation methods

图2 Oriented RepPoints结构

Fig.2 Structure of Oriented RepPoints

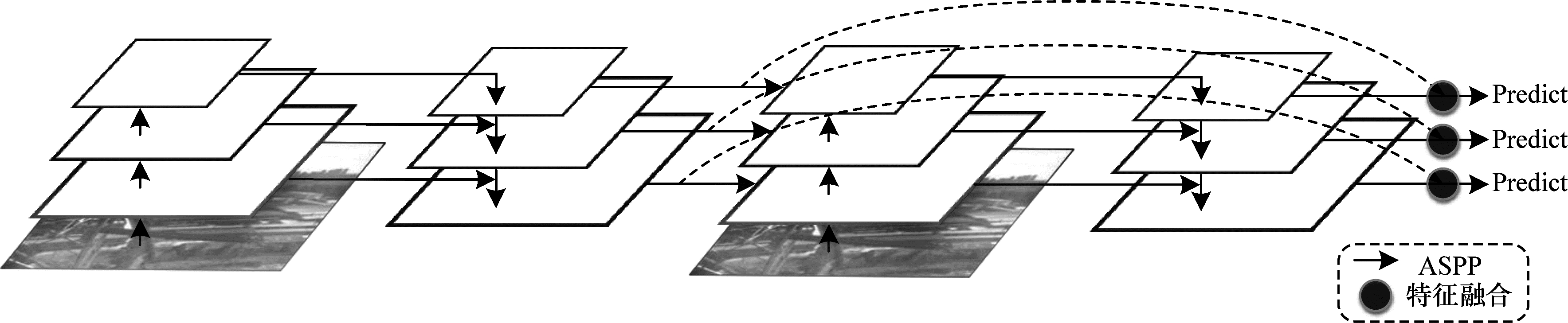

图3 递归强化特征金字塔网络结构

Fig.3 Structure of recursive-enhanced feature pyramid network

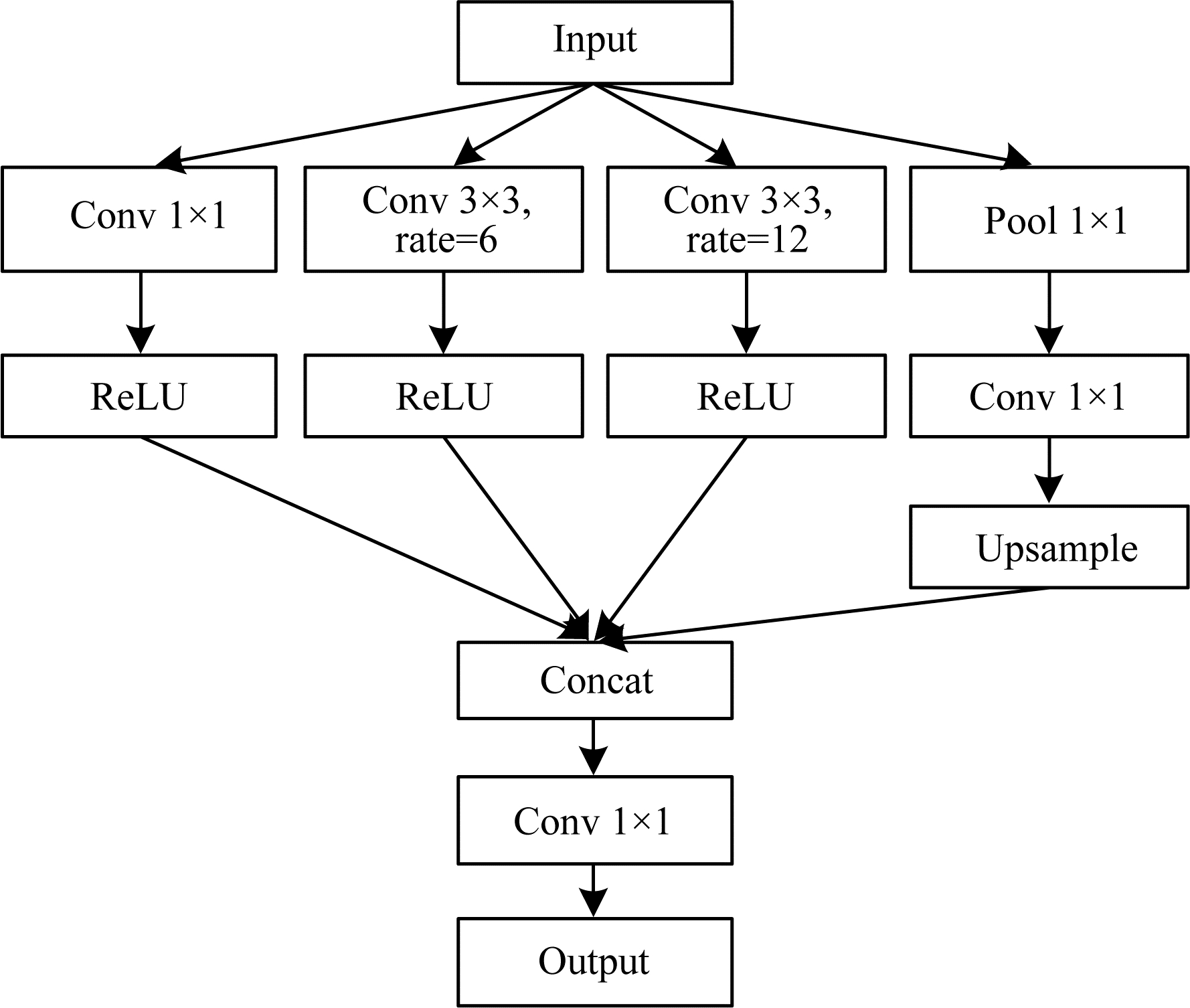

图4 空洞空间金字塔池化网络结构

Fig.4 Structure of atrous spatial pyramid pooling network

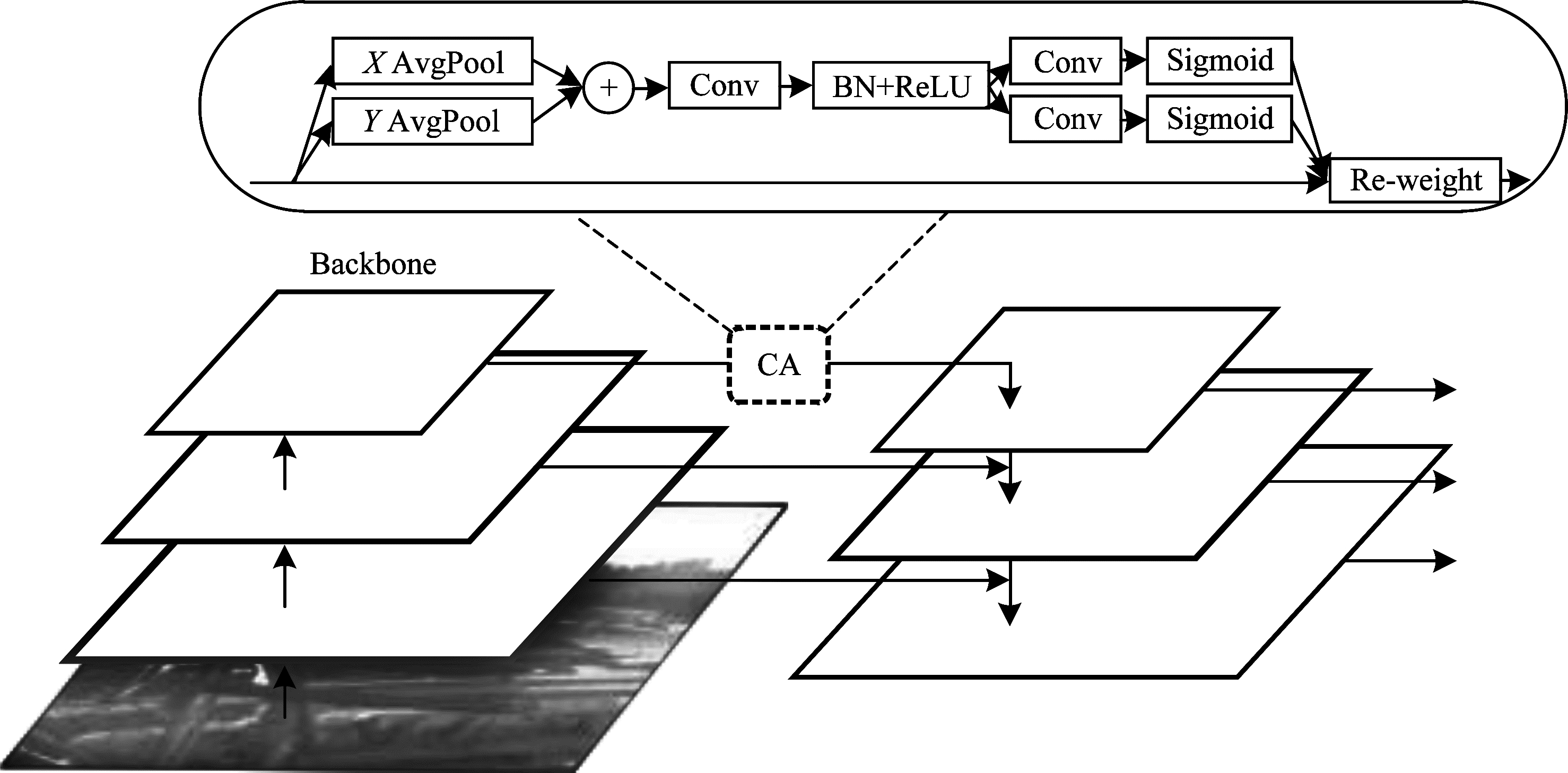

图5 坐标注意力机制结构

Fig.5 Structure of coordinate attention mechanism

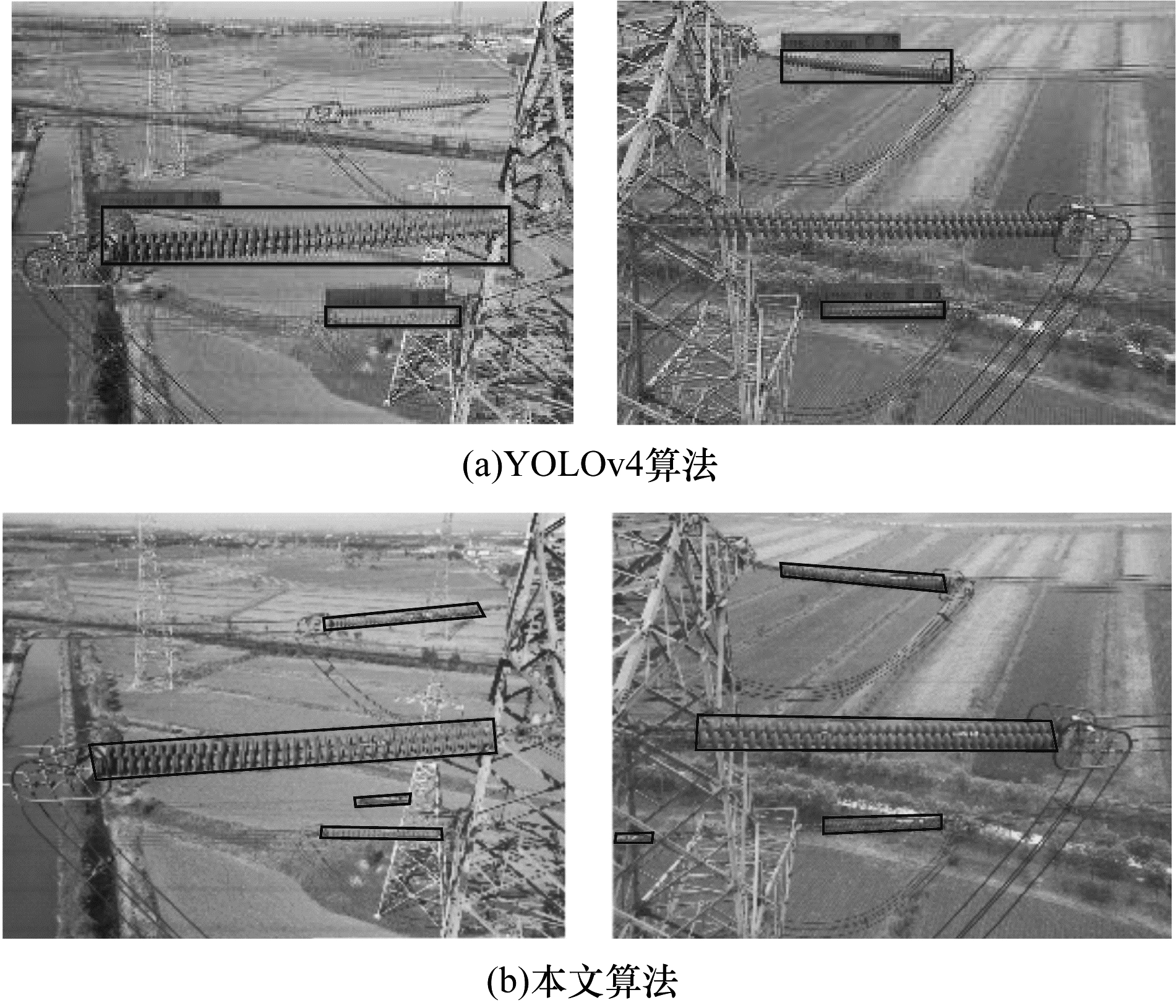

图6 YOLOv4算法与本文算法的可视化结果对比
