基于自适应多尺度图卷积网络的骨架动作识别

doi:10.19678/j.issn.1000-3428.0065882

摘要/Abstract

摘要：

将人体骨架建模为时空拓扑图的图卷积网络在基于人体骨架数据的动作识别任务中得到了广泛应用。但现有图卷积网络存在预定义骨架拓扑图拓扑结构固定、单支路时间图卷积算子提取时空特征粒度单一的问题，极大限制了模型的泛化能力和表达能力。提出基于自适应多尺度图卷积网络的人体骨架动作识别模型，自适应空间图卷积层将骨架的拓扑结构作为参数进行端到端的自适应学习，根据动作生成数据驱动的骨架拓扑图。多尺度时间图卷积层对时间图卷积算子进行多支路扩展，动态融合骨架序列不同时间粒度的时空特征。综合骨架关节点、骨架长度、骨架关节点运动、骨架长度运动4路信息输入模型。实验结果表明，所提模型在NTU RGB+D 60动作识别数据集下的人物划分(CS)模式和视角划分模式实验中分别取得90.5%和96.8%的识别准确率，在NTU RGB+D 120动作识别数据集的CS模式和设置划分模式的实验中分别取得86.0%和88.7%的识别准确率，能有效提取骨架动作的时空特征，提升了人体骨架动作识别的分类性能。

关键词: 人体骨架, 动作识别, 图卷积网络, 自适应, 多尺度

Abstract:

The Graph Convolution Network(GCN) is widely used for skeleton-based recognition methods, whereby a predefined spatiotemporal topology graph is used to model human skeletal features. However, the existing GCN has limitations in two aspects: the predefined skeleton topology structure limits the generalization ability of the model, and single-granular spatiotemporal features limit the capacity of the model. To solve the aforementioned problems, an adaptive multi-scale graph convolution network is proposed. The adaptive spatial graph convolution layer regards the topology of the skeleton as parameters to optimize, thereby generating data-driven skeleton topology by samples. The multiscale temporal graph convolution layer uses various temporal graph convolution kernels to dynamically integrate the multi-granular spatiotemporal features. Extensive experiments were conducted by combining joint, bone, joint motion, and bone motion streams as inputs of the proposed model. The experimental results show that the classification accuracy of the proposed model under NTU RGB+D 60 action recognition data set for the Cross-Subject(CS) and Cross-View(CV) subsets was 90.5% and 96.8%, respectively, and the classification accuracy of the NTU RGB+D 120 action recognition dataset for the CS and Cross-Setup(CT)subsets was 86.0% and 88.7%, respectively. The model can effectively extract the spatiotemporal features of skeleton motion, thereby improving the classification performance of human skeleton motion recognition.

Key words: human skeleton, action recognition, Graph Convolution Network(GCN), adaption, multi-scale

刘宽, 奚小冰, 周明东. 基于自适应多尺度图卷积网络的骨架动作识别[J]. 计算机工程, 2023, 49(10): 264-271.

Kuan LIU, Xiaobing XI, Mingdong ZHOU. Skeleton Action Recognition Based on Adaptive Multi-scale Graph Convolutional Network[J]. Computer Engineering, 2023, 49(10): 264-271.

http://www.ecice06.com/CN/Y2023/V49/I10/264

图/表 11

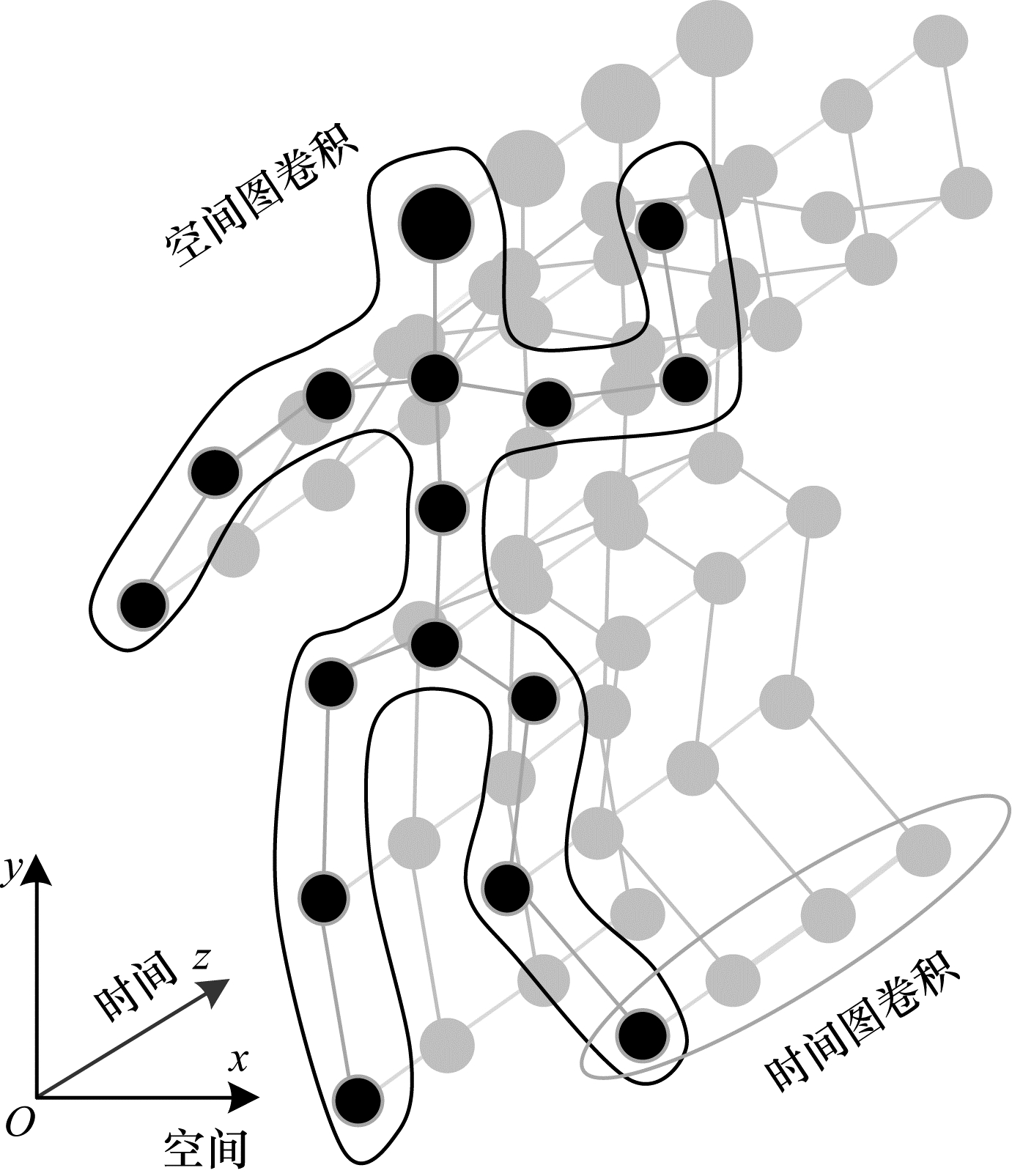

图1 空间图卷积算子和时间图卷积算子

Fig.1 Spatial graph convolution operator and temporal graph convolution operator

图2 自适应空间图卷积层的流程

Fig.2 Procedure of adaptive spatial graph convolution network

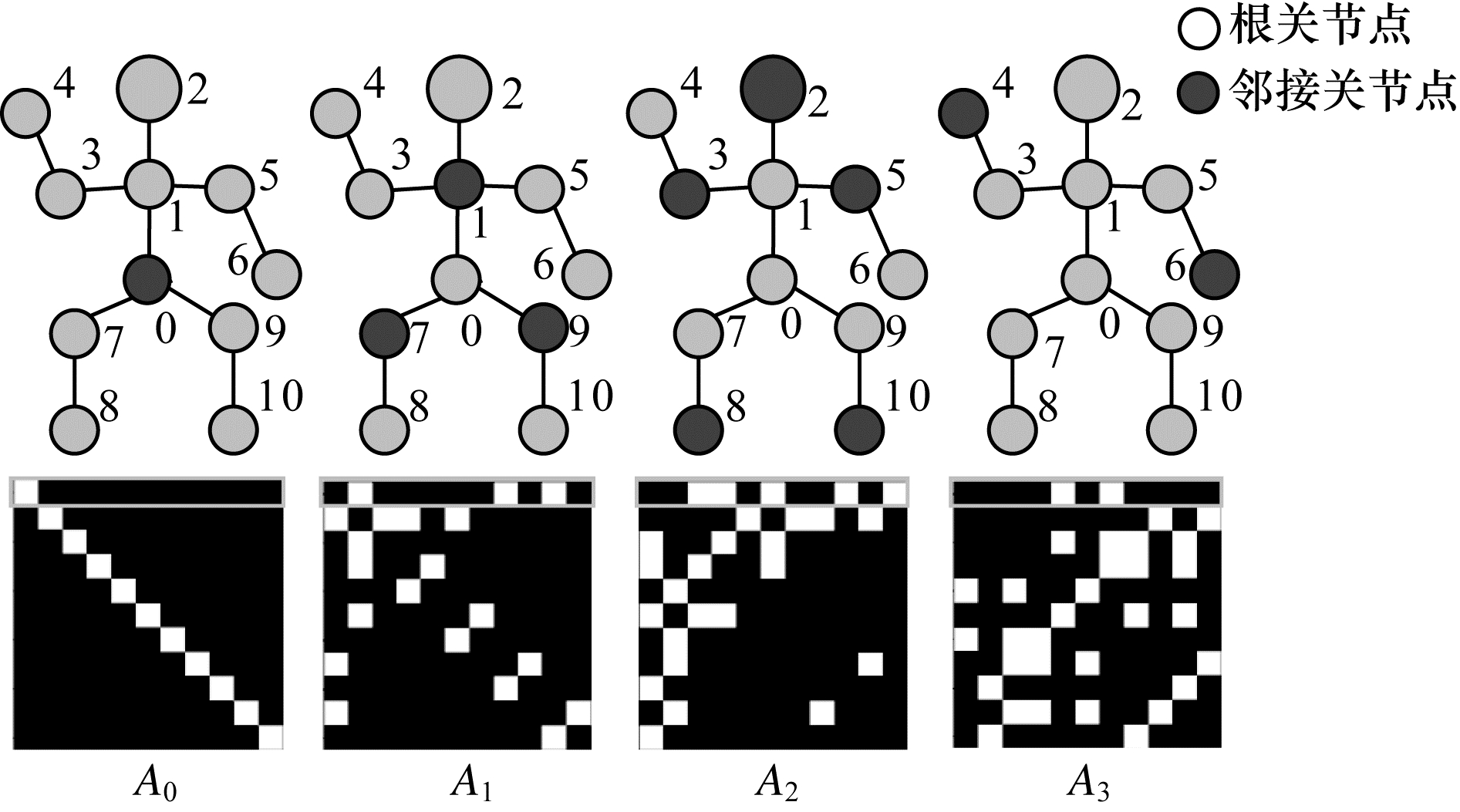

图3 k阶邻接矩阵

Fig.3 k-hop adjacency matrix

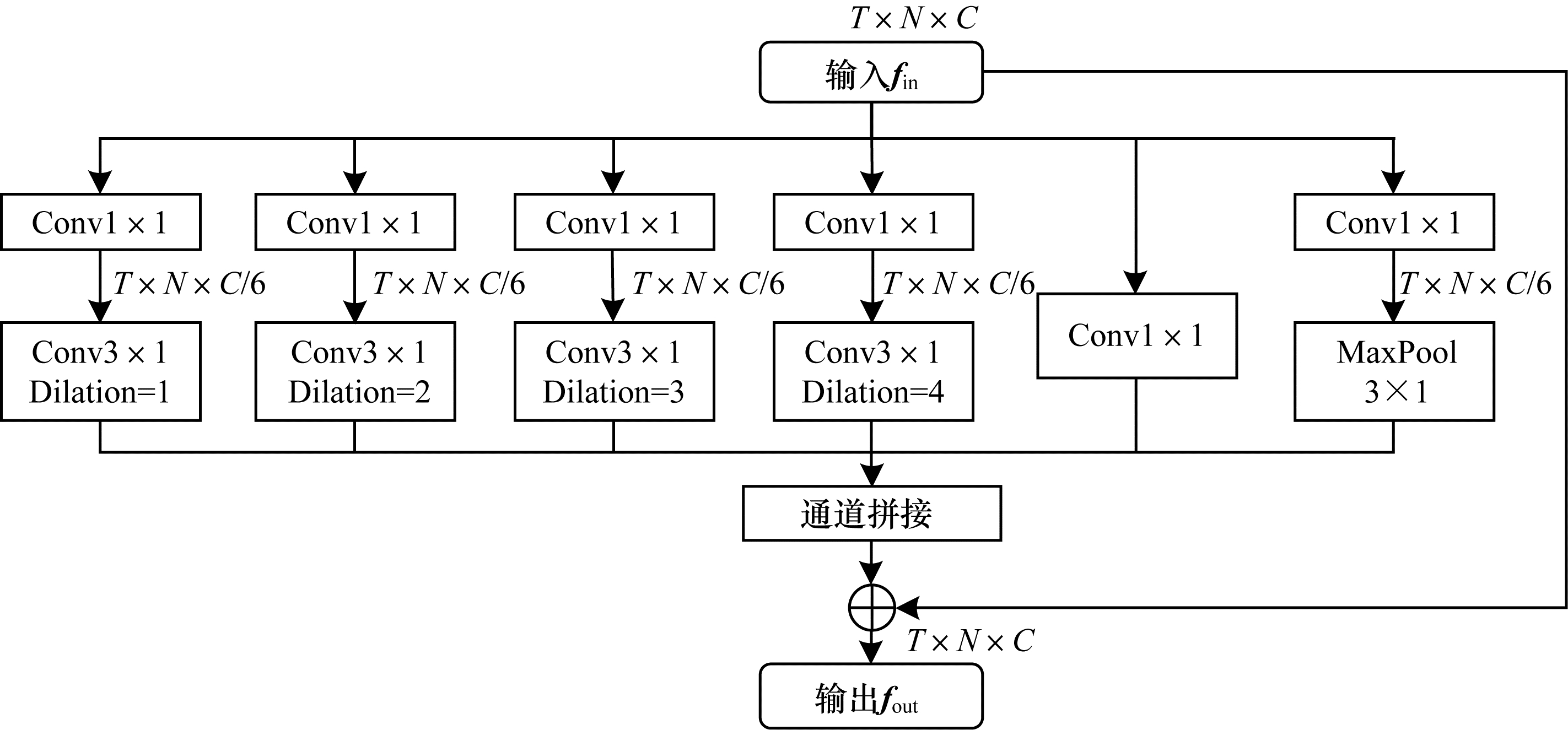

图4 多尺度时间图卷积层的算法流程

Fig.4 Algorithm procedure of multi-scale temporal graph convolution network

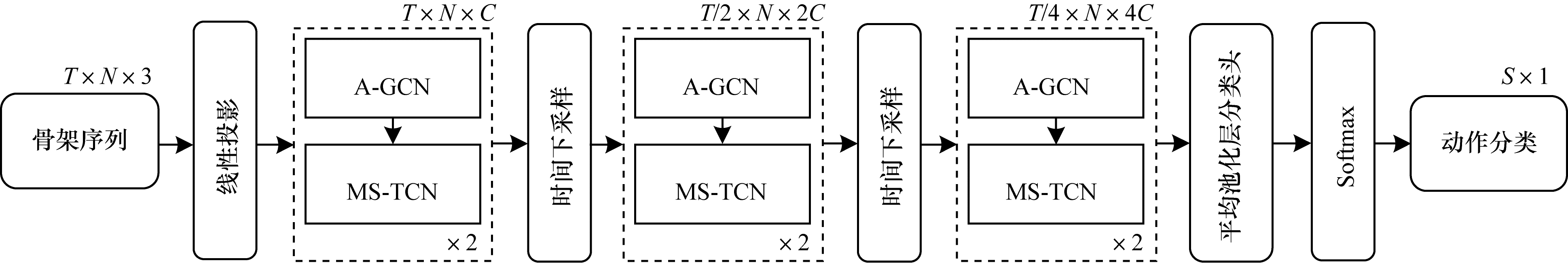

图5 时空图卷积网络模型的整体架构

Fig.5 Overall architecture of spatiotemporal graph convolutional network model

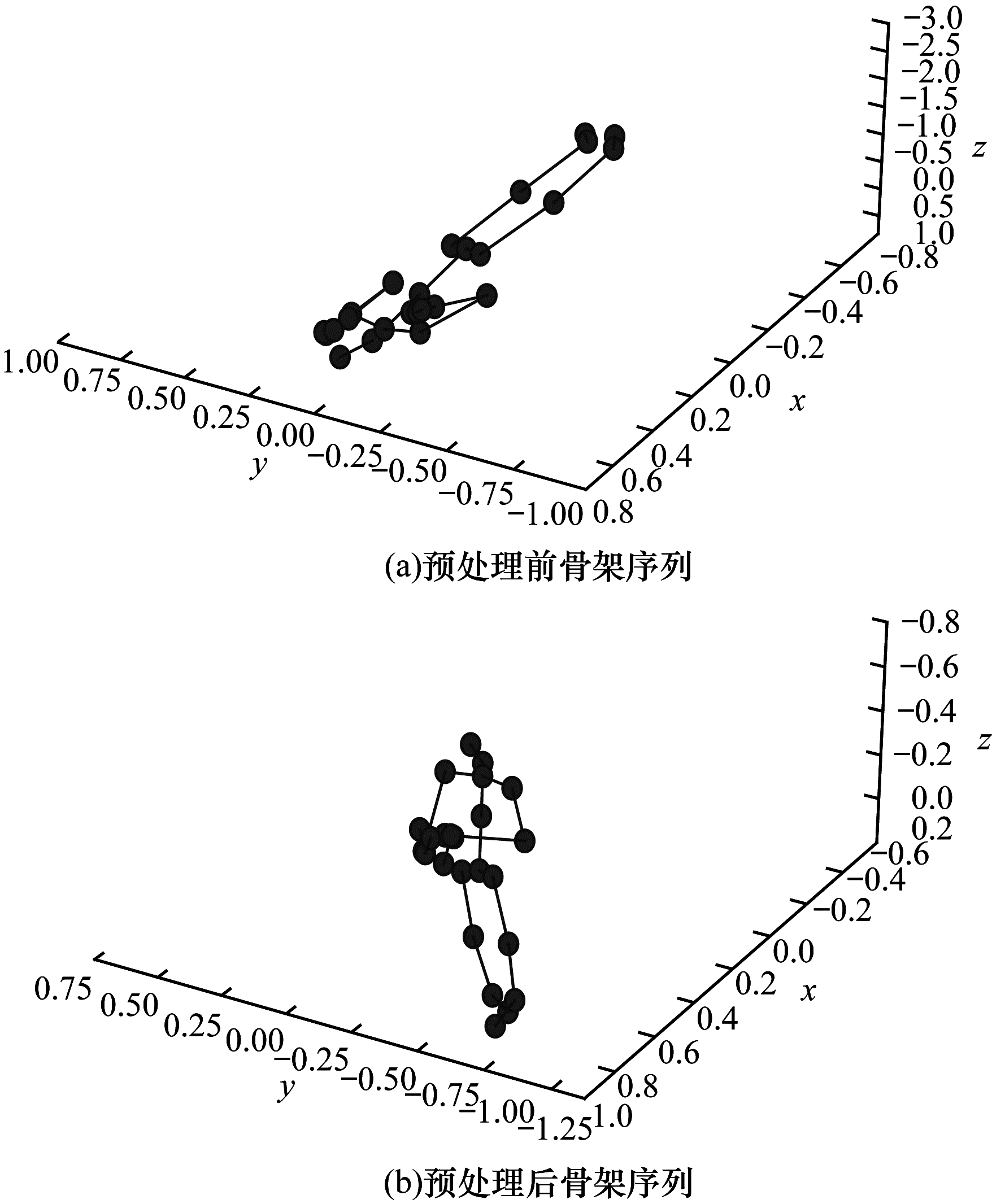

图6 原始骨架序列和预处理后骨架序列对比

Fig.6 Comparison between original skeleton sample and preprocessed skeleton sample

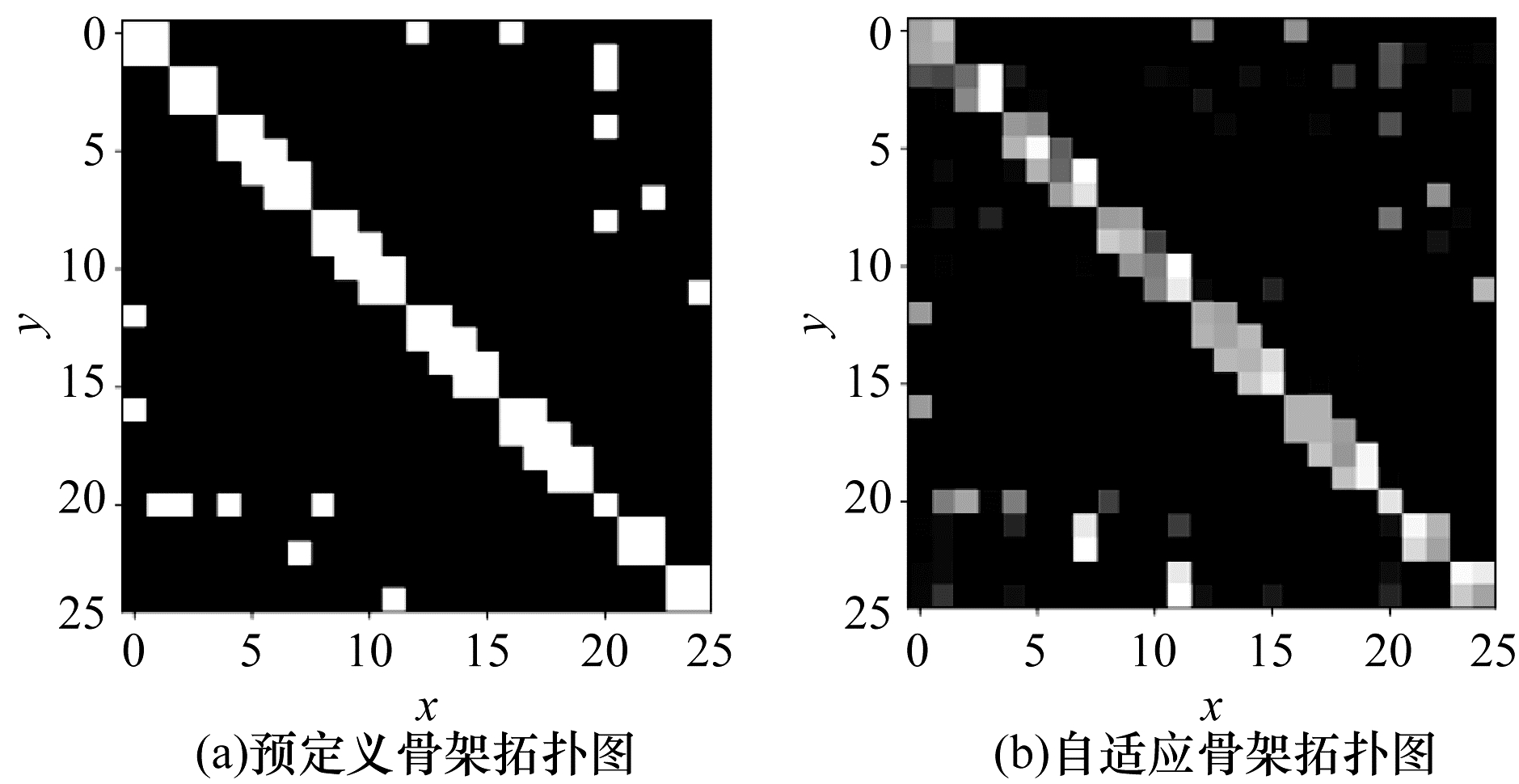

图7 预定义骨架拓扑图和自适应骨架拓扑图对比

Fig.7 Comparison between predefined skeleton topology graph and adaptive skeleton topology graph

参考文献 40
