基于CGS-Ghost YOLO的交通标志检测研究

doi:10.19678/j.issn.1000-3428.0066520

摘要/Abstract

摘要：

在交通标志检测任务中，YOLOv5检测算法在复杂的环境和路况下存在漏检、错检及模型参数量过大等问题。为此，提出一种改进的CGS-Ghost YOLO检测模型。YOLOv5在图片输入后使用Focus模块进行下采样，增加较多参数，CGS-Ghost YOLO模型使用StemBlock模块替换Focus模块进行采样，能够在维持精度的同时减少参数，并通过引入坐标注意力机制，强化特征中的语义信息和位置信息，提高模型的特征提取能力。设计SMU激活函数与组归一化相结合的CGS卷积模块，避免训练过程中Batch Size大小对模型所造成的影响，在使用GhostConv减少模型参数的同时，提升模型的检测精度。在此基础上，通过$ \alpha $-CIoU Loss+VFocal Loss损失函数，改善交通标志检测任务中正负样本不平衡的问题，提升模型整体性能，Neck部分使用Bi-FPN双向特征金字塔网络，实现检测目标多尺度特征的有效融合。实验结果表明，改进的CGS-Ghost YOLO模型在交通标志检测数据集TT100K中的平均精度均值达到93.1%，相较于原始模型提高了11.3个百分点，模型参数量相较于原始模型降低了21.2个百分点。此外，该网络模型优化了卷积层及下采样部分，在大幅减少模型参数的同时提高了模型检测精度。

关键词: 深度学习, 目标检测, YOLOv5检测算法, 注意力机制, CGS Conv模块

Abstract:

In tasks involving traffic sign detection, the YOLOv5 detection algorithm encounters several issues including missed detections, erroneous detections, and a complex model in complex environments and road conditions. To address these challenges, an improved CGS-Ghost YOLO detection model is proposed. YOLOv5 uses the focus module for sampling, which introduces more parameters. In this study, the StemBlock module is used to replace the focus module for sampling after input, which can reduce the number of parameters while maintaining the accuracy. CGS-Ghost YOLO uses a Coordinate Attention(CA) mechanism, which improves the semantic and location information within the features and enhances the feature extraction ability of the model. Additionally, a CGS convolution module, which combines the SMU activation function with GroupNorm(GN) normalization, is proposed. The CGS convolution module is designed to avoid the influence of the batch Size on the model during training and improve model performance. This study aims to use GhostConv to reduce the number of model parameters and effectively improve the detection accuracy of the model.The loss function, $ \alpha $-CIoU Loss+VFocal Loss, is used to solve the problem of unbalanced positive and negative samples in traffic sign detection tasks and improve the overall performance of the model. The neck part uses a Bi-FPN bidirectional feature pyramid network, ensuring that the multi-scale features of the detection target are effectively fused. The results of an experiment on the TT100K traffic sign detection dataset show that the detection accuracy of the improved CGS-Ghost YOLO model reaches 93.1%, which is 11.3 percentage points higher than the accuracy achieved by the original model. Additionally, the proposed network model reduces the model parameter quantity by 21.2 percentage points compared to the original model. In summary, the network model proposed in this study optimizes the convolution layer and the downsampling part, thus considerably reducing the model parameters while enhancing the model detection accuracy.

Key words: deep learning, object detection, YOLOv5 detection algorithm, attention mechanism, CGS Conv module

赵宏, 冯宇博. 基于CGS-Ghost YOLO的交通标志检测研究[J]. 计算机工程, 2023, 49(12): 194-204.

Hong ZHAO, Yubo FENG. Research on Traffic Sign Detection Based on CGS-Ghost YOLO[J]. Computer Engineering, 2023, 49(12): 194-204.

http://www.ecice06.com/CN/Y2023/V49/I12/194

图/表 19

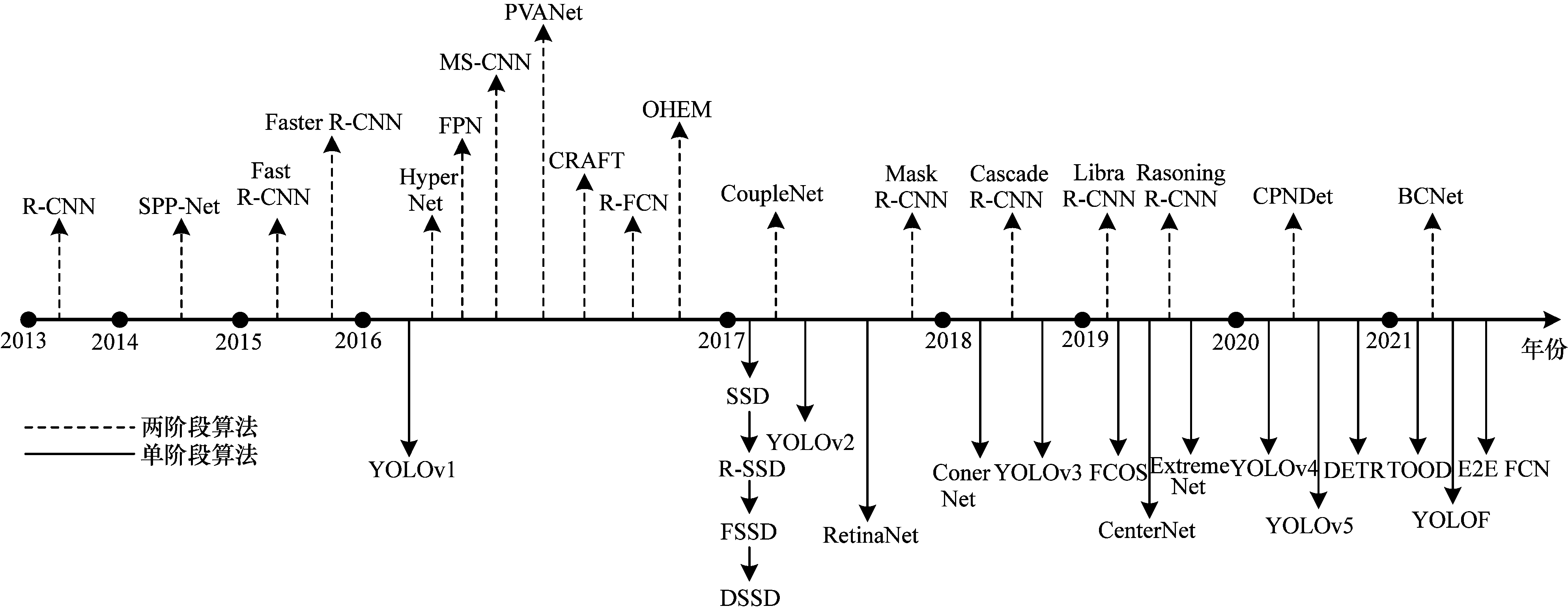

图1 基于卷积神经网络的目标检测发展现状

Fig.1 The development status of object detection based on convolutional neural network

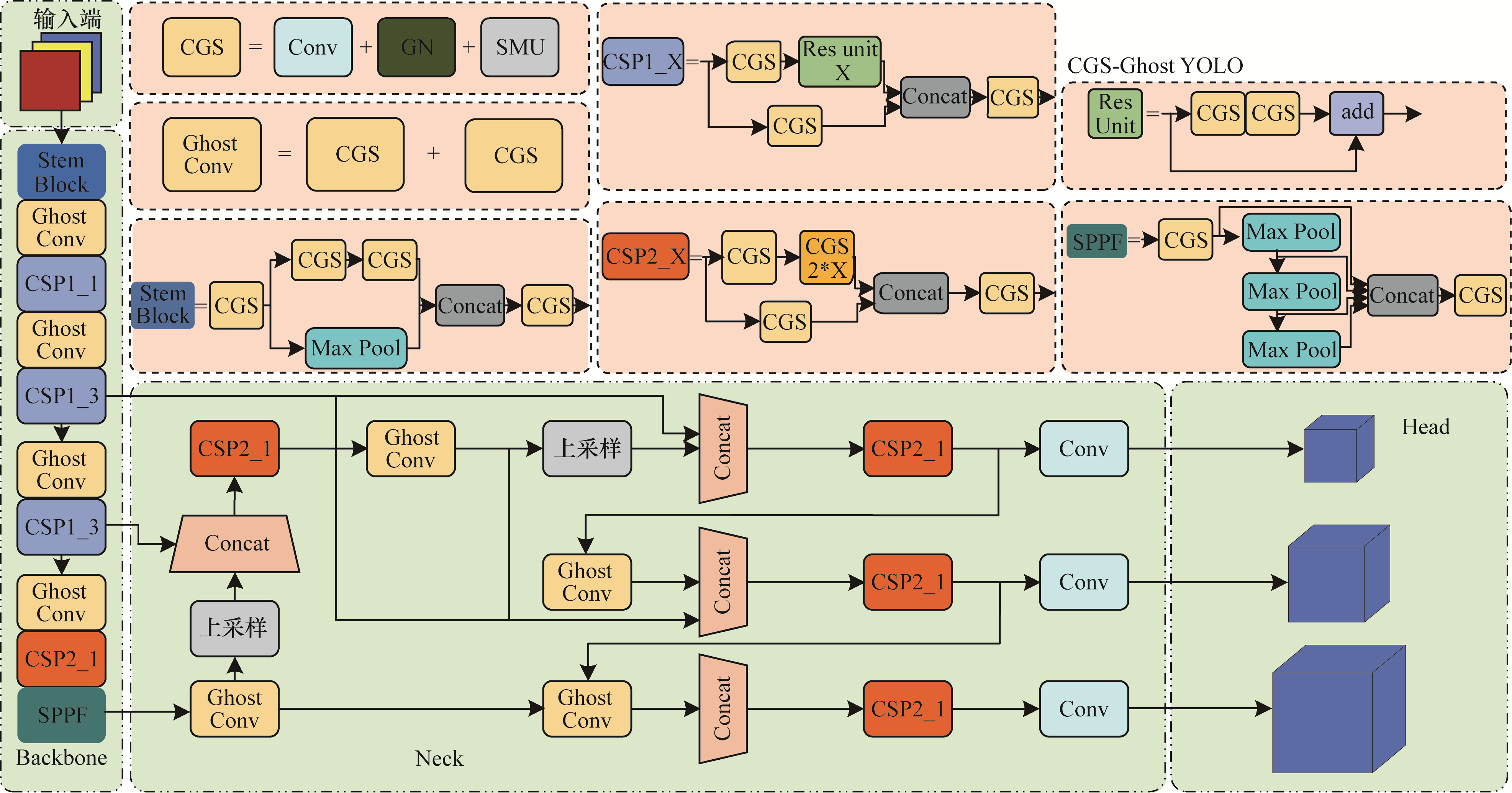

图2 CGS-Ghost YOLO网络结构

Fig.2 Network structure of CGS-Ghost YOLO

图3 组归一化原理

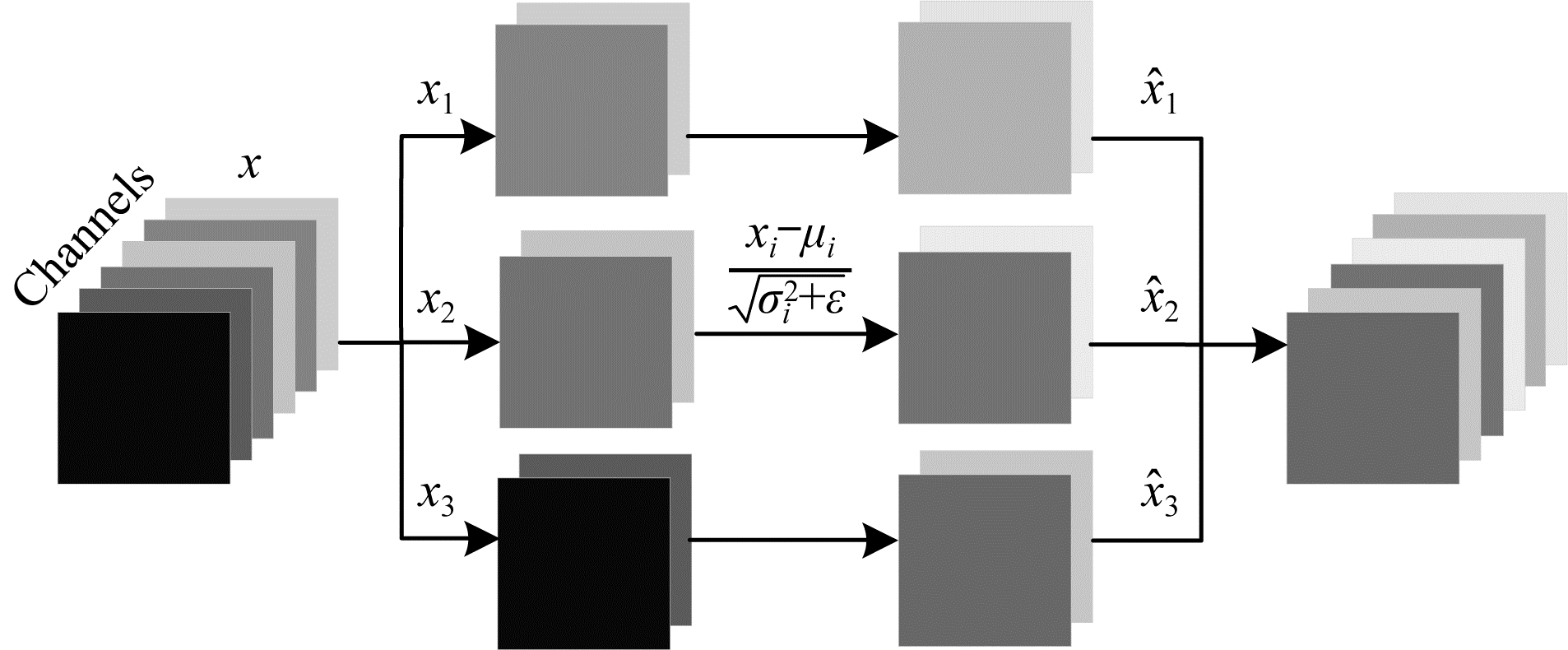

Fig.3 Group normalization principle

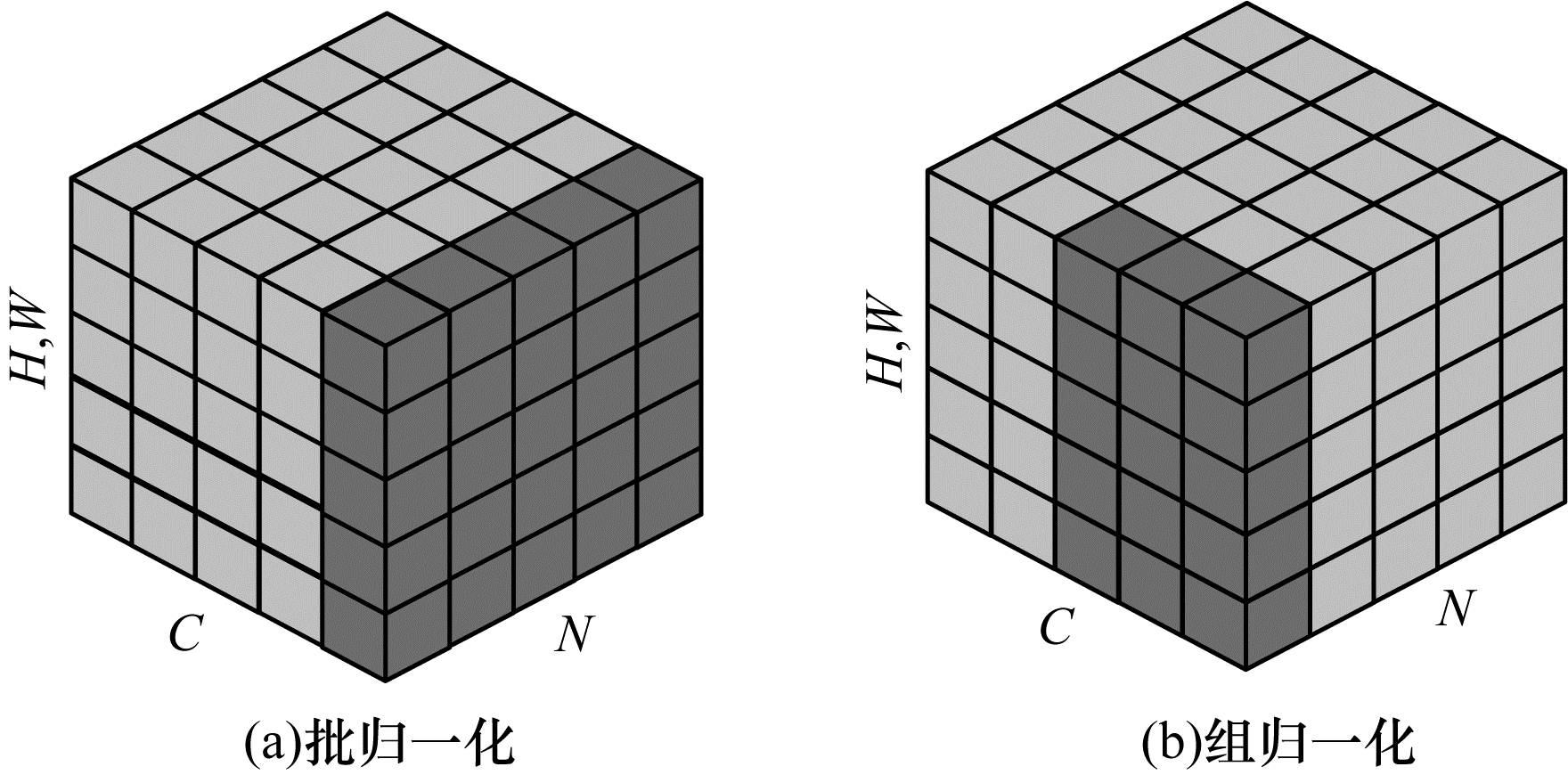

图4 批归一化和组归一化

Fig.4 Batch normalization and group normalization

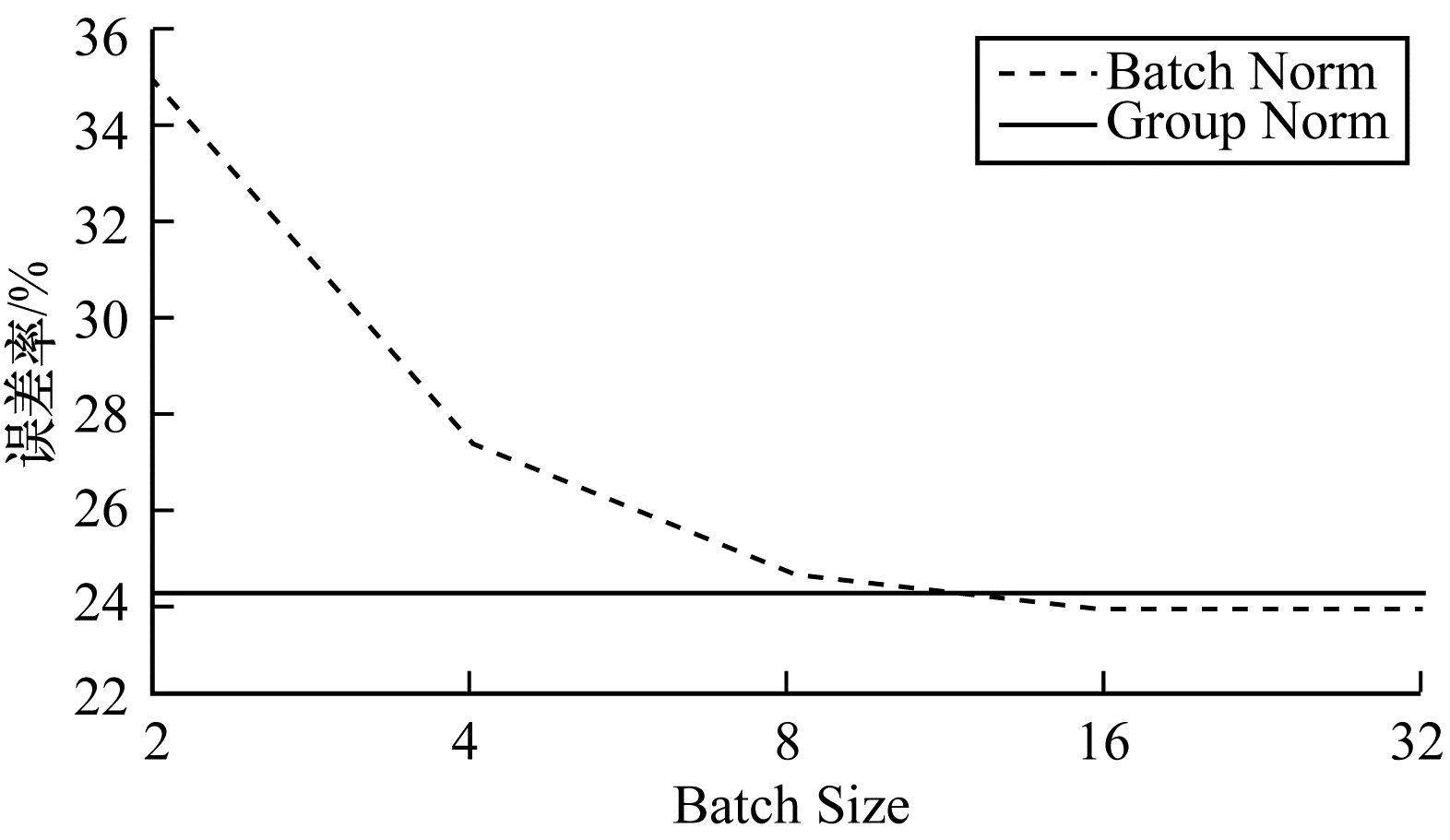

图5 批归一化和组归一化的误差率

Fig.5 Error rates of batch normalization and group normalization

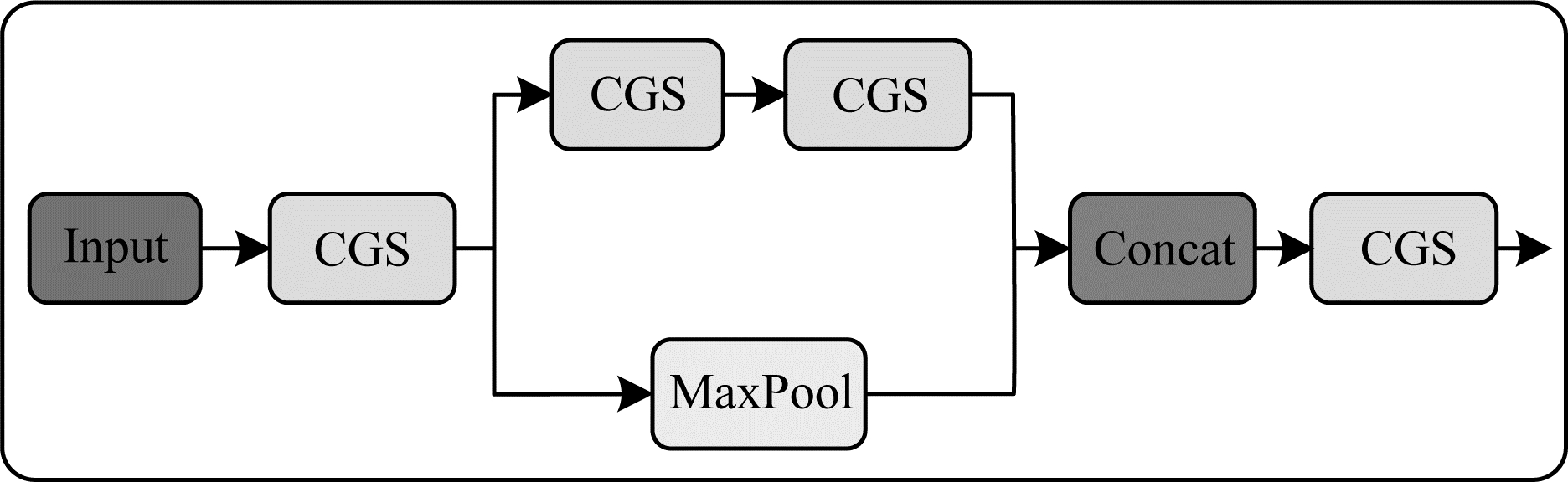

图6 StemBlock构成

Fig.6 StemBlock composition

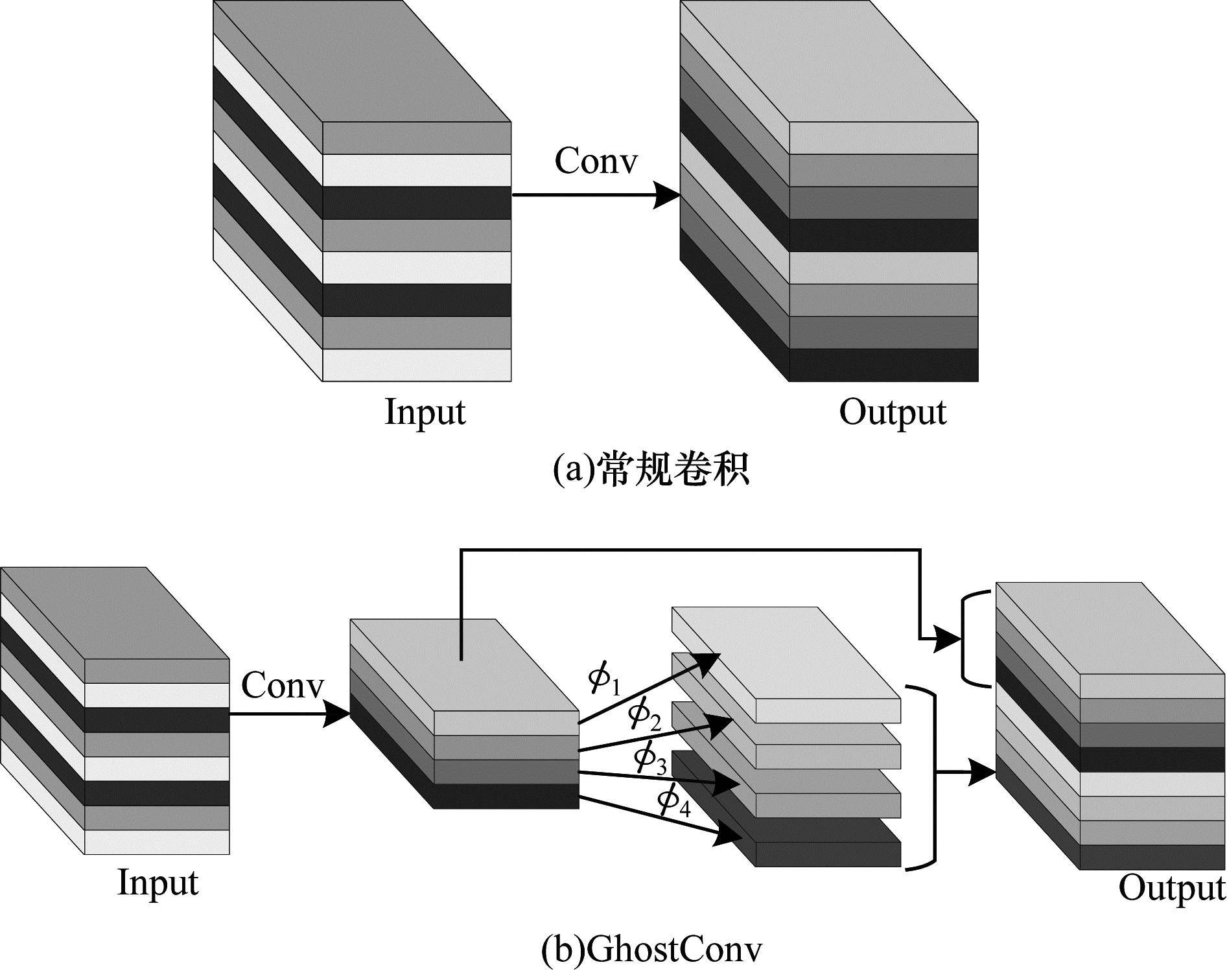

图7 常规卷积与GhostConv原理图

Fig.7 Principle diagram of general convolution and GhostConv

图8 CA机制

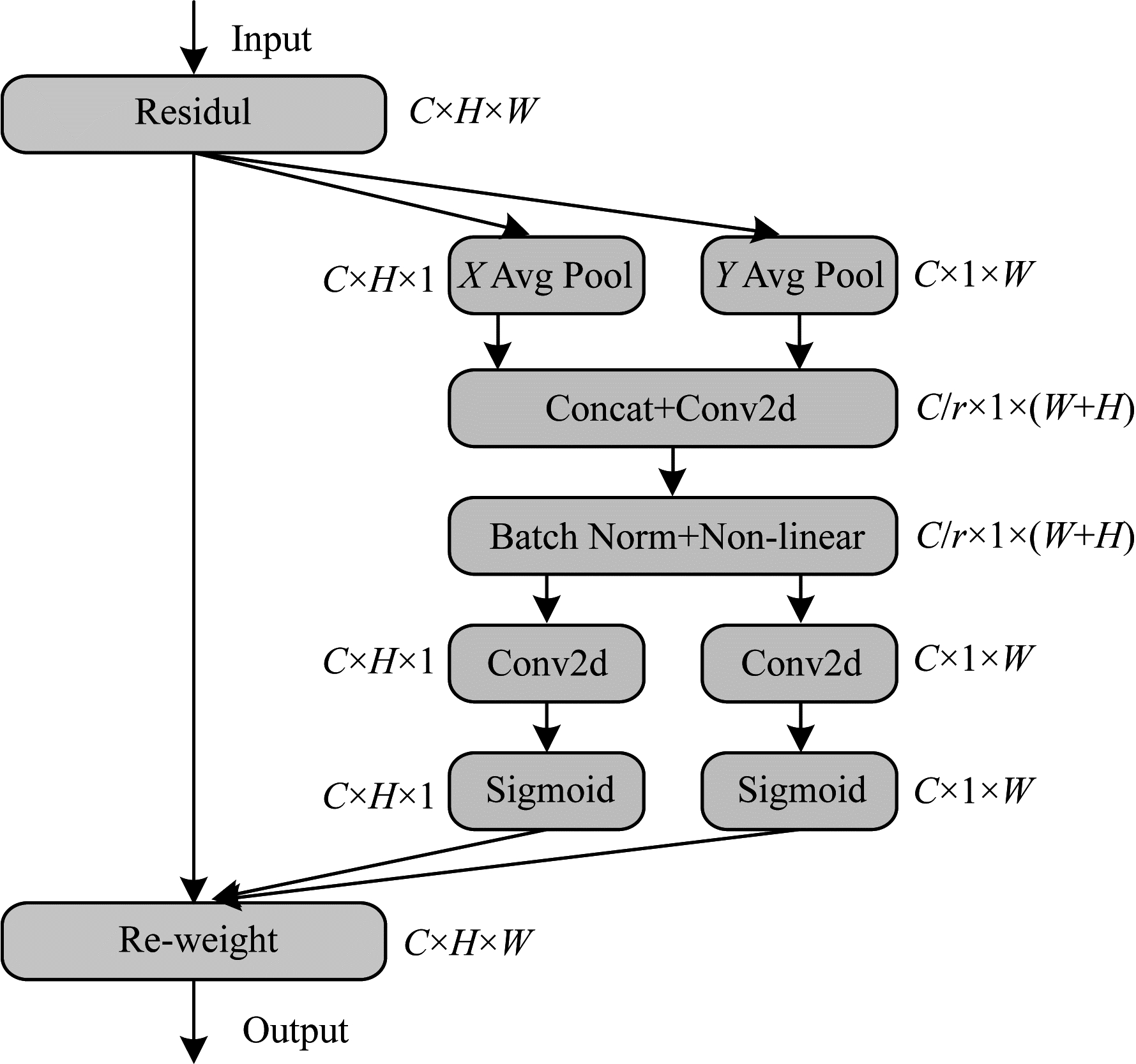

Fig.8 CA mechanism

图9 Bi-FPN原理图

Fig.9 Bi-FPN prineiple diagram

图10 数据集部分图片

Fig.10 Part pictures of the dataset

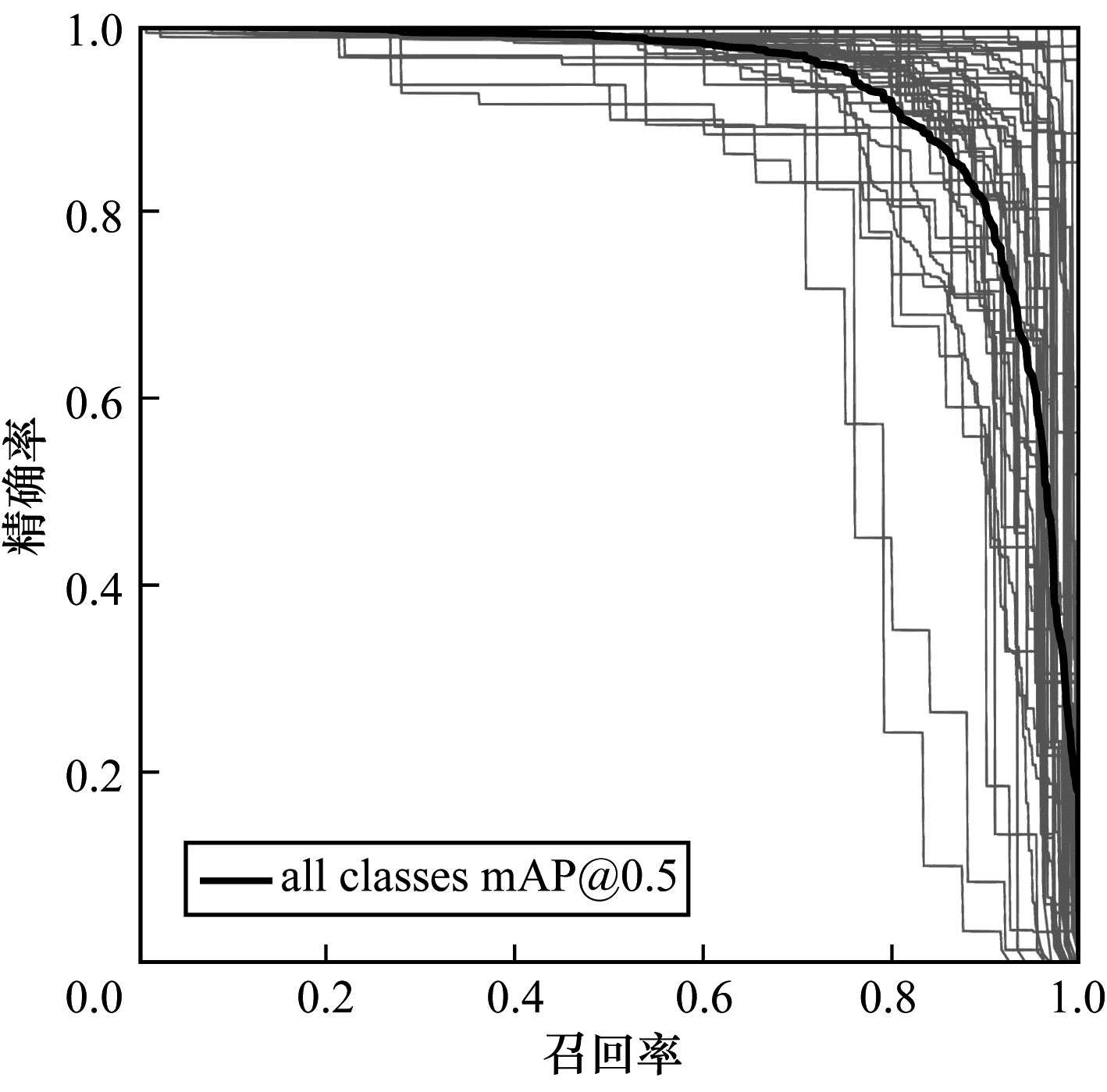

图11 所有类PR曲线

Fig.11 All classes PR curves

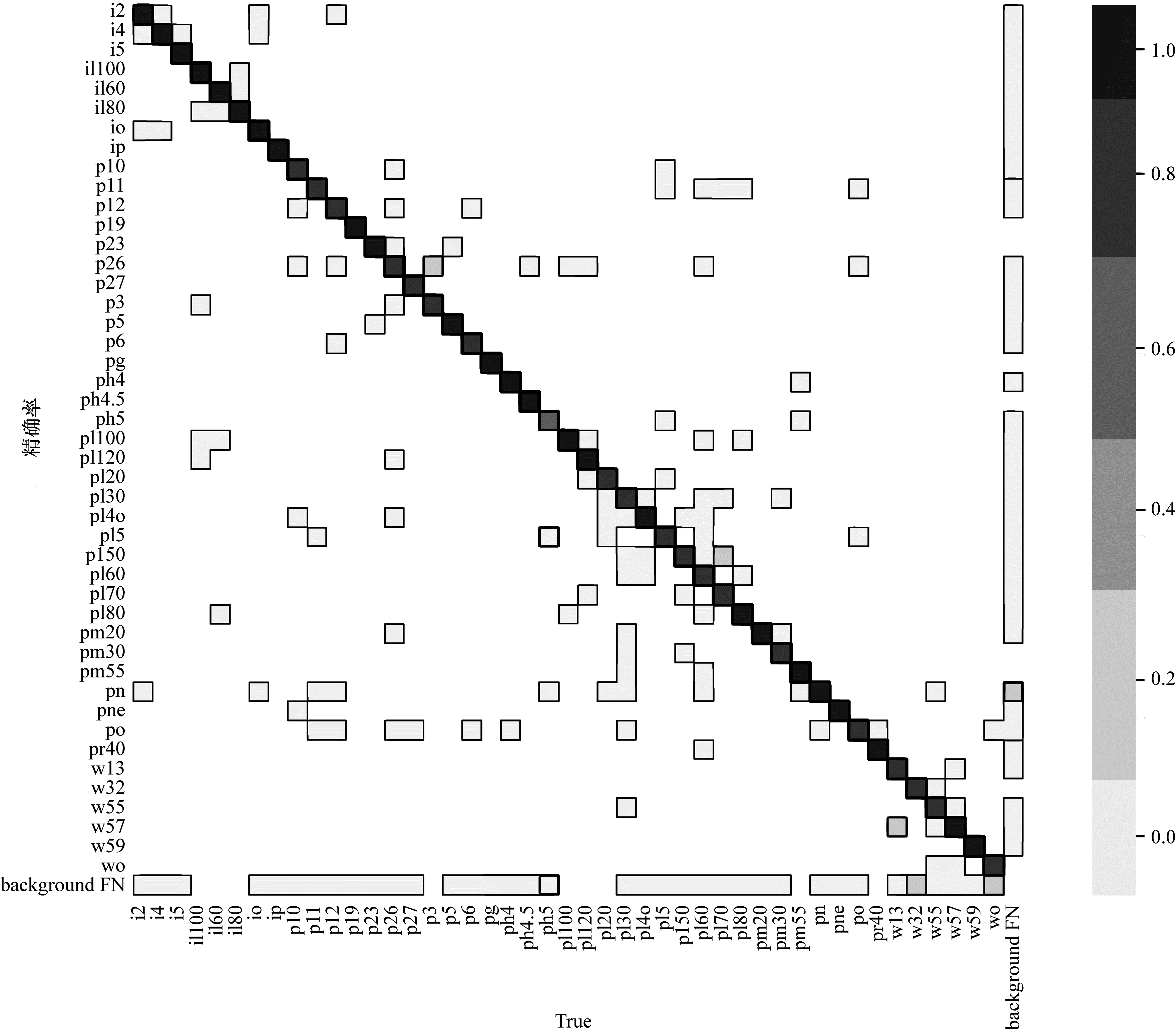

图12 混淆矩阵

Fig.12 Confusion matrix

图13 检测结果示例

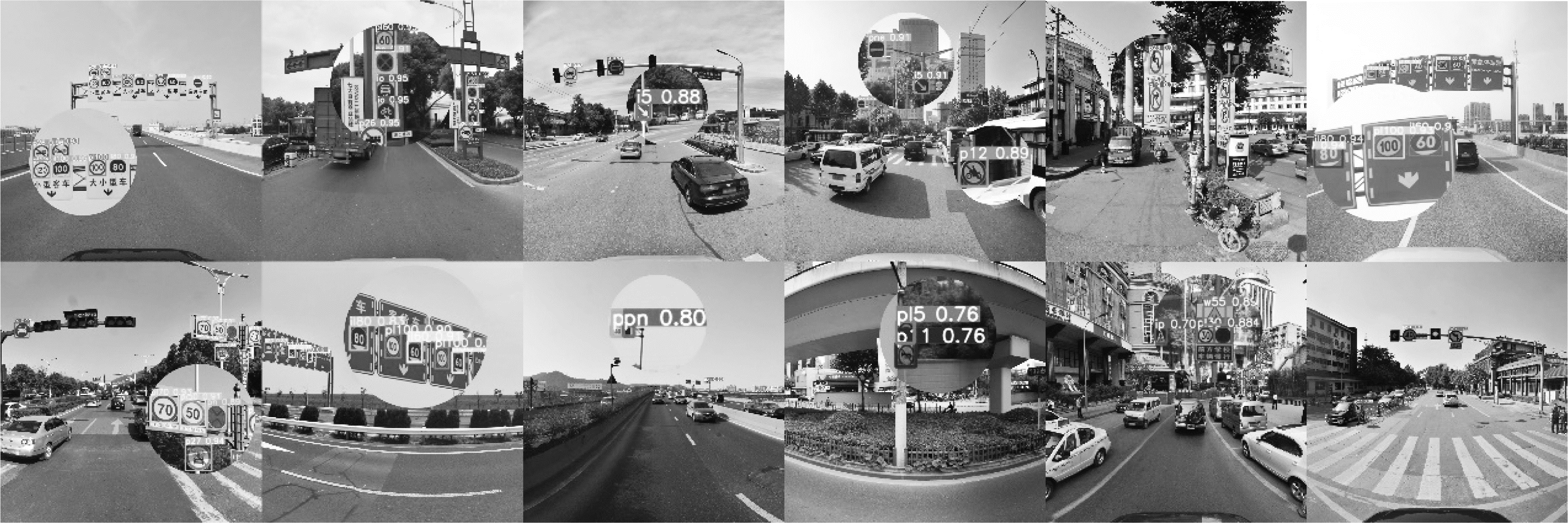

Fig.13 Example of test result

参考文献 24
