基于地基气辉图像的大气重力波目标识别

doi:10.19678/j.issn.1000-3428.0066521

摘要/Abstract

摘要：

子午工程全天空气辉成像仪观测网的逐步完善，积累了海量的气辉图像原始观测数据，但是基于地基气辉观测的大气重力波研究极度依赖人工识别，十分耗时且识别质量难以得到保证，亟需发展一种快速有效的自动识别方法。针对大气重力波标注样本稀缺的问题，在改进Cycle GAN模型的基础上提出一种大气重力波气辉观测数据集扩充算法，仅需标注少量样本即可大幅提升检测算法对大气重力波的识别精度；进一步，利用地基气辉图像识别目标与背景低信噪比的特点，通过对深度学习模型YOLOv5s骨干网络以及边界框预测加以改进，提出一种新的大气重力波智能识别算法。实验结果表明，使用扩增的数据集以及改进的YOLOv5s目标检测算法，在交并比阈值为0.5的情况下平均识别精度达到75.8%，较原始模型提升9.7个百分点，检测速度和平均识别精度均优于对比的主流目标检测算法。

关键词: 重力波, 深度学习, 数据扩充, 目标检测, 生成对抗网络

Abstract:

With the construction of the Meridian Project all-sky airglow imager observation network, a large amount of raw airglow image data has been accumulated. The current atmospheric gravity wave research based on airglow observation is extremely dependent on manual identification, which is very time-consuming, and the quality of labeling is difficult to guarantee. Therefore, there is an urgent need for a fast and effective automatic identification method. To solve the problem of sparsely labeled samples of atmospheric gravity waves, this paper proposes an algorithm based on the improved Cycle GAN model to expand the atmospheric gravity wave airglow observation dataset, thereby greatly improving the recognition accuracy of atmospheric gravity waves by labeling only a small number of samples. A new intelligent recognition algorithm for atmospheric gravity waves is also proposed by improving the YOLOv5s model backbone network and bounding box prediction, considering the characteristics of low Signal-to-Noise Ratio(SNR) between the recognition target and background in airglow images. The experimental results showed that using the augmented dataset and improved YOLOv5s target detection algorithm, the average precision reached 75.8% under an Intersection-over-Union(IoU) threshold of 0.5, which is 9.7 percentage points higher than that of the original model. Meanwhile, the detection speed and average recognition accuracy are superior to mainstream target detection algorithms compared.

Key words: gravity wave, deep learning, data augmentation, object detection, Generative Adversarial Network(GAN)

陈锦生, 马文臻, 方少峰, 邹自明. 基于地基气辉图像的大气重力波目标识别[J]. 计算机工程, 2023, 49(11): 13-23.

Jinsheng CHEN, Wenzhen MA, Shaofeng FANG, Ziming ZOU. Object Recognition of Atmospheric Gravity Wave Based on Foundation Airglow Images[J]. Computer Engineering, 2023, 49(11): 13-23.

http://www.ecice06.com/CN/Y2023/V49/I11/13

图/表 16

图1 Cycle GAN流程

Fig.1 Procedure of Cycle GAN

图2 本文算法框架

Fig.2 Framework of the proposed algorithm

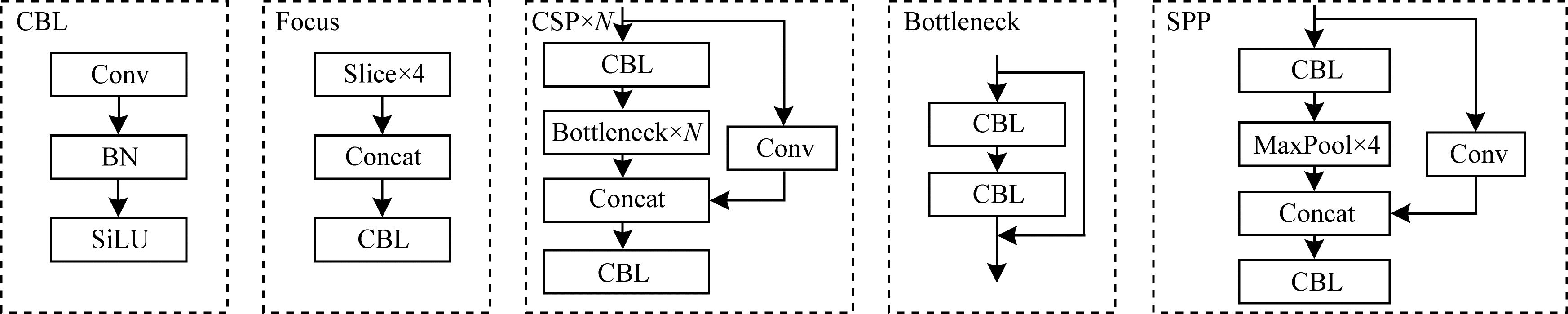

图3 部分模块结构

Fig.3 Structures of some modules

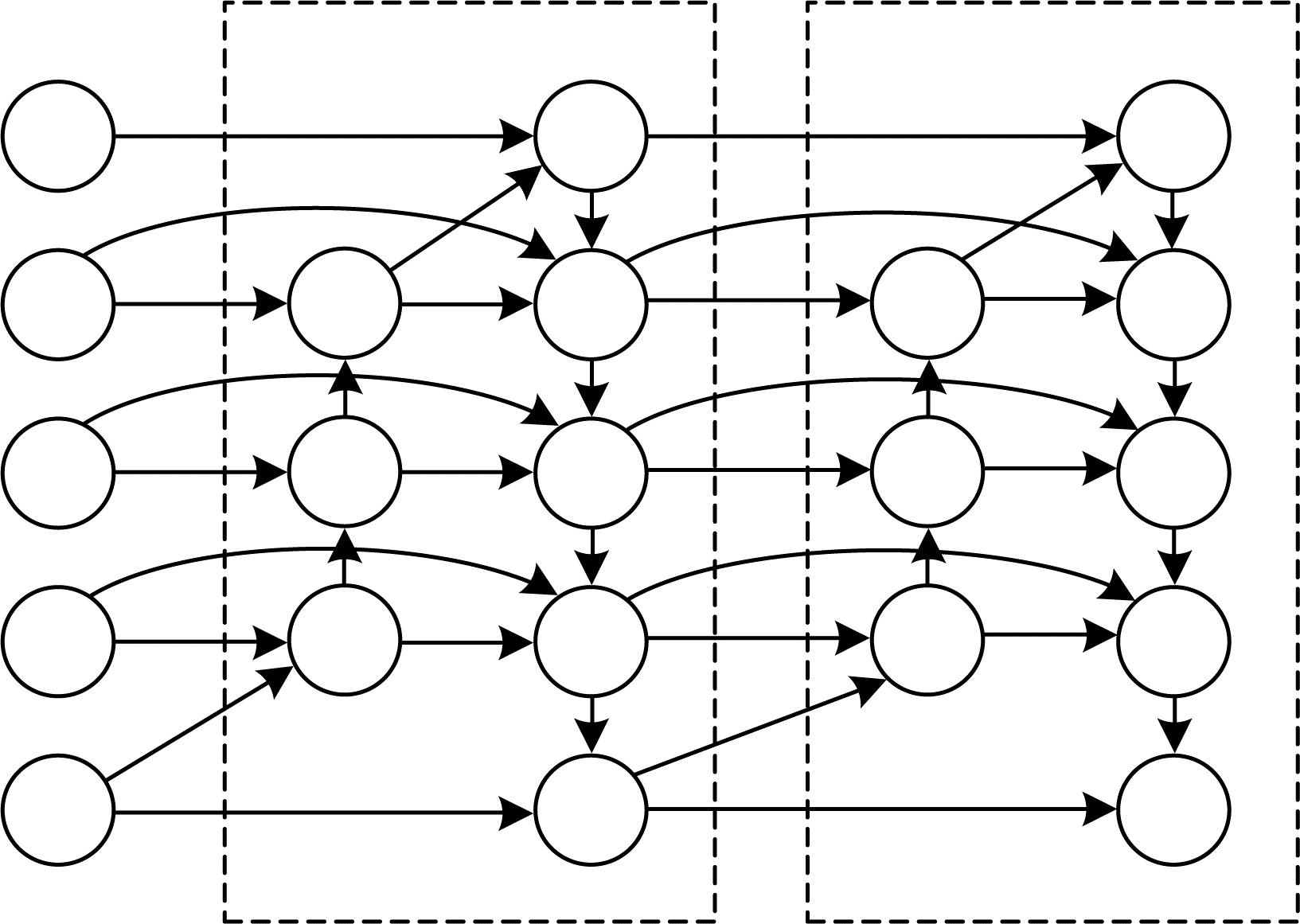

图4 BiFPN结构

Fig.4 Structure of BiFPN

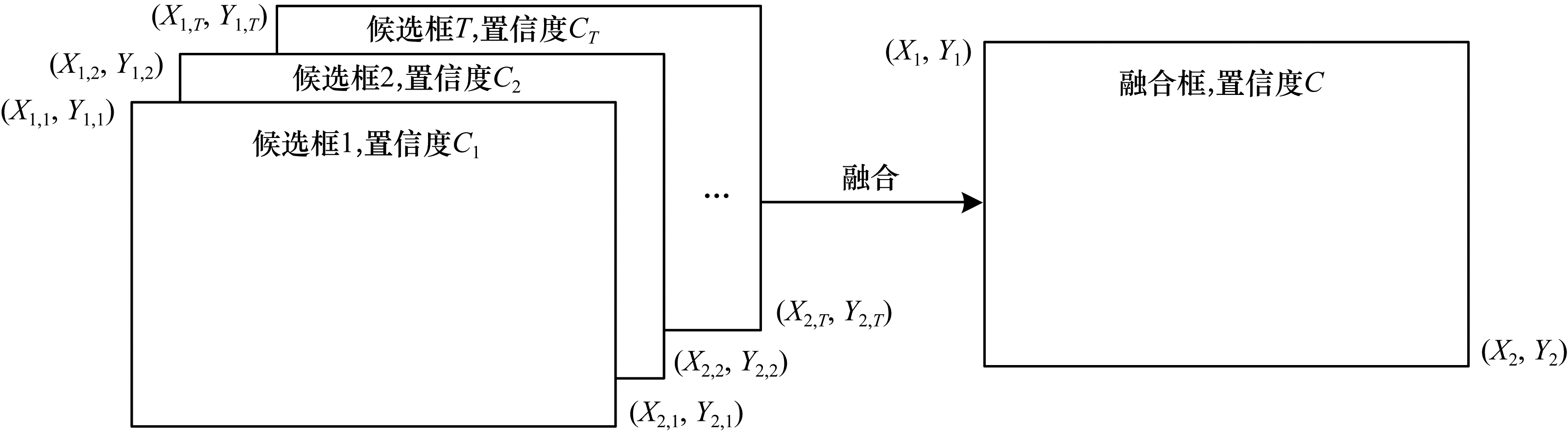

图5 WBF示意图

Fig.5 Schematic diagram of WBF

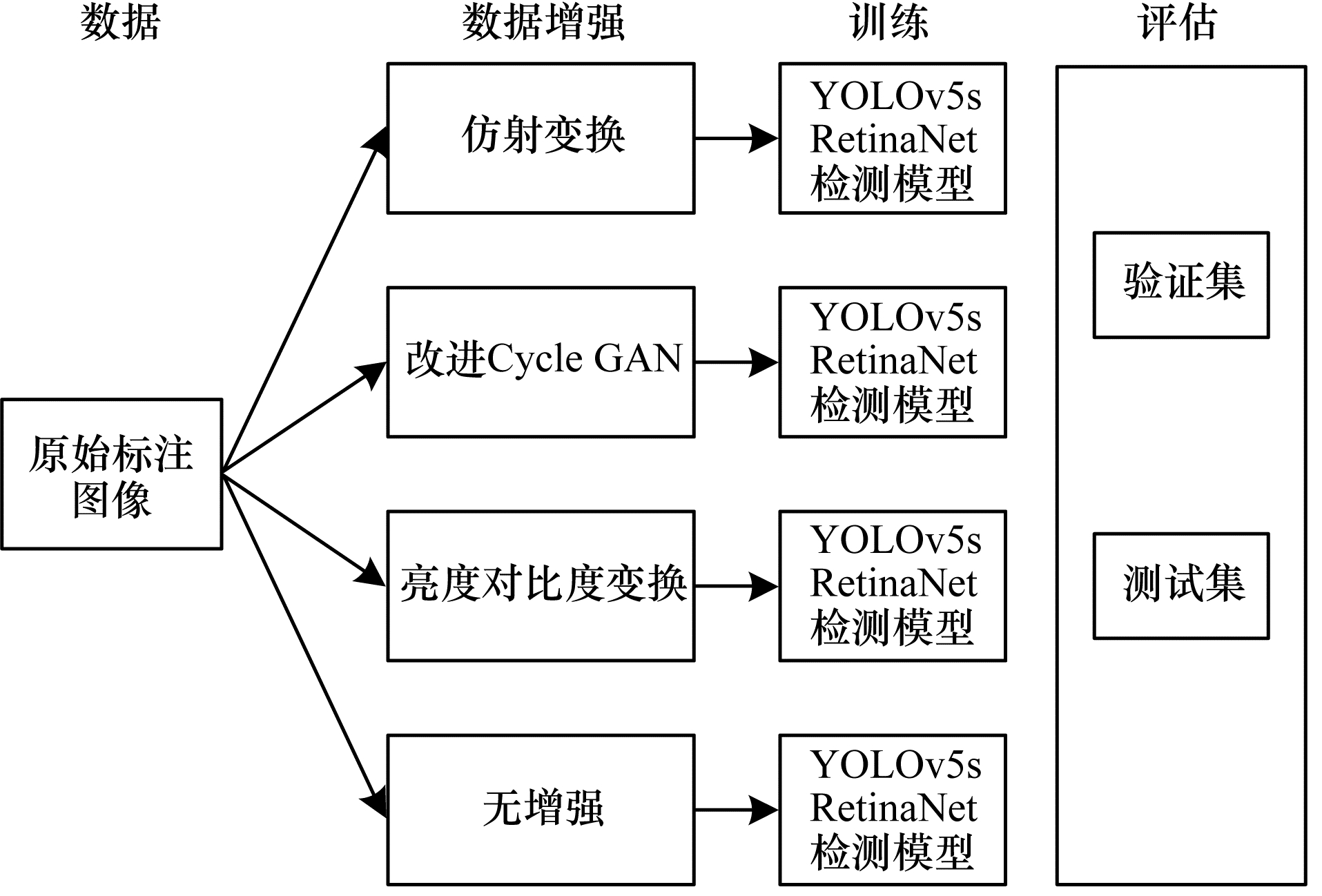

图6 实验流程

Fig.6 Procedure of experiment

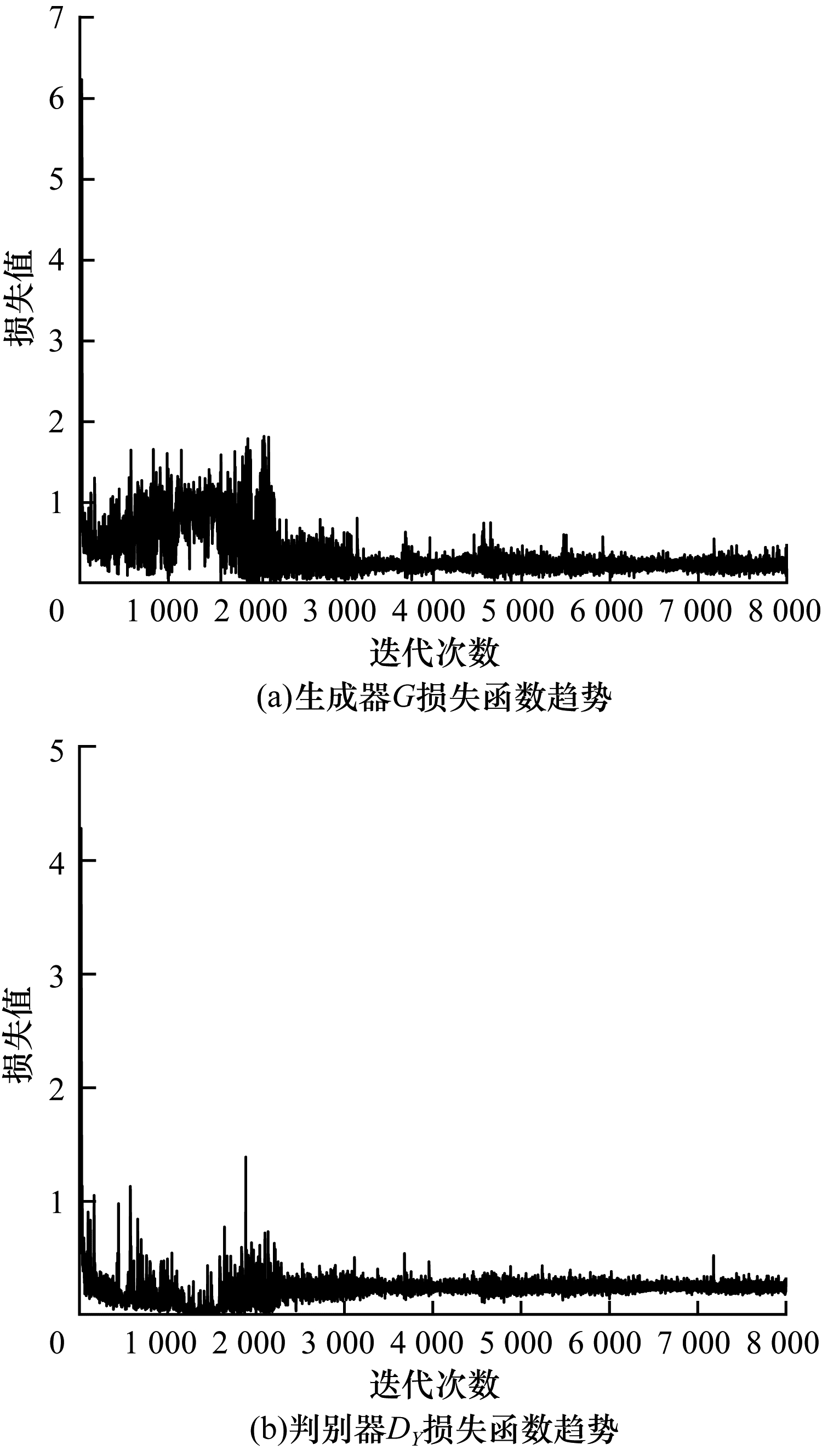

图7 模型生成器G和判别器D_Y损失函数趋势

Fig.7 Loss function trend of model generator G and discriminator D_Y

图8 不同方法生成的样本图

Fig.8 Sample pictures generated by different methods

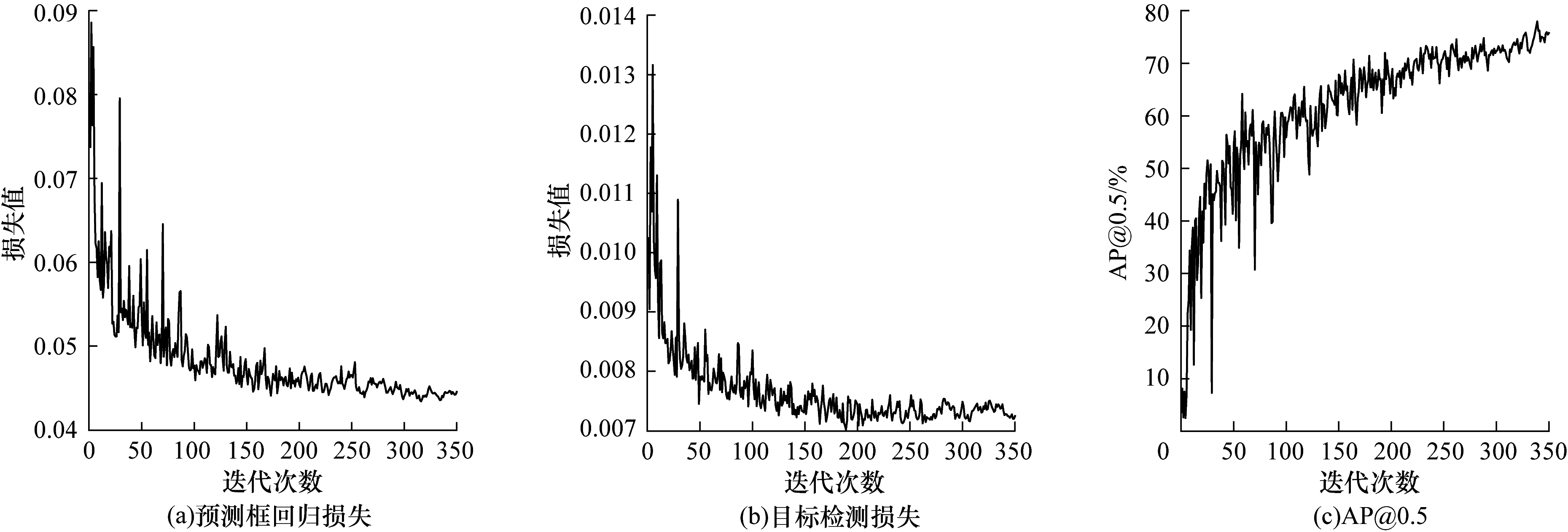

图9 预测框回归损失/目标检测损失/AP@0.5随训练迭代次数的变化

Fig.9 Prediction box regression loss/target detection loss/AP@0.5 variation with training iterations

图10 4种算法检测结果对比

Fig.10 Comparison of detection results of four algorithms
