多小区分布式阵列系统训练模式与协作方法研究

doi:10.19678/j.issn.1000-3428.0055031

摘要/Abstract

摘要： 在多小区分布式阵列系统中，用户与接入节点（AP）间的距离对频谱效率具有重要影响，边缘用户可以通过不同小区内AP间的协作传输来获得较高的频谱效率。为此，将多小区的边缘用户以及AP组成一个虚拟簇，针对频分双工模式下簇内多用户信道的训练模式与多AP的协作预编码问题，提出一种基于导频重用的信道训练方法。当AP配置较多的接入天线时，服务于同一个用户的多个AP可以重用同一个导频序列，同时结合相应的预编码来抑制用户间的干扰。仿真结果表明，与正交训练完全协作、正交训练部分协作2种方法相比，该方法能够节约导频资源，降低反馈开销与计算复杂度，在对训练和反馈开销进行加权后，其频谱效率可以得到有效提升。

关键词: 分布式阵列, 边缘用户, 训练模式, 导频重用, 预编码, 有限反馈

Abstract: In the multi-cell distributed array systems,the distance between users and Access Point(AP) has a significant impact on spectrum efficiency.Therefore,edge users can achieve cooperative transmission through AP in different cells to obtain high spectrum efficiency.To this end,this paper combines edge users and AP together as a virtual cluster.To address the problem of multi-user channel training mode and multiple AP cooperative precoding in Frequency Division Duplex(FDD) mode,this paper proposes a channel training method based on pilot reuse.In this method,when AP is configured with lots of access antennas,the multiple AP which serves the same user can reuse the same pilot sequence.At the same time,the corresponding precoding can be combined with AP to suppress the interference between users.Simulation results show that compared with the orthogonal training full coordination and partial coordination methods,the proposed method can save pilot resources,reduce the feedback overhead and computational complexity,and greatly improve the spectrum efficiency after weighting the training and feedback overhead.

Key words: distributed array, edge user, training mode, pilot reuse, precoding, limited feedback

中图分类号:

TP391

张帅, 王璀, 潘鹏, 严军荣. 多小区分布式阵列系统训练模式与协作方法研究[J]. 计算机工程, 2019, 45(12): 58-63.

ZHANG Shuai, WANG Cui, PAN Peng, YAN Junrong. Research on Training Mode and Collaborative Method of Multi-Cell Distributed Array Systems[J]. Computer Engineering, 2019, 45(12): 58-63.

https://www.ecice06.com/CN/Y2019/V45/I12/58

图/表 6

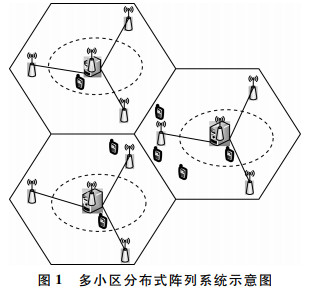

20191214131319

20191214131321

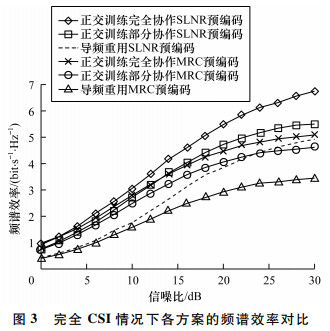

20191214131324

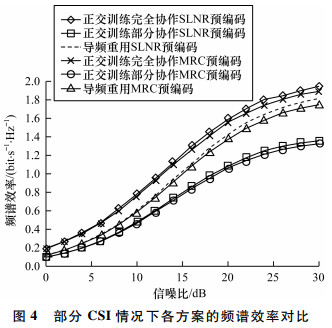

20191214131327

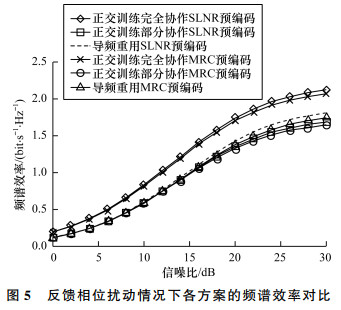

20191214131330

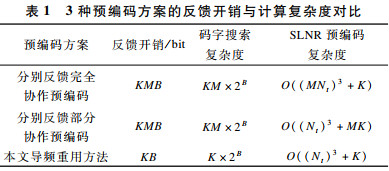

20191214131332

参考文献

[1] CHIH L,ROWELL C,HAN Shuangfeng,et al.Toward green and soft:a 5G perspective[J].IEEE Communications Magazine,2014,52(2):66-73.
[2] ZHANG Yongtang.A low precision quantitative detection algorithm for large-scale MIMO[J].Journal of Sichuan University of Science and Engineering(Natural Sicence Edition),2019,32(4):7-12.(in Chinese)张永棠.一种大规模MIMO低精度量化检测算法[J].四川理工学院学报(自然科学版),2019,32(4):7-12.
[3] ANDREWS J G,BUZZI S,WAN C,et al.What will 5G be?[J].IEEE Journal on Selected Areas in Communications,2014,32(6):1065-1082.
[4] WANG Junyuan,DAI Lin.Downlink rate analysis for virtual-cell based large-scale distributed antenna systems[J].IEEE Transactions on Wireless Communications,2016,15(3):1998-2011.
[5] WANG Tao,ZHOU Zhigang,LI Mao.User-centric adaptive base station and beam selection algorithm[J].Computer Engineering,2019,45(1):50-54.(in Chinese)王涛,周志刚,李茂.以用户为中心的基站与波束自适应选择算法[J].计算机工程,2019,45(1):50-54.
[6] NGO H Q,ASHIKHMIN A,YANG Hong,et al.Cell-free massive MIMO versus small cells[J].IEEE Tran-sactions on Wireless Communications,2017,16(3):1834-1850.
[7] NAYEBI E,ASHIKHMIN A,MARZETTA T L,et al.Precoding and power optimization in cell-free massive MIMO systems[J].IEEE Transactions on Wireless Communications,2017,16(7):4445-4459.
[8] NGO H Q,TRAN L N,DUONG T Q,et al.On the total energy efficiency of cell-free massive MIMO[EB/OL].[2019-04-28].http://export.arxiv.org/abs/1702.07601.
[9] PAN Cunhua,MAGED E,WANG Jiangzhou,et al.User-centric C-RAN architecture for ultra-dense 5G networks:challenges and methodologies[J].IEEE Communications Magazine,2018,56(6):14-20.
[10] WU Jun,ZHANG Zhifeng,HONG Yu,et al.Cloud Radio Access Network(C-RAN):a primer[J].IEEE Network,2015,29(1):35-41.
[11] CAIRE G,RAMPRASHAD S A,PAPADOPOULOS H C.Rethinking network MIMO:cost of CSIT,performance analysis,and architecture comparisons[C]//Proceedings of Information Theory and Applications Workshop(ITA).Washington D.C.,USA:IEEE Press,2010:56-70.
[12] GUI Xin,KANG Guixia,ZHANG Ping.Adaptive bit partition algorithm in cooperative distributed antenna systems[J].Journal of Xidian University,2013,40(4):149-154.(in Chinese)桂鑫,康桂霞,张平.协同分布式天线系统中的自适应比特分配算法[J].西安电子科技大学学报,2013,40(4):149-154.
[13] PAN Cunhua,MEHRPOUYAN H,LIU Yuanwei,et al.Joint pilot allocation and robust transmission design for ultra-dense user-centric TDD C-RAN with imperfect CSI[J].IEEE Transactions on Wireless Communications,2018,17(3):2038-2053.
[14] PAN Cunhua,ZHU Huiling,GOMES N,et al.Joint precoding and RRH selection for user-centric green MIMO C-RAN[J].IEEE Transactions on Wireless Communications,2017,16(5):2891-2906.
[15] WANG Ying,TAN Wenting,WU Binbin,et al.Capacity analysis based on antenna selection in distributed antenna system[J].Computer Engineering,2015,41(3):283-286.(in Chinese)王莹,谭文婷,吴彬彬,等.分布式天线系统中基于天线选择的容量分析[J].计算机工程,2015,41(3):283-286.
[16] HOU Qi,HE Shiwen,HUANG Yongming,et al.Joint user scheduling and hybrid precoding design for MIMO C-RAN[EB/OL].[2019-04-28].https://www.researchgate.net/publication/321734103_Joint_user_scheduling_and_hybrid_precoding_design_for_MIMO_C-RAN.
[17] SATYANARAYANA K,EL-HAJJAR M,KUO Pingheng,et al.Adaptive transceiver design for C-RAN in mmWave com-munications[J].IEEE Access,2017(6):16770-16782.
[18] ZENG Erlin,ZHU Shihua,XU Ming.Impact of limited feedback on multiple relay zero-forcing precoding systems[C]//Proceedings of 2008 IEEE International Conference on Com-munications.Washington D.C.,USA:IEEE Press,2008:1-13.
[19] HAN Yonggue,LEE J,SIM D,et al.Asymptotic analysis of sum rate of CL-DAS based on expected large scale fading[J].IEEE Wireless Communications Letters,2019,8(1):121-124.
[20] HU Zhirui.Research on the joint processing technology of pre coding and receiving and sending in multi cell cooperative system[D].Beijing:Beijing University of Posts and Telecommunications,2015.(in Chinese)胡志蕊.多小区协作系统下预编码及收发联合处理技术研究[D].北京:北京邮电大学,2015.
[21] SADEK M,TARIGHAT A,SAYED A.A leakage-based precoding scheme for downlink multi-user MIMO channels[J].IEEE Transactions on Wireless Communications,2007,6(5):1711-1721.
