SAE AS6802协议研究及模块化仿真平台设计

doi:10.19678/j.issn.1000-3428.0056573

摘要/Abstract

摘要： 分析安全关键领域的时间触发网络协议SAE AS6802与时间同步算法技术，分别对同步流程、时间同步角色、时序保持算法、集中控制算法、时钟纠正算法、同/异步派系检测算法以及通道择优方法等进行研究，归纳时间同步精度的影响因素。在此基础上，设计一种时间同步算法IP核，并构建基于SystemVerilog的模块化仿真验证平台。利用该平台对时间同步算法进行RTL级仿真，结果验证了该时间同步算法的正确性，其同步精度保持在亚微秒级，满足下一代高安全关键领域的应用要求。

关键词: AS6802协议, 时间触发网络, 时间同步, 时序保持算法, 集中控制算法, 派系检测, 模块化仿真

Abstract: The paper analyzes the Time-Triggered Ethernet(TTE) protocol SAE AS6802 and the time synchronization algorithm,which are used in safety-critical systems.The research focuses on the synchronization control flow,time synchronization component,time series preservation algorithm,centralized control algorithm,clock correction algorithm,synchronous/asynchronous clique detection algorithm,and optimal channel selection method.The factors that influence the synchronization precision are summarized.On this basis,this paper proposes an IP core for the time synchronization algorithm,and describes the construction of a modular simulation platform based on SystemVerilog.The platform is used for RTL-level simulation of the synchronization algorithm.Experimental results verify the correctness of the synchronization algorithm,and show that the synchronization precision is within microseconds,which meets the requirements of the next-generation safety-critical applications.

Key words: AS6802 protocol, Time-Triggered Ethernet(TTE), time synchronization, time series preservation algorithm, centralized control algorithm, clique detection, modular simulation

中图分类号:

TP391

何向栋, 孙靖国, 陈长胜, 王建宇, 贾世伟. SAE AS6802协议研究及模块化仿真平台设计[J]. 计算机工程, 2021, 47(1): 203-209.

HE Xiangdong, SUN Jingguo, CHEN Changsheng, WANG Jianyu, JIA Shiwei. SAE AS6802 Protocol Research and Modular Simulation Platform Design[J]. Computer Engineering, 2021, 47(1): 203-209.

https://www.ecice06.com/CN/Y2021/V47/I1/203

图/表 8

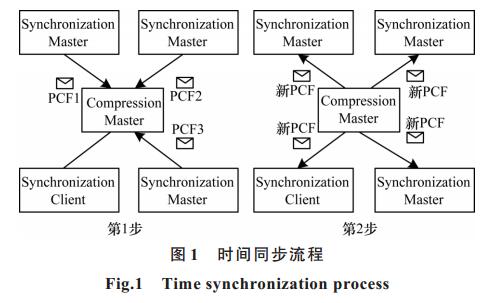

20210125164319

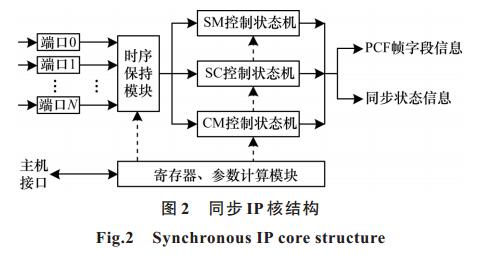

20210125164322

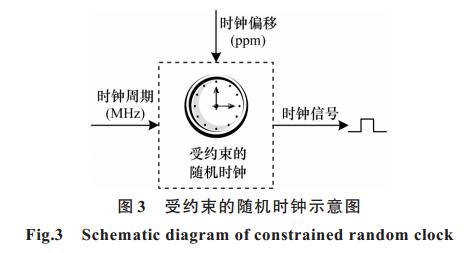

20210125164324

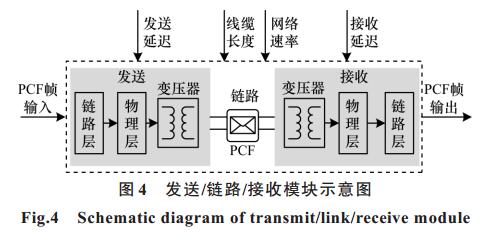

20210125164327

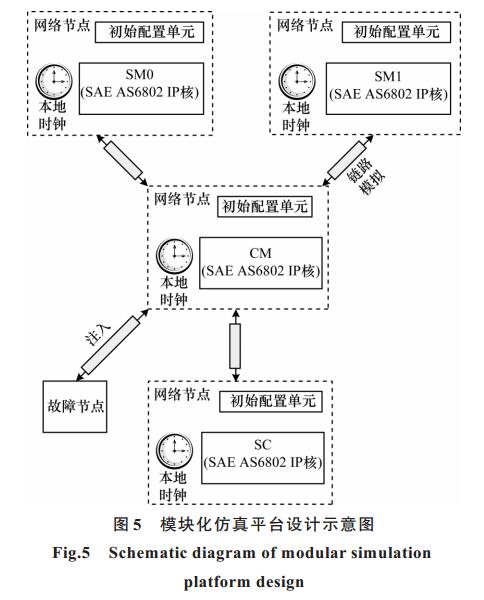

20210125164330

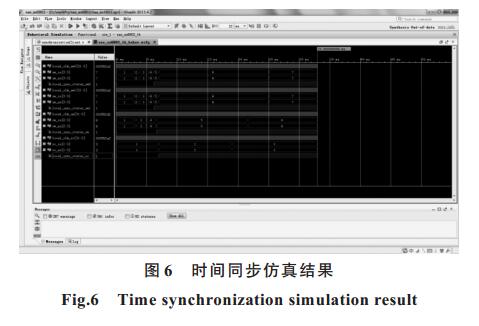

20210125164333

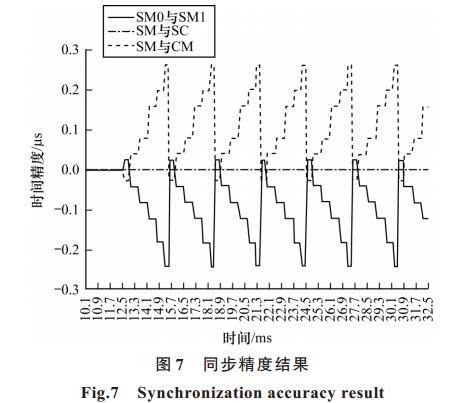

20210125164336

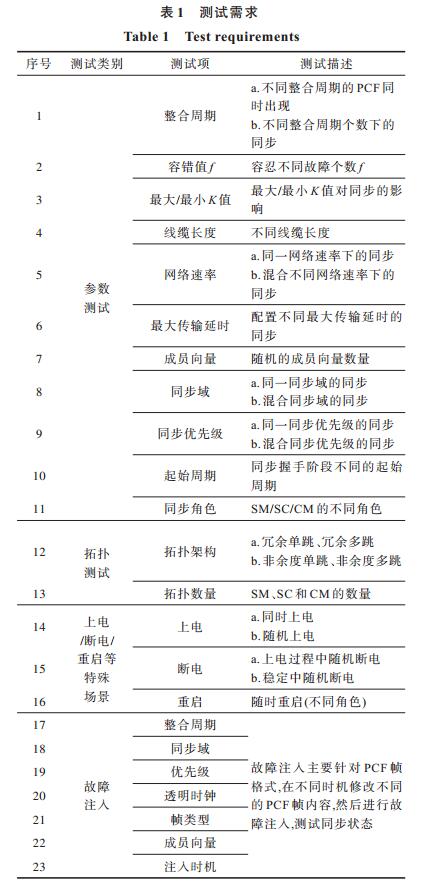

20210125164340

参考文献

[1] ARINC Specification 664P7.ARINC664 aicraft data network,part 7:Avinics Full Duplex Switched Ethernet(AFDX) network[EB/OL].[2019-10-10].https://www.xilinx.com/support/documentation/application_notes/xapp 1130.pdf.
[2] ZHANG Wei,JIANG Letian,LUO Zexiong.Network technology research and design based on time-triggered architecture[J].Avionics Technology,2017,48(2):44-49.(in Chinese)张巍,蒋乐天,罗泽雄.基于时间触发架构的网络技术研究与设计[J].航空电子技术,2017,48(2):44-49.
[3] SAE AS6802.Time-triggered Ethernet[EB/OL].[2019-10-10].https://www.tttech.com/technologies/time-triggered-ethernet/.
[4] XU Qianshun,HUA Gengxin.Research on TTE clock synchronization algorithm based on space application[J].Computer Measurement and Control,2018,26(7):271-275,281.(in Chinese)徐乾舜,华更新.基于空间应用的TTE时钟同步算法研究[J].计算机测量与控制,2018,26(7):271-275,281.
[5] LUO Zexiong ZHAN Yuhang TAN Yongliang.TTE end system-based clock synchronization design and implementa-tion[J].Avionics Technology,2016,47(3):30-35.(in Chinese)罗泽雄,詹于杭,谭永亮.基于TTE端系统的时钟同步设计与实现[J].航空电子技术,2016,47(3):30-35.
[6] LI Q,RUS D.Global clock synchronization in sensor networks[J].IEEE Transactions on Computers,2006,55(2):214-226.
[7] LIU Wanchun,LI Qiao,HE Feng,et al.Research on time-triggerd-Ethernet synchronization and scheduling mechanism[J].Aeronautical Computing Technique,2011,41(4):122-127.(in Chinese)刘晚春,李峭,何锋,等.时间触发以太网同步及调度机制的研究[J].航空计算技术,2011,41(4):122-127.
[8] TANG Xueqian,LI Qiao,KONG Yunwen,et al.Formal verification of Byzantine fault-tolerant method in time-triggered Ethernet[J].Manned Spaceflight,2018,24(2):273-278.(in Chinese)汤雪乾,李峭,孔韵雯,等.时间触发以太网拜占庭容错方法的形式化验证[J].载人航天,2018,24(2):273-278.
[9] WANG Hongchun,QU Jing,NIU Wensheng.Network topology optimization based on time-triggered DIMA[J].Journal of Northwestern Polytechnical University,2018,36(6):1224-1231.(in Chinese)王红春,屈静,牛文生.基于时间触发DIMA架构的网络拓扑优化[J].西北工业大学学报,2018,36(6):1224-1231.
[10] TANG Yu,LI Qiao,JIA Qiming.Load balance allocation method for distributed tasks in time-triggered Ethernet[J].Computer Engineering and Design,2014,35(5):1501-1505.(in Chinese)汤宇,李峭,贾琪明.时间触发以太网的分布式任务负载均衡分配方法[J].计算机工程与设计,2014,35(5):1501-1505.
[11] ZHANG Yingjing,XIONG Huagang,LIU Zhidan,et al.Application of TTE communication technology in avionics system[J].Electronics Optics and Control,2015,22(5):49-53.(in Chinese)张英静,熊华钢,刘志丹,等.可用于航空电子系统的时间触发以太网[J].电光与控制,2015,22(5):49-53.
[12] DONG Jinwu.Time triggered Ethernet accelerating avionics interconnection[J].Electronics Optics and Control,2016,23(2):74-78.(in Chinese)董进武.时间触发以太网加速航电互联[J].电光与控制,2016,23(2):74-78.
[13] LIU Shuai,ZHANG Ximin,HE Xiang,et al.Method of partition synchronization in distributed system based on time triggered Ethernet[J].Aeronautical Computing Technique,2014,44(1):131-134.(in Chinese)刘帅,张喜民,何翔,等.基于TTE网络的分布式系统分区同步方法[J].航空计算技术,2014,44(1):131-134.
[14] HONG Fujiang,ZENG Peng,ZHANG Xiaoling,et al. Survey on time synchronization in wireless sensor network[J].Computer Engineering,2011,37(22):70-73.(in Chinese)汪付强,曾鹏,张晓玲,等.无线传感器网络时间同步综述[J].计算机工程,2011,37(22):70-73.
[15] HUANG Tao,CHEN Changsheng.TTE synchronization protocol key algorithm and simulation analysis[J].Journal of University of Electronic Science and Technology of China,2014(3):437-442.(in Chinese)黄韬,陈长胜.TTE时间同步协议关键算法研究和仿真分析[J].电子科技大学学报,2014(3):437-442.
[16] EIDSON J,LEE K.IEEE 1588 standard for a precision clock synchronization protocol for networked measurement and control systems[C]//Proceedings of the 2nd ISA/IEEE Sensors for Industry Conference.Washington D.C.,USA:IEEE Press,2002:98-105.
[17] XU W,YANG G Y.Implementation of the IEEE 1588 precision time protocol based on FPGA[C]//Proceedings of 2011 International Conference on Electrical and Control Engineering.Washington D.C.,USA:IEEE Press,2011:123-156.
[18] YANG Junxiong,XU Yajun,HE Feng,et al.Research on influence of clock synchronization accuracy to TTE real-time performance[J].Electronics Optics and Control,2016,23(8):33-38.(in Chinese)杨俊雄,徐亚军,何锋,等.时钟同步精度对TTE实时性影响研究[J].电光与控制,2016,23(8):33-38.
[19] WANG Yijun,QIAN Zhihong,WANG Guiqin,et al.Research on energy-effcient time synchronization algorithm for wireless sensor networks[J].Journal of Electronics and Information Technology,2012,34(9):2174-2179.(in Chinese)王义君,钱志鸿,王桂琴,等.无线传感器网络能量有效时间同步算法研究[J].电子与信息学报,2012,34(9):2174-2179.
[20] WANG Xuefang,ZHANG Honghai.Research of parameters affecting Q of the quartz resonator[J].Journal of Huazhong University of Science and Technology(Natural Science Edition),2001,29(12):12-13.(in Chinese)汪学方,张鸿海.影响石英晶振器品质因素的特征参数的研究[J].华中科技大学学报(自然科学版),2001,29(12):12-13.
