一种高速可伸缩的双域Montgomery模乘器架构

doi:10.19678/j.issn.1000-3428.0065018

摘要/Abstract

摘要：

为提高Montgomery模乘在硬件实现上的运算速度并保持较高的性能，提出一种适用于高速椭圆曲线密码处理器的高速可伸缩的双域Montgomery模乘算法及其硬件架构。通过迭代调用Karatsuba乘法，实现最大位宽为576 bit的Montgomery模乘，并利用Montgomery模乘相邻运算部分数据的无关性，通过提前计算部分数据，减少Montgomery模乘运算使用的时钟周期数。基于Karatsuba算法中多次使用大位宽加法运算带来资源消耗大和超长进位链的问题，设计基于双域4-2压缩变换的加法选择电路结构，将一个超大位宽的加法运算拆分成多个小位宽的加法，在一个时钟周期内同时得到所有加法运算的结果，并根据加法的进位输出进行最终输出结果的选择，有效缩短加法进位链的延时。实验结果表明，相比基于ASIC的Montgomery模乘实现方案，Montgomery模乘算法及硬件架构具有更高的灵活性，在65 nm的CMOS工艺下进行逻辑综合，最高时钟频率能够达到459 MHz，面积资源占用为480 254 µm²，完成0~145 bit、146~289 bit、290~435 bit和436~576 bit的Montgomery模乘分别仅需要8.72 ns、23.98 ns、58.86 ns和71.94 ns，且具有较低的面积时间积。

关键词: Montgomery模乘器, Karatsuba乘法, 可伸缩, 椭圆曲线密码, 双域4-2压缩变换

Abstract:

A high-speed scalable dual-field Montgomery Modular Multiplier(MMM) algorithm and its hardware architecture are proposed for an Elliptic Curve Cryptography(ECC) processor to improve its performance. The 576 bit scalable MMM is implemented in this study by iteratively calling the Karatsuba algorithm.The number of clock cycles is reduced by calculating some of the data in advance, utilizing the data irrelevance in the adjacent operations of the MMM. To avoid large resource consumption and a long carry chain in the implementation of the Karatsuba algorithm, a carry-select addition approach based on dual-field 4-2 compressors is proposed. It splits a large addition into several small additions, simultaneously obtains all the addition results, and selects the final result according to the addition carries, shortening the delay of the carry chain.The experimental results show that, compared with other MMM implementations in Application-Specific Integrated Circuits(ASIC), the proposed MMM hardware architecture has higher flexibility.Synthesized with a 65 nm Complementary Metal-Oxide-Semiconductor(CMOS) process, the maximum frequency is 459 MHz and the area is 480 254 µm². Completing MMMs of 0-145 bit, 146-289 bit, 290-435 bit, and 436-576 bit takes 8.72 ns, 23.98 ns, 58.86 ns, and 71.94 ns, respectively, with a low area-time product.

Key words: Montgomery Modular Multiplier(MMM), Karatsuba multiplication, scalable, Elliptic Curve Cryptography(ECC), dual-field 4-2 compression transformation

陈億, 杨萱, 曾涵, 李伟. 一种高速可伸缩的双域Montgomery模乘器架构[J]. 计算机工程, 2023, 49(8): 283-290.

Yi CHEN, Xuan YANG, Han ZENG, Wei LI. A High-Speed Scalable Dual-Field Montgomery Modular Multiplier Architecture[J]. Computer Engineering, 2023, 49(8): 283-290.

https://www.ecice06.com/CN/Y2023/V49/I8/283

图/表 13

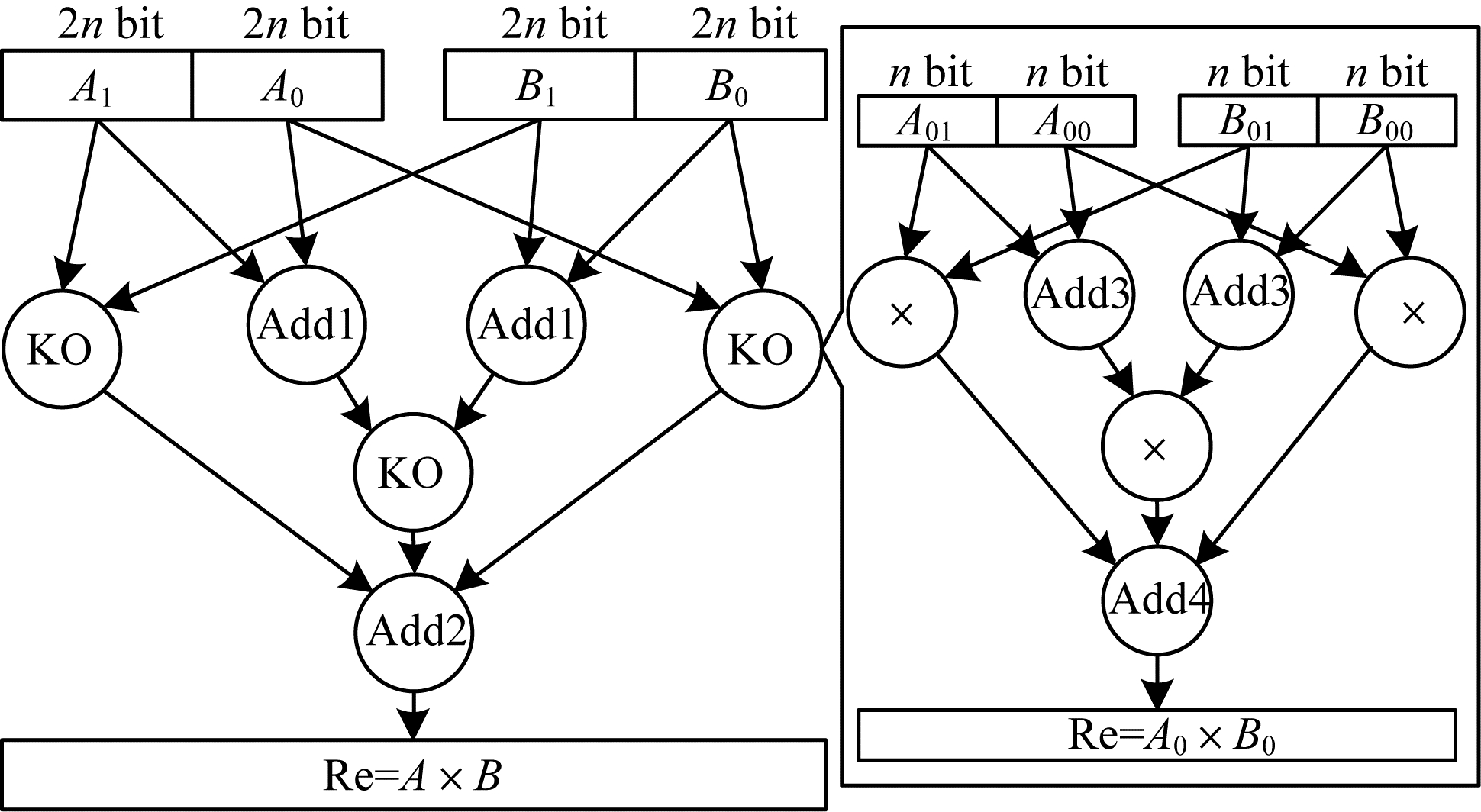

图1 4n bit Karatsuba乘法

Fig.1 4n bit Karatsuba multiplication

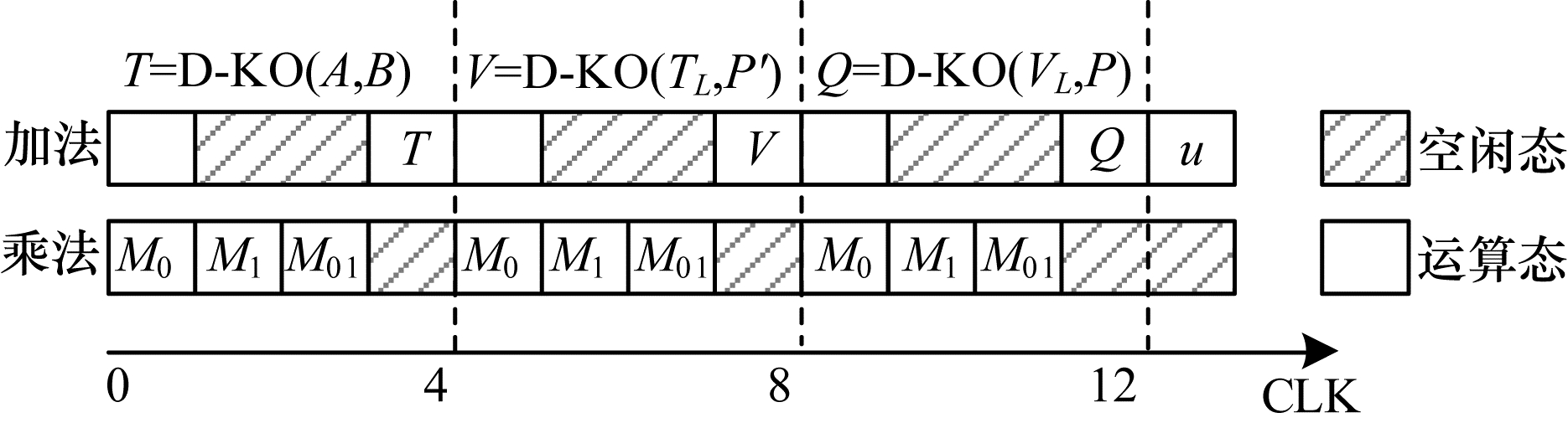

图2 优化前的146~289 bit的Montgomery模乘算法流图

Fig.2 MMM algorithm flow diagram before optimization for 146-289 bit

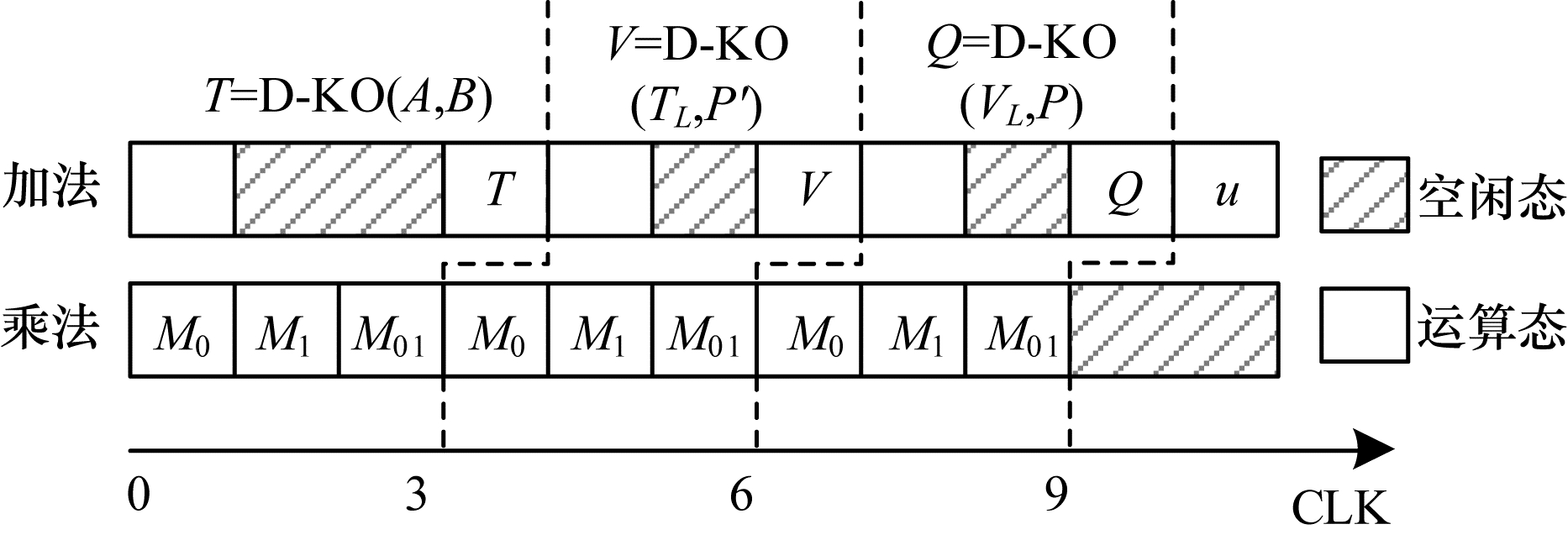

图3 优化后的146~289位的Montgomery模乘算法流图

Fig.3 MMM algorithm flow diagram after optimization for 146-289 bit

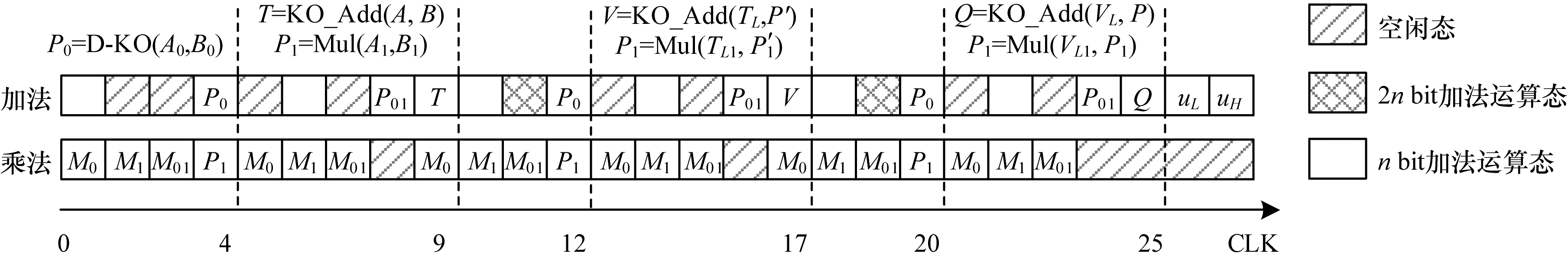

图4 优化后的290~435 bit的Montgomery模乘算法流图

Fig.4 MMM algorithm flow diagram after optimization for 290-435 bit

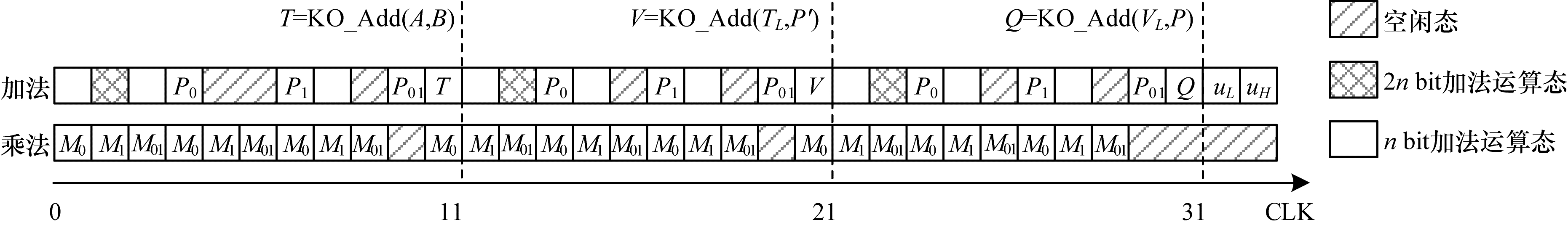

图5 优化后的436~576 bit的Montgomery模乘算法流图

Fig.5 MMM algorithm flow diagram after optimization for 436-576 bit

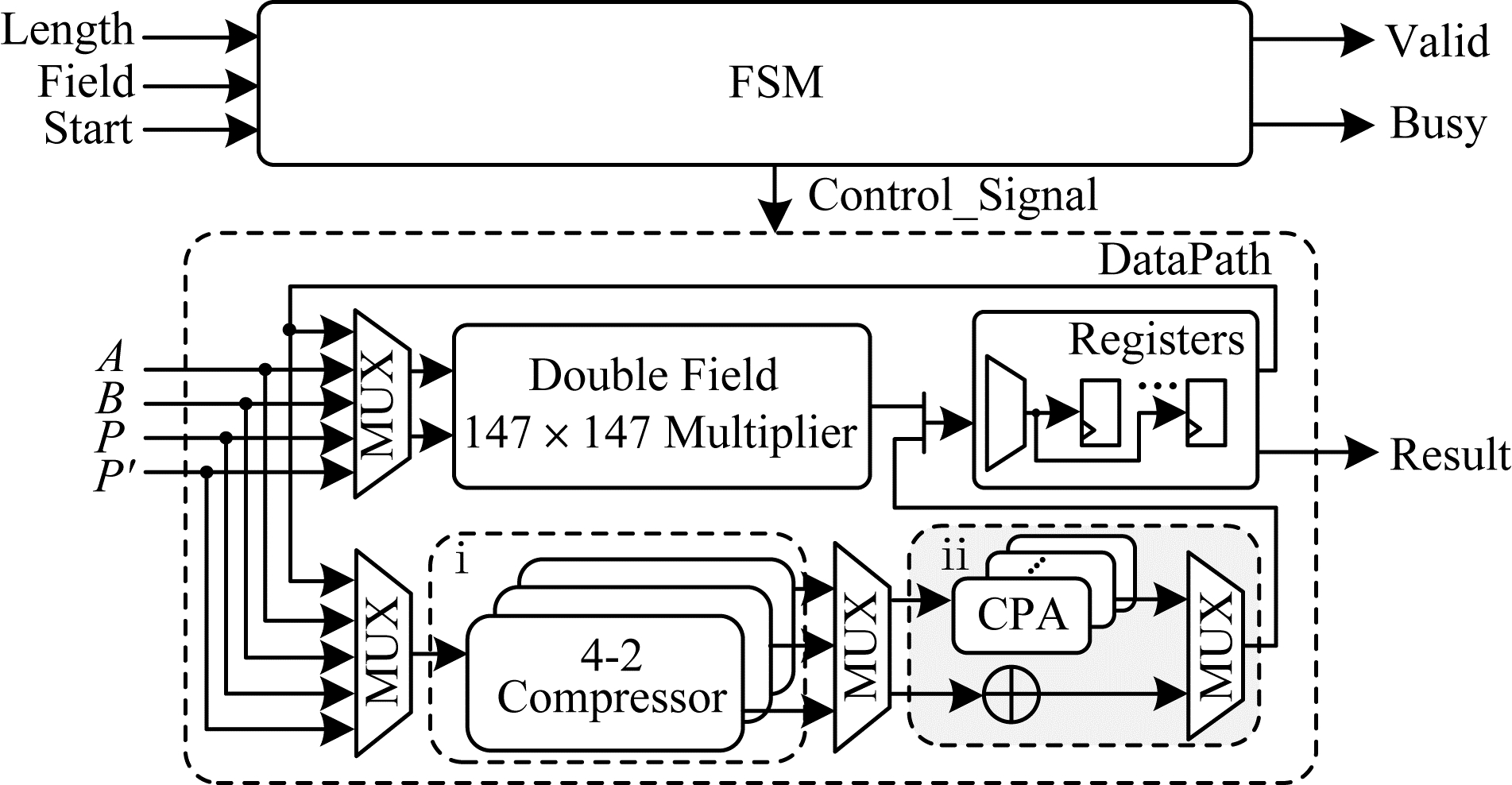

图6 Montgomery模乘硬件架构

Fig.6 Hardware architecture of Montgomery modular

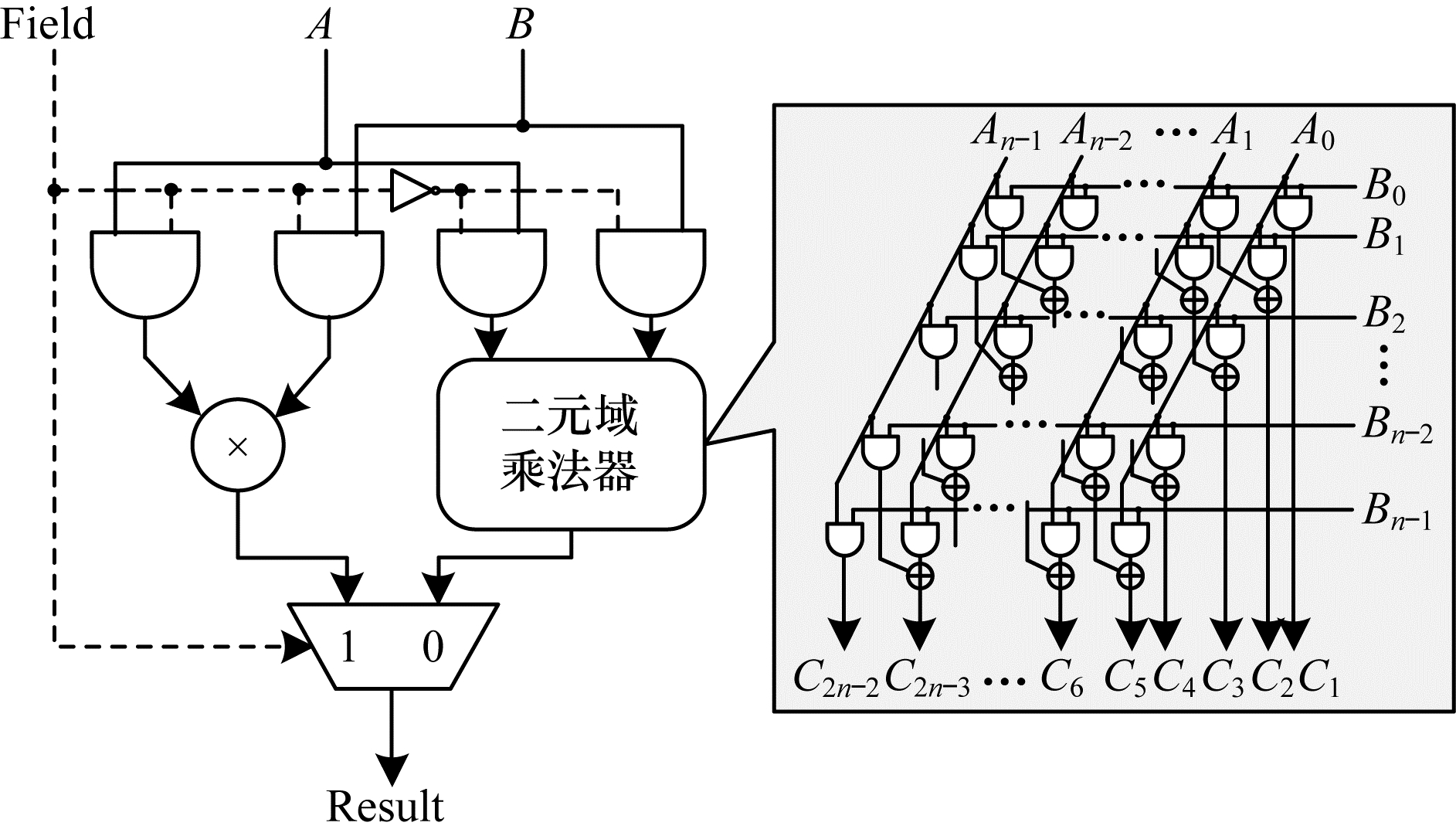

图7 双域乘法器结构

Fig.7 Structure of dual-field multiplication

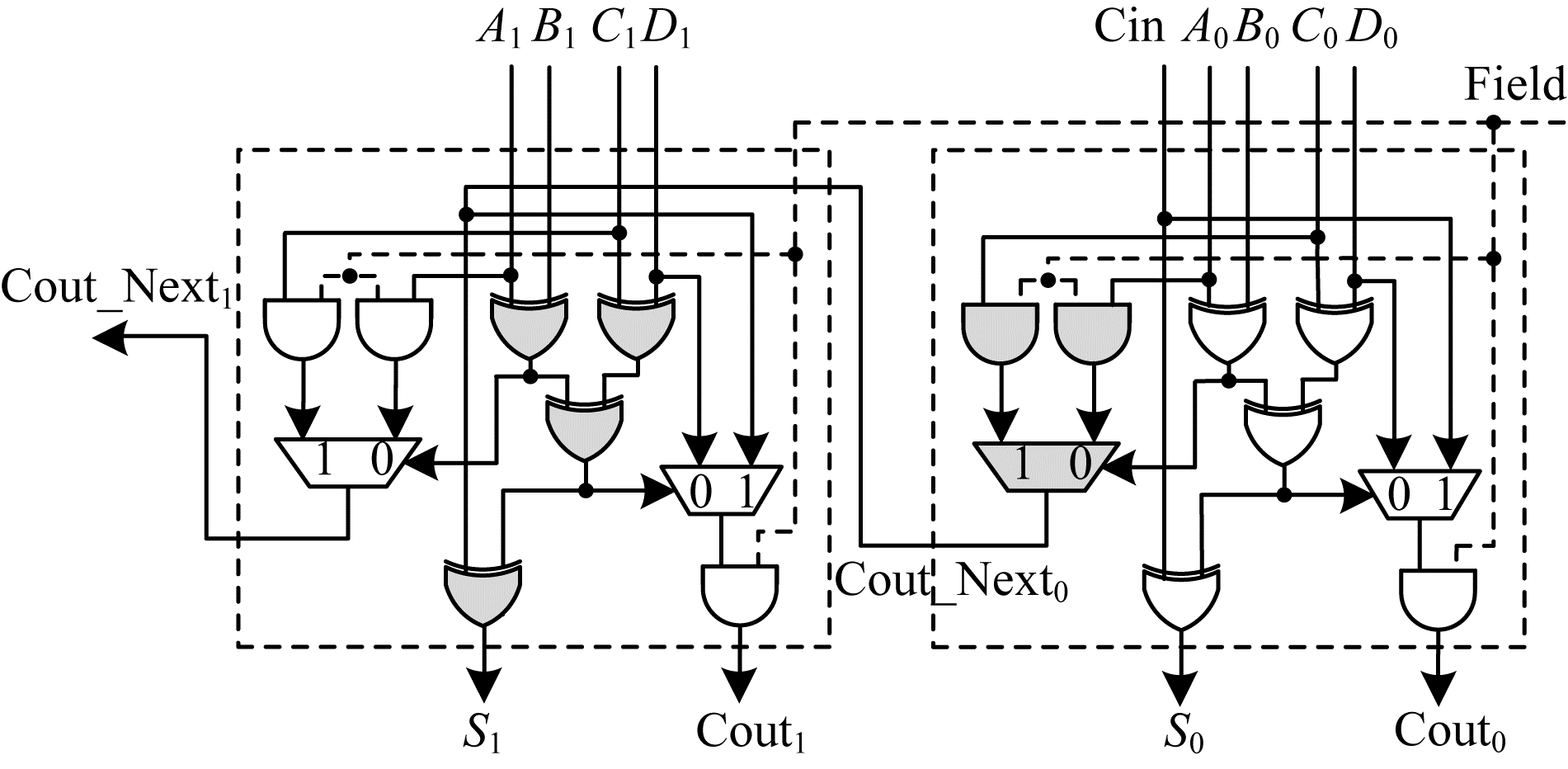

图8 双域4-2压缩变换单元

Fig.8 Dual-field 4-2 compressor conversion unit

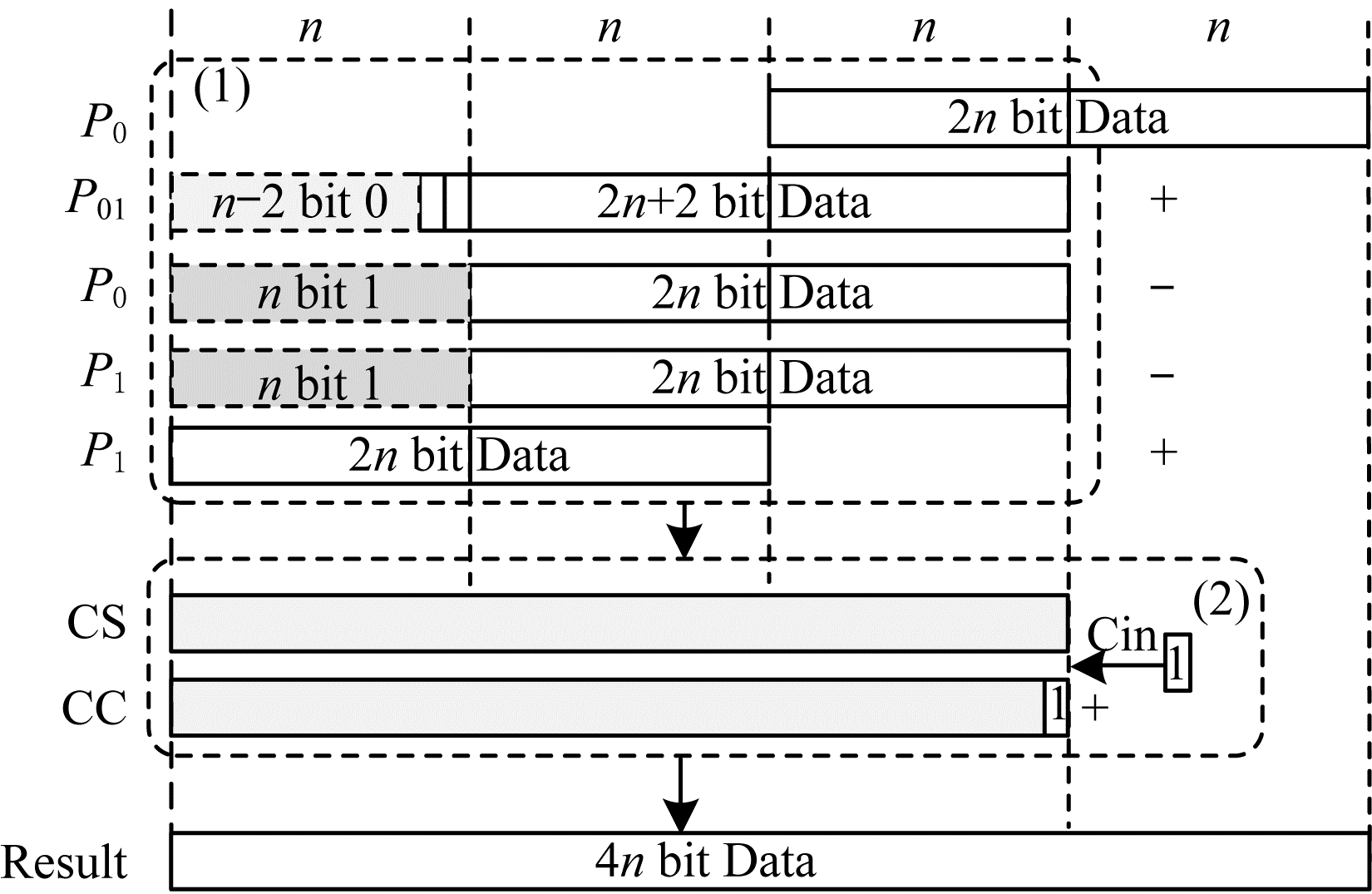

图9 素数域KO_Add数据流图

Fig.9 Prime number field KO_Add data flow diagram

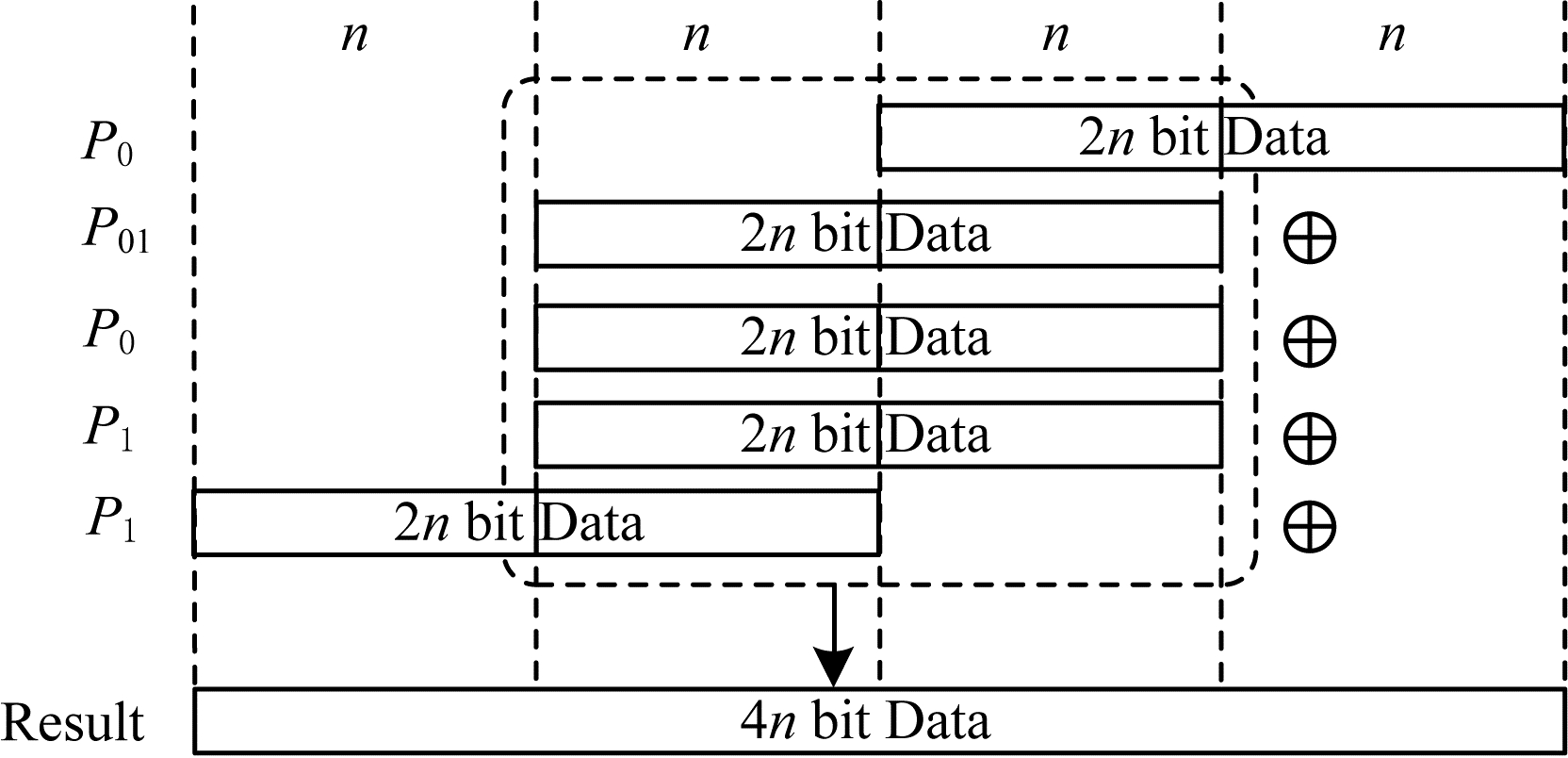

图10 二元域KO_Add数据流图

Fig.10 Binary field KO_Add data flow diagram

图11 进位加法选择电路

Fig.11 Carry-select addition circuit

表1 不同位宽Montgomery模乘运算时间

Table 1 Montgomery modular multiplier operation time with different length

位宽/bit	时钟周期数/个	运算时间/ns
0~145	4	8.72
146~289	11	23.98
290~435	27	58.86
436~576	33	71.94

表2 模乘性能对比

Table 2 Performance comparison of modular multiplier

方法	工艺制程/nm	位宽/bit	面积/µm²	等效门/KGates	最高时钟频率/MHz	运算时间/ns	AT/(ms·Gate^-1)
文献[23]方法	65	256	1 638 647	—	144	6.94	21.866
文献[24]方法	65	256	169 390	—	497	44.22	14.403
文献[6]方法	65	256	—	13.26	549	468.00	9.235
文献[16]方法	55	256	—	236.00	588	73.10	56.461
本文方法	65	128 256 384 576	480 254	333.51	459	8.72 23.98 58.86 71.94	8.053 22.148 54.360 66.442
