基于芯粒的多核处理器目录控制器的敏捷验证

罗莉¹^,²^,*(), 冯权友¹^,², 周理¹^,², 铁俊波¹^,², 龚锐¹^,², 潘国腾¹^,²

1. 国防科技大学计算机学院, 湖南长沙 410073
2. 先进微处理器芯片与系统重点实验室, 湖南长沙 410073

收稿日期:2024-11-07 修回日期:2025-02-24 出版日期:2026-08-15 发布日期:2025-04-17
通讯作者: 罗莉
作者简介:
罗莉(CCF会员)，女，研究员、博士，主研方向为高性能计算机体系结构、高性能通用微处理器设计与验证
冯权友，副研究员、博士
周理，助理研究员、博士
铁俊波，副研究员、博士
龚锐，副研究员、博士
潘国腾，副研究员、博士
基金资助:
国家自然科学基金青年基金项目(62203457); 并行与分布式处理国防科技重点实验室开放基金(WDZC20235250112)

Agile Verification of Directory Control Unit for Chiplet-based Multi-core Processors

LUO Li¹^,²^,*(), FENG Quanyou¹^,², ZHOU Li¹^,², TIE Junbo¹^,², GONG Rui¹^,², PAN Guoteng¹^,²

1. College of Computer Science, National University of Defense Technology, Changsha 410073, Hunan, China
2. Key Laboratory of Advanced Microprocessor Chips and Systems, Changsha 410073, Hunan, China

Received:2024-11-07 Revised:2025-02-24 Online:2026-08-15 Published:2025-04-17
Contact: LUO Li

摘要/Abstract

摘要：

芯粒已成为芯片设计的新趋势, 随着微处理器结构向多核化、众核化发展, 高速缓冲存储器(Cache)一致性协议也日趋复杂。在多芯粒集成的微处理器中, Cache一致性协议的验证更是一个具有重要应用价值的技术问题。基于目录的Cache协议是最广泛应用的硬件实现方法, 针对自主研发的分布式目录控制器(DCU), 研究多芯粒集成的处理器目录控制器的敏捷验证技术, 随机测试采用否定选择算法(NSA)的优化机制。实验结果表明: 随机测试激励减少40%的条件下, 功能覆盖率较未使用否定选择算法的随机测试提高了28百分点; 随机测试激励和定向测试激励相结合, 功能覆盖率最终达到100%。同时设计一致性检查器, 监视一致性协议事务的生命周期, 用于快速定位设计错误, 追踪问题的精确场景。实践中, 该检查器定位的协议错误占设计错误的90%, 有效提高了验证效率和验证质量。

关键词: 芯粒, 高速缓冲存储器一致性协议, 分布式目录控制器, 否定选择算法, 敏捷验证

Abstract:

Chiplets have emerged as a new trend in chip design. With the evolution of microprocessor architectures toward multi-core and many-core implementations, the complexity of Cache coherence protocols has increased substantially. For microprocessors integrating multiple chiplets, the verification of Cache coherence protocols is a technically critical issue with significant practical value. The directory-based Cache coherence protocol is the most widely adopted hardware-implementation approach. Focusing on a self-developed distributed Directory Controller Unit (DCU), this study investigates agile verification technologies for DCU in multi-chiplet integrated processors. An optimized mechanism based on a Negative Selection Algorithm (NSA) is employed in random testing, where functional coverage was improved by 28 percentage points under a 40% reduction in random test stimuli. By combining random and directed test stimuli, the functional coverage ultimately reaches 100%. Additionally, a coherence checker is designed to monitor the entire lifecycle of the coherence protocol transactions. This enables the rapid localization of design errors and accurate tracing of problematic scenarios, with 90% of the design bugs successfully identified. This approach effectively enhances verification efficiency and quality.

Key words: chiplets, Cache coherence protocol, distributed Directory Control Unit (DCU), Negative Selection Algorithm (NSA), agile verification

罗莉, 冯权友, 周理, 铁俊波, 龚锐, 潘国腾. 基于芯粒的多核处理器目录控制器的敏捷验证[J]. 计算机工程, 2026, 52(8): 176-183.

LUO Li, FENG Quanyou, ZHOU Li, TIE Junbo, GONG Rui, PAN Guoteng. Agile Verification of Directory Control Unit for Chiplet-based Multi-core Processors[J]. Computer Engineering, 2026, 52(8): 176-183.

https://www.ecice06.com/CN/Y2026/V52/I8/176

图/表 11

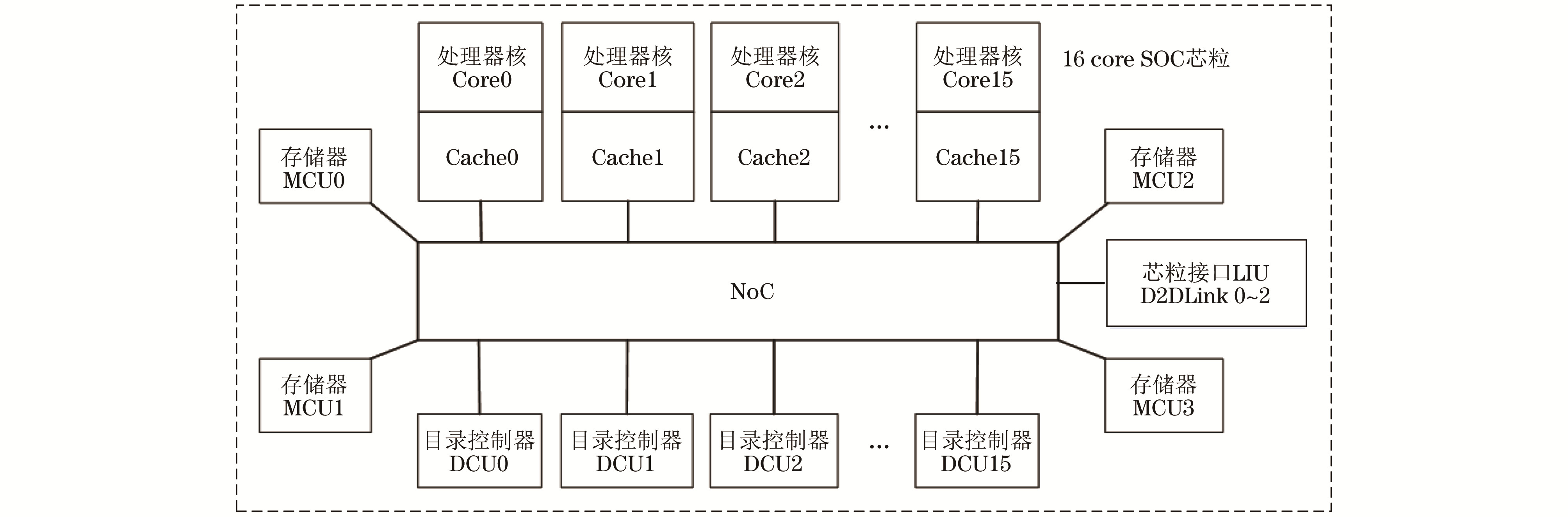

图1 Die：16核SoC芯粒结构

Fig.1 Die: 16-core SoC chiplet structure

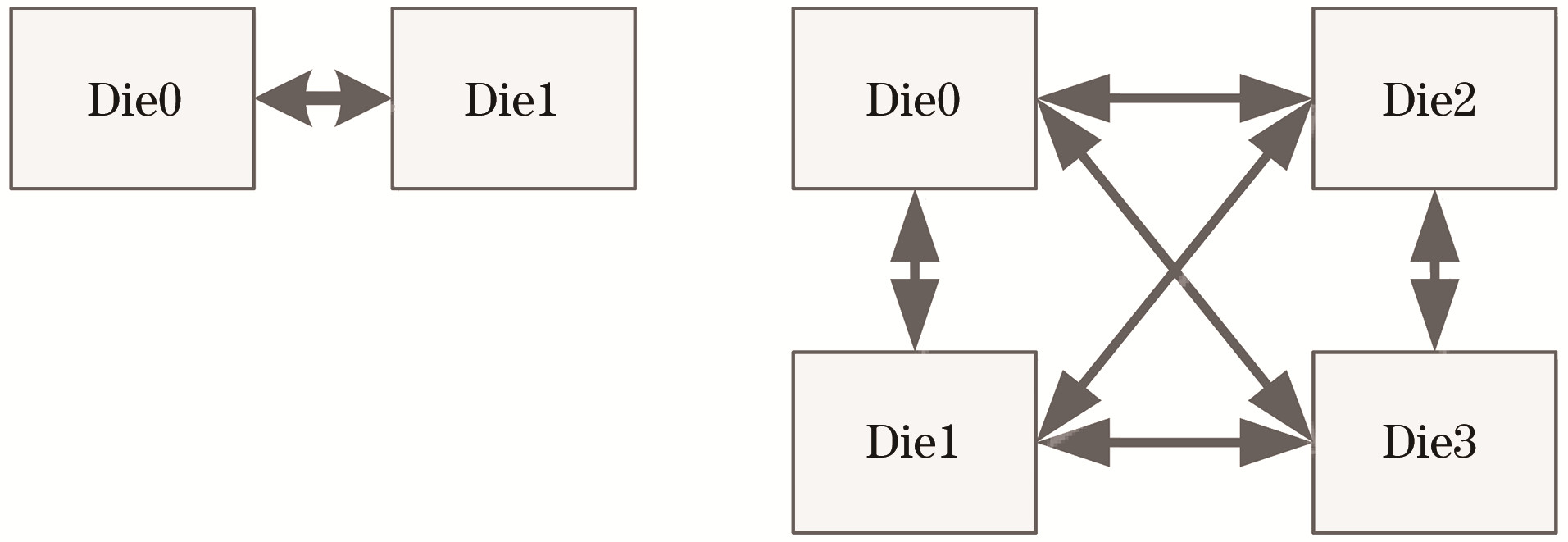

图2 多芯粒集成32核、64核处理器示意图

Fig.2 Schematic diagram of multi-chiplet integrated 32/64-core processor

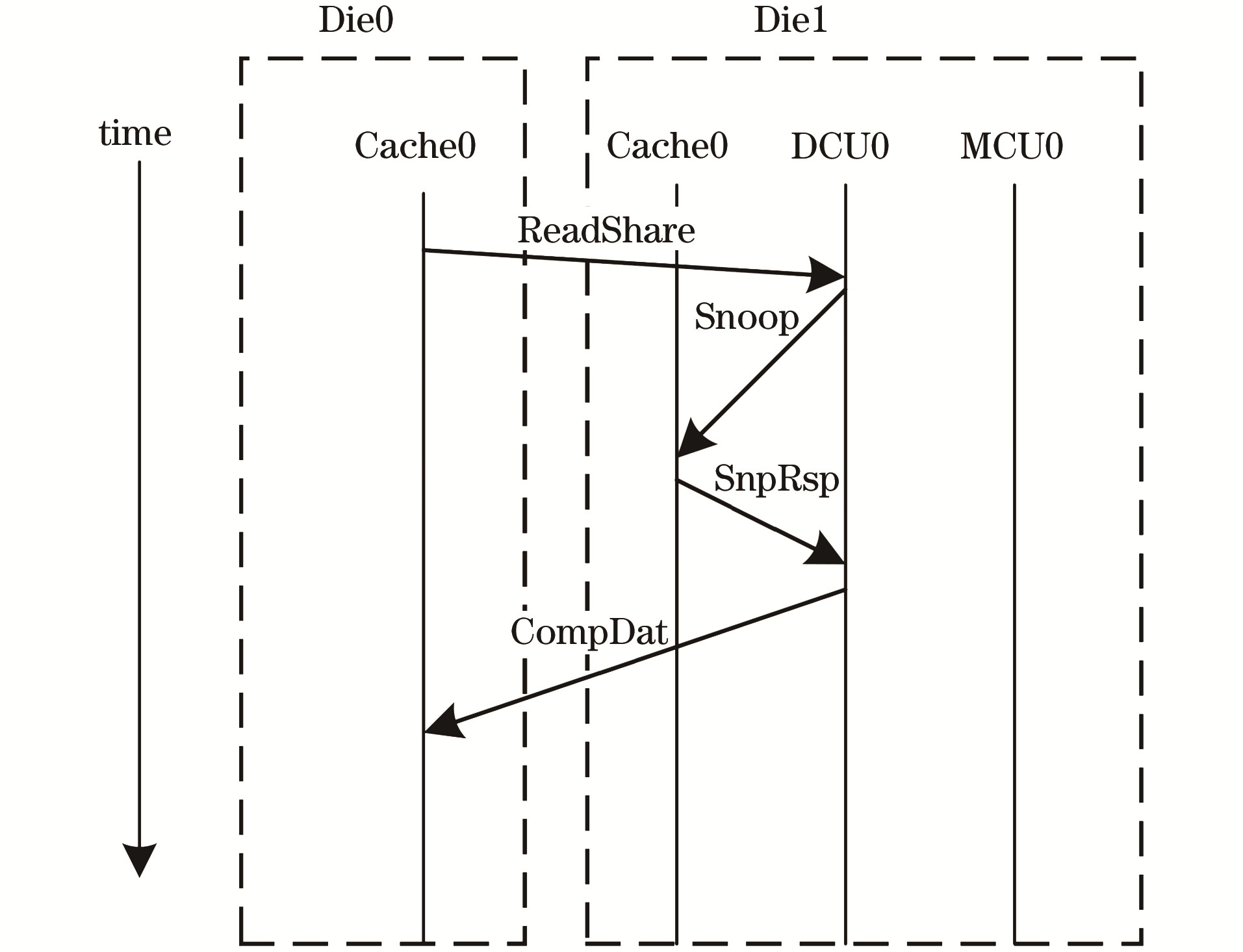

图3 跨芯粒的读操作协议流程

Fig.3 Cross-chiplet read operation protocol flow

图4 跨芯粒写操作协议流程

Fig.4 Cross-chiplet write operation protocol flow

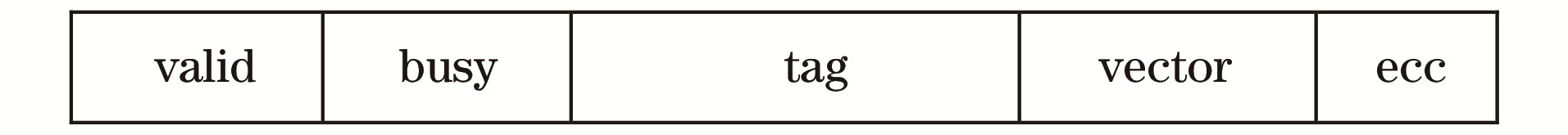

图5 DCU目录项entry的定义

Fig.5 Definition of a directory entry in DCU

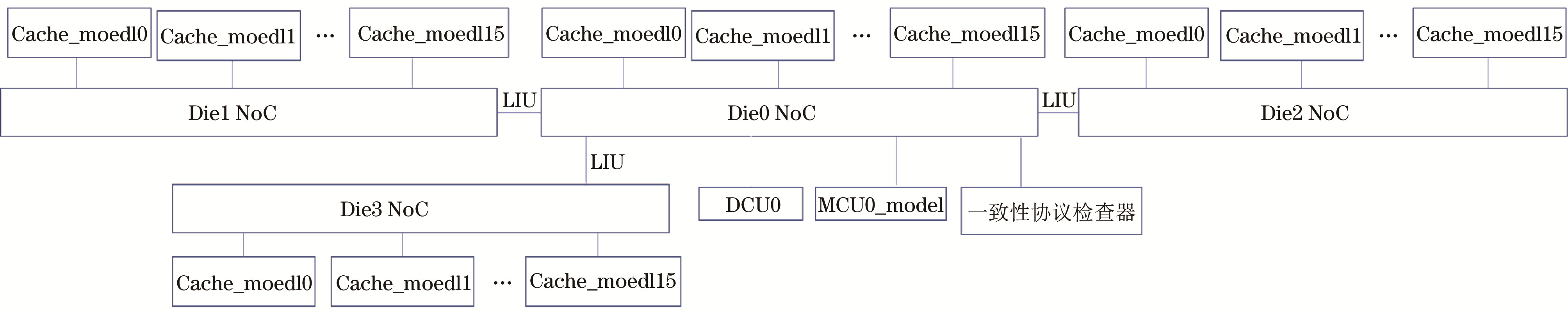

图6 多芯粒集成的处理器的目录控制器敏捷验证环境

Fig.6 Agile verification environment for the DCU in a multi-chiplet integrated processor

图7 一个抗体Gen实例

Fig.7 An example of antibody Gen

图8 抗体种群表示的测试向量

Fig.8 test antibody population

图9 随机测试激励执行的功能覆盖率

Fig.9 The functional coverage status of random test

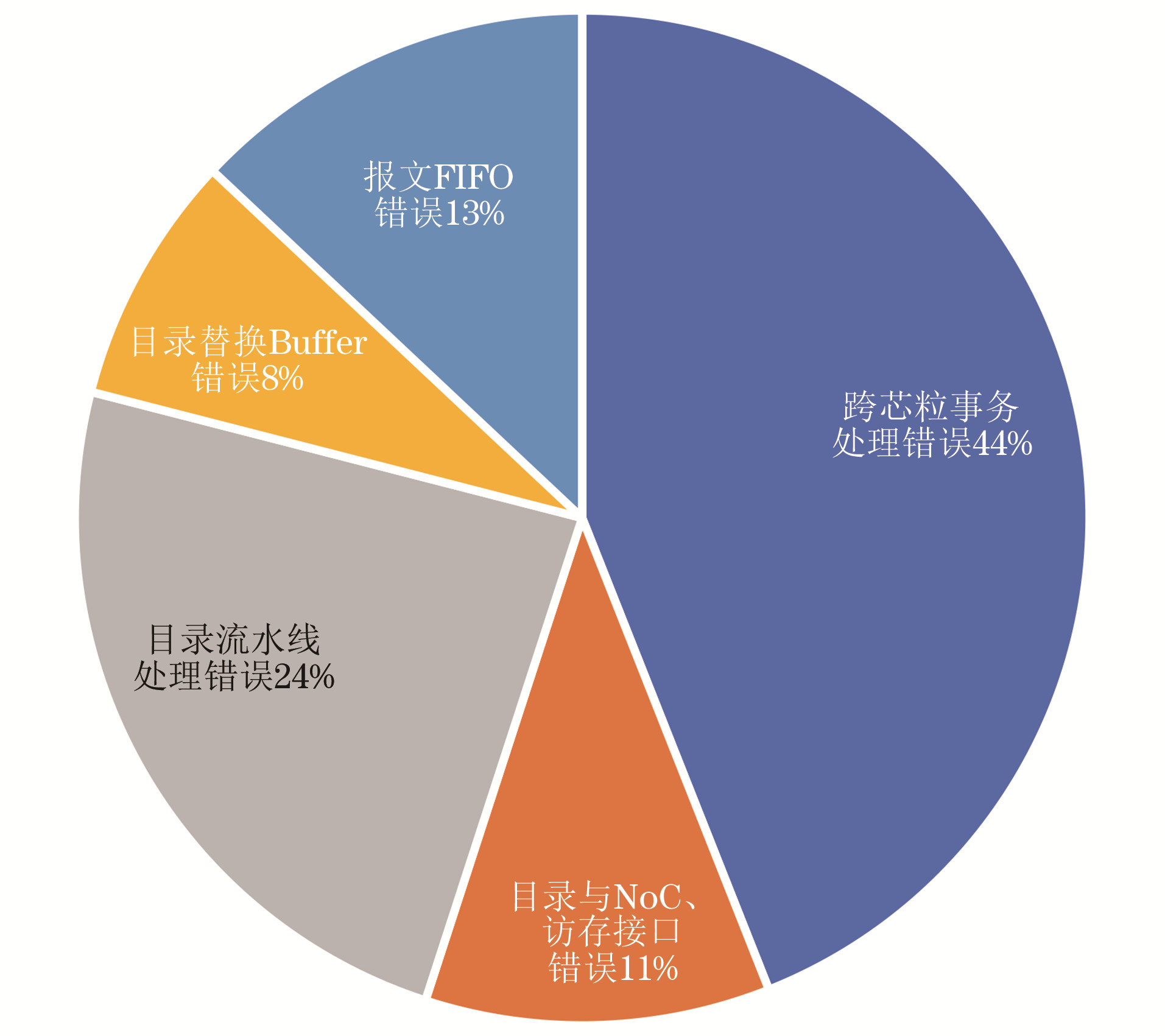

图10 设计错误分布率
