Program Transpilation Method from Control Flow Model to Dataflow Model Based on SDFG

FU Jiawei*(), CHEN Junshi, AN Hong

School of Computer Science and Technology, University of Science and Technology of China, Hefei 230026, Anhui, China

Received:2025-04-11 Revised:2025-06-05 Online:2026-08-15 Published:2025-07-22
Contact: FU Jiawei

摘要/Abstract

摘要：

数据流编程是一种新型的并行编程范式, 其通过细粒度的任务拆分实现高性能的并行计算, 但也带来了额外的编程复杂性。本文提出一种新型的程序转换方法与编译流程, 借助两层程序中间表示实现了将控制流结构的计算程序全自动无缝转换为数据流结构。由于两种编程模型在程序的表达方式上具有诸多差异, 自动化转换过程中面临许多挑战, 本文将其细化为4个具体的类别, 并逐一提出应对方案。在PolyBench/C数据集上的实验结果表明, 通过本文设计的转换方案产生的数据流程序, 其整体并行计算性能接近基于有状态数据流多重图(SDFG)的OpenMP并行化方案, 并在近一半的样例中超越OpenMP方案。本文还选择了多个具体的程序进行深入分析, 讨论了不同编译方案产生的结果存在性能差异的原因, 展现了Codelet模型在大量线程下面对不规则并行模式的优越性。

关键词: 数据流编程, Codelet模型, 有状态数据流多重图, 程序转换, 源到源翻译器

Abstract:

Dataflow programming is an emerging parallel-programming paradigm. By splitting tasks into fine granularities, high-performance parallel computing can be achieved at the expense of increased programming complexity. This study proposes a new program transpilation method and compilation procedure that leverages two levels of intermediate representation and converts control flow computational programs into a dataflow architecture in a fully automatic manner. Owing to the substantial disparities between these programming models, many challenges exist in automatic conversion schemes, which are split into four categories and addressed separately. Experimental results on the PolyBench/C dataset indicate that the proposed conversion scheme can produce dataflow parallel programs on par with those produced by the Stateful DataFlow multiGraph (SDFG)-based OpenMP parallelizing compiler while surpassing it in approximately half of the cases. This study also conducts case studies on multiple program samples and discusses the causes of performance distinctions in different compilation schemes, revealing the superiority of the Codelet model with a massive number of threads on irregular parallelism.

Key words: dataflow programming, Codelet model, Stateful DataFlow multiGraph (SDFG), program transpilation, source-to-source compiler

付佳伟, 陈俊仕, 安虹. 基于SDFG的控制流模型到数据流模型的程序转换方法[J]. 计算机工程, 2026, 52(8): 193-202.

FU Jiawei, CHEN Junshi, AN Hong. Program Transpilation Method from Control Flow Model to Dataflow Model Based on SDFG[J]. Computer Engineering, 2026, 52(8): 193-202.

https://www.ecice06.com/CN/Y2026/V52/I8/193

图/表 8

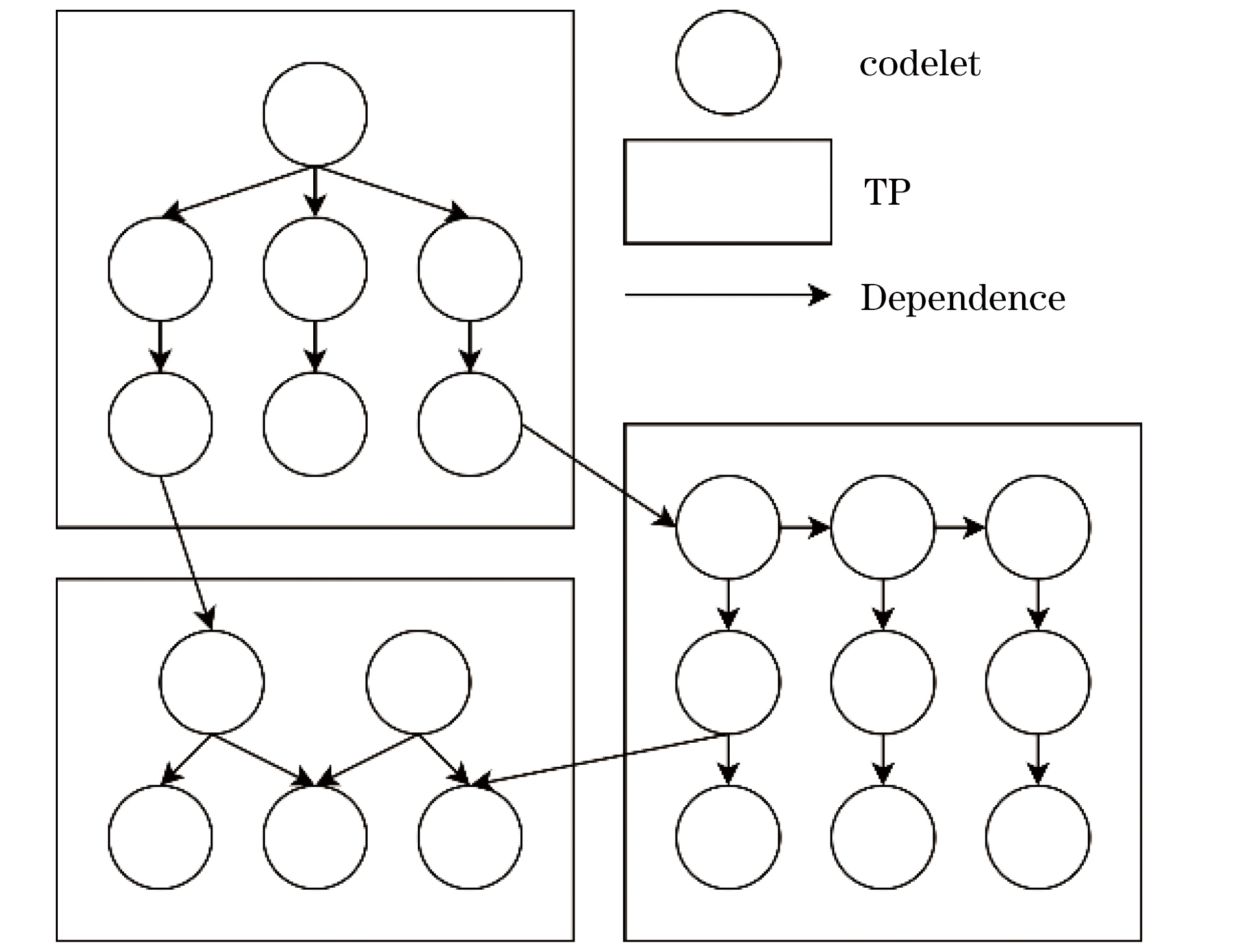

图1 Codelet执行模型

Fig.1 The Codelet execution model

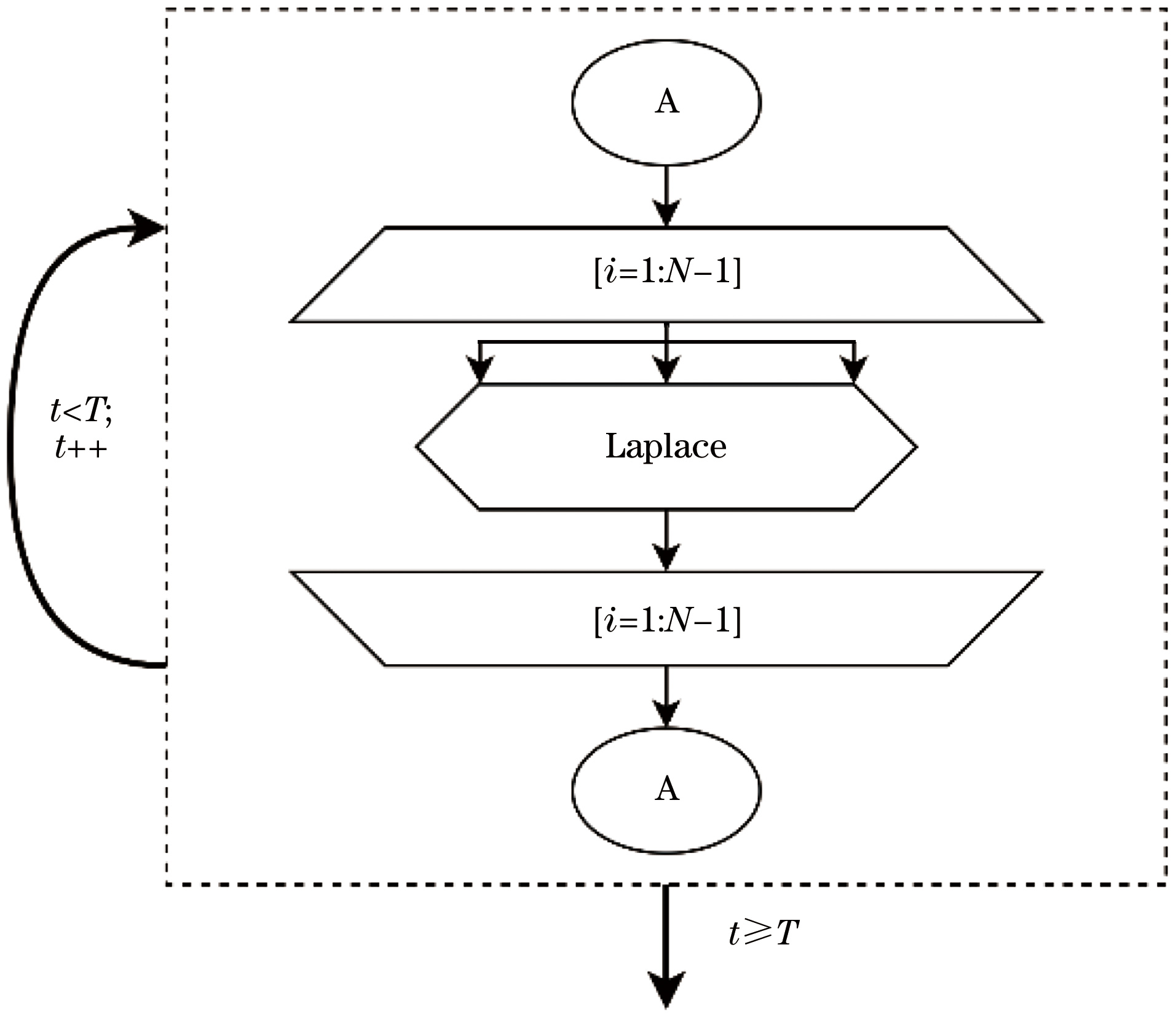

图2 SDFG模型中的Laplace迭代算法

Fig.2 Iterative Laplace algorithm in SDFG model

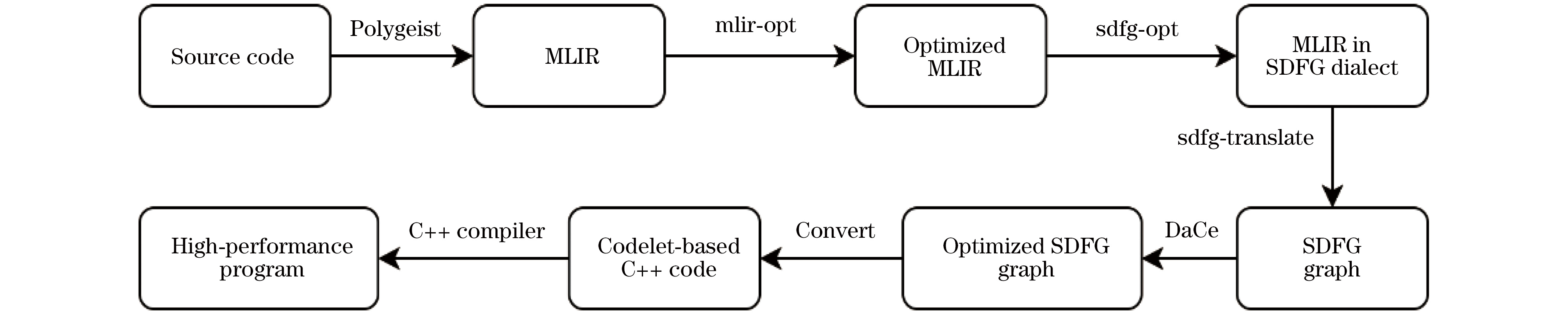

图3 完整的编译与转换流程

Fig.3 Complete compilation and transpilation procedure

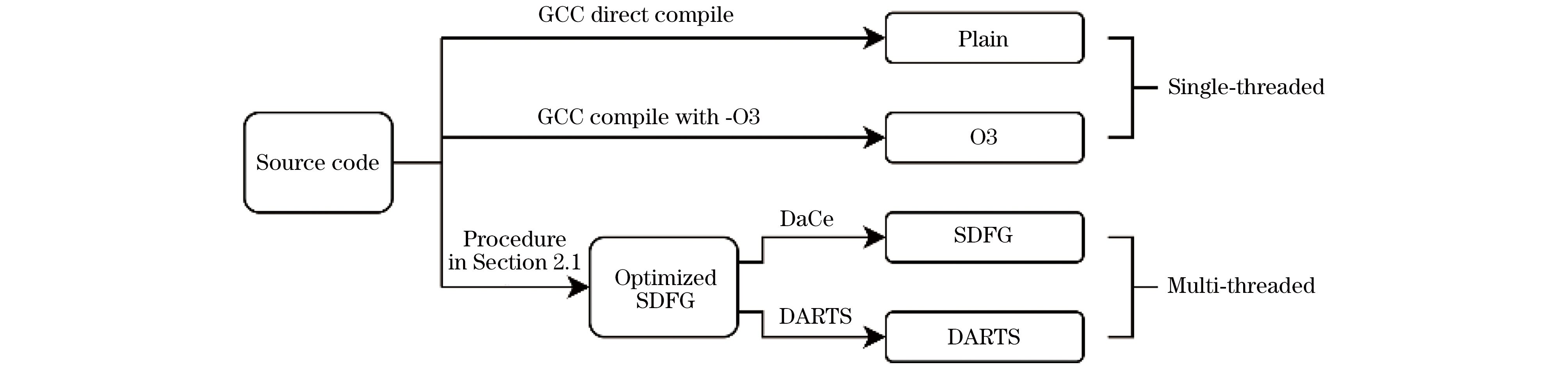

图4 参与评测的编译方案

Fig.4 Compilation schemes compared

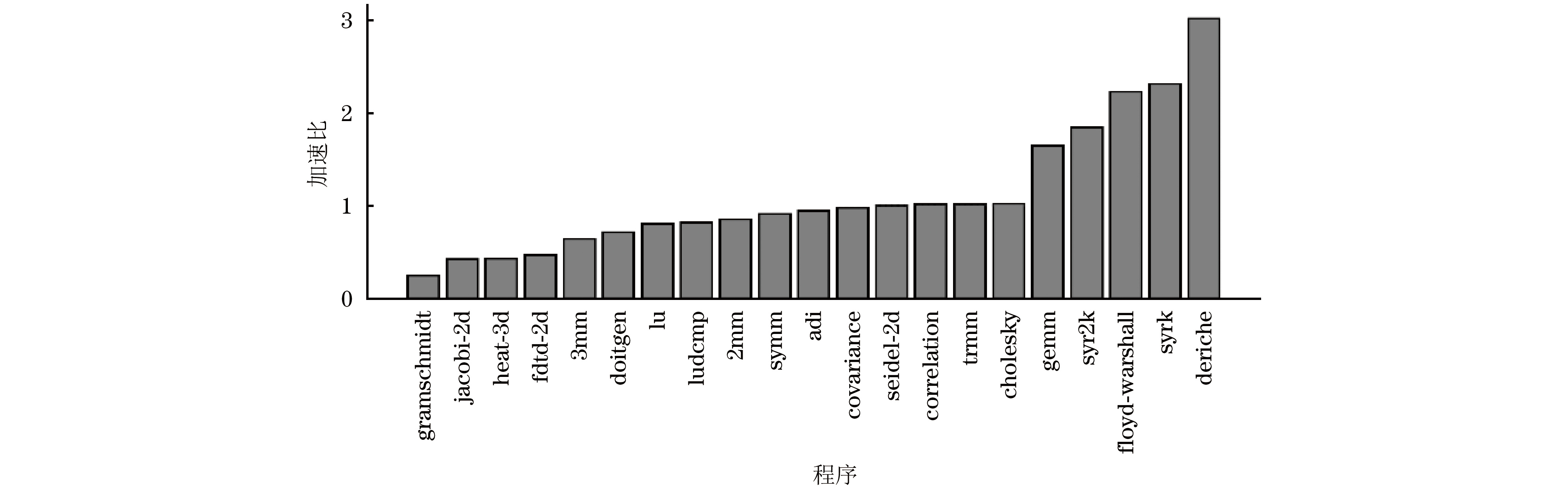

图5 DARTS方案相对于SDFG方案在21个程序中的加速比

Fig.5 Acceleration ratio of DARTS over SDFG in 21 programs
