基于MT6D的物联网轻量级安全协议研究

doi:10.19678/j.issn.1000-3428.0055664

计算机工程 ›› 2020, Vol. 46 ›› Issue (9): 117-122. doi: 10.19678/j.issn.1000-3428.0055664

基于MT6D的物联网轻量级安全协议研究

黄廷辉, 丁勇, 李思骏

桂林电子科技大学计算机与信息安全学院, 广西桂林 541004

收稿日期:2019-08-05 修回日期:2019-09-12 发布日期:2019-09-20
作者简介:黄廷辉(1970-),男,副教授、硕士,主研方向为物联网安全、分布式计算;丁勇、李思骏,硕士研究生。
基金资助:
国家自然科学基金（61662016）；赛尔网络下一代互联网技术创新项目（NGII20160306）。

Research on MT6D-based Lightweight Security Protocol for Internet of Things

HUANG Tinghui, DING Yong, LI Sijun

College of Computer and Information Security, Guilin University of Electronic Technology, Guilin, Guangxi 541004, China

Received:2019-08-05 Revised:2019-09-12 Published:2019-09-20

摘要/Abstract

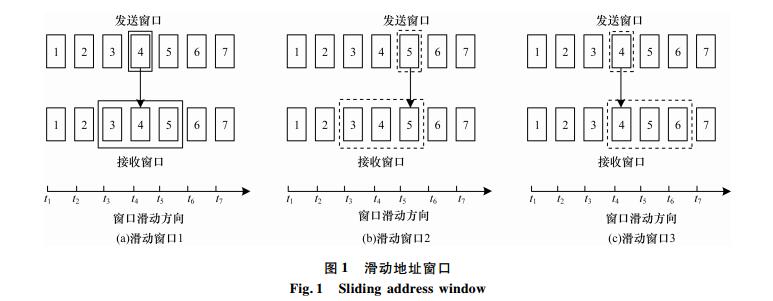

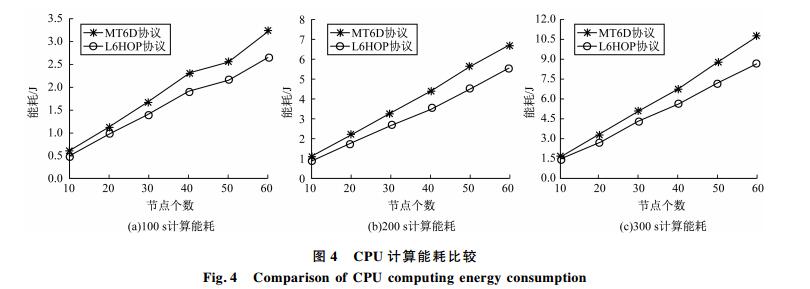

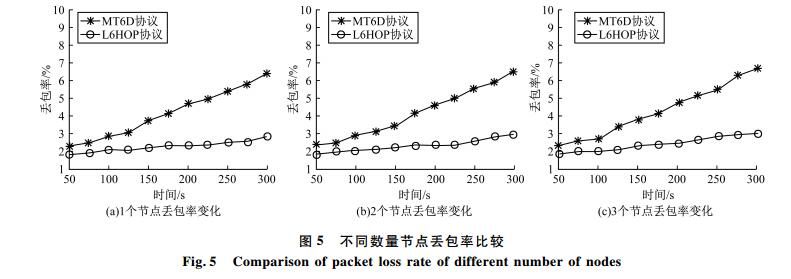

摘要： 随着物联网设备在开放互联网上的快速部署，物联网设备的隐私和通信安全问题得到广泛关注。由于物联网的嵌入式设备受到资源和计算性能的限制，传统的网络通信安全方法难以提供可靠的安全保障。为此，提出一种基于低功耗无线个域网6LoWPAN的轻量级IPv6地址跳变协议（L6HOP）。通过对移动目标IPv6网络防御（MT6D）协议进行改进，使用轻量级哈希算法降低CPU计算消耗，并引入滑动地址窗口解决不同设备时钟误差引起的丢包率较大的问题。实验结果表明，L6HOP协议可有效保护物联网不受设备追踪、DoS和窃听等攻击，与MT6D协议相比，可有效减少CPU的计算开销，并能够降低通信丢包率。

关键词: 物联网, 地址跳变, 安全协议, 移动目标IPv6网络防御协议, 通信效率

Abstract: With the rapid deployment of Internet of Things(IoT) devices on the open Internet,the privacy and communication security of IoT devices has attracted much attention.Because the embedded IoT devices are limited by resources and computing performance,traditional network communication security methods have been unable to provide reliable security guarantee.Therefore,this paper proposes a lightweight IPv6 address hopping protocol,L6HOP,in the low-power wireless personal area network,6LoWPAN.The protocol improves the Moving Target IPv6 Defense(MT6D) protocol,and uses a lightweight hash algorithm to reduce CPU computing consumption.Also,the sliding address window is introduced to solve the high packet loss rate caused by clock errors of different devices.Experimental results show that the L6HOP protocol can effectively protect the IoT from device tracking,DoS and eavesdropping attacks.Compared with MT6D protocol,it can significantly reduce the computing overhead of CPU and packet loss rate of communication.

Key words: Internet of Things(IoT), address hopping, security protocol, Moving Target IPv6 Defense(MT6D) protocol, communication efficiency

中图分类号:

TP309

黄廷辉, 丁勇, 李思骏. 基于MT6D的物联网轻量级安全协议研究[J]. 计算机工程, 2020, 46(9): 117-122.

HUANG Tinghui, DING Yong, LI Sijun. Research on MT6D-based Lightweight Security Protocol for Internet of Things[J]. Computer Engineering, 2020, 46(9): 117-122.

https://www.ecice06.com/CN/Y2020/V46/I9/117

图/表 5

20200915135309

20200915135312

20200915135316

20200915135319

20200915135324

参考文献

[1] PENG Anni,ZHOU Wei,JIA Yan,et al.Survey of the Internet of things operating system security[J].Journal on Communications,2018,39(3):22-34.(in Chinese)彭安妮,周威,贾岩,等.物联网操作系统安全研究综述[J].通信学报,2018,39(3):22-34.
[2] MUDGERIKAR A,SHARMA P,BERTINO E.E-spion:a system-level intrusion detection system for IoT devices[C]//Proceedings of the 2019 ACM Conference on Computer and Communications Security.New York,USA:ACM Press,2019:493-500.
[3] ARSHAD J,AZAD M A,ABDELLATIFM M,et al.COLIDE:a collaborative intrusion detection framework for IoT[J].IET Networks,2018,8(1):3-14.
[4] AKBARZADEH A,BAYAT M,ZAHEDNEJAD B,et al.A lightweight hierarchical authentication scheme for Internet of things[J].Journal of Ambient Intelligence and Humanized Computing,2019,10(7):2607-2619.
[5] SHARMA G,KALRA S.A lightweight multi-factor secure smart card based remote user authentication scheme for cloud-IoT applications[J].Journal of Information Security and Applications,2018,42:95-106.
[6] MENG Qian,MA Jianfeng,CHEN Kefei,et al.Data comparable encryption scheme based on cloud computing in Internet of things[J].Journal on Communications,2018,39(4):167-175.(in Chinese)孟倩,马建峰,陈克非,等.基于云计算平台的物联网加密数据比较方案[J].通信学报,2018,39(4):167-175.
[7] RAJESH S,PAUL V,MENON V G,et al.A secure and efficient lightweight symmetric encryption scheme for transfer of text files between embedded IoT devices[J].Symmetry,2019,11(2):293.
[8] DUNLOP M,GROAT S,URBANSKI W,et al.Mt6d:a moving target IPv6 defense[C]//Proceedings of Military Communications Conference.Washington D.C.,USA:IEEE Press,2011:1321-1326.
[9] DUNLOP M,GROAT S,URBANSKI W,et al.The blind man's bluff approach to security using IPv6[J].IEEE Security and Privacy,2012,10(4):35-43.
[10] PREISS T,SHERBURNE M,MARCHANY R,et al.Implementing dynamic address changes in contikios[C]//Proceedings of IEEE International Conference on Information Society.Washington D.C.,USA:IEEE Press,2014:222-227.
[11] SHERBURNE M,MARCHANY R,TRONT J.Implementing moving target IPv6 defense to secure 6LowPan in the IoT and smart grid[C]//Proceedings of the 9th Annual Cyber and Information Security Research Conference.New York,USA:ACM Press,2014:37-40.
[12] ZZITE K,CANTRELL M,MARCHANY R,et al.Designing a micro-moving target IPv6 defense for the IoT[C]//Proceedings of the 2nd IEEE/ACM International Conference on Internet-of-Things Design and Implementation.Washington D.C.,USA:IEEE Press,2017:179-184.
[13] SHAH J L,PARVEZ J.Optimizing security and address configuration in IPv6 SLAAC[J].Procedia Computer Science,2015,54:177-185.
[14] CARPERTER B,JIANG S.Significance of IPv6 interface identifiers[J].Internet Engineering Task Force,2014,65:1-10
[15] DUNLOP M,GROAT S,MARCHANY R,et al.The good,the bad,the IPv6[C]//Proceedings of the 9th Annual Communication Networks and Services Research Conference.Washington D.C.,USA:IEEE Press,2011:77-84.
[16] GRANJAL J,MONTEIRO E,SILVA J S.Security for the Internet of things:a survey of existing protocols and open research issues[J].IEEE Communications Surveys and Tutorials,2015,17(3):1294-1312.
[17] NABEEL N,HABAEBI M,MUSTAPHA N C,et al.IoT light weight crypto functions[J].International Journal of Interactive Mobile Technologies,2019,13(4):117.
[18] ZEITZ K,CANTRELL M,MARCHANY R,et al.Changing the game:a micro moving target IPv6 defense for the IoT[J].IEEE Wireless Communications Letters,2018,7(4):578-581.
[19] BALASCH J,EGE B,EISENBARTH T,et al.Compact implementation and performance evaluation of hash functions in attiny devices[C]//Proceedings of International Conference on Smart Card Research and Advanced Applications.Berlin,Germany:Springer,2012:158-172.
[20] YÜ Ke,WANG Huifeng.Research and Improvement of RPL Routing Protoco[J].Computer Engineering,2018,44(3):103-108.(in Chinese)俞柯,王慧锋.RPL路由协议的研究与改进[J].计算机工程,2018,44(3):103-108.
[21] PAI V,SHENOY U K K.6LowPan-performance analysis on low power networks[C]//Proceedings of International Conference on Computer Networks and Communication Technologies.Berlin,Germany:Springer,2019:145-156.
