太赫兹网络场景下节点移动感知的定向MAC协议

doi:10.19678/j.issn.1000-3428.0059237

计算机工程 ›› 2021, Vol. 47 ›› Issue (11): 185-191. doi: 10.19678/j.issn.1000-3428.0059237

太赫兹网络场景下节点移动感知的定向MAC协议

任智, 郭黎, 王磊, 苏新

重庆邮电大学通信与信息工程学院, 重庆 400065

收稿日期:2020-08-12 修回日期:2020-10-23 发布日期:2020-11-06
作者简介:任智(1971-),男,教授、博士,主研方向为移动自组织网络;郭黎、王磊、苏新,硕士研究生。
基金资助:
国家自然科学基金（61379159）；长江学者和创新团队发展计划基金（IRT1299）。

Directional MAC Protocol with Node Movement Perception in Terahertz Network Scenarios

REN Zhi, GUO Li, WANG Lei, SU Xin

School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China

Received:2020-08-12 Revised:2020-10-23 Published:2020-11-06

摘要/Abstract

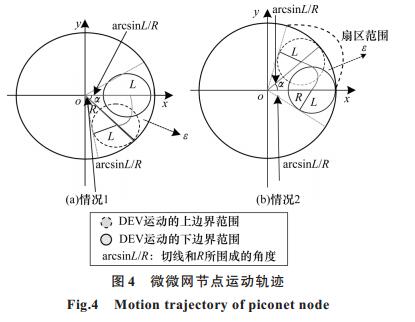

摘要： 在太赫兹无线个域网中，通常会配备定向天线以延长网络设备数据传输距离，但在使用定向天线时存在节点发现困难、动态场景下节点位置难以预知等问题。针对太赫兹网络场景，基于IEEE802.15.3c高速网络MAC协议标准以及现有太赫兹定向MAC协议，提出一种节点移动感知的定向MAC（NMA-MAC）协议。通过微微网节点位置预知算法计算节点可能移动的位置，并将位置信息通过控制帧携带给其他节点，使节点之间能够更快传递彼此的位置信息。仿真结果表明，相比IEEE802.15.3c标准协议，NMA-MAC协议的吞吐量和传输成功率分别提高13.28%和4.58%，同时控制开销降低30.86%。

关键词: 定向天线, 太赫兹无线个域网, MAC协议, 移动感知

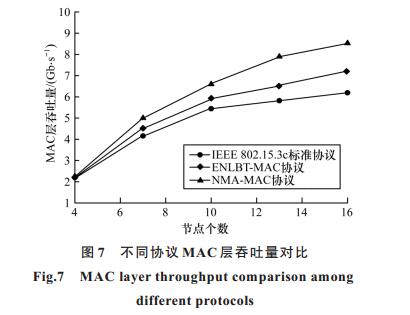

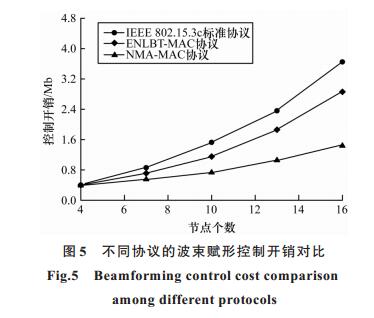

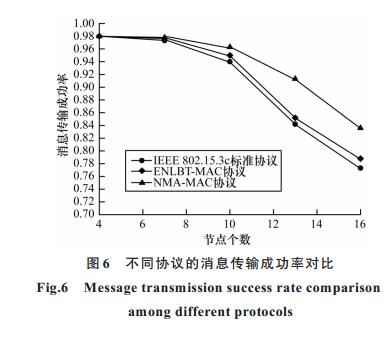

Abstract: Terahertz wireless personal area networks are usually equipped with directional antennas in order to increase the data transmission distance of network devices.However,the directional antennas often fail to discover nodes and predict the position of nodes in dynamic scenarios.Based on IEEE802.15.3c,which is a MAC protocol standard for high-speed networks,and the existing Terahertz directional MAC protocol,this paper proposes a MAC protocol named NMA-MAC for sensing the movement of nodes in Terahertz networks.The protocol uses a piconet node position prediction algorithm to calculate the possible position of the node,and the location message is carried to other nodes through the control frame,so that the nodes can know the position of each other faster. The simulation results show that compared with the IEEE802.15.3 standard protocol,the proposed protocol achieves a significant improvement in the overall performance,increasing the throughput by 13.28% and transmission success rate by 4.58%,while the control cost is reduced by 30.86%.

Key words: directional antenna, Terahertz wireless personal area network, MAC protocol, movement perception

中图分类号:

TP391

任智, 郭黎, 王磊, 苏新. 太赫兹网络场景下节点移动感知的定向MAC协议[J]. 计算机工程, 2021, 47(11): 185-191.

REN Zhi, GUO Li, WANG Lei, SU Xin. Directional MAC Protocol with Node Movement Perception in Terahertz Network Scenarios[J]. Computer Engineering, 2021, 47(11): 185-191.

https://www.ecice06.com/CN/Y2021/V47/I11/185

图/表 9

20211113144721

20211113144723

20211113144728

20211113144732

20211113144735

20211113144738

20211113144741

20211113144747

20211113144750

参考文献

[1] BOULOGEORGOS A,ALEXANDROS A,ALEXIOU A.Performance evaluation of the initial access procedure in wireless THz systems[C]//Proceedings of International Symposium on Wireless Communication Systems.Washington D.C.,USA:IEEE Press,2019:422-426.
[2] BOULOGEORGOS A A,ANGELIKI A,THOMAS M,et al.Terahertz technologies to deliver optical network quality of experience in wireless systems beyond 5G[J].IEEE Communications Magazine,2018,56(6):144-151.
[3] PLANINŠIČ P,PONGRAC B,GLEICH D.THz communications and relations to frequency domain THz spectroscopy[C]//Proceedings of the 15th International Conference on Telecommunications.Graz,Austria:[s.n.],2019,1109:1-5.
[4] AGRAWAL S K,SHARMA K.5G millimeter wave (mmWave) communications[C]//Proceedings of the 3rd International Conference on Computing for Sustainable Global Development.Washington D.C.,USA:IEEE Press,2016:1591-1605.
[5] SONG H,NAGATSUMA T.Present and future of Terahertz communications[J].IEEE Transactions on Terahertz Science and Technology,2011,1(1):256-263.
[6] RAPPAPORT T S.Wireless communications and applications above 100 GHz:opportunities and challenges for 6G and beyond[J].IEEE Access,2019,7:78729-78757.
[7] AGIWAL M,ROY A,SAXENA N.Next generation 5G wireless networks:a comprehensive survey[J].IEEE Communications Surveys and Tutorials,2016,18(3):1617-1655.
[8] YAN Y,GE L W,ZHOU H D.An efficient Terahertz wireless personal area network MAC protocol[J].Information Communication,2018,31(1):90-92.
[9] REN Z,LU Y H,XU Z K,et al.An adaptive orthogonal MAC protocol for Terahertz wireless personal area network[J].Journal of Electronics & Information Technology,2019,41(1):99-106.
[10] CHONG H,YI C.Propagation modeling for wireless communications in the Terahertz band[J].IEEE Communications Magazine,2018,56(6):96-101.
[11] HUANG J,LIU Y,WANG C X,et al.5G millimeter wave channel sounders,measurements,and models:recent developments and future challenges[J].IEEE Communications Magazine,2019,57(1):138-145.
[12] CHAKRABORTY D,MAITY B,MUKHERJEE M.Design and development of an AlGaN/GaN heterostructure nano-ATT oscillator:experimental feasibility studies in THz domain[J].Nano-Micro Letters,2020,15(1):41-46.
[13] BOULOGEORGOS A,PAPASOTIRIOU N,ALEXIOU A.Analytical performance assessment of THz wireless systems[J].IEEE Access,2019,7:11436-11453.
[14] PETROV V,PYATTAEV A,MOLTCHANOV D,et al.Terahertz band communications:applications,research challenges,and standardization activities[C]//Proceedings of the 8th International Congress on Ultra Modern Telecommunications & Control Systems & Workshops.Washington D.C.,USA:IEEE Press,2016:183-190.
[15] AKYILDIZ I F,JORNET J M.Realizing ultra-massive MIMO communication in the THz band[J].Nano Communication Networks,2016,8(1):46-54.
[16] IEEE.IEEE Standard for information technology telecommunications and information exchange between systems local and metropolitan area networks specific requirements part 15.3:Wireless Medium Access Control (MAC) and Physical Layer (PHY) specifications for high rate Wireless Personal Area Networks (WPANs) amendment2:millimeter-wave-based alternative physical layer extension:IEEE802.15.3c[S].Washington D.C.,USA:IEEE Press,2009.
[17] AKHTAR A,ERGEN S C.Efficient network level beamforming training for IEEE 802.11ad WLANs[C]//Proceedings of 2015 International Symposium on Performance Evaluation of Computer and Telecommunication Systems.Washington D.C.,USA:IEEE Press,2015:1-6.
[18] WANG J,LAN Z,PYO C W.Beam codebook based beamforming protocol for multi-Gbps millimeter-wave WPAN systems[J].IEEE Journal on Selected Areas in Communications,2009,27(8):1390-1399.
[19] 贡佩君.基于定向天线的无线Ad Hoc网络组网研究[D].上海:上海交通大学,2017. GONG P J.Research on wireless ad hoc network based on directional antenna[D].Shanghai:Shanghai Jiao Tong University,2017.(in Chinese)
[20] 邱钟维.太赫兹无线个域网定向MAC协议研究与FPGA实现[D].重庆:重庆邮电大学,2019. QIU Z W.Research on Terahertz wireless personal area network oriented MAC protocol and FPGA implementation[D].Chongqing:Chongqing University of Posts and Telecommunications,2019.(in Chinese)
[21] KIM E J,JUNG J J.Adaptive CAP assignment approach for IEEE 802.15.3c[C]//Proceedings of International Conference on Computer Science and Its Applications.Berlin,Germany:Springer,2015:149-154.
