非线性能量采集的WSN状态更新系统信息年龄研究

doi:10.19678/j.issn.1000-3428.0065249

摘要/Abstract

摘要： 针对传统无线传感器网络性能受能量制约的问题，建立中继协助供能的短包通信网络模型，分析放大转发协议下系统端到端近似信噪比，结合过时信道状态信息和短包通信获取端到端包传输错误概率。为准确反映真实场景中信道估计时刻与实际中继传输信息时刻存在一定的延时，以及能量采集电路中电器元件的非线性特征，联合考虑过时信道状态信息和非线性能量采集，得到传感器完全充电时间的统计描述以及系统平均信息年龄的解析表达式。分析系统总能量效率，引入平均信息年龄与系统能量效率的比值来权衡系统年龄和能量，取得最优的状态更新码长。数值结果表明，增加传感器发射功率、信道相关系数和状态更新码长均会降低系统的平均信息年龄，当能量转换效率为0.7时，信道相关系数从0.6增至0.7可使系统平均信息年龄降低13%。

关键词: 短包通信, 过时信道状态信息, 非线性能量采集, 信息年龄, 能量效率

Abstract: To overcome the energy constraints of traditional Wireless Sensor Networks（WSN），a Short Packet Communication（SPC） network model with relay-assisted energy provision is built.The end-to-end approximate Signal-to-Noise Ratio（SNR） of the system under Amplify-and-Forward（AF） protocol is analyzed.The end-to-end packet transmission error probability is obtained by combining outdated Channel State Information（CSI） and SPC.To accurately reflect the realistic delay between channel estimation and actual information relay transmission and the nonlinear characteristics of electrical components in the Energy Harvesting（EH） circuit，outdated CSI is considered with nonlinear EH.By analyzing the outdated CSI and nonlinear EH of the sensor，a statistical description of the full recharging time of the sensor and an analytical expression for the average Age of Information（AoI） of the system are obtained.Finally，a trade-off model of the AoI to Energy Efficiency（EE） is established，and the optimal state update block length is obtained.The numerical results show that increasing the transmitter power of the sensor，channel correlation coefficient，and code length of the state update reduces the system's AoI.When the energy conversion efficiency is 0.7，the channel correlation coefficient from 0.6 to 0.7 reduces the system's average AoI by 13%.

Key words: Short Packet Communication（SPC）, outdated Channel State Information（CSI）, nonlinear Energy Harvesting（EH）, Age of Information（AoI）, Energy Efficiency（EE）

中图分类号:

TN929.5

郝振超, 贾向东, 陈智, 许晋. 非线性能量采集的WSN状态更新系统信息年龄研究[J]. 计算机工程, 2023, 49(5): 198-205,214.

HAO Zhenchao, JIA Xiangdong, CHEN Zhi, XU Jin. Research on Age of Information of WSN Status Update Systems with Nonlinear Energy Harvesting[J]. Computer Engineering, 2023, 49(5): 198-205,214.

https://www.ecice06.com/CN/Y2023/V49/I5/198

图/表 8

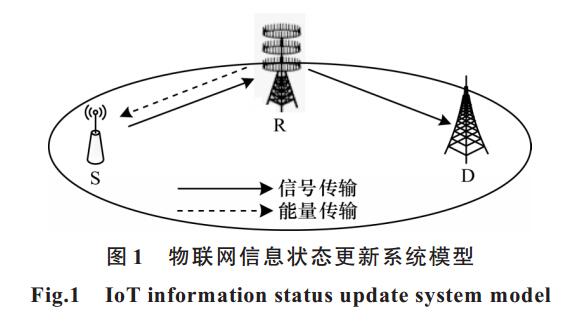

20230515190301

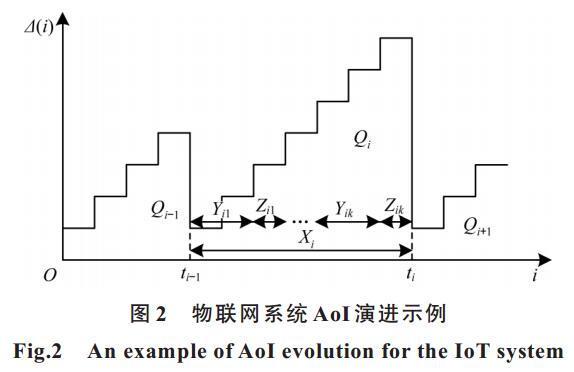

20230515190304

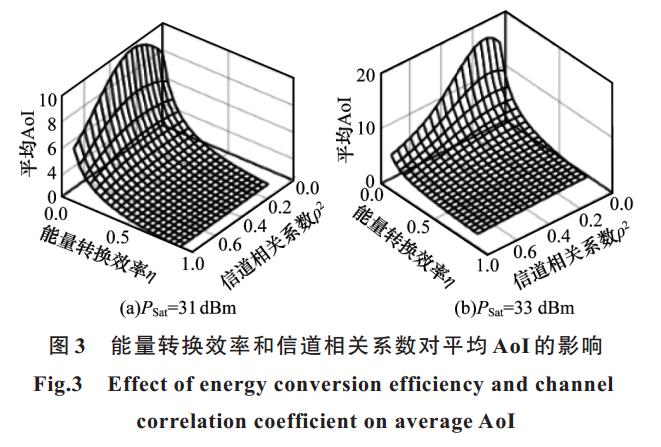

20230515190307

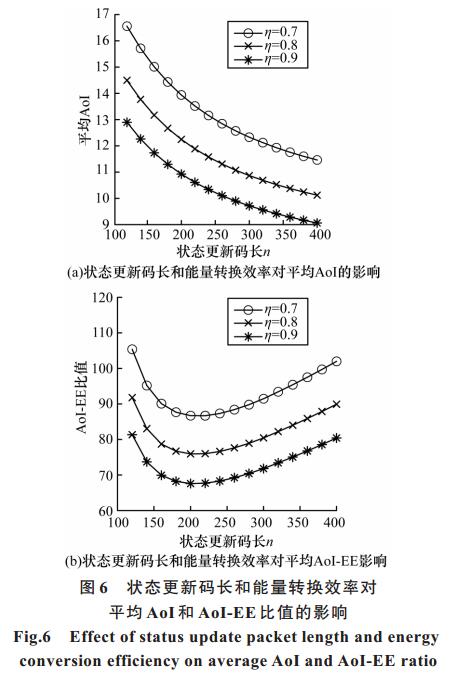

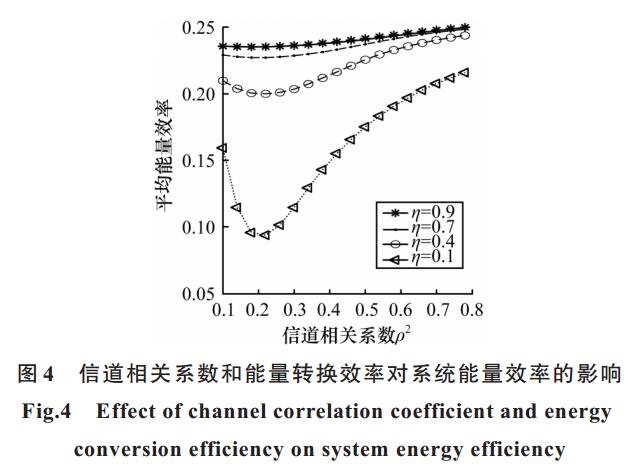

20230515190311

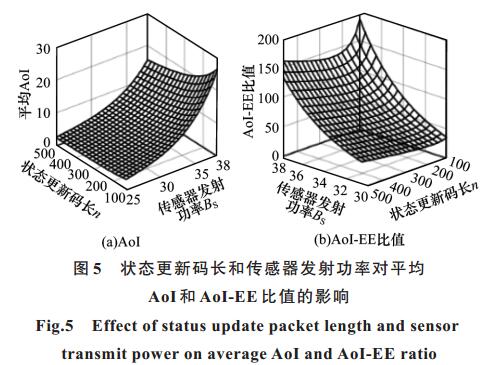

20230515190314

20230515190317

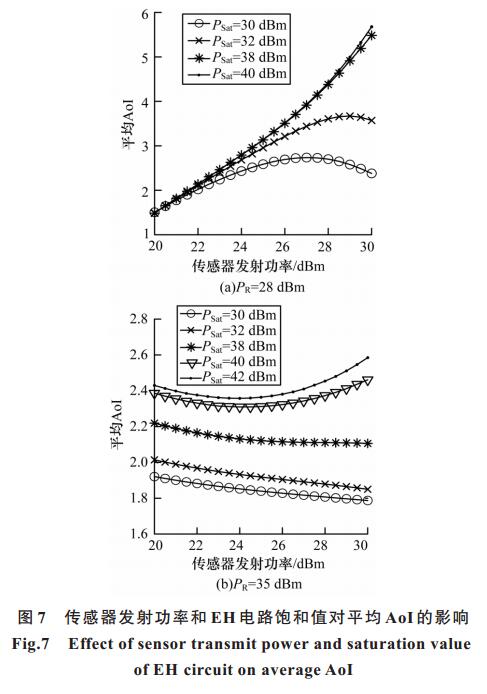

20230515190320

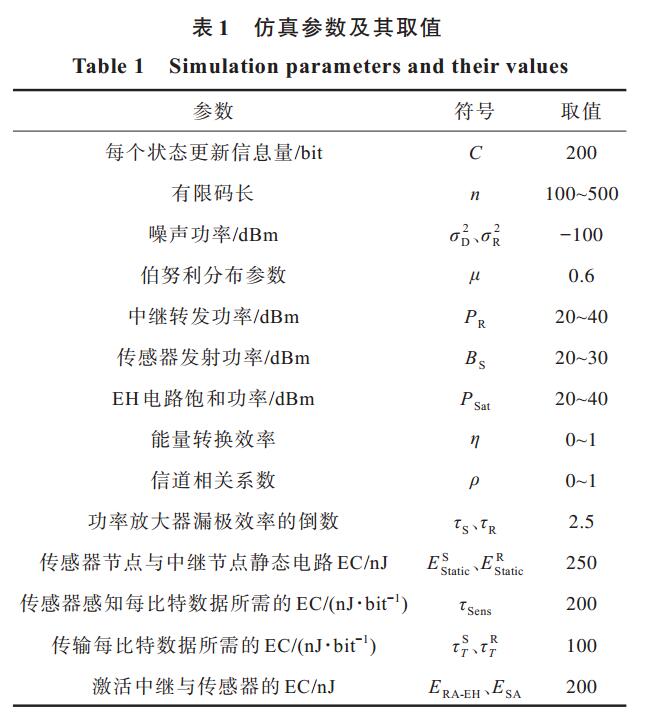

20230515190325

参考文献

[1] KAUL S,YATES R,GRUTESER M.Real-time status:how often should one update?[C]//Proceedings of 2012 IEEE INFOCOM.Washington D.C.,USA:IEEE Press,2012:2731-2735.
[2] KAUL S K,YATES R D,GRUTESER M.Status updates through queues[C]//Proceedings of the 46th Annual Conference on Information Sciences and Systems.Washington D.C.,USA:IEEE Press,2012:1-6.
[3] 曹胜男,贾向东,吕亚平,等.中继协同无人机辅助的认知无线电网络安全通信[J].计算机工程,2021,47(6):203-209. CAO S N,JIA X D,LÜ Y P,et al.Secure communication in cognitive radio network assisted by cooperative relay and UAV[J].Computer Engineering,2021,47(6):203-209.(in Chinese)
[4] AMODU O A,OTHMAN M,NOORDIN N K,et al.Outage analysis of energy-harvesting-based relay-assisted random underlay cognitive radio networks with multihop primary transmissions[J].IEEE Systems Journal,2021,15(3):3871-3880.
[5] 胡锦松,吴林梅,束锋,等.无人机中继协助的有限码长隐蔽通信[J].电子与信息学报,2022,44(3):1006-1013. HU J S,WU L M,SHU F,et al.UAV-relay assisted covert communication with finite block-length[J].Journal of Electronics & Information Technology,2022,44(3):1006-1013.(in Chinese)
[6] MORADIAN M,DADLANI A.Average age of information in two-way relay networks with service preemptions[C]//Proceedings of IEEE Global Communications Conference.Washington D.C.,USA:IEEE Press,2022:1-6.
[7] XIE M G,GONG J,MA X.Age and energy tradeoff for short packet based two-hop decode-and-forward relaying networks[C]//Proceedings of IEEE Wireless Communications and Networking Conference.Washington D.C.,USA:IEEE Press,2021:1-6.
[8] ZARIF A H,AZMI P,YAMCHI N M,et al.AoI minimization in energy harvesting and spectrum sharing enabled 6G networks[J].IEEE Transactions on Green Communications and Networking,2022,6(4):2043-2054.
[9] JIA X D,CAO S N,XIE M G.Age of information of dual-sensor information update system with HARQ chase combining and energy harvesting diversity[J].IEEE Wireless Communications Letters,2021,10(9):2027-2031.
[10] FENG S T,YANG J.Age of information minimization for an energy harvesting source with updating erasures:without and with feedback[J].IEEE Transactions on Communications,2021,69(8):5091-5105.
[11] VU H S,NGUYEN N,HA-VAN N,et al.Multiband ambient RF energy harvesting for autonomous IoT devices[J].IEEE Microwave and Wireless Components Letters,2020,30(12):1189-1192.
[12] JEGANATHAN A,DHAYABARAN B,PERERA T D P,et al.Harvest-on-sky:an AoI-driven UAV-assisted wireless communication system[J].IEEE Internet of Things Magazine,2022,5(1):142-146.
[13] ABD-ELMAGID M A,DHILLON H S,PAPPAS N.A reinforcement learning framework for optimizing age of information in RF-powered communication systems[J].IEEE Transactions on Communications,2020,68(8):4747-4760.
[14] SAITO H.Theoretical analysis of nonlinear energy harvesting from wireless mobile nodes[J].IEEE Wireless Communications Letters,2021,10(9):1914-1918.
[15] ZHANG Q Y,WANG Z Q,ZHANG P T,et al.Sum energy maximization for UAV-enabled wireless power transfer networks with nonlinear energy harvesting model[C]//Proceedings of the 4th Information Technology,Networking,Electronic and Automation Control Conference.Washington D.C.,USA:IEEE Press,2020:1417-1420.
[16] LU Y,XIONG K,FAN P Y,et al.Online transmission policy in wireless powered networks with urgency-aware age of information[C]//Proceedings of the 15th International Wireless Communications & Mobile Computing Conference.Washington D.C.,USA:IEEE Press,2019:1096-1101.
[17] SAMIR M,ASSI C,SHARAFEDDINE S,et al.Online altitude control and scheduling policy for minimizing AoI in UAV-assisted IoT wireless networks[J].IEEE Transactions on Mobile Computing,2022,21(7):2493-2505.
[18] ZHAO R,LIN H X,HE Y C,et al.Secrecy performance of transmit antenna selection for MIMO relay systems with outdated CSI[J].IEEE Transactions on Communications,2018,66(2):546-559.
[19] 孙钢灿,赵少柯,郝万明,等.基于短包通信的NOMA下行链路安全传输[J].通信学报,2021,42(2):168-176. SUN G C,ZHAO S K,HAO W M,et al.Secure transmission for NOMA downlink based on short packet communication[J].Journal on Communications,2021,42(2):168-176.(in Chinese)
[20] COŞKUN M C,DURISI G,JERKOVITS T,et al.Efficient error-correcting codes in the short blocklength regime[J].Physical Communication,2019,34:66-79.
[21] ANGHEL P A,KAVEH M.Exact symbol error probability of a cooperative network in a Rayleigh-fading environment[J].IEEE Transactions on Wireless Communications,2004,3(5):1416-1421.
[22] VICARIO J L,BEL A,LOPEZ-SALCEDO J A,et al.Opportunistic relay selection with outdated CSI:outage probability and diversity analysis[J].IEEE Transactions on Wireless Communications,2009,8(6):2872-2876.
[23] POLYANSKIY Y,POOR H V,VERDU S.Channel coding rate in the finite blocklength regime[J].IEEE Transactions on Information Theory,2010,56(5):2307-2359.
[24] XIE M G,GONG J,JIA X D,et al.Age and energy tradeoff for multicast networks with short packet transmissions[J].IEEE Transactions on Communications,2021,69(9):6106-6119.
[25] NG D W K,LO E S,SCHOBER R.Energy-efficient power allocation in OFDM systems with wireless information and power transfer[C]//Proceedings of IEEE International Conference on Communications.Washington D.C.,USA:IEEE Press,2013:4125-4130.
