基于多源点热扩散的隧道裂缝几何特征计算

doi:10.19678/j.issn.1000-3428.0066468

摘要/Abstract

摘要：

裂缝几何参数分析为评估隧道的健康状况提供了理论依据。为了提升裂缝参数计算的准确性，提出基于多源点热扩散的隧道裂缝几何特征计算算法。基于U-Net神经网络得到裂缝分割掩膜，设计以裂缝边缘为多源点的热扩散方法来计算裂缝区域的测地距离场，获取裂缝参数。提取裂缝边缘为源点进行热扩散，通过求解热流方程和梯度场找到距离增加方向，求解泊松方程得到裂缝区域的测地距离场，根据测地距离极值计算裂缝长度。该算法充分利用了裂缝复杂的边缘信息以及裂缝骨架特征，计算得到的测地距离场可进一步应用于计算裂缝宽度。基于测地距离场得到的裂缝骨架具有光滑、无多余分叉的优点，且裂缝宽度计算过程中避免了多次迭代和误差累积，减少了计算量。实验结果表明，该算法在测试集上的平均骨架匹配度为92.84%，相比于Zhang细化算法和Hilditch细化算法分别提升了2.57和1.41个百分点，断点和分叉数量也明显少于同类算法，适用于裂缝狭长弯曲、边缘复杂多变的几何特征计算。

关键词: 隧道裂缝, 多源点热扩散, 测地距离, 裂缝分割, 裂缝参数

Abstract:

The analysis of the geometric parameters of cracks provides a theoretical basis for evaluating tunnel health. To improve the accuracy of the crack parameter calculation, a calculation algorithm based on a multi-source thermal method is proposed for tunnel crack geometric parameters. A crack segmentation mask is obtained based on a U-Net neural network, and a thermal method using crack edges as multiple sources is designed to calculate the geodesic distance of the crack. Thus, the crack edge is extracted as the source point for thermal diffusion. The direction of the distance increase is determined by solving the thermal flow equation and gradient field. Finally, the Poisson equation is solved to obtain the geodesic distance field in the crack area. On this basis, the crack length and width are calculated according to the extreme values of the geodesic distance. This algorithm fully utilizes the complex edge information and crack skeleton characteristics, and the calculated geodesic distance field can be applied to calculate the crack width. Crack skeletons obtained based on the geodesic distance field have the advantages of smoothness and no extra branches, and the width calculation process avoids multiple iterations and error accumulation, thereby reducing computational cost. The experimental results show that the average skeleton matching degree of this algorithm on the test set is 92.84%, which is 2.57 and 1.41 percentage points higher than that of Zhang's and Hilditch's thinning algorithms, respectively. Additionally, the number of breakpoints and branches is significantly less than that of similar algorithms, which is suitable for the geometric characteristic calculation of cracks with long, curved shapes and complex edges.

Key words: tunnel crack, multi-source thermal diffusion, geodesic distance, crack segmentation, crack parameter

闫星志, 刘向阳, 杨鹏宇. 基于多源点热扩散的隧道裂缝几何特征计算[J]. 计算机工程, 2023, 49(12): 294-303.

Xingzhi YAN, Xiangyang LIU, Pengyu YANG. Calculation of Geometric Characteristics of Tunnel Cracks Based on Multi-source Thermal Diffusion[J]. Computer Engineering, 2023, 49(12): 294-303.

https://www.ecice06.com/CN/Y2023/V49/I12/294

图/表 19

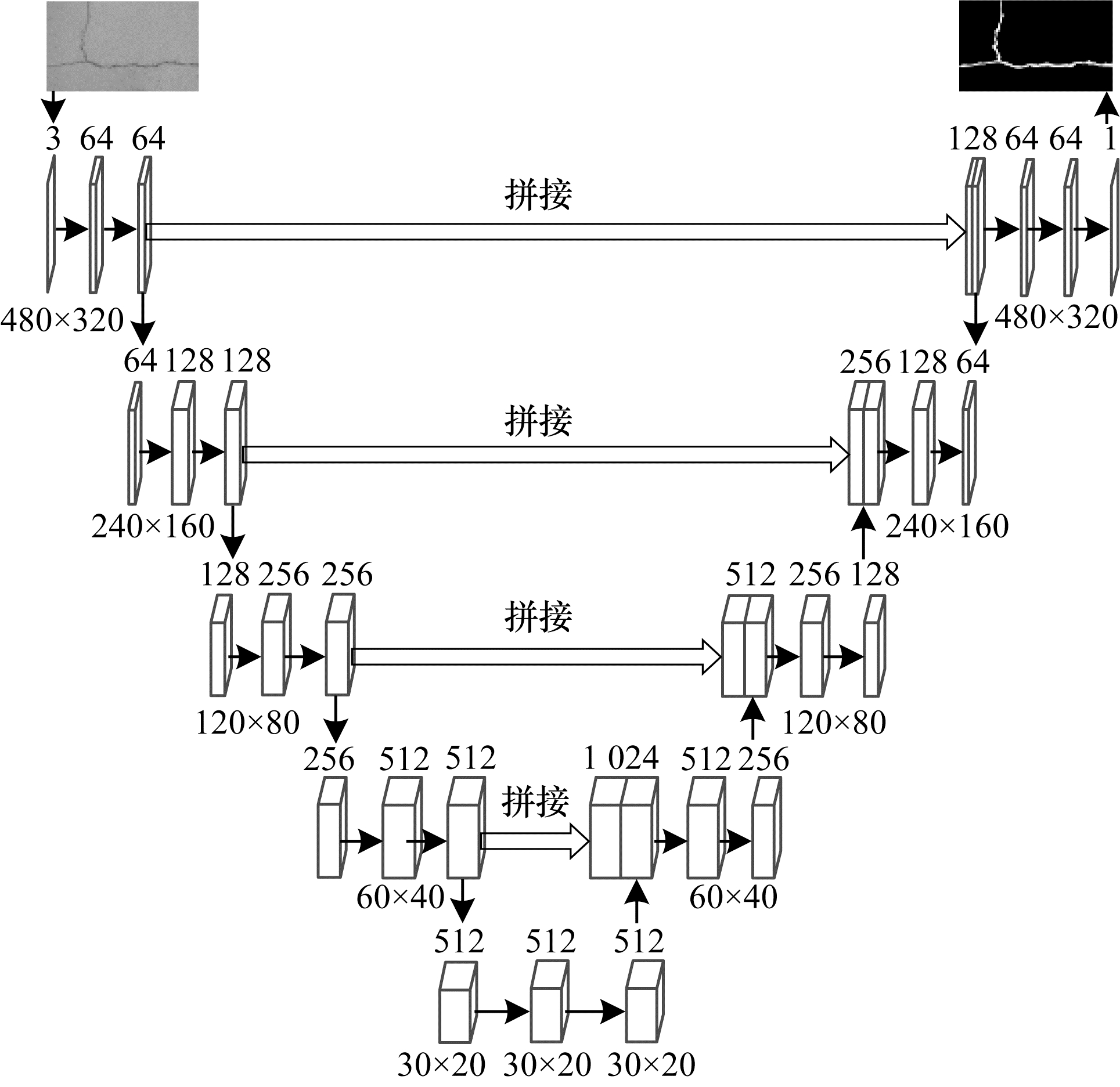

图1 U-Net结构

Fig.1 U-Net structure

图2 测地距离示意图

Fig.2 Schematic diagram of the geodesic distance

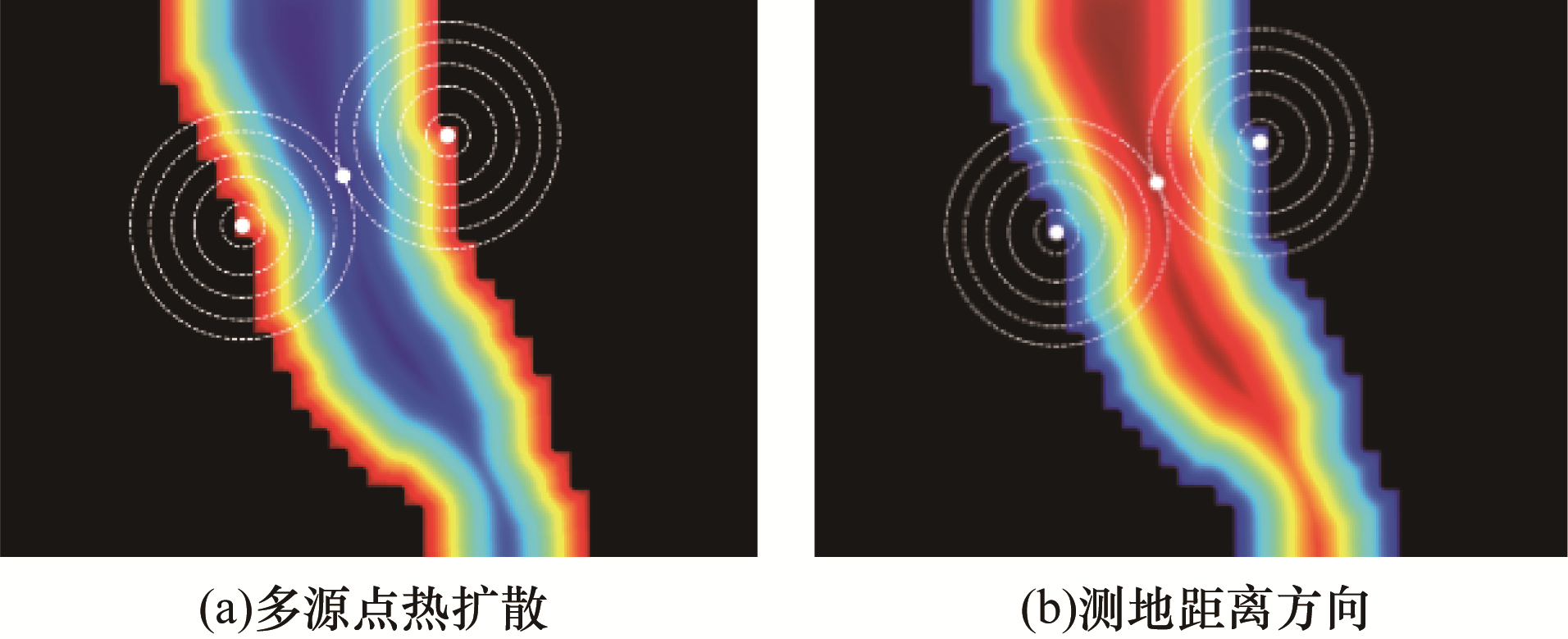

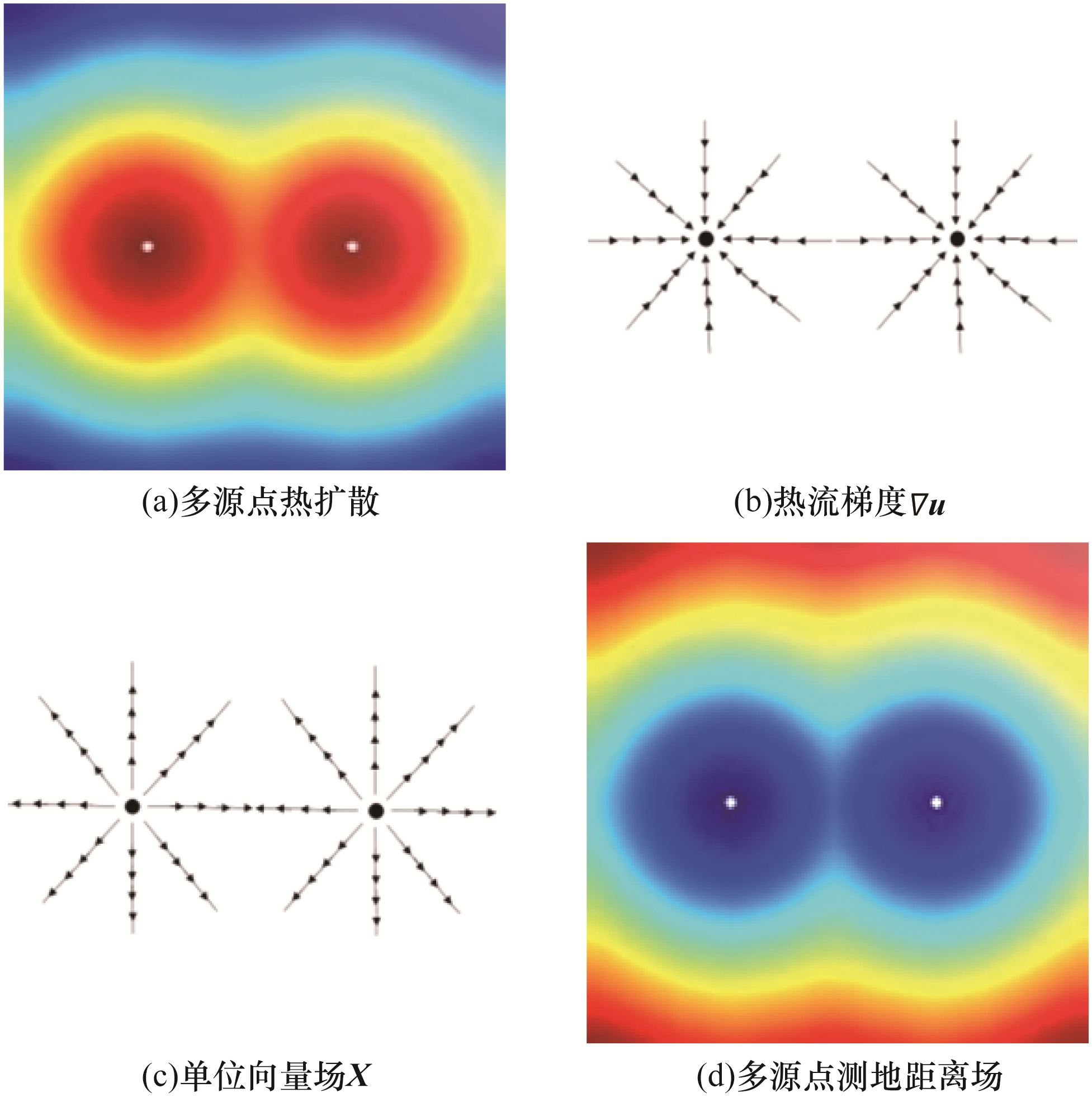

图3 多源点热扩散过程

Fig.3 Process of multi-source thermal diffusion

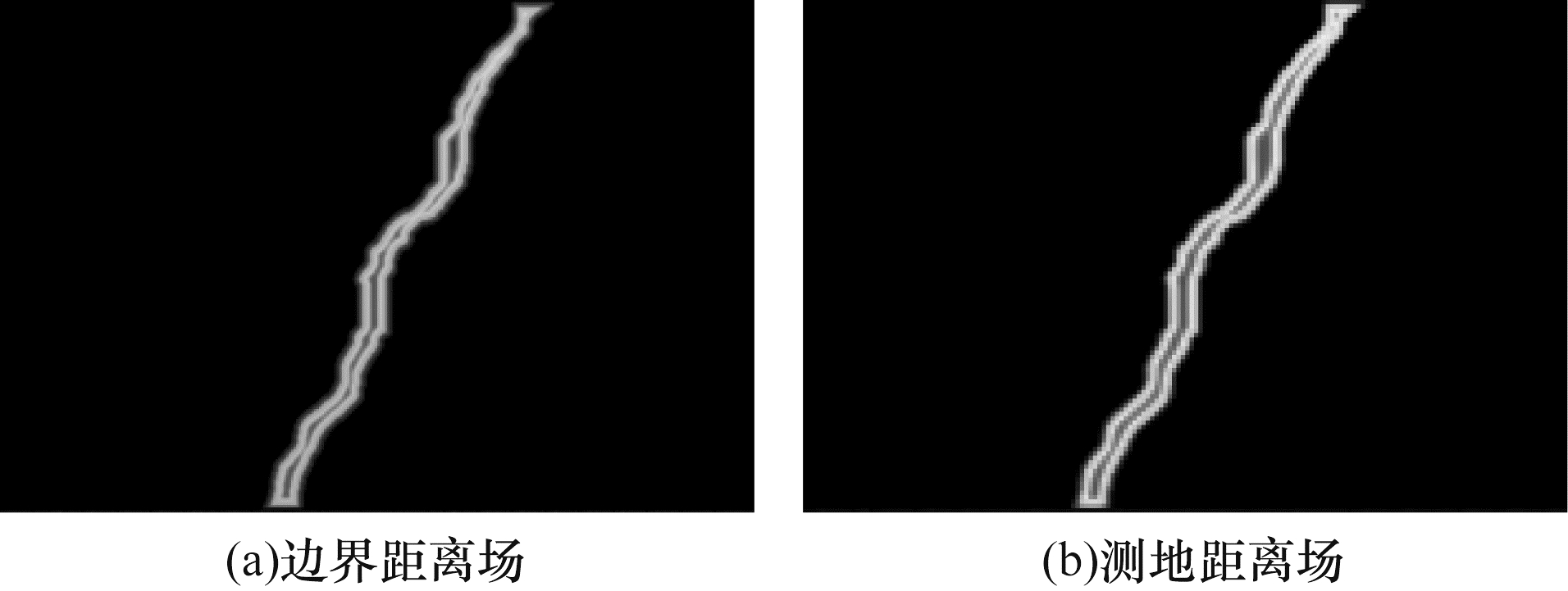

图4 裂缝区域的距离场热力图

Fig.4 Thermal diagram of distance field in crack area

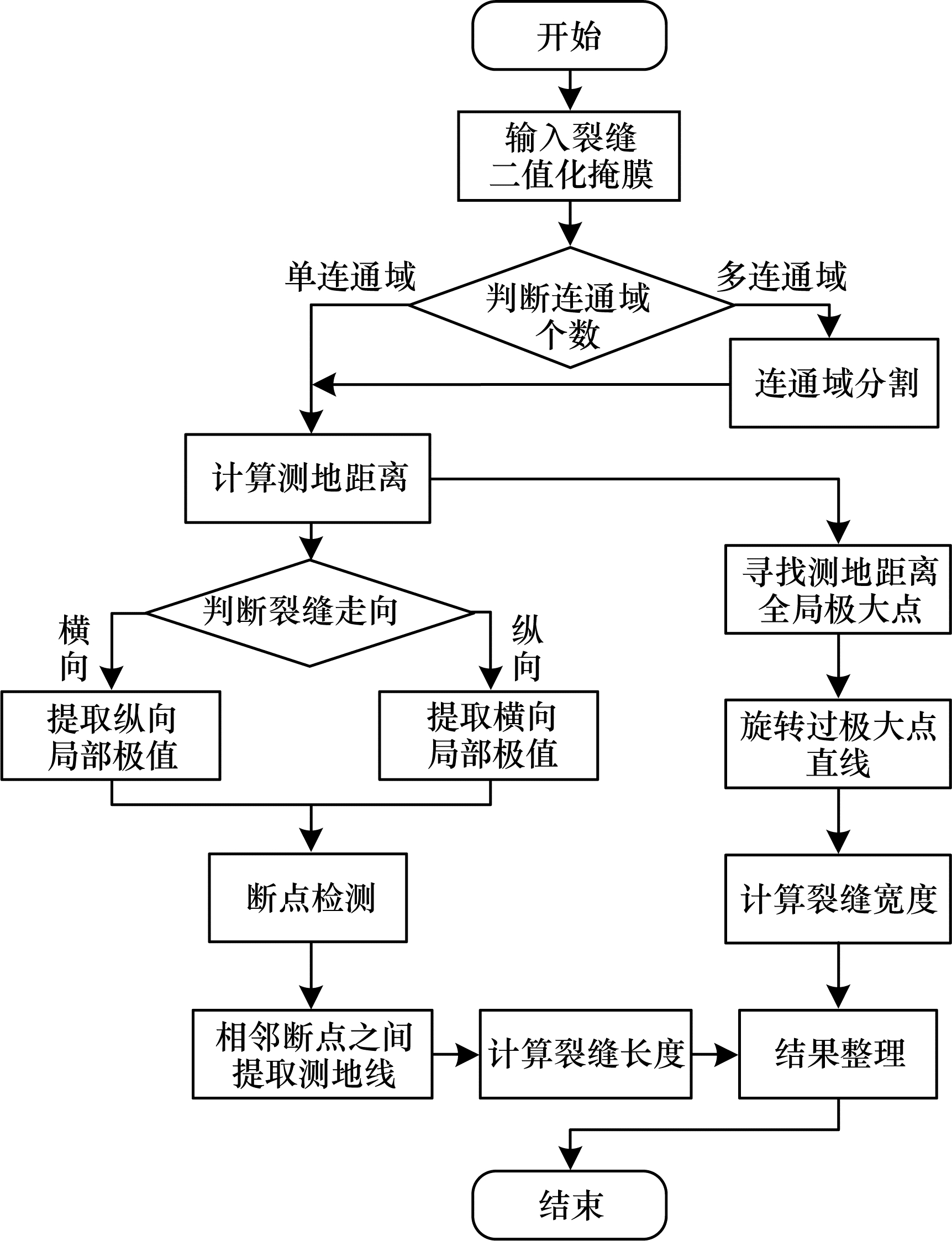

图5 裂缝几何特征计算流程

Fig.5 Procedure of crack geometric characteristic calculation

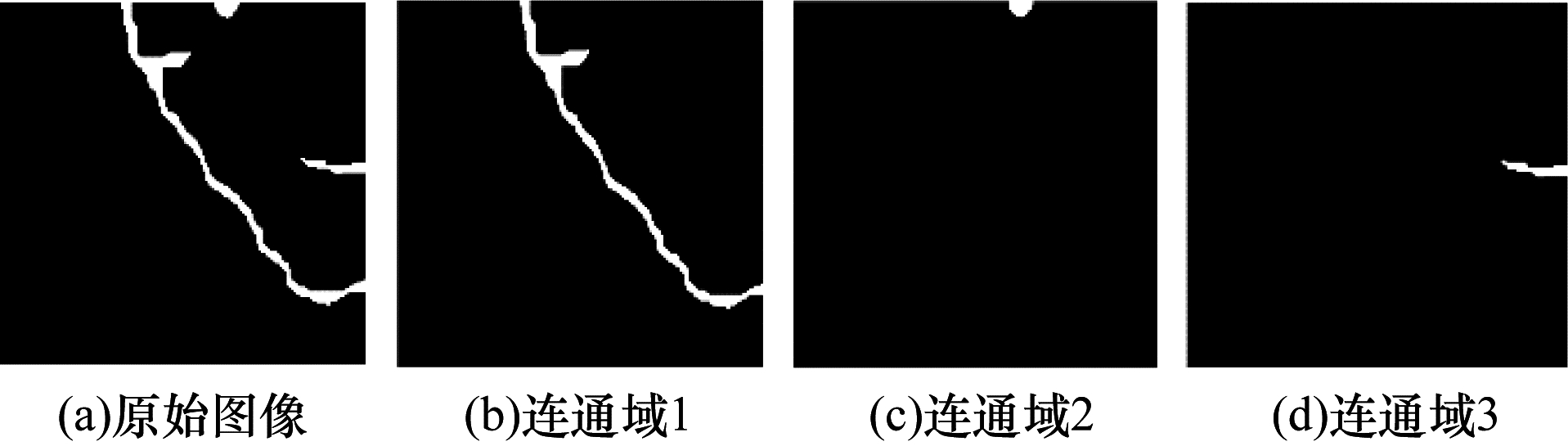

图6 多连通域处理过程

Fig.6 Process of multi-connected domain processing

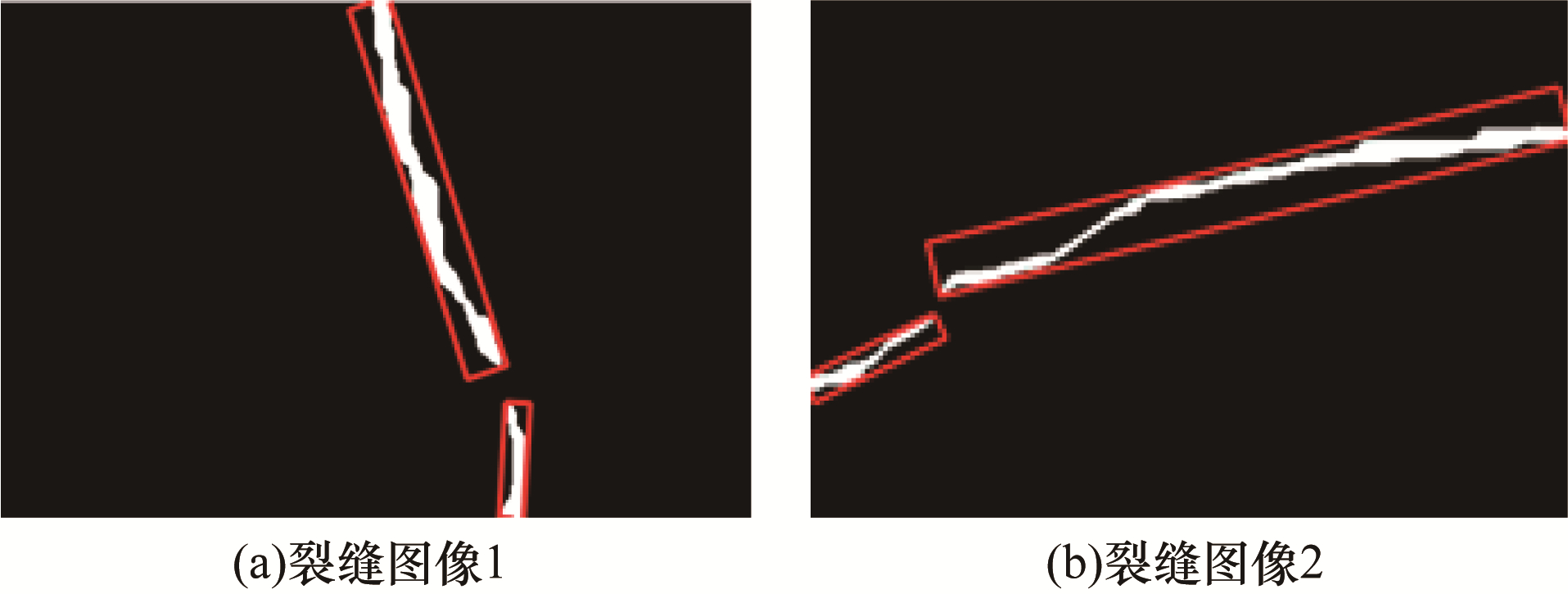

图7 最小外接矩阵

Fig.7 Minimum circumscribed matrix

图8 扩散方向

Fig.8 Diffusion direction

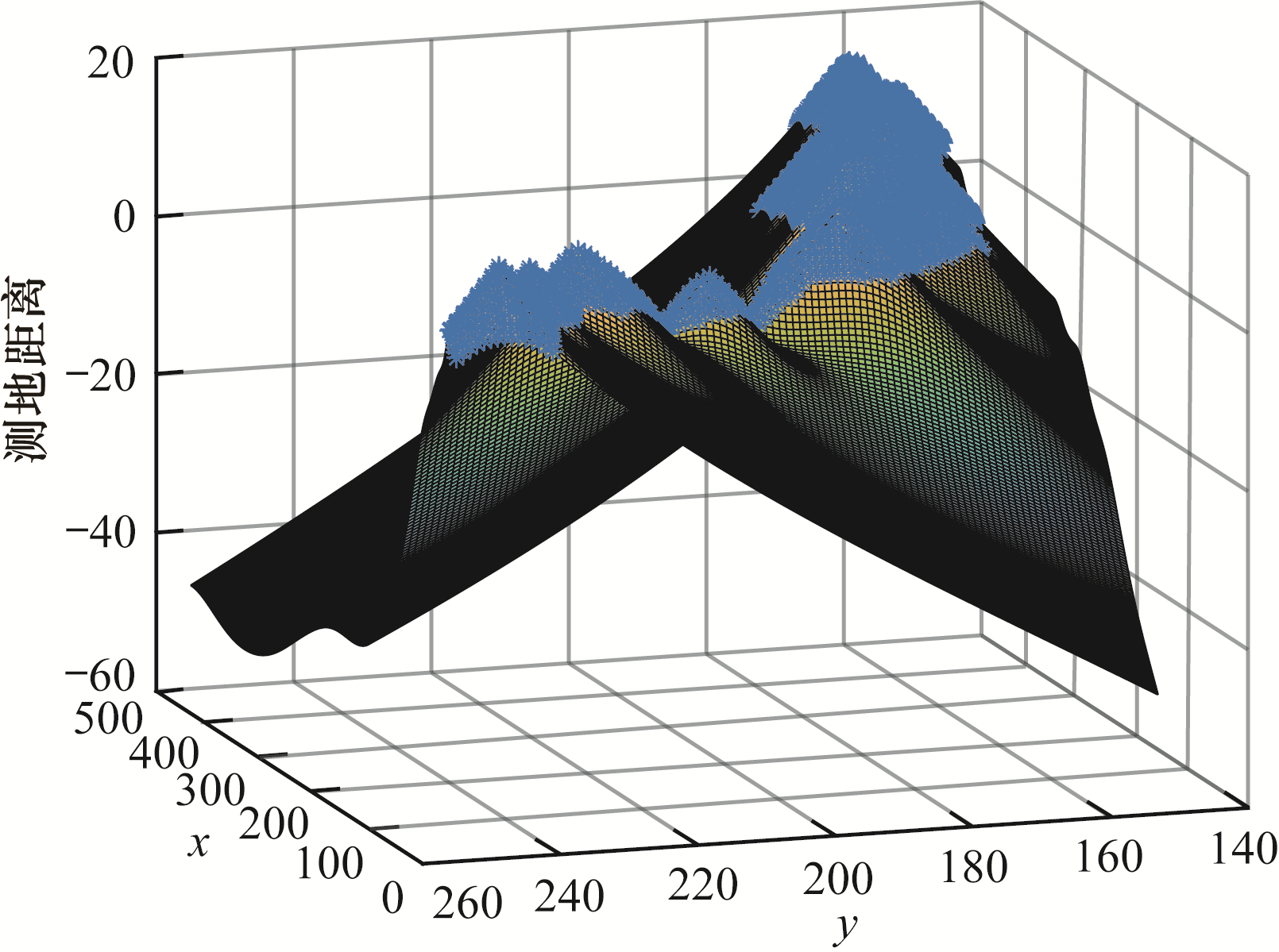

图9 测地距离场三维示意图

Fig.9 3D schematic diagram of geodesic distance field

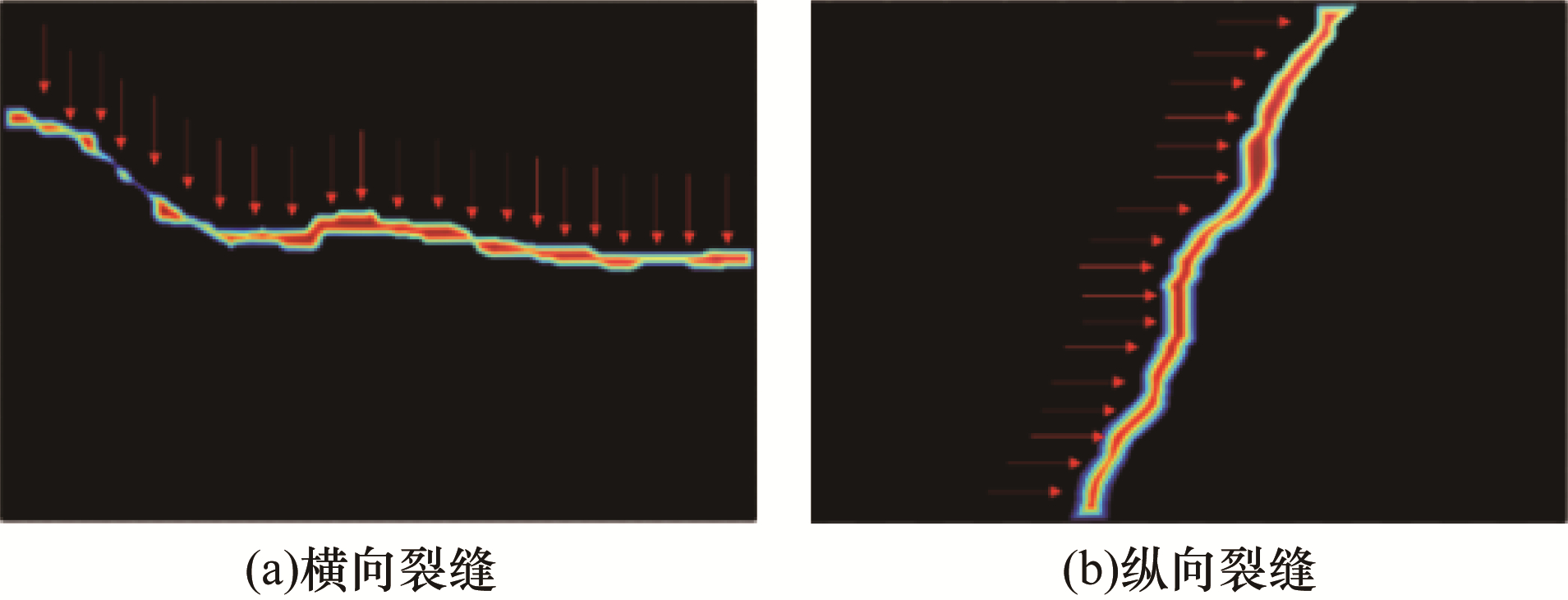

图10 根据裂缝方向的局部极值提取

Fig.10 Local extremum extraction according to crack direction

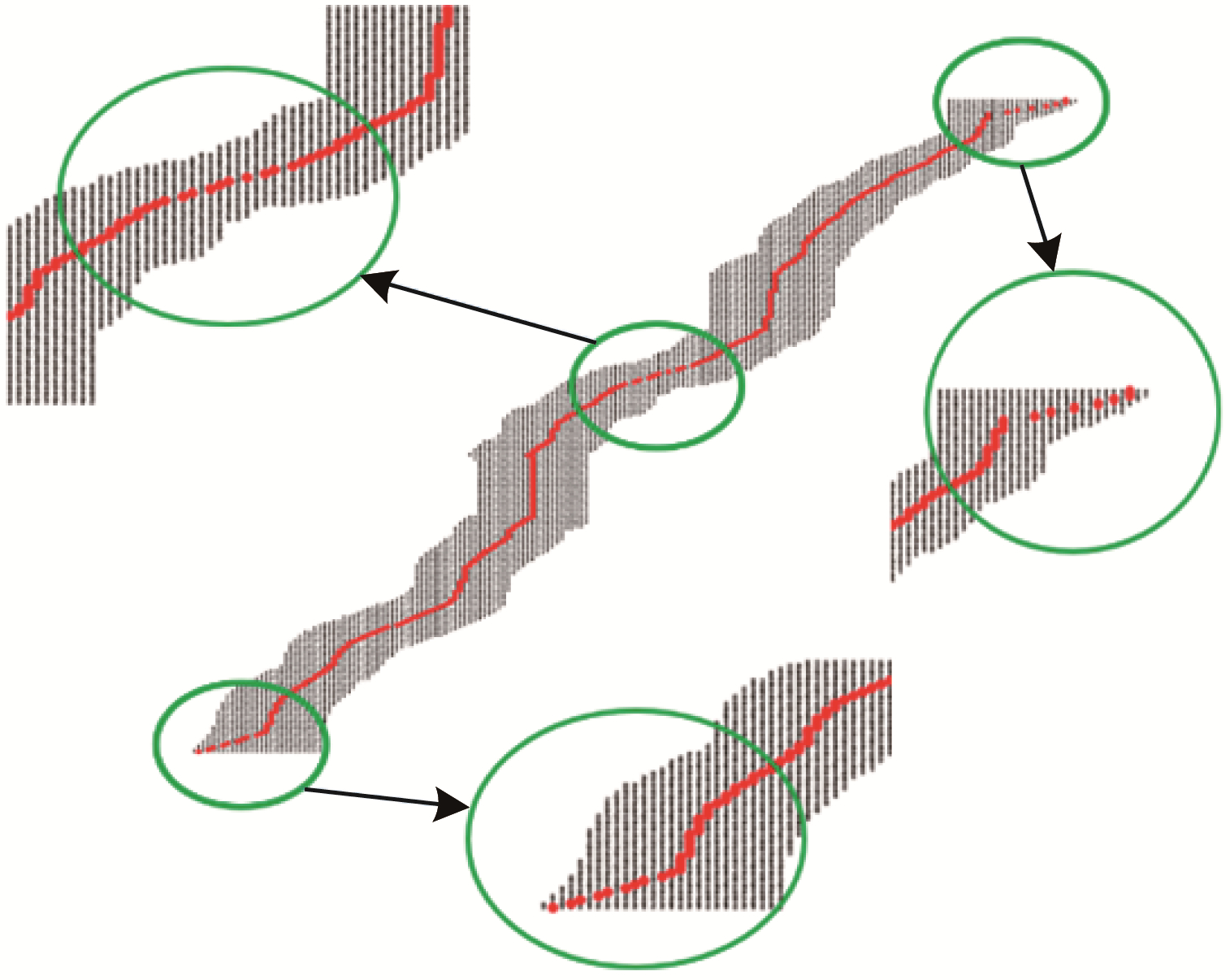

图11 裂缝初始骨架

Fig.11 Initial skeleton of cracks

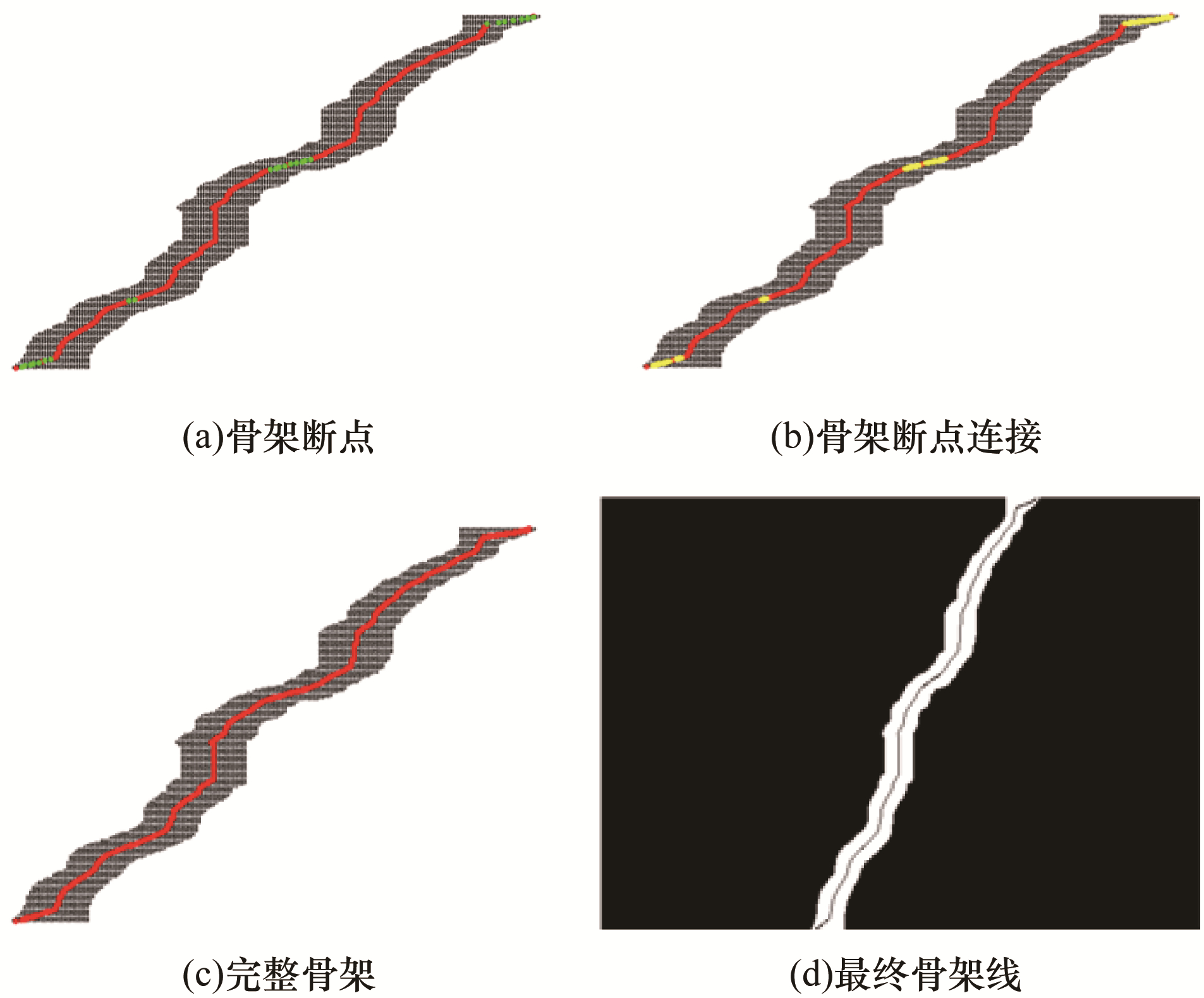

图12 裂缝骨架提取过程

Fig.12 Process of crack skeleton extraction

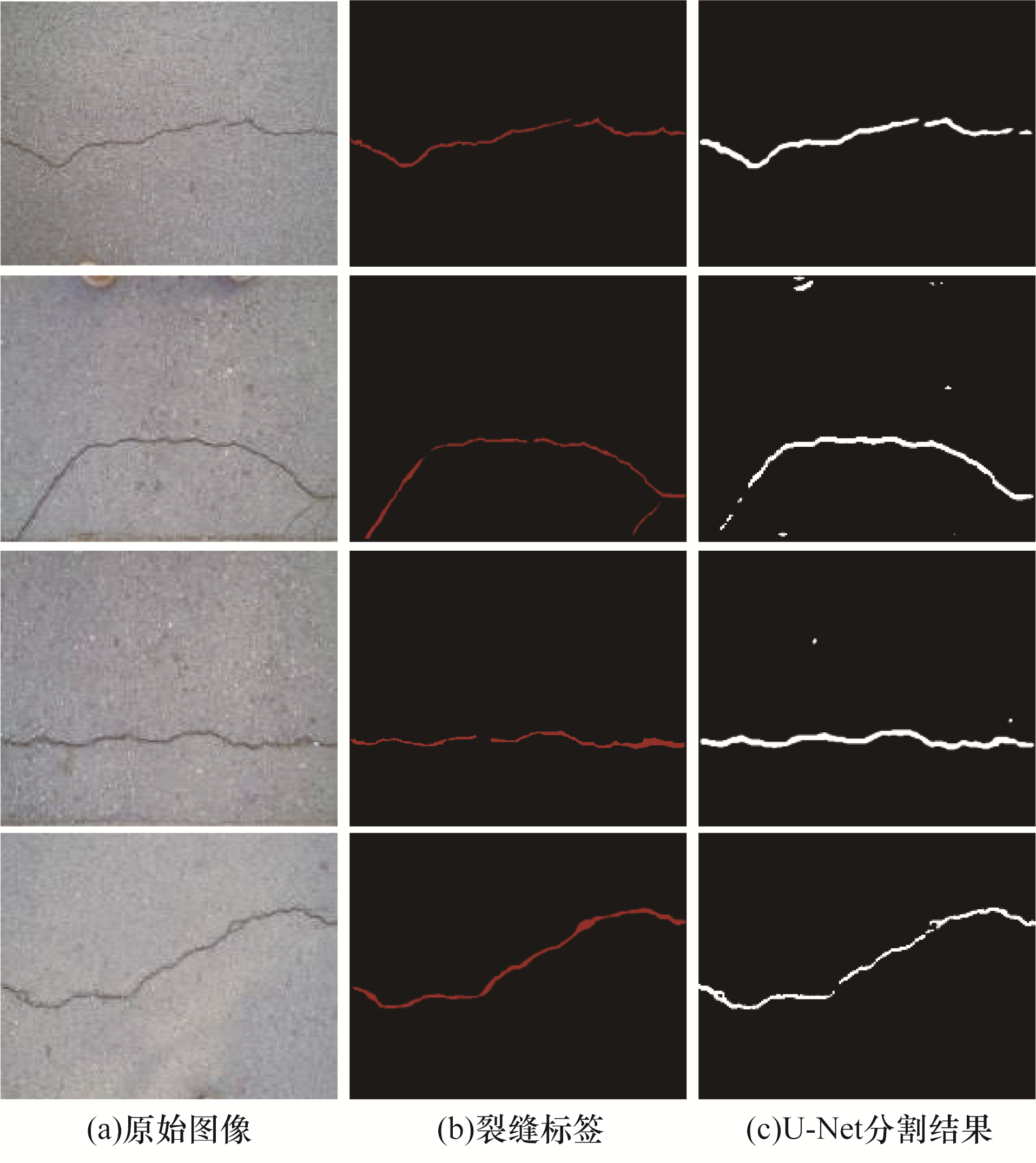

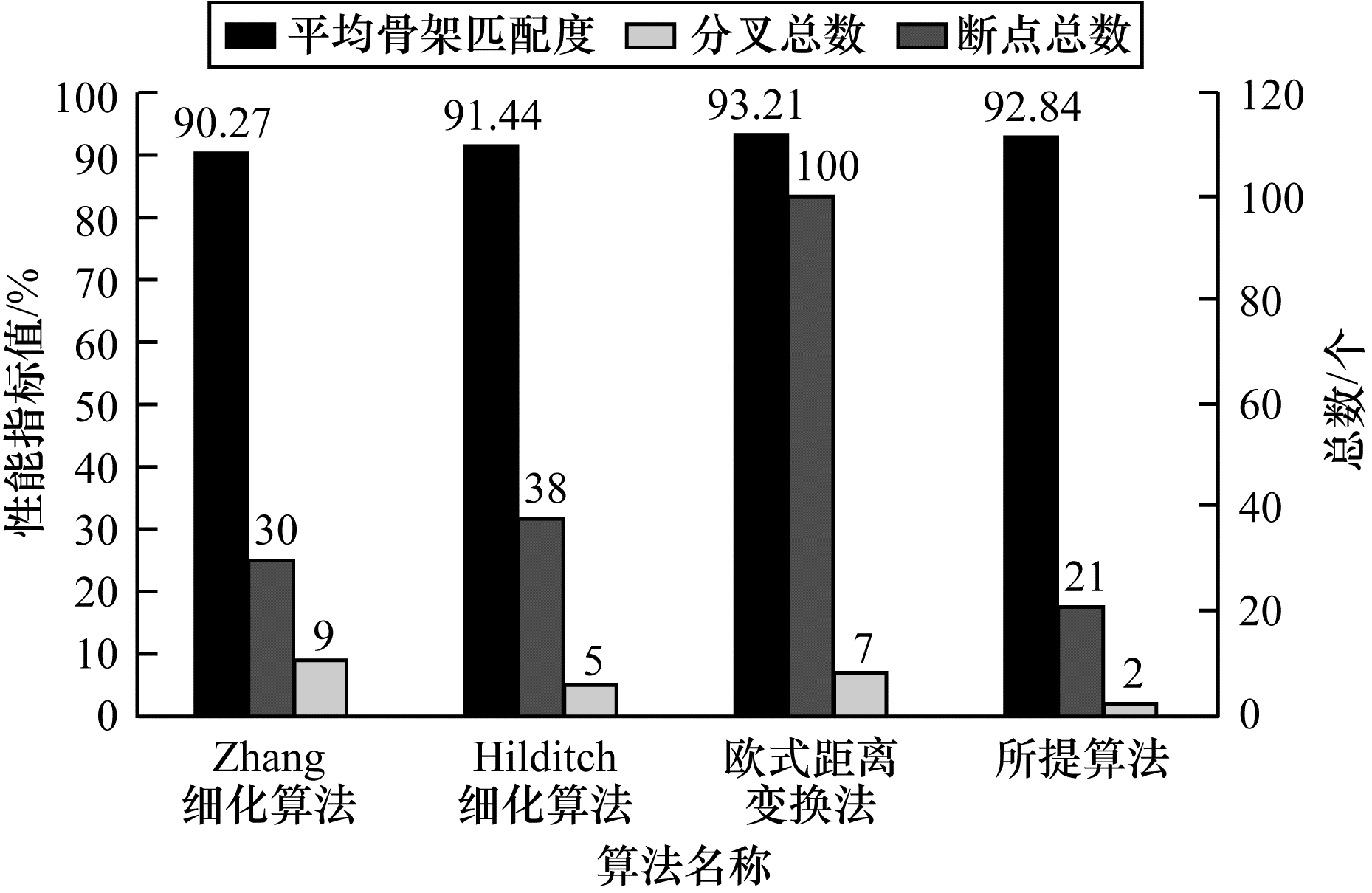

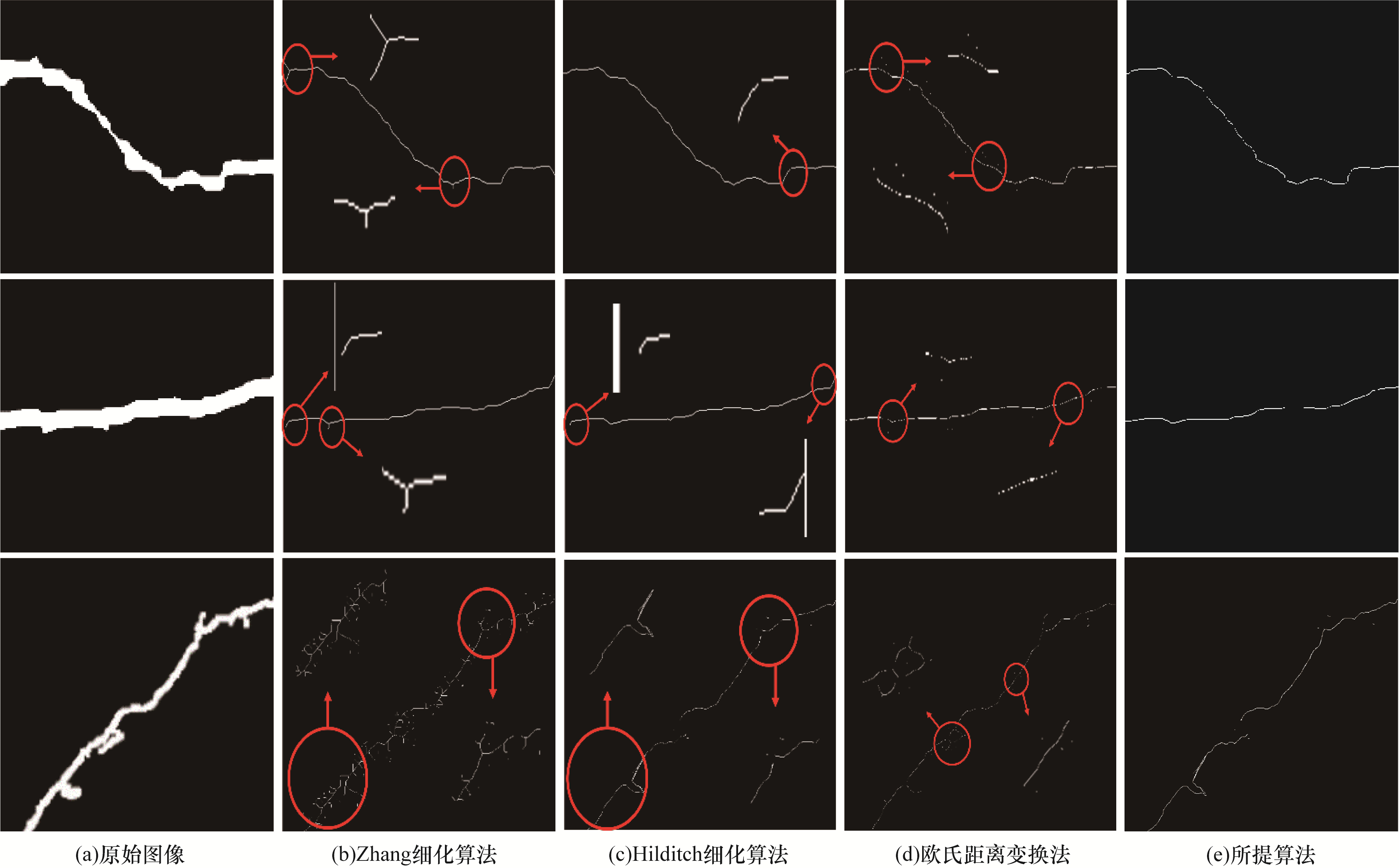

图13 裂缝分割效果
