一种可扩展的广义空移键控调制系统设计

doi:10.19678/j.issn.1000-3428.0056468

摘要/Abstract

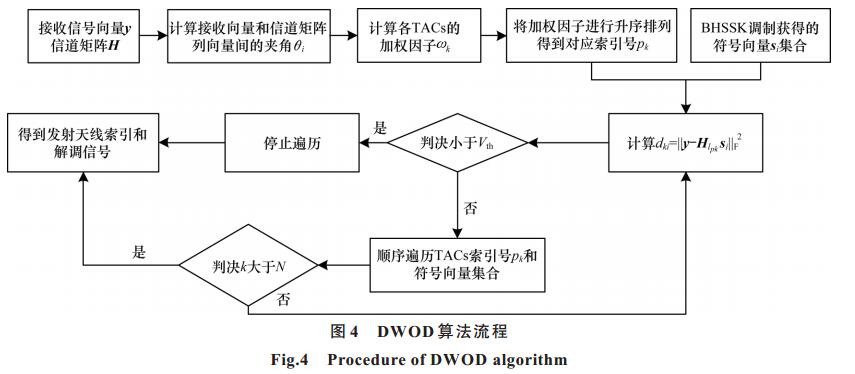

摘要： 5G车联网中的不同传输业务对高可靠、可扩展和低功耗的通信性能有较高要求，为此，设计一种新型高可靠、可扩展的广义空移键控调制（GSSK）系统。在发射端提出一种基于Butson Hadamard矩阵的广义空移键控调制（BHSSK）方案，通过引入具有正交性和可扩展性的Butson Hadamard矩阵，采用循环加权方法构造符号选择矩阵，将矩阵的列作为符号向量并调制到激活的天线组合上进行发送。针对检测复杂度对车联网下通信可行性的影响，在接收端提出一种基于方向夹角加权排序检测（DWOD）算法，通过设计发射天线组合的权重因子构造天线组合搜索空间，并设置判决收敛门限以减少信号检测的搜索范围，在保证可靠性的同时降低检测复杂度。Matlab仿真结果表明，BHSSK以较少的天线实现相对较高和可扩展的频谱效率，相比GSSK、GSM、MA-SM和HSSK分别达到约8 dB、3 dB、3 dB和0.6 dB的误码率性能增益。DWOD算法在达到近似最优误码率性能的同时，其复杂度减少了约40%~70%。

关键词: 5G车联网, 广义空移键控, Butson Hadamard矩阵, 循环加权, 方向夹角加权排序检测算法

Abstract: In 5G Internet of vehicles,different transmission services have higher communication demands for reliability,scalability and power consumption.Therefore,this paper proposes a new highly reliable and scalable Generalized Space Shift Keying(GSSK) modulation system.At the transmitter,a Butson Hadamard matrix-aided generalized Space Shift Keying(BHSSK) scheme is designed.By introducing the orthogonal and scalable Butson Hadamard matrix,the symbol selection matrix is constructed by using the cyclic weighting method,and its columns are modulated as symbol vectors to the active antenna combination for transmission.To address the influence of detection complexity on the feasibility of downlink communication in Internet of vehicles,an algorithm based on Direction angle Weighted Order Detection(DWOD) is proposed at the receiver.The weight factor of transmitting antenna combination is designed to construct the antenna combination search space,and the decision convergence threshold is set to narrow the search range of signal detection,which reduces the detection complexity while ensuring reliability.Matlab simulation results show that the BHSSK achieves relatively high and scalable spectrum efficiency with fewer antennas.Compared with GSSK,GSM,MA-SM and HSSK,it achieves Bit Error Rate(BER) performance gains of about 8 dB,3 dB,3 dB and 0.6 dB,respectively.The complexity of DWOD algorithm is reduced about 40%~70% while the performance of approximate optimal BER is achieved.

Key words: 5G Internet of vehicle, Generalized Space Shift Keying(GSSK), Butson Hadamard matrix, cyclic weighting, Direction angle Weighting Order Detection(DWOD) algorithm

中图分类号:

TN929.5

祝捷, 王萍, 海涵, 王帅. 一种可扩展的广义空移键控调制系统设计[J]. 计算机工程, 2021, 47(1): 188-195.

ZHU Jie, WANG Ping, HAI Han, WANG Shuai. Design of a Scalable Generalized Space Shift Keying Modulation System[J]. Computer Engineering, 2021, 47(1): 188-195.

https://www.ecice06.com/CN/Y2021/V47/I1/188

图/表 12

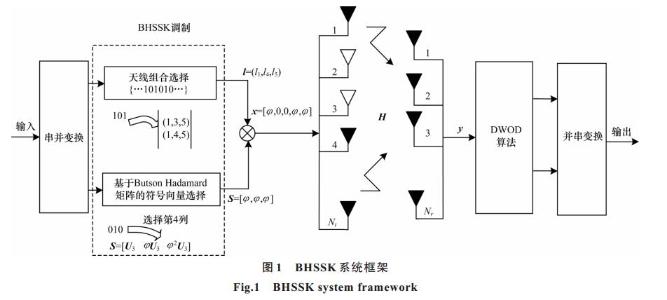

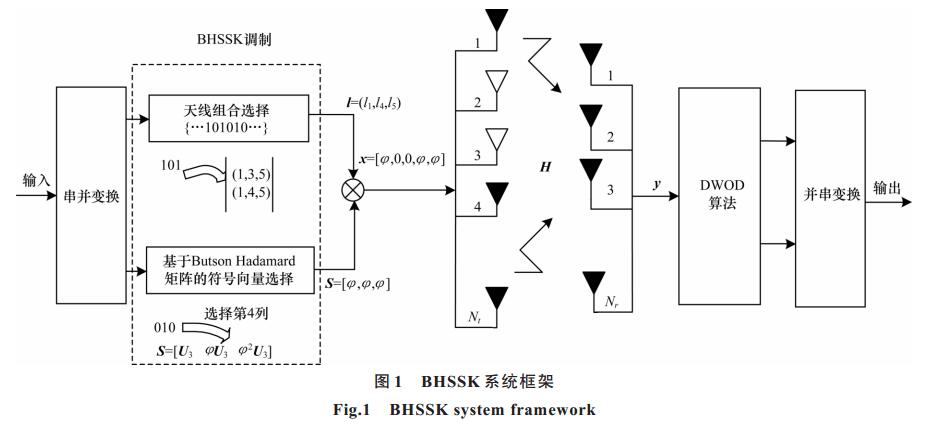

20210125164159

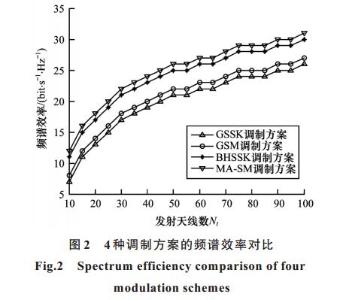

20210125164202

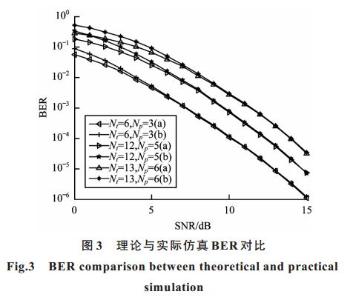

20210125164205

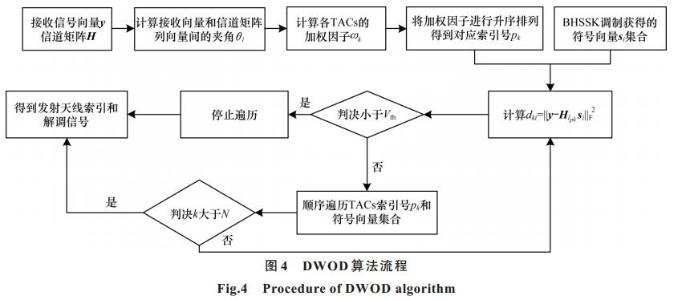

20210125164209

20210125164212

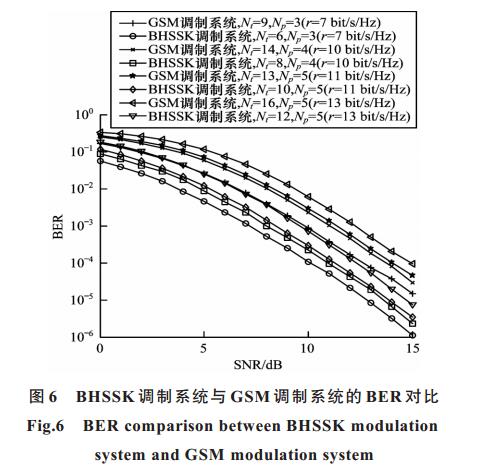

20210125164215

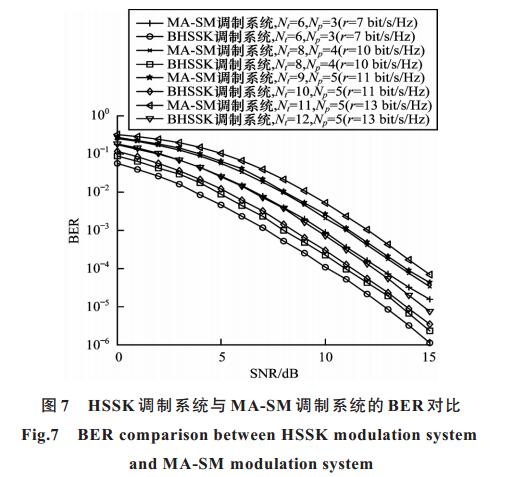

20210125164218

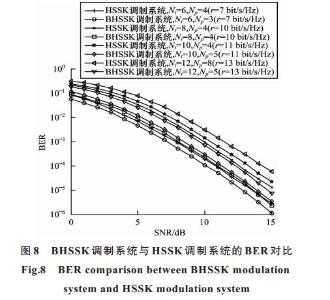

20210125164220

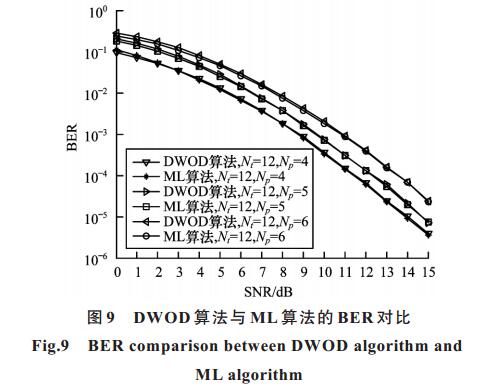

20210125164223

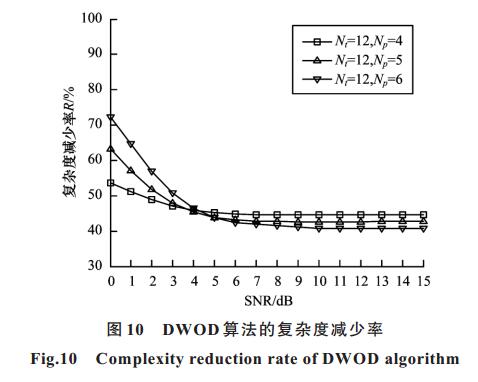

20210125164226

20210125164229

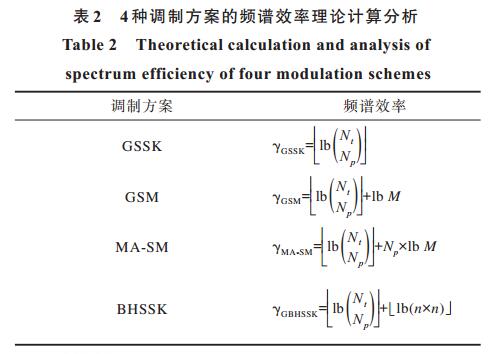

20210125164232

参考文献

[1] AGIWAL M,ROY A,SAXENA N.Next generation 5G wireless networks:a comprehensive survey[J].IEEE Communications Surveys & Tutorials,2016,18(3):1617-1655.
[2] HUANG Xumin,YU Rong,KANG Jiawen,et al.Exploring mobile edge computing for 5G-enabled software defined vehicular networks[J].IEEE Wireless Communications,2017,24(6):55-63.
[3] WANG Rui,ZHANG Keluo.Survey of 5G network slicing[J].Journal of Nanjing University of Posts and Telecommunications(Natural Science),2018,38(5):19-27.(in Chinese)王睿,张克落.5G网络切片综述[J].南京邮电大学学报(自然科学版),2018,38(5):19-27.
[4] IMRAN M A,ABDULRAHMAN S Y,ABBASI Q H.Enabling 5G communication systems to support vertical industries[EB/OL].[2019-09-28].https://www.doc88.com/p-5899907803581.html.
[5] ZHANG Jing,JIN Shi,WEN Chaokai,et al.An overview of wireless transmission technology utilizing artificial intelligence[J].Telecommunications Science,2018,34(8):46-55.(in Chinese)张静,金石,温朝凯,等.基于人工智能的无线传输技术最新研究进展[J].电信科学,2018,34(8):46-55.
[6] NISHIMORI K.Novel technologies using massive MIMO transmission toward 5G and its beyond systems[C]//Pro-ceedings of 2018 International Symposium on Antennas and Propagation.Washington D.C.,USA:IEEE Press,2018:1-2.
[7] XU Sen,XIN Jincan.Study on 5G uRLLC enhancement technology for ultra-reliable and low latency communications[J].Mobile Communications,2019,43(9):62-67.(in Chinese)许森,信金灿.面向低时延高可靠的5G uRLLC增强技术研究[J].移动通信,2019,43(9):62-67.
[8] FOSCHINI G J.Layered space-time architecture for wireless communication in a fading environment when using multi-element antennas[J].Bell Labs Technical Journal,2002,1(2):41-59.
[9] JAFARKHANI H.Space-time coding[M].Cambridge,UK:Cambridge University Press,2005.
[10] GESBERT D,SHAFI M,SHIU D S,et al.From theory to practice:an overview of MIMO space-time coded wireless systems[J].IEEE Journal on Selected Areas in Communications,2003,21(3):281-302.
[11] MESLEH R Y,HAAS H,SINANOVIC S,et al.Spatial modulation[J].IEEE Transactions on Vehicular Technology,2008,57(4):2228-2241.
[12] JEGANATHAN J,GHRAYEB A,SZCZECINSKI L,et al.Space shift keying modulation for MIMO channels[J].IEEE Transactions on Wireless Communications,2009,8(7):3692-3703.
[13] YOUNIS A,SERAFIMOVSKI N,MESLEH R,et al.Generalised spatial modulation[C]//Proceedings of 2010 Conference Record of the 44th Asilomar Conference on Signals,Systems and Computers.Washington D.C.,USA:IEEE Press,2010:1498-1502.
[14] WANG Jintao,JIA Shuyun,SONG Jian.Generalised spatial modulation system with multiple active transmit antennas and low complexity detection scheme[J].IEEE Transactions on Wireless Communications,2012,11(4):1605-1615.
[15] JEGANATHAN J,GHRAYEB A,SZCZECINSKI L.Generalized space shift keying modulation for MIMO channels[C]//Proceedings of 19th International Symposium on Personal,Indoor and Mobile Radio Communications.Washington D.C.,USA:IEEE Press,2008:1-5.
[16] HAI Han,JIANG Xueqin,DUAN Wei,et al.Complex hadamard matrix-aided generalized space shift keying modulation[J].IEEE Access,2017,5:21139-21147.
[17] GOLDEN G D,FOSCHINI C J,VALENZUELA R A,et al.Detection algorithm and initial laboratory results using V-BLAST space-time communication architecture[J].Electronics Letters,1999,35(1):14-16.
[18] WANG Jintao,JIA Shuyun,SONG Jian.Signal vector based detection scheme for spatial modulation[J].IEEE Communications Letters,2012,16(1):19-21.
[19] CHEN Fatang,LONG Yunbo,WANG Yufan.Low-complexity signal detection for spatial modulation[J].Computer Engineering,2018,44(3):99-102,108.(in Chinese)陈发堂,龙云波,王与凡.低复杂度的空间调制信号检测[J].计算机工程,2018,44(3):99-102,108.
[20] BUTSON A T.Generalized hadamard matrices[J].Proceedings of the American Mathematical Society,1962,13(6):894-896.
[21] PROAKIS J G.Digital communication[M].4th ed.New York,USA:McGraw-Hill,2002.
[22] HANDTE T,MULLER A,SPEIDEL J.BER analysis and optimization of generalized spatial modulation in correlated fading channels[C]//Proceedings of the 70th Vehicular Technology Conference Fall.Washington D.C.,USA:IEEE Press,2009:1-5.
[23] HOCHWALD B M,TEN BRINK S.Achieving near-capacity on a multiple-antenna channel[J].IEEE Transactions on Communications,2003,51(3):389-399.
