IEEE 802.11ax密集WLAN的干扰协调策略

doi:10.19678/j.issn.1000-3428.0056994

计算机工程 ›› 2021, Vol. 47 ›› Issue (1): 182-187,195. doi: 10.19678/j.issn.1000-3428.0056994

IEEE 802.11ax密集WLAN的干扰协调策略

徐晓锋¹, 张闽¹, 钱晨喜¹, 陈清华^1,2

1. 浙江工业大学计算机科学与技术学院, 杭州 310014;
2. 温州职业技术学院信息技术系, 浙江温州 325035

收稿日期:2019-12-23 修回日期:2020-01-29 发布日期:2020-02-12
作者简介:徐晓锋(1994-),男,硕士,主研方向为下一代无线局域网;张闽、钱晨喜,硕士;陈清华(通信作者),副教授、博士。
基金资助:
浙江省教育厅一般科研项目（Y202044857）；温州市基础性科研项目（G20200017，G20180006）。

Interference Coordination Strategy for IEEE 802.11ax Dense WLAN

XU Xiaofeng¹, ZHANG Min¹, QIAN Chenxi¹, CHEN Qinghua^1,2

1. School of Computer Science and Technology, Zhejiang University of Technology, Hangzhou 310014, China;
2. Department of Information Technology, Wenzhou Polytechnic, Wenzhou, Zhejiang 325035, China

Received:2019-12-23 Revised:2020-01-29 Published:2020-02-12

摘要/Abstract

摘要： 无线局域网（WLAN）中设备数量的指数级增长，导致激烈的信道争用及严重的同频干扰。当运行在同一频段上的两个WLAN在彼此感知范围内时，使用先监听后发送的分布式信道接入方式会引起资源浪费，降低网络吞吐率。提出一种密集WLAN场景下的干扰协调策略。根据IEEE 802.11ax中的基本服务集颜色对站点进行分组，提出协调交替目标唤醒时间策略（CAT），安排不同组内站点在不同的时间接收数据，从而避免信道争用，最小化干扰，同时通过优化下行数据包大小提高网络吞吐率。仿真结果表明，当两个WLAN距离很近时，CAT方案能够保证网络吞吐率。此外，在考虑误码率的情况下，吞吐率并非随着数据包的增大单调递增，而是存在一个阈值，超过该阈值后网络吞吐率即呈下降趋势。

关键词: 无线局域网, 同频干扰, 目标唤醒时间, 无线局域网控制器, 基本服务集颜色

Abstract: The exponential growth of devices in Wireless Local Area Network(WLAN) has resulted in intense channel access contention and severe inter-frequency interference.When two WLANs are running on the same frequency band as well as within the sensing range of each other,the listen-before-transmit approach for distributed channel access will lead to a waste in resources and a reduction in network throughput.To address the problem,this paper proposes an interference coordination strategy for dense WLAN.The strategy uses the Basic Service Set(BSS) coloring in IEEE 802.11ax to divide the stations into different groups,and uses an Coordination Alternating Target Wake Time(TWT) strategy(CAT) to arrange different stations within a group to receive packets asynchronously,which reduces channel contention and minimizes interference.Then the size of downlink data packets is optimized to improve network throughput.The simulation results show that,even when the two WLANs are very close,the CAT scheme guarantees the network throughput.In addition,in the case of considering the bit error rate,the throughput does not increase monotonically with the number of data packets,and a decrease in network throughput is observed after it exceeds a threshold.

Key words: Wireless Local Area Network(WLAN), co-channel interference, target wake time, WLAN Controller(WLC), Basic Service Set(BSS) coloring

中图分类号:

TP393

徐晓锋, 张闽, 钱晨喜, 陈清华. IEEE 802.11ax密集WLAN的干扰协调策略[J]. 计算机工程, 2021, 47(1): 182-187,195.

XU Xiaofeng, ZHANG Min, QIAN Chenxi, CHEN Qinghua. Interference Coordination Strategy for IEEE 802.11ax Dense WLAN[J]. Computer Engineering, 2021, 47(1): 182-187,195.

https://www.ecice06.com/CN/Y2021/V47/I1/182

图/表 9

20210125164126

20210125164130

20210125164134

20210125164137

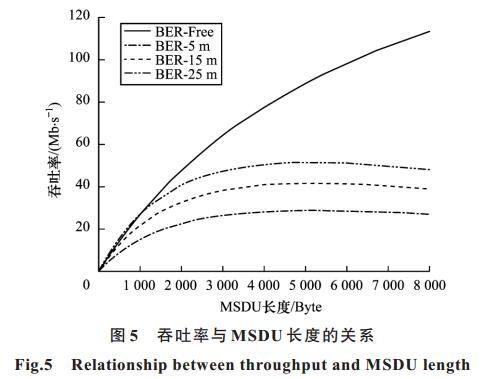

20210125164140

20210125164143

20210125164146

20210125164149

20210125164152

参考文献

[1] Cisco.Cisco visual networking index:global mobile data traffic forecast update,2016-2021[EB/OL].[2019-12-20].https://www.cisco.com/c/en/us/solutions/executive-pers pectives/annual-internet-report/index.html.
[2] IEEE Standards Committees.Wireless LAN Medium Access Control(MAC) and Physical Layer(PHY) specifications amendment 6:enhancements for high efficiency WLAN:IEEE Draft 802.11ax/D3.0[S].Washington D.C.,USA:IEEE Press,2018.
[3] PENG Chunhua,XU Xiangzi.Effects of virtual idle time on non-saturated DCF performance[J].Computer Engineering,2015,41(1):96-102.(in Chinese)彭春华,徐湘淄.虚拟空闲时间对非饱和状态DCF性能的影响[J].计算机工程,2015,41(1):96-102.
[4] WENG Sanbao.Study of dynamic resource allocation in high-density wireless local access network[D].Xi'an:Xidian University,2012.(in Chinese)温三宝.密集覆盖下无线局域网的动态资源分配研究[D].西安:西安电子科技大学,2012.
[5] ZHU Yongli,YU Yonghua,LI Lifen.Construction of multi-mode-level network in data collection sensor network[J].Computer Engineering,2011,37(2):111-113.(in Chinese)朱永利,于永华,李丽芬.数据收集传感器网络的多模层次网络构建[J].计算机工程,2011,37(2):111-113.
[6] SELINIS I,KATSAROS K,VAHID S,et al.Control OBSS/PD sensitivity threshold for IEEE 802.11ax BSS color[C]//Proceedings of 2018 Annual International Symposium on Personal,Indoor,and Mobile Radio Communications.Washington D.C.,USA:IEEE Press,2018:1-7.
[7] SELINIS I,FILO M,VAHID S,et al.Evaluation of the DSC algorithm and the BSS color scheme in dense cellular-like IEEE 802.11ax deployments[C]//Proceedings of 2016 Annual International Symposium on Personal,Indoor,and Mobile Radio Communications.Washington D.C.,USA:IEEE Press,2016:1-7.
[8] KHOROV E,KIRYANOV A,LYAKHOV A,et al.A tutorial on IEEE 802.11ax high efficiency WLANs[J].IEEE Communications Surveys & Tutorials,2018,21(1):197-216.
[9] OTERI O,SITA F,YANG R,et al.Improved spatial reuse for dense 802.11 WLANs[C]//Proceedings of IEEE Global Communications Conference.Washington D.C.,USA:IEEE Press,2015:1-6.
[10] CHEN Qinghua,WENG Zhengqiu,XU Xiaofeng,et al.A target wake time scheduling scheme for uplink multiuser transmission in IEEE 802.11ax-based next generation WLANs[J].IEEE Access,2019,7:158207-158222.
[11] HAENGGI M,ANDREWS J G,BACCELLI F,et al.Stochastic geometry and random graphs for the analysis and design of wireless networks[J].IEEE Journal on Selected Areas in Communications,2009,27(7):1029-1046.
[12] AJAMI A,ARTAIL H.On the modeling and analysis of uplink and downlink IEEE 802.11ax Wi-Fi with LTE in unlicensed spectrum[J].IEEE Transactions on Wireless Communications,2017,16(9):5779-5795.
[13] KLEINROCK L,TOBAGI F.Packet switching in radio channels:part I-carrier sense multiple-access modes and their throughput-delay characteristics[J].IEEE Transactions on Communications,1975,23(12):1400-1416.
[14] KIM S,YI J,SON Y,et al.Quiet ACK:ACK transmit power control in IEEE 802.11 WLANs[C]//Proceedings of IEEE INFOCOM 2017& IEEE Conference on Computer Communications.Washington D.C.,USA:IEEE Press,2017:1-9.
[15] CHEN S Y,MA R F,CHEN H H,et al.A segmented packet collision model for smart utility networks under WLAN interferences[J].IEEE Transactions on Wireless Communications,2016,15(5):3506-3517.
[16] IEEE Standards Committees. Draft standard for information technology-part 11:wireless LAN Medium Access Control (MAC)and Physical Layer (PHY)specifications:IEEE P802.11ax/D3.[0 S]. Washington D. C., USA:IEEE Press, 2018.
[17] WANG Tao,LI Wenwei. Receiver-based identification method of bit error packet loss causes in WLAN[J]. Computer Engineering, 2014, 40(4):76-80.(in Chinese)王涛, 黎文伟. 基于接收端的WLAN误码丢包原因识别方法[J]. 计算机工程, 2014, 40(4):76-80.
[18] IEEE Standards Committees. TGax simulation scenarios:IEEE 802.11-14[S]. Washington D. C., USA:IEEE Press, 2014.
[19] IEEE Standards Committees. IEEE 802.11 ax channel model document:IEEE 802.11-14/0882r3[S]. Washington D. C., USA:IEEE Press, 2014.
[20] QU Qu, LI Bo, YANG Mao, et al. Survey and performance evaluation of the upcoming next generation WLANs standard-IEEE 802.11 ax[J]. Mobile Networks and Applications, 2019, 24:1-14.
[21] GAO Yayu,DAI Lin. Random access:packet-based or connection-based?[J]. IEEE Transactions on Wireless Communications, 2019, 18(5):2664-2678.
