基于区块链的V2G无证书环签密隐私保护方案

doi:10.19678/j.issn.1000-3428.0065767

摘要/Abstract

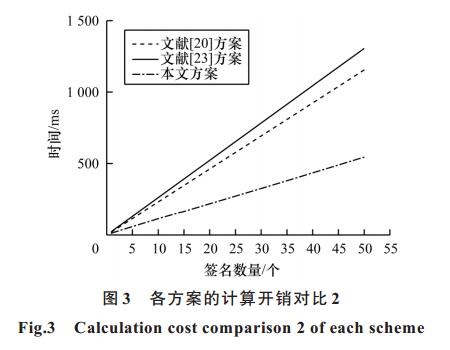

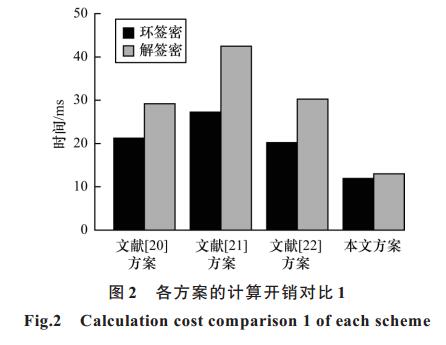

摘要： 为实现车辆到电网(V2G)系统中车辆用户交易信息隐私保护和通信消息安全传输，提出一种基于区块链的无证书环签密隐私保护方案。在交易阶段采用无证书环签密对服务数据进行加密，减少签密过程中的双线性配对运算与指数运算，同时引入聚合签名技术降低签名验证的计算开销。在交易完成后将记录的服务数据与交易账单聚合为交易数据，将交易数据哈希、服务数据的环签密以及交易编号返回至区块链进行存储，而完整交易数据由云服务器存储，用户需要提供交易数据对应的环签密及交易编号，并通过智能合约完成对交易数据的访问。在随机预言模型下，通过安全分析来验证该方案的匿名性、可认证性、机密性和不可伪造性。实验结果表明，相较3种对比方案，该方案的计算开销具有明显优势，在签名数量增加到50个时，其聚合签名验证的计算开销减少近50%，同时能保证数据的机密性和成员通信的匿名性，有效提高V2G网络中的通信效率。

关键词: V2G网络, 无证书密码体制, 环签密, 区块链, 隐私保护

Abstract: A blockchain-based certificateless ring signature privacy protection scheme is proposed to ensure the privacy protection of vehicle user transaction information and secure transmission of communication messages in the Vehicle-to-Grid（V2G） system.To reduce bilinear pairing and exponential operations in the signcryption process，the service data are encrypted using a certificateless ring signature during the transaction process. Concurrently，aggregation signature technology is introduced to reduce the computational cost of signature verification.After the transaction is complete，the recorded service data and transaction bill are combined into transaction data，and the transaction data hash，service data ring signature key，and transaction number are stored on the blockchain.The complete transaction data are stored on the cloud server，and users need to provide the corresponding ring signature key and transaction number to access the transaction data，which is completed through smart contracts.Under the random oracle model，the security analysis is used to verify the anonymity，authenticability，confidentiality，and unforgeability of the scheme.The experimental results show that compared to the three comparison schemes，this scheme has significant computational advantages.When the number of signatures increases to 50，the computational overhead of aggregate signature verification decreases by nearly 50%，ensuring the confidentiality of data and anonymity of member communication，thus improving communication efficiency in the V2G networks.

Key words: V2G network, certificateless cryptography, ring signcryption, blockchain, privacy protection

中图分类号:

TP309

陈福安, 柳毅. 基于区块链的V2G无证书环签密隐私保护方案[J]. 计算机工程, 2023, 49(6): 34-41,52.

CHEN Fuan, LIU Yi. Blockchain-based V2G Certificateless Ring Signcryption Privacy Protection Scheme[J]. Computer Engineering, 2023, 49(6): 34-41,52.

https://www.ecice06.com/CN/Y2023/V49/I6/34

图/表 8

20230615164306

20230615164311

20230615164314

20230615164318

20230615164321

20230615164328

20230615164331

20230615164335

参考文献

[1] KEMPTON W,TOMIĆ J.Vehicle-to-grid power fundamentals:calculating capacity and net revenue[J].Journal of Power Sources,2005,144(1):268-279.
[2] 刘晓飞,张千帆,崔淑梅.电动汽车V2G技术综述[J].电工技术学报,2012,27(2):121-127.LIU X F,ZHANG Q F,CUI S M.Review of electric vehicle V2G technology[J].Transactions of China Electrotechnical Society,2012,27(2):121-127.(in Chinese)
[3] 项顶,宋永华,胡泽春,等.电动汽车参与V2G的最优峰谷电价研究[J].中国电机工程学报,2013,33(31):15-25,2.XIANG D,SONG Y H,HU Z C,et al.Research on optimal time of use price for electric vehicle participating V2G[J].Proceedings of the CSEE,2013,33(31):15-25,2.(in Chinese)
[4] SHEN J,TAN H,MOH S,et al.An efficient RFID authentication protocol providing strong privacy and security[EB/OL].[2022-08-05].https://kyushu-u.pure.elsevier.com/en/publications/an-efficient-rfid-authentication-protocol-providing-strong-privac#:~:text=To%20thwart%20different%20types%20of%20attacks%2C%20we%20propose,anonymity%20of%20tags%20in%20addition%20to%20tag%20untraceability.
[5] SAXENA N,CHOI B J.Authentication scheme for flexible charging and discharging of mobile vehicles in the V2G networks[J].IEEE Transactions on Information Forensics and Security,2016,11(7):1438-1452.
[6] ZHANG J,ZHONG H,CUI J,et al.Edge computing-based privacy-preserving authentication framework and protocol for 5G-enabled vehicular networks[J].IEEE Transactions on Vehicular Technology,2020,69(7):7940-7954.
[7] BANSAL G,NAREN N R,CHAMOLA V,et al.Lightweight mutual authentication protocol for V2G using physical unclonable function[J].IEEE Transactions on Vehicular Technology,2020,69(7):7234-7246.
[8] FENG X,SHI Q C,XIE Q Q,et al.P2BA:a privacy-preserving protocol with batch authentication against semi-trusted RSUs in vehicular ad hoc networks[J].IEEE Transactions on Information Forensics and Security,2021,16:3888-3899.
[9] NAKAMOTO S.Bitcoin:a peer-to-peer electronic cash system[EB/OL].[2022-08-05].https://bitcoin.org/en/bitcoin-paper.
[10] WANG Y T,SU Z,XU Q C,et al.A novel charging scheme for electric vehicles with smart communities in vehicular networks[J].IEEE Transactions on Vehicular Technology,2019,68(9):8487-8501.
[11] MA Z F,WANG X C,JAIN D K,et al.A blockchain-based trusted data management scheme in edge computing[J].IEEE Transactions on Industrial Informatics,2020,16(3):2013-2021.
[12] WANG H Q,WANG Q H,HE D B,et al.BBARS:blockchain-based anonymous rewarding scheme for V2G networks[J].IEEE Internet of Things Journal,2019,6(2):3676-3687.
[13] AITZHAN N Z,SVETINOVIC D.Security and privacy in decentralized energy trading through multi-signatures,blockchain and anonymous messaging streams[J].IEEE Transactions on Dependable and Secure Computing,2018,15(5):840-852.
[14] PATIL A S,HAMZA R,HASSAN A,et al.Efficient privacy-preserving authentication protocol using PUFs with blockchain smart contracts[J].Computers & Security,2020,97:101958.
[15] LIU C,CHAI K K,ZHANG X S,et al.Adaptive blockchain-based electric vehicle participation scheme in smart grid platform[J].IEEE Access,2018,6:25657-25665.
[16] WAN Z G,ZHANG T,LIU W Z,et al.Decentralized privacy-preserving fair exchange scheme for V2G based on blockchain[J].IEEE Transactions on Dependable and Secure Computing,2022,19(4):2442-2456.
[17] JAVED M U,JAVAID N,MALIK M W,et al.Blockchain based secure,efficient and coordinated energy trading and data sharing between electric vehicles[J].Cluster Computing,2022,25(3):1839-1867.
[18] BARBOSA M,FARSHIM P.Certificateless signcryption[C]//Proceedings of 2008 ACM Symposium on Information,Computer and Communications Security.New York,USA:ACM Press,2008:369-372.
[19] POINTCHEVAL D,STERN J.Security arguments for digital signatures and blind signatures[J].Journal of Cryptology,2000,13(3):361-396.
[20] ZHOU C,CUI Z,GAO G.Efficient identity-based generalized ring signcryption scheme[J].KSII Transactions on Internet and Information Systems,2016,10(12):5553-5571.
[21] 孙华,孟坤.一种有效的无证书环签密方案[J].计算机科学,2014,41(11):208-211,238.SUN H,MENG K.An effective unlicensed ring signature scheme[J].Computer Science,2014,41(11):208-211,238.(in Chinese)
[22] YU H,LIU J,WANG Z,et al.Certificateless ring signcryption for multi-source network coding[J].Computer Standards & Interfaces,2022,81:103602.
[23] ZENG S,HUANG Y,LIU X.Privacy-preserving communication for VANETs with conditionally anonymous ring signature[J].International Journal of Network Security,2015,17(2):135-141.
[24] IEEE trial-use standard for wireless access in vehicular environments-security services for applications and management messages:IEEE Std 1609.2-2006[EB/OL].[2022-08-05].https://ieeexplore.ieee.org/document/8691892.
[25] 郭上铜,王瑞锦,张凤荔.区块链技术原理与应用综述[J].计算机科学,2021,48(2):271-281.GUO S T,WANG R J,ZHANG F L.Summary of principle and application of blockchain[J].Computer Science,2021,48(2):271-281.(in Chinese)
