计及电力数据安全的智能合约上链方法及防篡改技术研究

doi:10.19678/j.issn.1000-3428.0067966

摘要/Abstract

摘要：

随着“大云物移智链”等数字化技术在能源电力领域迅猛发展, 大量新兴技术快速地在电网业务系统中进行创新应用, 导致用电信息采集系统中数据交互更加频繁, 从而出现数据经过流转后发生缺失、损坏等问题, 进而导致业务数据公信力下降, 且流转过程不清晰不透明, 难以进行数据追溯溯源。针对用电信息采集系统数据可信度低、溯源难等问题, 分析了区块链技术在用电信息采集系统应用情况, 设计了区块链-用电信息采集系统三元结构模型, 提出了一种采用区块链-用电信息采集系统三元结构的基于改进模型的实用型哈希算法的结构防篡改加密算法。仿真结果表明, 区块链-用电信息采集系统三元结构的防篡改加密算法可提升数据质量进而提升业务数据公信力, 同时通过该结构增强了数据的溯源能力, 极大提升了用电信息采集系统数据在交互和使用过程的安全性。

关键词: 用电信息采集系统, 区块链, 智能合约, 电能表, 终端

Abstract:

With the rapid development of digital technologies such as big data, cloud computing, Internet of things, mobile Internet, artificial intelligence, and blockchain in the field of energy and electricity, a large number of emerging technologies are rapidly being innovatively applied to the power grid business system. This results in more frequent interactions between the terminal and power consumption information acquisition system, leading to data loss and damage in the power consumption system after circulation, which detracts from the credibility of business data. In addition, the unclear and opaque circulation process makes it difficult to trace the source of the data. To address the problems of low credibility and difficult traceability of data in a power consumption information acquisition system, this study analyzes the application of blockchain technology in the power consumption information acquisition system, thereby designing a ternary structure model of the blockchain-power consumption information acquisition system. The study proposes a practical Hash algorithm based on an improved model using the ternary structure of the blockchain-power consumption information acquisition system for a structural tamper resistance encryption algorithm. The simulation results show that the tamper resistance encryption algorithm of the ternary structure of blockchain-power consumption information acquisition system can improve data quality and enhance the credibility of business data. This structure concurrently enhances the traceability of the data, which markedly improves the security of data exchange and use in the collection system.

Key words: power consumption information acquisition system, blockchain, smart contract, electric energy meter, terminal

马超, 宋琛. 计及电力数据安全的智能合约上链方法及防篡改技术研究[J]. 计算机工程, 2024, 50(10): 240-254.

MA Chao, SONG Chen. Research on Smart Contract Uplink Method and Tamper Resistance Technology Considering Power Data Security[J]. Computer Engineering, 2024, 50(10): 240-254.

https://www.ecice06.com/CN/Y2024/V50/I10/240

图/表 20

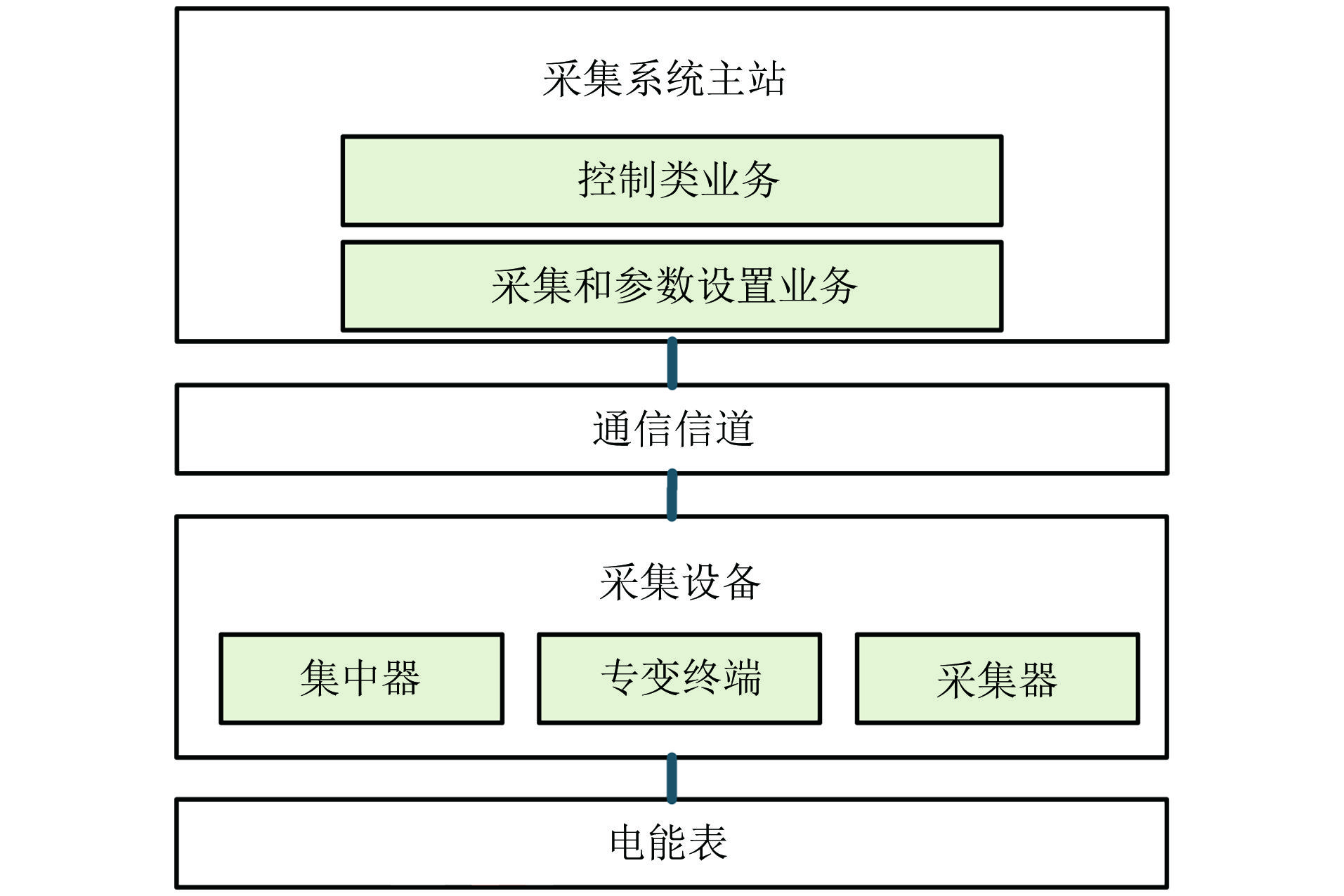

图1 用电信息采集系统整体功能结构

Fig.1 Overall functional structure of power consumption information acquisition system

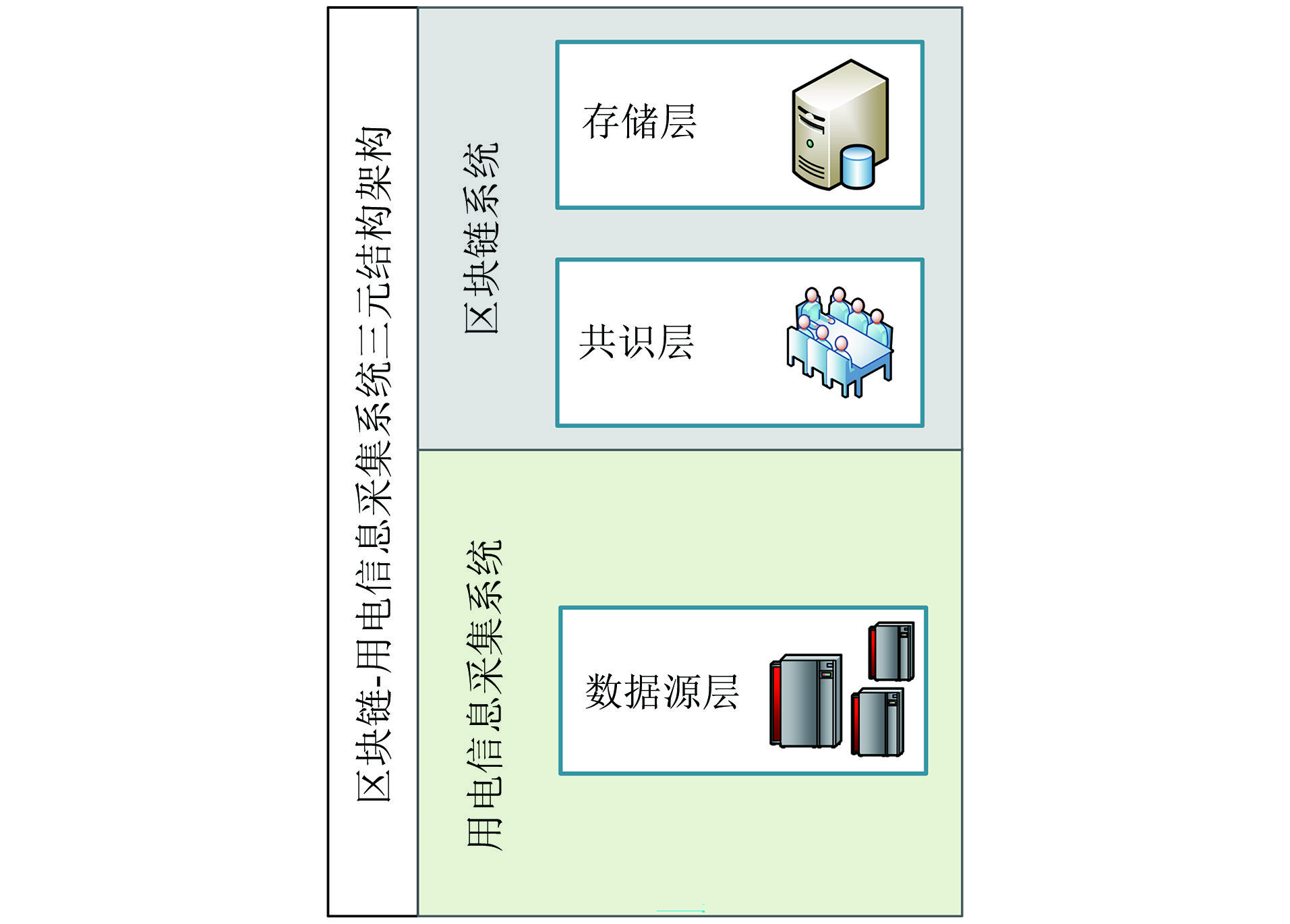

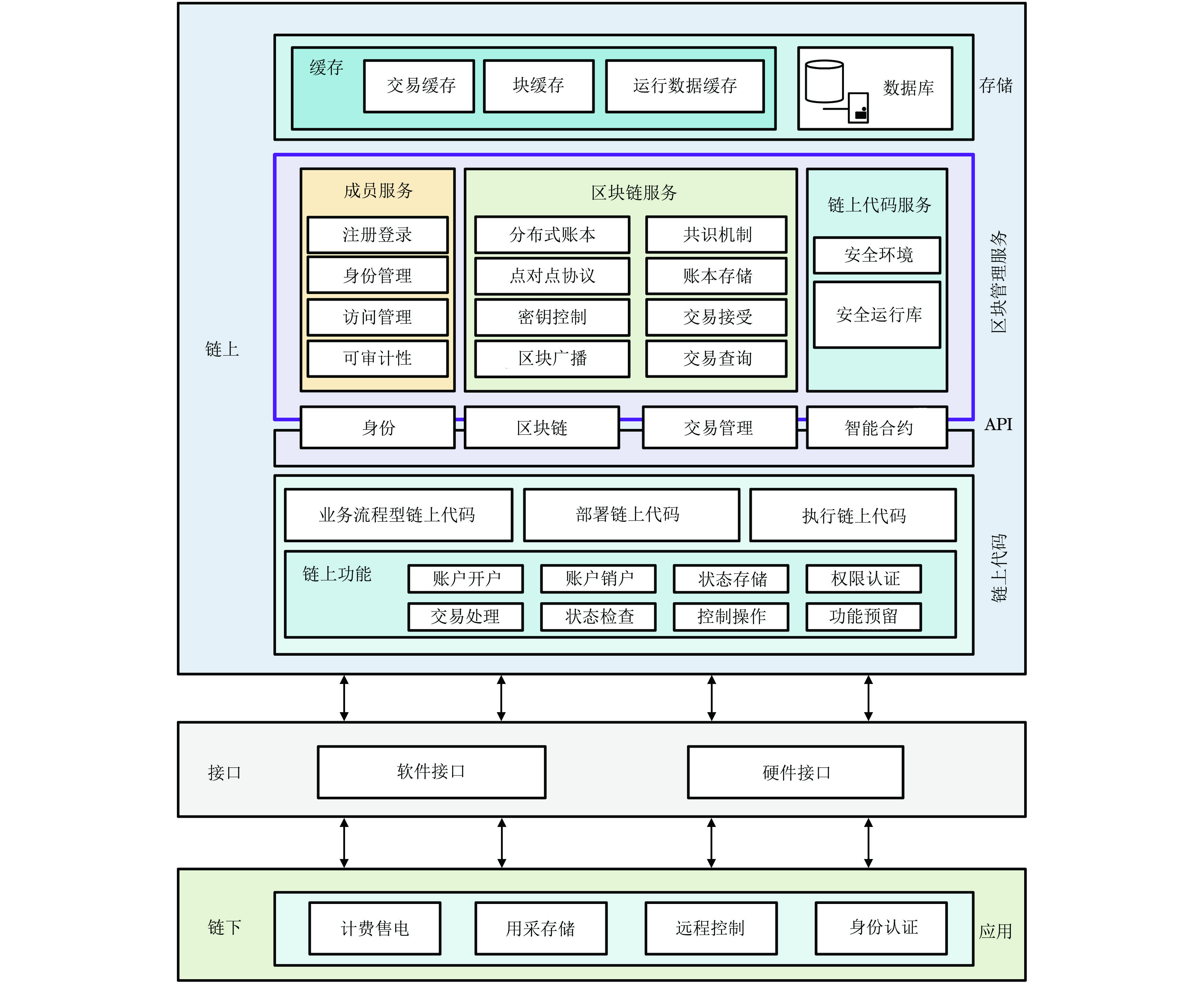

图2 区块链-用电信息采集系统三元结构架构

Fig.2 Architecture of ternary structure of the blockchain-power consumption information acquisition system

图3 区块链-用电信息采集系统三元结构功能示意图

Fig.3 Schematic diagram of the ternary structure function of blockchain-power consumption information acquisition system

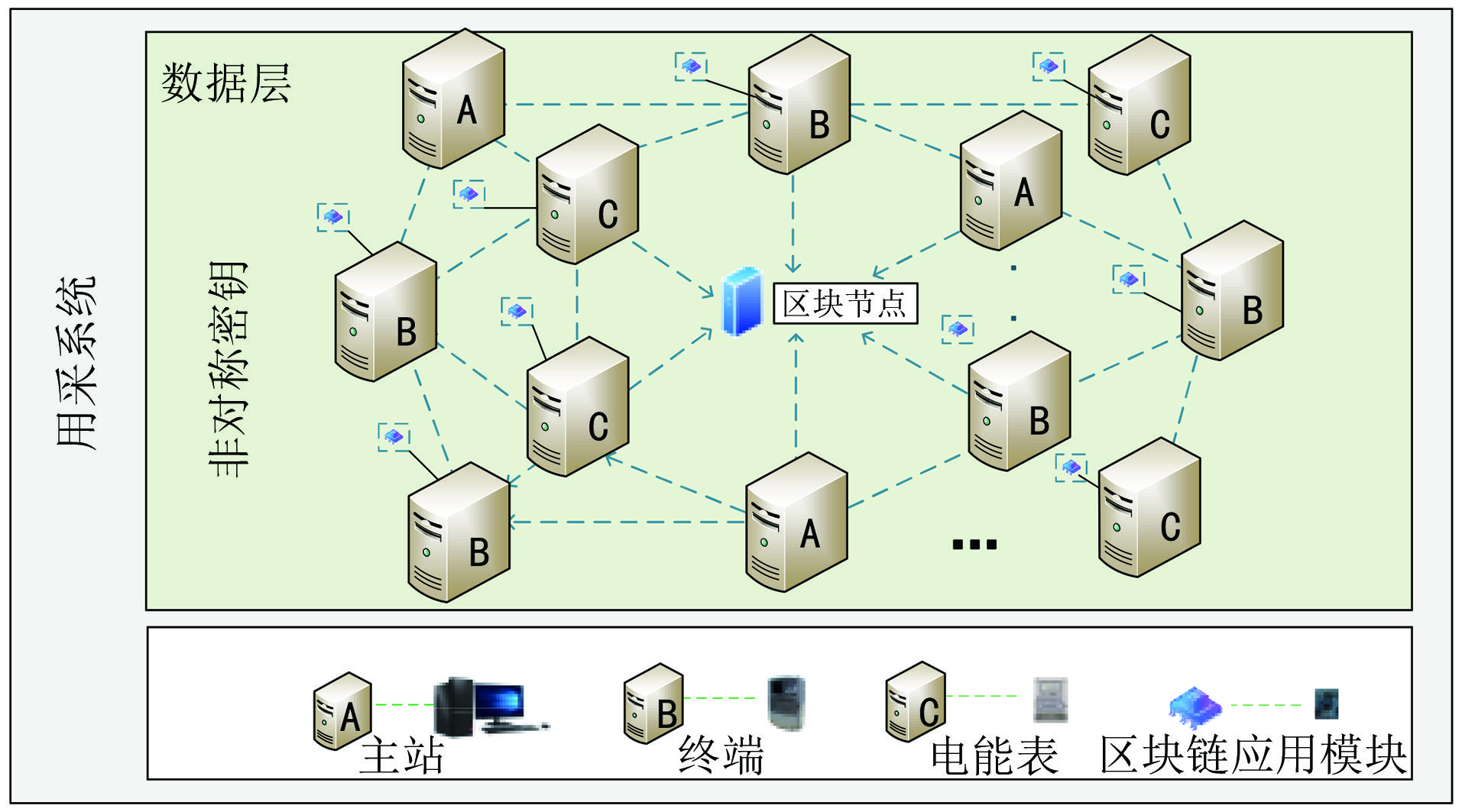

图4 区块链-用电信息采集系统三元结构

Fig.4 Ternary structure of the blockchain-power consumption information acquisition system

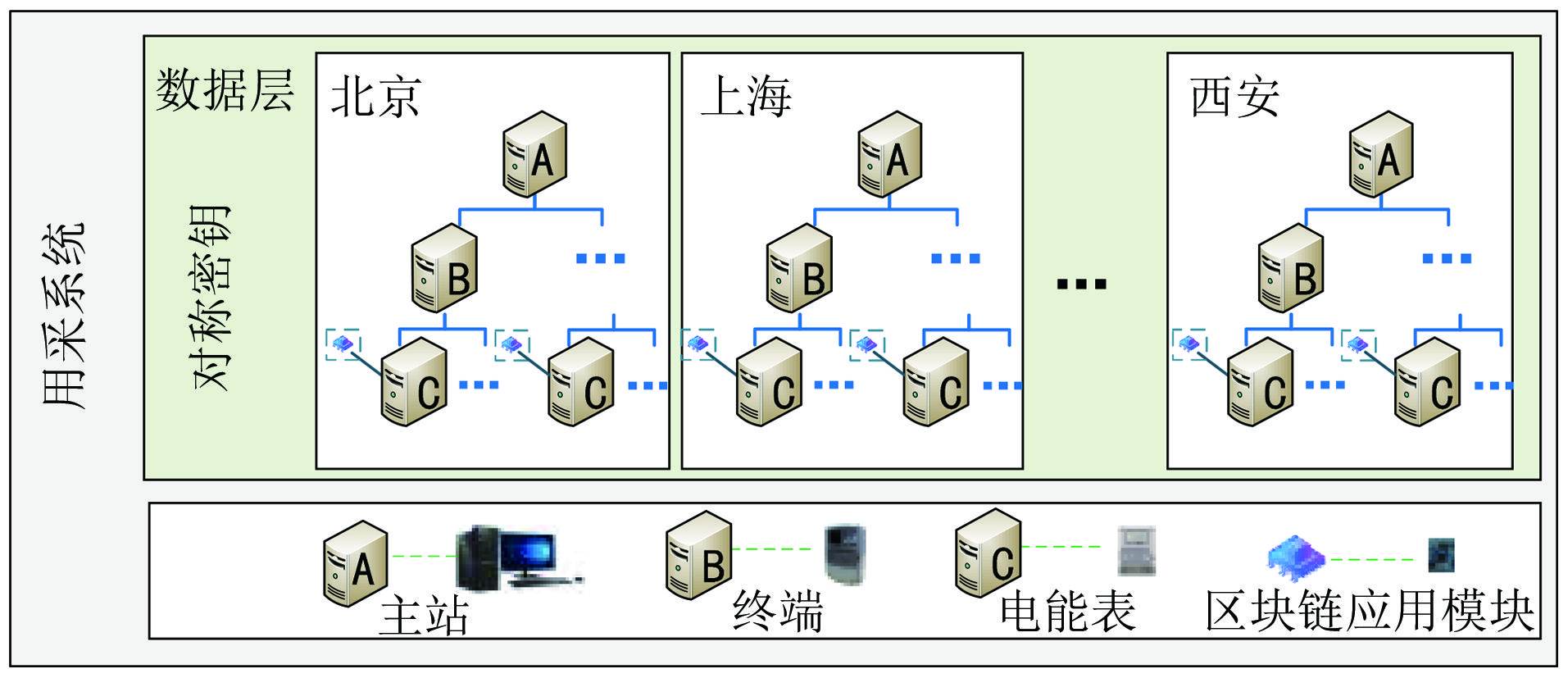

图5 树状结构架构

Fig.5 Architecture of tree structure

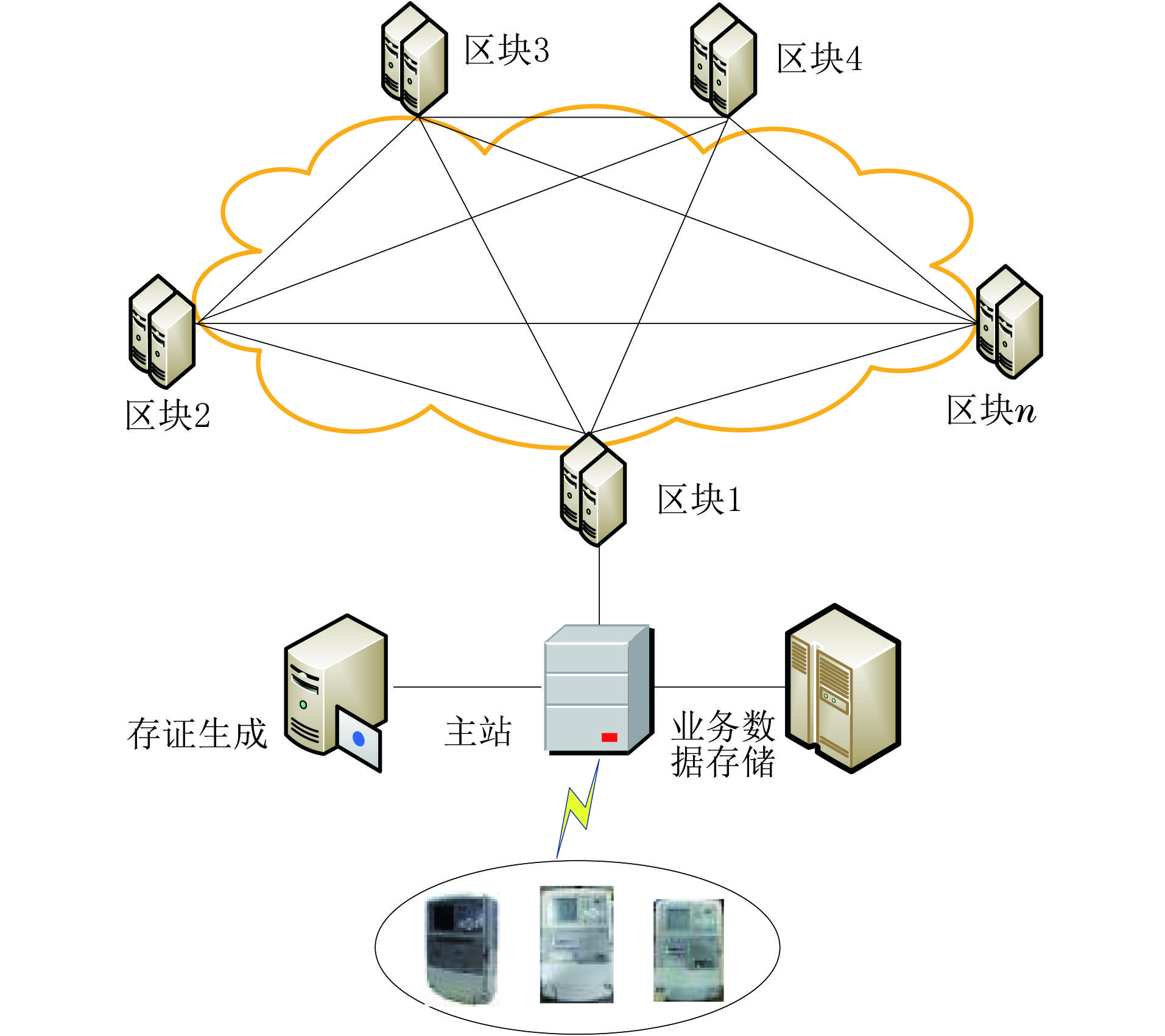

图6 平行网络结构架构

Fig.6 Architecture of parallel network structure

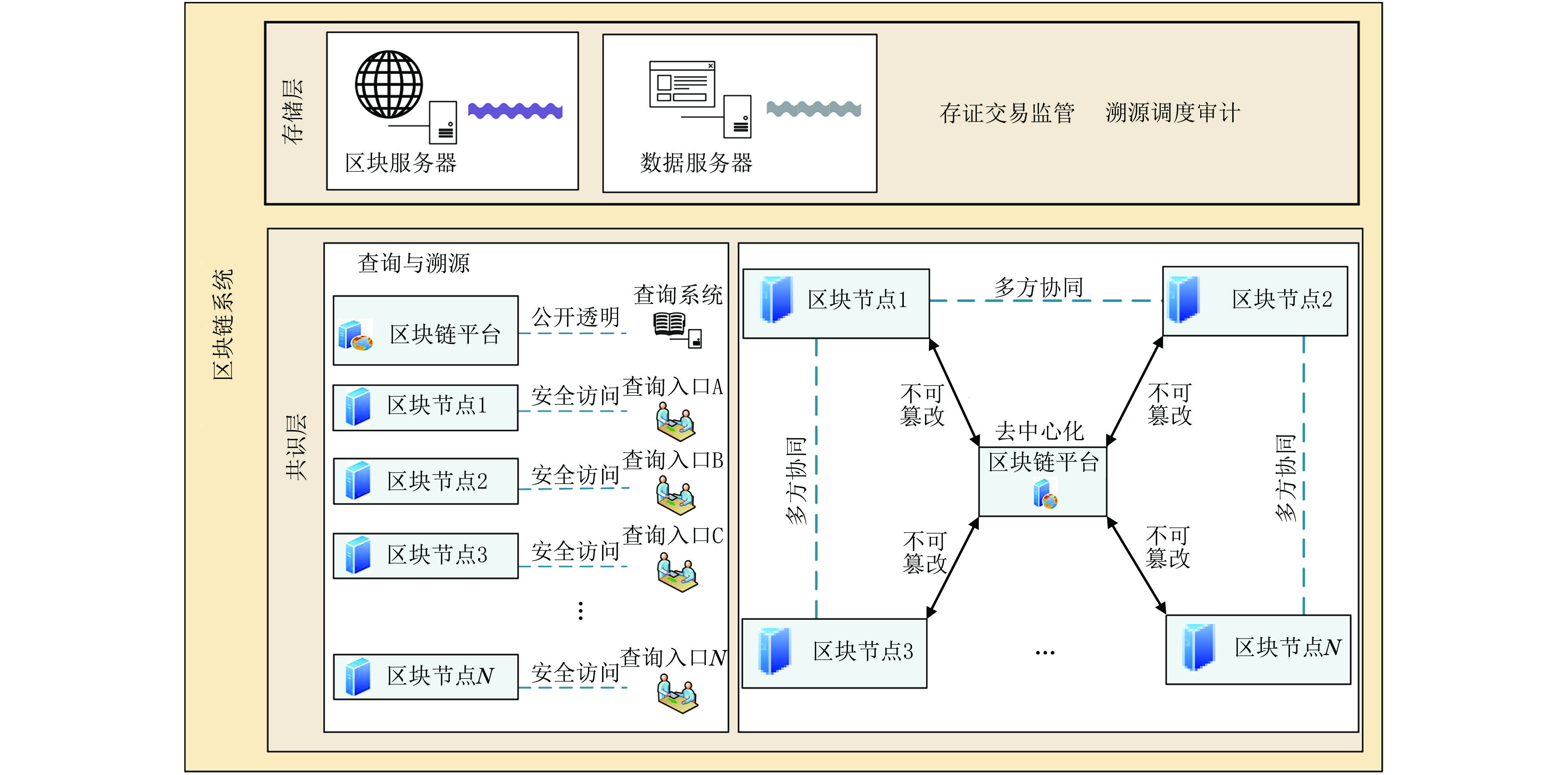

图7 基于区块链的通用数据结构与流程

Fig.7 General data structure and procedure based on blockchain

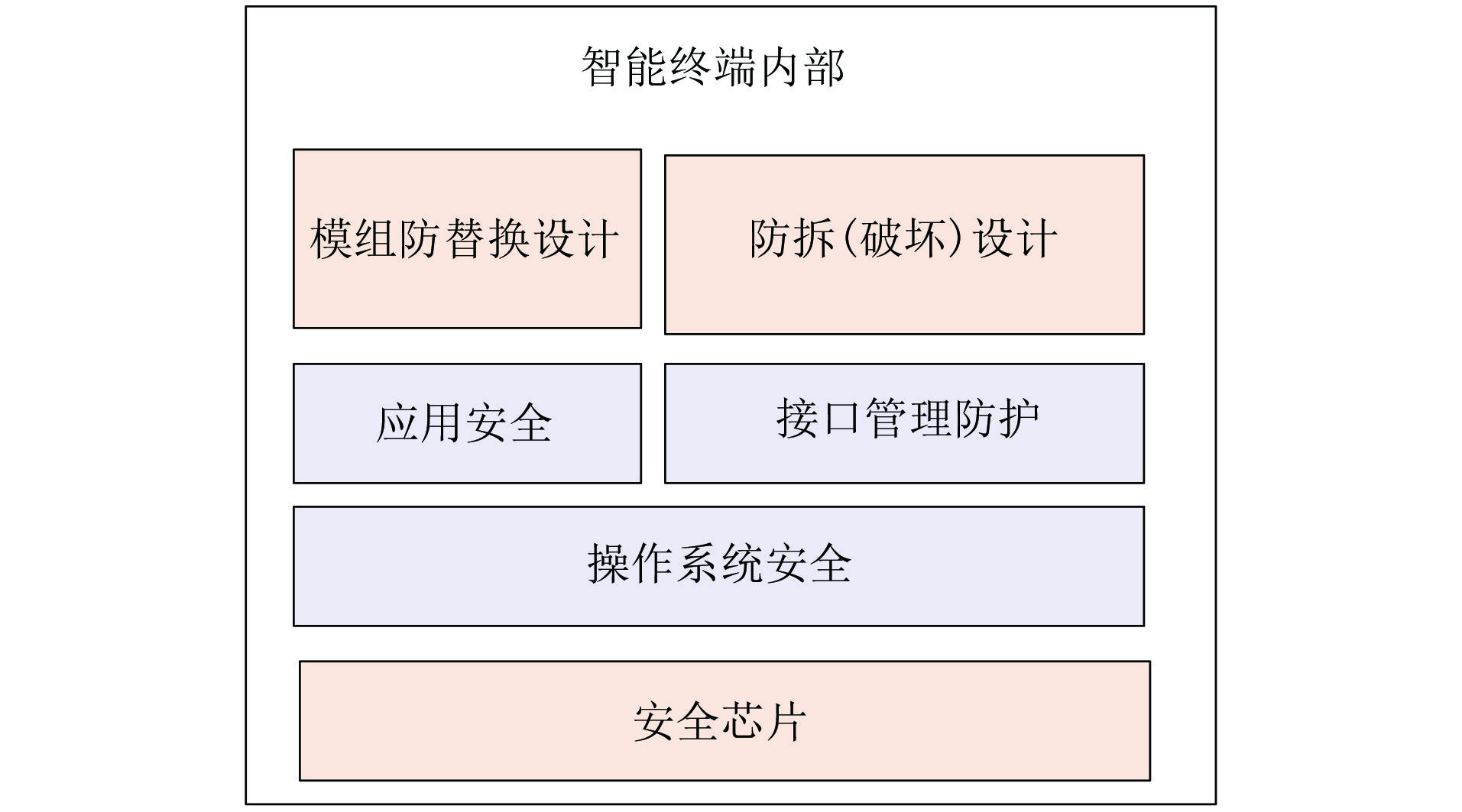

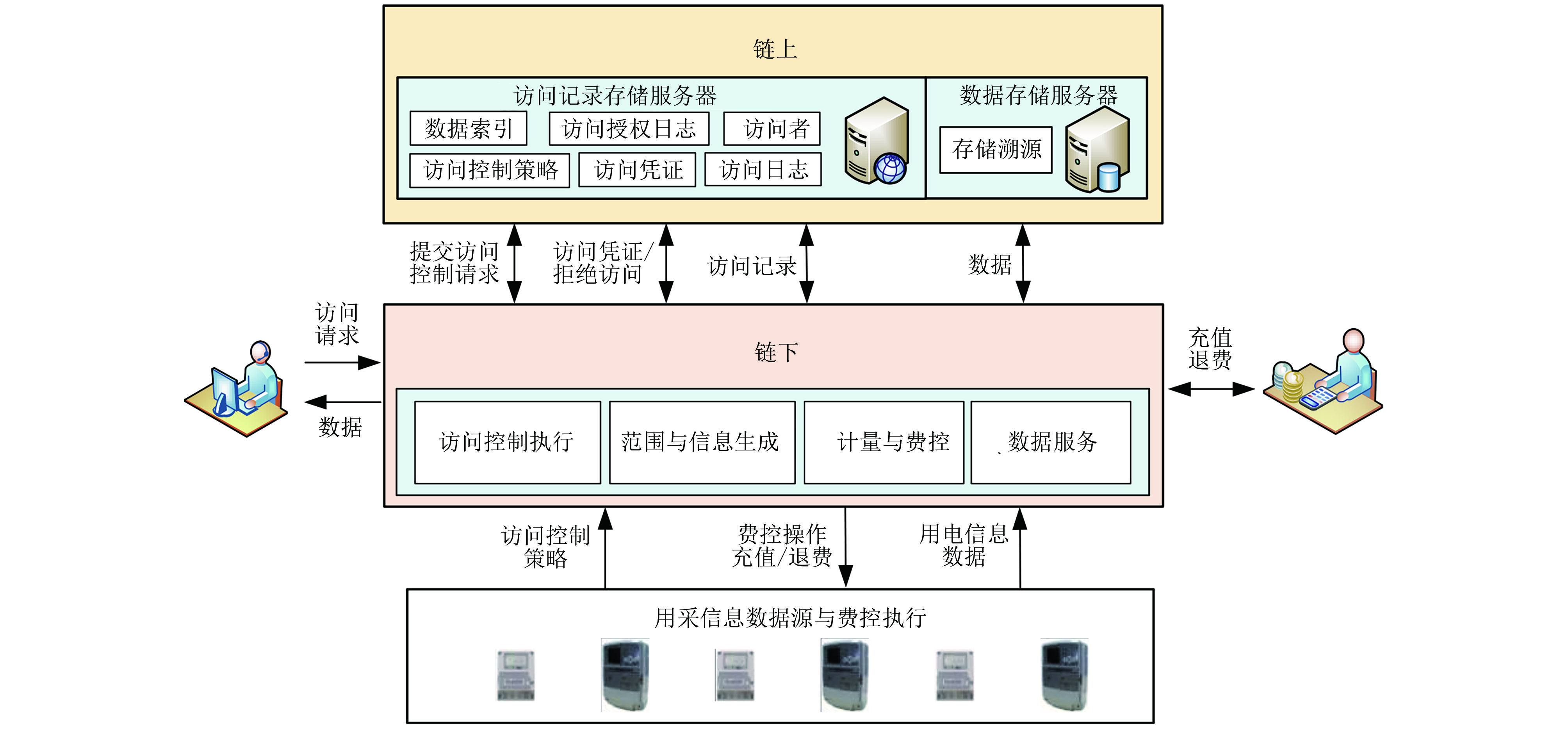

图8 智能终端链下安全防护架构

Fig.8 Security protection architecture under intelligent terminal chain

图9 Hash摘要上链模型

Fig.9 Hash abstract uplink model

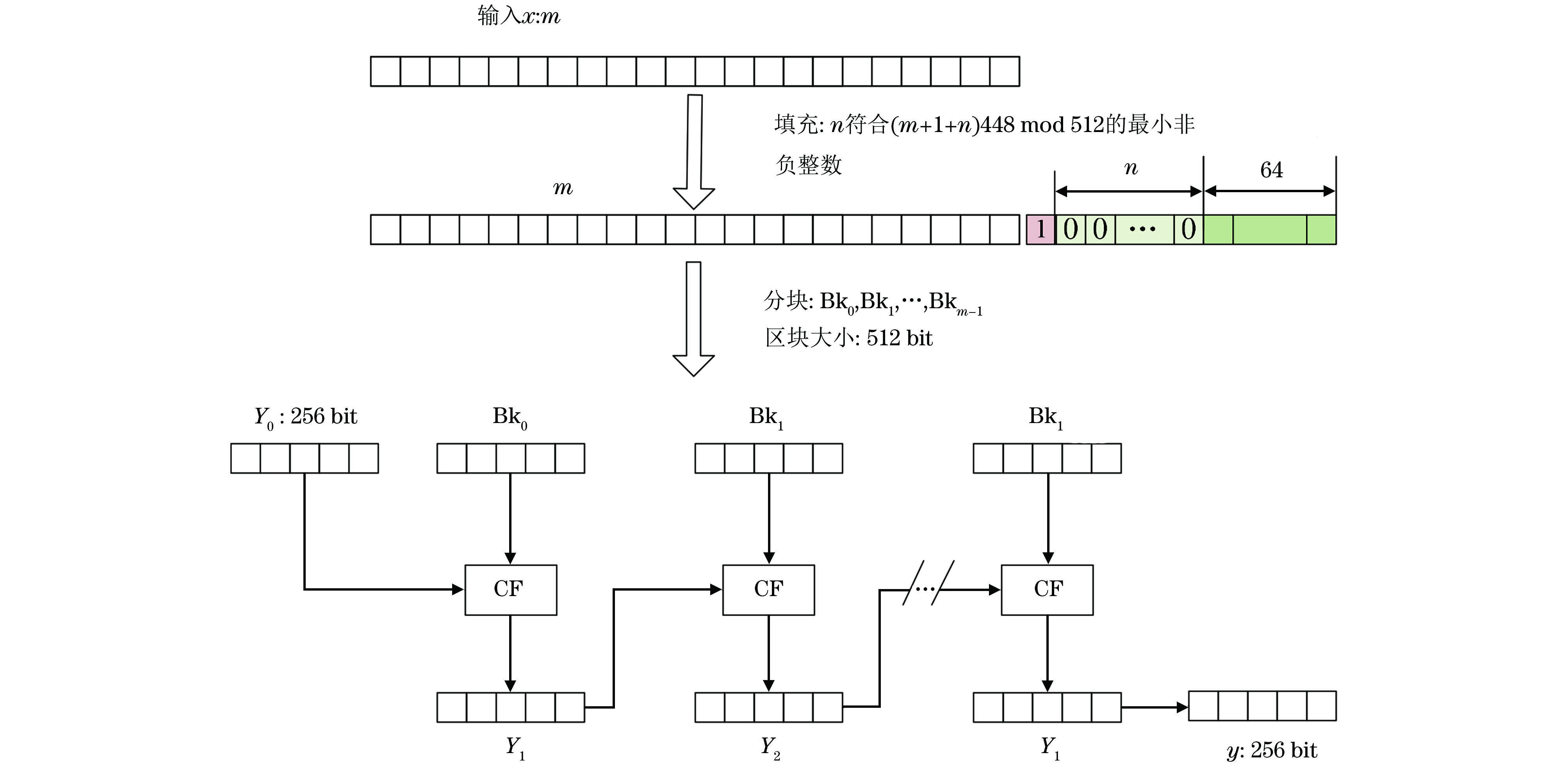

图10 SM3算法流程

Fig.10 Procedure of SM3 algorithm

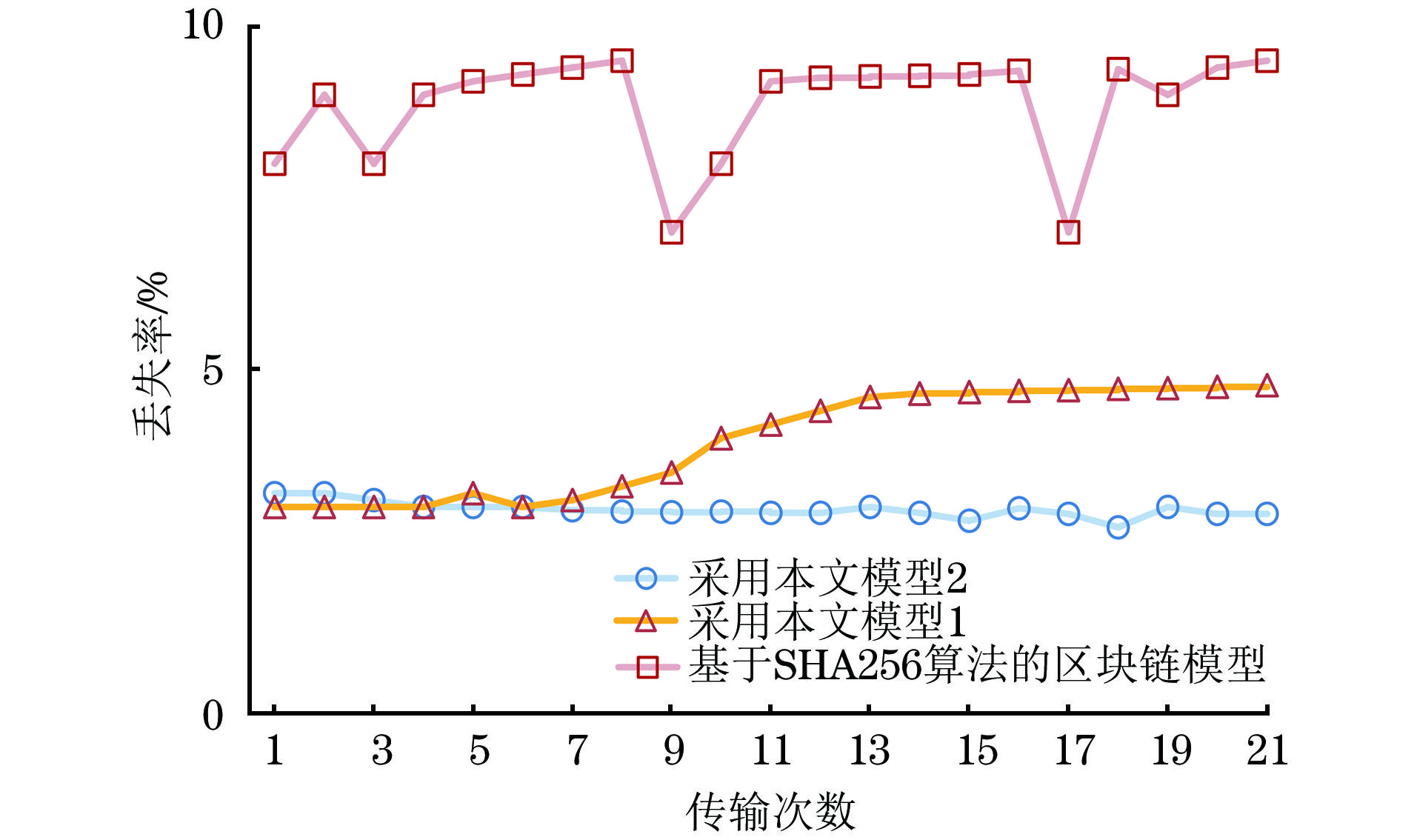

图11 不同模型的丢失率对比

Fig.11 Comparison of loss rates for different models

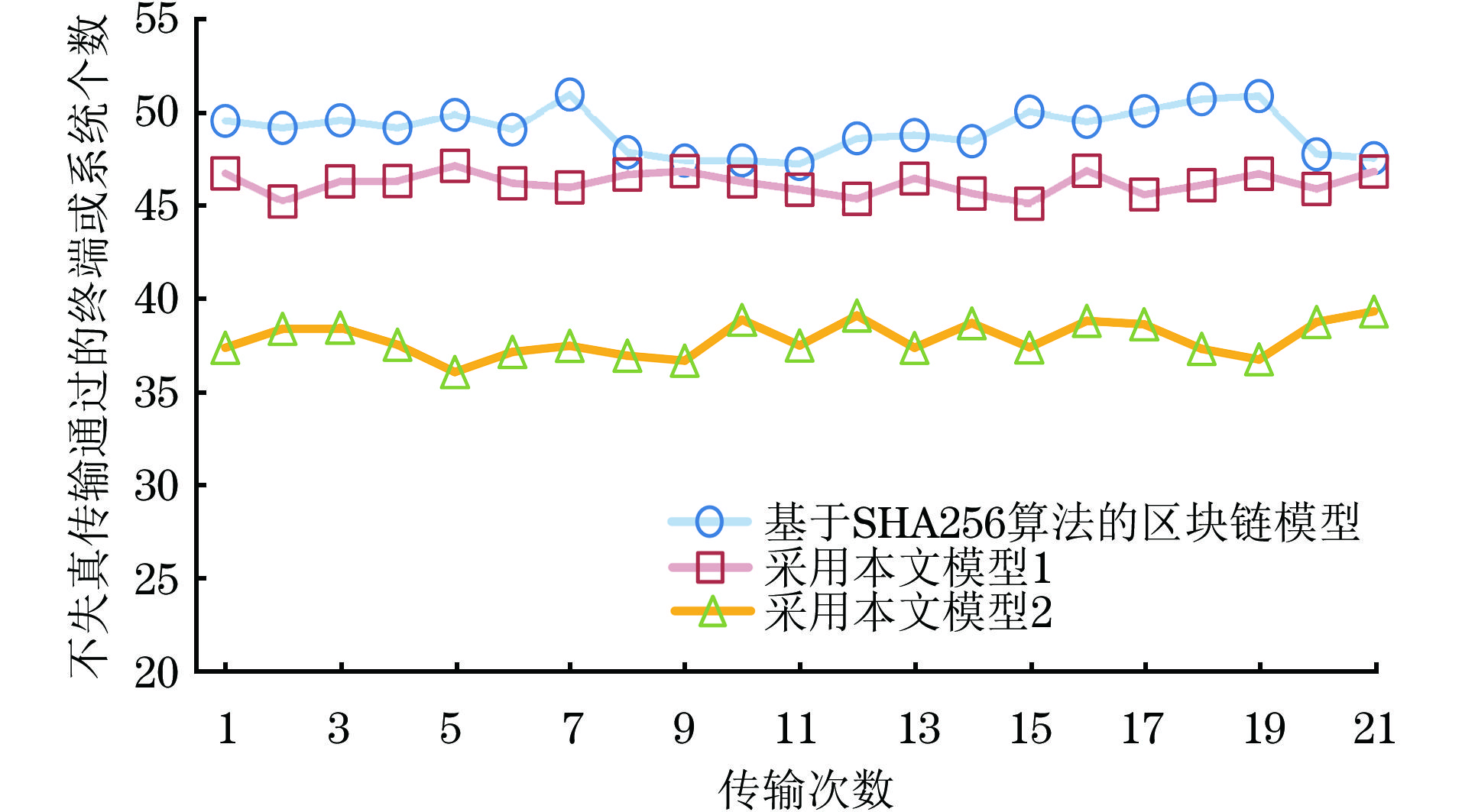

图12 数据不失真传输对比

Fig.12 Comparison of undistorted data transmission

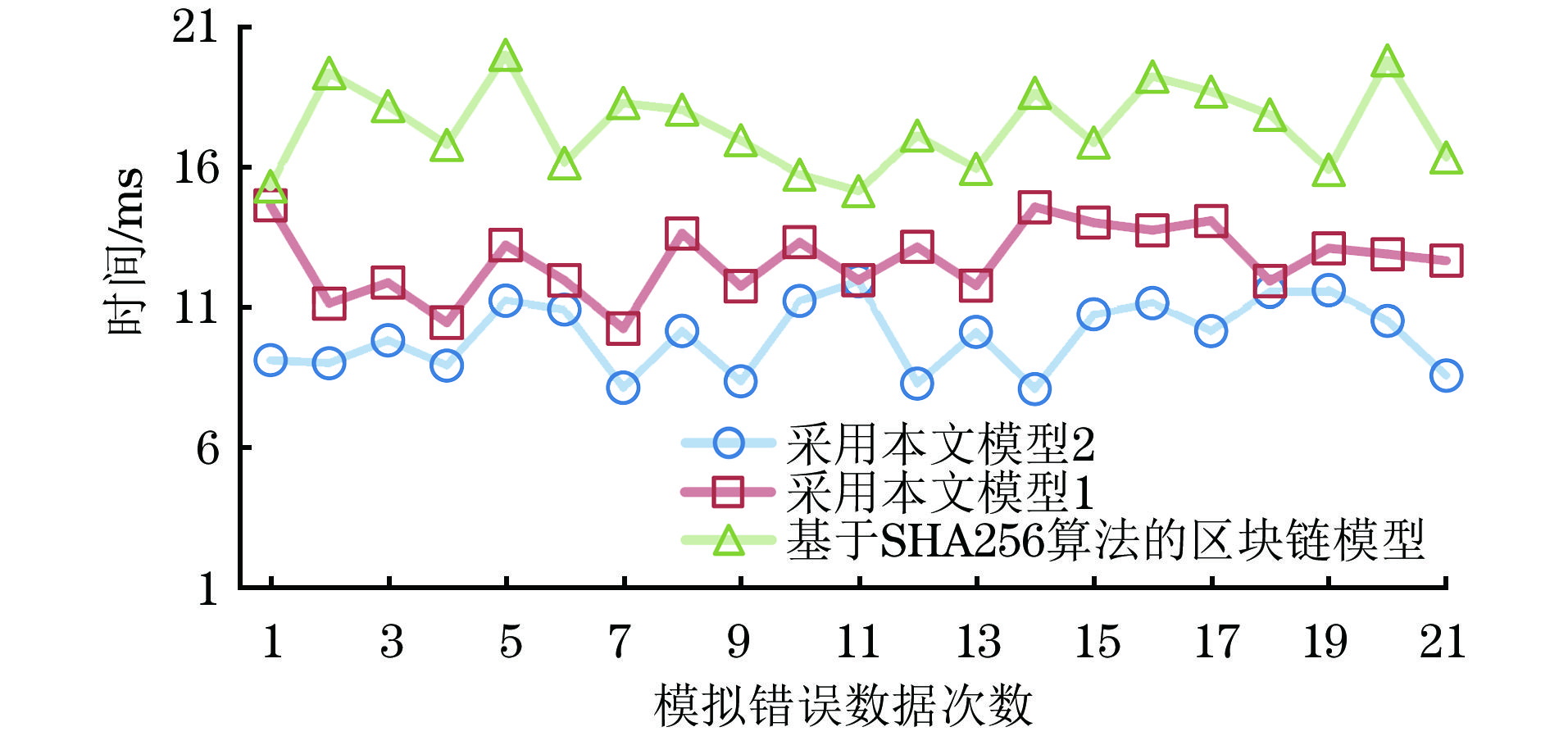

图13 不同模型的错误定位时间

Fig.13 Error location time of different models

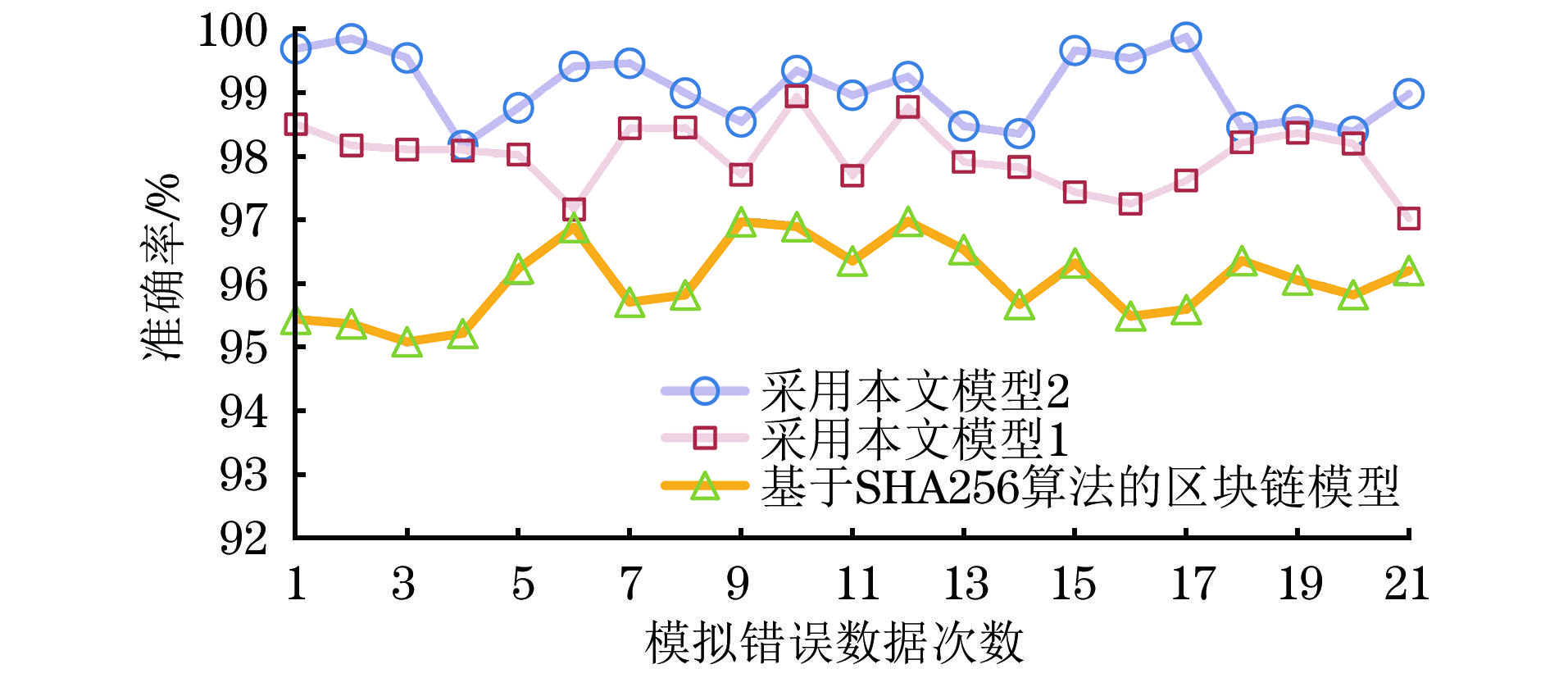

图14 不同模型的错误定位准确率

Fig.14 Error location accuracy of different models

参考文献 34
