面向磁浮轨道的多源点云数据的混合滤波方法

doi:10.19678/j.issn.1000-3428.0067725

摘要/Abstract

摘要：

在磁浮轨道的仿真数据处理过程中, 磁浮轨道点云数据的滤波提取是重要环节之一, 实际应用应根据待提取的磁浮数据特性, 采用高效的滤波方法。磁浮轨道的点云数据对象主要包括由无人机(UAV)倾斜摄影获取的磁浮轨道的图像数据并经过三维重建后形成的稠密点云数据、由手持式激光雷达扫描磁浮轨道获取的激光点云数据。根据这两种点云的数据特性, 考虑磁浮轨道四周复杂场景的点云环境, 分别对两种点云进行混合滤波。首先, 对激光点云数据采用八叉树下采样方法, 有效降低了点云数据的数量级, 节省了运行时间。然后, 分别对激光点云与稠密点云数据采用布料模拟滤波(CSF)方法, 过滤了地平面点云数据, 保留了非地面点云数据; 采用统计离群点去除(SOR)滤波方法, 筛除了大量离群点; 根据磁浮轨道特征, 采用直通滤波过滤了坐标范围外的点云数据。实验结果表明, 在不影响磁浮轨道结构的前提下, 对于采用八叉树下采样方法的激光点云数据和没有采用八叉树下采样的稠密点云数据, 该方法的滤波率分别为86.15%和64.76%, 经混合滤波后的两种点云数据的结构近似, 点云数量处于同一数量级, 为磁浮轨道点云特征提取等后续任务提供了有效保障。

关键词: 磁浮轨道, 多源点云数据, 八叉树下采样, 布料模拟滤波, 统计离群点去除滤波

Abstract:

In the simulation data processing of maglev tracks, the filtering and extraction of maglev track point cloud data is an important link. Thus, practical applications should adopt an efficient filtering method according to the characteristics of the maglev data to be extracted. The point cloud data objects of the maglev track primarily include the image data of the maglev track, which is obtained by Unmanned Aerial Vehicle (UAV) oblique photography and formed into dense point cloud data after 3D reconstruction, and the laser point cloud data, which is obtained by handheld lidar scanning of the maglev track. Based on the data characteristics of these point clouds and considering the complex scenes around the maglev track, the two types of point clouds are mixed and filtered. First, the octree downsampling method is used for laser point cloud data, which effectively reduces the order of magnitude of the point cloud data and saves running time. The Cloth Simulation Filtering (CSF) method is then used on the laser point cloud and dense point cloud data to filter the ground plane point cloud and retain the non-ground point cloud data, respectively. A Statistical Outlier Removal (SOR) filtering method is used to screen a large number of outliers. Based on the characteristics of the maglev track, point clouds outside the coordinate range are filtered through straight-through filtering. On the premise of not changing the structure of the maglev track, the experimental results show that the filtering rates of the proposed method are 86.15% and 64.76% for the octree-downsampled laser point cloud data and the dense point cloud data without octree downsampling, respectively. These two point cloud datasets have similar structural ranges after hybrid filtering and a number of point clouds of the same order of magnitude, which can be effective for methods such as feature extraction of point clouds in maglev orbits.

Key words: maglev track, multisource point cloud data, octree downsampling, Cloth Simulation Filtering(CSF), Statistical Outlier Removal (SOR) filtering

张玉鑫, 张雷, 欧冬秀. 面向磁浮轨道的多源点云数据的混合滤波方法[J]. 计算机工程, 2024, 50(9): 54-62.

ZHANG Yuxin, ZHANG Lei, OU Dongxiu. Hybrid Filtering Method for Multisource Point Cloud Data of Maglev Tracks[J]. Computer Engineering, 2024, 50(9): 54-62.

https://www.ecice06.com/CN/Y2024/V50/I9/54

图/表 16

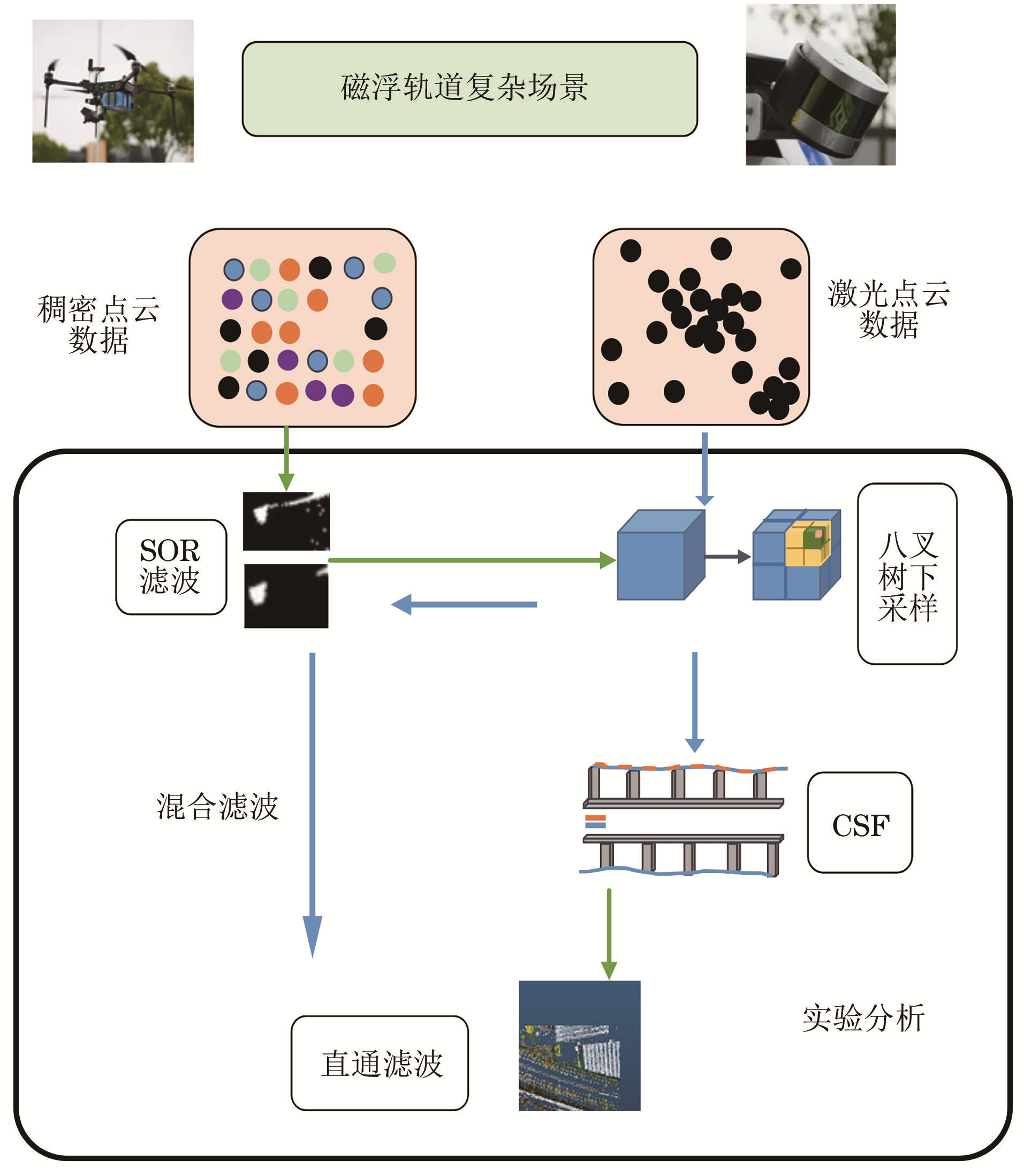

图1 多源点云数据混合滤波方法框架

Fig.1 Framework of hybrid filtering method for multisource point cloud data

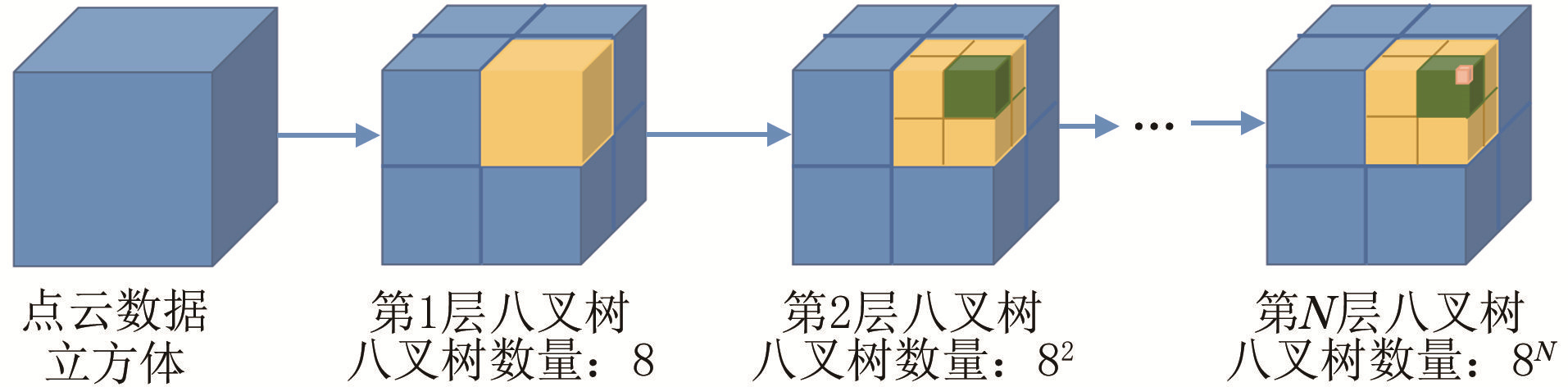

图2 八叉树拓扑结构简易示意图

Fig.2 Simplified schematic diagram of the octree topology

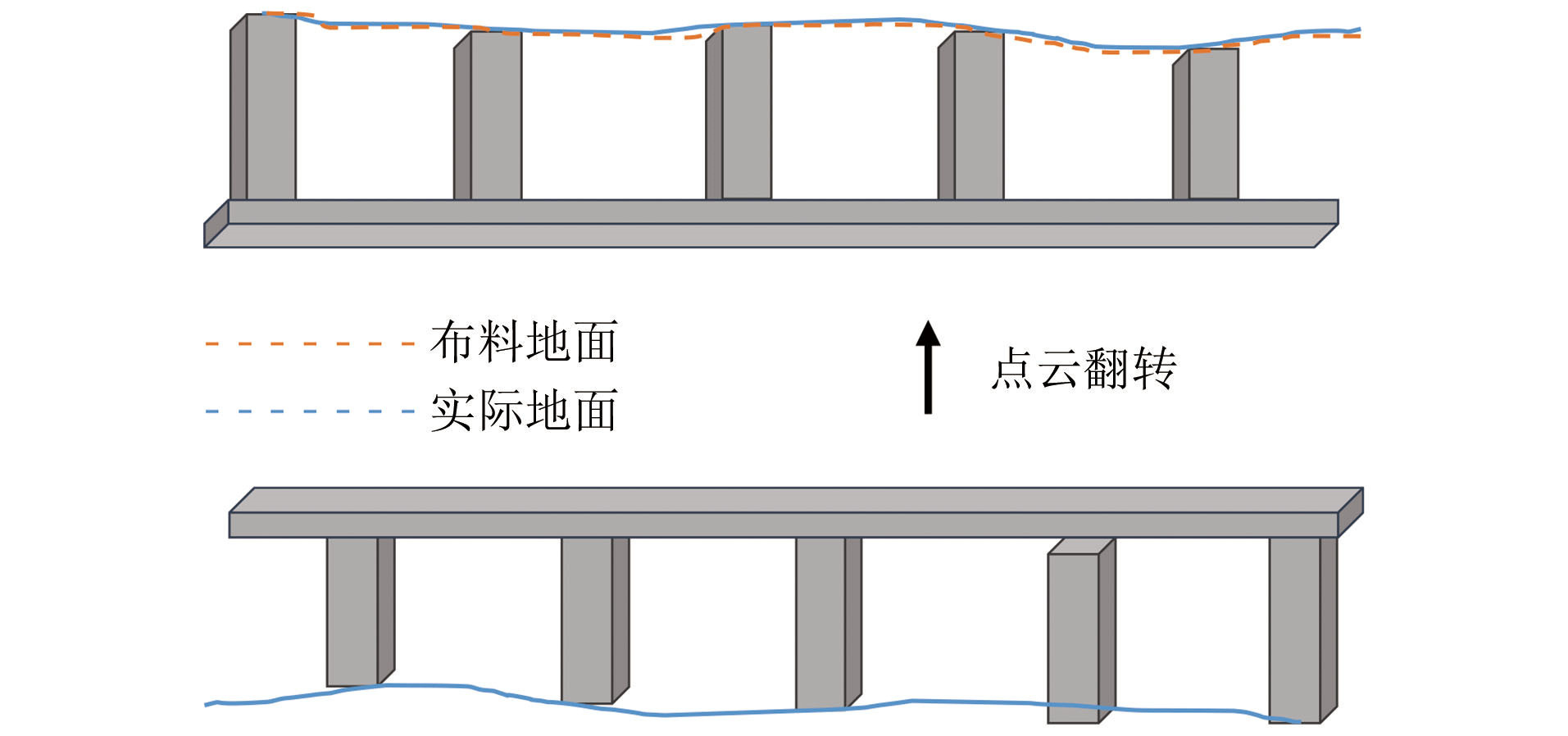

图3 CSF示意图

Fig.3 Schematic diagram of CSF

图4 激光扫描仪采集的点云数据示意图

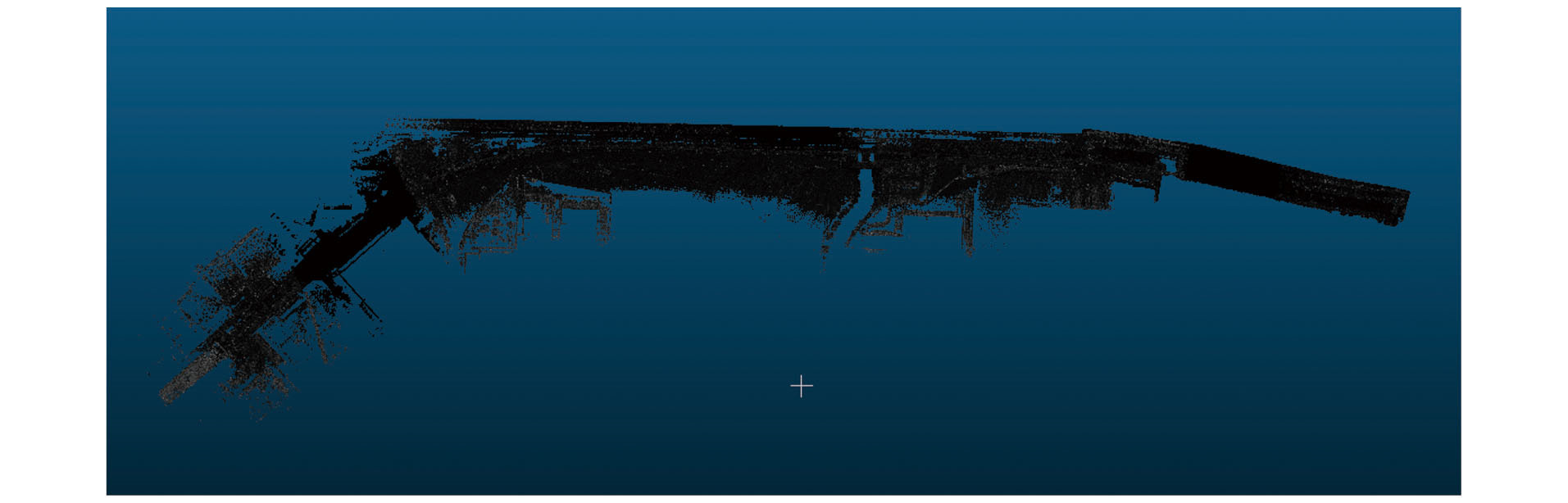

Fig.4 Schematic diagram of point cloud data collected by laser scanner

图5 同济大学嘉定校区1.5 km磁浮交通试验线全线

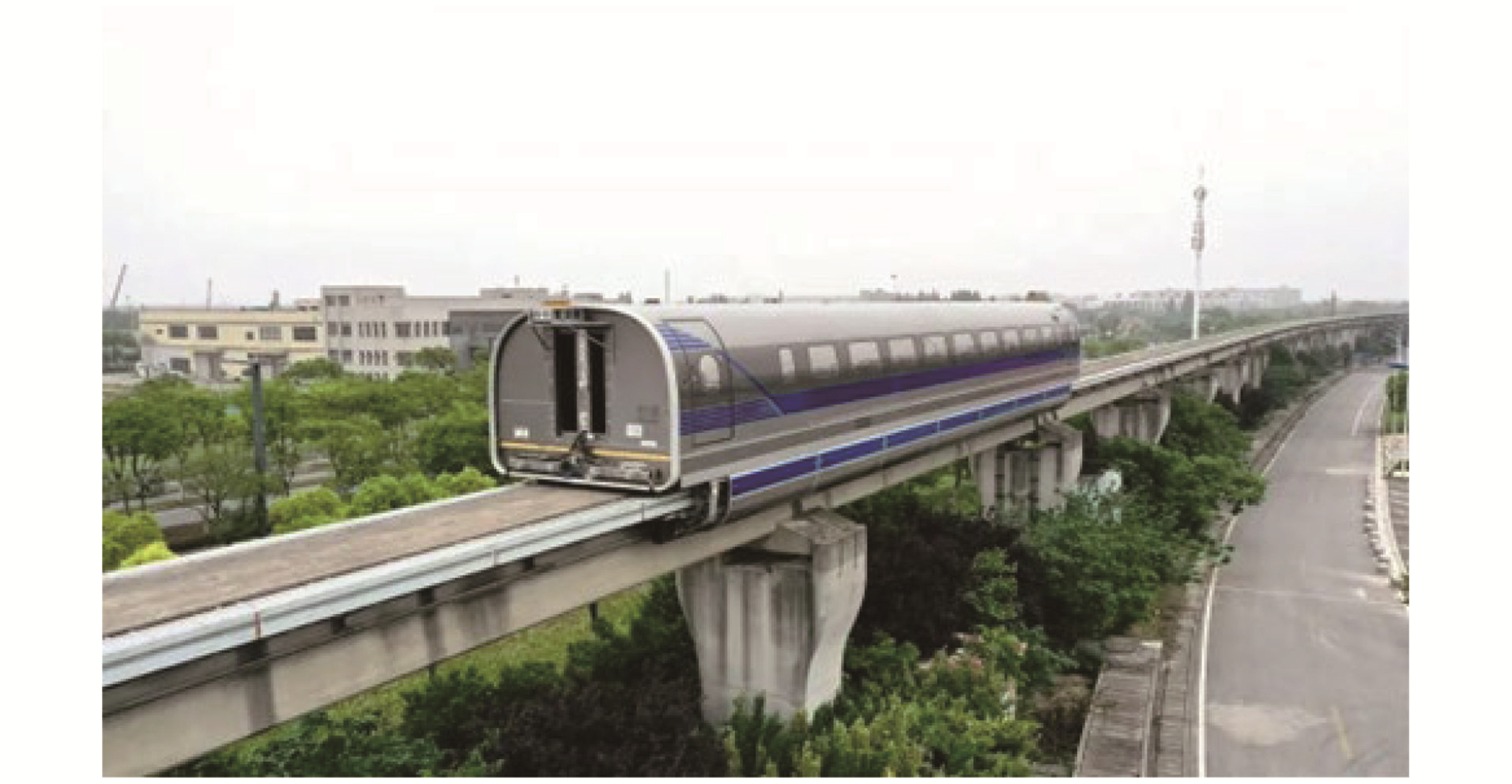

Fig.5 Entire 1.5 km maglev traffic test line of Jiading Campus of Tongji University

图6 磁浮轨道梁物理结构的无人机图像

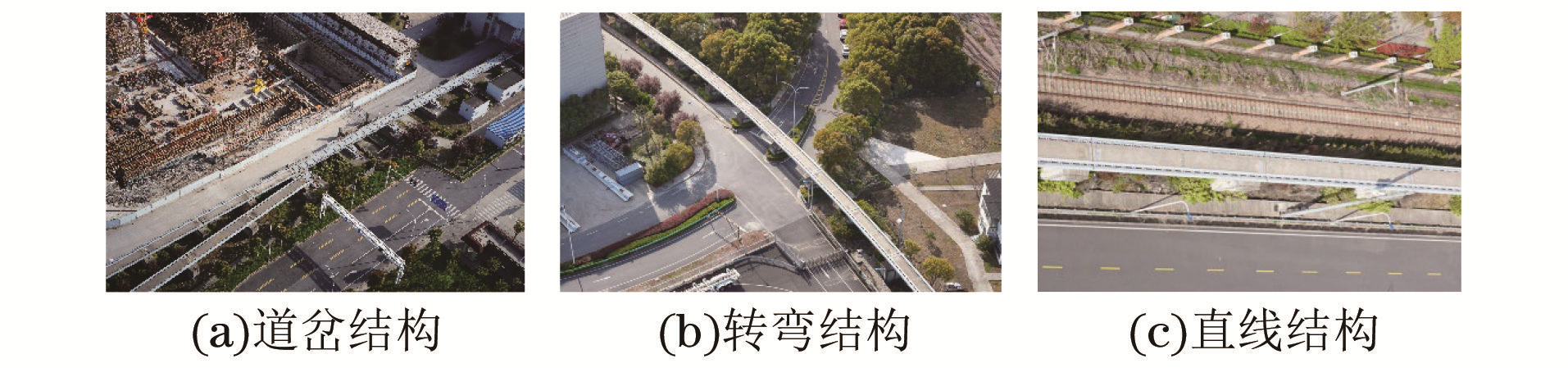

Fig.6 Unmanned aerial vehicle images of the physical structure of the maglev track beam

图7 磁浮三维重建稠密点云整体效果

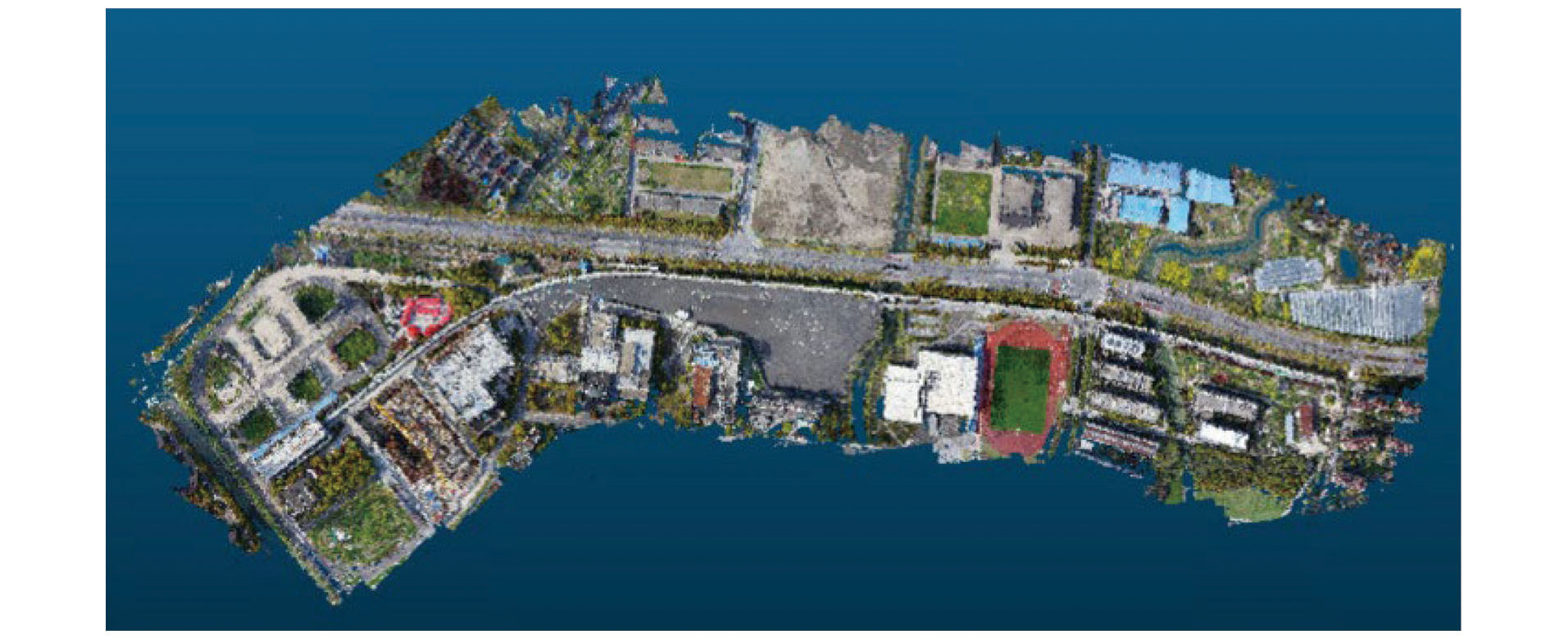

Fig.7 Overall effect of maglev 3D reconstruction of dense point clouds

图8 局部桥墩与桥梁俯视图

Fig.8 Top view of local bridge piers and beams

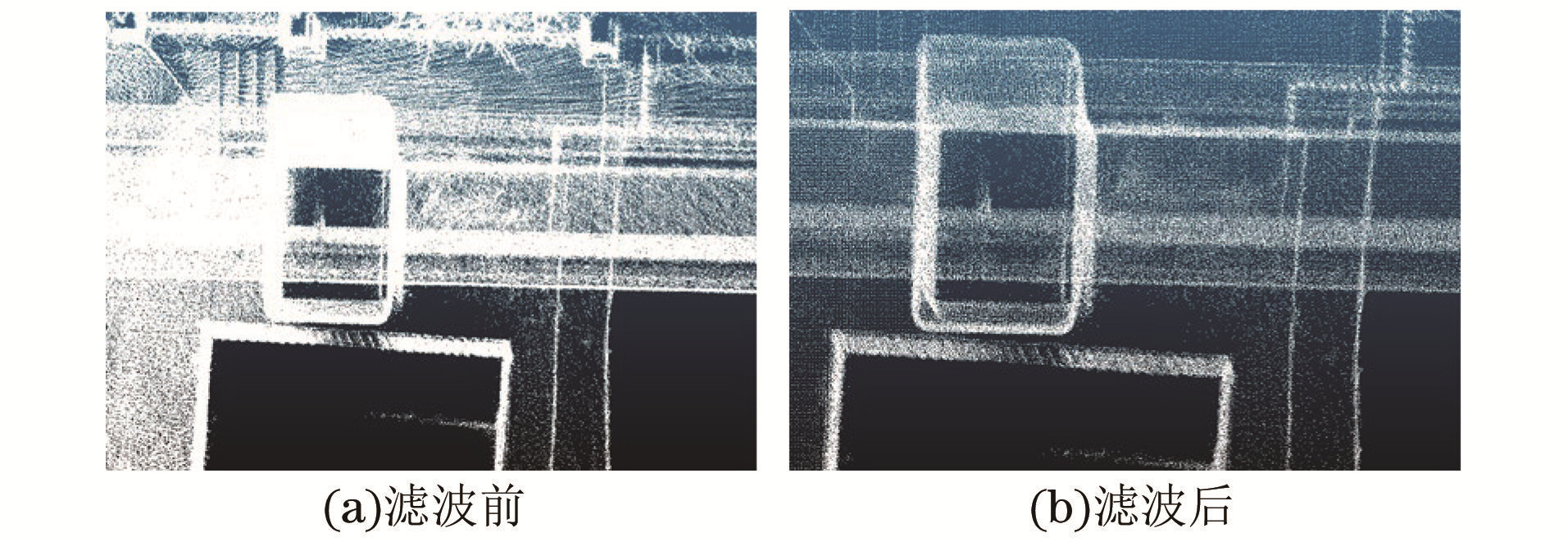

图9 CSF后的激光点云局部图

Fig.9 Local view of laser point cloud after CSF

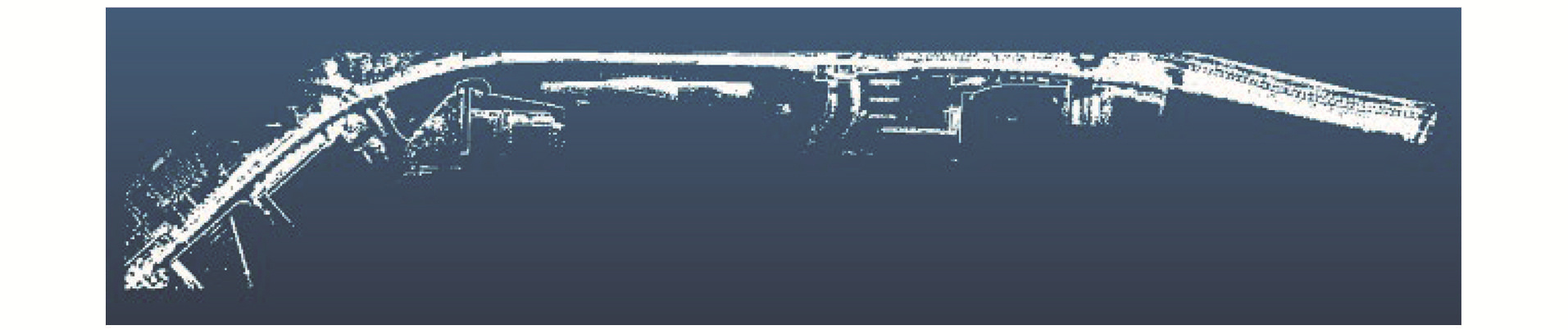

图10 混合滤波后的激光点云示意图

Fig.10 Schematic diagram of laser point cloud after hybrid filtering

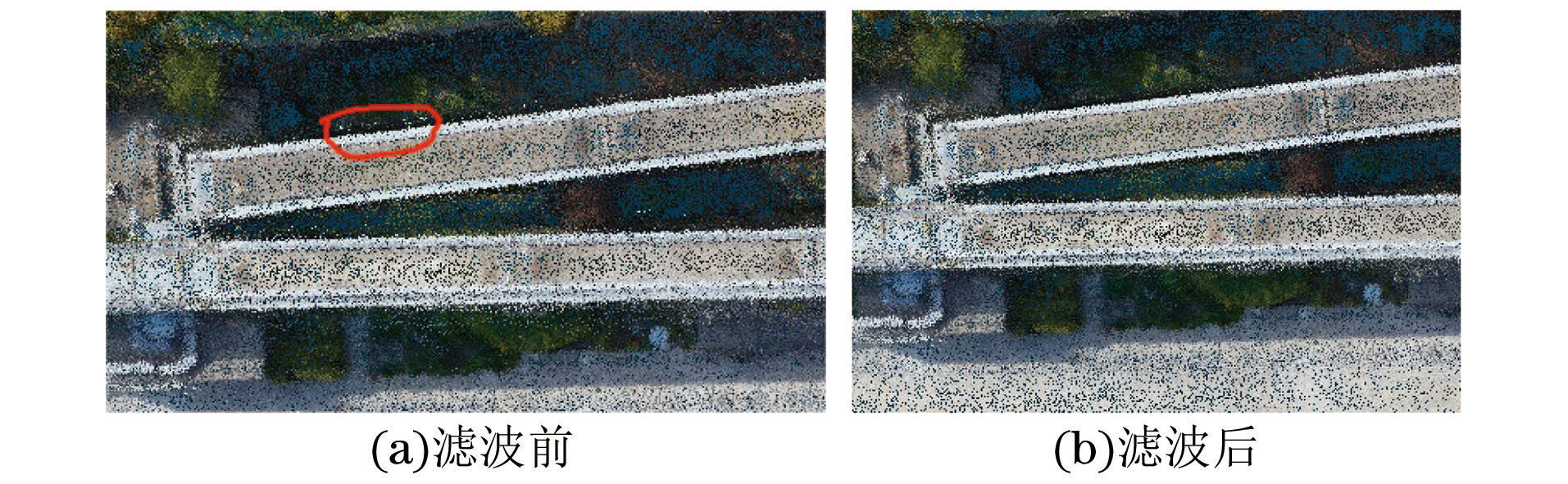

图11 稠密点云SOR滤波对比

Fig.11 Comparison of SOR filtering of dense point clouds

图12 稠密点云道岔结构SOR滤波对比

Fig.12 Comparison of SOR filtering of dense point cloud turnout structure

图13 一条分割后的道岔轨道稠密点云示意图

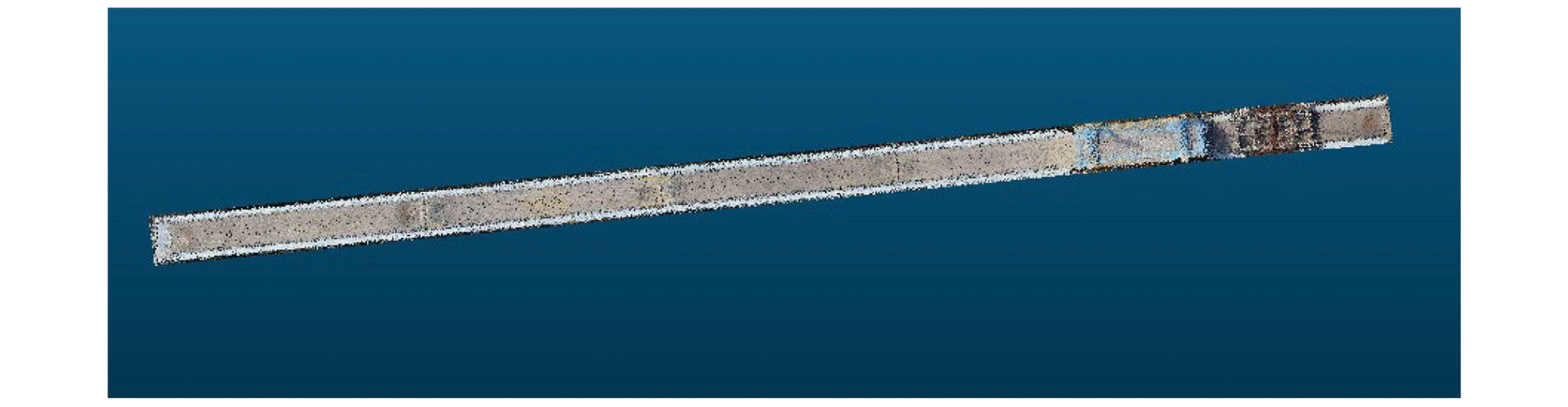

Fig.13 Schematic diagram of dense point cloud of a split turnout track

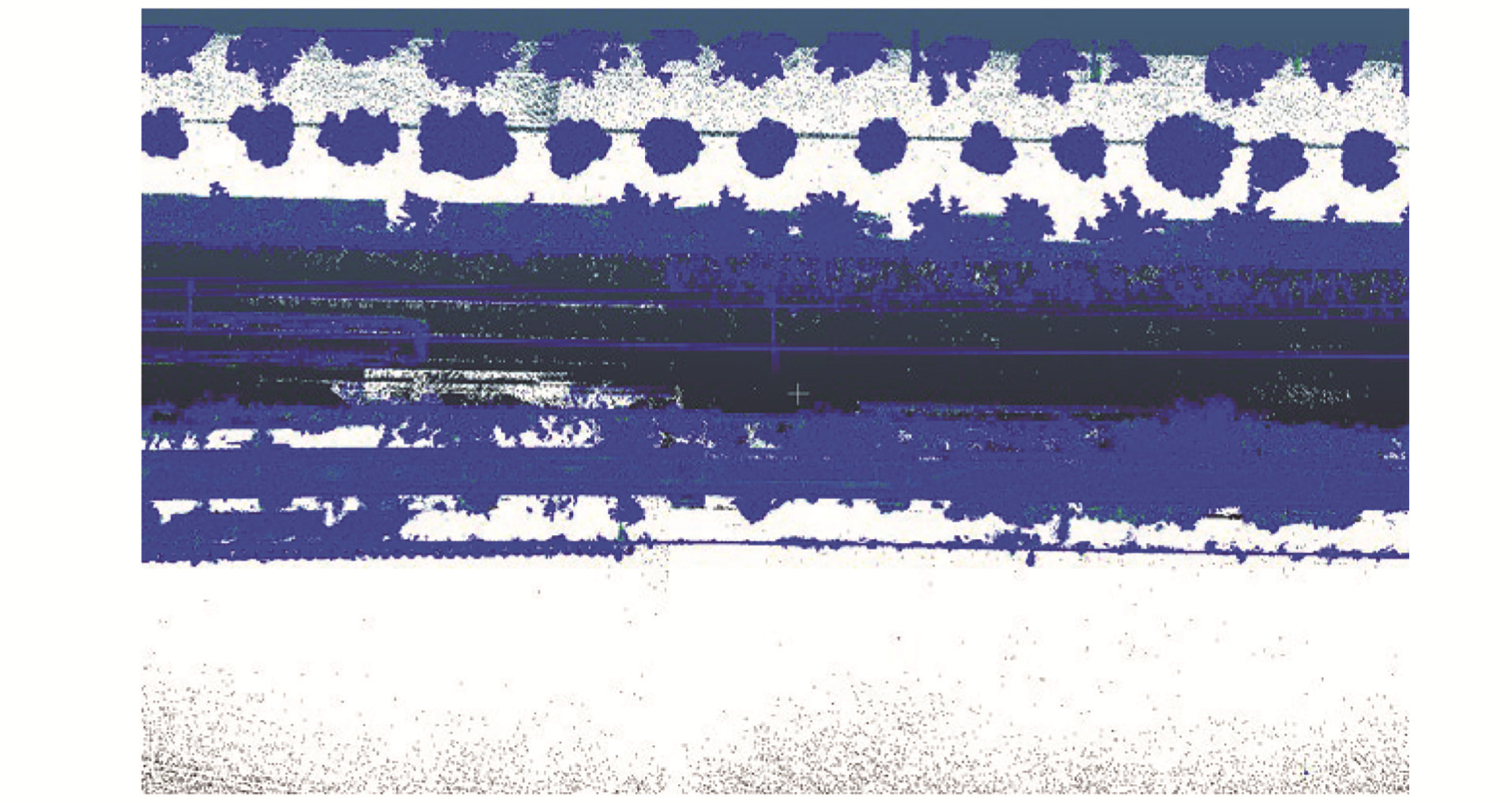

图14 稠密点云CSF对比

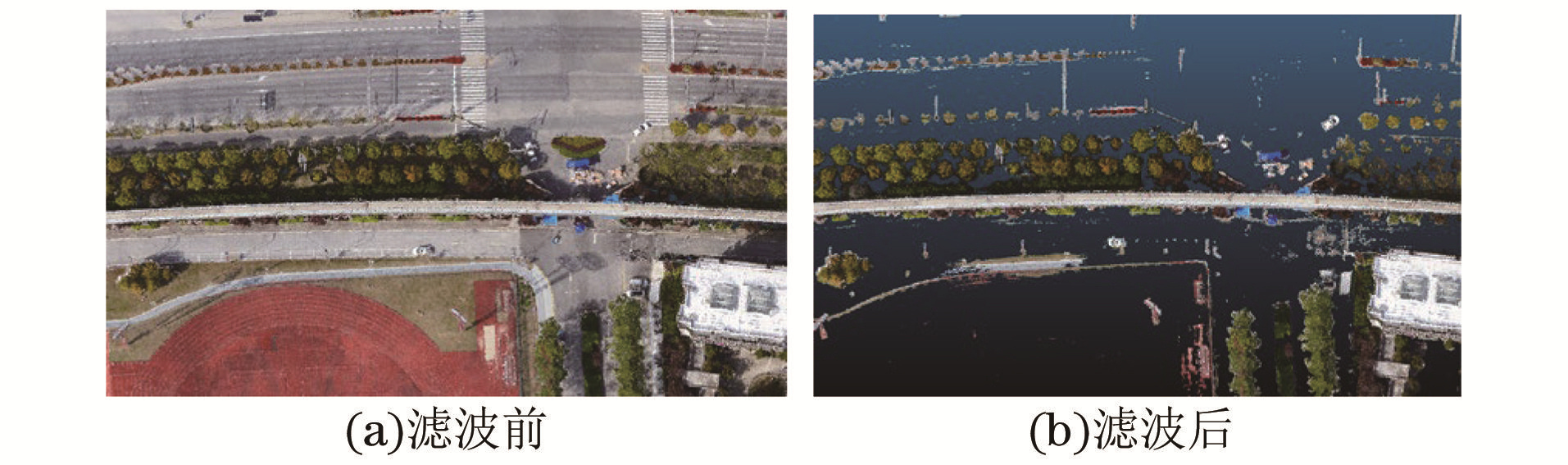

Fig.14 Comparison of CSF of dense point clouds

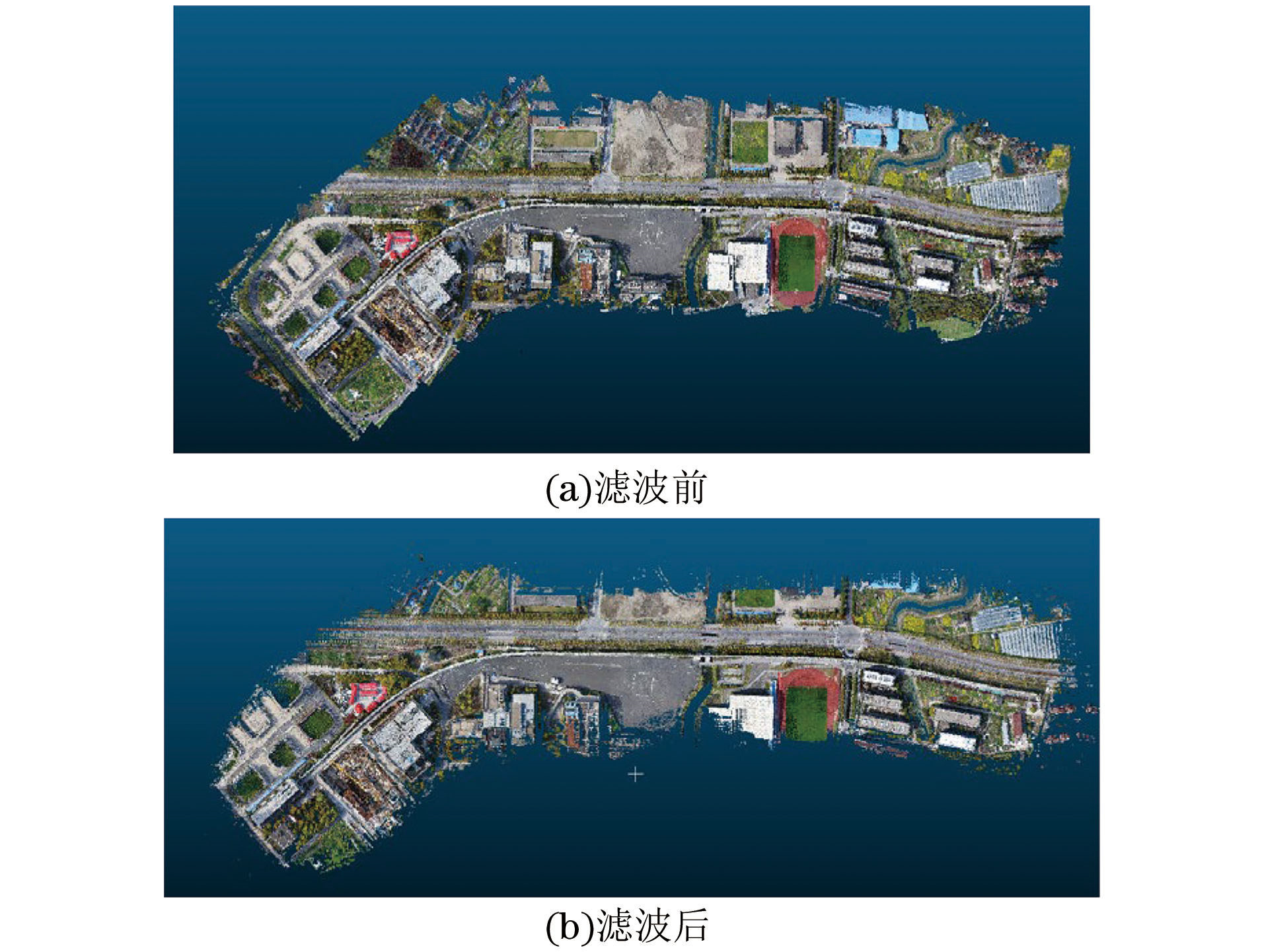

图15 混合滤波后的稠密点云示意图

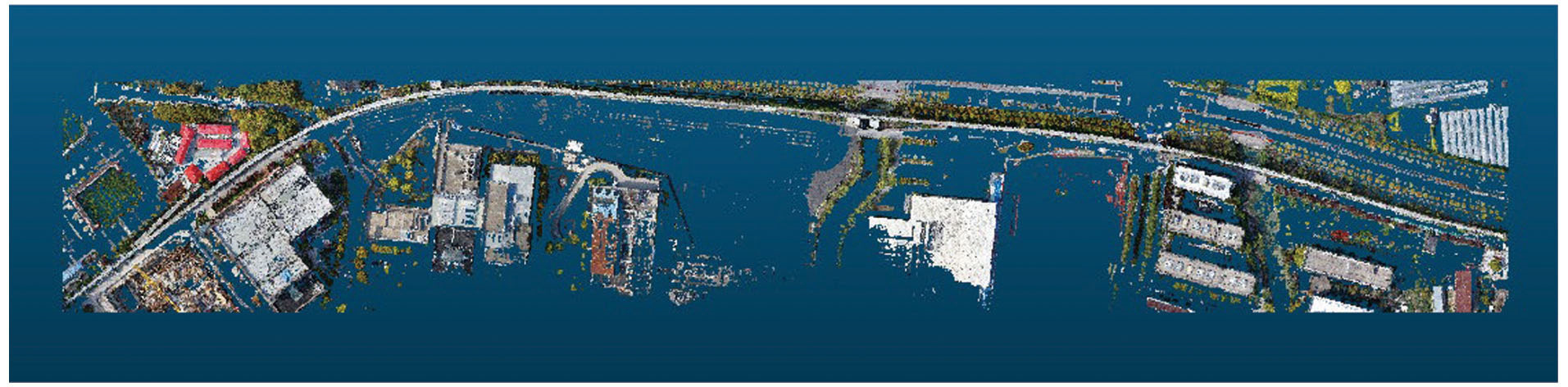

Fig.15 Schematic diagram of dense point clouds after hybrid filtering
