基于MDTimeGAN的序列数据生成方法

doi:10.19678/j.issn.1000-3428.0069688

计算机工程 ›› 2024, Vol. 50 ›› Issue (11): 59-69. doi: 10.19678/j.issn.1000-3428.0069688

基于MDTimeGAN的序列数据生成方法

朱春强¹^,², 刘彬³^,*(), 朱莉³

1. 西安交通大学计算机科学与技术学院, 陕西西安 710049
2. 国网陕西省电力有限公司培训中心, 陕西西安 710032
3. 西安科技大学计算机科学与技术学院, 陕西西安 710054

收稿日期:2024-04-02 出版日期:2024-11-15 发布日期:2024-11-01
通讯作者: 刘彬
基金资助:
国网陕西省电力有限公司科技项目(5226PX240003); 国网陕西省电力有限公司数字化项目(B326PX230001); 国网陕西省电力有限公司数字化项目(B326PX23000)

Sequence Data Generation Method Based on MDTimeGAN

ZHU Chunqiang¹^,², LIU Bin³^,*(), ZHU Li³

1. School of Computer Science and Technology, Xi'an Jiaotong University, Xi'an 710049, Shaanxi, China
2. State Grid Shaanxi Electric Power Company Limited Training Center, Xi'an 710032, Shaanxi, China
3. School of Computer Science and Technology, Xi 'an University of Science and Technology, Xi'an 710054, Shaanxi, China

Received:2024-04-02 Online:2024-11-15 Published:2024-11-01
Contact: LIU Bin

摘要/Abstract

摘要：

非侵入式负荷分解是能源管理领域的一个热门研究课题, 其在各种工业和商业场景中都得到广泛应用。针对负荷分解数据集中存在的样本不平衡问题, 提出一种基于多判别器时间序列生成对抗网络(MDTimeGAN)的序列数据生成方法。通过对原始序列提取时域、频域、时频域以及自相关特征, 并在TimeGAN模型基础上采用4种不同的判别器对时间序列的多维度特征进行判别, 从而提高对原始数据的判别能力, 提升数据质量。在3种公开数据集上进行横向和纵向对比实验, 结果表明, 与对比模型相比, MDTimeGAN模型生成的数据能够更好地覆盖原始数据的分布, 在数据分布方面保持良好的性能, 生成数据符合时间序列数据的特点。

关键词: 非侵入式负荷分解, 时间序列生成对抗网络, 时间序列生成, KS检验, Wassertein距离

Abstract:

Non-invasive load decomposition is a popular research topic in the field of energy management, being widely employed in various industrial and commercial scenarios. To address the problem of sample imbalance in load decomposition datasets, the present study proposes a method for generating sequence data based on Multi-Discriminator Time series Generative Adversarial Network(MDTimeGAN). By extracting the time domain, frequency domain, time-frequency domain, and autocorrelation features of the original sequence and using four different discriminators based on the TimeGAN model to discriminate multidimensional features of the time series, the discrimination ability of the original data and the data quality are improved simultaneously. Horizontal and vertical comparison experiments on three public datasets show that, compared with the comparative models, the data generated by the proposed model more effectively cover the distribution of the original data, maintain good performance in data distribution, and meet the characteristics of time-series data.

Key words: non-invasive load decomposition, Time-series Generative Adversarial Network(TimeGAN), time series generation, KS test, Wassertein distance

朱春强, 刘彬, 朱莉. 基于MDTimeGAN的序列数据生成方法[J]. 计算机工程, 2024, 50(11): 59-69.

ZHU Chunqiang, LIU Bin, ZHU Li. Sequence Data Generation Method Based on MDTimeGAN[J]. Computer Engineering, 2024, 50(11): 59-69.

https://www.ecice06.com/CN/Y2024/V50/I11/59

图/表 18

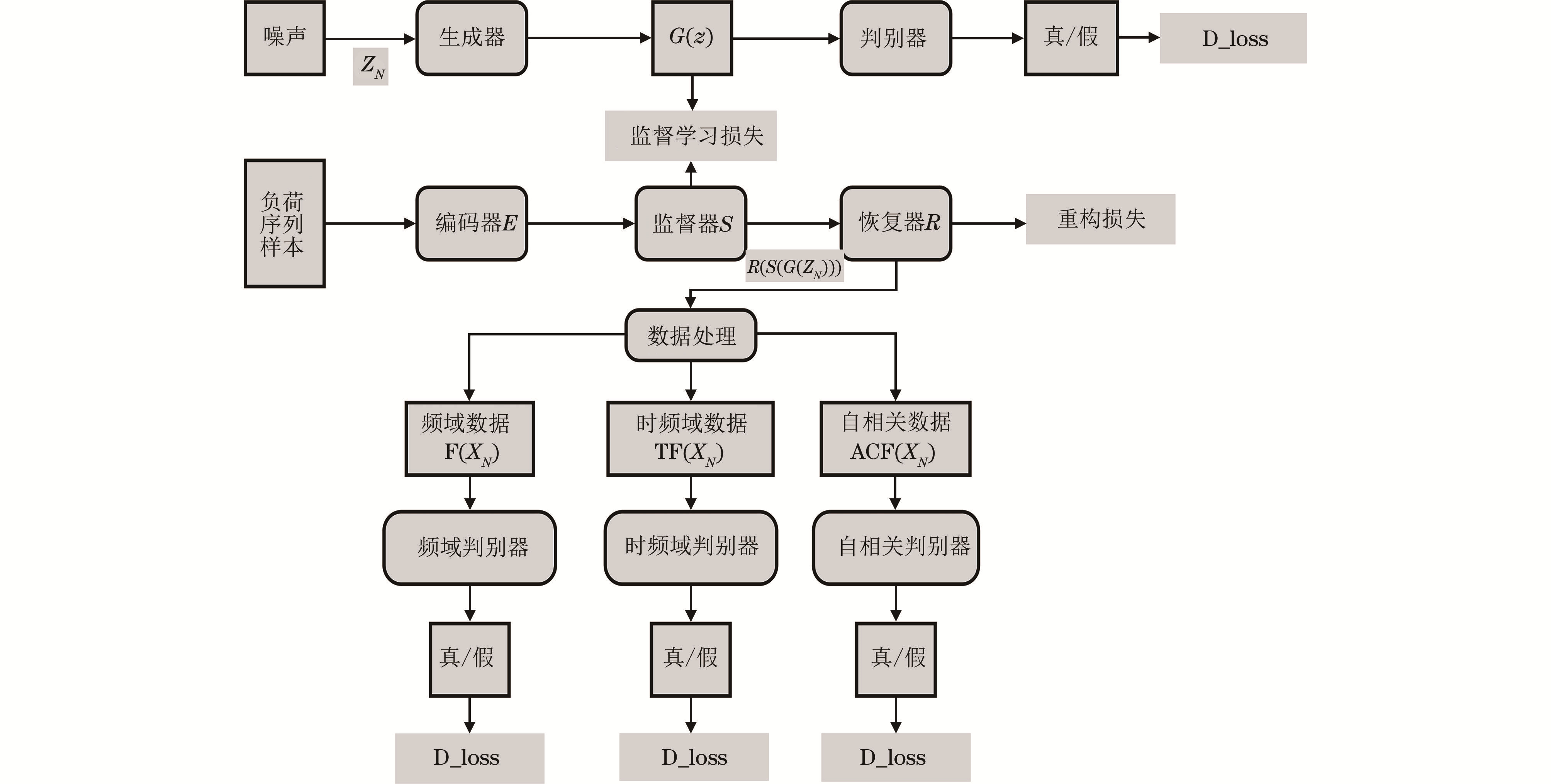

图1 MDTimeGAN模型结构

Fig.1 MDTimeGAN model structure

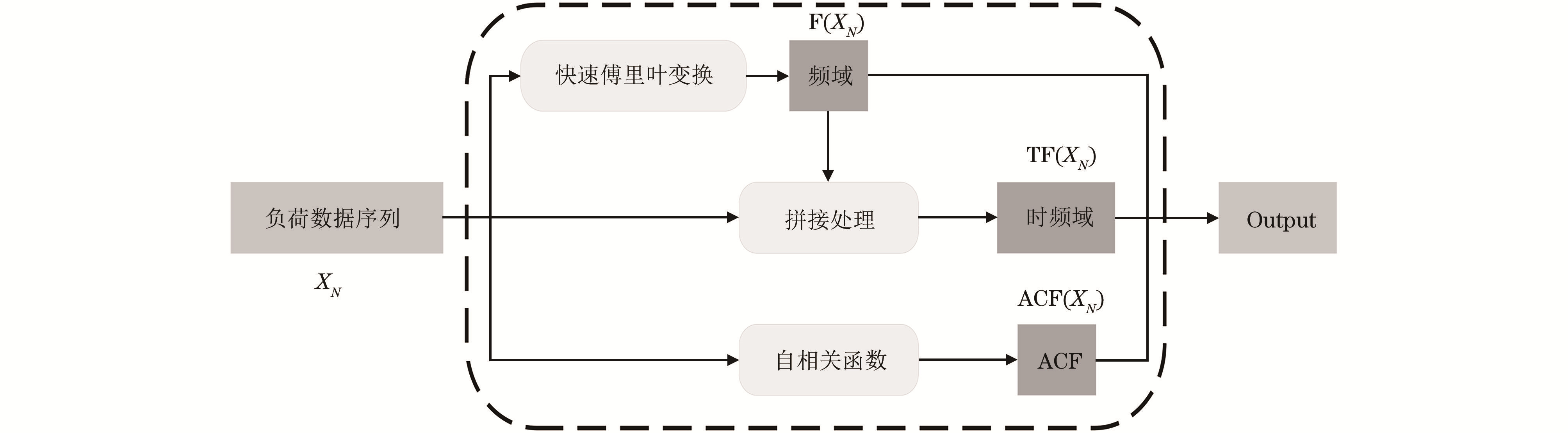

图2 数据处理流程

Fig.2 Data processing flow

图3 电力供需平衡数据集纵向对比结果(PCA处理结果)

Fig.3 Longitudinal comparison results of power supply and demand balance dataset(PCA processing results)

图4 电力供需平衡数据集纵向对比结果(t-SNE处理结果)

Fig.4 Longitudinal comparison results of power supply and demand balance dataset(t-SNE processing results)

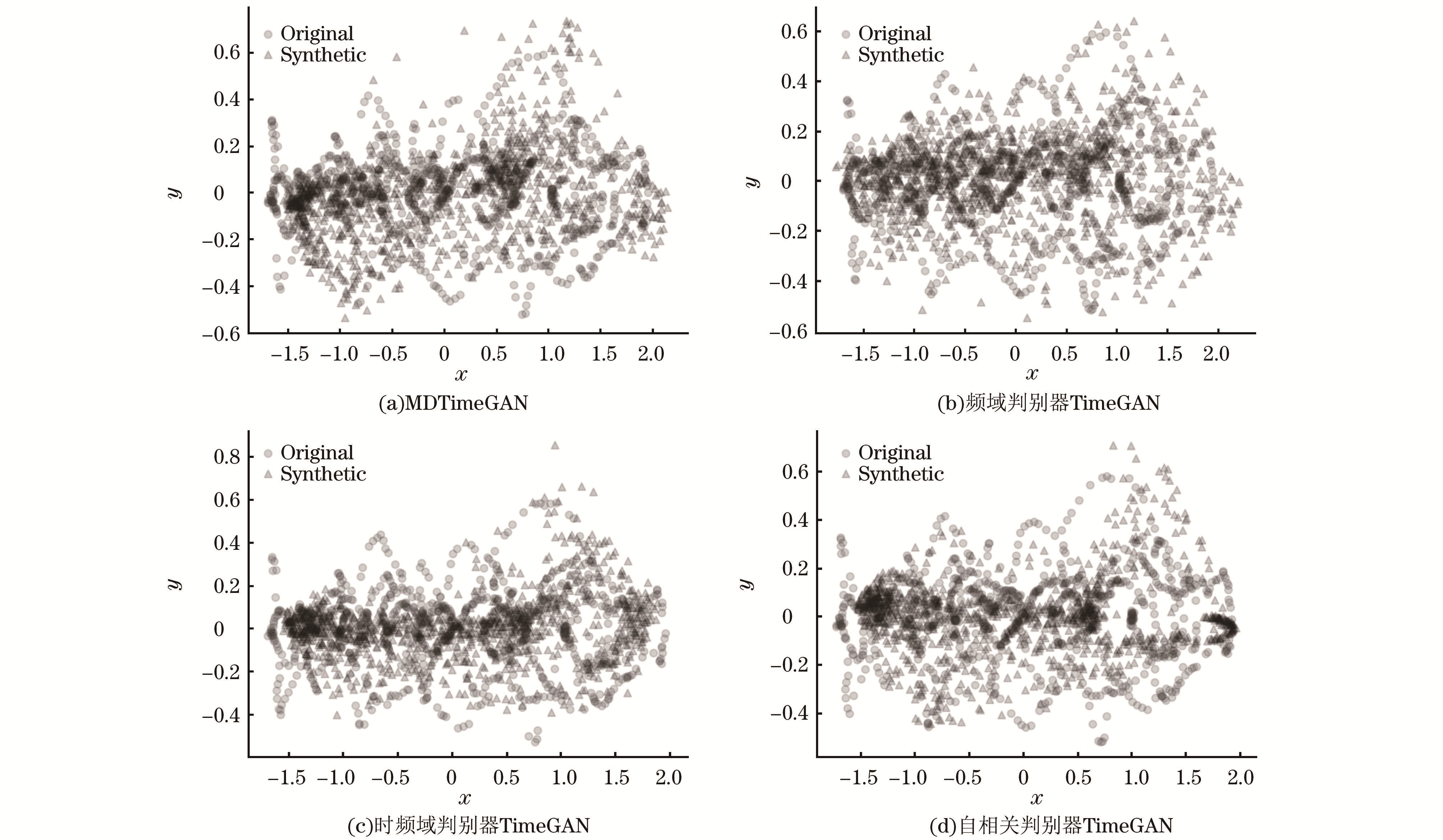

图5 电力供需平衡数据集横向对比结果(PCA处理结果)

Fig.5 Horizontal comparison results of power supply and demand balance dataset(PCA processing results)

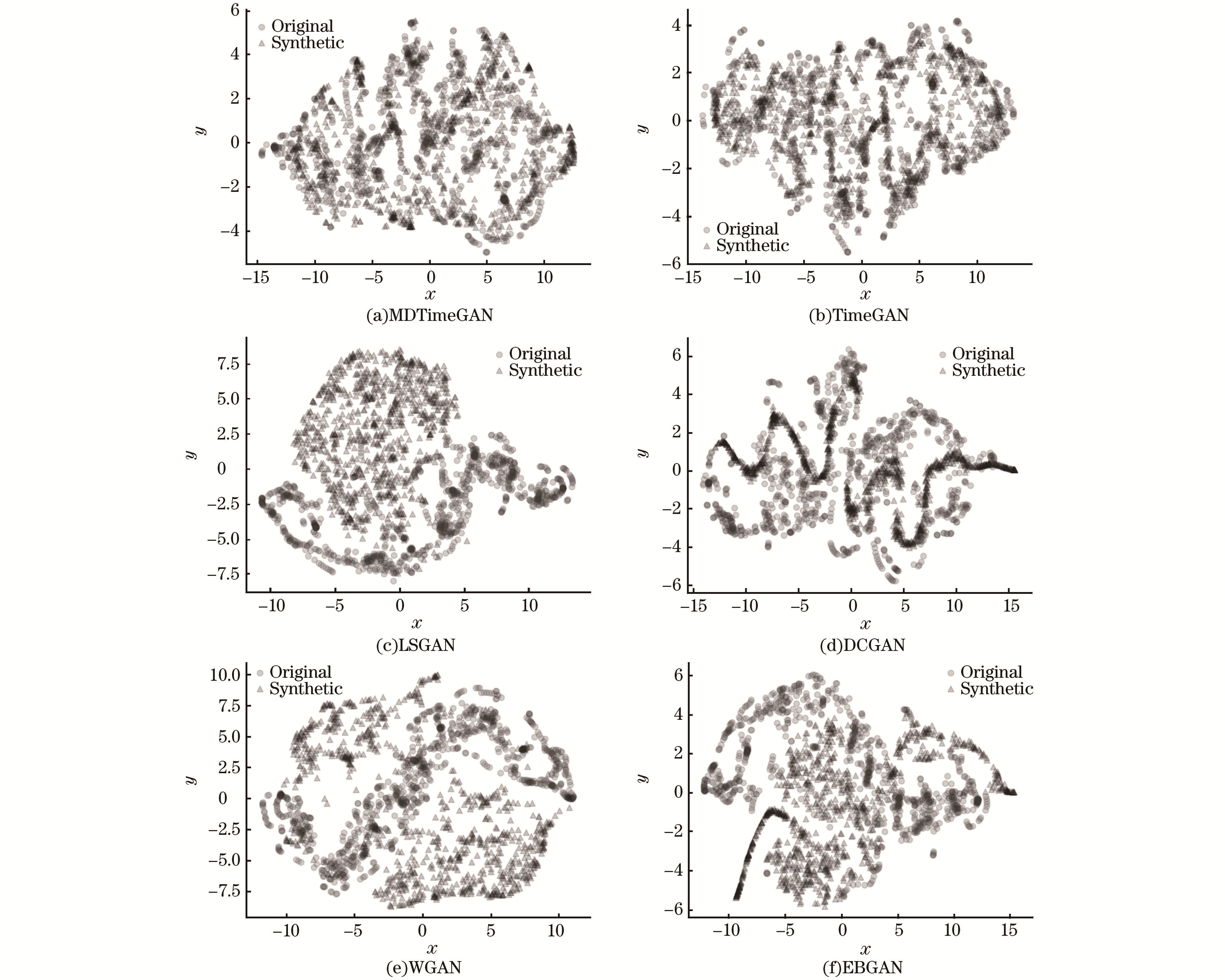

图6 电力供需平衡数据集横向对比结果(t-SNE处理结果)

Fig.6 Horizontal comparison results of power supply and demand balance dataset(t-SNE processing results)
