计算机工程 ›› 2019, Vol. 45 ›› Issue (9): 291-295,301.doi: 10.19678/j.issn.1000-3428.0051708

• 开发研究与工程应用 • 上一篇    下一篇

航空发动机试车半物理仿真中的故障模拟技术研究

陈龙泉1, 李克新1, 李梦洁2, 武殿梁2, 程奂翀2

  1. 1. 中国航发上海商用航空发动机制造有限责任公司, 上海 201306;
    2. 上海交通大学 机械与动力工程学院, 上海 200240
  • 收稿日期:2018-05-31 修回日期:2018-08-06 出版日期:2019-09-15 发布日期:2019-09-03
  • 作者简介:陈龙泉(1986-),男,硕士,主研方向为航空发动机试车测试;李克新,工程师;李梦洁,硕士研究生;武殿梁,副研究员;程奂翀,工程师。
  • 基金项目:
    上海市科委项目(15DZ1160900)。

Research on Fault Simulation Technology in Aero-engine Test-run Semi-Physical Simulation

CHEN Longquan1, LI Kexin1, LI Mengjie2, WU Dianliang2, CHENG Huanchong2

  1. 1. AECC Shanghai Commercial Aircraft Engine Manufacturing Co., Ltd., Shanghai 201306, China;
    2. School of Mechanical Engineering, Shanghai Jiaotong University, Shanghai 200240, China
  • Received:2018-05-31 Revised:2018-08-06 Online:2019-09-15 Published:2019-09-03

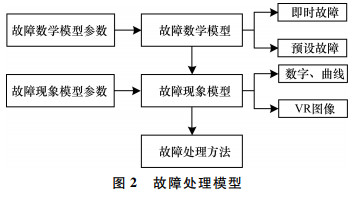

摘要: 为提高航空发动机研发过程中试车人员的故障处理能力,设计可视化的试车半物理仿真系统,对空气起动系统、燃油系统、发动机系统进行故障模拟。建立故障数学模型、现象数学模型和故障排除方法相结合的故障处理模型,实现故障的设置、现象和处理过程仿真,根据系统响应时间和精度对故障排除操作进行关键性能指标评价。仿真结果表明,该系统可实现航空发动机试车故障过程的可视化,能够直观反映故障现象和处理过程。

关键词: 发动机试车, 故障诊断, 故障模拟, 故障处理模型, 关键性能指标

Abstract: In order to improve the fault handling capability of the test crew in the aero-engine development process,a visual test-run semi-physical simulation system is designed to conduct fault simulation in the air start system,fuel system and engine system.A fault processing model combining fault mathematical model,phenomenon mathematical model and troubleshooting method is established to realize fault setting,phenomenon and process simulation,and key performance index for fault elimination operation is evaluated according to system response time and precision.Simulation results show that the system can realize the visualization of the aero-engine test-run failure process and can directly reflect the fault phenomenon and the process.

Key words: aero-engine test-run, fault diagnosis, fault simulation, fault processing model, critical performance index
