激活规则多目标优化算法在任务分解中的应用

doi:10.19678/j.issn.1000-3428.0053931

计算机工程 ›› 2020, Vol. 46 ›› Issue (3): 280-291. doi: 10.19678/j.issn.1000-3428.0053931

激活规则多目标优化算法在任务分解中的应用

胡亚楠^a, 李春生^a,b, 张可佳^a, 富宇^b

东北石油大学 a. 计算机与信息技术学院;b. 软件学院, 黑龙江大庆 163318

收稿日期:2019-02-16 修回日期:2019-03-20 发布日期:2019-04-22
作者简介:胡亚楠(1991-),女,博士研究生,主研方向为多智能体系统、数据挖掘;李春生,教授、博士;张可佳,讲师、博士;富宇,副教授、博士。
基金资助:
国家自然科学基金（51774090）；黑龙江省自然科学基金面上项目（F2015020）；东北石油大学青年科学基金（QJ-007-002）；东北石油大学研究生教育创新基金（JYCX_CX07_2018_1）。

Application of Rule Activation Multi-Objective Optimization Algorithm in Task Decomposition

HU Yanan^a, LI Chunsheng^a,b, ZHANG Kejia^a, FU Yu^b

a. School of Computer and Information Technology;b. College of Software, Northeast Petroleum University, Daqing, Heilongjiang 163318, China

Received:2019-02-16 Revised:2019-03-20 Published:2019-04-22

摘要/Abstract

摘要： 针对工业生产中计算量大、故障原因复杂的故障诊断任务，提出一种基于MPSO/D的激活规则多目标优化算法。采用置信规则库系统（EBRB）实现任务分解，以激活规则的不一致性与激活权重和作为多目标优化问题的目标函数，利用MPSO/D算法获取不一致性最小的激活规则集合，提高推理准确性。标准测试函数和三元复合驱采出井卡泵故障诊断实例中的测试结果表明，该算法能够有效提高EBRB系统的推理能力和虚拟导诊的任务分解准确性。

关键词: 故障诊断, 任务分解, 虚拟导诊, 扩展置信规则库, MPSO/D算法

Abstract: To address fault diagnosis tasks with large amounts of computation and complex fault causes in industrial production,this paper proposes a rule activation multi-objective optimization algorithm based on MPSO/D.First,Extended Belief Rule Base(EBRB) system is used to implement task decomposition.Next,the objective functions of the problems are optimized with inconsistency of activation rules and sum of activation weights taken as multiple objectives.Then MPSO/D algorithm is used to obtain a set of activation rules with minimal inconsistency,so as to improve inference accuracy.Experimental results on the standard test functions and the fault diagnosis example of the well pump for ternary compound flooding show that the proposed algorithm can effectively improve the reasoning ability of the EBRB system and the accuracy of task decomposition of virtual guidance.

Key words: fault diagnosis, task decomposition, virtual guidance, Extended Belief Rule Base(EBRB), MPSO/Dalgorithm

中图分类号:

TP18

胡亚楠, 李春生, 张可佳, 富宇. 激活规则多目标优化算法在任务分解中的应用[J]. 计算机工程, 2020, 46(3): 280-291.

HU Yanan, LI Chunsheng, ZHANG Kejia, FU Yu. Application of Rule Activation Multi-Objective Optimization Algorithm in Task Decomposition[J]. Computer Engineering, 2020, 46(3): 280-291.

https://www.ecice06.com/CN/Y2020/V46/I3/280

图/表 10

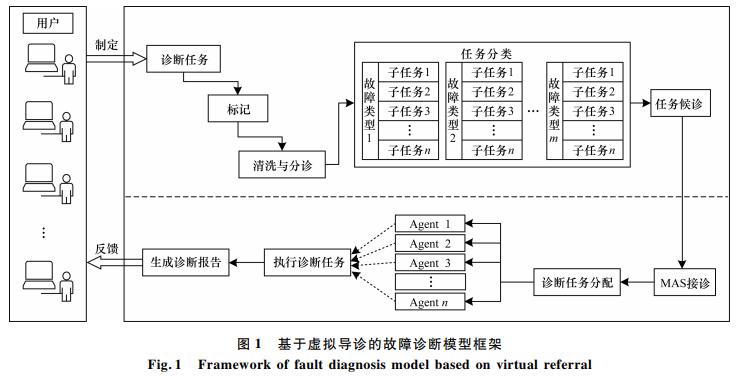

20200321092337

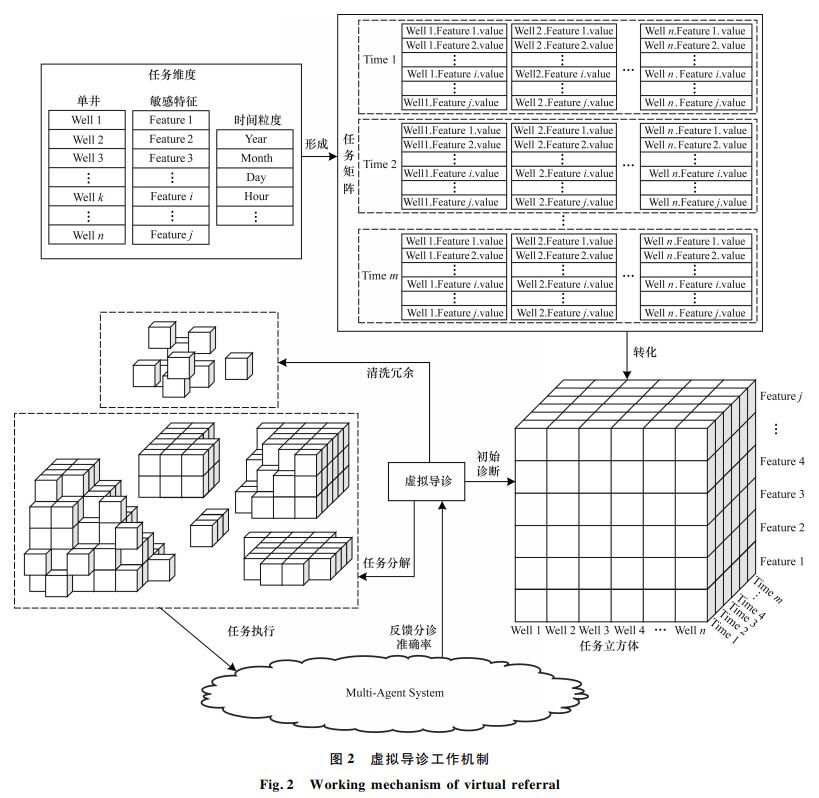

20200321092340

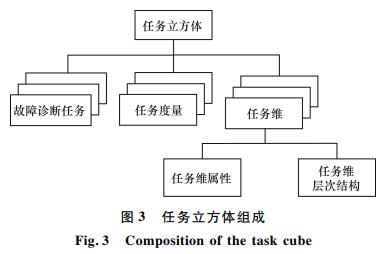

20200321092346

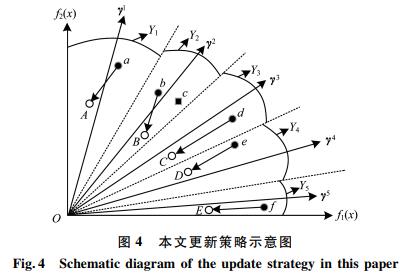

20200321092349

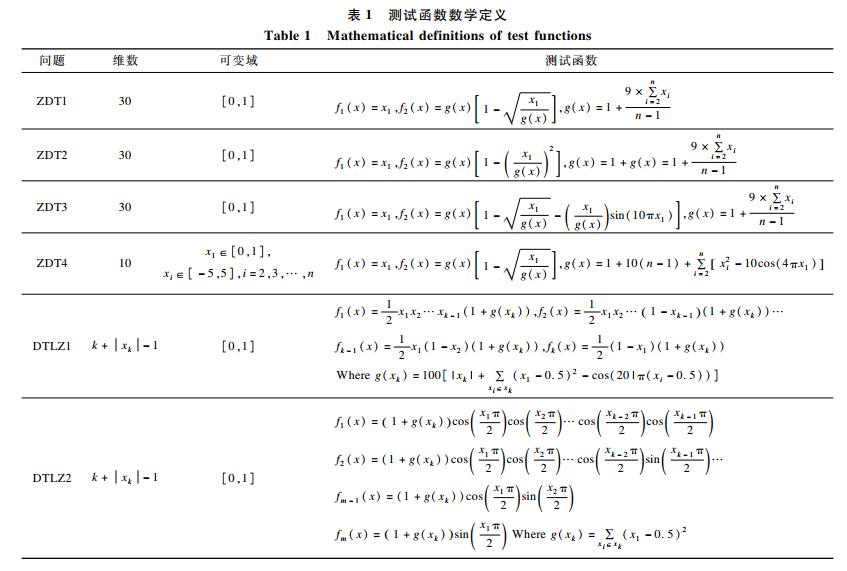

20200321092352

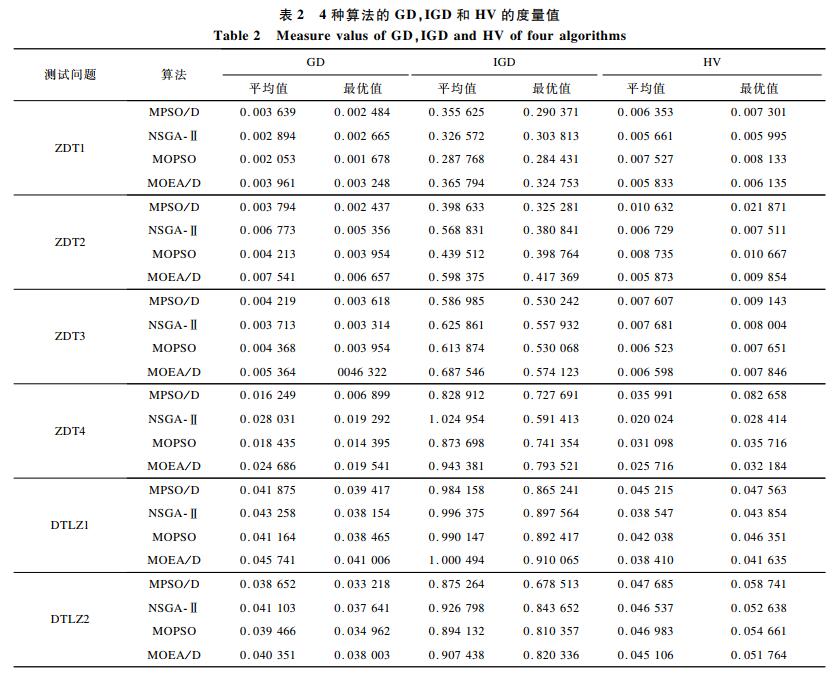

20200321092356

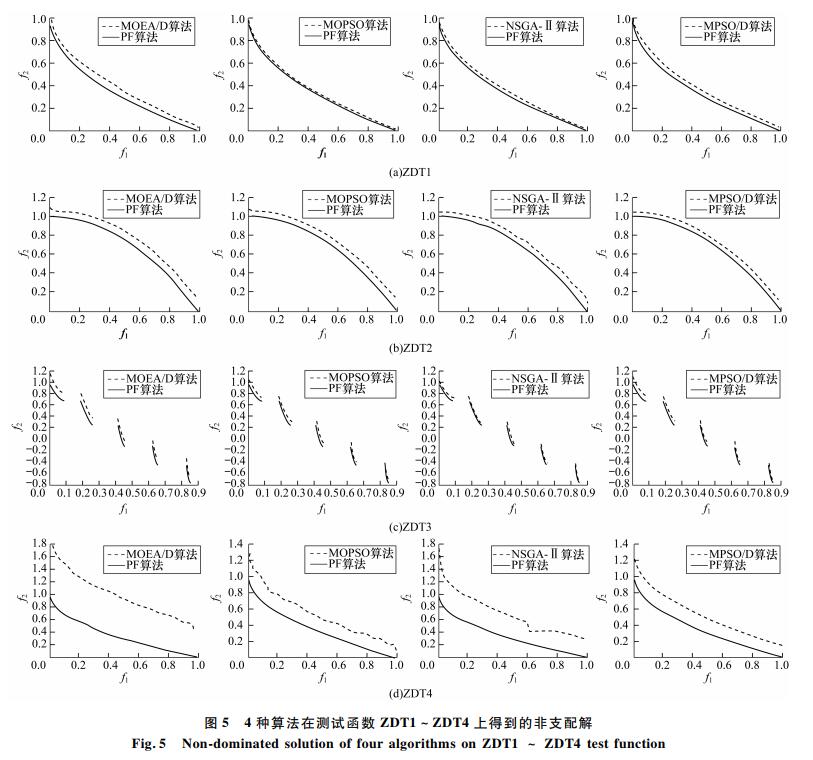

20200321092359

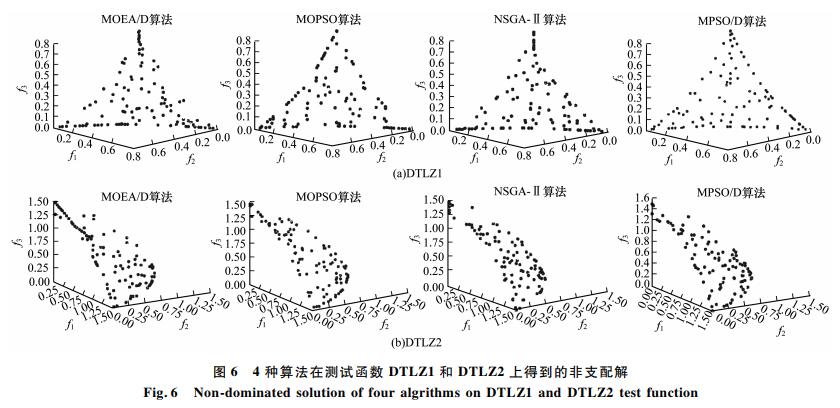

20200321092403

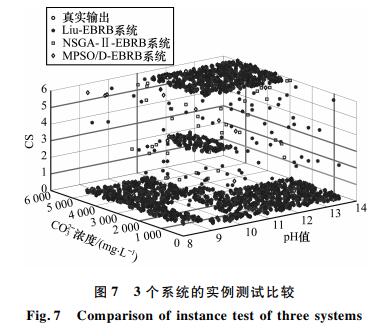

20200321092407

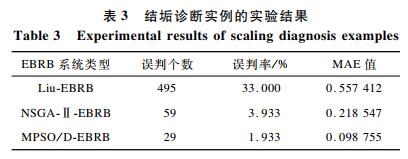

20200321092410

参考文献

[1] YU Jie.Nonlinear bioprocess monitoring using multiway kernel localized fisher discriminant analysis[J].Industrial and Engineering Chemistry Research,2014,50(6):3390-3402.
[2] MURADORE R,FIORINI P.A PLS-based statistical approach for fault detection and isolation of robotic manipulators[J].IEEE Transactions on Industrial Electronics,2012,59(8):3167-3175.
[3] SONG Qijiang,XU Minqiang,WANG Rixin.MAS-based fault diagnosis system model of spacecraft[J].Journal of Jilin University(Engineering and Technology Edition),2009,39(2):268-272.(in Chinese)宋其江,徐敏强,王日新.基于MAS的航天器故障诊断系统模型[J].吉林大学学报(工学版),2009,39(2):268-272.
[4] GAO Fei,QIU Xuesong,GAO Zhipeng,et al.Task decomposition algorithm for IT complex application management based on multi-agent collaboration[J].Journal of Software,2011,22(9):81-90.(in Chinese)高斐,邱雪松,高志鹏,等.基于多代理协作的IT复杂应用管理任务分解算法[J].软件学报,2011,22(9):81-90.
[5] HUANG Wei,PANG Lin,CAO Bin,et al.Data-level task decomposition based distributed and parallel computing platform for distribution systems[J].Power System Technology,2014,38(4):1103-1108.(in Chinese)黄伟,庞琳,曹彬,等.基于数据级任务分解的配电网分布式并行计算平台[J].电网技术2014,38(4):1103-1108.
[6] AN Bo,LIAO Wenhe,GUO Yu,et al.Study on extended manufacturing task planning method based on correlation[J].China Mechanical Engineering,2011,22(23):2839-2844.(in Chinese)安波,廖文和,郭宇,等.基于相关性的扩散制造任务规划方法研究[J].中国机械工程,2011,22(23):2839-2844.
[7] BAO Beifang,YANG Yu,LI Fei,et al.Decomposition model in product customization collaborative development task[J].Computer Integrated Manufacturing Systems,2014,20(7):1537-1545.(in Chinese)包北方,杨育,李斐,等.产品定制协同开发任务分解模型[J].计算机集成制造系统,2014,20(7):1537-1545.
[8] PENG Hualiang,SHEN Shulong,LI Jun,et al.Design of diagnostic expert system for launch vehicles based on FTA[J].Control Engineering of China,2019,26(3):584-588.(in Chinese)彭华亮,沈暑龙,李军,等.基于故障树的故障诊断专家系统设计[J].控制工程,2019,26(3):584-588.
[9] HONG Guodong,MIN Weidong.Automatic rule generation based on neighborhood rough set in network fault management[J].Computer Engineering,2016,42(9):310-314.(in Chinese)洪国栋,闵卫东.网络故障管理中基于邻域粗糙集的规则自动生成[J].计算机工程,2016,42(9):310-314.
[10] LIN Yanqing,FU Yanggeng.NSGA-Ⅱ-based EBRB rules activation multi-objective optimization[J].CAAI Transactions on Intelligent Systems,2018,13(3):422-430.(in Chinese)林燕清,傅仰耿.基于NSGA-II的扩展置信规则库激活规则优化方法[J].智能系统学报,2018,13(3):422-430.
[11] ZHOU Zhijie,HU Changhua,YANG Jianbo,et al.A sequential learning algorithm for online constructing belief-rule-based systems[J].Expert Systems with Applications,2010,37(2):1790-1799.
[12] CHANG Leilei,ZHOU Yu,JIANG Jiang,et al.Structure learning for belief rule base expert system:a comparative study[J].Knowledge-Based Systems,2013,39(2):159-172.
[13] WANG Yingming,YANG Longhao,CHANG Leilei,et al.Rough set method for rule reduction in belief rule base[J].Control and Decision,2014,29(11):1943-1950.
[14] LIU J,MARTINEZ L,CALZADA A,et al.A novel belief rule base representation,generation and its inference methodology[J].Knowledge-Based Systems,2013,53:129-141.
[15] CALZADA A,LIU J,WANG H,et al.A new dynamic rule activation method for extended belief rule-based systems[J].IEEE Transactions on Knowledge and Data Engineering,2015,27(4):880-894.
[16] DAI Cai,WANG Yuping,YE Miao.A new multi-objective particle swarm optimization algorithm based on decomposition[J].Information Sciences,2015,325:541-557.
[17] WANG Yingming,YANG Jianbo,XU Dongling,et al.Consumer preference prediction by using a hybrid evidential reasoning and belief rule-based methodology[J].Expert Systems with Applications,2009,36(4):8421-8430.
[18] KENNEDY J,EBERHART R C.Particle swarm optimization[C]//Proceedings of International Conference on Neural Networks.Washington D.C.,USA:IEEE Press,1995:1942-1948.
[19] LI Hui,ZHANG Qingfu.Multiobjective optimization problems with complicated Pareto sets,MOEA/D and NSGA-II[J].IEEE Transactions on Evolutionary Computation,2009,13(2):284-302.
[20] PADHYE N,BRANKE J,MOSTAGHIM S.Empirical comparison of MOPSO methods:guide selection and diversity preservation[C]//Proceedings of the 11th Conference on Congress on Evolutionary Computation.Washington D.C.,USA:IEEE Press,2009:2516-2523.
[21] ZITZLER E,DEB K,THIELE L.Comparison of multiobjective evolutionary algorithms:empirical results[J].Evolutionary Computation,2000,8(2):173-195.
[22] DEB K,THIELE L,LAUMANNS M,et al.Scalable multi-objective optimization test problems[C]//Proceedings of 2002 Congress on Evolutionary Computation.Washington D.C.,USA:IEEE Press,2002:825-830.
