一种用于因果式语音增强的门控循环神经网络

doi:10.19678/j.issn.1000-3428.0063047

摘要/Abstract

摘要： 传统基于深度学习的语音增强方法为了提高网络对带噪语音的建模能力，通常采用非因果式的网络输入，由此导致了固定时延问题，使得语音增强系统实时性较差。提出一种用于因果式语音增强的门控循环神经网络CGRU，以解决实时语音增强系统中的固定时延问题并提高语音增强性能。为了更好地建模带噪语音信号的相关性，网络单元在计算当前时刻的输出时融合上一时刻的输入与输出。此外，采用线性门控机制来控制信息传输，以缓解网络训练过程中的过拟合问题。考虑到因果式语音增强系统对实时性要求较高，在CGRU网络中采用单门控的结构设计，以降低网络的结构复杂度，提高系统的实时性。实验结果表明，CGRU网络在增强后的语音感知质量、语音客观可懂度、分段信噪比指标上均优于GRU、SRNN、SRU等传统网络结构，在信噪比为0 dB的条件下，CGRU的平均语音感知质量和平均语音客观可懂度分别达到2.4和0.786。

关键词: 门控循环神经网络, 固定时延, 因果式语音增强, 语音质量, 语音可懂度

Abstract: Traditional speech enhancement methods based on deep learning typically require noncausal network input to improve the modeling ability of the network for noisy speech.However, this input leads to fixed delay and poor real-time performance of the speech enhancement system.A gated recurrent neural network for causal speech enhancement called CGRU is proposed to solve the fixed delay problem in real-time speech enhancement systems and improve speech enhancement performance.The network unit fuses the input and output of the previous time when calculating the output of the current time to effectively model the correlation of noisy speech signals.In addition, the linear gating mechanism is used to control the information transmission to alleviate the over-fitting problem during the network training process. Because the causal speech enhancement system requires high real-time performance, the CGRU adopts a single-gate control structure design in its network structure design to simplify the network structure and improve the real-time performance of the system.The experimental results show that the CGRU network is superior to the Gated Recurrent Unit(GRU), Simple Recurrent Neural Network(SRNN), Simple Recurrent Unit (SRU), and other traditional network structures in terms of enhanced speech perception quality, speech objective intelligibility, Segmented Signal-to-Noise Ratio (SSNR), and other indicators.For an Signal-to-Noise Ratio (SNR) of 0 dB, the average speech perception quality and speech objective intelligibility of the CGRU reach 2.4 and 0.786, respectively.

Key words: gated recurrent neural network, fixed delay, causal speech enhancement, speech quality, speech intelligibility

中图分类号:

TP18

李江和, 王玫. 一种用于因果式语音增强的门控循环神经网络[J]. 计算机工程, 2022, 48(11): 77-82.

LI Jianghe, WANG Mei. A Gated Recurrent Neural Network for Causal Speech Enhancement[J]. Computer Engineering, 2022, 48(11): 77-82.

https://www.ecice06.com/CN/Y2022/V48/I11/77

图/表 7

20230203202643

20230203202646

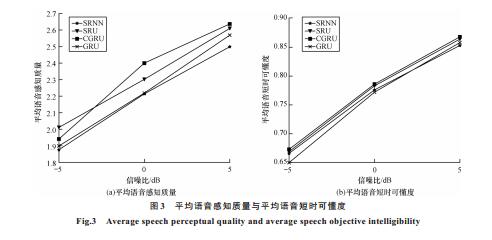

20230203202649

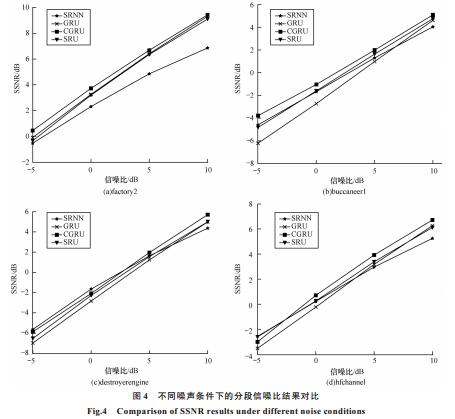

20230203202653

20230203202657

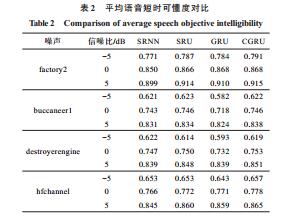

20230203202701

20230203202704

参考文献

[1] CUI X Y, CHEN Z, YIN F L.Speech enhancement based on simple recurrent unit network[J].Applied Acoustics, 2020, 157:107019.
[2] WEISS M, ASCHKENASY E, PARSONS T W.Study and development of the INTEL technique for improving speech intelligibility[EB/OL].[2021-09-05].https://www.semanticscholar.org/paper/Study-and-Development-of-the-INTEL-Technique-for-Weiss-Aschkenasy/0ab966a0d8be76591cbd44009a32f7ceb3d3f7ff.
[3] KAMATH S, LOIZOU P.A multi-band spectral subtraction method for enhancing speech corrupted by colored noise[C]//Proceedings of IEEE International Conference on Acoustics, Speech, and Signal Processing.Washington D.C., USA:IEEE Press, 2002:4160-4164.
[4] MCAULAY R, MALPASS M.Speech enhancement using a soft-decision noise suppression filter[J].IEEE Transac-tions on Acoustics, Speech, and Signal Processing, 1980, 28(2):137-145.
[5] EPHRAIM Y, MALAH D.Speech enhancement using a minimum mean-square error log-spectral amplitude estimator[J].IEEE Transactions on Acoustics, Speech, and Signal Processing, 1985, 33(2):443-445.
[6] LIM J, OPPENHEIM A.All-pole modeling of degraded speech[J].IEEE Transactions on Acoustics, Speech, and Signal Processing, 1978, 26(3):197-210.
[7] LIM J S, OPPENHEIM A V.Enhancement and bandwidth compression of noisy speech[J].Proceedings of the IEEE, 1979, 67(12):1586-1604.
[8] HU Y, LOIZOU P C.Incorporating a psychoacoustical model in frequency domain speech enhancement[J].IEEE Signal Processing Letters, 2004, 11(2):270-273.
[9] JENSEN J, HEUSDENS R.Improved subspace-based single-channel speech enhancement using generalized super-Gaussian priors[J].IEEE Transactions on Audio, Speech, and Language Processing, 2007, 15(3):862-872.
[10] YANG C H, WANG J C, WANG J F, et al.Design and implementation of subspace-based speech enhancement under in-car noisy environments[J].IEEE Transactions on Vehicular Technology, 2008, 57(3):1466-1479.
[11] XU Y, DU J, HUANG Z, et al.Multi-objective learning and mask-based post-processing for deep neural network based speech enhancement[EB/OL].[2021-09-05].https://arxiv.org/pdf/1703.07172.pdf.
[12] LÜ S B, HU Y X, ZHANG S M, et al.DCCRN+:channel-wise subband DCCRN with SNR estimation for speech enhancement[EB/OL].[2021-09-05].https://arxiv.org/pdf/2106.08672v1.pdf.
[13] YUAN W H.Incorporating group update for speech enhancement based on convolutional gated recurrent network[J].Speech Communication, 2021, 132:32-39.
[14] ZHOU L M, GAO Y Y, WANG Z L, et al.Complex spectral mapping with attention based convolution recurrent neural network for speech enhancement[EB/OL].[2021-09-05].https://arxiv.org/abs/2104.05267.
[15] XU X M, HAO J J.AMFFCN:attentional multi-layer feature fusion convolution network for audio-visual speech enhancement[EB/OL].[2021-09-05].https://arxiv.org/abs/2101.06268.
[16] CUI X Y, CHEN Z, YIN F L.Multi-objective based multi-channel speech enhancement with BiLSTM network[J].Applied Acoustics, 2021, 177:107927.
[17] ZHANG Q, WANG D, ZHAO R, et al.Sensing to hear:speech enhancement for mobile devices using acoustic signals[J].Proceedings of the ACM on Interactive, Mobile, Wearable and Ubiquitous Technologies, 2021, 5(3):137.
[18] SUN K, ZHANG X Y.UltraSE:single-channel speech enhancement using ultrasound[C]//Proceedings of the 27th Annual International Conference on Mobile Computing and Networking.Washington D.C., USA:IEEE Press, 2021:160-173.
[19] YU G C, WANG Y T, WANG H, et al.A two-stage complex network using cycle-consistent generative adversarial networks for speech enhancement[J].Speech Communication, 2021, 134:42-54.
[20] 袁文浩, 梁春燕, 夏斌.基于深度神经网络的因果形式语音增强模型[J].计算机工程, 2019, 45(8):255-259. YUAN W H, LIANG C Y, XIA B.Causal speech enhancement model based on deep neural network[J].Computer Engineering, 2019, 45(8):255-259.(in Chinese)
[21] LEI T, ZHANG Y.Training RNNs as fast as CNNs[EB/OL].[2021-09-05].https://arxiv.org/pdf/1709.02755v1.pdf.
[22] 袁文浩, 孙文珠, 夏斌, 等.利用深度卷积神经网络提高未知噪声下的语音增强性能[J].自动化学报, 2018, 44(4):751-759. YUAN W H, SUN W Z, XIA B, et al.Improving speech enhancement in unseen noise using deep convolutional neural network[J].Acta Automatica Sinica, 2018, 44(4):751-759.(in Chinese)
[23] KOUNDINYA S, KARMAKAR A.Online speech enhancement by retraining of LSTM using SURE loss and policy iteration[J].Neural Processing Letters, 2021, 53(5):3237-3251.
[24] DAUPHIN Y N, FAN A, AULI M, et al.Language modeling with gated convolutional networks[EB/OL].[2021-09-05].https://arxiv.org/pdf/1612.08083.pdf.
[25] GAROFOLO J S, LAMEL L F, FISHER W M, et al.TIMIT acoustic-phonetic continuous speech corpus[EB/OL].[2021-09-05].https://catalog.ldc.upen n.edu/LDC93S1.
[26] HU G.100 nonspeech environmental sounds[EB/OL].[2021-09-05].http://web.cse.ohio-state.edu/pnl/corpus/HuNonsp eech/HuCorpus.html.
[27] VARGA A, STEENEKEN H J M.Assessment for automatic speech recognition:II.NOISEX-92:a database and an experiment to study the effect of additive noise on speech recognition systems[J].Speech Communication, 1993, 12(3):247-251.
