面向汽车充电预约的光储充电站能量调度策略

doi:10.19678/j.issn.1000-3428.0066052

摘要/Abstract

摘要：

光储充电站(PSCS)的规模化部署是电动汽车(EV)快速普及的关键因素。合理规划光储充电站的运行模式并有效调度多种能源，优化需求供给链，最大化运行效益，是光储充电站可持续运营发展的重点。针对目前光储充电站需求侧的不确定性和供给侧的协调性问题，面向汽车充电预约场景，在需求侧综合考虑汽车充电需求和剩余停车时长等因素，决策相应EV的充电方式。在供给调度侧设计一种基于带精英策略的遗传混合递推算法(EGAHR)进行能量优化调度，以最小化电网取电费用。以EV充电时间片为基本调控时间单元，通过协调需求侧和供给侧的调度信息，合理调度光伏、储能、电网等能源的能量，满足当前时间片内EV充电需求的同时优化系统电费。实验结果表明，基于EGAHR算法的策略相比基于遗传算法、灰狼算法、粒子群算法等经典算法的能量调度策略节约了2.1%~21.9%的充电成本。另外，EGAHR算法可以为多种不同的EV充电模型和差异化电价趋势模型提供参考，为PSCS合理配备储能系统和光伏提供科学经济的部署方案。

关键词: 电动汽车, 光储充电站, 充电规划, 能量调度, 需求供给链, 目标优化

Abstract:

The large-scale deployment of Photovoltaic Storage Charging Station(PSCS) is a crucial factor for the rapid popularization of Electric Vehicles(EV). Effectively planning the operation of PSCS, dispatching multiple energy sources, optimizing the demand-supply chain, and maximizing operational efficiency are keys to the sustainable growth and development of PSCS. To address the uncertainty of the demand side and coordination problem of the supply side of the current optical storage charging station, this paper focusses on EV charging reservation scenario. For demand, factors, such as the car charging demand and remaining parking time, are considered to decide the charging mode of the corresponding EV. On the supply scheduling side, a genetic hybrid recursive algorithm, Hybrid Recursive(EGAHR), is designed based on the band elite strategy for energy optimization scheduling to minimize the grid withdrawal cost. Using EV charging time slots as the primary regulatory unit, the strategy coordinates both demand and supply information, ensuring energy from Photo Voltaics(PV), storage, and the grid is dispatched efficiently. This satisfies the EV charging requirements within the current time slot and optimizes overall electricity expenses. Experimental results reveal that the EGAHR strategy offers a charging cost reduction in the range of 2.1-21.9% when compared to strategies based on traditional algorithms such as the genetic algorithm, gray wolf algorithm, and particle swarm algorithm. Additionally, the EGAHR strategy can be applied to various EV charging models and differential tariff trends, offering a scientifically and economically sound blueprint for PSCS to adequately equip Energy Storage System(ESS) and PV.

Key words: Electric Vehicle(EV), Photovoltaic Storage Charging Station(PSCS), charging planning, energy scheduling, demand supply chain, objective optimization

赵文薇, 林兵, 卢宇, 王明芬. 面向汽车充电预约的光储充电站能量调度策略[J]. 计算机工程, 2023, 49(12): 262-273, 281.

Wenwei ZHAO, Bing LIN, Yu LU, Mingfen WANG. Energy Scheduling Strategy for Photovoltaic Storage Charging Station for Vehicle Charging Reservation[J]. Computer Engineering, 2023, 49(12): 262-273, 281.

https://www.ecice06.com/CN/Y2023/V49/I12/262

图/表 19

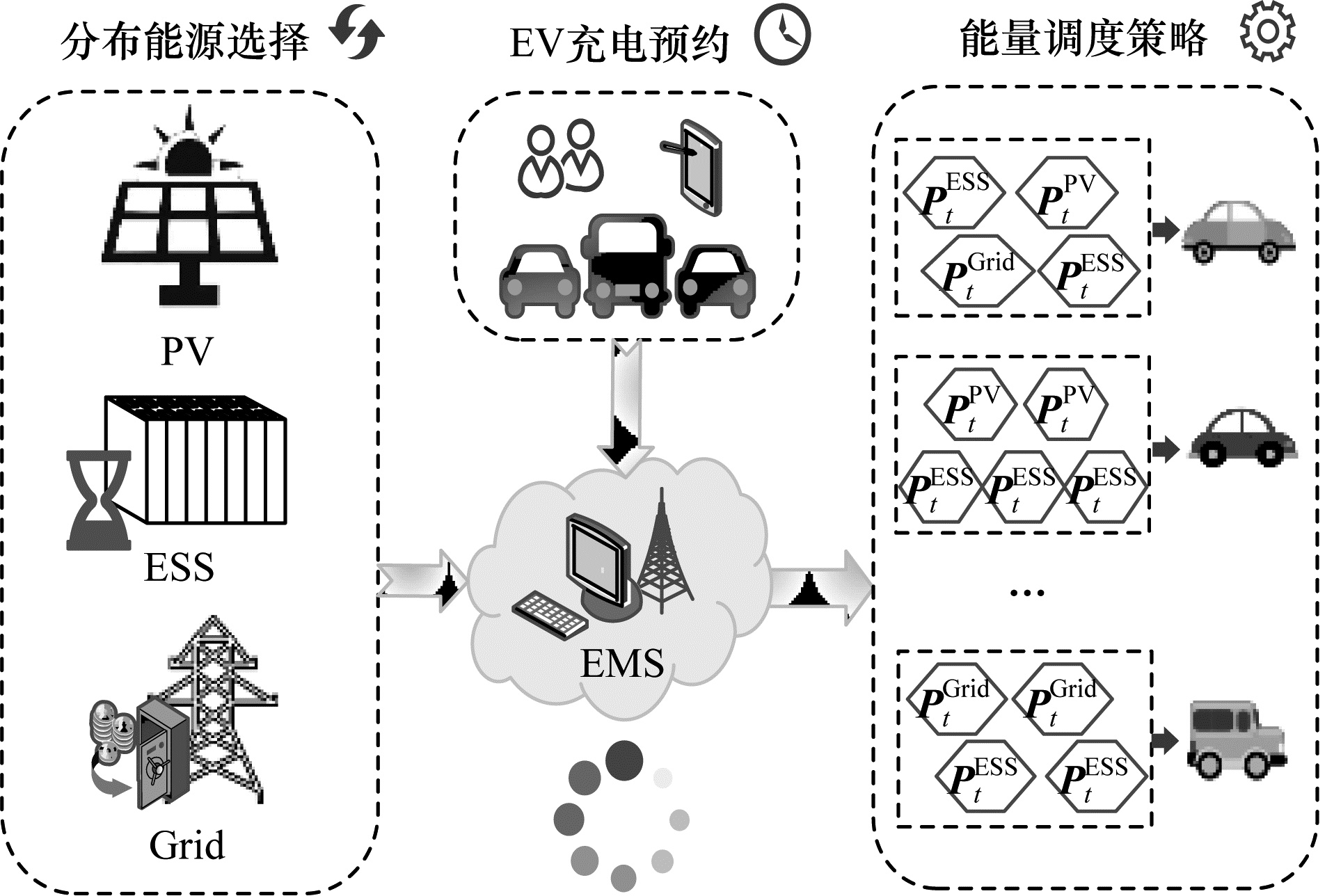

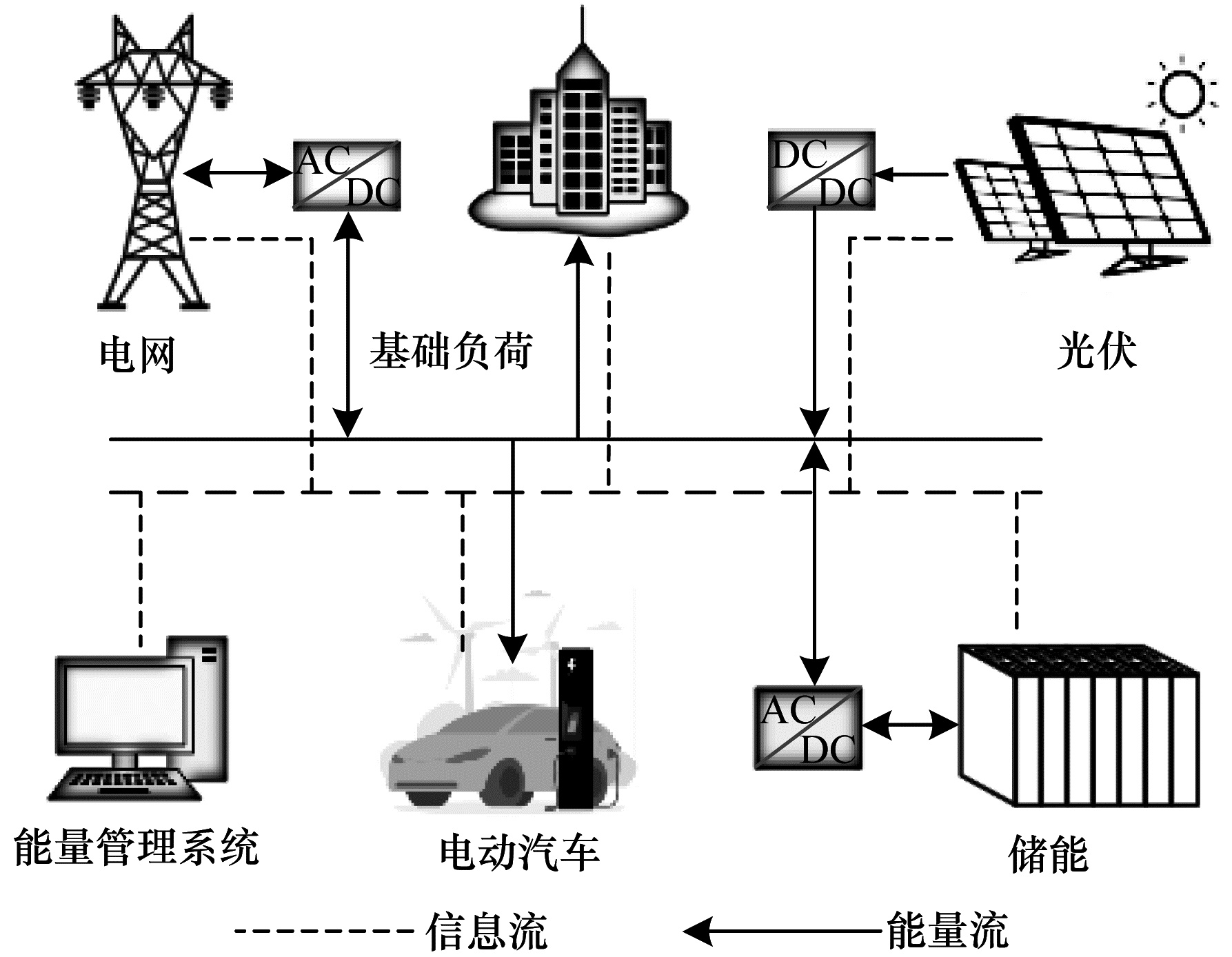

图1 PSCS系统架构

Fig.1 Architecture of PSCS system

图2 PSCS系统的能量流调度

Fig.2 Energy flow scheduling for PSCS system

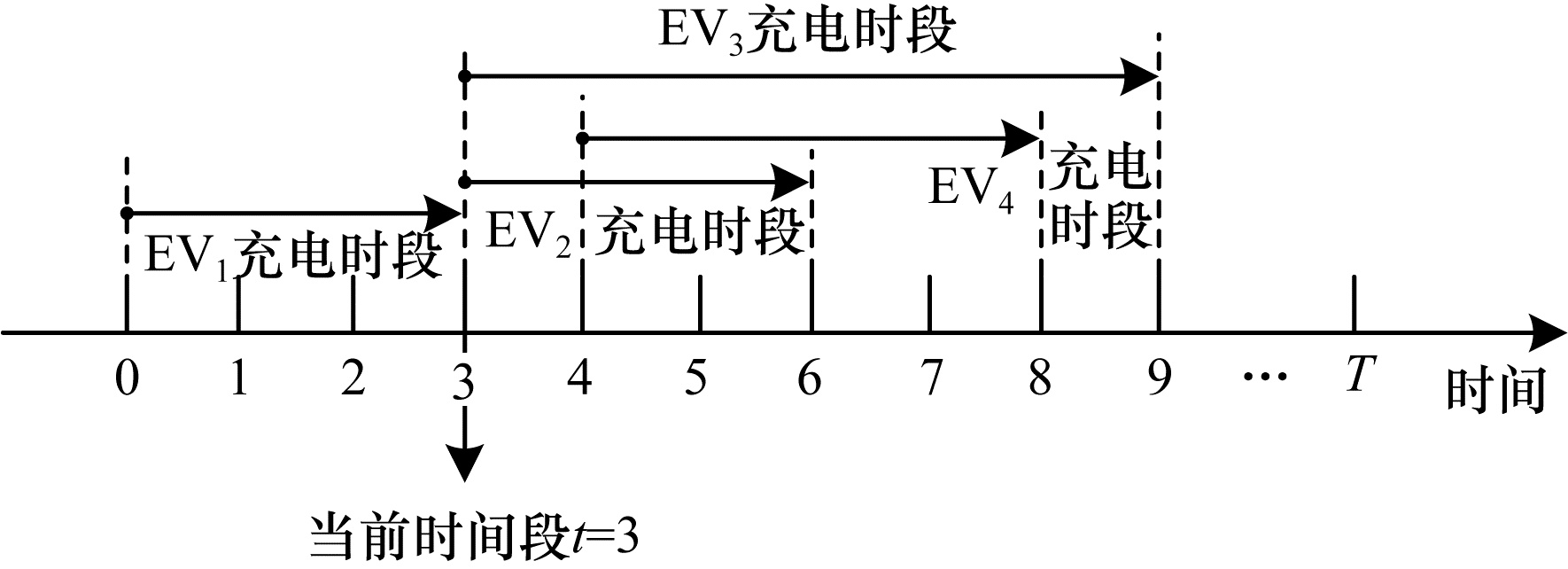

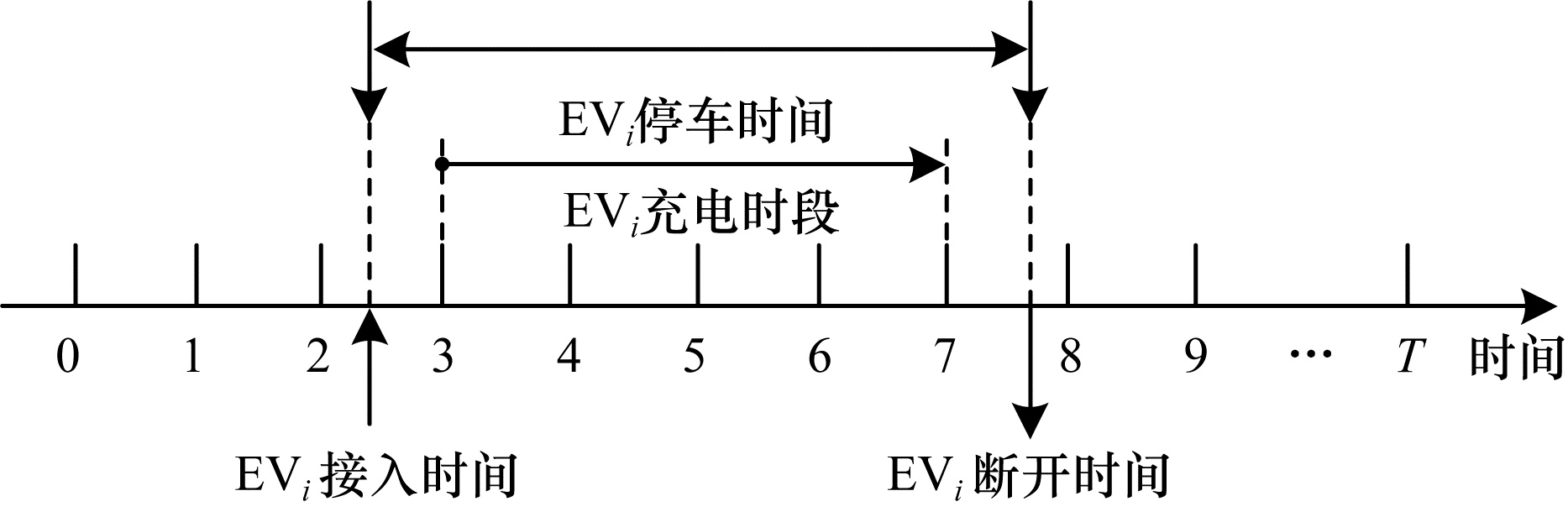

图3 EV充电时段关系示意图

Fig.3 Schematic diagram of EV charging time relationship

图4 EV停车时间和充电时间关系的示意图

Fig.4 Schematic diagram of relationship between parking time and charging time of EV

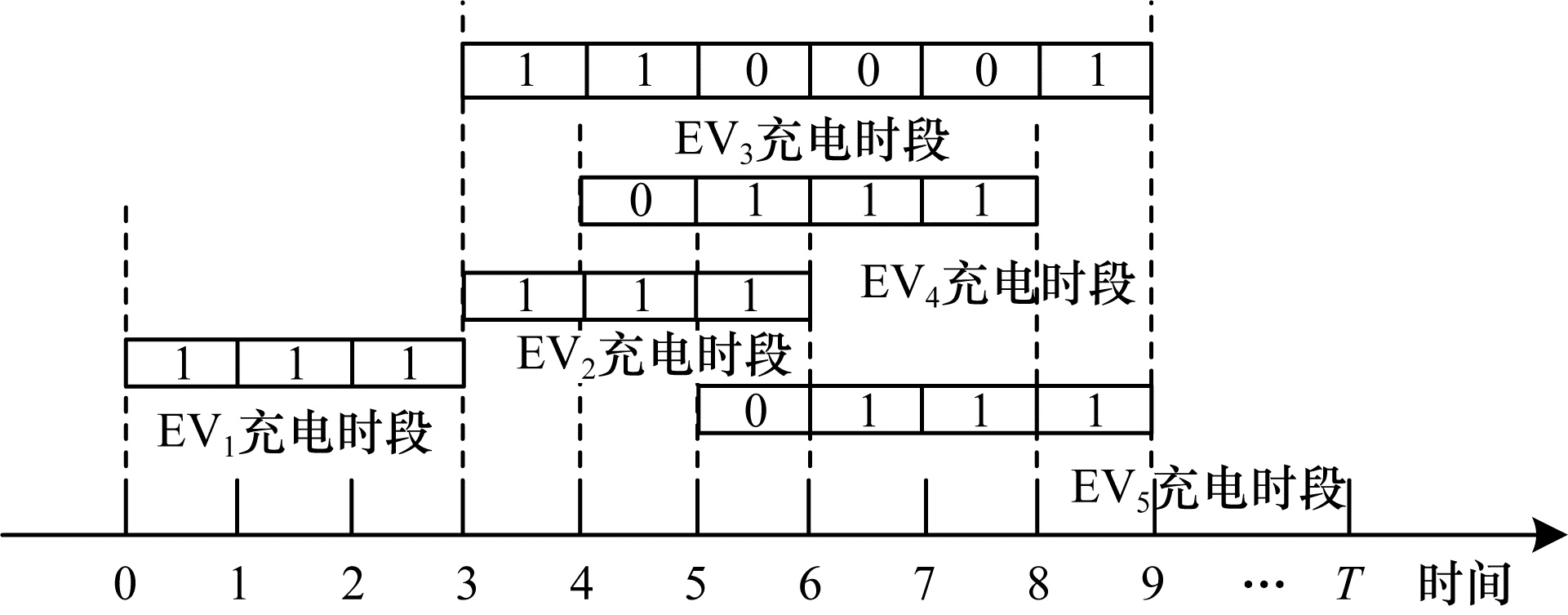

图5 EV充电状态示意图

Fig.5 Schematic diagram of EV charging state

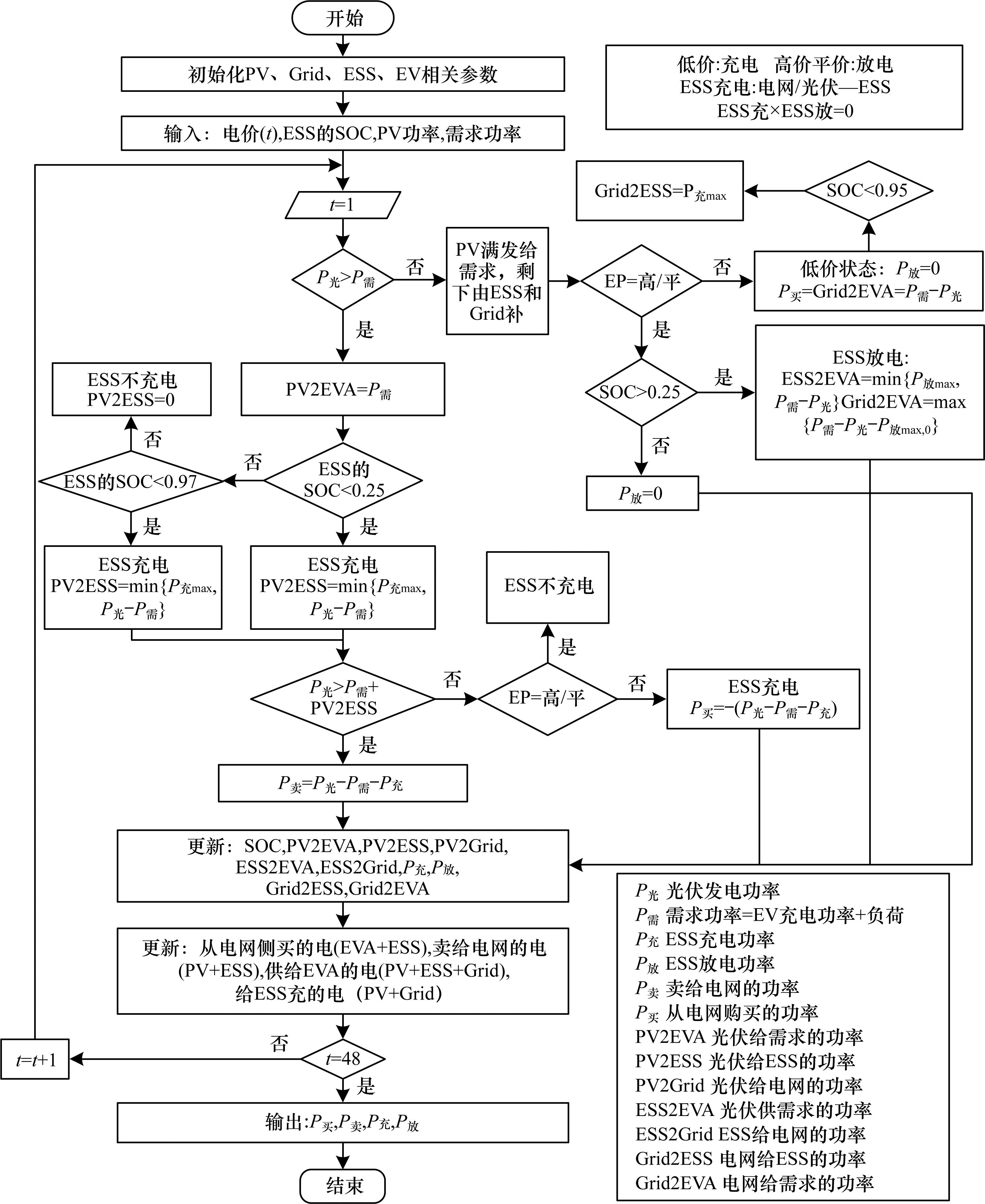

图6 多种分布能源调度流程

Fig.6 Procedure of multi-distributed energy dispatch

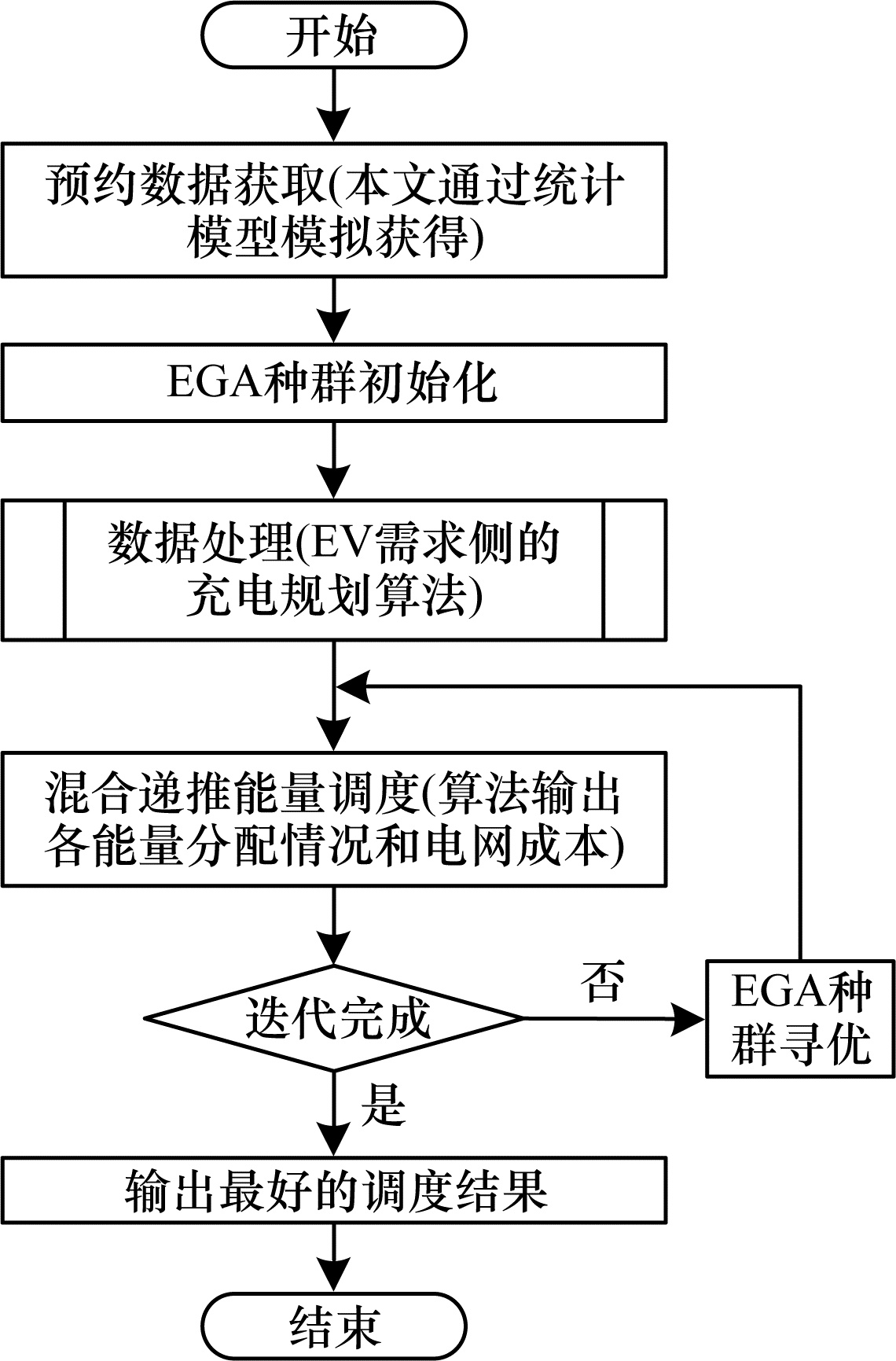

图7 优化调度算法机制流程

Fig.7 Procedure of optimal scheduling algorithm mechanism

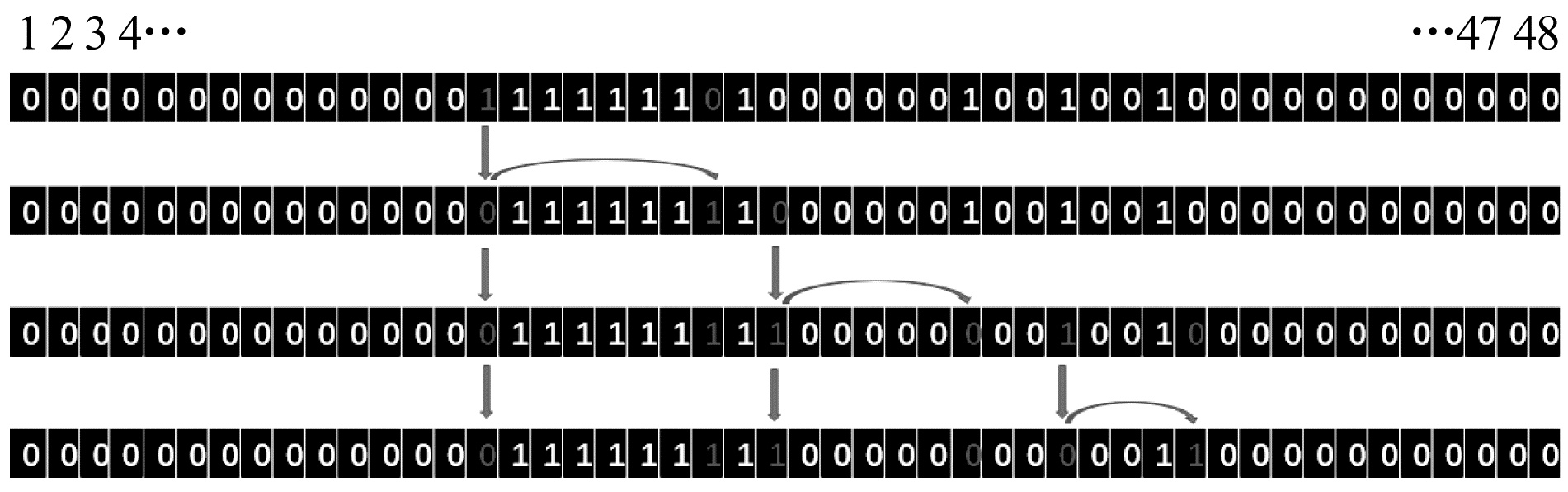

图8 变量变异示意图

Fig.8 Schematic diagram of variable variation

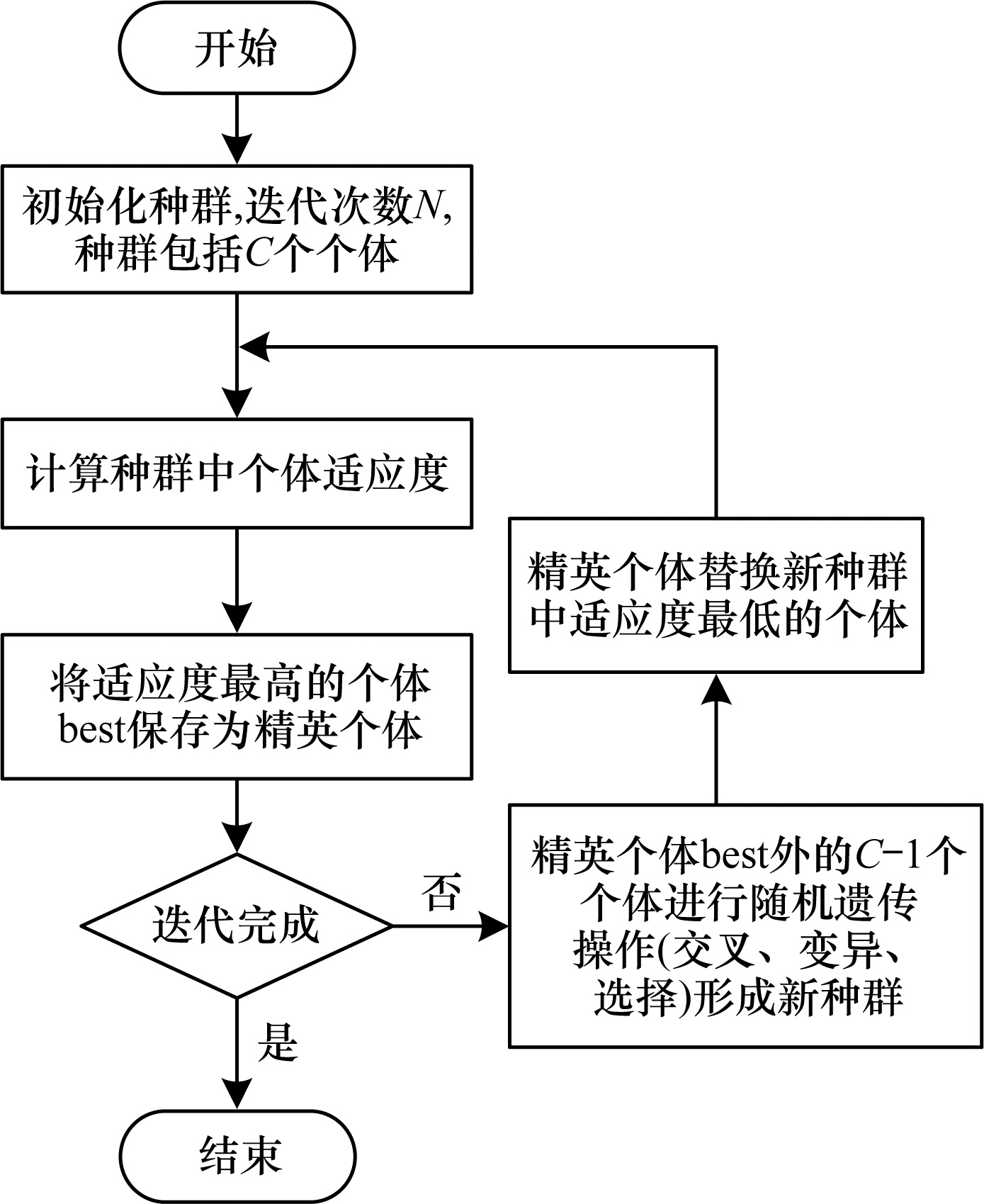

图9 EGA算法流程

Fig.9 Procedure of EGA algorithm

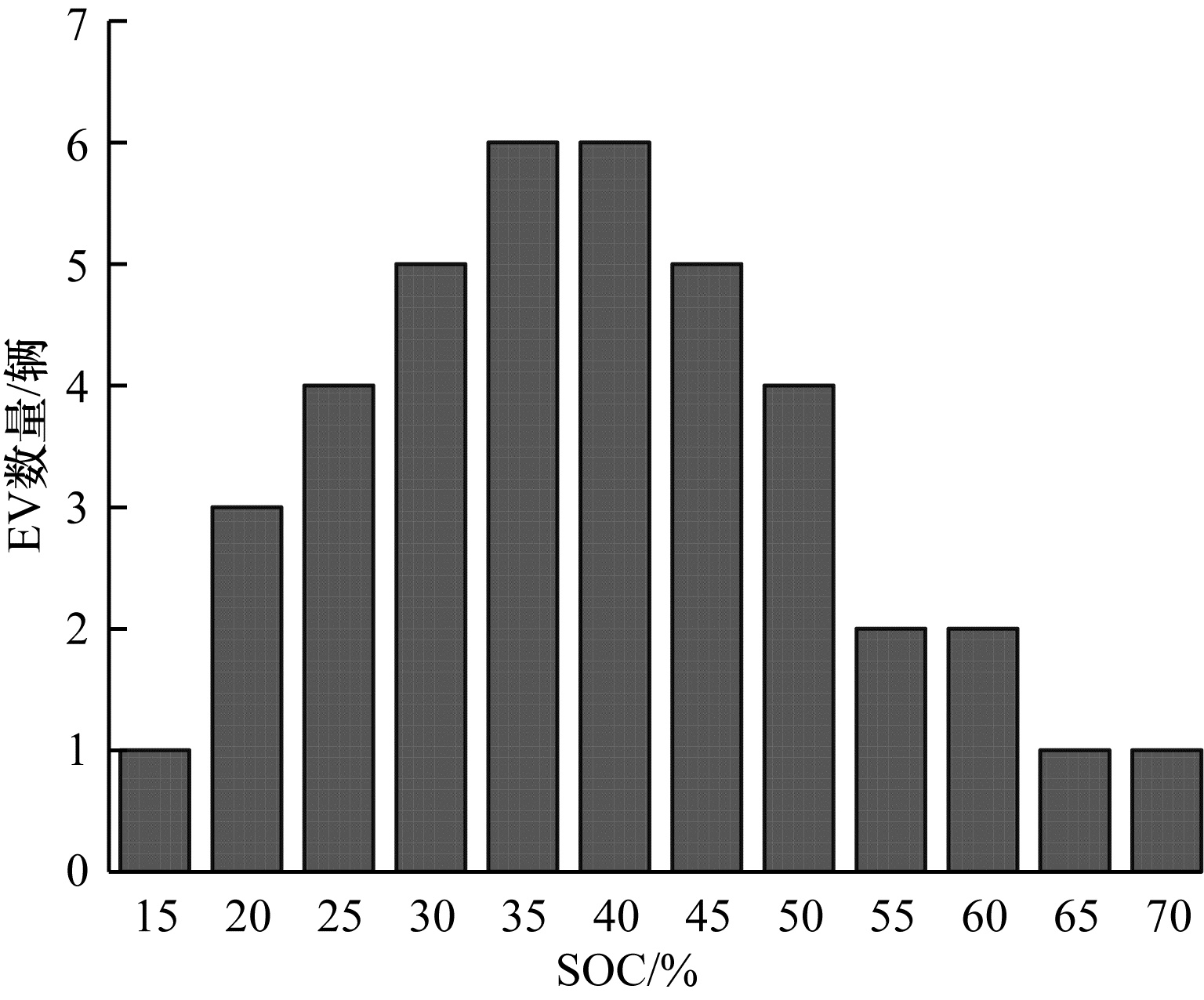

图10 EV数量的SOC分布图

Fig.10 SOC distribution map of EV number

图11 EV需求充电负荷分布

Fig.11 Distribution of EV demand charging load

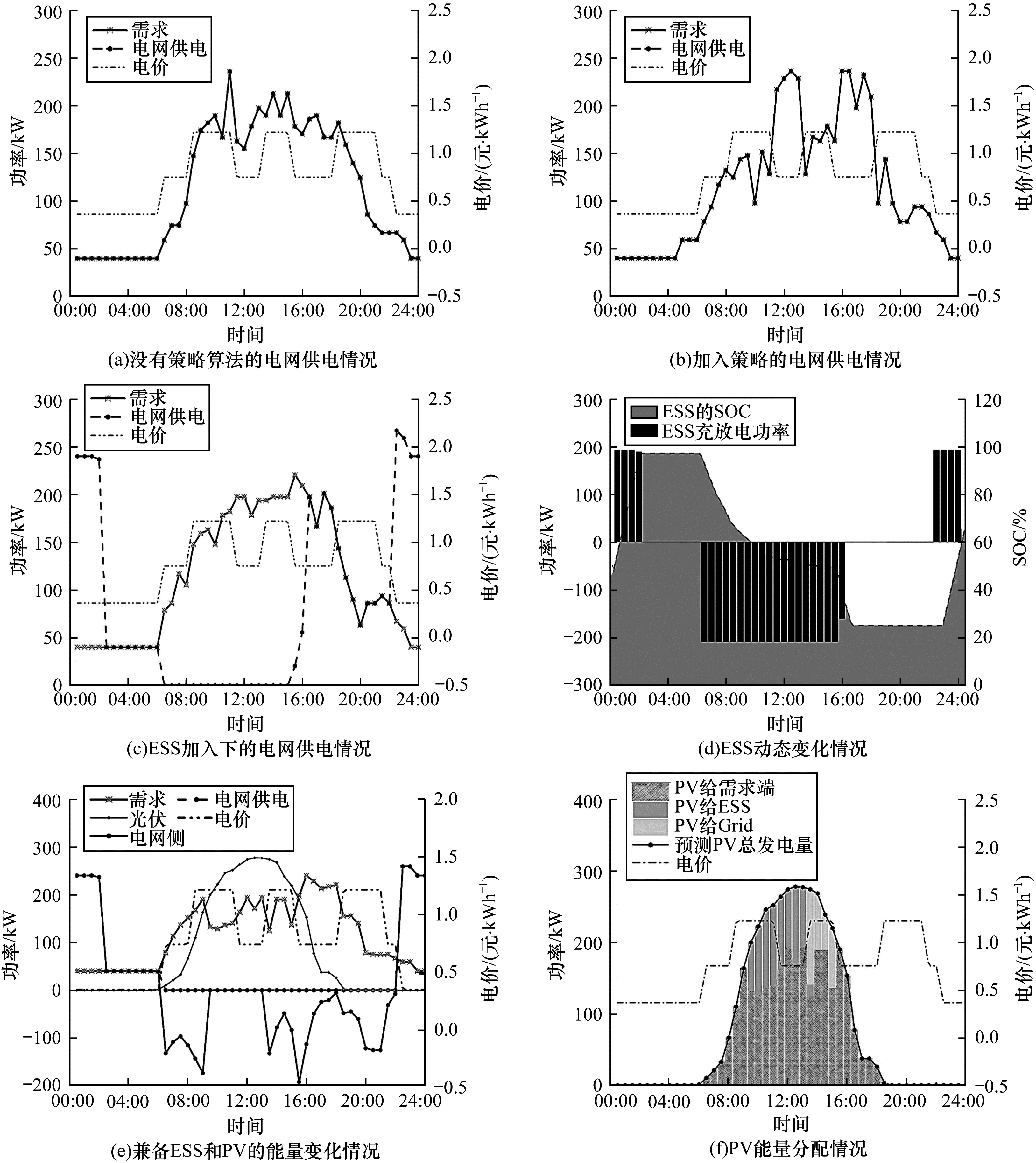

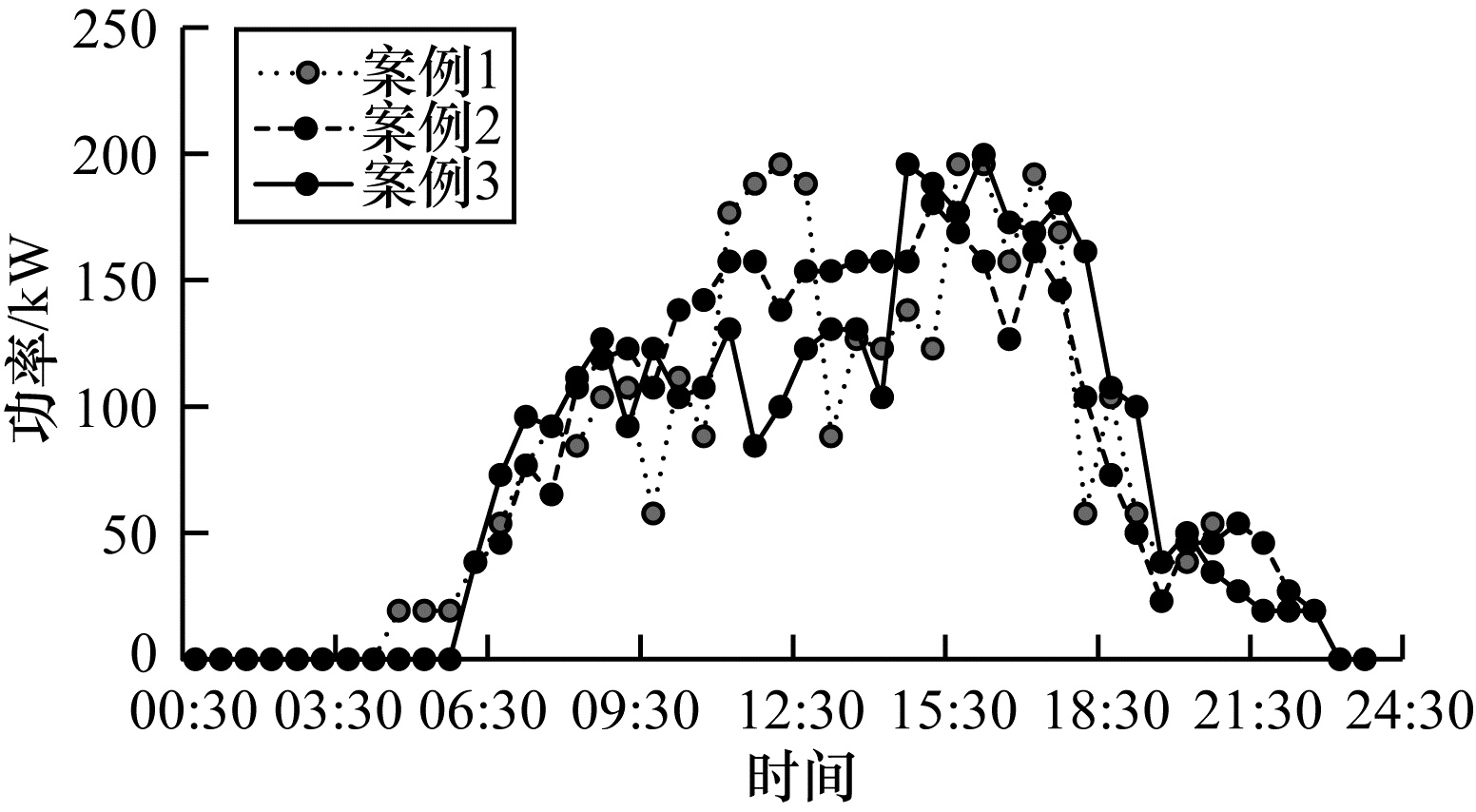

图12 不同案例下电网供电及能源动态情况

Fig.12 Grid power supply and energy dynamics in different cases

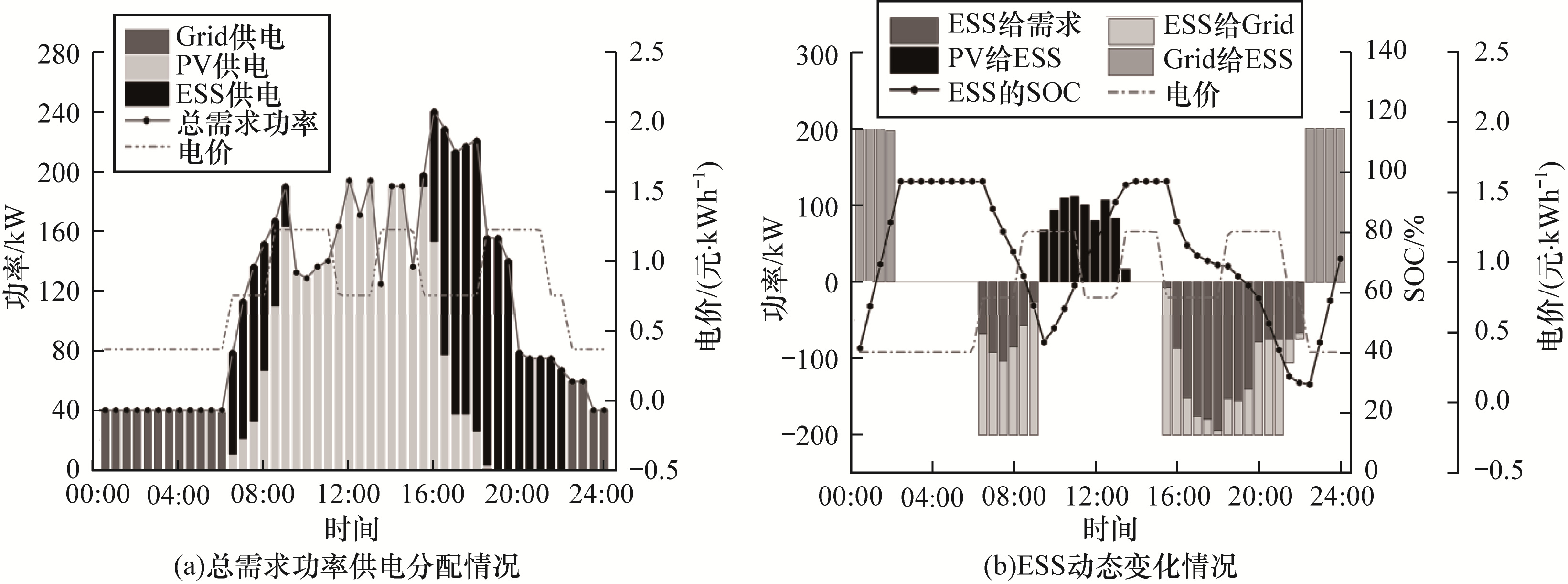

图13 能量管理后的各能源变化示意图

Fig.13 Schematic diagram of the change of each energy source after energy management

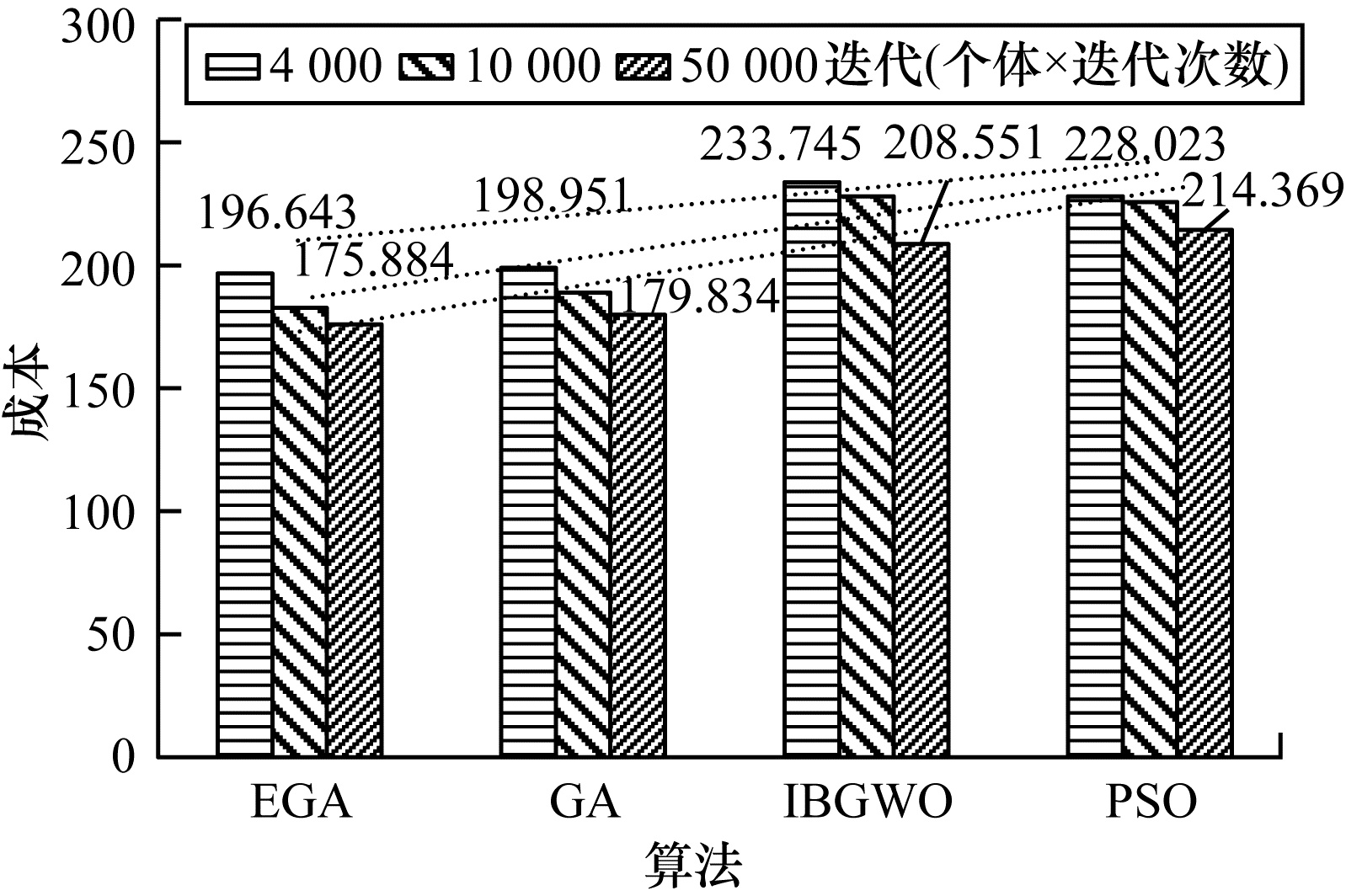

图14 不同算法的性能对比

Fig.14 Performance comparison of different algorithms

参考文献 28

1	PAUL S, DEY T, SAHA P, et al. Review on the development scenario of renewable energy in different country[C]//Proceedings of Innovations in Energy Management and Renewable Resources. Washington D. C., USA: IEEE Press, 2021: 1-2.
2	谢彦祥, 肖汉, 夏雪, 等. 碳中和目标下中国碳减排路径及建议. 电工电气, 2022, 11(5): 1- 7. URL
	XIE Y X, XIAO H, XIA X, et al. China's carbon emission reduction paths and suggestions under the carbon neutrality target. Electrotechnics Electric, 2022, 11(5): 1- 7. URL
3	RAHMAN S, AHMAD KHAN I, AMINI M H. A review on impact analysis of electric vehicle charging on power distribution systems[C]//Proceedings of the 2nd International Conference on Smart Power & Internet Energy Systems. Washington D. C., USA: IEEE Press, 2020: 420-425.
4	BOUCHER M. Transportation electrification and managing traffic congestion: the role of intelligent transportation systems. IEEE Electrification Magazine, 2019, 7(3): 16- 22. doi: 10.1109/MELE.2019.2925730
5	PAREEK S, SUJIL A, RATRA S, et al. Electric vehicle charging station challenges and opportunities: a future perspective[C]//Proceedings of International Conference on Emerging Trends in Communication, Control and Computing. Washington D. C., USA: IEEE Press, 2020: 1-6.
6	CHAUDHARI K, UKIL A, KUMAR K N, et al. Hybrid optimization for economic deployment of ESS in PV-integrated EV charging stations. IEEE Transactions on Industrial Informatics, 2018, 14(1): 106- 116. doi: 10.1109/TII.2017.2713481
7	张卫国, 宋杰, 郭明星, 等. 考虑电动汽车充电需求的虚拟电厂负荷均衡管理策略. 电力系统自动化, 2022, 46(9): 118- 126. URL
	ZHANG W G, SONG J, GUO M X, et al. Load balancing management strategy for virtual power plants considering charging demand of electric vehicles. Automation of Electric Power Systems, 2022, 46(9): 118- 126. URL
8	解磊, 王建基, 耿敏, 等. 光储充一体化电站建设关键技术研究. 通信电源技术, 2018, 35(12): 26- 27. doi: 10.19399/j.cnki.tpt.2018.12.012
	XIE L, WANG J J, GENG M, et al. Research on key technologies of light storage and charging integrated power station construction. Telecom Power Technologies, 2018, 35(12): 26- 27. doi: 10.19399/j.cnki.tpt.2018.12.012
9	ALUISIO B, BRUNO S, DE BELLIS L, et al. DC-microgrid operation planning for an electric vehicle supply infrastructure. Applied Sciences, 2019, 9(13): 2687. doi: 10.3390/app9132687
10	DICORATO M, FORTE G, TROVATO M, et al. An integrated DC microgrid solution for electric vehicle fleet management. IEEE Transactions on Industry Applications, 2019, 55(6): 7347- 7355. doi: 10.1109/TIA.2019.2926359
11	RAFIQUE M K, KHAN S U, SAEED UZ ZAMAN M, et al. An intelligent hybrid energy management system for a smart house considering bidirectional power flow and various EV charging techniques. Applied Sciences, 2019, 9(8): 1658- 1663. doi: 10.3390/app9081658
12	YAN D X, MA C B. Stochastic planning of electric vehicle charging station integrated with photovoltaic and battery systems. IET Generation, Transmission & Distribution, 2020, 14(19): 4217- 4224.
13	LUO L, GU W, ZHOU S, et al. Optimal planning of electric vehicle charging stations comprising multi-types of charging facilities. Applied Energy, 2018, 226, 1087- 1099. doi: 10.1016/j.apenergy.2018.06.014
14	BIYA T S, SINDHU M R. Design and power management of solar powered electric vehicle charging station with energy storage system[C]//Proceedings of the 3rd International Conference on Electronics, Communication and Aerospace Technology. Washington D. C., USA: IEEE Press, 2019: 815-820.
15	YAN Q, ZHANG B, KEZUNOVIC M. Optimized operational cost reduction for an EV charging station integrated with battery energy storage and PV generation. IEEE Transactions on Smart Grid, 2019, 10(2): 2096- 2106. doi: 10.1109/TSG.2017.2788440
16	ZHENG Y, SONG Y, HILL D J, et al. Online distributed MPC-based optimal scheduling for EV charging stations in distribution systems. IEEE Transactions on Industrial Informatics, 2019, 15(2): 638- 649. doi: 10.1109/TII.2018.2812755
17	曹凌捷. 光储充一体化电站建设关键技术研究. 电力与能源, 2017, 38(6): 746-749, 755. URL
	CAO L J. Key technologies in the construction of PV-storage-charging integrated power station. Power & Energy, 2017, 38(6): 746-749, 755. URL
18	陈理宁, 杨俊杰. 计及电动汽车充电的微网能量优化管理. 仪表技术, 2020,(2): 10- 13. URL
	CHEN L N, YANG J J. Optimal energy management of microgrid considering electric vehicle charging. Instrumentation Technology, 2020,(2): 10- 13. URL
19	张丽娜, 王金梅, 杨国华, 等. 计及电网电价的微网能量优化管理. 宁夏大学学报(自然科学版), 2020, 41(4): 379- 383. doi: 10.3969/j.issn.0253-2328.2020.04.014
	ZHANG L N, WANG J M, YANG G H, et al. Micro-grid energy optimization management based on grid electricity price. Journal of Ningxia University (Natural Science Edition), 2020, 41(4): 379- 383. doi: 10.3969/j.issn.0253-2328.2020.04.014
20	禹威威, 刘世林, 陈其工, 等. 考虑电动汽车充电和需求侧响应的光伏微电网多目标优化调度. 电力系统及其自动化学报, 2018, 30(1): 88- 97. URL
	YU W W, LIU S L, CHEN Q G, et al. Multi-objective optimization scheduling for PV microgrid considering electric vehicle charging and demand response. Proceedings of the CSU-EPSA, 2018, 30(1): 88- 97. URL
21	王守相, 陈建凯, 王洪坤, 等. 综合考虑电动汽车充电与储能及可中断负荷调度的配电网两阶段灵活性提升优化方法. 电力自动化设备, 2020, 40(11): 1- 8. URL
	WANG S X, CHEN J K, WANG H K, et al. Two-stage flexibility improvement optimization method of distribution network considering EV charging and scheduling of energy storage and interruptible loads. Electric Power Automation Equipment, 2020, 40(11): 1- 8. URL
22	SARKER M R, PANDŽIĆ H, SUN K W, et al. Optimal operation of aggregated electric vehicle charging stations coupled with energy storage. IET Generation, Transmission & Distribution, 2018, 12(5): 1127- 1136.
23	陈刚, 包宇庆, 张金龙, 等. 计及寿命损耗成本的储能单元分布式协同控制策略. 电网技术, 2018, 42(5): 1495- 1501. URL
	CHEN G, BAO Y Q, ZHANG J L, et al. Distributed cooperative control strategy of energy storage unit considering life loss cost. Power System Technology, 2018, 42(5): 1495- 1501. URL
24	LUO C, HUANG Y F, GUPTA V. Stochastic dynamic pricing for EV charging stations with renewable integration and energy storage. IEEE Transactions on Smart Grid, 2018, 9(2): 1494- 1505.
25	郝越. 基于遗传算法的新能源充电站能量优化管理. 通信电源技术, 2019, 36(11): 27-28, 31. URL
	HAO Y. Energy optimization management of new energy charging station based on genetic algorithm. Telecom Power Technologies, 2019, 36(11): 27-28, 31. URL
26	江宏玲. 考虑储能充放电的孤岛微电网经济优化模型. 实验室研究与探索, 2022, 41(1): 132- 137. URL
	JIANG H L. Economic optimization model of islanding micro-grid considering energy storage charge and discharge. Research and Exploration in Laboratory, 2022, 41(1): 132- 137. URL
27	KURT A. Discrete-state encoding in hybrid-state systems for intelligent vehicle control and estimation. IEEE Transactions on Intelligent Transportation Systems, 2015, 16(3): 1595- 1600.
28	福建时代星云科技有限公司. 宁德时代示范点光伏数据[EB/OL]. [2022-09-03]. https://www.cntepower.com/#/solution/inteligentMicrongrid.
