考虑能耗的海铁联运集装箱码头多设备协同调度

doi:10.19678/j.issn.1000-3428.0068369

摘要/Abstract

摘要：

随着多式联运和绿色港口的发展, 提高海铁联运效率和降低能源消耗成为码头亟需解决的问题。针对集装箱码头铁路作业区与码头作业区共堆场布局下设备利用率低与作业能耗高的问题, 构建混合装卸作业下轨道吊、自动导向车(AGV)及场桥的协同调度优化模型, 旨在实现作业完工时间最短、轨道吊和AGV的作业能耗最优, 以及提高轨道吊协同作业的利用率。该模型综合考虑轨道吊间相互干涉、AGV伴侣容量限制以及AGV和轨道吊装卸过程中的重载、空载与等待状态下的不同能耗等约束, 并针对轨道吊的干涉约束引入轨道吊任务分配策略。同时, 采用改进的混合灰狼遗传算法对模型进行求解, 具体改进策略包括引入灰狼算法位置更新策略优化遗传算法的交叉方式以提高最优解搜索效率, 以及在遗传算法的选择步骤前引入基于奖励机制的评估器增强算法的局部搜索能力。实验结果表明, 与轨道吊作业范围已知相比, 考虑轨道吊任务分配使轨道吊的平均利用率提升了3%~8%。与自适应混沌遗传算法、遗传算法相比, 改进混合灰狼遗传算法能在较短的作业完工时间内节约更多的能耗。

关键词: 海铁联运, 协同调度, 混合装卸, 任务分配, 改进混合灰狼遗传算法

Abstract:

With the growth of multimodal transportation and the push for green ports, improving the efficiency of sea-rail intermodal transportation and reducing energy consumption have become critical concerns for ports. This study focused on optimizing the layout of shared yards between the railway and ter\min al operation areas at a container ter\min al. The objective is to \min imize operation completion time and optimize the energy consumption of Rail-Mounted Gantry (RMG) cranes and Automatic Guided Vehicles (AGV), thereby improving the utilization rate of RMGs. To achieve this, a coordinated scheduling optimization model is developed for RMGs, AGVs, and yard cranes within a mixed loading and unloading environment. The model considered interference and task allocation among the RMGs, capacity constraints of AGV partners, and energy consumption variations during different AGV states such as loading, unloading, and waiting. In addition, a task assignment strategy that considered interference constraints is introduced for RMG operations. An improved hybrid grey wolf genetic algorithm is proposed to solve the model. This algorithm incorporated a grey wolf algorithm position update strategy to enhance the crossover method of the genetic algorithm, thereby improving the efficiency of finding optimal solutions. A reward-based evaluator is also introduced before the selection step of the genetic algorithm to enhance the local search capability of the algorithm. Experimental results indicated that considering task allocation for RMGs improved their average utilization rate by 3%-8% compared to scenarios where the RMG operating range is predeter\min ed. Furthermore, the improved hybrid grey wolf genetic algorithm reduced energy consumption more effectively within a shorter completion time compared to adaptive chaotic and traditional genetic algorithms. In conclusion, this study provides an effective and superior solution for improving efficiency and reducing energy consumption in sea-rail intermodal transportation at container ter\min al.

Key words: sea-rail intermodal transportation, coordinated scheduling, mixed loading and unloading, task assignment, improved hybrid gray wolf genetic algorithm

杨佳珠, 余芳, 杨勇生. 考虑能耗的海铁联运集装箱码头多设备协同调度[J]. 计算机工程, 2024, 50(10): 393-404.

YANG Jiazhu, YU Fang, YANG Yongsheng. Multi-Equipment Coordinated Scheduling Considering Energy Consumption in Sea-Rail Intermodal Container Ter\min al[J]. Computer Engineering, 2024, 50(10): 393-404.

https://www.ecice06.com/CN/Y2024/V50/I10/393

图/表 16

图1 海铁联运共堆场交接布局

Fig.1 Common yard handover layout for sea-rail transportation

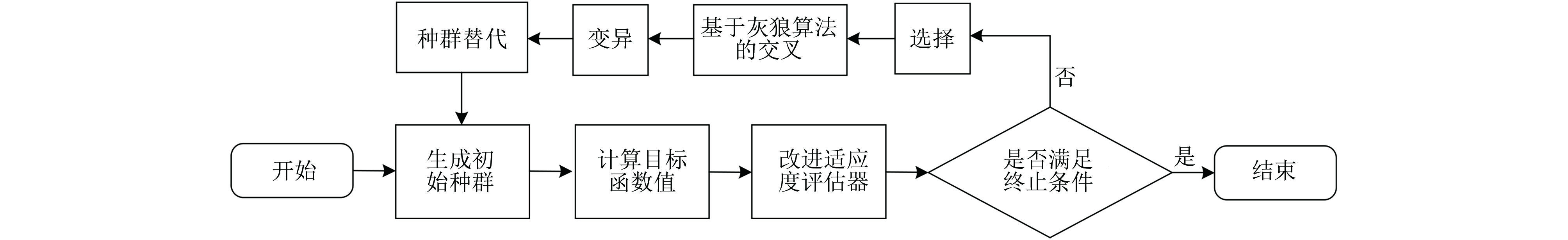

图2 HGWGA算法流程

Fig.2 The procedure of HGWGA algorithm

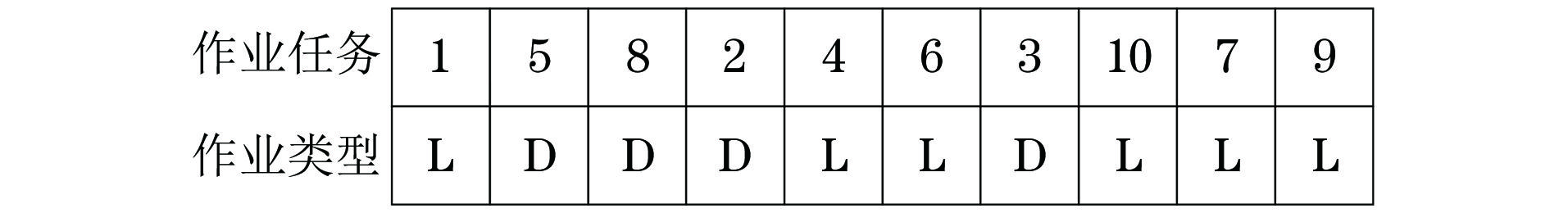

图3 染色体编码

Fig.3 Chromosome code

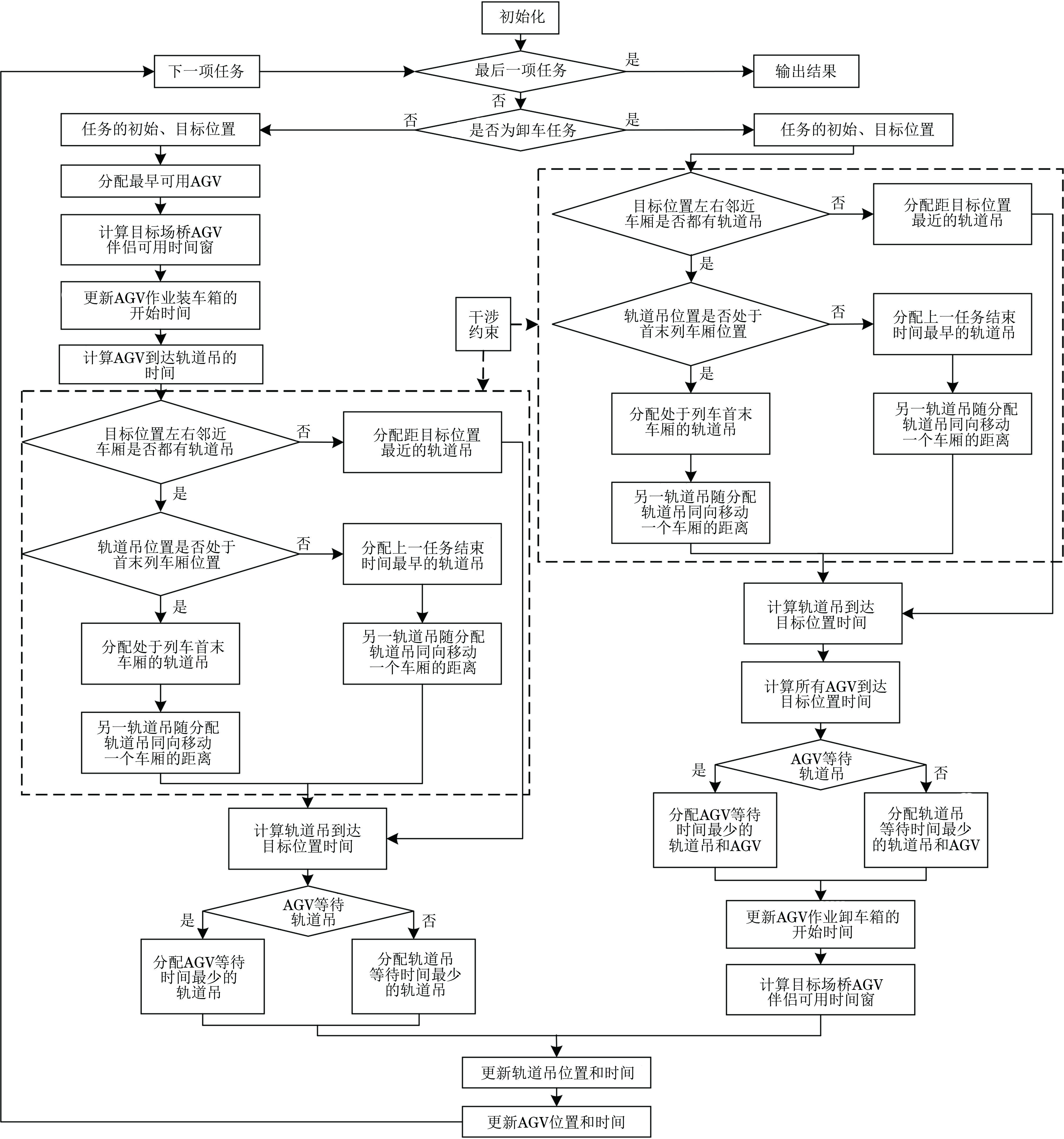

图4 任务分配流程

Fig.4 Task allocation procedure

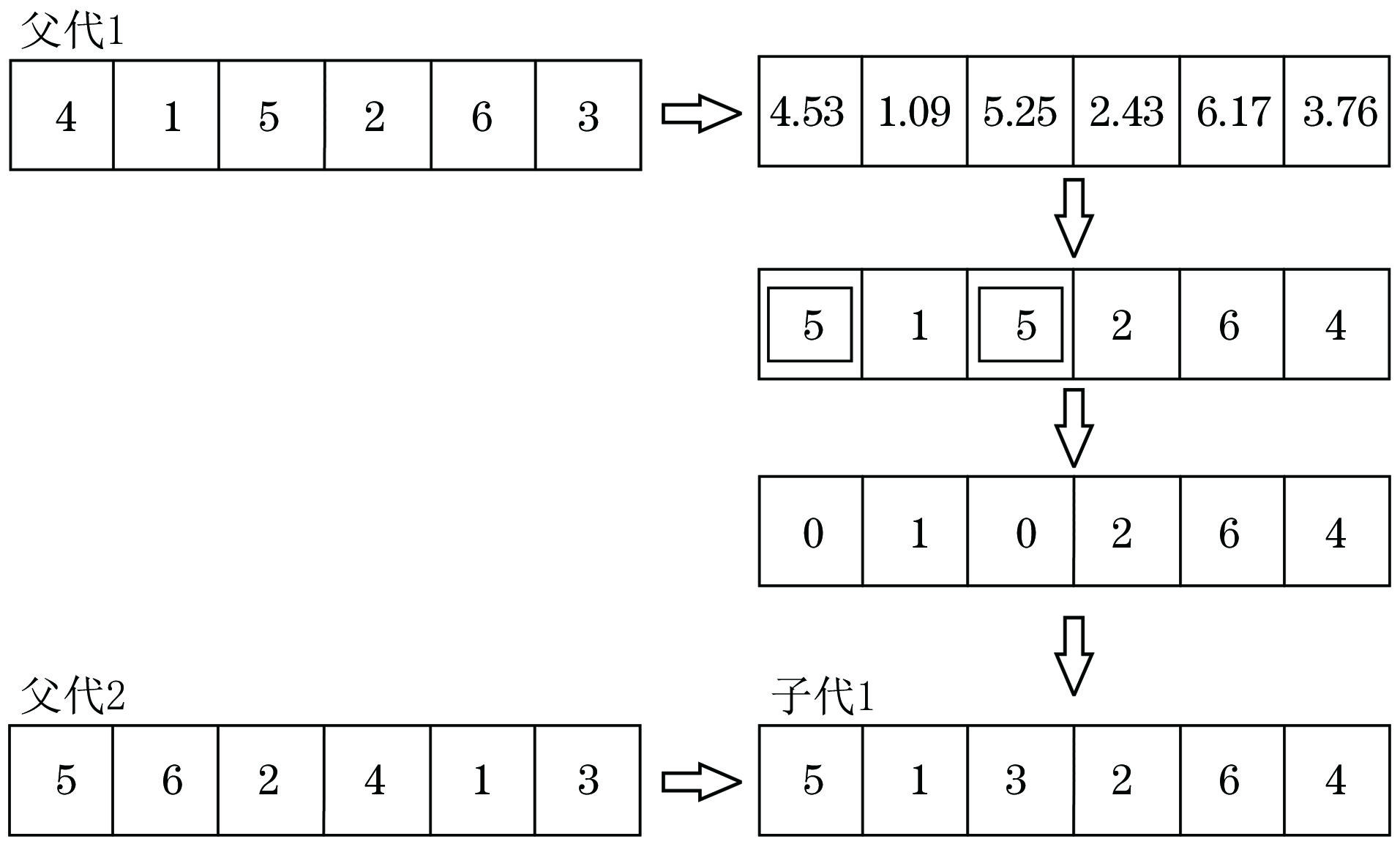

图5 染色体交叉

Fig.5 Chromosome crossover

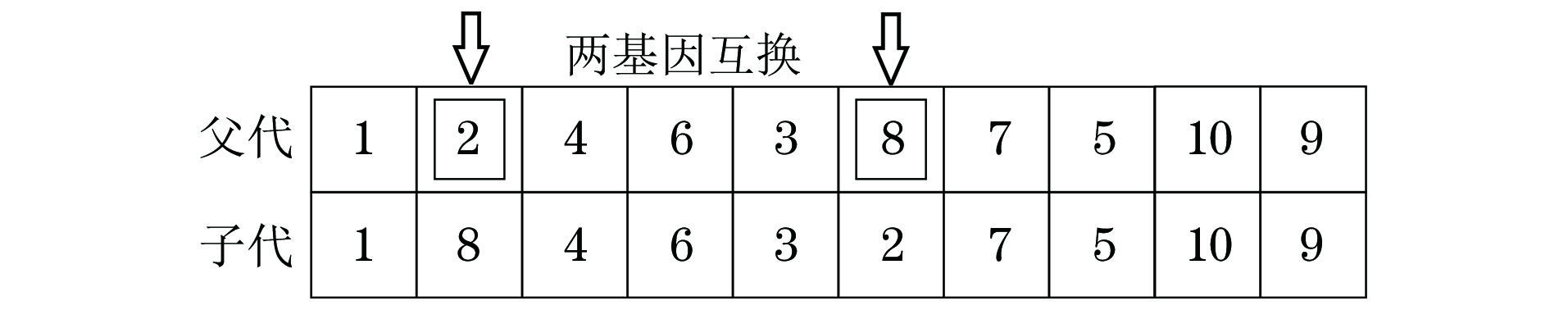

图6 染色体变异

Fig.6 Chromosome mutation

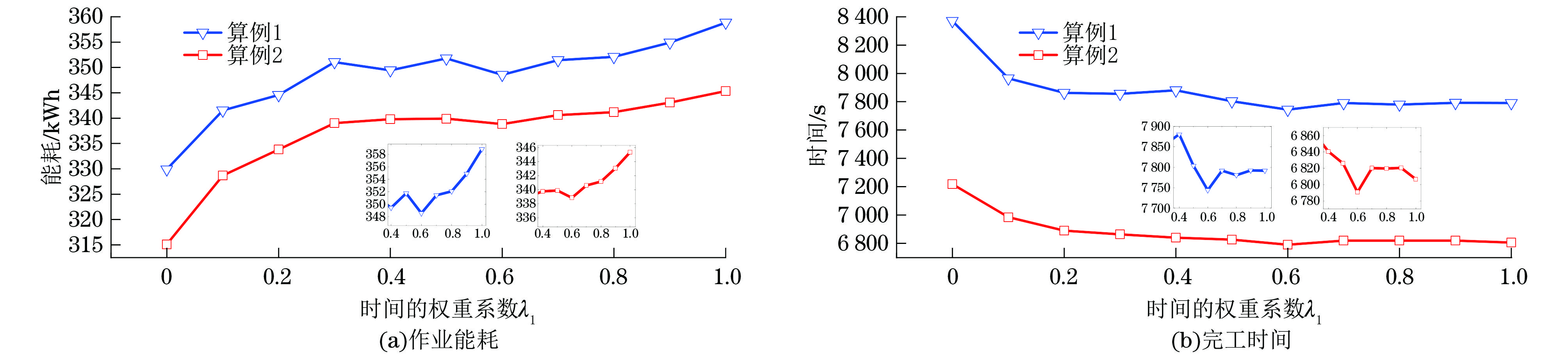

图7 不同权重下完工时间与作业能耗情况

Fig.7 Completion time and operational energy consumption under different weights

图8 轨道吊作业路线

Fig.8 Route for rail crane operations

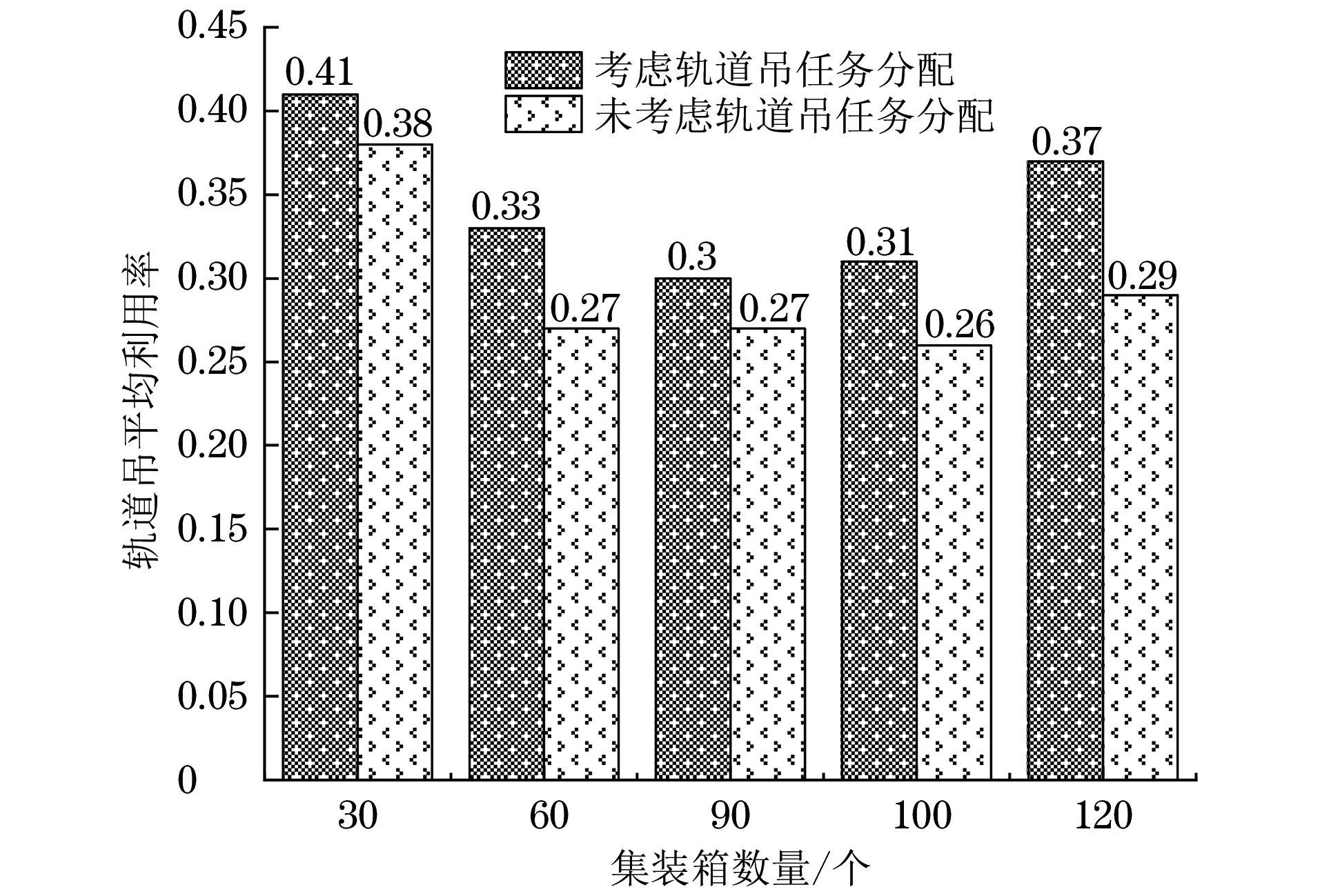

图9 两种情况下的轨道吊平均利用率对比

Fig.9 Comparison of the average utilization rate of rail cranes in the two case

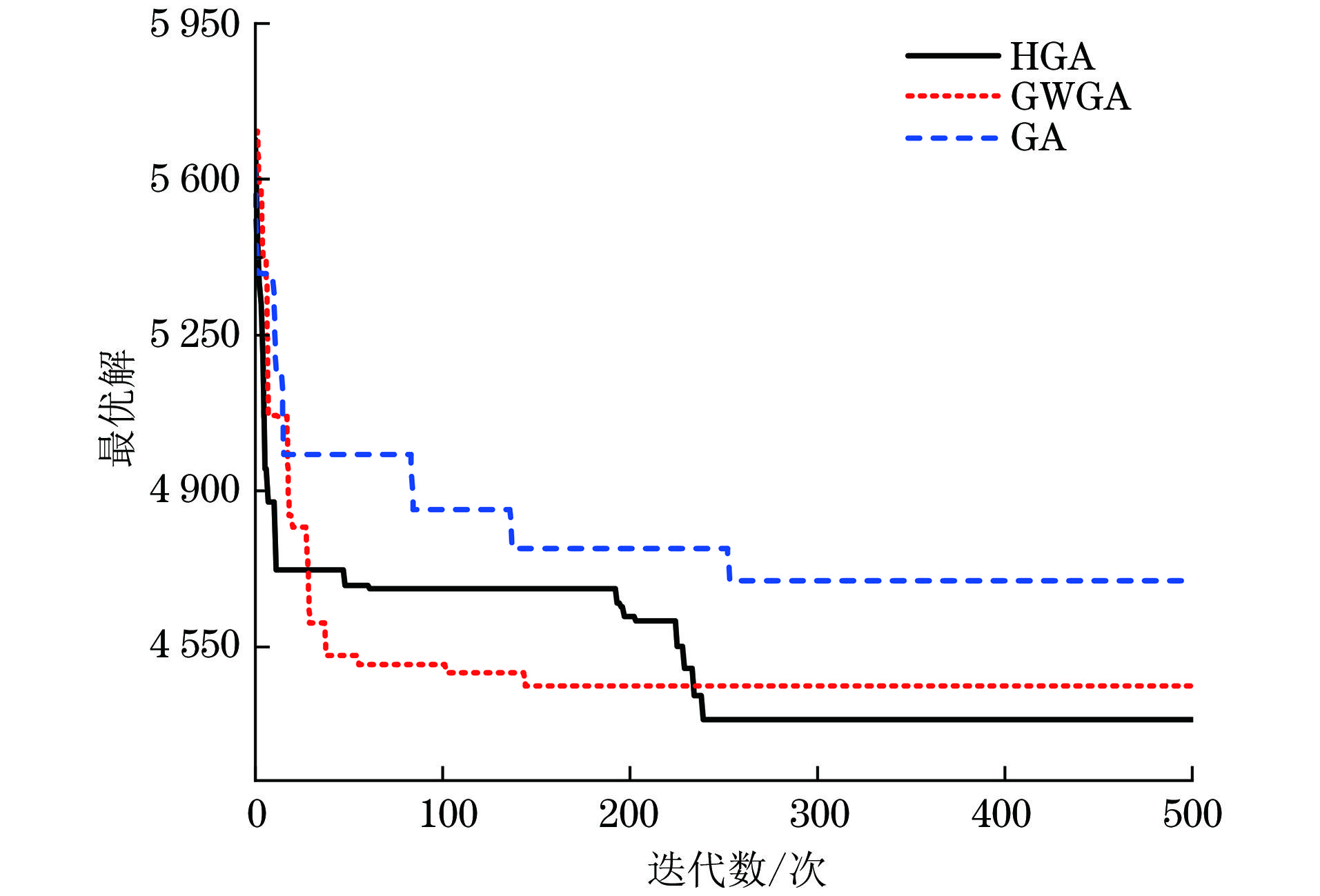

图10 改进策略的算法收敛对比

Fig.10 Comparison of convergence of algorithms with improved strategies

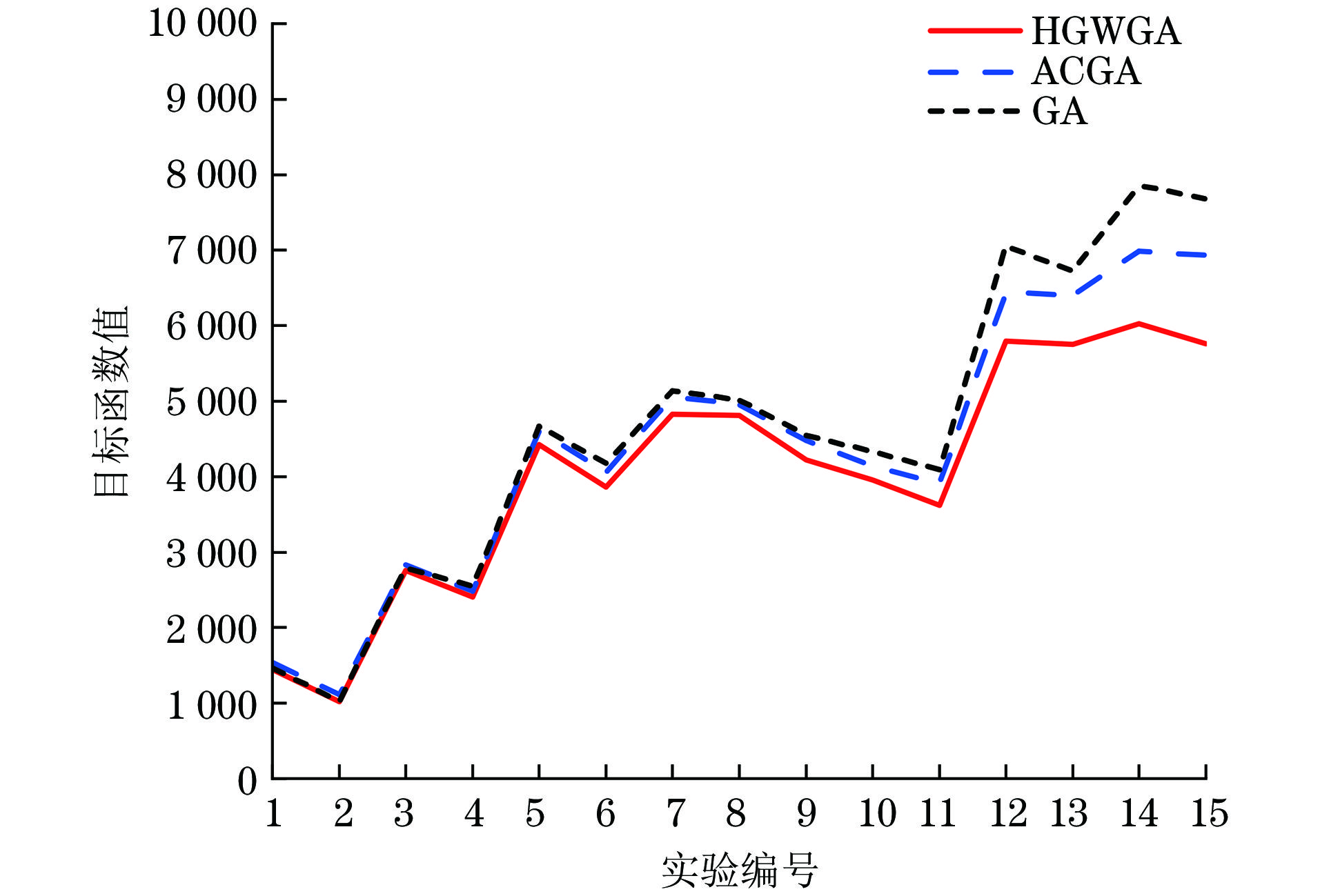

图11 3种算法的15组实验性能趋势图

Fig.11 Performance trend plots for 15 sets of experiments for the three algorithms

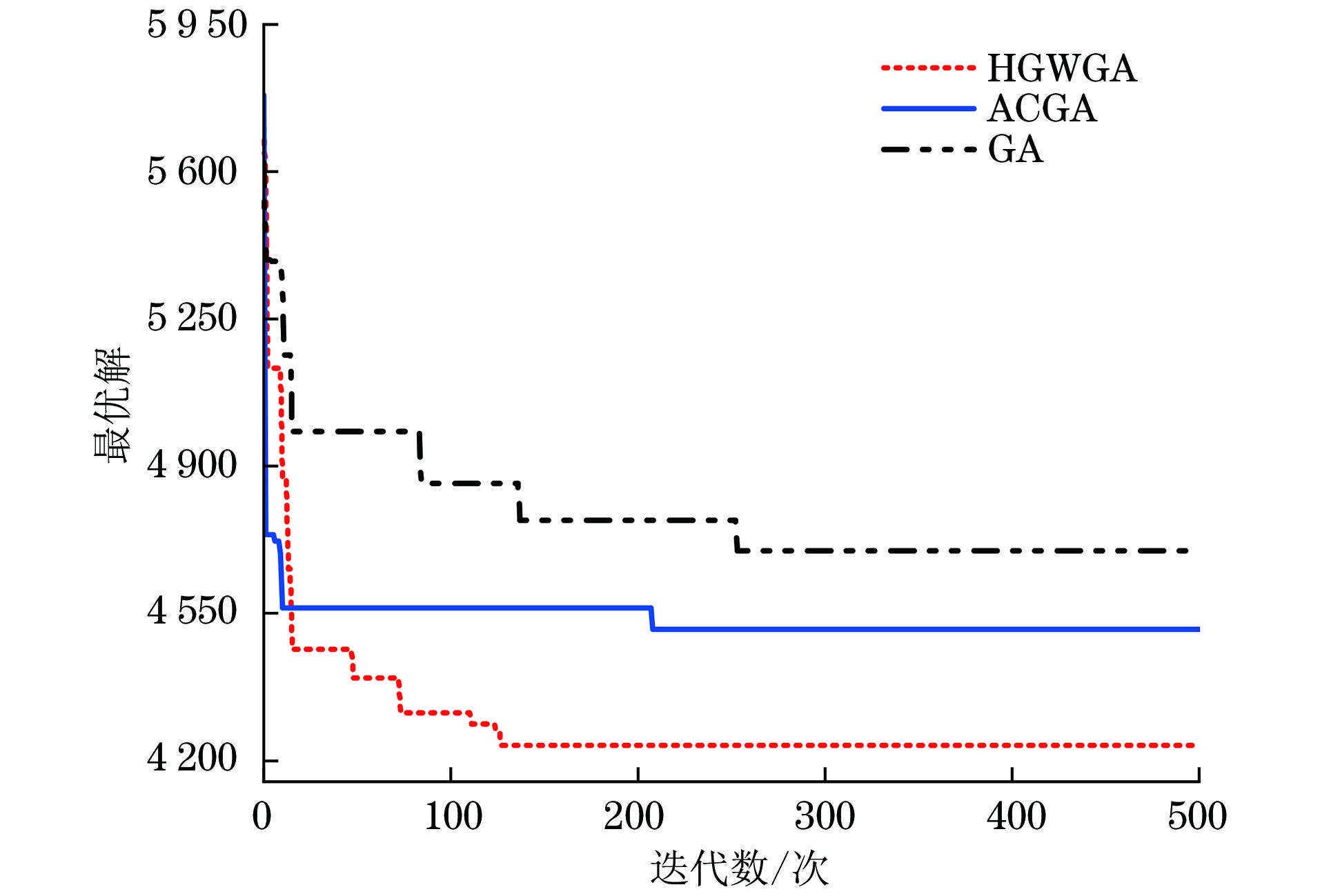

图12 3种算法收敛曲线对比

Fig.12 Comparison of convergence curves of three algorithms

参考文献 25

1	刘秉镰, 林坦. 国际多式联运发展趋势及我国的对策研究. 中国流通经济, 2009, 23 (12): 17- 20.
	LIU B L, LIN T. International multimodal transport: the trends and polices. China Business and Market, 2009, 23 (12): 17- 20.
2	YAN B C, ZHU X N, LEE D H, et al. Transshipment operations optimization of sea-rail intermodal container in seaport rail ter\min als. Computers & Industrial Engineering, 2020, 141, 106296.
3	HE J L, HUANG Y F, YAN W, et al. Integrated internal truck, yard crane and quay crane scheduling in a container ter\min al considering energy consumption. Expert Systems with Applications, 2015, 42(5): 2464- 2487. doi: 10.1016/j.eswa.2014.11.016
4	WANG L, ZHU X N. Container loading optimization in rail-truck intermodal ter\min als considering energy consumption. Sustainability, 2019, 11(8): 2383. doi: 10.3390/su11082383
5	冯力源. 集装箱港口铁水联运车船直取模式下的作业设备调度优化[D]. 北京: 北京交通大学, 2016.
	FENG L Y. Optimization of operation equipment scheduling in container port under direct access mode of hot metal combined transport vehicle and ship[D]. Beijing: Beijing Jiaotong University, 2016. (in Chinese)
6	常祎妹, 朱晓宁. 不确定因素下的集装箱码头车船间装卸作业集成调度. 交通运输工程学报, 2017, 17(6): 115- 124. doi: 10.3969/j.issn.1671-1637.2017.06.013
	CHANG Y M, ZHU X N. Integrated scheduling of handling operation between train and vessel in container ter\min al under uncertain factor. Journal of Traffic and Transportation Engineering, 2017, 17(6): 115- 124. doi: 10.3969/j.issn.1671-1637.2017.06.013
7	李舒仪, 韩晓龙. 海铁联运港口混合作业模式下轨道吊与集卡协同调度. 计算机应用, 2021, 41(5): 1506- 1513.
	LI S Y, HAN X L. Collaborative scheduling of rail-mounted gantry crane and container truck in hybrid operation mode of rail-water intermodal ter\min al. Journal of Computer Applications, 2021, 41(5): 1506- 1513.
8	YAN B C, ZHU X N, WANG L, et al. Integrated scheduling of rail-mounted gantry cranes, internal trucks and reach stackers in railway operation area of container ter\min al. Transportation Research Record: Journal of the Transportation Research Board, 2018, 2672(9): 47- 58. doi: 10.1177/0361198118782754
9	曾庆成, 吕明蔚. 集装箱码头堆场与港前铁路中心站协同调度模型. 中国航海, 2020, 43(4): 129- 134. doi: 10.3969/j.issn.1000-4653.2020.04.022
	ZENG Q C, LÜ M Y. Modeling of cooperative scheduling for container yard and central railway station in port. Navigation of China, 2020, 43(4): 129- 134. doi: 10.3969/j.issn.1000-4653.2020.04.022
10	杨奔, 王炜晔, 赵婉婷, 等. 基于DQN的动态深度多分支搜索自动配载算法. 计算机工程, 2020, 46(8): 313- 320. URL
	YANG B, WANG W Y, ZHAO W T, et al. DQN-based automatic stowage planning algorithm using dynamic depth multi-branch search. Computer Engineering, 2020, 46(8): 313- 320. URL
11	LI J J, YAN L X, XU B W. Research on multi-equipment cluster scheduling of U-shaped automated ter\min al yard and railway yard. Journal of Marine Science and Engineering, 2023, 11(2): 417. doi: 10.3390/jmse11020417
12	唐梦宇, 梁承姬. 基于滚动窗策略的港口海铁联运集装箱转运优化. 计算机应用研究, 2023, 40(1): 185-191, 197.
	TANG M Y, LIANG C J. Container transshipment optimization of ter\min al sea-rail intermodal transport based on rolling window strategy. Application Research of Computers, 2023, 40(1): 185-191, 197.
13	CHANG Y M, ZHU X N, YAN B C, et al. Integrated scheduling of handling operations in railway container ter\min als. Transportation Letters, 2019, 11(7): 402- 412. doi: 10.1080/19427867.2017.1374500
14	LIU W Q, ZHU X N, WANG L, et al. Multiple equipment scheduling and AGV trajectory generation in U-shaped sea-rail intermodal automated container ter\min al. Measurement, 2023, 206, 112262. doi: 10.1016/j.measurement.2022.112262
15	REN G, WANG X H, CAI J X, et al. Allocation and scheduling of handling resources in the railway container ter\min al based on crossing crane area. Sustainability, 2021, 13(3): 1190. doi: 10.3390/su13031190
16	YANG Y S, HE S, SUN S. Research on the cooperative scheduling of ARMGs and AGVs in a sea–rail automated container ter\min al under the rail-in-port model. Journal of Marine Science and Engineering, 2023, 11(3): 557. doi: 10.3390/jmse11030557
17	杨宜佳, 朱晓宁, 闫柏丞, 等. 考虑能耗的铁水联运集装箱装卸设备协同调度. 交通运输系统工程与信息, 2018, 18(6): 215- 221.
	YANG Y J, ZHU X N, YAN B C, et al. Integrated scheduling of rail-water containers handling operations in intermodal ter\min als considering energy-efficiency. Journal of Transportation Systems Engineering and Information Technology, 2018, 18(6): 215- 221.
18	YANG Y J, ZHU X N, HAGHANI A. Multiple equipment integrated scheduling and storage space allocation in rail-water intermodal container ter\min als considering energy efficiency. Transportation Research Record: Journal of the Transportation Research Board, 2019, 2673(3): 199- 209. doi: 10.1177/0361198118825474
19	代江涛, 韩晓龙. 考虑作业状态能耗的集装箱码头设备协调调度. 计算机工程与应用, 2021, 57(19): 290- 298.
	DAI J T, HAN X L. Coordinated scheduling of equipment in container ter\min als considering energy consumption under different job status. Computer Engineering and Applications, 2021, 57(19): 290- 298.
20	YANG Y S, SUN S, ZHONG M S, et al. A refined collaborative scheduling method for multi-equipment at U-shaped automated container ter\min als based on rail crane process optimization. Journal of Marine Science and Engineering, 2023, 11(3): 605. doi: 10.3390/jmse11030605
21	李静, 朱小林. 集装箱码头上多自动引导车的调度和路径规划. 计算机集成制造系统, 2022, 28(5): 1449- 1461.
	LI J, ZHU X L. Scheduling and path planning of multiple automatic guided vehicles in container ter\min als. Computer Integrated Manufacturing Systems, 2022, 28(5): 1449- 1461.
22	胡亚萍, 王子磊. 一种命名数据网络的视频全域协作缓存算法. 计算机工程, 2018, 44(5): 280-285, 295. URL
	HU Y P, WANG Z L. A video global domain cooperative caching algorithm for named data networking. Computer Engineering, 2018, 44(5): 280-285, 295. URL
23	GUPTA A, SAVARESE S, GANGULI S, et al. Embodied intelligence via learning and evolution. Nature Communications, 2021, 12(1): 5721. doi: 10.1038/s41467-021-25874-z
24	范厚明, 郭振峰, 岳丽君, 等. 考虑能耗节约的集装箱码头双小车岸桥与AGV联合配置及调度优化. 自动化学报, 2021, 47(10): 2412- 2426.
	FAN H M, GUO Z F, YUE L J, et al. Joint configuration and scheduling optimization of dual-trolley quay crane and AGV for container ter\min al with considering energy saving. Acta Automatica Sinica, 2021, 47(10): 2412- 2426.
25	赵倩儒. 考虑能耗的自动化集装箱码头作业设备协同调度优化[D]. 北京: 北京交通大学, 2021.
	ZHAO Q R. Collaborative scheduling optimization of automatic container ter\min al operation equipment considering energy consumption[D]. Beijing: Beijing Jiaotong University, 2021. (in Chinese)
