基于改进狼群算法的无人机协同任务规划

doi:10.19678/j.issn.1000-3428.0067993

摘要/Abstract

摘要：

多无人机在现代化作战中的运用日渐增多, 无人机任务规划在无人机智能作战中至关重要。针对子系统能力约束下的无人机任务分配问题, 提出一种Levy Flight(LF)优化下基于拍卖机制的混沌反向学习狼群优化算法CRL-AMIWPA。首先, 定义无人机能力矩阵和任务场景, 对无人机异构性、任务执行能力、执行任务能力最低需求建立同一矩阵描述, 根据距离油耗和最迟任务完成时间的加权和建立目标函数, 建立子系统约束下的任务分配模型; 然后, 设计狼群个体编码, 每个编码方案包含一种任务分配策略, 针对未达到任务需求最低能力的解, 采用基于合同网的拍卖策略予以修正。另外, 在狼群初始化阶段, 采用Tent混沌算子和反向学习策略, 将狼群个体均匀地分布在解空间中, 以提高初始种群的多样性, 最后, 利用LF策略优化寻优过程, 提高跳出局部最优解的能力。仿真实验结果表明, 所提算法能有效解决在子系统约束场景下无人机任务分配问题, 相比其他群智能算法和狼群算法, 具有更优的寻优性和收敛速度。

关键词: 狼群算法, 任务分配, 混沌优化, 变步长优化, 群智能算法

Abstract:

The use of multiple Unmanned Aerial Vehicles (UAV) in modern warfare is increasing, making UAV mission planning crucial for intelligent UAV operations. In response to the UAV task allocation problem under subsystem capability constraints, this study proposes a chaos reverse learning wolf pack optimization algorithm, CRL-AMIWPA, based on Levy Flight(LF) optimization and auction mechanism. First, the UAV capability matrix and task scenario are defined. The heterogeneity of the UAVs, task execution capability, and minimum task execution requirements are described in the same matrix. The objective function is established by considering the weighted sum of distance fuel consumption and latest task completion time, and the task allocation model is established under subsystem constraints. Subsequently, the individual coding of the wolf pack is designed, whereby each coding scheme represents a task allocation strategy. A corrective auction strategy based on contract network is used for solutions that fail to satisfy the minimum task capability requirements. In addition, during the initialization stage of the wolf pack, the Tent chaos operator and reverse learning strategy are applied to distribute the wolf pack individuals evenly in the solution space and improve the diversity of the initial population. Finally, LF strategy is used to optimize the search process, thereby enhancing the ability to escape local optima. Simulation results demonstrate that the proposed algorithm effectively solves the UAV task allocation problem under subsystem-constraint scenarios and exhibits better optimization performance and convergence speed than other swarm intelligence and Wolf Pack Algorithms(WPA).

Key words: Wolf Pack Algorithm(WPA), task allocation, chaotic optimization, variable step size optimization, swarm intelligence algorithm

彭泫滈, 张娟, 李辉, 胡术. 基于改进狼群算法的无人机协同任务规划[J]. 计算机工程, 2024, 50(10): 69-79.

PENG Xuanhao, ZHANG Juan, LI Hui, HU Shu. Cooperative Mission Planning for UAV Based on Improved Wolf Pack Algorithm[J]. Computer Engineering, 2024, 50(10): 69-79.

https://www.ecice06.com/CN/Y2024/V50/I10/69

图/表 22

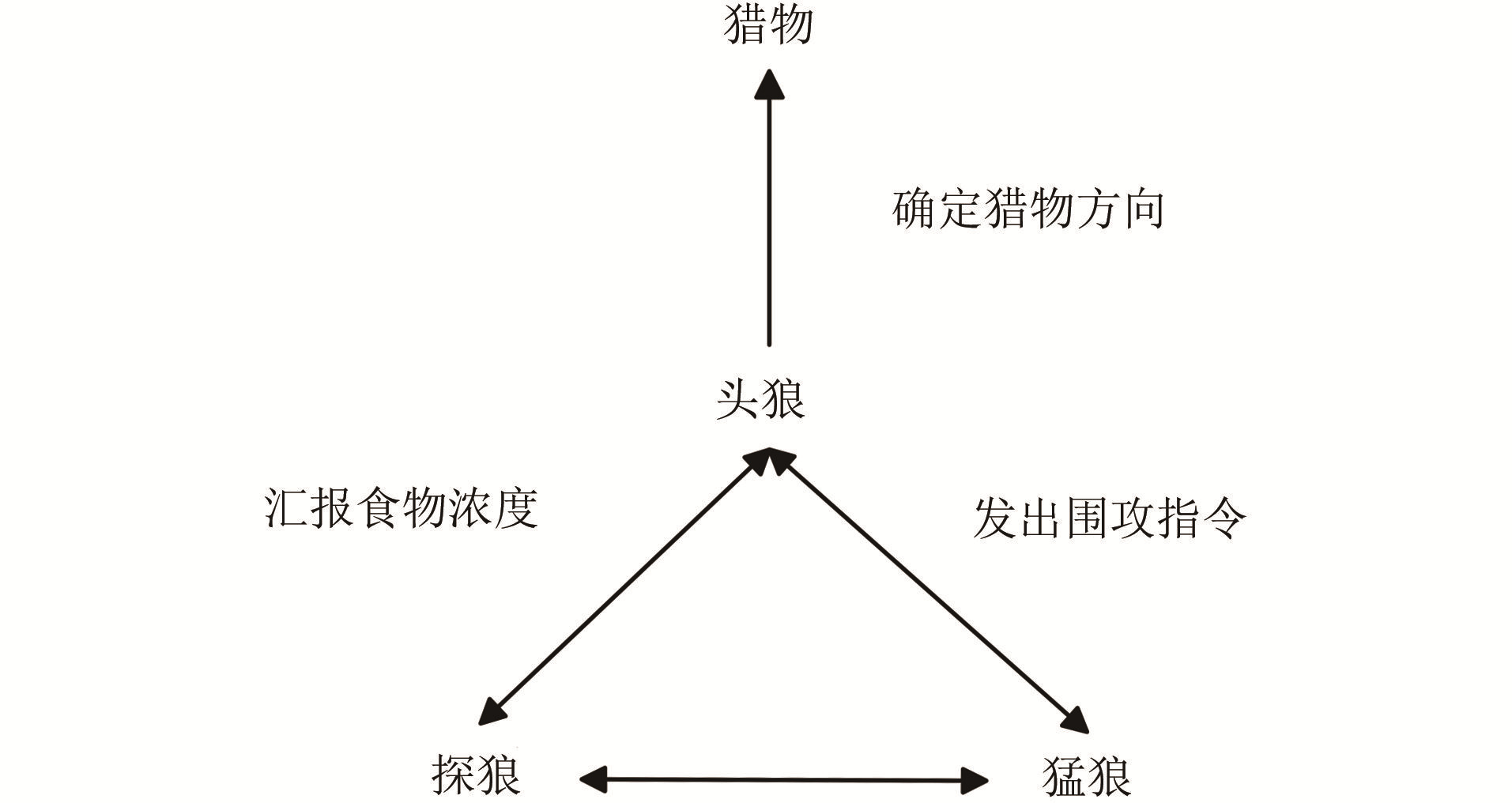

图1 狼群捕猎过程

Fig.1 The hunting process of wolf pack

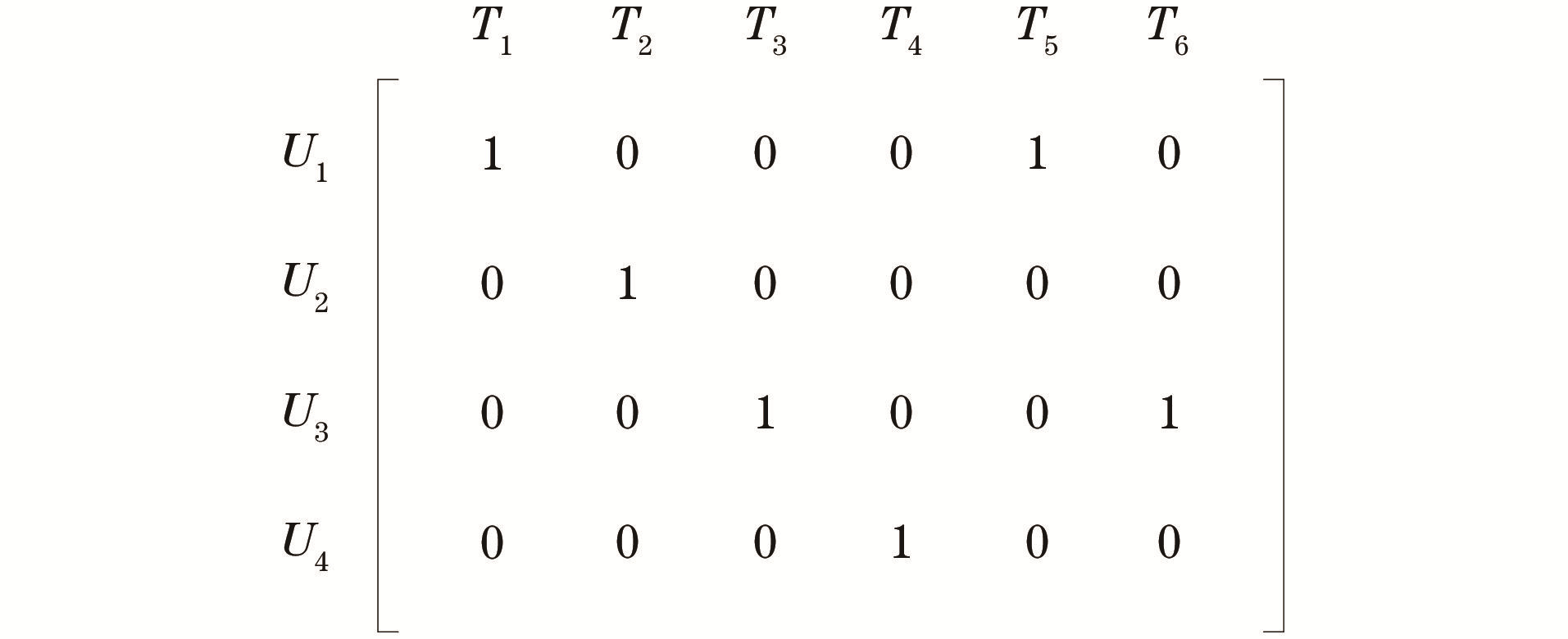

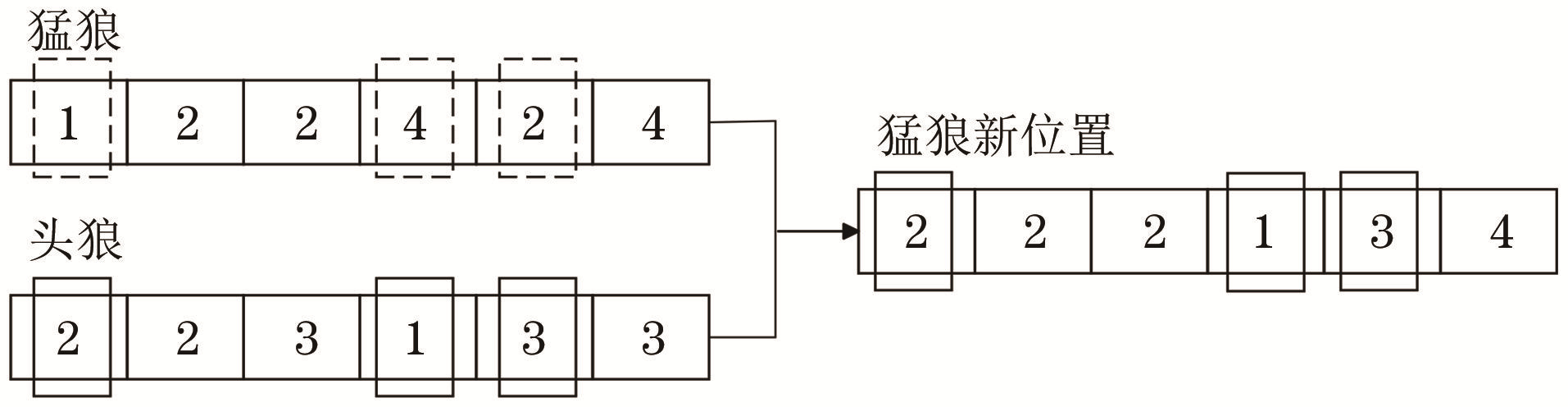

图2 任务分配序列

Fig.2 Task assignment sequence

图3 游走行为位置更新

Fig.3 Position update of wandering behavior

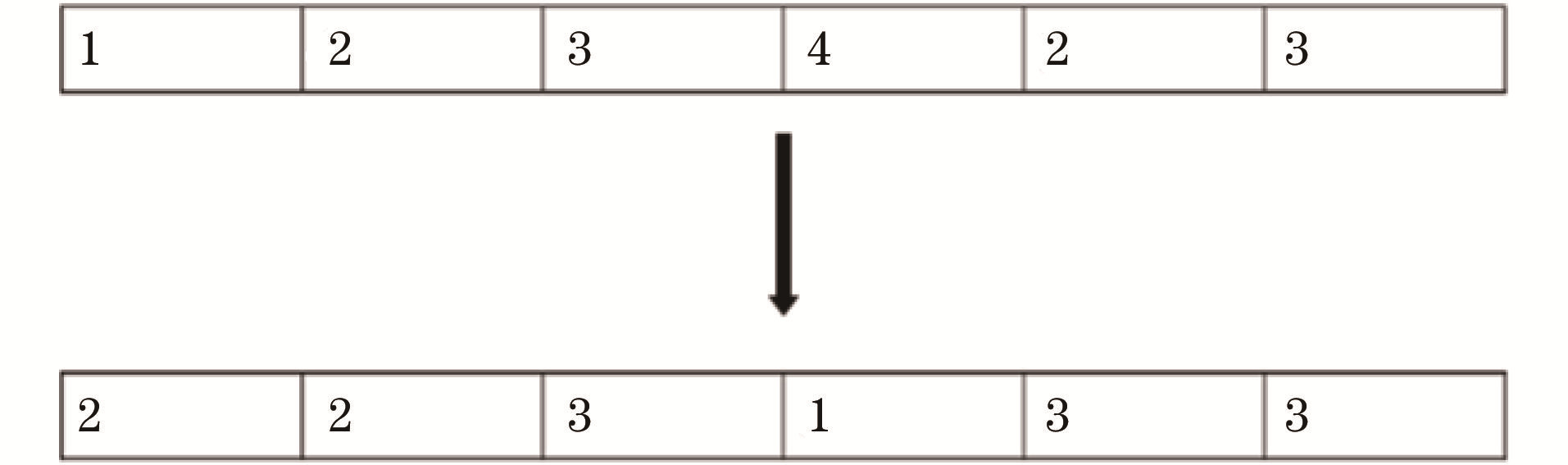

图4 召唤行为位置更新

Fig.4 Position update of the calling behavior

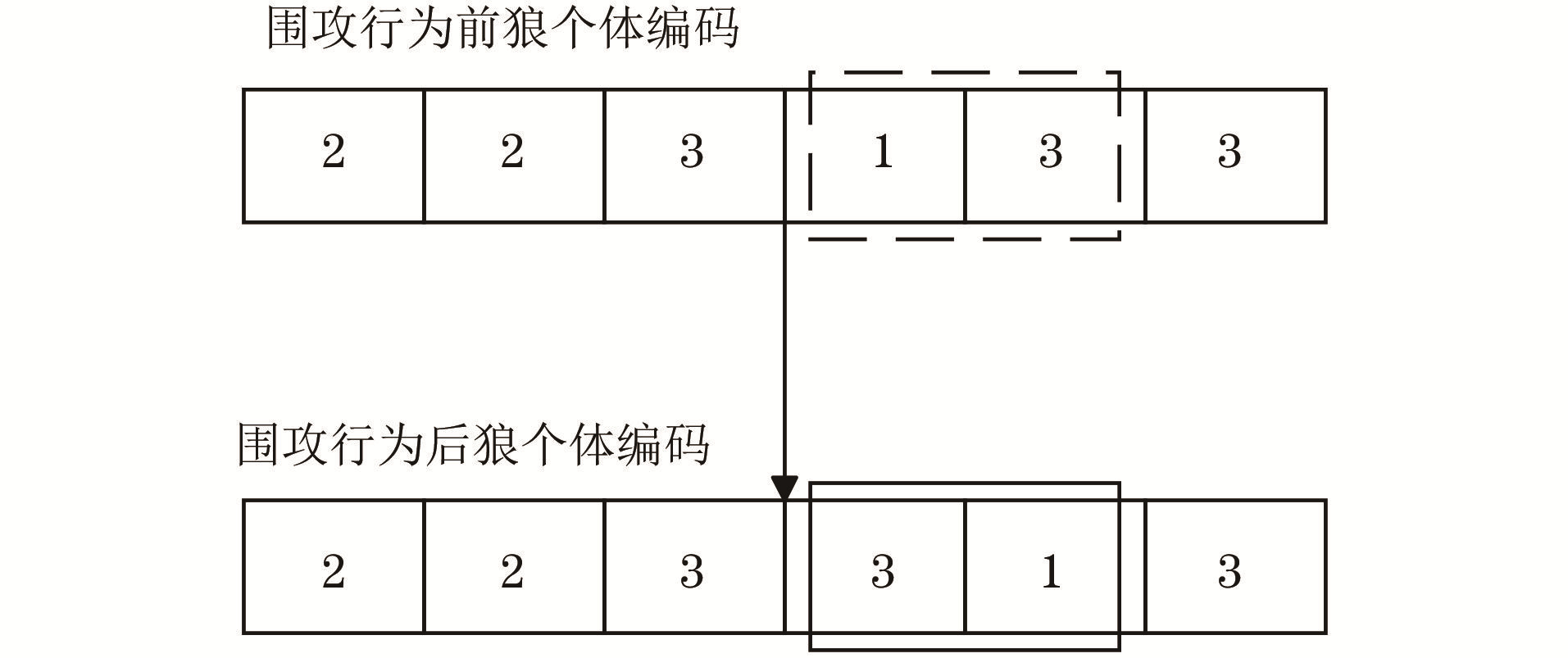

图5 围攻阶段的位置更新

Fig.5 Position update of the siege phase

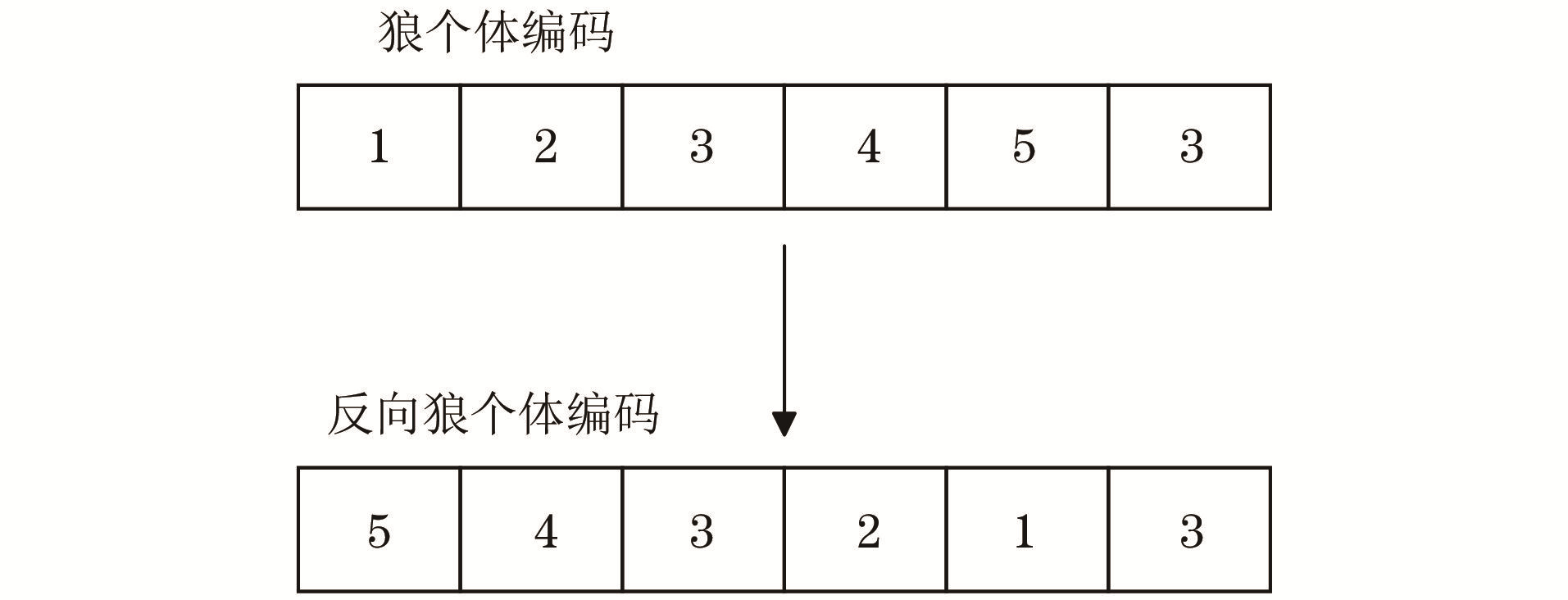

图6 反向学习个体的编码变化

Fig.6 Coding changes of reverse learning individual

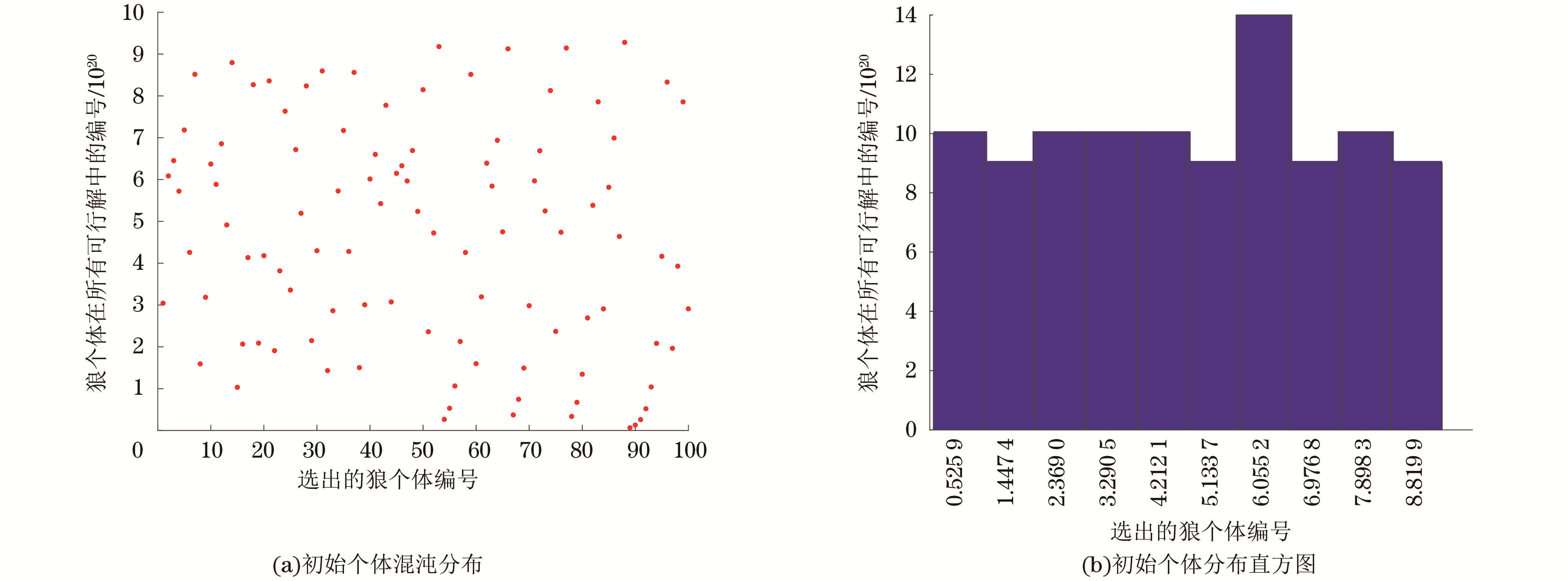

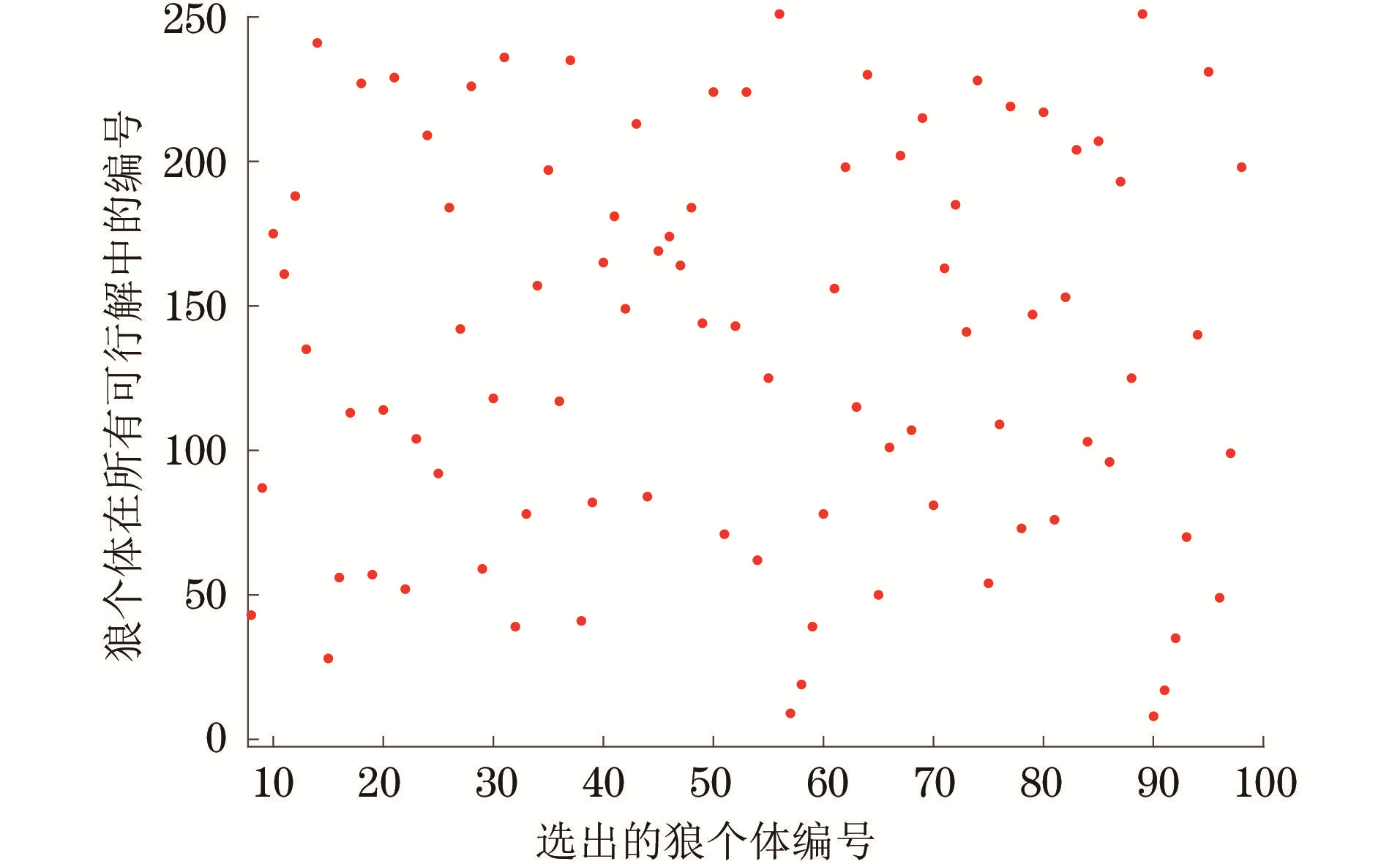

图7 算例1中初始个体混沌分布

Fig.7 Chaos distribution of initial individual under example 1

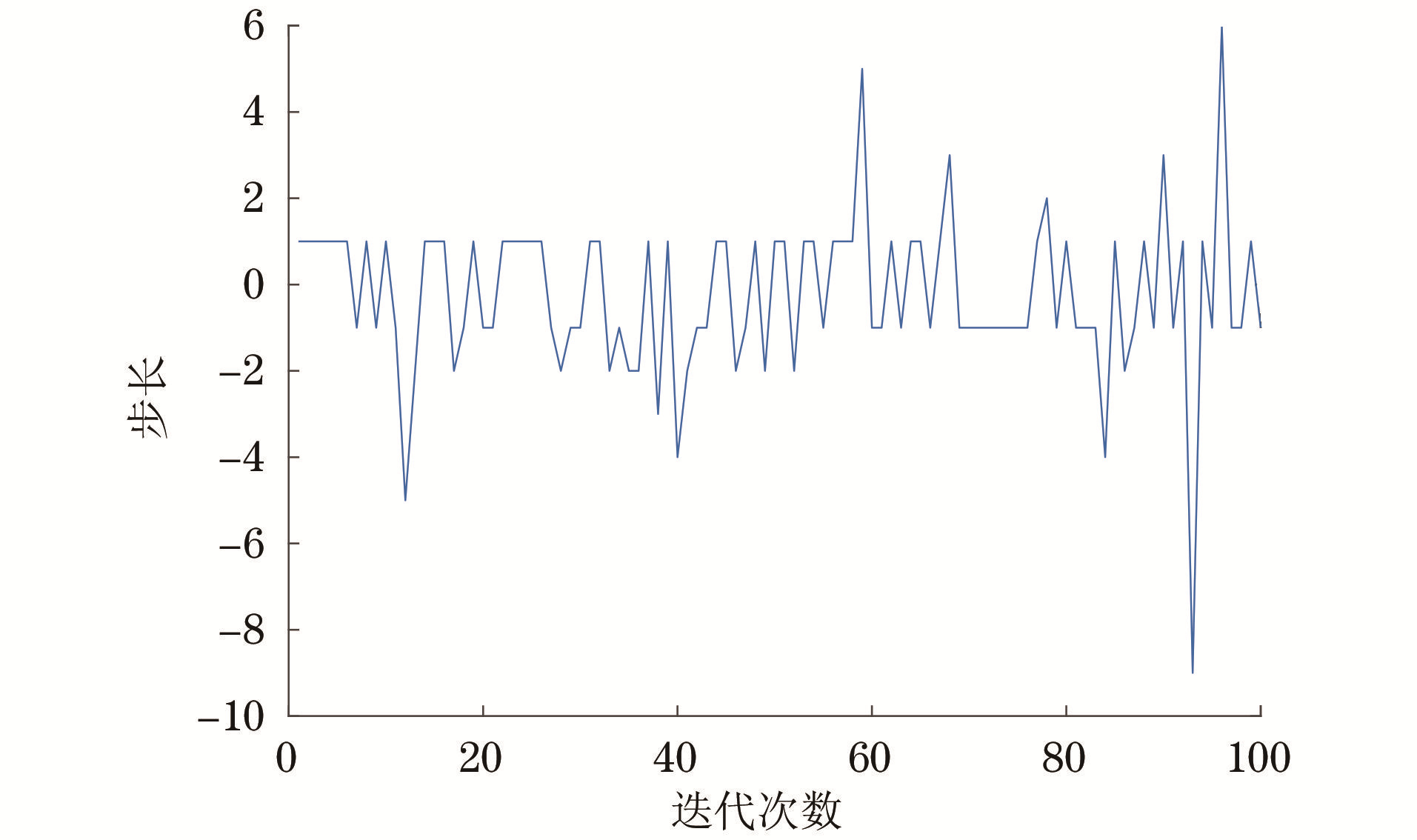

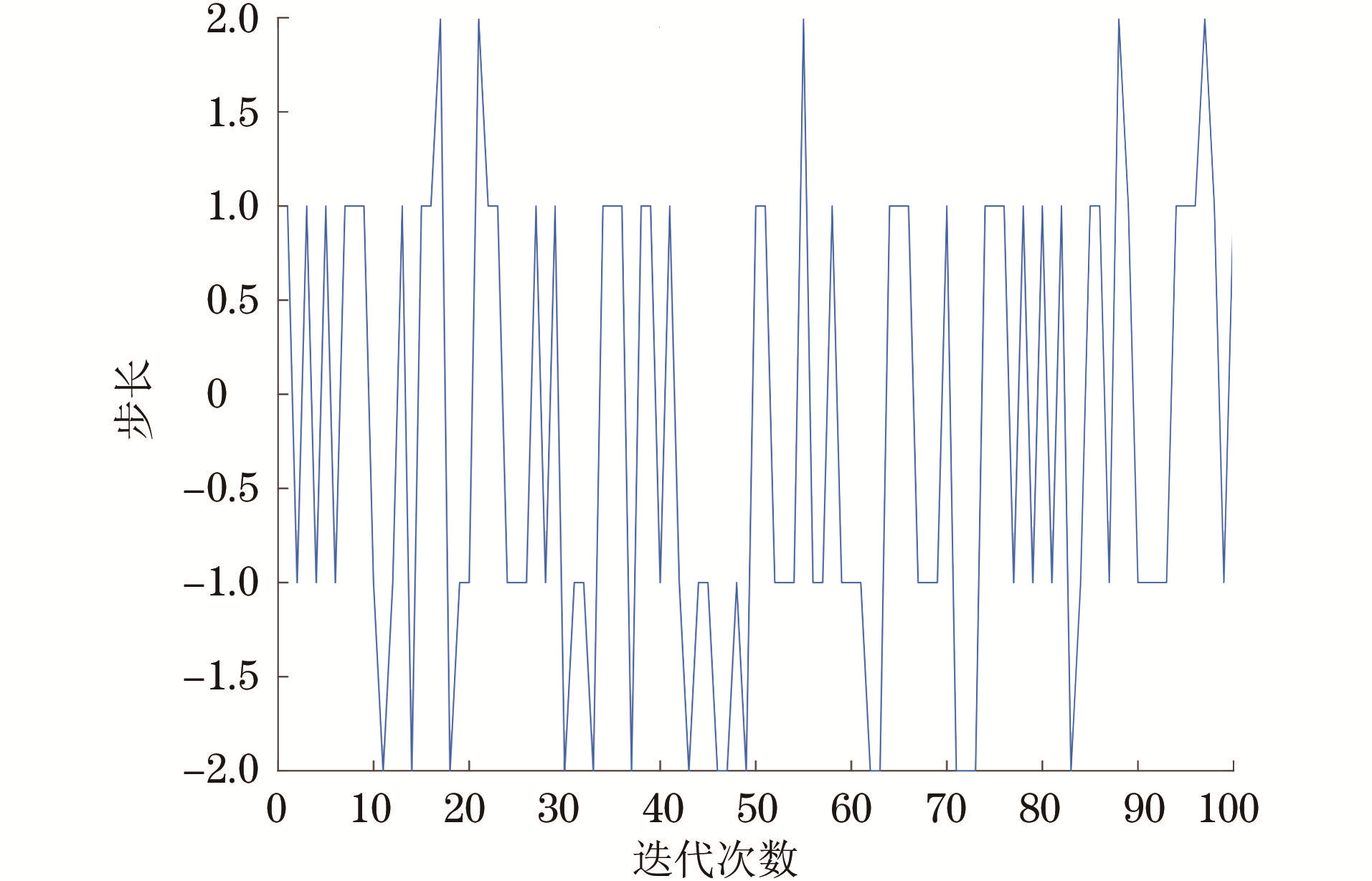

图8 算例1中LF变步长分布

Fig.8 Distribution of LF variable step size under example 1

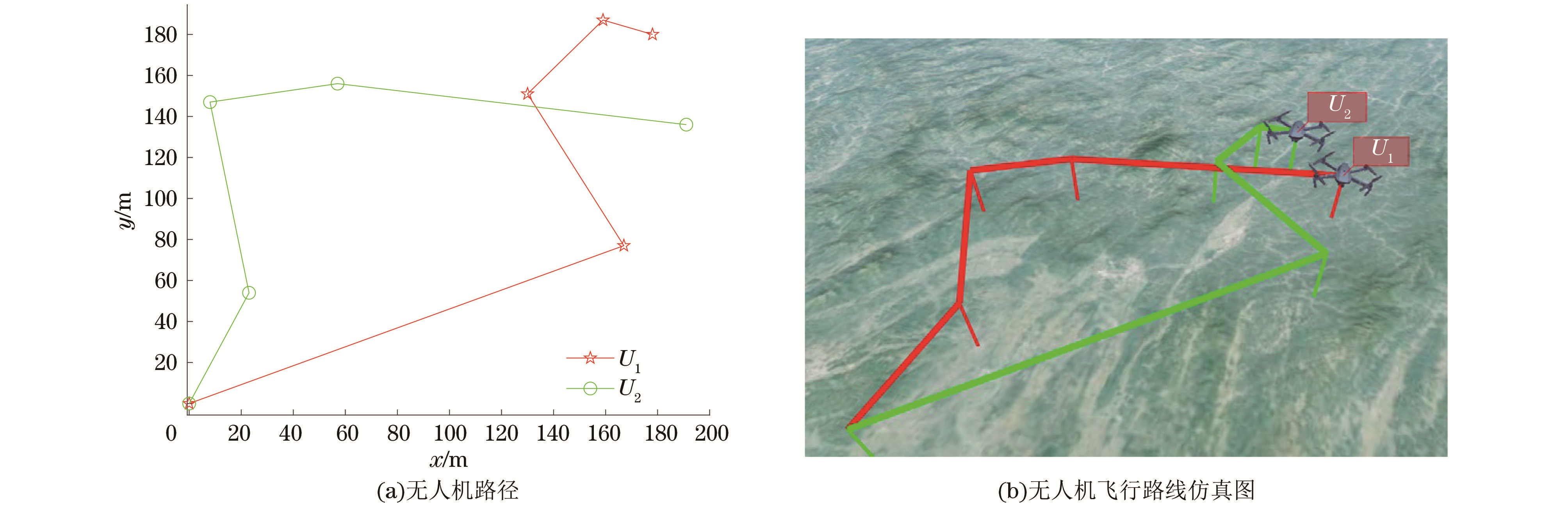

图9 算例1中无人机任务分配路线图

Fig.9 Task allocation roadmap of UAV under example 1

图10 算例2中初始个体分布

Fig.10 The distribution of initial individuals under example 2

图11 算例2中LF变步长分布

Fig.11 LF variable step size distribution under example 2

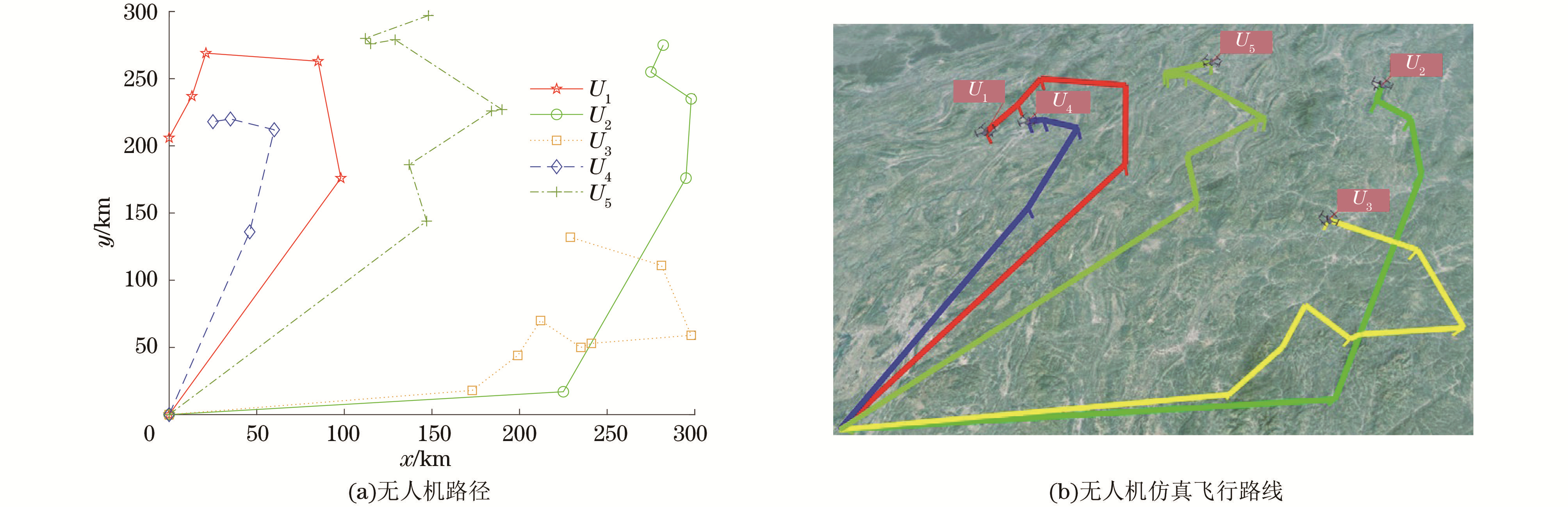

图12 算例2中无人机任务分配路线图

Fig.12 Task allocation roadmap for UAV under example 2

图13 算例2下的算法分离显著性测试

Fig.13 Separation significance test of algorithm under example 2

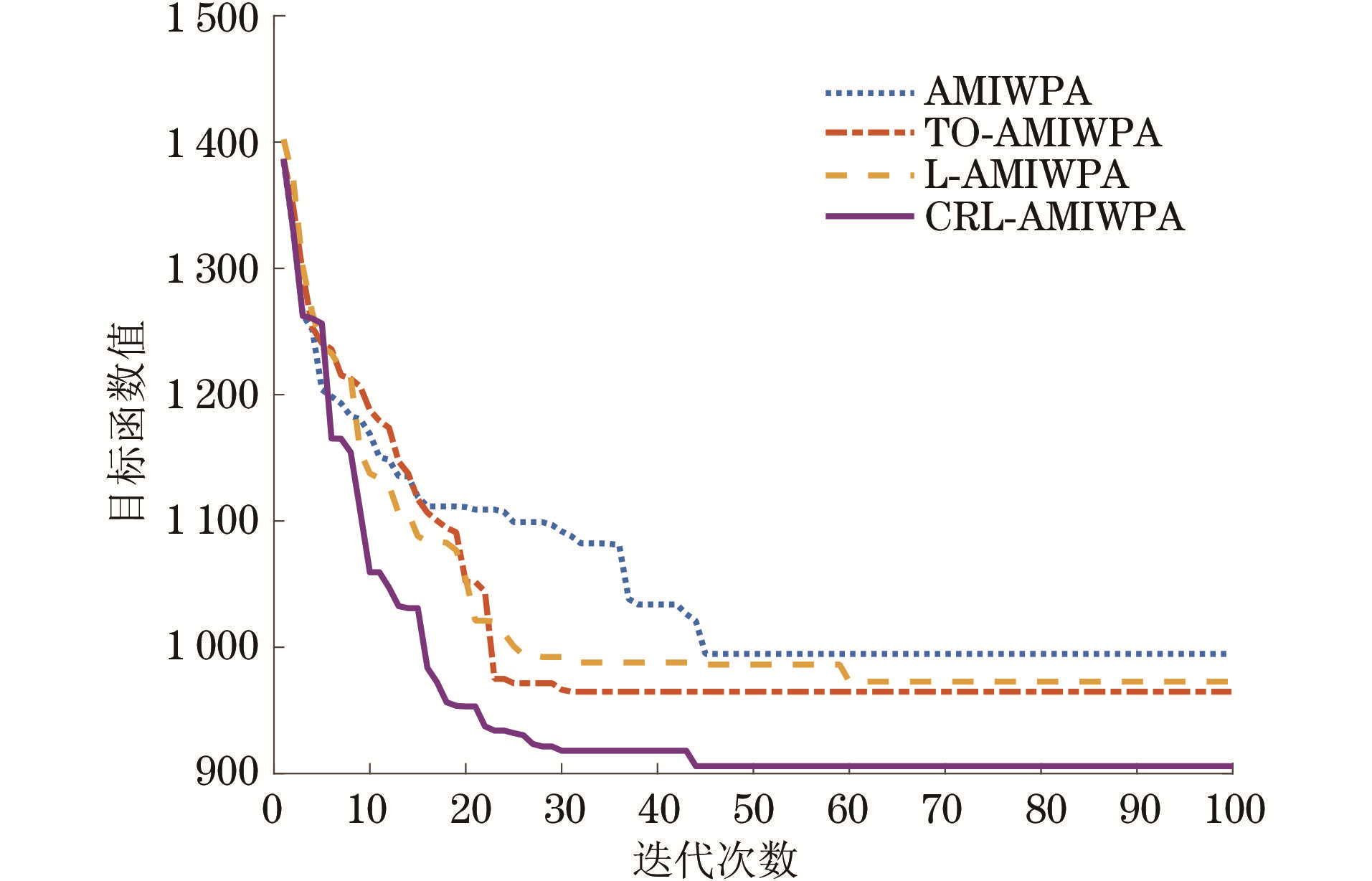

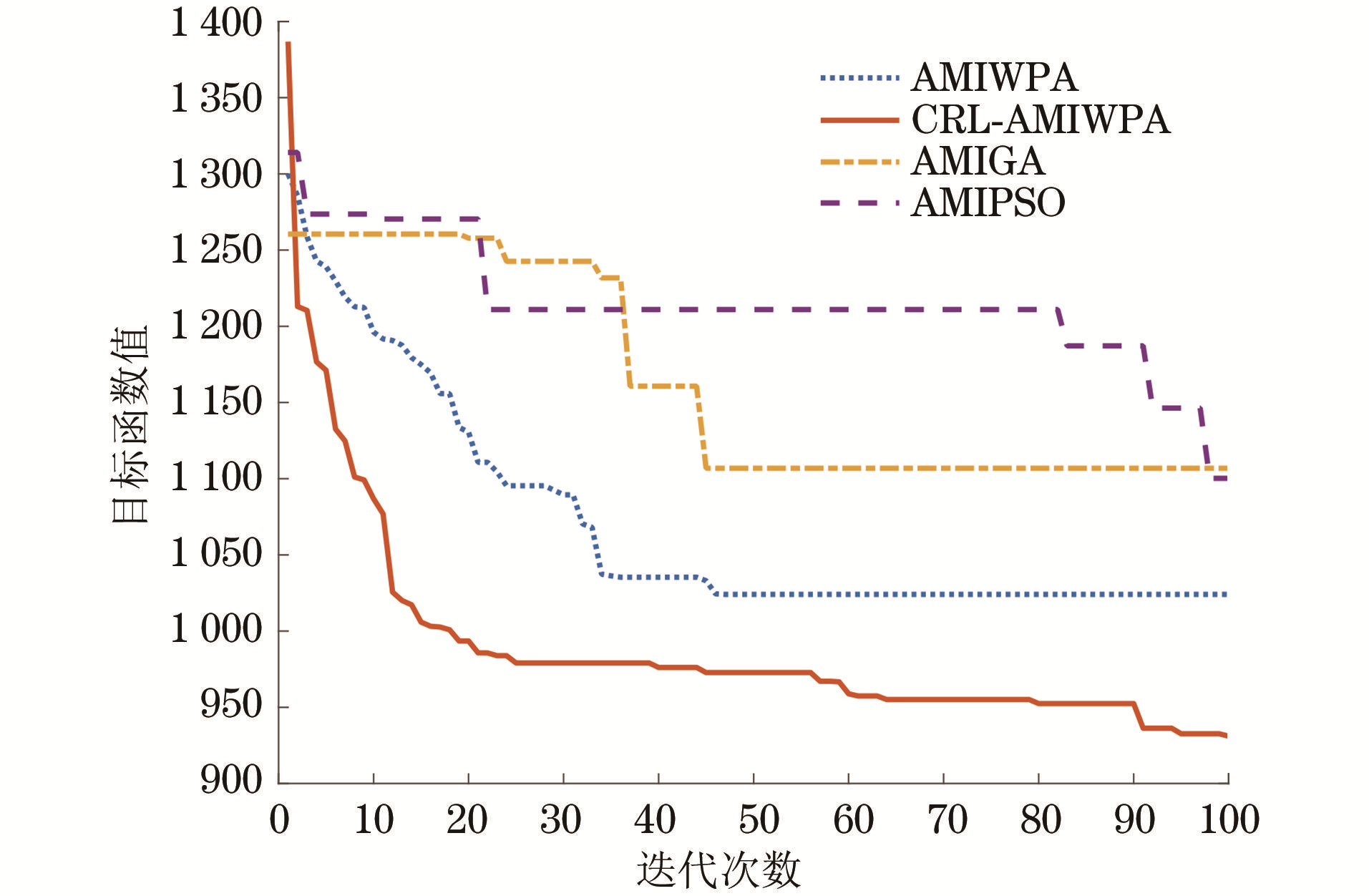

图14 不同算法的目标函数值对比

Fig.14 Comparison of objective function values for different algorithms
