基于模式互相关和时序片段关联机制的多元负荷预测

doi:10.19678/j.issn.1000-3428.0070572

计算机工程 ›› 2026, Vol. 52 ›› Issue (8): 315-326. doi: 10.19678/j.issn.1000-3428.0070572

基于模式互相关和时序片段关联机制的多元负荷预测

李整¹^,², 李志霄¹^,*(), 秦金磊¹^,³, 郭长珍¹

1. 华北电力大学计算机系, 河北保定 071003
2. 华北电力大学河北省能源电力知识计算重点实验室, 河北保定 071003
3. 华北电力大学复杂能源系统智能计算教育部工程研究中心, 河北保定 071003

收稿日期:2024-11-04 修回日期:2025-02-13 出版日期:2026-08-15 发布日期:2025-03-21
通讯作者: 李志霄
作者简介:
李整, 女, 副教授, 主研方向为智能计算、电力系统负荷预测及优化调度
李志霄(通讯作者), 硕士研究生
秦金磊, 副教授
郭长珍, 硕士研究生
基金资助:
河北省自然科学基金(F2014502081); 中央高校基本科研业务费专项资金(2020MS120)

Multiple Loads Forecasting Based on Pattern Cross-Correlation and Temporal Patch Association Mechanism

LI Zheng¹^,², LI Zhixiao¹^,*(), QIN Jinlei¹^,³, GUO Changzhen¹

1. Department of Computer, North China Electric Power University, Baoding 071003, Hebei, China
2. Hebei Key Laboratory of Knowledge Computing for Energy and Power, North China Electric Power University, Baoding 071003, Hebei, China
3. Engineering Research Center of Intelligent Computing for Complex Energy Systems, Ministry of Education, North China Electric Power University, Baoding 071003, Hebei, China

Received:2024-11-04 Revised:2025-02-13 Online:2026-08-15 Published:2025-03-21
Contact: LI Zhixiao

摘要/Abstract

摘要：

针对综合能源系统(IES)负荷噪声大、波动性强、周期信息提取困难问题, 提出一种基于模式互相关和时序片段关联(PCC-TPA)机制的多元负荷预测方法。通过互相关函数分析外界影响因素与多元负荷间的交叉滞后关系, 确定最相关的时滞并据此重构和嵌入数据。在此基础上, 提出PCC机制, 根据数据的变化趋势将其抽象为模式数据, 以减轻数据波动与噪声的影响, 基于互相关理论识别和提取关键时刻及周期信息; 同时, 设计时序片段关联机制, 将序列划分为多个子序列, 基于互信息方法分析和筛选子序列, 增强模型对序列局部连续性信息的捕获能力。在美国亚利桑那州立大学坦佩校区综合能源系统数据集上进行多项消融实验和对比实验。实验结果表明, 交叉滞后分析重构的数据有效提升了模型的预测精度, PCC-TPA机制分别增强模型的关键时刻识别能力和局部信息捕捉能力。所提方法在多项评估指标上优于5种主流预测模型, 具有较高的预测精度。

关键词: 多元负荷预测, 交叉滞后分析, 序列分解, 序列模式化, 互相关分析, 深度学习

Abstract:

To address the challenges of high noise levels, strong volatility, and difficulties in extracting periodic information from the loads of Integrated Energy Systems (IES), a multivariate load forecasting method based on Pattern Cross-Correlation and Temporal Patch Association (PCC-TPA) mechanisms is proposed. This method analyzes the cross-lag relationships between external influencing factors and multivariate loads using a cross-correlation function to determine the most relevant time lags for data reconstruction and embedding. Building on this, a PCC mechanism is introduced to abstract data into patterns based on their variation trends, thus mitigating the effects of fluctuations and noise. This is followed by the identification and extraction of key moments and periodic information based on the cross-correlation theory. A TPA mechanism is designed to divide a sequence into multiple subsequences using mutual information methods to analyze and filter the subsequences, thereby enhancing the ability of the model to capture local continuity information in sequences. Multiple ablation and comparison experiments are conducted using the comprehensive energy system dataset from the Arizona state university, Tempe campus. The ablation experimental results show that the data reconstructed through cross-lag analysis effectively improved the prediction accuracy of the model. The PCC-TPA mechanisms enhance the ability of the model to identify key moments and capture local information, respectively. The comparison of the experimental results indicates that the proposed method outperforms five mainstream prediction models in terms of multiple evaluation metrics, demonstrating a higher prediction accuracy.

Key words: multiple loads forecasting, cross-lagged analysis, series decomposition, series pattern, cross-correlation analysis, deep learning

李整, 李志霄, 秦金磊, 郭长珍. 基于模式互相关和时序片段关联机制的多元负荷预测[J]. 计算机工程, 2026, 52(8): 315-326.

LI Zheng, LI Zhixiao, QIN Jinlei, GUO Changzhen. Multiple Loads Forecasting Based on Pattern Cross-Correlation and Temporal Patch Association Mechanism[J]. Computer Engineering, 2026, 52(8): 315-326.

https://www.ecice06.com/CN/Y2026/V52/I8/315

图/表 20

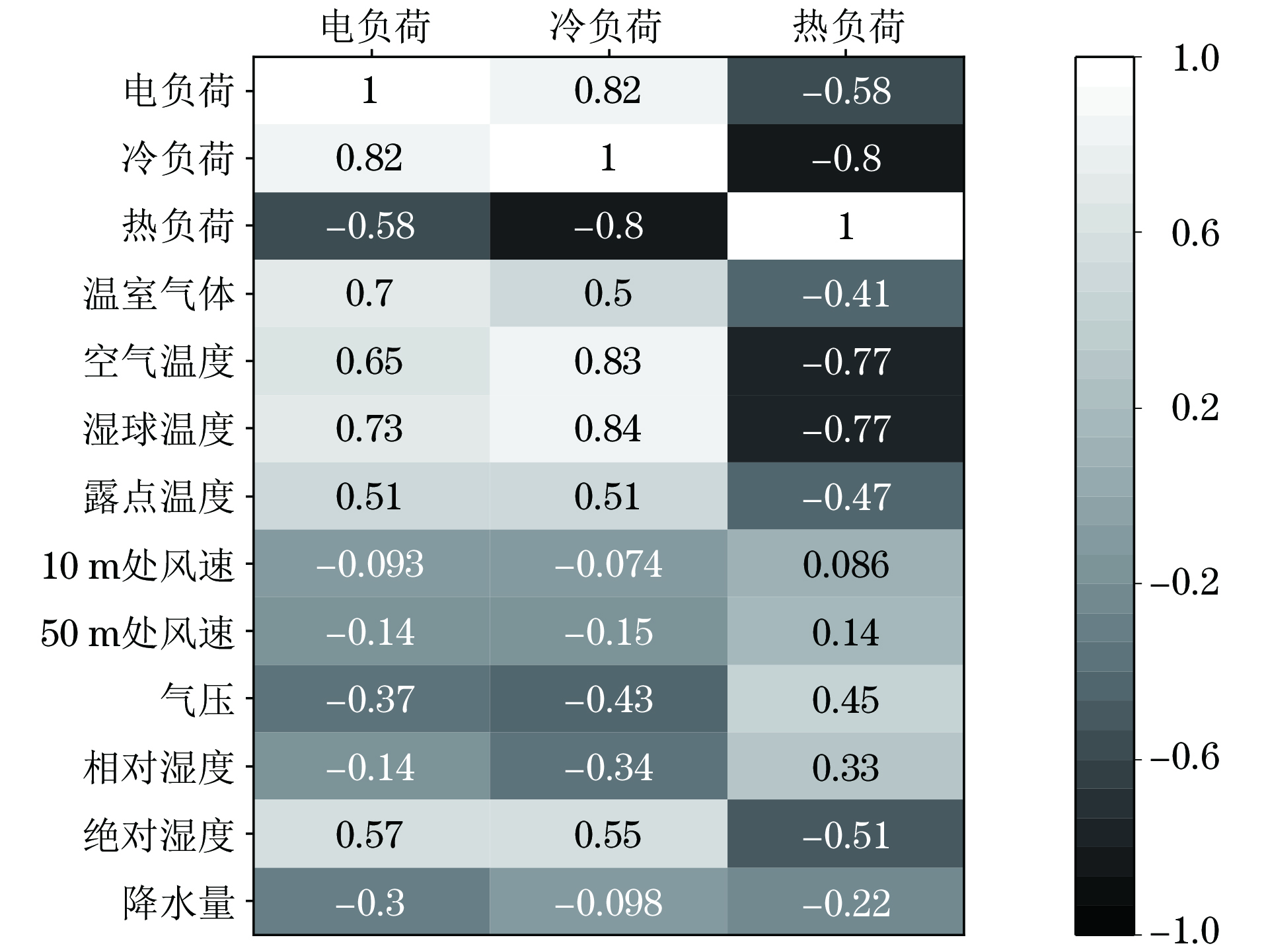

图1 多元负荷与影响因素相关性

Fig.1 Correlation between multiple loads and influencing factors

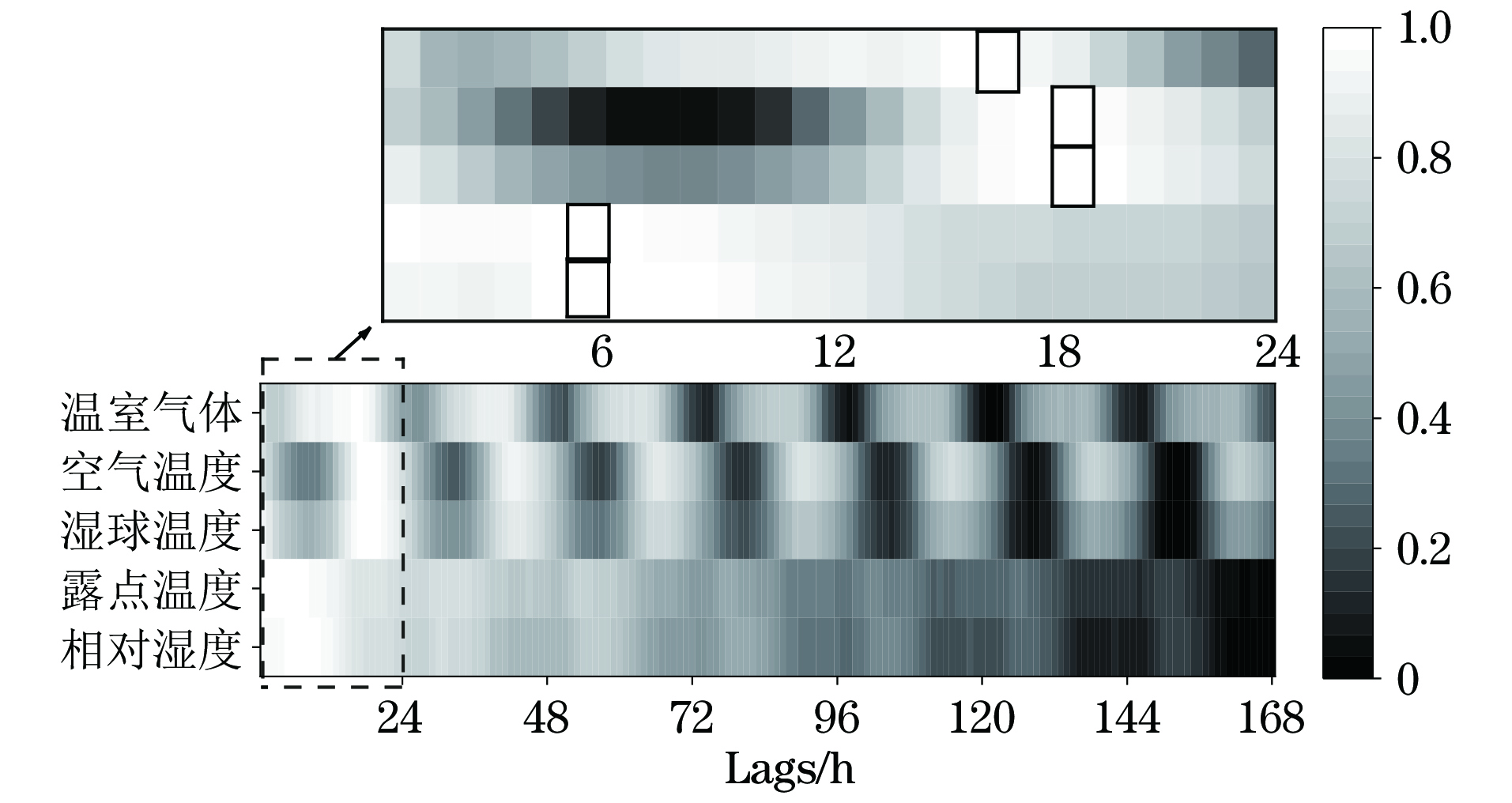

图2 电负荷交叉滞后分析

Fig.2 Cross-lagged analysis of electrical loads

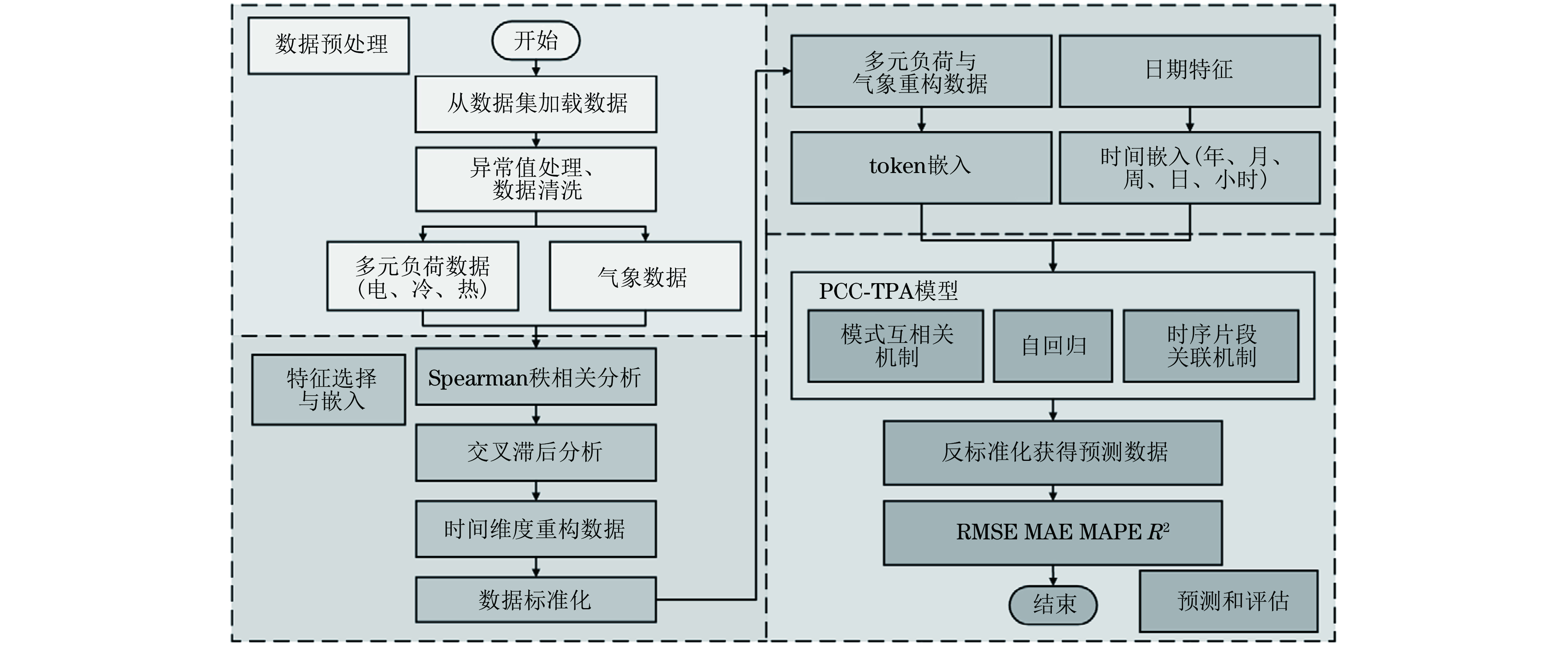

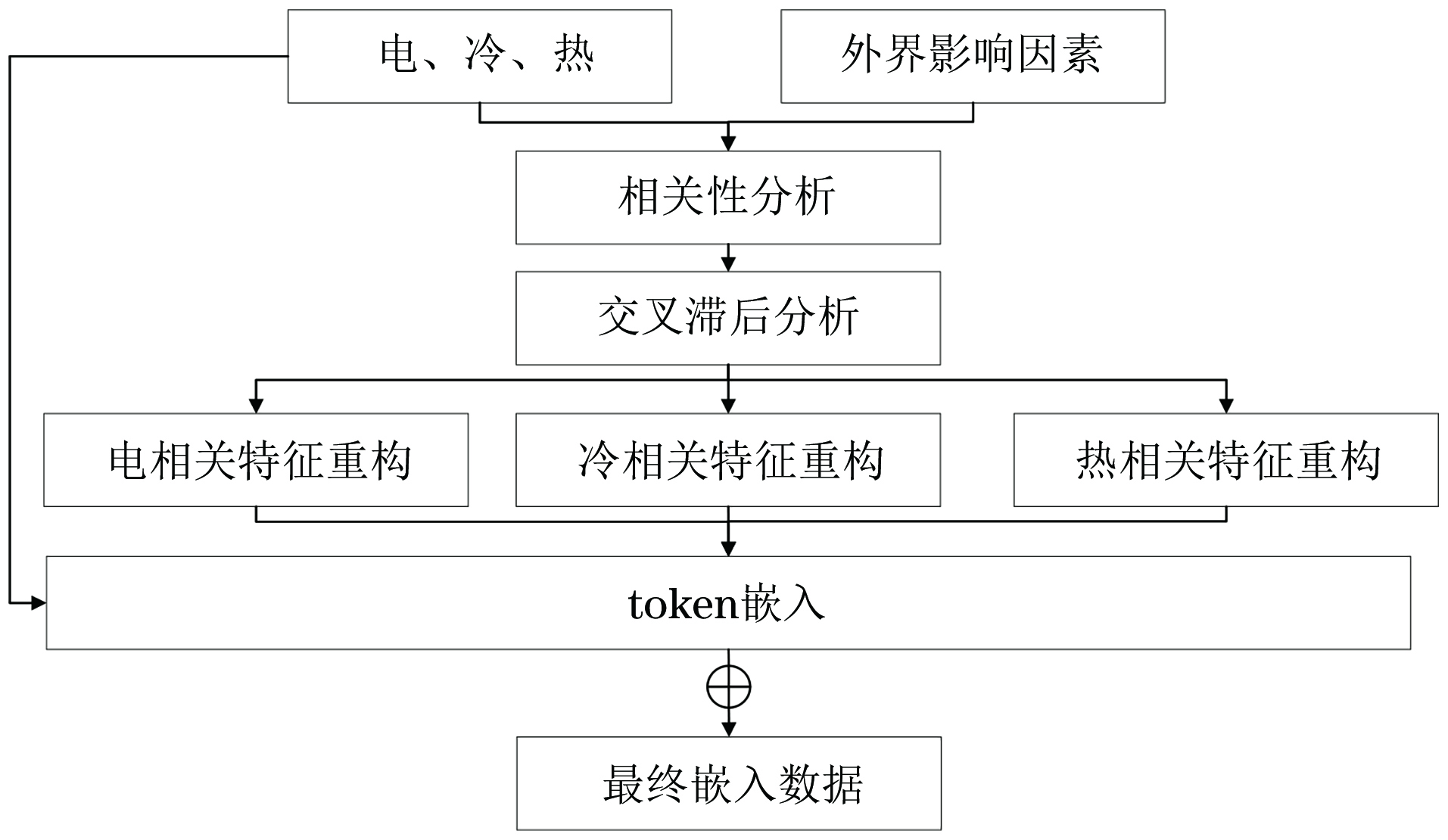

图3 数据处理与嵌入

Fig.3 Data processing and embedding

图4 模型总体结构

Fig.4 Overall structure of the model

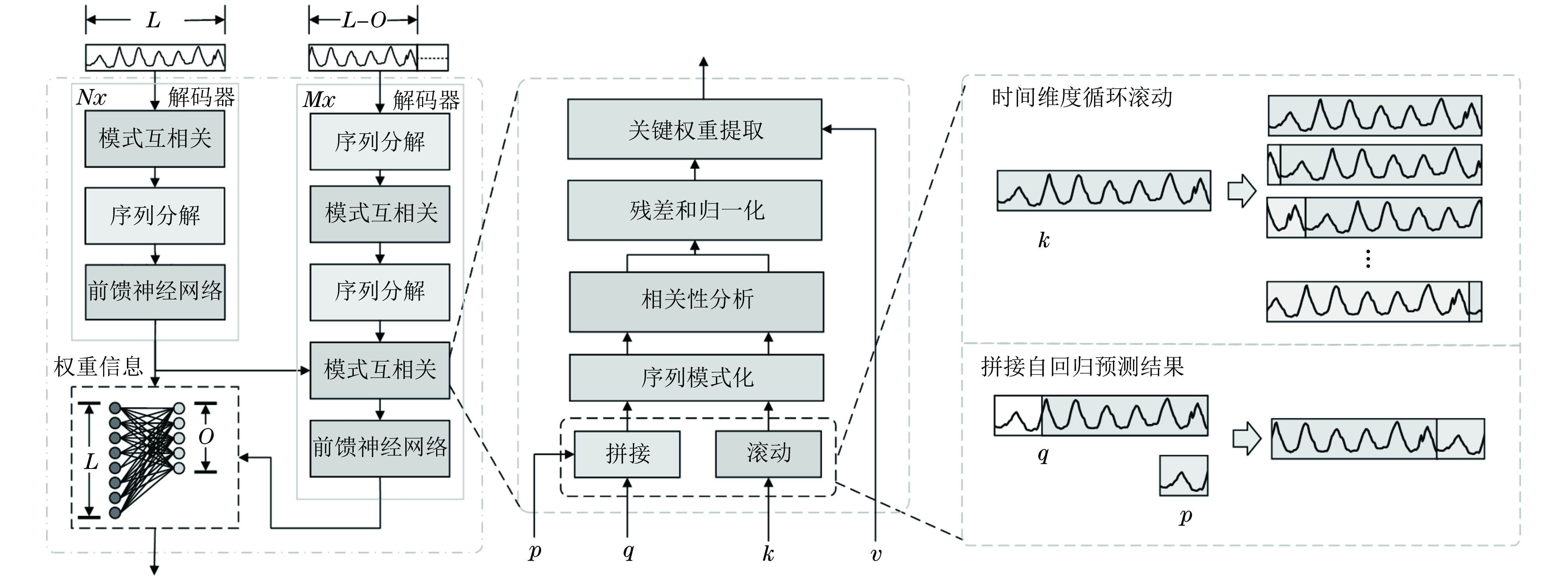

图5 模式互相关机制结构

Fig.5 Structure of the pattern cross-correlation mechanism

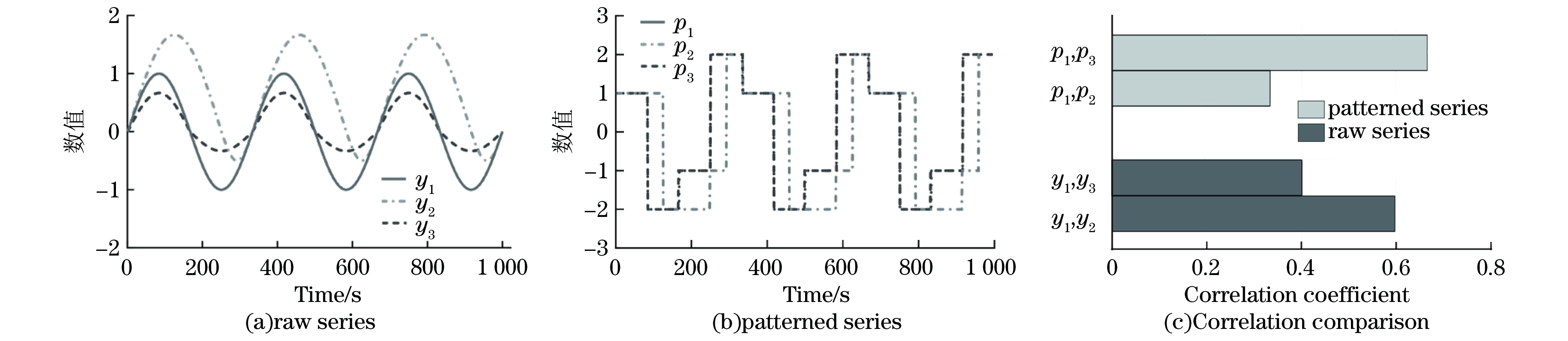

图6 波动数据验证

Fig.6 Validation of fluctuating data

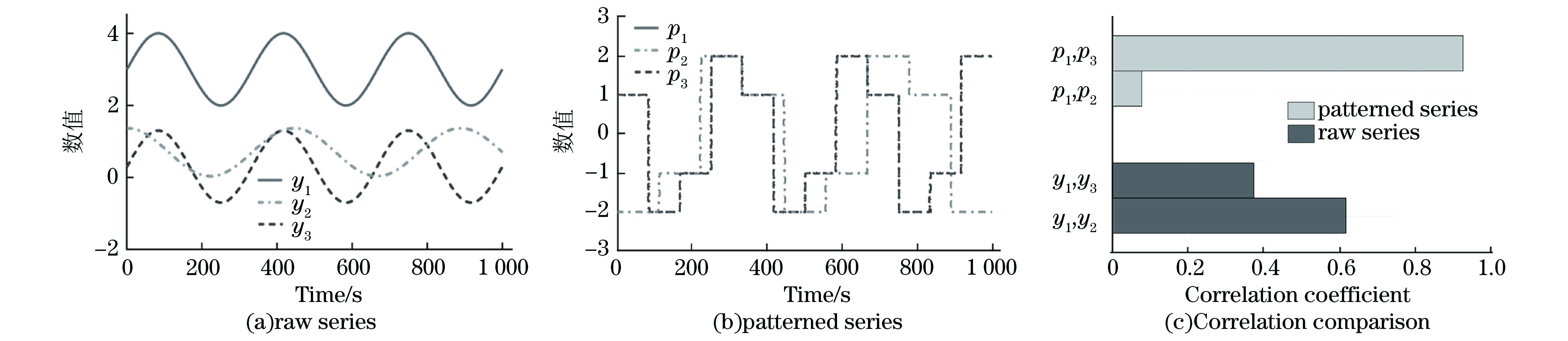

图7 数值分布不均数据验证

Fig.7 Validation of non-uniformly distributed numerical data

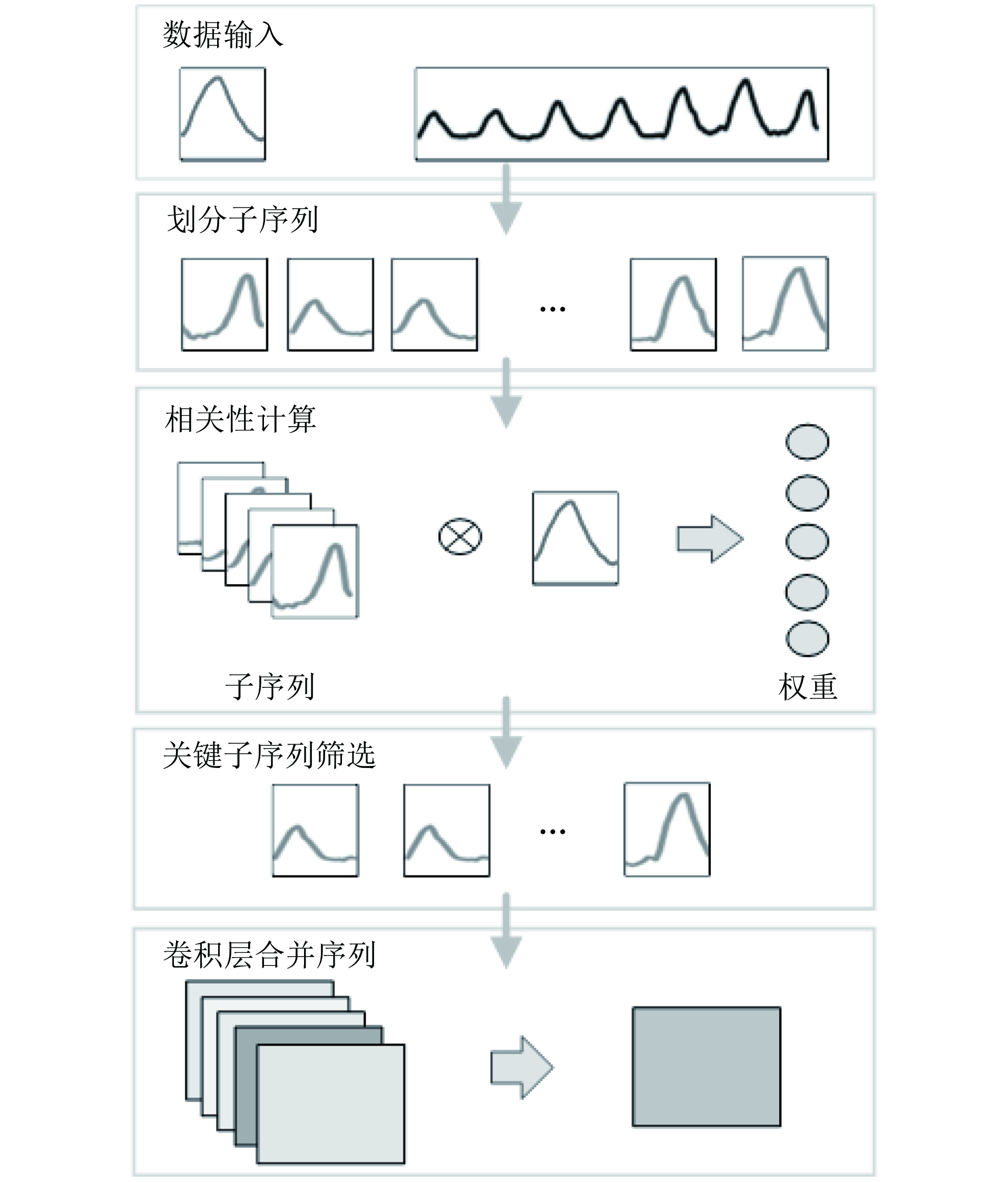

图8 时序片段关联

Fig.8 Temporal patch association

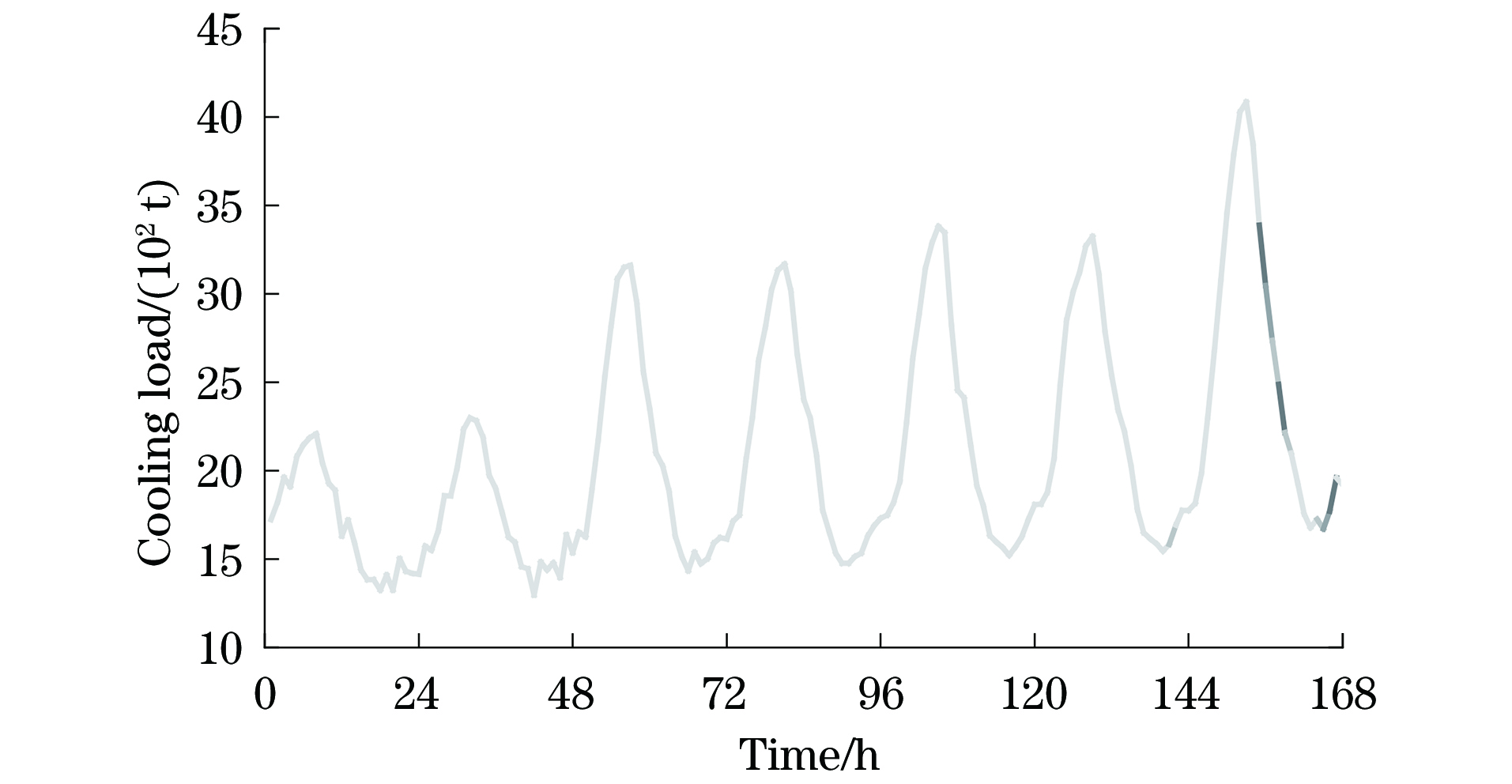

图9 自注意力机制权重分布

Fig.9 Weight distribution of the self-attention mechanism

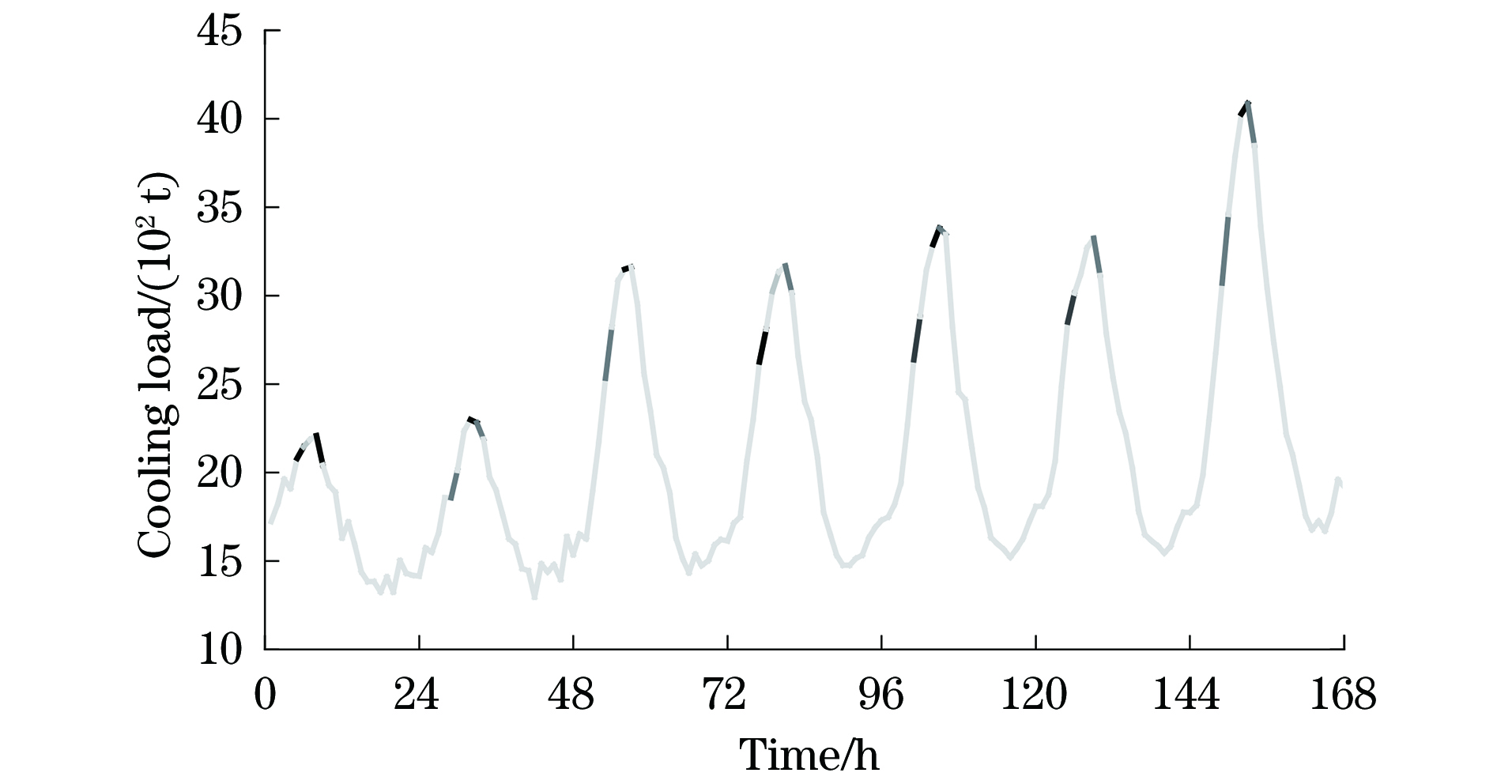

图10 PCC机制权重分布

Fig.10 Weight distribution of the PCC mechanism

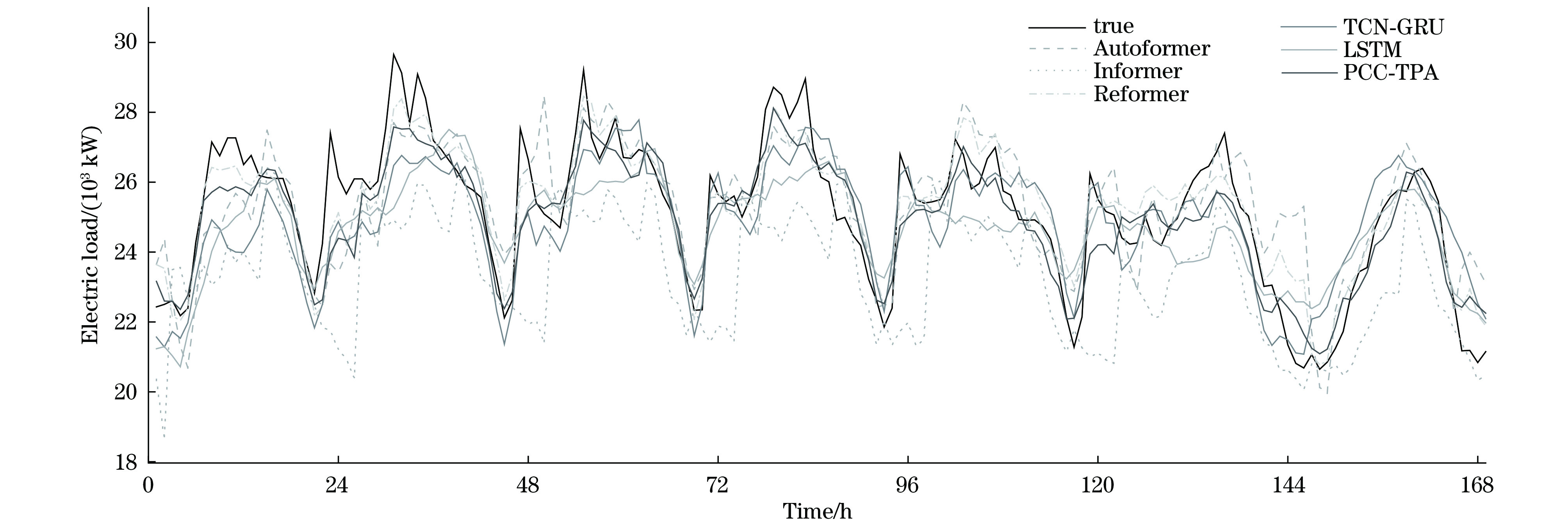

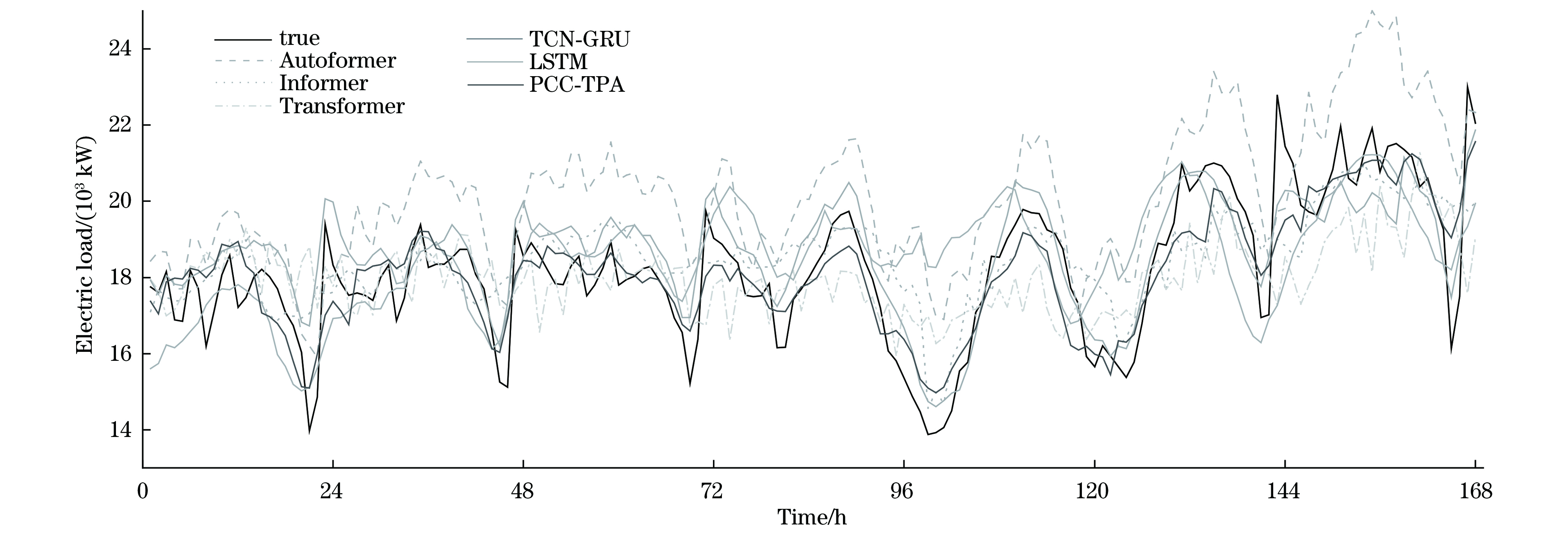

图11 电负荷夏季预测结果

Fig.11 Summer prediction results of electrical loads

图12 电负荷冬季预测结果

Fig.12 Winter prediction results of electrical loads

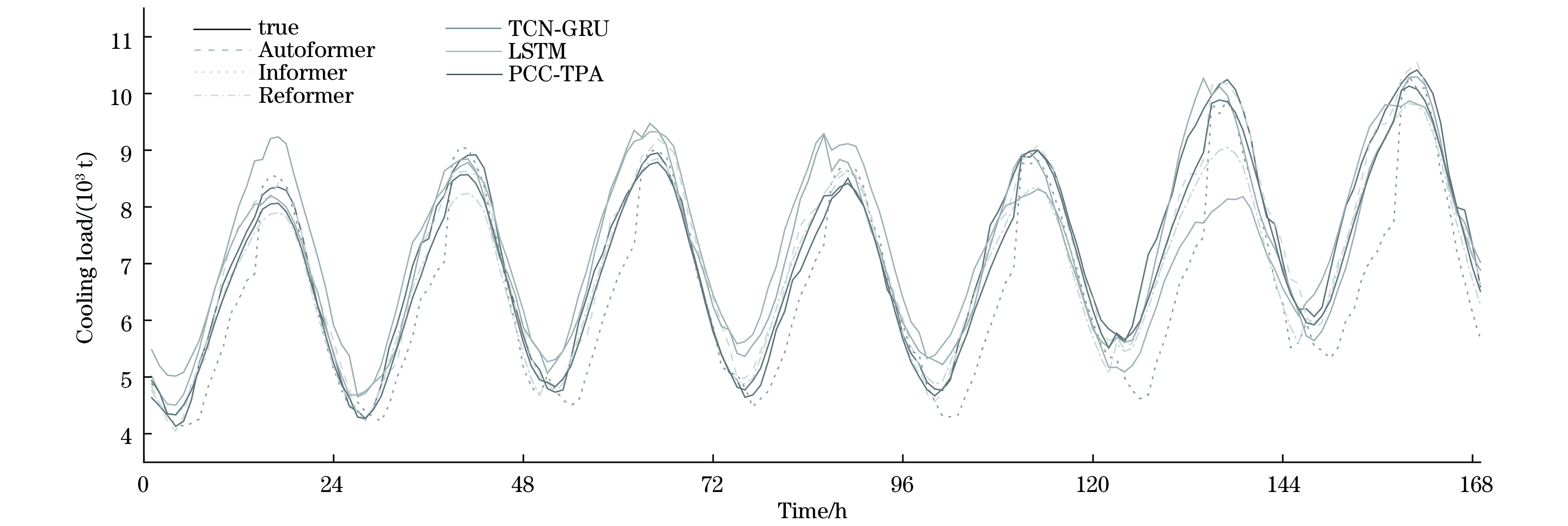

图13 冷负荷预测结果

Fig.13 Prediction results of cooling load

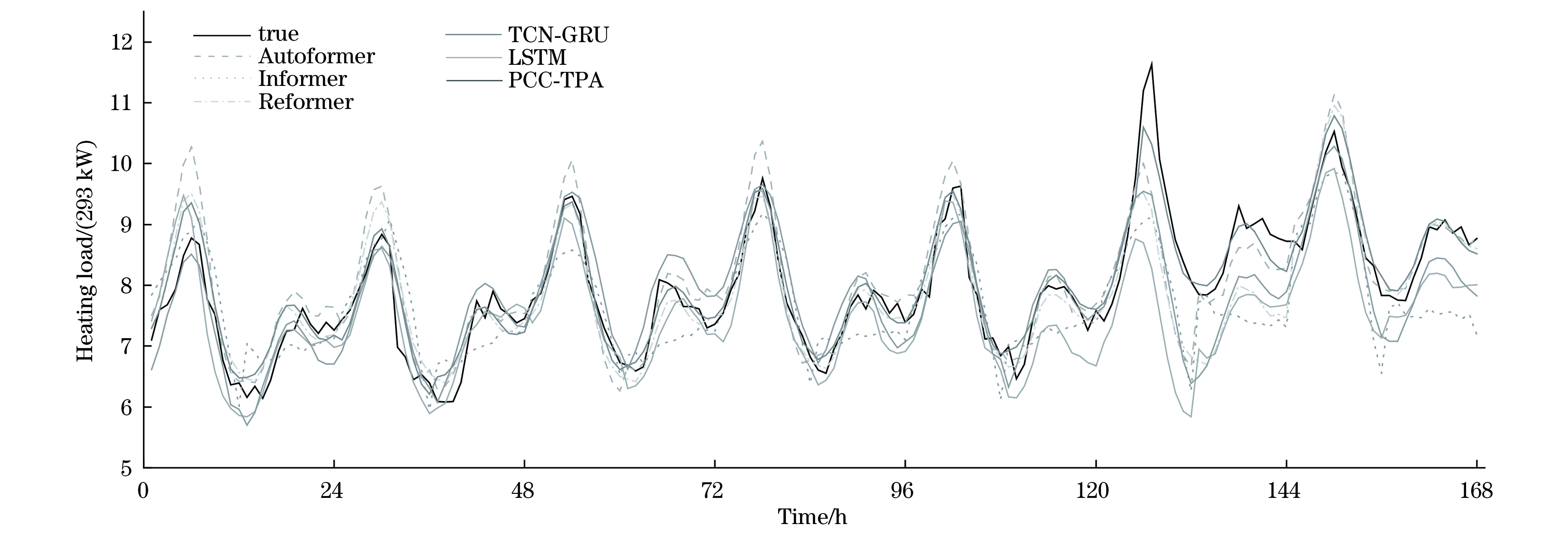

图14 热负荷预测结果

Fig.14 Prediction results of heating load
