基于特征分组聚类的异常入侵检测系统研究

doi:10.19678/j.issn.1000-3428.0054476

计算机工程 ›› 2020, Vol. 46 ›› Issue (4): 123-128,134. doi: 10.19678/j.issn.1000-3428.0054476

基于特征分组聚类的异常入侵检测系统研究

何发镁^1,2, 马慧珍^2,3, 王旭仁^2,3, 冯安然^2,3

1. 北京理工大学图书馆, 北京 100081;
2. 中国科学院信息工程研究所中国科学院网络测评技术重点实验室, 北京 100093;
3. 首都师范大学信息工程学院, 北京 100048

收稿日期:2019-04-03 修回日期:2019-05-11 出版日期:2020-04-15 发布日期:2019-05-23
作者简介:何发镁(1972-),男,博士,主研方向为数据挖掘、情报分析;马慧珍,硕士研究生;王旭仁,副教授、博士;冯安然,硕士研究生。
基金资助:
国家自然科学基金（61872252）。

Research on Anomaly Intrusion Detection System Based on Feature Grouping Clustering

HE Famei^1,2, MA Huizhen^2,3, WANG Xuren^2,3, FENG Anran^2,3

1. Library, Beijing Institute of Technology, Beijing 100081, China;
2. Key Laboratory of Network Assessment Technology, Institute of Information Engineering, Chinese Academy of Sciences, Beijing 100093, China;
3. Information Engineering College, Capital Normal University, Beijing 100048, China

Received:2019-04-03 Revised:2019-05-11 Online:2020-04-15 Published:2019-05-23

摘要/Abstract

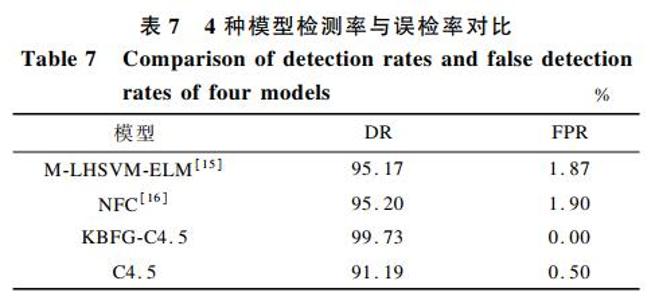

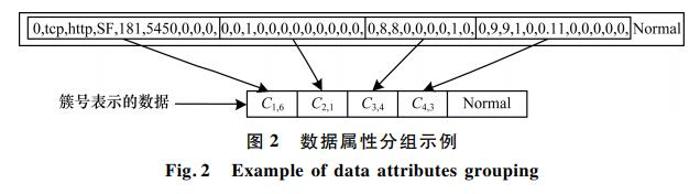

摘要： 利用网络连接数据可以按照连接的基本特征、内容特征、网络流量特征和主机流量特征进行分组的特点，基于K-means算法，提出一种按照特征分组进行聚类的方法，以高效实现特征约简和数据降维。通过调整聚类参数保留特征分组内的差异信息，使用决策树C4.5算法对降维后的数据进行入侵分类处理。实验结果表明，该方法能够使kddcup99数据集的聚类特征数由41个降为4个，且对网络连接数据的总检测率为99.73%，误检率为0，其中正常网络连接和刺探攻击Probe的检测率均为100%。

关键词: 入侵检测, 网络数据, K-means算法, 决策树, 数据降维

Abstract: The network connection data can execute feature grouping according to the basic features of connection,the content features,the network traffic features and the host features.Taking advantage of this characteristic,this paper proposes a K-means based clustering method according to the grouping of features,so as to effectively achieve feature reduction and data dimensionality reduction.The differential information within the feature groups are retained by adjusting clustering parameters,and the decision tree C4.5 algorithm is used for intrusion classification of the data after dimensionality reduction.Experimental results show that the proposed method can reduce the number of clustering features of kddcup99 dataset from 41 to 4.The overall detection rate on network connection data is 99.73%,the false detection rate is 0 and the detection rates of normal network connection and Probe attack are both 100%.

Key words: intrusion detection, network data, K-means algorithm, decision tree, data dimensionality reduction

中图分类号:

TP391

何发镁, 马慧珍, 王旭仁, 冯安然. 基于特征分组聚类的异常入侵检测系统研究[J]. 计算机工程, 2020, 46(4): 123-128,134.

HE Famei, MA Huizhen, WANG Xuren, FENG Anran. Research on Anomaly Intrusion Detection System Based on Feature Grouping Clustering[J]. Computer Engineering, 2020, 46(4): 123-128,134.

https://www.ecice06.com/CN/Y2020/V46/I4/123

图/表 13

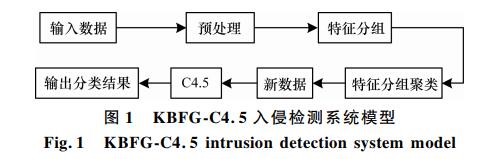

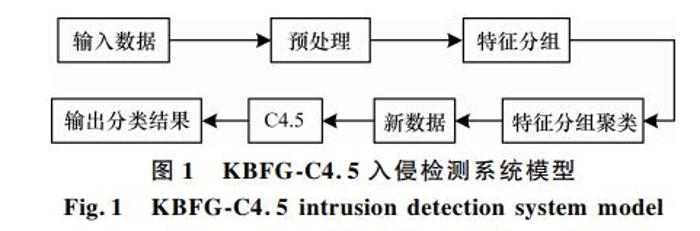

20200414124619

20200414124623

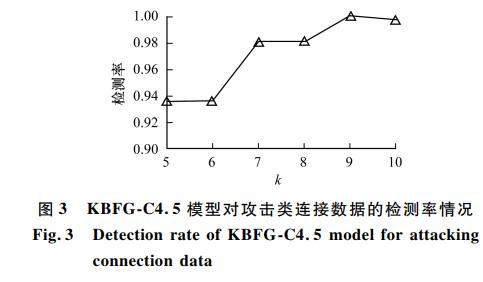

20200414124627

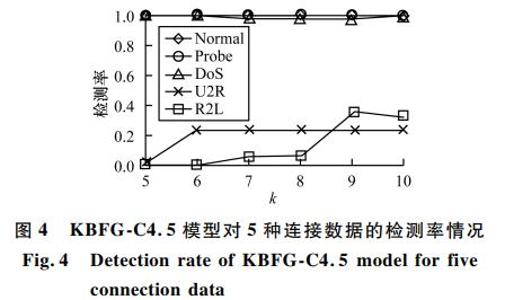

20200414124631

20200414124635

20200414124639

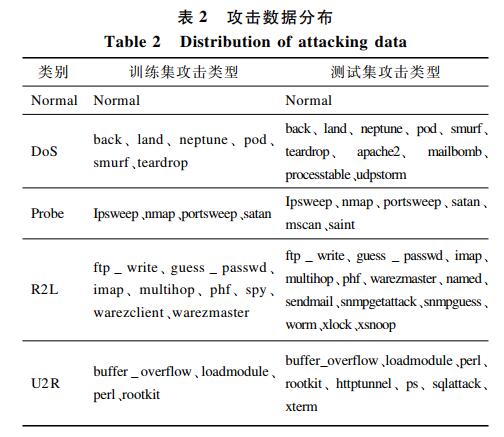

20200414124642

20200414124646

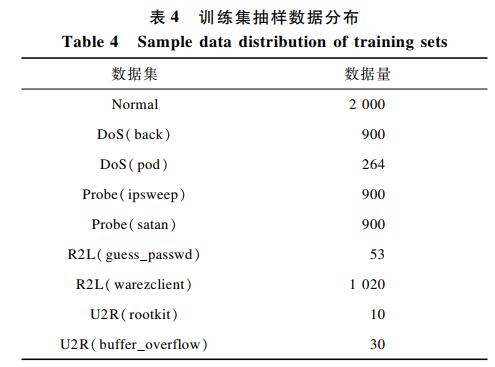

20200414124650

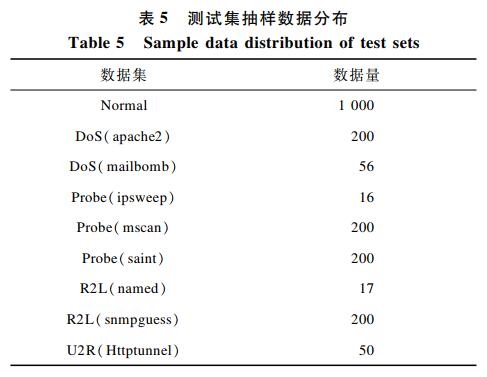

20200414124653

20200414124657

20200414124701

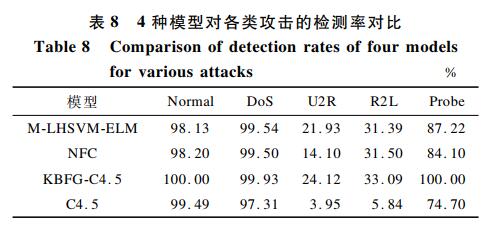

20200414124705

参考文献 21

[1]	ZHANG Cuixiao,ZHANG Guobing,SUN Shanshan.A mixed unsupervised clustering based intrusion detection model[C]//Proceedings of the 3rd International Conference on Genetic and Evolutionary Computing.Washington D.C.,USA:IEEE Press,2009:426-428.
[2]	MENG Jianliang,SHANG Haikun,BIAN Ling.The application on intrusion detection based on K-means cluster algorithm[C]//Proceedings of International Forum on Information Technology and Application.Washington D.C.,USA:IEEE Press,2009:150-152.
[3]	PATHAK V,ANATHANARAYANA V S.A novel multi-threaded K-means clustering approach for intrusion detection[C]//Proceedings of 2012 IEEE International Conference on Software Engineering and Service Science.Washington D.C.,USA:IEEE Press,2012:757-760.
[4]	LUO Min,WANG Lina,ZHANG Huanguo.An unsupervised clustering-based intrusion detection method[J].Acta Electronica Sini
[11]	MUDA Z,YASSIN W,SULAIMAN M N,et al.Intrusion detection based on K-Means clustering and Naïve Bayes classification[C]//Proceedings of International Conference on Information Technology in Asia.Washington D.C.,USA:IEEE Press,2011:1-6.
[12]	YASSIN W,UDZIR N,MUDA Z,et al.Anomaly-based intrusion detection through K-means clustering and Naives Bayes classification[C]//Proceedings of the 4th International Conference on Computing and Informatics.Washington D.C.,USA:IEEE Press,2013:298-303.
[13]	FACHKHA C,HARB E B,DEBBABI M.Inferring distributed reflection denial of service attacks from darknet[J].Computer Communications,2015,62(1/2):59-71.
[14]	CHANDRASEKHAR A,RAGHUVEER K.Intrusion detection technique by using K-means,fuzzy neural network and SVM classifiers[C]//Proceedings of International Conference on Computer Communication and Informatics.Washington D.C.,USA:IEEE Press,2013:1-7.
[15]	YASEEN W A,OTHMAN Z,NAZRI M.Multi-level hybrid support vector machine and extreme learning machine based on modified K-means for intrusion detection system[J].Expert Systems with Applications,2017,6(7):296-303.
[16]	HE Liang.An improved intrusion detection based on neural network and fuzzy algorithm[J].Journal of Networks,2014,9(5):1274-1280.
[17]	WU Yuwen,LIU Hong,ZHA Hongbin.Facial expression recognition by weighted clustering of grouped features[J].Journal of Computer-Aided Design and Computer Graphics,2005,17(11):2394-2401.(in Chinese)武宇文,刘宏,查红彬.基于特征分组加权聚类的表情识别[J].计算机辅助设计与图形学学报,2005,17(11):2394-2401.
[18]	QUINLAN J R.Induction of decision trees[J].Machine Learning,1986,1(1):81-106.
[19]	QUINLAN J R.C4.5:programs for machine learning[M].[S.l.]:Morgan Kaufmann Publisher,1993.
[20]	HETTICH S,BAY S D.KDD cup 1999 data[EB/OL].[2019-03-20].http://kdd.ics.uci.edu/databases/kdd cup99/kdd cup99.html.
[21]	BOUZIDA Y,CUPPENS F,BOULAHIA N C,et al.Efficient intrusion detection using principal component analysis[C]//Proceedings of 2010 International Conference on Engineering System Management and Applications.Washington D.C.,USA:IEEE Press,2010:256-268.
