保证公平的最大化中继OFDMA系统容量策略

doi:10.19678/j.issn.1000-3428.0055075

摘要/Abstract

摘要： 基于正交频分多址（OFDMA）解码-转发中继的系统资源分配方法不能兼顾系统容量与用户公平度。针对该问题，提出一种新的子载波与功率资源分配算法，其中包括子载波分配与配对以及功率分配2个过程。在子载波分配与配对过程中，设计新的同步子载波差值最小配对方法，以最大程度匹配两跳链路配对的子载波。在功率分配过程中，通过拉格朗日方法调整每个子载波对的功率，进一步提高系统传输速率。仿真结果表明，将该策略运用于不同的OFDMA子载波分配算法中能够较好地兼顾系统容量与用户间公平度。

关键词: 中继通信, 正交频分多址, 资源分配, 子载波配对, 比例公平

Abstract: Aiming at the problem that the resource allocation methods of Orthogonal Frequency Division Multiple Access(OFDMA) based Decode-Forward(DF) relay system can not take account of both system capacity and user fairness,a new subcarrier and power resource allocation algorithm is proposed.This algorithm is composed of subcarrier allocation and matching and power allocation.In the process of subcarrier allocation and matching,a new synchronous subcarrier difference minimum matching method is designed,which can match the subcarriers of two-hop link pairing to the greatest extent.In the process of power allocation,the power of each subcarrier pair is adjusted by Lagrange method to further improve the transmission rate of the system.Simulation results show that the proposed strategy can give better consideration to both system capacity and user fairness when applied to different OFDMA subcarrier allocation algorithms.

Key words: relay communication, Orthogonal Frequency Division Multiple Access(OFDMA), resource allocation, subcarrier pairing, proportional fairness

中图分类号:

TP391

周凯福, 程伟, 窦立超, 彭岑昕. 保证公平的最大化中继OFDMA系统容量策略[J]. 计算机工程, 2020, 46(5): 240-246.

ZHOU Kaifu, CHENG Wei, DOU Lichao, PENG Cenxin. Strategy of Maximizing Relay OFDMA System Capacity Guaranteeing Fairness[J]. Computer Engineering, 2020, 46(5): 240-246.

https://www.ecice06.com/CN/Y2020/V46/I5/240

图/表 6

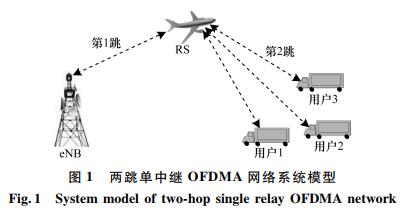

20200513204752

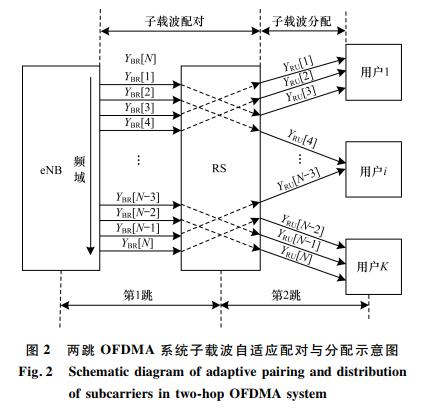

20200513204757

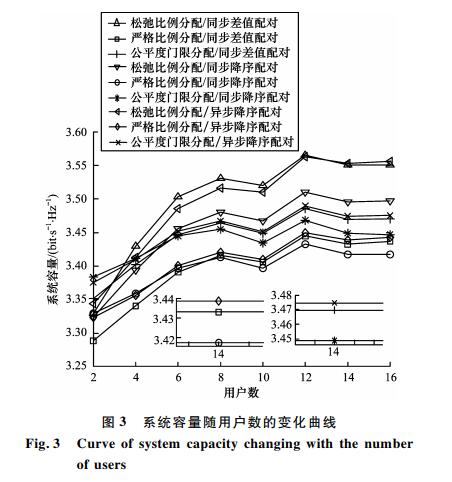

20200513204800

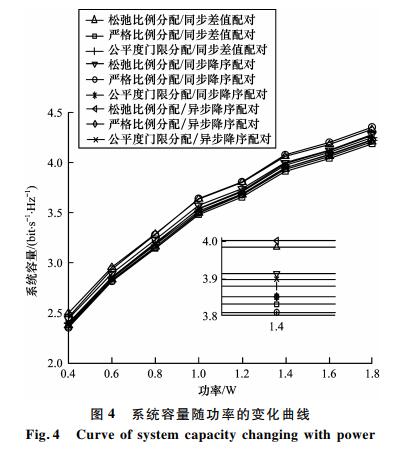

20200513204804

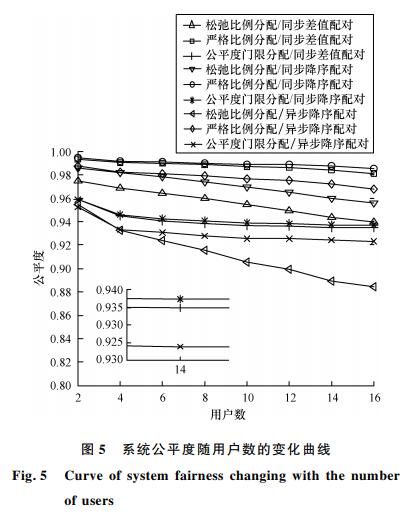

20200513204810

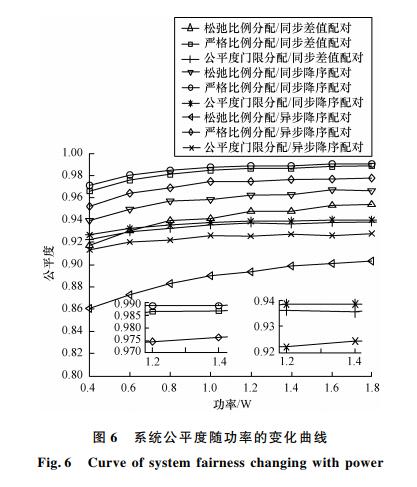

20200513204817

参考文献

[1] ALFA A S,MAHARAJ B T,LALL S,et al.Mixed-integer programming based techniques for resource allocation in underlay cognitive radio networks[J].Journal of Communications and Networks,2016,18(5):744-761.
[2] HU Hang,ZHANG Hang,LIANG Yingchang.On the spectrum-and energy-efficiency tradeoff in cognitive radio networks[J].IEEE Transactions on Communications,2016,64(2):490-501.
[3] DAI Linglong,WANG Zhaocheng,YANG Zhixing.Time-frequency training OFDM with high spectral efficiency and reliable performance in high speed environments[J].IEEE Journal on Selected Areas Communications,2012,30(3):695-707.
[4] LIU Yuan,MO Jianhua,TAO Meixia.QoS-aware transmission policies for OFDM bidirectional decode-and-forward relaying[J].IEEE Transactions on Wireless Communications,2013,12(5):2206-2216.
[5] JANG Y U,JEONG E R,LEE Y H.A two-step approach to power allocation for OFDM signals over two-away amplify-and-forward relay[J].IEEE Transactions on Signal Processing,2010,58(4):2426-2430.
[6] JANG J,LEE K B.Transmit power adaption for multiuser OFDM systems[J].IEEE Journal on Selected Areas in Communications,2003,21(2):171-178.
[7] CHEN Jinping,YANG Lüxi.Dynamic resource allocation for QoS-aware OFDMA systems with max-min fairness constraint[J].Signal Processing,2011,27(12):1824-1829.(in Chinese)陈瑾平,杨绿溪.OFDMA系统基于Qos保证和最大最小公平性准则下的动态资源分配[J].信号处理,2011,27(12):1824-1829.
[8] WONG I C,SHEN Z K,EVANS B L.A low complexity algorithm for proportional resource allocation in OFDMA[C]//Proceedings of IEEE Workshop on Signal Processing Systems.Washington D.C.,USA:IEEE Press,2004:2056-2060.
[9] ZHANG Chunfa,ZHAO Xiaohui.Adaptive resource allocation in multiuser OFDM system based on fairness threshold[J].Journal on Communications,2011,32(12):65-71.(in Chinese)张春发,赵晓晖.基于公平度门限的多用户OFDM系统自适应资源分配算法[J].通信学报,2011,32(12):65-71.
[10] FOROUZAN N,GHORASHI S A.New algorithm for joint subchannel and power allocation in multi-cell OFDMA-based cognitive radio networks[J].IET Communications,2014,8(4):508-515.
[11] HERDIN M.A chunk based OFDM amplify-and-forward relaying scheme for 4G mobile radio systems[C]//Proceedings of IEEE International Conference on Communications.Washington D.C.,USA:IEEE Press,2006:4507-4512.
[12] DAI Jianxin,CHEN Ming.Joint optimization of the number of relay and relay node placement for amplify-and-forward multi-relay cooperative systems[J].Science China:Information Sciences,2012,42(10):1241-1249.(in Chinese)戴建新,陈明.多中继放大转发协议协作通信中的中继数量与位置的联合优化[J].中国科学:信息科学,2012,42(10):1241-1249.
[13] LU Weidang,WU Xuanli,SHA Xuejun. Resource allocation in OFDM fixed relay system with one relay multi-source[J].Journal on Communications,2011,32(9):26-32.(in Chinese)卢为党,吴宣利,沙学军.OFDM固定中继系统中单中继多源用户资源分配方案[J].通信学报,2011,32(9):26-32.
[14] ZHANG Hao,LIU Yuan,TAO Meixia.Resource allocation with subcarrier pairing in OFDMA two-way relay networks[J].IEEE Wireless Communications Letters,2012,1(2):61-64.
[15] YIN Zhendong,ZHUANG Shufeng,WU Zhilu.Rate adaptive based resource allocation with proportional fairness constraints in OFDMA systems[J].Sensor,2015,15(10):24996-25014.
[16] NAVEED H,MOHAMAD A.Low complexity margin adaptive resource allocation in downlink MIMO-OFDMA system[J].IEEE Transactions on Wireless Communications,2009,8(7):3365-3371.
[17] WAN Qingtao,MA Guanyi.Resource allocation for relay OFDMA system with proportional fairness[J].Computer Engineering and Applications,2011,47(8):21-24.(in Chinese)万庆涛,马冠一.中继OFDMA系统容量公平资源分配算法研究[J].计算机工程与应用,2011,47(8):21-24.
[18] DU Changping,TANG Lun,CHEN Qianbin.Study on the proportional fairness scheduling algorithm in OFDMA relay system[J].Computer Simulation,2010,27(4):129-132.(in Chinese)杜长平,唐伦,陈前斌.OFDMA中继系统中比例公平调度算法研究[J].计算机仿真,2010,27(4):129-132.
[19] YUAN Jianguo,ZHANG Fang,WANG Jianxin.OFDMA adaptive resource allocation based on fairness and penalty function[J].Systems Engineering and Electronics,2018,40(2):427-434.(in Chinese)袁建国,张芳,王竟鑫.基于公平度与惩罚函数的OFDMA自适应资源分配[J].系统工程与电子技术,2018,40(2):427-434.
[20] LIU Binghua,LI Xiaolin,XU Xudong.QoS-guaranteed and proportional fairness-based resource allocation in relay networks[J].Study on Optical Communications,2015(3):66-70.(in Chinese)刘冰华,李校林,徐旭东.中继网中基于QoS保证和比例公平的资源分配[J].光通信研究,2015(3):66-70.
