基于负载均衡算法的Hyperledger Fabric共识机制研究

doi:10.19678/j.issn.1000-3428.0064348

摘要/Abstract

摘要： Hyperledger Fabric将业务逻辑解耦，在提升系统灵活性的同时存在性能瓶颈，无法满足高并发快响应的业务需求。通过对Hyperledger Fabric共识机制中的背书、排序、验证3个阶段进行分析，为均衡背书节点性能并提高系统效率，设计基于动态负载均衡算法的提案分发优化方案。综合均衡指数、反馈周期等性能指标，设计节点负载和节点权值量化方法。通过采集节点负载信息计算并选取合理的反馈周期和影响权重以更新节点权值，同时结合加权轮询算法将交易提案分发至当前权重最大的节点进行背书，实现背书节点负载的动态均衡。在Caliper工具上的测试结果表明，优化方案提升了Hyperledger Fabric共识机制的请求处理性能，相比于原始方案的链码交易和查询吞吐量提高了17.53%和15.84%，平均时延下降了6.7%和18.2%。

关键词: 区块链, Hyperledger Fabric平台, 共识机制, 负载均衡, 背书阶段

Abstract: Hyperledger Fabric decouples business logic.Although it improves system flexibility, it has performance bottlenecks and cannot satisfy the high concurrency or fast response needs of businesses.This study analyzes the three stages of endorsement, sorting, and verification in the Hyperledger Fabric consensus mechanism.To balance the performance of endorsement nodes and improve system efficiency, this study provides a proposal distribution optimization scheme based on a dynamic load balancing algorithm.The optimization scheme integrates performance indicators, such as the balance index and feedback cycle, and designs a quantification method for node loads and weights.The optimization scheme calculates and selects a reasonable feedback period and influence weight to update the node weight by collecting the node load information.Simultaneously, the scheme uses the weighted round robin algorithm to distribute the transaction proposal to the node with the current largest weight for endorsement to realize the dynamic balance of the endorsement node load.The test results on the Caliper tool show that the optimization scheme improves the request processing performance of the Hyperledger Fabric consensus mechanism.Compared with the original scheme, the chaincode transaction and query throughput of the optimization scheme is increased by 17.53% and 15.84% and the average delay is decreased by 6.7% and 18.2%, respectively.

Key words: blockchain, Hyperledger Fabric platform, consensus mechanism, load balancing, endorsement stage

中图分类号:

TP302.7

贺鹏飞, 范鹏飞, 尹千慧, 王中训, 张桐敬, 梁大伟. 基于负载均衡算法的Hyperledger Fabric共识机制研究[J]. 计算机工程, 2022, 48(11): 170-176.

HE Pengfei, FAN Pengfei, YIN Qianhui, WANG Zhongxun, ZHANG Tongjing, LIANG Dawei. Research on Hyperledger Fabric Consensus Mechanism Based on Load Balancing Algorithm[J]. Computer Engineering, 2022, 48(11): 170-176.

https://www.ecice06.com/CN/Y2022/V48/I11/170

图/表 5

20230221174752

20230221174755

20230221174759

20230221174802

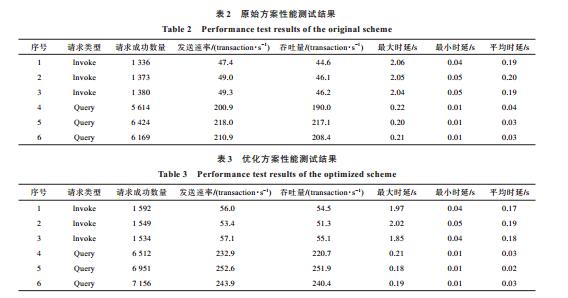

20230221174805

参考文献

[1] 张亮, 刘百祥, 张如意, 等.区块链技术综述[J].计算机工程, 2019, 45(5):1-12. ZHANG L, LIU B X, ZHANG R Y, et al.Overview of blockchain technology[J].Computer Engineering, 2019, 45(5):1-12.(in Chinese)
[2] 蔡维德, 郁莲, 王荣, 等.基于区块链的应用系统开发方法研究[J].软件学报, 2017, 28(6):1474-1487. CAI WT, YU L, WANG R, et al.Blockchain application development techniques[J].Journal of Software, 2017, 28(6):1474-1487.(in Chinese)
[3] KARANDIKAR N, CHAKRAVORTY A, RONG C M.Transactive energy on Hyperledger Fabric[C]//Proceedings of the 6th International Conference on Internet of Things:Systems, Management and Security.Washington D.C., USA:IEEE Press, 2019:539-546.
[4] Hyperledger Fabric:a blockchain platform for the enterprise[EB/OL].[2022-02-11].https://hyperledger-fabric.readthedocs.io/zh_CN/release-2.2/.
[5] 周玉舒.基于区块链的钢铁供应链系统的设计与实现[D].西安:西安电子科技大学, 2021. ZHOU Y S.Design and implementation of steel supply chain system based on blockchain[D].Xi'an:Xidian University, 2021.(in Chinese)
[6] 孟吴同.基于可验证随机函数的Hyperledger Fabric共识机制优化方案[D].北京:北京交通大学, 2020. MENG W T.Optimization scheme for Hyperledger Fabric consensus mechanism based on verifiable random function[D].Beijing:Beijing Jiaotong University, 2020.(in Chinese)
[7] THAKKAR P, NATHAN S, VISWANATHAN B.Performance benchmarking and optimizing Hyperledger Fabric blockchain platform[C]//Proceedings of the 26th International Symposium on Modeling, Analysis, and Simulation of Computer and Telecommunication Systems.Washington D.C., USA:IEEE Press, 2018:264-276.
[8] 袁普.基于Hyperledger的私有区块链系统设计与性能优化[D].北京:北京邮电大学, 2020. YUAN P.Design and performance optimization of a Hyperledger-based permissioned blockchain system[D].Beijing:Beijing University of Posts and Telecommunications, 2020.(in Chinese)
[9] FOSCHINI L, GAVAGNA A, MARTUSCELLI G, et al.Hyperledger Fabric blockchain:chaincode performance analysis[C]//Proceedings of IEEE International Conference on Communications.Washington D.C., USA:IEEE Press, 2020:1-6.
[10] 何英.基于区块链的数字版权登记技术研究[D].重庆:重庆邮电大学, 2019. HE Y.Research on digital copyright registration technology based on blockchain[D].Chongqing:Chongqing University of Posts and Telecommunications, 2019.(in Chinese)
[11] NARAYANAM K, KAUL A, KUMAR K, et al.Partial order transactions on permissioned blockchains for enhanced scalability[C]//Proceedings of the 3rd Conference on Blockchain Research & Applications for Innovative Networks and Services.Washington D.C., USA:IEEE Press, 2021:149-156.
[12] 王洋.基于优化共识的区块链在电子文件全生命周期真实性保障中的应用——以中国电力建设集团有限公司电子文件单套归档和电子档案单套管理试点为例[J].档案学研究, 2022(2):89-96. WANG Y.Application of blockchain based on consensus optimization in authenticity guarantee of electronic records in whole life cycle:take power construction corporation of China's pilot project of electronic records single-set archiving and management as an exam[J].Archives Science Study, 2022(2):89-96.(in Chinese)
[13] 刘云, 宋凯, 陈路遥, 等.最小损失算法在区块链物联网中的优化研究[J].四川大学学报(自然科学版), 2022, 59(2):84-90. LIU Y, SONG K, CHEN L Y, et al.Optimization of minimum loss algorithm in blockchain Internet of Things[J].Journal of Sichuan University(Natural Science Edition), 2022, 59(2):84-90.(in Chinese)
[14] 刘应, 范洪博, 马首群, 等.基于联盟区块链的高效性能优化中间件研究[J].数据通信, 2022(1):6-8, 24. LIU Y, FAN H B, MA S Q, et al.Research on efficient performance optimization middleware based on federated blockchain[J].Data Communication, 2022(1):6-8, 24.(in Chinese)
[15] 周步祥, 曹强, 臧天磊, 等.基于区块链的微电网双层博弈电力交易优化决策[J].电力自动化设备, 2022, 42(9):35-42. ZHOU B X, CAO Q, ZANG T L, et al.Electricity trading optimization decision for microgrid based on blockchain and two-level game[J].Electric Power Automation Equipment, 2022, 42(9):35-42.(in Chinese)
[16] 陈悦妍.面向区块链性能的轻量级优化方法研究[D].南京:南京邮电大学, 2021. CHEN Y Y.Research on lightweight optimization methods for blockchain performance[D].Nanjing:Nanjing University of Posts and Telecommunications, 2021.(in Chinese)
[17] 吴俊鹏, 刘晓东.一种基于集群的动态负载均衡算法研究[J].电子设计工程, 2021, 29(16):75-78. WU J P, LIU X D.Research on a dynamic load balancing algorithm based on cluster[J].Electronic Design Engineering, 2021, 29(16):75-78.(in Chinese)
[18] 杨炳钊.流媒体服务器负载均衡算法研究与应用[D].贵阳:贵州大学, 2019. YANG B Z.Research and application of load balancing algorithm for streaming media server[D].Guiyang:Guizhou University, 2019.(in Chinese)
[19] YI C, ZHANG X G, CAO W.Dynamic weight based load balancing for microservice cluster[C]//Proceedings of the 2nd International Conference on Computer Science and Application Engineering.New York, USA:ACM Press, 2018:1-7.
[20] 林峰, 段建岚, 李传伟, 等.C-V2X边缘服务器的动态负载均衡算法研究[J].计算机工程, 2020, 46(12):201-206, 221. LIN F, DUAN J L, LI C W, et al.Research on dynamic load balancing algorithm for C-V2X edge server[J].Computer Engineering, 2020, 46(12):201-206, 221.(in Chinese)
[21] 倪雅婷, 杨文晖, 苗放, 等.基于Nginx的DRC集群动态负载均衡策略[J].计算机与现代化, 2022(4):58-64. NI Y T, YANG W H, MIAO F, et al.Dynamic load balancing strategy of DRC cluster based on Nginx[J].Computer and Modernization, 2022(4):58-64.(in Chinese)
[22] 李岚.基于神经网络反馈的移动通信平台动态负载均衡算法[J].大庆师范学院学报, 2022, 42(3):102-108. LI L.Dynamic load balancing algorithm of mobile communication platform based on neural network feedback[J].Journal of Daqing Normal University, 2022, 42(3):102-108.(in Chinese)
[23] 徐爱鑫, 孙士民, 汪晓凡, 等.基于改进遗传算法的SDN多控制器负载均衡机制研究[J/OL].计算机应用研究:1-7[2022-05-09].https://doi.org/10.19734/j.issn.1001-3695.2022.02.0070. XU A X, SUN S M, WANG X F, et al.SDN multi-controller load balancing mechanism based on improved genetic algorithm[J/OL].Application Research of Computers:1-7[2022-05-09].https://doi.org/10.19734/j.issn.1001-3695.2022.02.0070.(in Chinese)
[24] BALIGA A, SOLANKI N, VEREKAR S, et al.Performance characterization of Hyperledger Fabric[C]//Proceedings of Crypto Valley Conference on Blockchain Technology.Washington D.C., USA:IEEE Press, 2018:65-74.
[25] ANDROULAKI E, DE CARO A, NEUGSCHWANDTNER M, et al.Endorsement in Hyperledger Fabric[C]//Proceedings of IEEE International Conference on Blockchain.Washington D.C., USA:IEEE Press, 2019:510-519.
