面向缓存机制的移动边缘计算任务卸载研究

doi:10.19678/j.issn.1000-3428.0067932

摘要/Abstract

摘要：

在移动边缘计算(MEC)环境下, 用户需求快速增长, 但由于移动设备的计算和存储资源受限, 时延和能耗问题日益突显。此外, 任务的重复卸载和处理也进一步加剧了时延和移动设备的高能耗问题。针对上述问题, 提出一种带有缓存机制的移动边缘计算任务卸载方案来减少任务卸载过程中的时延和能耗。首先, 基于任务的流行度、新鲜度、数据大小等因素设计一个缓存机制, 根据该机制的结果设计缓存更新策略。然后, 针对任务卸载和缓存问题, 建立一个联合优化模型, 优化模型以最小化系统总成本为目标, 考虑了任务卸载和缓存对移动设备时延和能耗的影响。为求解这一复杂的优化模型, 通过添加惩罚函数的形式将约束条件加入目标函数, 并采用粒子群优化(PSO)算法获得任务卸载和缓存的最优决策。实验结果表明, 与传统的无缓存的本地计算、无缓存的任务卸载、使用随机缓存的任务卸载等方案相比, 该方案的总时延降低了37.00%以上, 缓存命中率提高了7.78%以上, 具有较高的缓存资源利用率。

关键词: 移动边缘计算, 任务卸载, 缓存机制, 缓存更新, 缓存命中率

Abstract:

As the Mobile Edge Computing (MEC) environment faces increasing user demands, the problems of delay and energy consumption stemming from the limited computing and storage resources of mobile devices are becoming increasingly prominent. These issues are further exacerbated by the repeated offloading and processing of tasks in mobile devices. To minimize the delay and energy consumption of task offloading, an MEC task offloading scheme with a caching mechanism is proposed herein. Firstly, a cache content selection model is established based on factors such as task popularity, freshness, and data size, and cache update strategies are formulated according to the results obtained. Then, a joint optimization model is established to address the issues of task offloading and caching, aiming to minimize the total system cost by considering the impact of task offloading and caching on device delay and energy consumption. To solve this complex optimization problem, the objective function is constrained by penalty functions and solved using the Particle Swarm Optimization (PSO) algorithm. The experimental results show that compared with traditional methods such as LOCal computing without caching (LOC), task OFFloading without caching (OFF), and task offloading using random caching, the total delay of this scheme is reduced by more than 37.00% while the cache hit rate is increased by more than 7.78%, indicating a high utilization rate of cache resources.

Key words: Mobile Edge Computing(MEC), task offloading, caching mechanism, cache update, cache hit rate

陈姣, 沈艳. 面向缓存机制的移动边缘计算任务卸载研究[J]. 计算机工程, 2024, 50(7): 194-203.

Jiao CHEN, Yan SHEN. Research on Task Offloading of Mobile Edge Computing for Caching Mechanism[J]. Computer Engineering, 2024, 50(7): 194-203.

https://www.ecice06.com/CN/Y2024/V50/I7/194

图/表 8

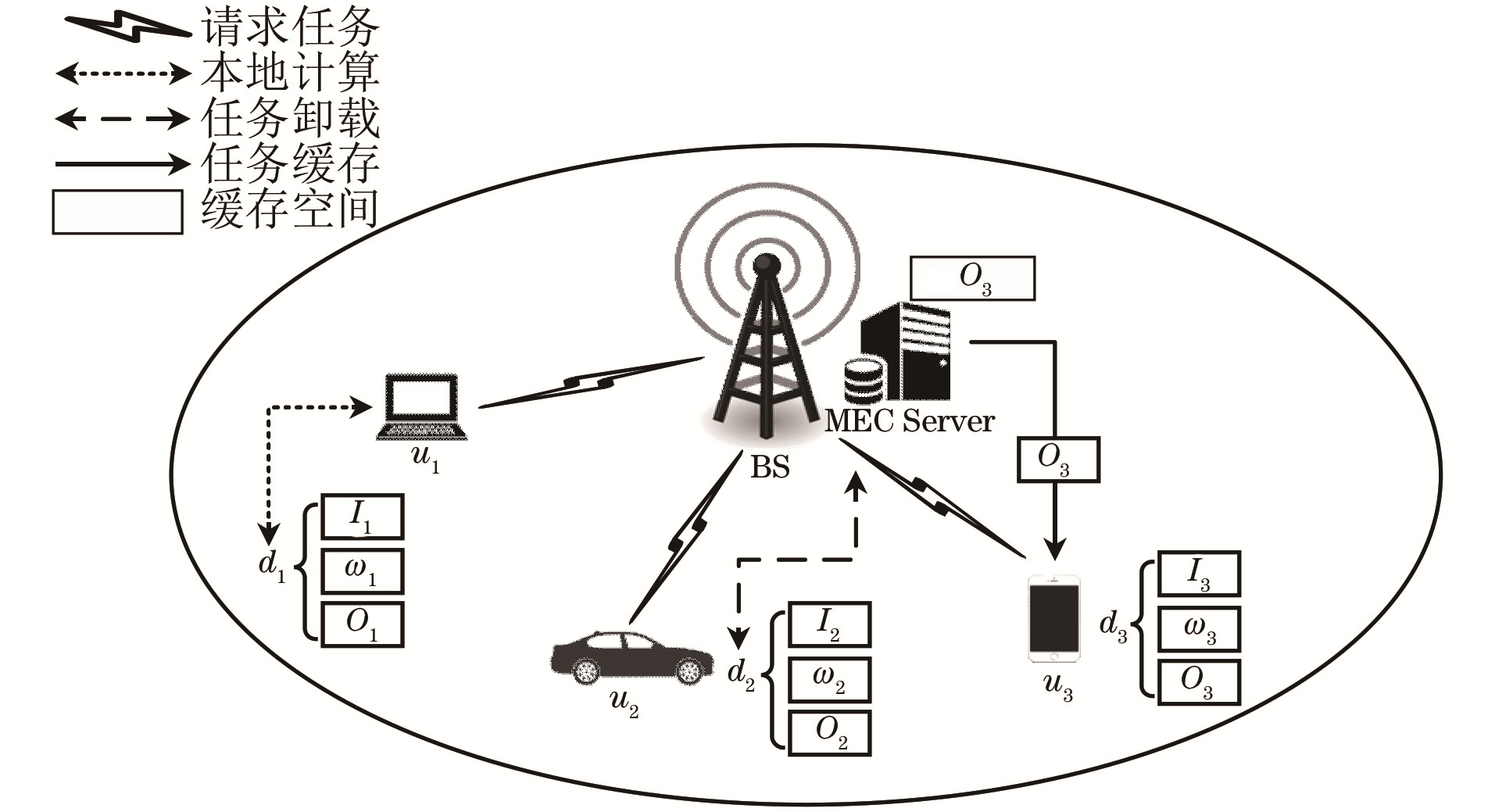

图1 系统模型

Fig.1 System model

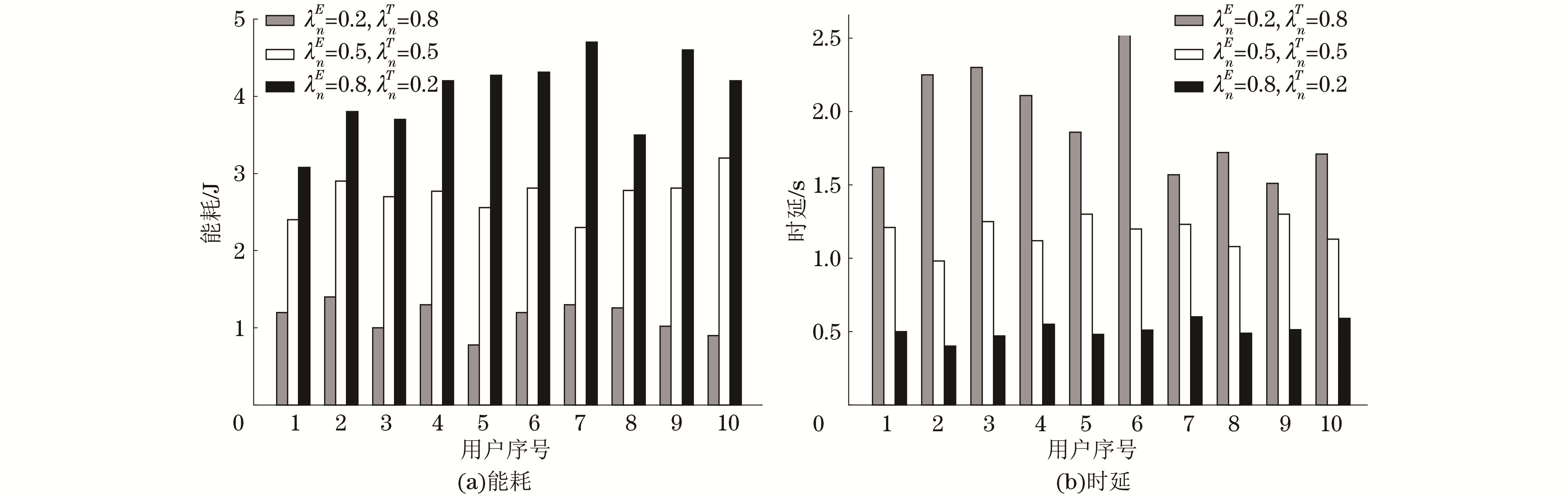

图2 不同

$ {\lambda }_{n}^{T} $

和

$ {\lambda }_{n}^{E} $

的能耗、时延仿真结果比较

Fig.2 Comparison of simulation results for energy consumption and delay of different

$ {\lambda }_{n}^{T} $

and

$ {\lambda }_{n}^{E} $

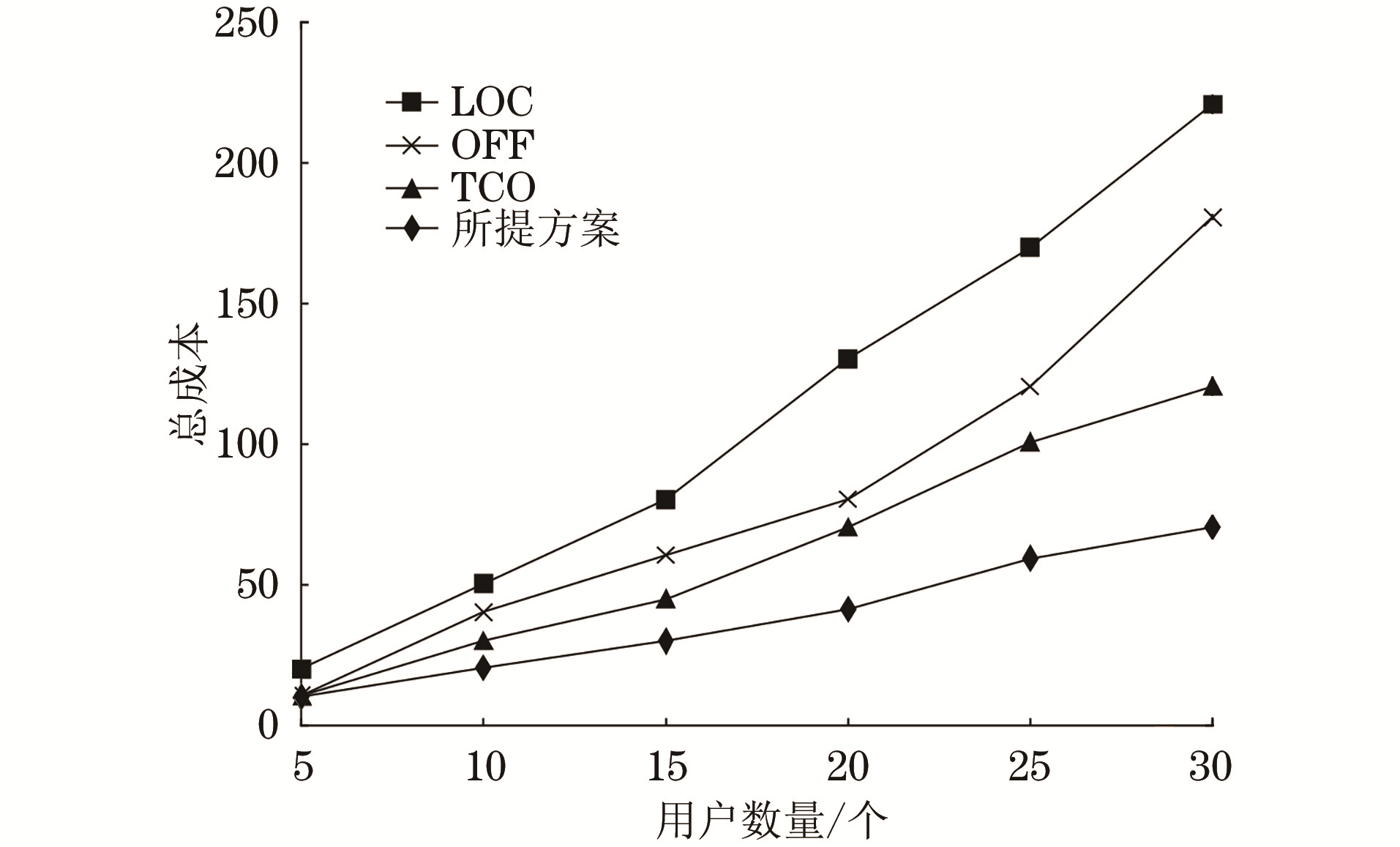

图3 用户数量与总成本的函数关系

Fig.3 Functional relationship between the number of users and total cost

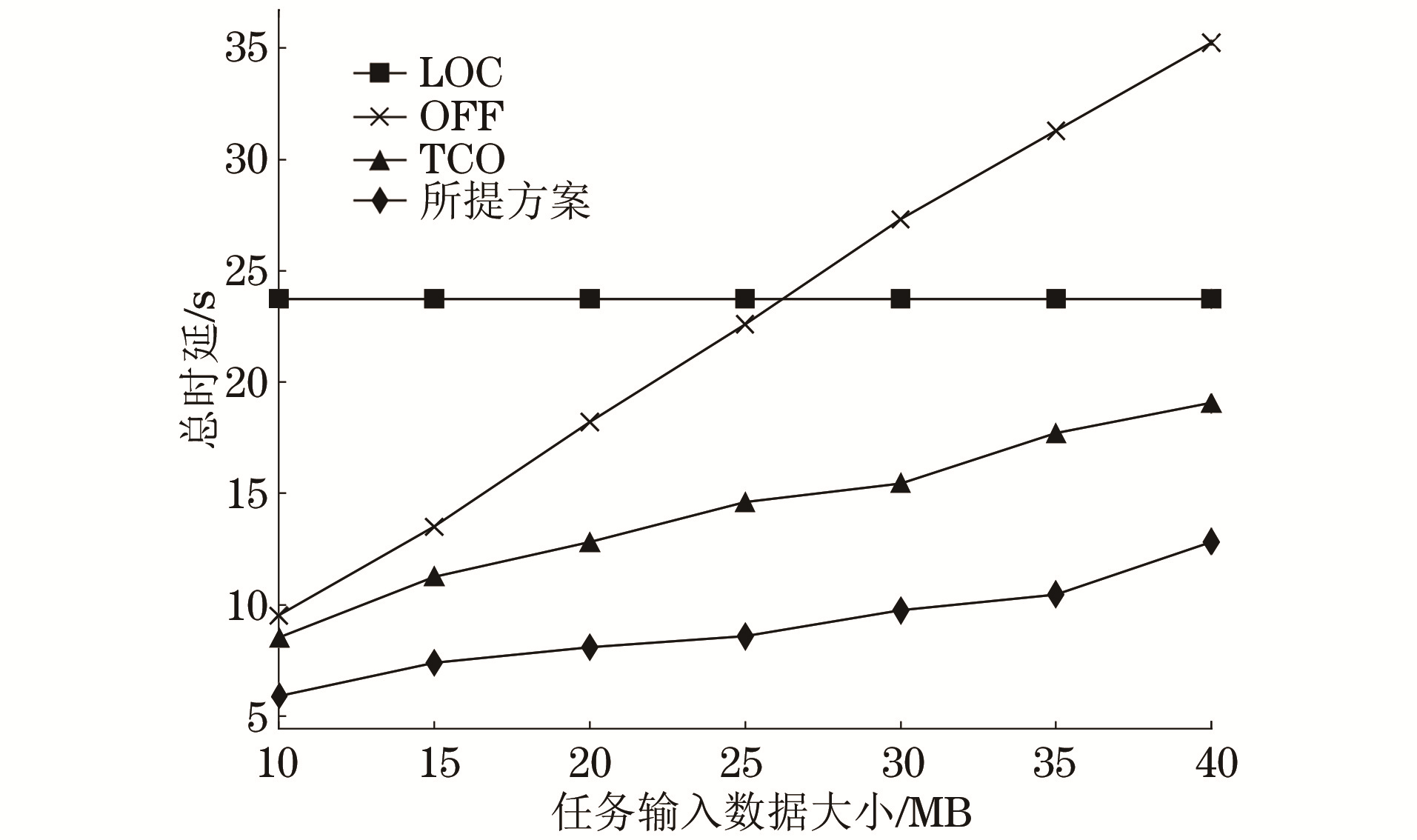

图4 任务输入数据大小与总时延的函数关系

Fig.4 Functional relationship between task input data size and total delay

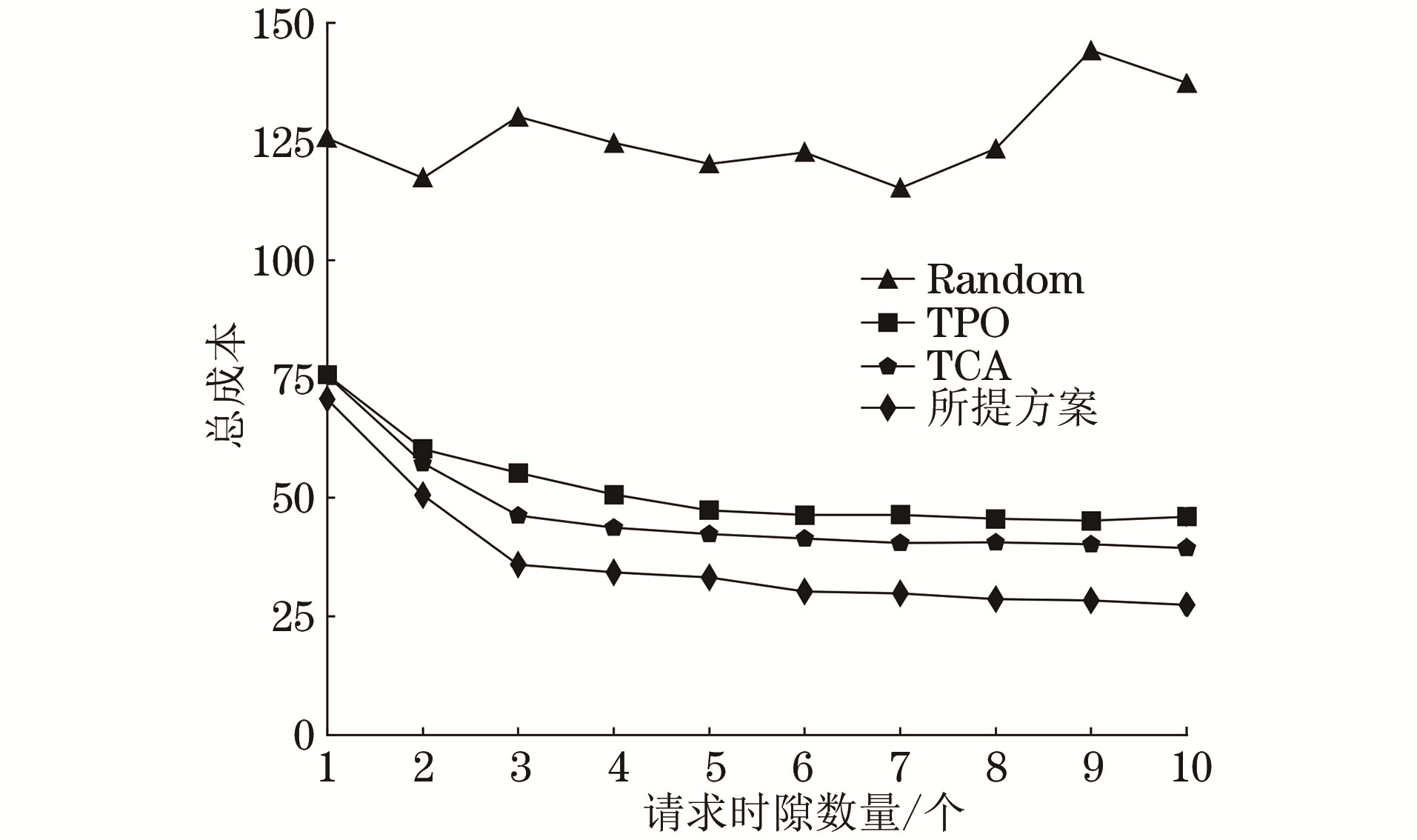

图5 请求时隙数量与总成本的函数关系

Fig.5 Functional relationship between the number of request slots and total cost

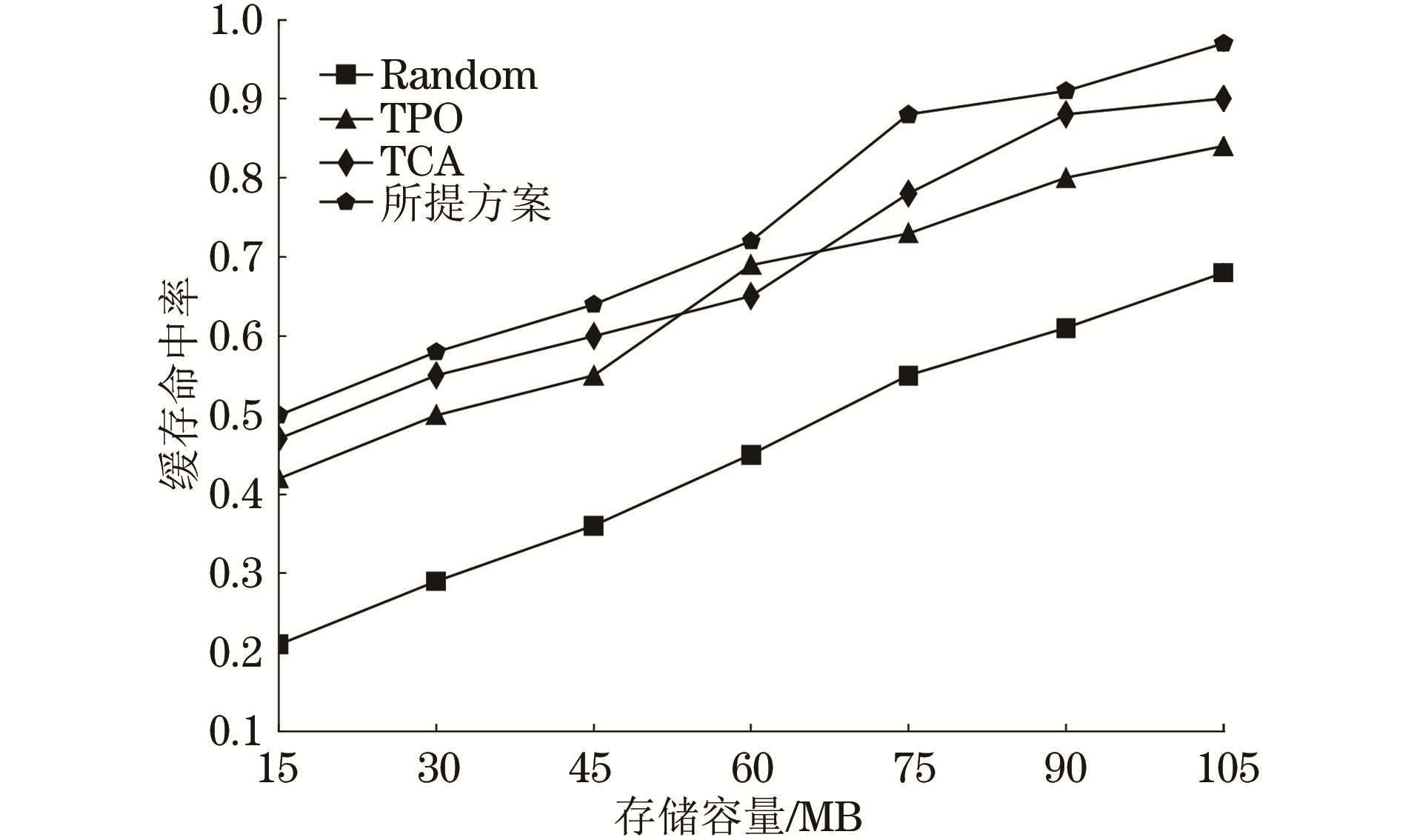

图6 存储容量与缓存命中率的函数关系

Fig.6 Functional relationship between storage capacity and cache hit rate

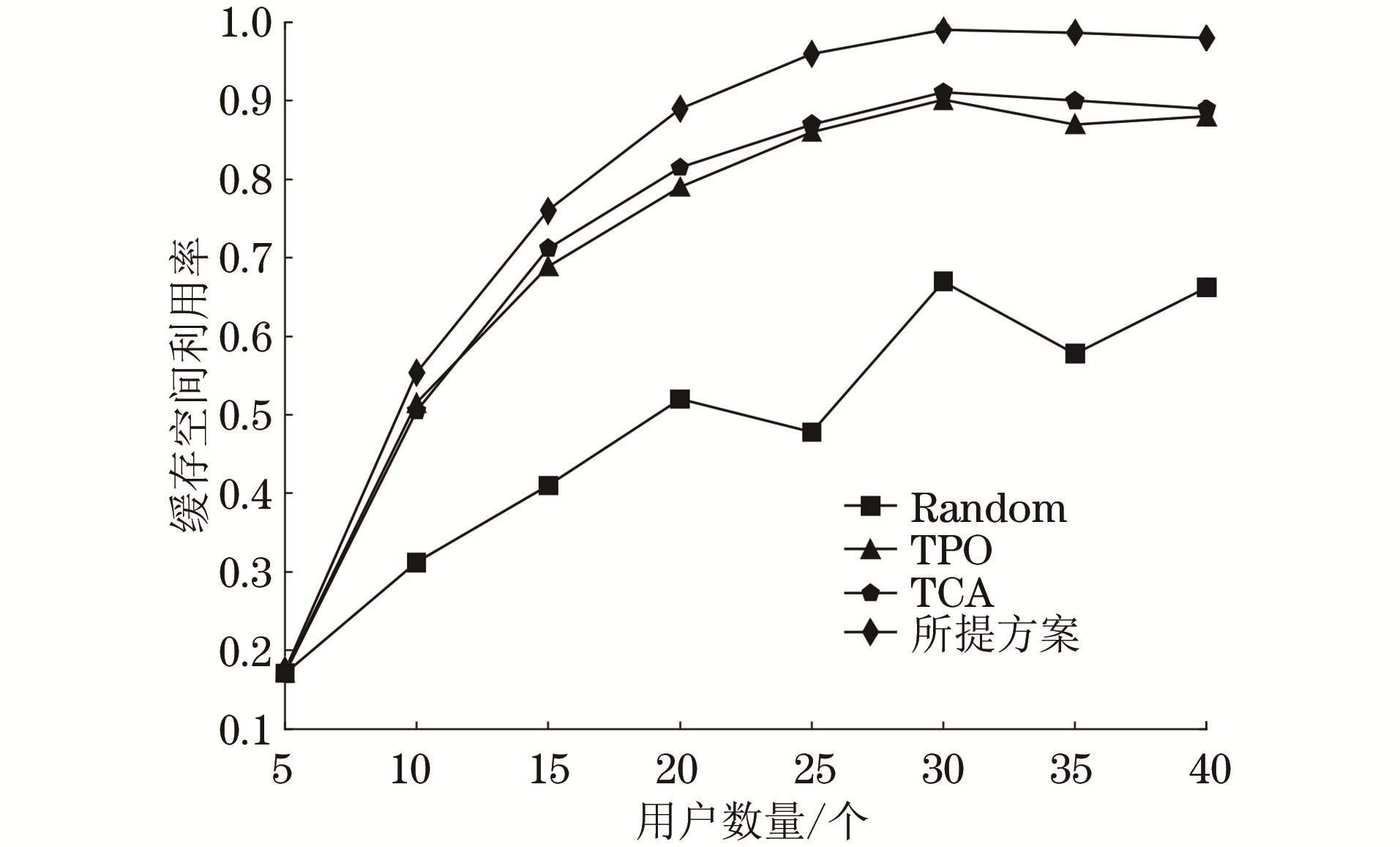

图7 用户数量和缓存空间利用率的函数关系

Fig.7 Functional relationship between the number of users and cache space utilization

参考文献 28

1	XU Y Q, ZHANG H L, LI X, et al. Trusted collaboration for MEC-enabled VR video streaming: a multi-agent reinforcement learning approach. IEEE Transactions on Vehicular Technology, 2023, 72(9): 12167- 12180. doi: 10.1109/TVT.2023.3267181
2	LIU F, CHEN D L, WANG F, et al. Deep learning based single sample face recognition: a survey. Artificial Intelligence Review, 2023, 56(3): 2723- 2748. doi: 10.1007/s10462-022-10240-2
3	KHURANA D, KOLI A, KHATTER K, et al. Natural language processing: state of the art, current trends and challenges. Multimedia Tools and Applications, 2023, 82(3): 3713- 3744. doi: 10.1007/s11042-022-13428-4
4	ZHANG Y, JIANG C, YUE B L, et al. Information fusion for edge intelligence: a survey. Information Fusion, 2022, 81, 171- 186. doi: 10.1016/j.inffus.2021.11.018
5	AZIZA H I, AHMED S Z. Optimal user association of LTE/Wi-Fi/Wi-Gig bands in 5G cellular networks. International Journal on Semantic Web and Information Systems, 2021, 17(2): 22- 40. doi: 10.4018/IJSWIS.2021040102
6	PHAM Q V, FANG F, HA V N, et al. A survey of multi-access edge computing in 5G and beyond: fundamentals, technology integration, and state-of-the-art. IEEE Access, 2020, 8, 116974- 117017. doi: 10.1109/ACCESS.2020.3001277
7	ZHANG J, HU X P, NING Z L, et al. Joint resource allocation for latency-sensitive services over mobile edge computing networks with caching. IEEE Internet of Things Journal, 2019, 6(3): 4283- 4294. doi: 10.1109/JIOT.2018.2875917
8	ZHAN Y F, GUO S, LI P, et al. A deep reinforcement learning based offloading game in edge computing. IEEE Transactions on Computers, 2020, 69(6): 883- 893. doi: 10.1109/TC.2020.2969148
9	CHEN J, XING H L, XIAO Z W, et al. A DRL agent for jointly optimizing computation offloading and resource allocation in MEC. IEEE Internet of Things Journal, 2021, 8(24): 17508- 17524. doi: 10.1109/JIOT.2021.3081694
10	XU Y J, GU B W, HU R Q, et al. Joint computation offloading and radio resource allocation in MEC-based wireless-powered backscatter communication networks. IEEE Transactions on Vehicular Technology, 2021, 70(6): 6200- 6205. doi: 10.1109/TVT.2021.3077094
11	PHAM X Q, NGUYEN T D, NGUYEN V, et al. Joint service caching and task offloading in multi-access edge computing: a QoE-based utility optimization approach. IEEE Communications Letters, 2021, 25(3): 965- 969. doi: 10.1109/LCOMM.2020.3034668
12	GUO H Z, LIU J J, REN J, et al. Intelligent task offloading in vehicular edge computing networks. IEEE Wireless Communications, 2020, 27(4): 126- 132. doi: 10.1109/MWC.001.1900489
13	邓添, 沈艳, 史奎锐. 基于遗传算法的移动边缘计算混合关键任务卸载. 信息与电脑(理论版), 2021, 33(11): 26- 29. URL
	DENG T, SHEN Y, SHI K R. Mixed-critical task offloading algorithm for mobile edge computing based on genetic algorithm. China Computer & Communication, 2021, 33(11): 26- 29. URL
14	GUO H Z, LIU J J. Collaborative computation offloading for multiaccess edge computing over fiber-wireless networks. IEEE Transactions on Vehicular Technology, 2018, 67(5): 4514- 4526. doi: 10.1109/TVT.2018.2790421
15	TANG S P, CHEN L Y, HE K, et al. Computational intelligence and deep learning for next-generation edge-enabled industrial IoT. IEEE Transactions on Network Science and Engineering, 2023, 10(5): 2881- 2893. doi: 10.1109/TNSE.2022.3180632
16	ZHAO Z C, XIA J J, FAN L S, et al. System optimization of federated learning networks with a constrained latency. IEEE Transactions on Vehicular Technology, 2022, 71(1): 1095- 1100. doi: 10.1109/TVT.2021.3128559
17	KHAN M A, BACCOUR E, CHKIRBENE Z, et al. A survey on mobile edge computing for video streaming: opportunities and challenges. IEEE Access, 2022, 10, 120514- 120550. doi: 10.1109/ACCESS.2022.3220694
18	HAO Y X, CHEN M, HU L, et al. Energy efficient task caching and offloading for mobile edge computing. IEEE Access, 2018, 6, 11365- 11373. doi: 10.1109/ACCESS.2018.2805798
19	YANG X L, FEI Z S, ZHENG J C, et al. Joint multi-user computation offloading and data caching for hybrid mobile cloud/edge computing. IEEE Transactions on Vehicular Technology, 2019, 68(11): 11018- 11030. doi: 10.1109/TVT.2019.2942334
20	SAFAVAT S, SAPAVATH N N, RAWAT D B. Recent advances in mobile edge computing and content caching. Digital Communications and Networks, 2020, 6(2): 189- 194. doi: 10.1016/j.dcan.2019.08.004
21	YU S, LANGAR R, FU X M, et al. Computation offloading with data caching enhancement for mobile edge computing. IEEE Transactions on Vehicular Technology, 2018, 67(11): 11098- 11112. doi: 10.1109/TVT.2018.2869144
22	陈清林, 邝祝芳. 基于DDPG的边缘计算任务卸载和服务缓存算法. 计算机工程, 2021, 47(10): 26- 33. URL
	CHEN Q L, KUANG Z F. Task offloading and service caching algorithm based on DDPG in edge computing. Computer Engineering, 2021, 47(10): 26- 33. URL
23	YASIR M, UZ ZAMAN S K, MAQSOOD T, et al. CoPUP: content popularity and user preferences aware content caching framework in mobile edge computing. Cluster Computing, 2023, 26(1): 267- 281. doi: 10.1007/s10586-022-03624-0
24	TANG B, KANG L Y. EICache: a learning-based intelligent caching strategy in mobile edge computing. Peer-to-Peer Networking and Applications, 2022, 15(2): 934- 949. doi: 10.1007/s12083-021-01266-4
25	LI C, TANG J, TANG H, et al. Collaborative cache allocation and task scheduling for data-intensive applications in edge computing environment. Future Generation Computer Systems, 2019, 95, 249- 264. doi: 10.1016/j.future.2019.01.007
26	GHOSH S, AGRAWAL D P. A high performance hierarchical caching framework for mobile edge computing environments[C]//Proceedings of the IEEE Wireless Communications and Networking Conference (WCNC). Washington D. C., USA: IEEE Press, 2021: 1-6.
27	ZHOU W Q, CHEN L Y, TANG S P, et al. Offloading strategy with PSO for mobile edge computing based on cache mechanism. Cluster Computing, 2022, 25(4): 2389- 2401. doi: 10.1007/s10586-021-03414-0
28	赵婵婵, 郭晓敏, 海晓伟, 等. 缓存辅助移动边缘计算的任务卸载与资源分配联合优化策略. 科学技术与工程, 2023, 23(9): 3812- 3819. URL
	ZHAO C C, GUO X M, HAI X W, et al. Joint optimization strategy of task offloading and resource allocation for cache-assisted mobile edge computing. Science Technology and Engineering, 2023, 23(9): 3812- 3819. URL
