低信噪比下基于深度学习TCNN-MobileNet的调制识别

doi:10.19678/j.issn.1000-3428.0068243

摘要/Abstract

摘要：

将深度学习算法应用于调制识别任务是近年来通信领域的一个研究热点, 但现有方法存在网络复杂度高、硬件要求高、在低信噪比(SNR)下识别准确率不高等问题。结合离散小波变换方法, 提出一种基于双路卷积神经网络级联可分离卷积网络(TCNN-MobileNet)的调制识别方法。首先通过小波变换对数据进行预处理, 将信号作为输入传送到双路卷积神经网络中进行不同维度的特征提取; 然后通过融合层进行特征融合并送入轻量级神经网络MobileNetV1中, 进行调制识别模型训练; 最后通过全连接层进行11种调制识别的分类输出。在公开数据集RML2016.10a上的实验结果表明, 在-20 dB的低SNR下TCNN-MobileNet的识别准确率可达88.71%, 在18 dB的高SNR下识别准确率可达96.66%, SNR在-20~18 dB范围内时平均识别准确率为88.37%, 相比于ResNet18、ResNet34等经典网络架构提升了约35%。TCNN-MobileNet识别方法在保证识别精度不变的情况下能够降低训练参数量以及网络训练时间, 有效简化网络架构, 降低对硬件设备的要求, 对轻量级神经网络在调制识别中的应用具有借鉴意义。

关键词: 调制识别, 卷积神经网络, 小波变换, 深度学习, 低信噪比

Abstract:

In recent years, the application of deep learning algorithms to modulation recognition tasks has become a research hotspot in the field of communication. However, existing methods suffer from high network complexity, high hardware requirements, and low recognition accuracy under low Signal-to-Noise Ratio (SNR). A modulation recognition method based on a two-way convolutional neural network cascade separable convolutional network called TCNN-MobileNet is proposed, which combines the Discrete Wavelet Transform (DWT) method. First, the data are preprocessed using Wavelet Transform (WT), and the signal is transmitted as input to a dual convolutional neural network for feature extraction in different dimensions. Subsequently, feature fusion is performed through the fusion layer and fed into the lightweight neural network MobileNetV1 for modulation recognition model training. Finally, 11 types of modulation recognition are classified and output through a fully connected layer. The experimental results on the publicly available dataset RML2016.10a show that the recognition accuracy of TCNN-MobileNet can reach 88.71% at a low SNR of -20 dB, 96.66% at a high SNR of 18 dB, and an average recognition accuracy of 88.37% in the SNR range of -20 dB to 18 dB, which is approximately 35% higher than classical network architectures such as ResNet18 and ResNet34. The TCNN-MobileNet recognition method can reduce the number of training parameters and the network training time while ensuring that the recognition accuracy remains unchanged, effectively simplifying the network architecture and reducing hardware requirements. This is significant for the application of lightweight neural networks in modulation recognition.

Key words: modulation recognition, Convolutional Neural Network(CNN), Wavelet Transform(WT), deep learning, low Signal-to-Noise Ratio(SNR)

牛瑞婷, 严天峰, 高锐, 王映植. 低信噪比下基于深度学习TCNN-MobileNet的调制识别[J]. 计算机工程, 2024, 50(7): 204-215.

Ruiting NUI, Tianfeng YAN, Rui GAO, Yingzhi WANG. Deep Learning TCNN-MobileNet-Based Modulation Recognition Under Low Signal-to-Noise Radio[J]. Computer Engineering, 2024, 50(7): 204-215.

https://www.ecice06.com/CN/Y2024/V50/I7/204

图/表 17

图1 常见小波基的去噪效果

Fig.1 Denoising effect of common wavelet bases

图2 Coiflets小波基去噪效果对比

Fig.2 Comparison of denoising effect of Coiflets wavelet bases

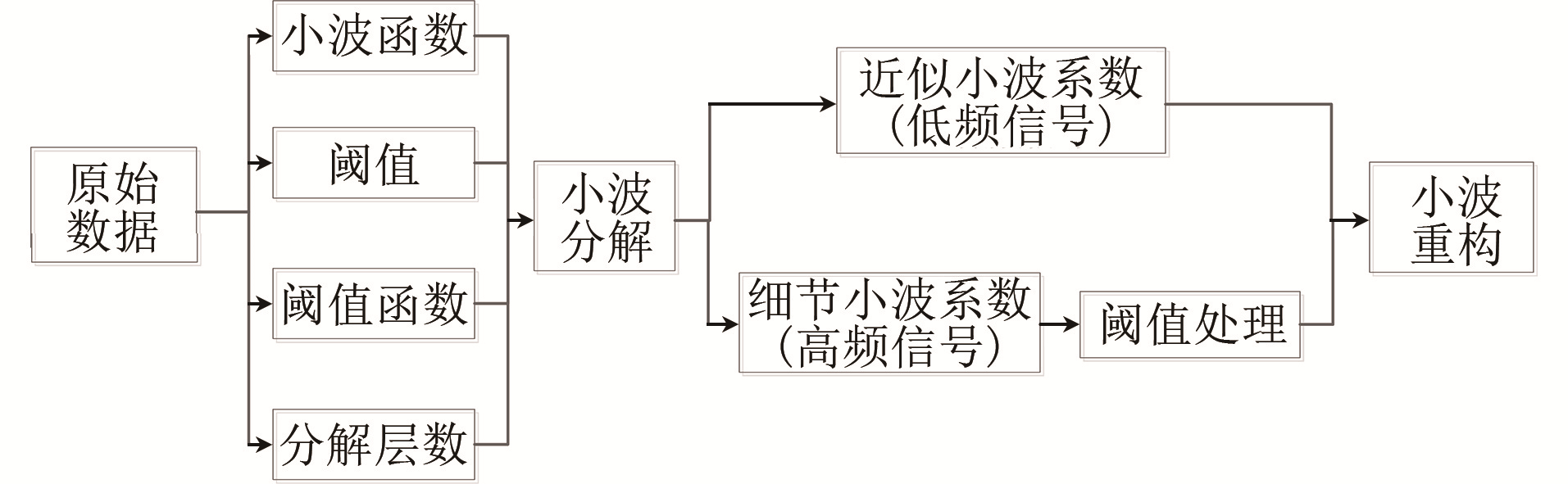

图3 离散小波变换

Fig.3 Discrete wavelet transform

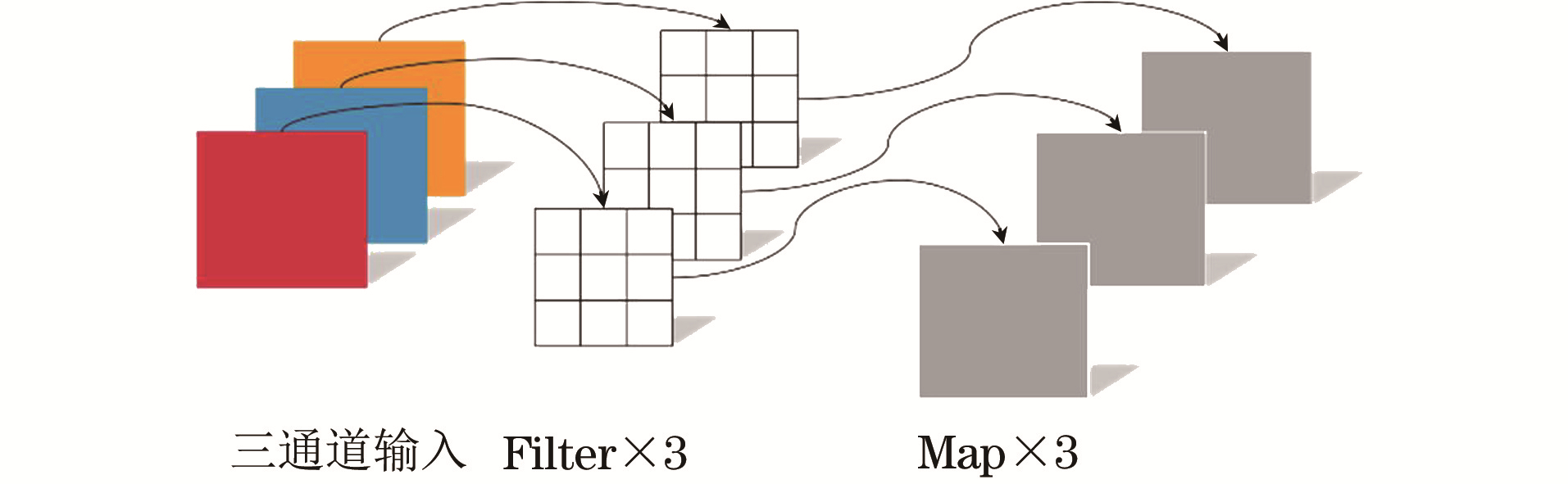

图4 传统卷积示意图

Fig.4 Schematic diagram of traditional convolution

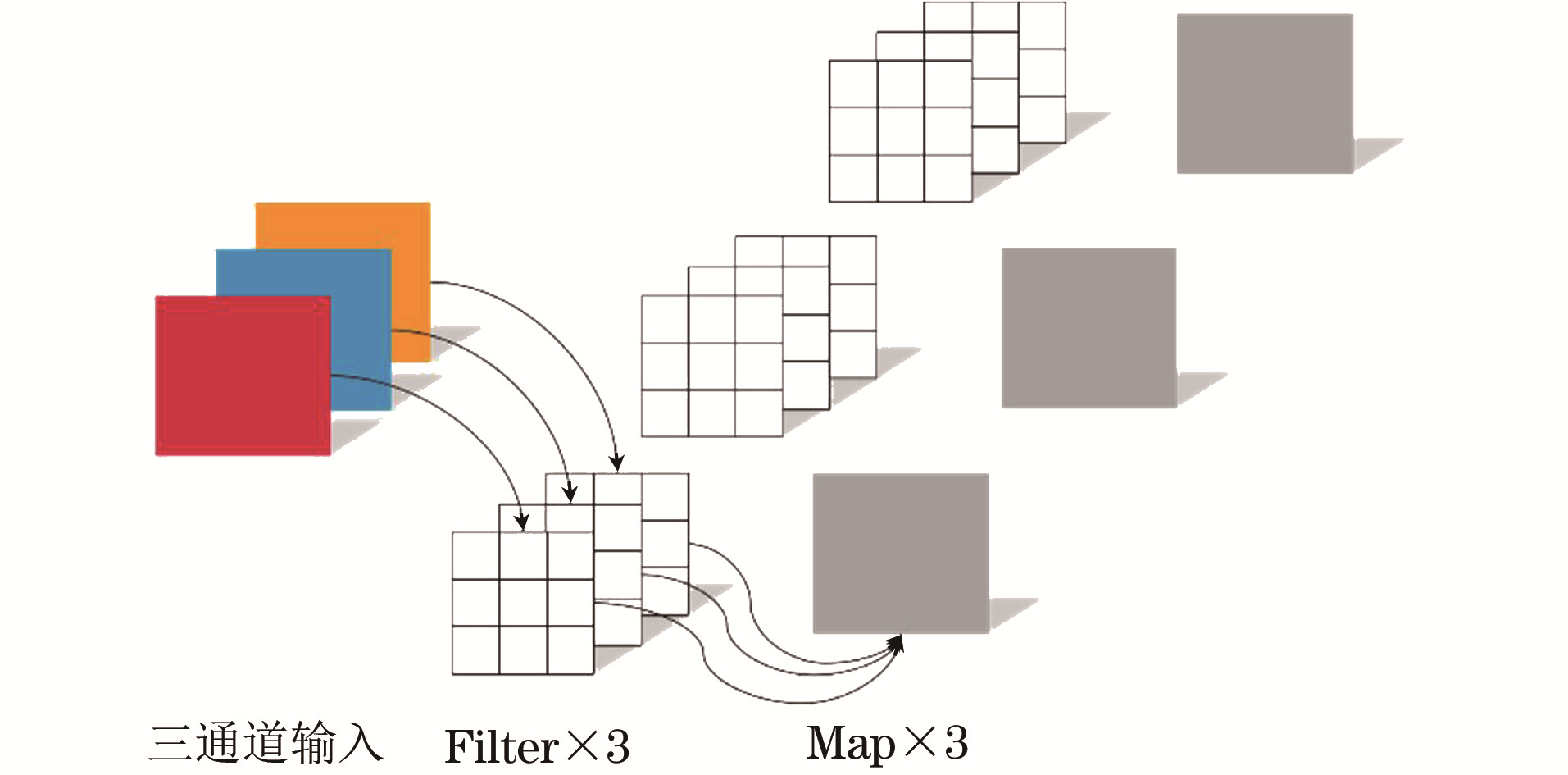

图5 深度卷积示意图

Fig.5 Schematic diagram of deep convolution

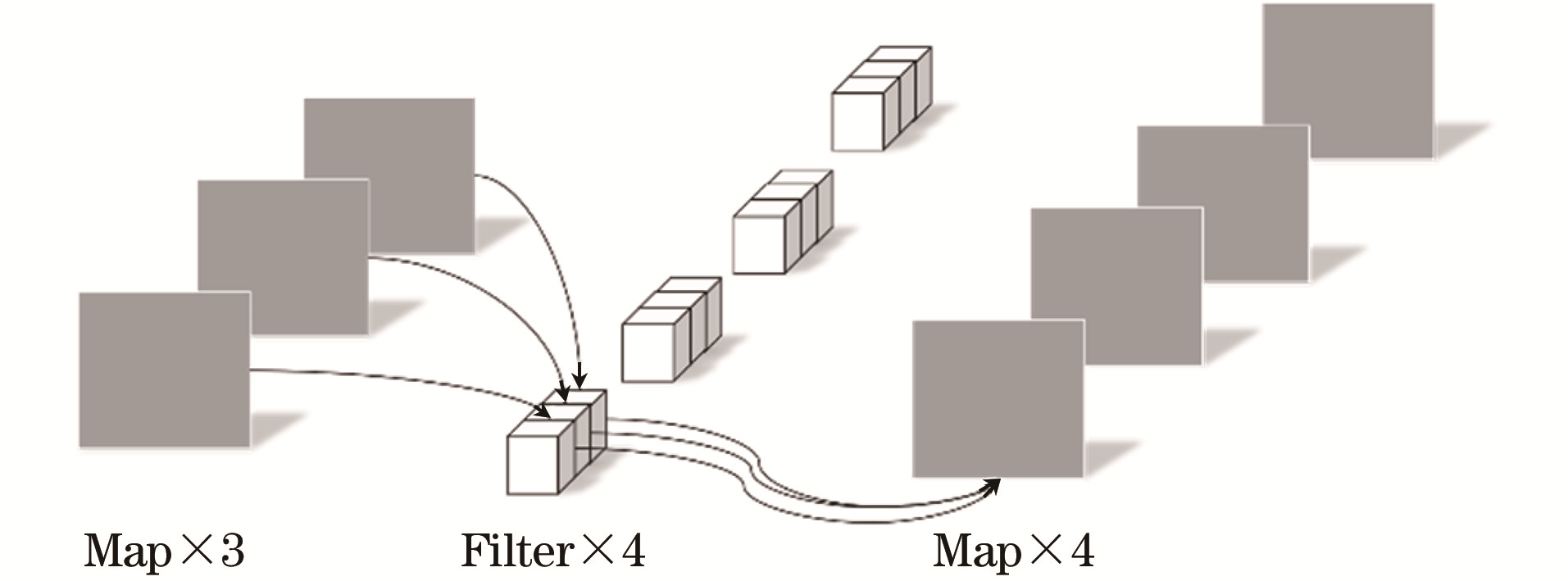

图6 逐点卷积示意图

Fig.6 Schematic diagram of pointwise convolution

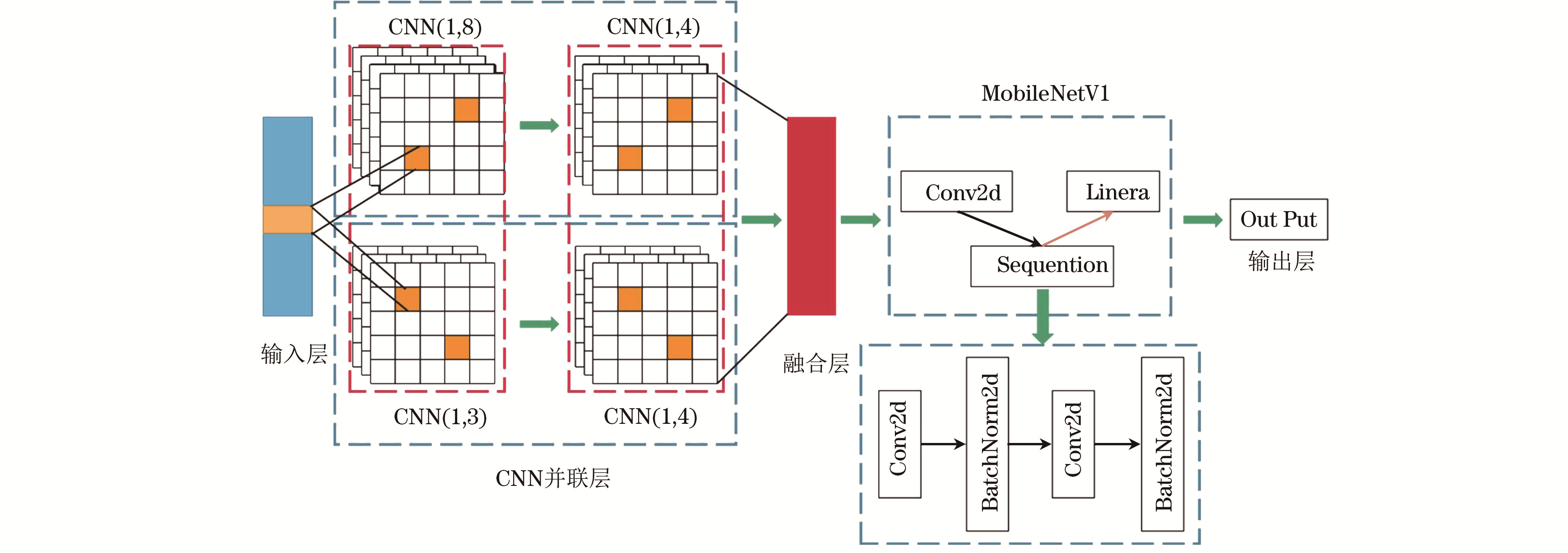

图7 TCNN-MobileNet网络架构

Fig.7 Architecture of TCNN-MobileNet network

图8 11种调制方式的时域图

Fig.8 Time-domain diagrams of 11 modulation modes

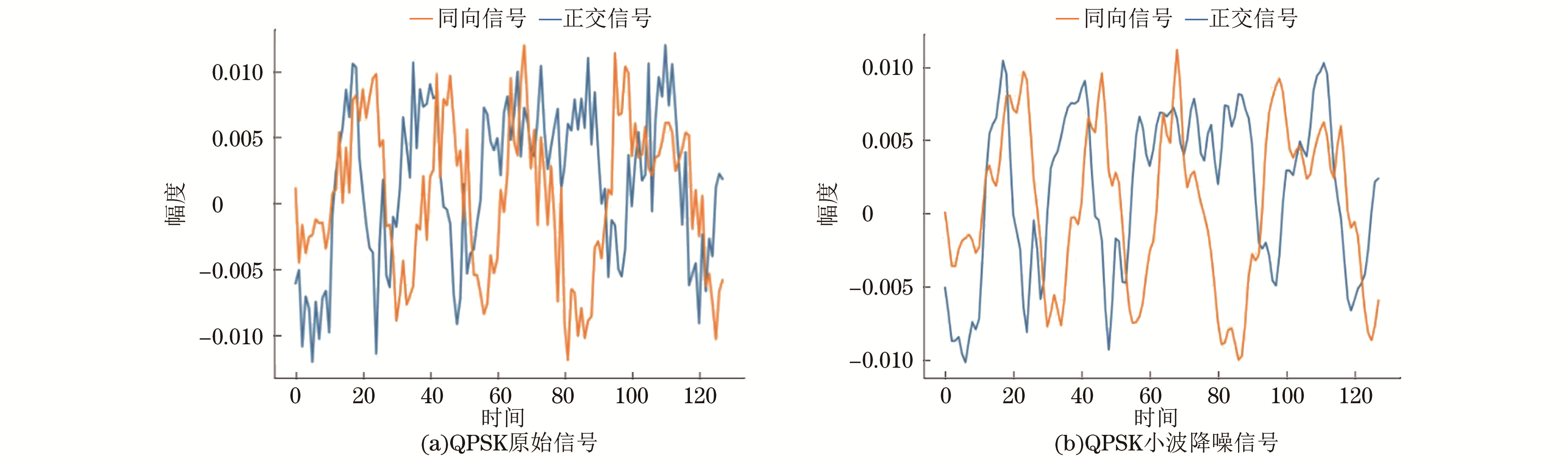

图9 小波去噪前后对比

Fig.9 Comparison before and after wavelet denoising

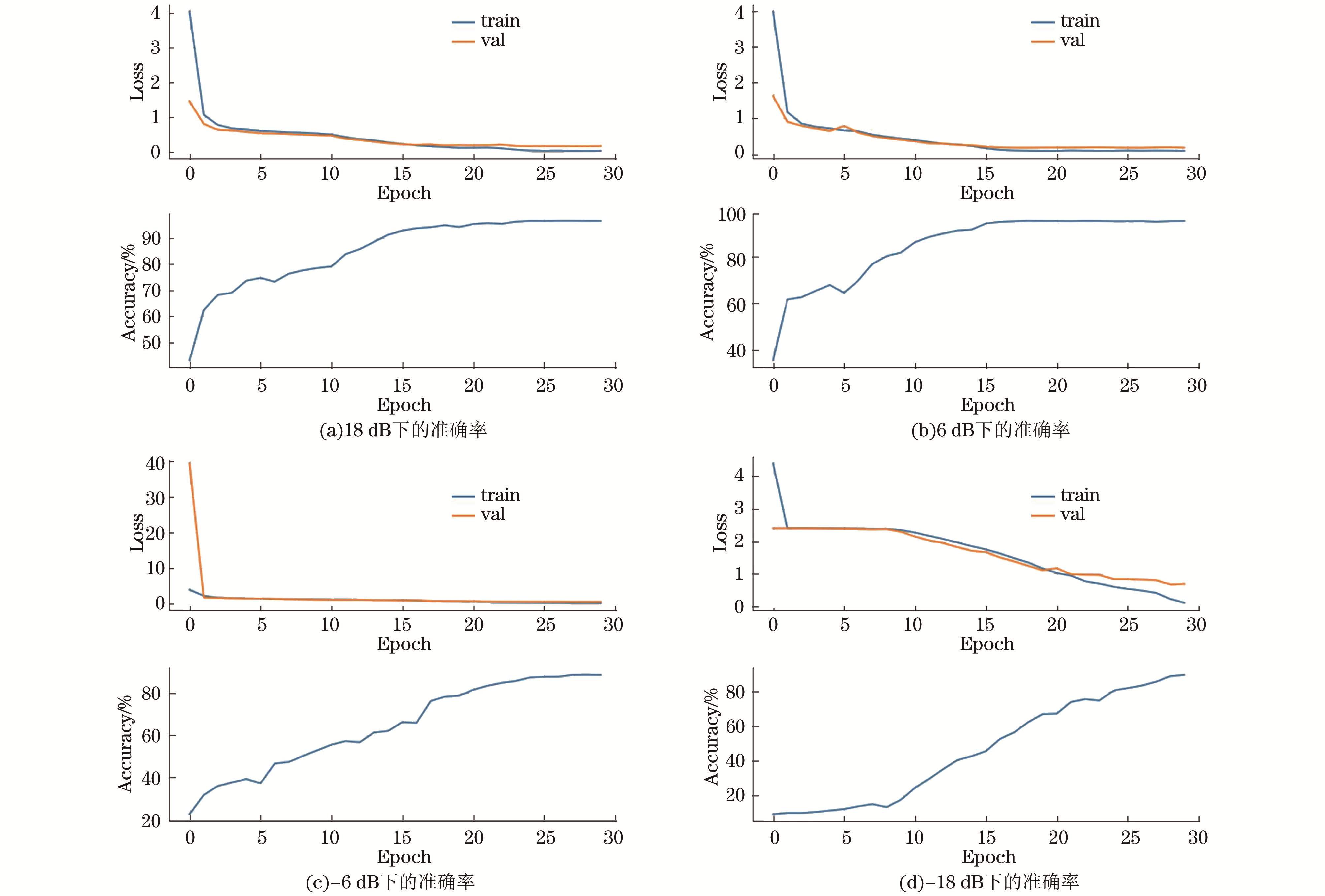

图10 不同Batch size下的识别准确率

Fig.10 Recognition accuracy under different Batch size

图11 不同信噪比下TCNN-MobileNet网络的识别准确率

Fig.11 Recognition accuracy of TCNN-MobileNet network under different signal-to-noise ratio

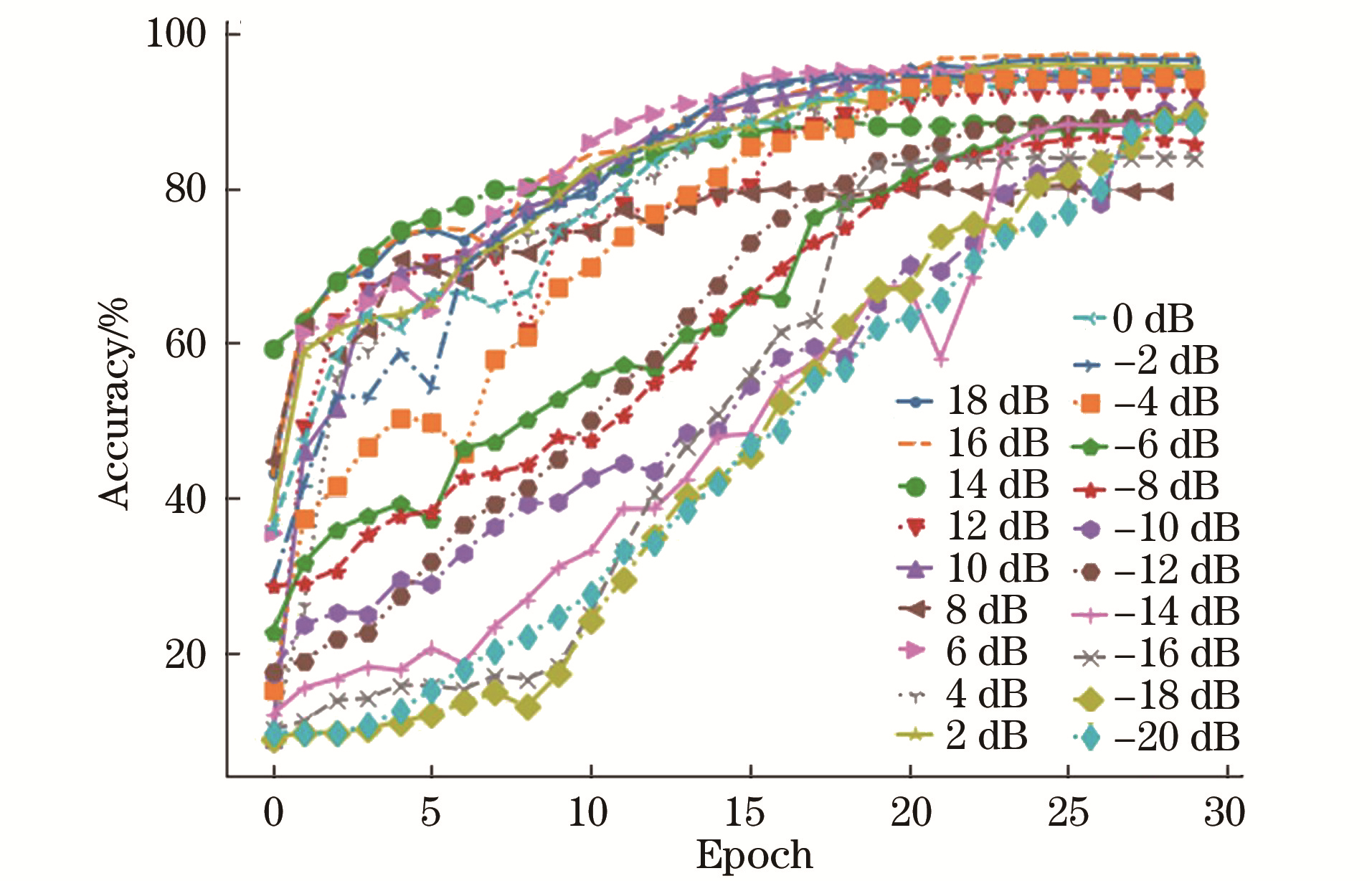

图12 TCNN-MobileNet在不同Epoch下的训练精度

Fig.12 Training accuracy of TCNN-MobileNet under different Epoch conditions

图13 不同信噪比下的混淆矩阵

Fig.13 Confusion matrix under different signal-to-noise ratio

参考文献 28
