基于高效卷积算子的异常抑制目标跟踪算法

doi:10.19678/j.issn.1000-3428.0058795

摘要/Abstract

摘要： 传统的目标跟踪算法易受边界效应影响，且当目标因遮挡严重、运动模糊、光照变化等产生外观变化时，目标响应图会发生突变，从而降低目标跟踪检测结果的可信度。提出一种改进的高效卷积算子（ECO）目标跟踪算法。利用高斯混合模型生成紧凑且多样化的样本数据，采用因式分解卷积方法减少模型参数，引入空间权值系数和前后两帧响应图的变化率来弱化边界效应并抑制响应图突变，以提高目标跟踪算法的鲁棒性能和精度。实验结果表明，在光照、尺度变化等多种干扰下，该算法的成功率和距离精度较原始ECO算法分别提高3.1个百分点和1.9个百分点。

关键词: 目标跟踪, 高效卷积算子, 相关滤波, 边界效应, 响应突变抑制

Abstract: The traditional target tracking algorithm is easily affected by the boundary effect,and its target response graph mutates with the target appearance changes caused by occlusion,motion blur and varying illumination,which reduces the credibility of the target tracking and detection results.An improved target tracking algorithm based on Efficient Convolution Operator(ECO) is proposed.The algorithm employs the Gaussian mixture model to generate compact and diverse sample data,and uses the factorization convolution method to reduce the number of parameters. Then the spatial weight coefficient and the change rate of the two response graphs are introduced to diminish the boundary effect and suppress the mutation of the response graph,so as to improve the robustness and accuracy of the target tracking algorithm.Experimental results show that the success rate and distance accuracy of the proposed algorithm are 3.1 percentage points and 1.9 percentage points higher than those of the original ECO algorithm respectively under various interference such as illumination and scale change.

Key words: target tracking, Efficient Convolution Operator(ECO), correlation filtering, boundary effect, suppression of sudden changes in response

中图分类号:

TP751

苏超群, 朱正为, 郭玉英. 基于高效卷积算子的异常抑制目标跟踪算法[J]. 计算机工程, 2021, 47(7): 266-272,288.

SU Chaoqun, ZHU Zhengwei, GUO Yuying. Anomaly Suppression Target Tracking Algorithm Based on Efficient Convolution Operator[J]. Computer Engineering, 2021, 47(7): 266-272,288.

https://www.ecice06.com/CN/Y2021/V47/I7/266

图/表 9

20210721091824

20210721091827

20210721091830

20210721091835

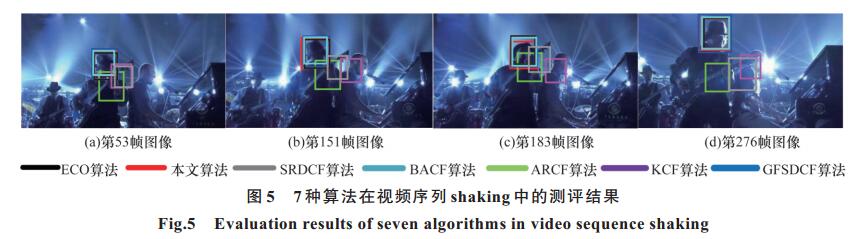

20210721091841

20210721091846

20210721091850

20210721091853

20210721091856

参考文献

[1] 孟琭,杨旭.目标跟踪算法综述[J].自动化学报,2019,45(7):1244-1260. MENG L,YANG X.Overview of target tracking algorithms[J].Journal of Automatica Sinica,2019,45(7):1244-1260.(in Chinese)
[2] 尹宏鹏,陈波,柴毅,等.基于视觉的目标检测与跟踪综述[J].自动化学报,2016,42(10):1466-1489. YIN H P,CHEN B,CHAI Y,et al.Review of vision-based target detection and tracking[J].Acta Automatica Sinica,2016,42(10):1466-1489.(in Chinese)
[3] 李国友,张凤煦,纪执安.采用高效卷积算子的长期目标追踪算法[J].小型微型计算机系统,2019,40(9):1951-1955. LI G Y,ZHANG F X,JI Z A.Long-term target tracking algorithm using efficient convolution operator[J].Small Microcomputer System,2019,40(9):1951-1955.(in Chinese)
[4] BOLME D S,BEVERIDGE J R,DRAPER B A,et al.Visual object tracking using adaptive correlation filters[C]//Proceedings of 2010 IEEE Computer Society Conference on Computer Vision and Pattern Recognition.Washington D.C.,USA:IEEE Press,2010:2544-2550.
[5] HENRIQUES J F,RUI C,MARTINS P,et al.Exploiting the circulant structure of tracking-by-detection with kernels[C]//Proceedings of 2012 European Conference on Computer Vision.Berlin,Germany:Springer,2012:702-715.
[6] HENRIQUES J F,CASEIRO R,MARTINS P,et al.High-speed tracking with kernelized correlation filters[J].IEEE Transactions on Pattern Analysis and Machine Intelligence,2015,37(3):583-596.
[7] DANELLJAN M,KHAN F S,FELSBERG M,et al.Adaptive color attributes for real-time visual tracking[C]//Proceedings of 2014 IEEE Computer Society Conference on Computer Vision and Pattern Recognition.Washington D.C.,USA:IEEE Press,2014:1090-1097.
[8] DANELLJAN M,HAGER G,FAHAD S K,et al.Accurate scale estimation for robust visual tracking[C]//Proceedings of 2014 British Machine Vision Conference.Guildford,UK:BMVA Press,2014:1-11.
[9] YANG L,JIANKE Z.A scale adaptive kernel correlation filter tracker with feature integration[C]//Proceedings of 2014 European Conference on Computer Vision.Berlin,Germany:Springer,2014:254-265.
[10] 熊昌镇,赵璐璐,郭芬红.自适应特征融合的核相关滤波跟踪算法[J].计算机辅助设计与图形学报,2017,29(6):1068-1074. XIONG C Z,ZHAO L L,GUO F H.Adaptive feature fusion kernel correlation filter tracking algorithm[J].Journal of Computer Aided Design and Graphics,2017,29(6):1068-1074.(in Chinese)
[11] DANELLJAN M,ROBINSON A,SHAHBAZ K F,et al.Beyond correlation filters:learning continuous convolution operators for visual tracking[C]//Proceedings of 2016 European Conference on Computer Vision.Berlin,Germany:Springer,2016:472-488.
[12] DANELLJAN M,BHAT G,KHAN F S,et al.ECO:efficient convolution operators for tracking[C]//Proceedings of 2017 IEEE Computer Society Conference on Computer Vision and Pattern Recognition.Washington D.C.,USA:IEEE Press,2017:6931-6939.
[13] XU T Y,FENG Z H,WU X J,et al.Joint group feature selection and discriminative filter learning for robust visual object tracking[C]//Proceedings of 2019 IEEE/CVF International Conference on Computer Vision.Washington D.C.,USA:IEEE Press,2019:52-57.
[14] DANELLJAN M,HÄGER G,KHAN F S,et al.Learning spatially regularized correlation filters for visual tracking[C]//Proceedings of 2015 IEEE/CVF International Conference on Computer Vision.Washington D.C.,USA:IEEE Press,2015:4310-4318.
[15] GALOOGAHI H K,FAGG A,LUCEY S.Learning background-aware correlation filters for visual tracking[C]//Proceedings of 2017 IEEE/CVF International Conference on Computer Vision.Washington D.C.,USA:IEEE Press,2017:1144-1152.
[16] MUELLER M,SMITH N,GHANEM B.Context aware correlation filter tracking[C]//Proceedings of 2017 IEEE Computer Society Conference on Computer Vision and Pattern Recognition.Washington D.C.,USA:IEEE Press,2017:1387-1395.
[17] LI F,TIAN C,ZUO W M,et al.Learning spatial-temporal regularized correlation filters for visual tracking[EB/OL].[2020-05-15].https://www.researchgate.net/publication/324005680_Learning_Spatial-Temporal_Regularized_Correlation_Filters_for_Visual_Tracking.
[18] DAI K N,WANG D,LU H C,et al.Visual tracking via adaptive spatially-regularized correlation filters[C]//Proceedings of 2019 IEEE Computer Society Conference on Computer Vision and Pattern Recognition.Washington D.C.,USA:IEEE Press,2019:21-27.
[19] WANG M M,LIU Y,HUANG Z Y.Large margin object tracking with circulant feature maps[C]//Proceedings of 2017 IEEE Computer Society Conference on Computer Vision and Pattern Recognition.Washington D.C.,USA:IEEE Press,2017:4800-4808.
[20] JONGWON C,HYUNG J C,SANGDOO Y,et al. Attentional correlation filter network for adaptive visual tracking[C]//Proceedings of 2017 IEEE Computer Society Conference on Computer Vision and Pattern Recognition. Washington D. C., USA:IEEE Press, 2017:4828-4837.
[21] HUANG Z Y, FU C H, LI Y M, et al. Learning aberrance repressed correlation filters for real-time UAV tracking[C]//Proceedings of 2019 IEEE/CVF International Conference on Computer Vision. Washington D. C., USA:IEEE Press, 2019:1109-1119.
[22] LI Y M, FU C H, DING F Q, et al. AutoTrack:towards highperformance visual tracking for UAV with automatic spatiotemporal regularization[C]//Proceedings of 2020 IEEE/CVF International Conference on Computer Vision. Washington D. C., USA:IEEE Press, 2020:32-39.
