基于曲率和的主动声呐干涉条纹特征表征方法

doi:10.19678/j.issn.1000-3428.0063139

摘要/Abstract

摘要： 干涉条纹特征是主动声呐目标识别所依据的重要特征之一。在浅水域环境中，声波能量传播特性较为复杂，信号会经过发射源到目标以及目标到接收器这2条不同的路径，目标的散射特性在声波的入射模式和散射模式之间相互作用，使得主动声呐干涉条纹呈现弯曲的结构。为对干涉条纹特征进行表征，提出一种基于曲率和的声呐特征提取方法。根据浅海声场主动声呐频率-距离干涉条纹图得到一段区间内的干涉条纹曲线散点曲率值，利用曲率求和的方法刻画条纹的弯曲程度，进而表征这一区间内的条纹特征。在理想波导环境下计算刚性球体目标在不同频率段下的曲率特征，通过统计平均值的方式得到平均曲率和为0.6左右，从特征表征结果可以看出，曲率和可通过统计离散点曲率强度描述干涉条纹特征，且在同一环境条件下，发射频率越大时曲率和强度越小。根据实测数据进行计算得到曲率和为0.512，实验与理论结果较为吻合，表明通过该方法可以获取主动声呐干涉条纹特征，进而实现目标识别和探测。

关键词: 主动声呐, 干涉条纹, 曲率和, 特征提取, 回波信号

Abstract: Interference fringes are essential features for active sonar target recognition.In shallow-water environments, the energy propagation characteristics of acoustic waves are relatively complex, and signals follow two different paths:from the emitter to the target and from the target to the receiver.The scattering characteristics of the target interact between the incident and scattering modes of the acoustic waves, causing active sonar interference fringes to exhibit a curved structure.A sonar feature extraction method based on the sum of curvature is proposed to characterize the interference fringe features.According to the frequency-distance interference fringe pattern of an active sonar in a shallow-water sound field, the curvature value of scattered points on the interference fringe curve in a section is obtained.The curvature summation method is used to characterize the curvature of the fringe and the fringe characteristics in this section.In the ideal waveguide environment, the curvature characteristics of a rigid sphere target in different frequency bands are determined, and an average sum of the curvature of approximately 0.6 is obtained through statistical averaging.The characterization results reveal that the sum of curvature can describe the interference fringe characteristics based on the statistical discrete point curvature intensity.Under the same environmental conditions, the higher the emission frequency, the smaller the curvature and intensity.Based on the obtained data, the calculated sum of curvature is 0.512.Thus, the experimental results are consistent with the theoretical results.The results indicate that active sonar interference fringe features can be determined based on this method, and target recognition and detection can be realized.

Key words: active sonar, interference fringe, sum of curvature, feature extraction, echo signal

中图分类号:

TP391

孙同晶, 闫志明, 范军, 张豪. 基于曲率和的主动声呐干涉条纹特征表征方法[J]. 计算机工程, 2022, 48(11): 49-54.

SUN Tongjing, YAN Zhiming, FAN Jun, ZHANG Hao. Method for Characterizing Active Sonar Interference Fringes Based on the Sum of Curvature[J]. Computer Engineering, 2022, 48(11): 49-54.

https://www.ecice06.com/CN/Y2022/V48/I11/49

图/表 7

20230203202402

20230203202406

20230203202410

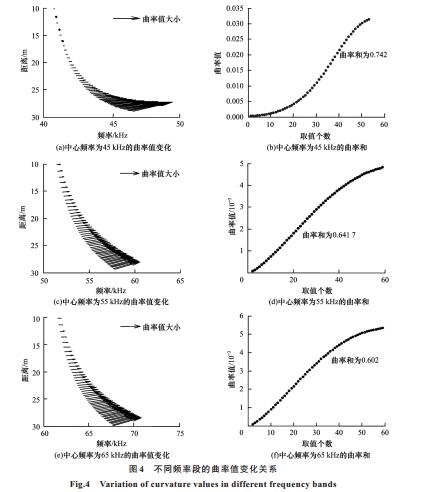

20230203202414

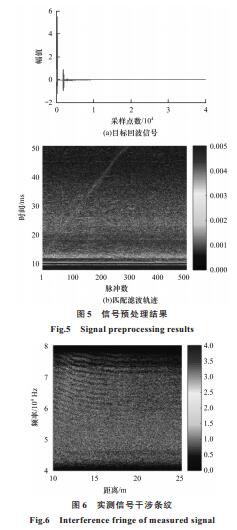

20230203202419

20230203202424

20230203202427

参考文献

[1] CHUPROV S D.Interference structure of a sound field in a layered ocean[EB/OL].[2021-10-05].https://www.mendeley.com/catalogue/21d95734-5b33-3a8e-ba00-307ae 0a67026/.
[2] D'SPAIN G L, KUPERMAN W A.Application of waveguide invariants to analysis of spectrograms from shallow water environments that vary in range and azimuth[J].The Journal of the Acoustical Society of America, 1999, 106(5):2454-2468.
[3] ZURK L M, ROUSEFF D.Striation-based beamforming for active sonar with a horizontal line array[J].The Journal of the Acoustical Society of America, 2012, 132(4):264-270.
[4] ROUSEFF D, ZURK L M.Striation-based beamforming for estimating the waveguide invariant with passive sonar[J].The Journal of the Acoustical Society of America, 2011, 130(2):76-81.
[5] 田玲爱, 刘福臣, 周士弘.利用Hough变换提取波导不变量[J].声学与电子工程, 2009(4):22-24. TIAN L A, LIU F C, ZHOU S H.Using Hough transform to extract waveguide invariants[J].Acoustics and Electronics Engineering, 2009(4):22-24.(in Chinese)
[6] 安良, 王志强, 陆佶人.利用LOFAR谱图的二维傅里叶变换脊计算波导不变量[J].电子与信息学报, 2008, 30(12):2930-2933. AN L, WANG Z Q, LU J R.Calculating the waveguide invariant by the 2-D Fourier transform ridges of LOFAR gram image[J].Journal of Electronics & Information Technology, 2008, 30(12):2930-2933.(in Chinese)
[7] QUIJANO J E, ZURK L M, ROUSEFF D.Demonstration of the invariance principle for active sonar[J].The Journal of the Acoustical Society of America, 2008, 123(3):1329-1337.
[8] QUIJANO J E, ZURK L M.Eigenvector pruning method for high resolution beamforming[J].The Journal of the Acoustical Society of America, 2015, 138(4):2152-2160.
[9] QUIJANO J E, DOSSO S E, DETTMER J, et al.Geoacoustic inversion for the seabed transition layer using a Bernstein polynomial model[J].The Journal of the Acoustical Society of America, 2016, 140(6):4073-4076.
[10] QUIJANO J E, CAMPBELL R L J, OESTERLEIN T G, et al.Experimental observations of active invariance striations in a tank environment[J].The Journal of the Acoustical Society of America, 2010, 128(2):611-618.
[11] 刘军, 张睿, 胡超超.基于车道线的车辆测距方法的测距误差分析与改进[J].激光与光电子学进展, 2020, 57(18):305-309. LIU J, ZHANG R, HU C C.Measurement error analysis and improvement of vehicle ranging method based on lane lines[J].Laser & Optoelectronics Progress, 2020, 57(18):305-309.(in Chinese)
[12] 何严东方.基于最大曲率的指静脉多特征提取与匹配算法研究[D].南京:南京邮电大学, 2020. HE Y D F.Research on finger vein multi-feature extraction and matching algorithm based on maximum curvature[D].Nanjing:Nanjing University of Posts and Telecommunications, 2020.(in Chinese)
[13] DESLANDES D, WU K.Integrated microstrip and rectangular waveguide in planar form[J].IEEE Microwave and Wireless Components Letters, 2001, 11(2):68-70.
[14] HEANEY K D.Rapid geoacoustic characterization:applied to range-dependent environments[J].IEEE Journal of Oceanic Engineering, 2004, 29(1):43-50.
[15] HEANEY K D, STERNLICHT D D, TERANISHI A M, et al.Active rapid geoacoustic characterization using a seismic survey source[J].IEEE Journal of Oceanic Engineering, 2004, 29(1):100-109.
[16] INGENITO F.Scattering from an object in a stratified medium[J].The Journal of the Acoustical Society of America, 1987, 82(6):2051-2059.
[17] QUIJANO J E, ZURK L M.Use of the invariance principle for target tracking in active sonar geometries[EB/OL].[2021-10-05].https://www.researchgate.net/publication/224287019_Use_of_the_invariance_principle_for_target_tracking_in_active_sonar_geometries.
[18] 李茂震.浅海声场波导不变量提取技术[D].哈尔滨:哈尔滨工程大学, 2017. LI M Z.Waveguide invariant extraction technique in shallow water[D].Harbin:Harbin Engineering University, 2017.(in Chinese)
[19] DUDA R O, HART P E.Use of the Hough transformation to detect lines and curves in pictures[J].Communications of the ACM, 1972, 15(1):11-15.
[20] 郑金.抛物线曲率半径关系式的推导及应用[J].物理教学, 2017, 39(10):50-53. ZHENG J.Derivation and application of the relational formula of parabolic curvature radius[J].Physics Teaching, 2017, 39(10):50-53.(in Chinese)
[21] 李耀华, 程翥, 罗鹏飞. NLMS算法在射电天文中的应用[J]. 现代电子技术, 2011, 34(21):34-36. LI Y H, CHENG Z, LUO P F.Application of NLMS algorithm in radio astronomy[J].Modern Electronics Technique, 2011, 34(21):34-36.(in Chinese)
[22] LI C H, REN C Y, WANG Z Z.Curvature estimates for convex solutions of some fully nonlinear Hessian-type equations[J].Calculus of Variations and Partial Differential Equations, 2019, 58(6):1-32.
[23] CHAN P Y.Curvature estimates for steady Ricci solitons[J].Transactions of the American Mathematical Society, 2019, 372(12):8985-9008.
[24] 韩春盈.浅海波导中目标声散射特性研究[D].青岛:中国海洋大学, 2005. HAN C Y.A study on the characteristics of scattering from an object submerged in a shallow-water waveguide[D].Qingdao:Ocean University of China, 2005.(in Chinese)
[25] GOLDHAHN R, HICKMAN G, KROLIK J.A waveguide invariant adaptive matched filter for active sonar target depth classification[J].The Journal of the Acoustical Society of America, 2011, 129(4):1813-1824.
[26] GOLDHAHN R, HICKMAN G, KROLIK J.Waveguide invariant broadband target detection and reverberation estimation[J].The Journal of the Acoustical Society of America, 2008, 124(5):2841-2851.
