毫米波非正交多址接入的节能资源分配

doi:10.19678/j.issn.1000-3428.0068968

摘要/Abstract

摘要：

用户干扰会降低毫米波大规模多输入多输出非正交多址接入(mMIMO-NOMA)系统的能量效率, 解决该问题需要采用合理的资源分配方案。基于已知的信道状态信息建立从基站到用户的系统模型, 在考虑基站的发射功率和服务质量情况下, 提出具有多个约束条件的能效优化问题。该问题受用户分组、预编码、功率分配等多种因素的影响, 是一个复杂的非凸问题。首先在假设功率固定的情况下, 提出一种用户分组算法对需要提供服务的用户进行匹配分组, 在此基础上, 最大化全连接架构增益设计模拟预编码, 采用迫零法设计数字预编码。其次将能效最大化问题转化为一系列子问题, 并采用惩罚函数进行处理。最后设计基于Dinkelbach的迭代算法用于功率分配, 根据能效公式计算出能量效率。MATLAB仿真分析结果表明, 该方案能够保证用户间公平性, 且在能量效率方面优于现有方案。当信噪比为15 dB时, 全连接架构的能量效率提升约25.5%, 子链接架构的能量效率提升约25.1%。

关键词: 能量效率, 毫米波, 大规模多输入多输出, 用户分组, 混合预编码, 功率分配

Abstract:

User interference affects the energy efficiency of mmWave massive Multiple Input Multiple Output (MIMO) Non-Orthogonal Multiple Access(NOMA) systems. A reasonable resource allocation plan is required to address this issue. A system model is established from the base station to the user based on known channel state information. An energy efficiency optimization problem with multiple constraints is proposed, considering the transmit power and service quality of the base station. This problem is affected by many factors, such as user grouping, precoding, and power allocation, and is a complex non-convex problem. First, assuming the power is fixed, a user grouping algorithm is proposed to match and group users who need to provide services. Accordingly, analog precoding is designed to maximize the gain of the fully connected architecture, and digital precoding is designed using the zero-forcing method. Second, the energy efficiency maximization problem is transformed into multiple sub-problems and processed using a penalty function. Finally, an iterative algorithm based on Dinkelbach is designed for power allocation, and the energy efficiency of the proposed scheme is calculated according to the energy efficiency formula. The simulation analysis results using MATLAB demonstrate that this scheme can ensure fairness among users and is superior to existing schemes in terms of energy efficiency. When the signal-to-interference-plus-noise ratio is 15 dB, this scheme improves the energy efficiency by approximately 25.5% under a fully connected structure and the energy efficiency by approximately 25.1% under a partially connected structure.

Key words: energy efficiency, millimeter Wave(mmWave), massive Multiple Input Multiple Output(mMIMO), user grouping, hybrid precoding, power allocation

李贵勇, 高馨雨, 于晓娜. 毫米波非正交多址接入的节能资源分配[J]. 计算机工程, 2024, 50(12): 194-199.

LI Guiyong, GAO Xinyu, YU Xiaona. Energy Efficient Resource Allocation for Millimeter Wave Non-Orthogonal Multiple Access[J]. Computer Engineering, 2024, 50(12): 194-199.

https://www.ecice06.com/CN/Y2024/V50/I12/194

图/表 4

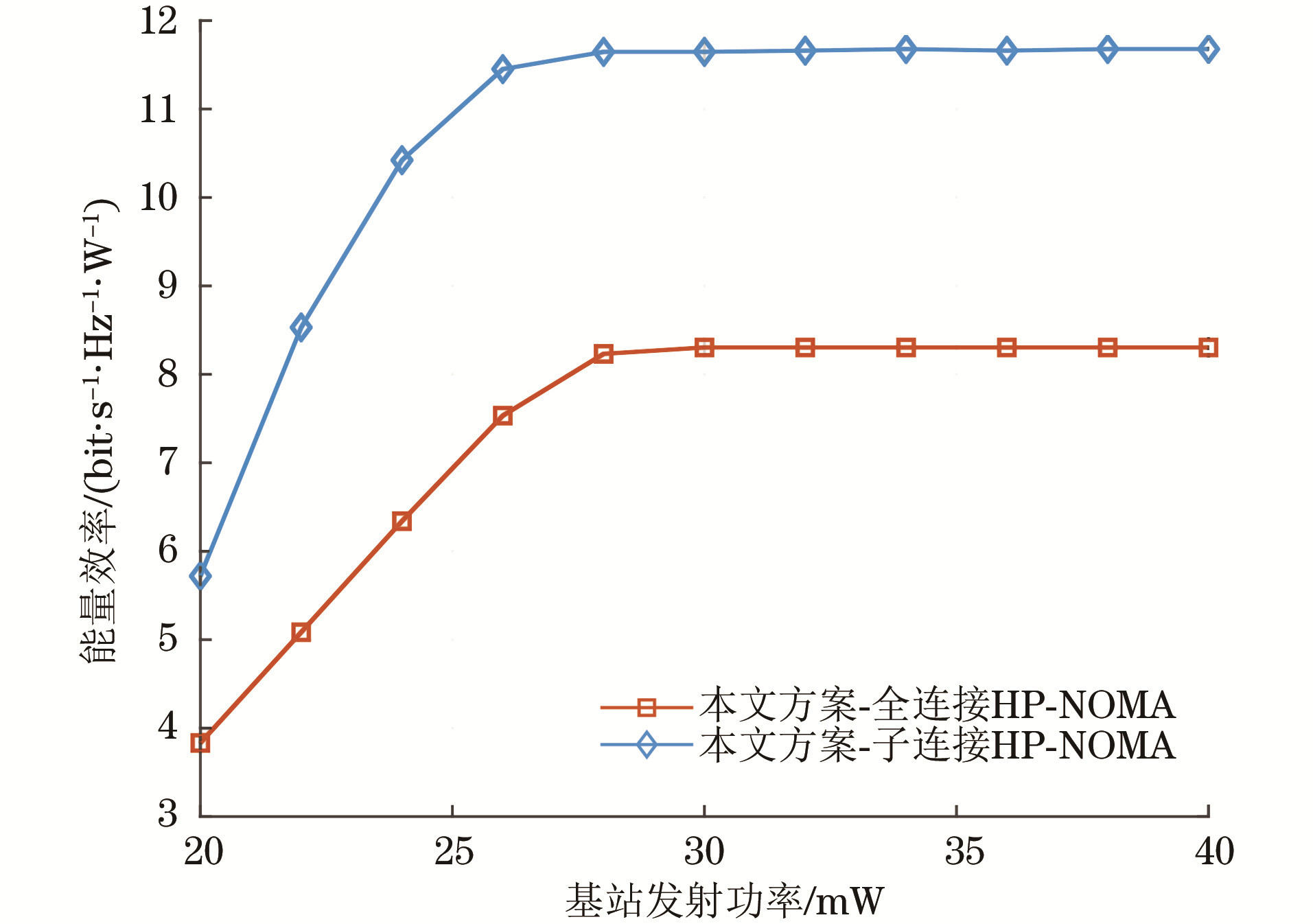

图1 不同发射功率下的能量效率

Fig.1 Energy efficiency at different transmit powers

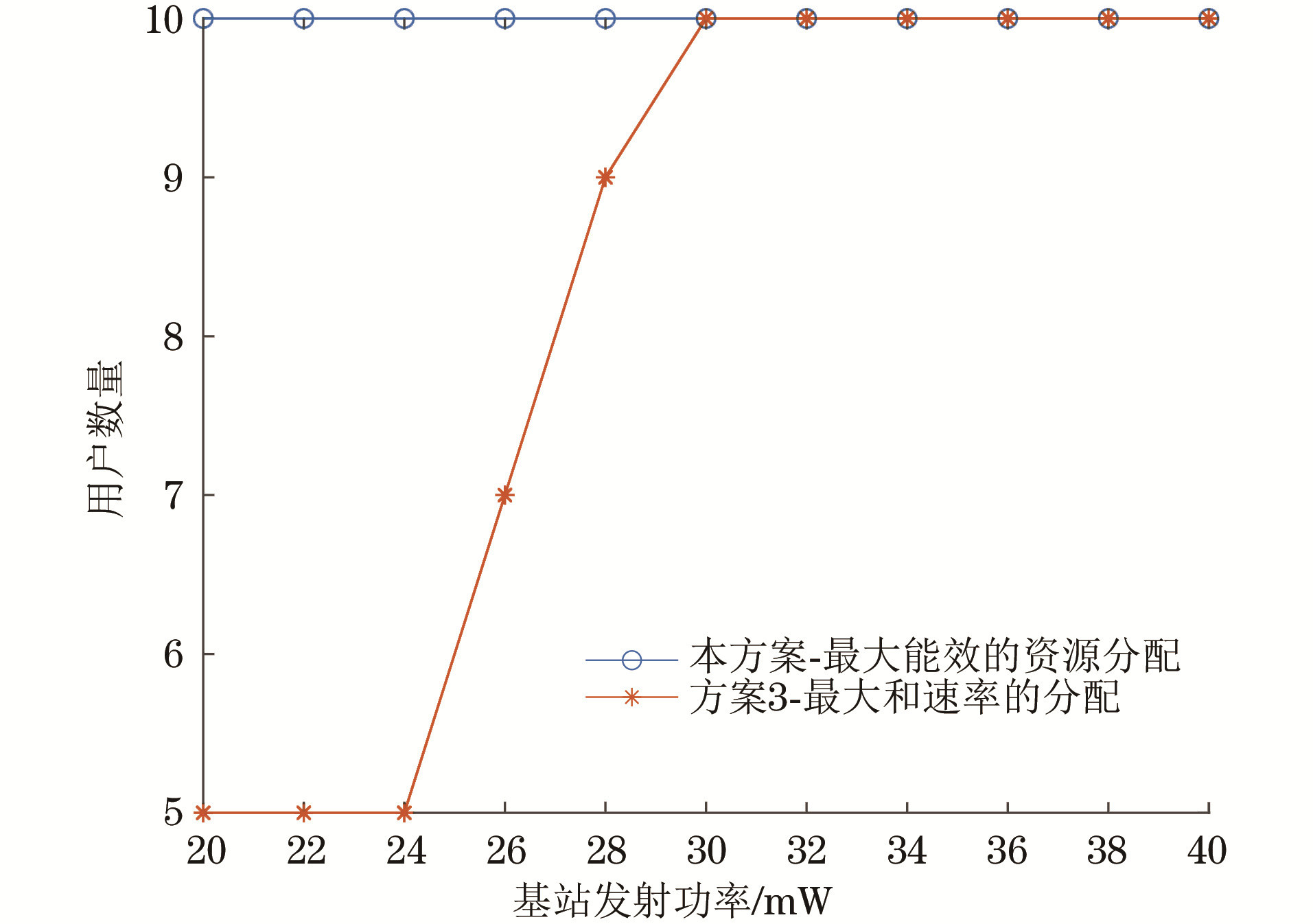

图2 不同发射功率可服务的用户数

Fig.2 Number of users served at different transmit powers

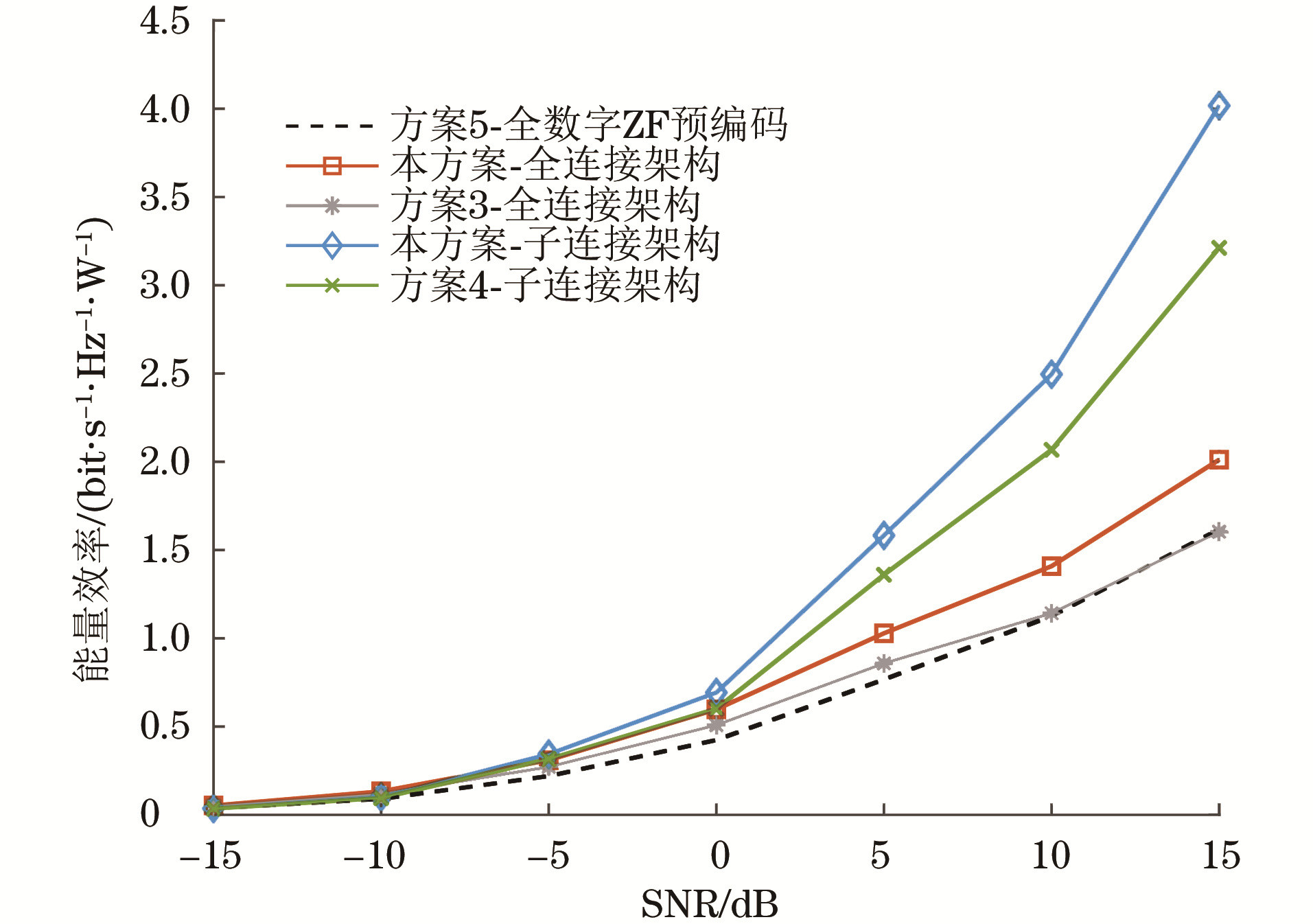

图3 不同SNR下的能量效率

Fig.3 Energy efficiency at different SNR

参考文献 25

1	陈荥, 岳殿武, 李琦, 等. 可重构智能表面辅助的毫米波无线携能通信系统研究. 无线电工程, 2024, 54(6): 1512- 1521. doi: 10.3969/j.issn.1003-3106.2024.06.021
	CHEN Y, YUE D W, LI Q, et al. Reconfigurable intelligent surface-assisted millimeter wave simultaneous wireless information and power transfer system. Radio Engineering, 2024, 54(6): 1512- 1521. doi: 10.3969/j.issn.1003-3106.2024.06.021
2	张在琛, 江浩. 智能超表面使能无人机高能效通信信道建模与传输机理分析. 电子学报, 2023, 51(10): 2623- 2634.
	ZHANG Z S, JIANG H. Channel modeling and characteristics analysis for high energy-efficient RIS-assisted UAV communications. Chinese Journal of Electronics, 2023, 51(10): 2623- 2634.
3	刘琦, 侯丽, 彭章友. 毫米波大规模MIMO系统多用户波束赋形优化算法. 黄山学院学报, 2021, 23(3): 22- 25.
	LIU Q, HOU L, PENG Z Y. Optimization algorithm of multi-user beamforming on millimeter wave large scale MIMO system. Journal of Huangshan University, 2021, 23(3): 22- 25.
4	任远. 毫米波非正交多址接入系统中基于用户分簇的资源优化方案[D]. 合肥: 安徽大学, 2021.
	REN Y. Resource optimization scheme based on user clustering in millimeter wave non-orthogonal multiple access systems[D]. Hefei: Anhui University, 2021. (in Chinese)
5	ALI M S, TABASSUM H, HOSSAIN E. Dynamic user clustering and power allocation for uplink and downlink non-orthogonal multiple access systems. IEEE Access, 2016, 4, 6325- 6343.
6	王奕峰, 周婷, 徐天衡. 一种NOMA系统中的反馈深度神经网络检测算法. 电讯技术, 2023, 63(5): 611- 617.
	WANG Y F, ZHOU T, XU T H. A feedback deep neural network detection algorithm in NOMA systems. Telecommunication Engineering, 2023, 63(5): 611- 617.
7	庄陵, 黄恺. 基于非正交多址接入的RIS-IM系统. 华南理工大学学报(自然科学版), 2023, 51(11): 28- 34. doi: 10.12141/j.issn.1000-565X.230015
	ZHUANG L, HUANG K. RIS-IM system based on non-orthogonal multiple access. Journal of South China University of Technology(Natural Science Edition), 2023, 51(11): 28- 34. doi: 10.12141/j.issn.1000-565X.230015
8	管伟, 岳殿武, 艾志杰, 等. 基于智能反射表面大规模MIMO-NOMA系统频谱效率分析. 太赫兹科学与电子信息学报, 2022, 20(7): 659- 668.
	GUAN W, YUE D W, AI Z J, et al. Spectrum efficiency analysis of massive MIMO-NOMA system based on intelligent reflecting surface. Journal of Terahertz Science and Electronic Information Technology, 2022, 20(7): 659- 668.
9	XIAO Z Y, ZHU L P, CHOI J, et al. Joint power allocation and beamforming for non-orthogonal multiple access in 5G millimeter wave communications. IEEE Transactions on Wireless Communications, 2018, 17(5): 2961- 2974. doi: 10.1109/TWC.2018.2804953
10	WANG B C, DAI L L, WANG Z C, et al. Spectrum and energy-efficient beamspace MIMO-NOMA for millimeter-wave communications using lens antenna array. IEEE Journal on Selected Areas in Communications, 2017, 35(10): 2370- 2382. doi: 10.1109/JSAC.2017.2725878
11	JIAO R C, DAI L L, WANG W, et al. Max-Min fairness for beamspace MIMO-NOMA: from single-beam to multi-beam. IEEE Transactions on Wireless Communications, 2022, 21(2): 739- 752. doi: 10.1109/TWC.2021.3098900
12	WANG K D, CUI J J, DING Z G, et al. Stackelberg game for user clustering and power allocation in millimeter wave-NOMA systems. IEEE Transactions on Wireless Communications, 2019, 18(5): 2842- 2857. doi: 10.1109/TWC.2019.2908642
13	DAI L L, WANG B C, PENG M G, et al. Hybrid precoding-based millimeter-wave massive MIMO-NOMA with simultaneous wireless information and power transfer. IEEE Journal on Selected Areas in Communications, 2019, 37(1): 131- 141. doi: 10.1109/JSAC.2018.2872364
14	TUSHA A, DOGAN S, ARSLAN H. A hybrid downlink NOMA with OFDM and OFDM-IM for beyond 5G wireless networks. IEEE Signal Processing Letters, 2020, 27, 491- 495. doi: 10.1109/LSP.2020.2979059
15	ABIDRABBU S S, ARSLAN H. Energy-efficient resource allocation for 5G cognitive radio NOMA using game theory[C]//Proceedings of IEEE Wireless Communications and Networking Conference. Washington D. C., USA: IEEE Press, 2021: 1-5.
16	BULATOVIC D, UROSEVIC U, VELJOVIC Z, et al. Information capacity analyses in NOMA systems[C]//Proceedings of the 29th Conference on Telecommunications Forum. Belgrade, Serbia: IEEE Press, 2021: 1-4.
17	MARAQA O, RAJASEKARAN A S, AL-AHMADI S, et al. A survey of rate-optimal power domain NOMA with enabling technologies of future wireless networks. IEEE Communications Surveys[WT《Times New Roman》]& Tutorials, 2020, 22(4): 2192- 2235.
18	谭景戈, 毛翔宇, 郑建宏. 基于簇级匈牙利与联盟博弈联合的CF mMIMO导频分配算法. 电讯技术, 2023, 63(11): 1817- 1823.
	TAN J G, MAO X Y, ZHENG J H. Pilot allocation algorithm in CF mMIMO systems based on cluster-level Hungarian with coalition game. Telecommunication Engineering, 2023, 63(11): 1817- 1823.
19	AMRI M M, TRAN N M, PARK J H, et al. Demo: demonstration of Reconfigurable Intelligent Surface (RIS)-assisted simultaneous wireless information and power transfer[C]//Proceedings of IEEE International Conference on Communications. Washington D. C., USA: IEEE Press, 2022: 1-2.
20	CHOI K W, HWANG S I, AZIZ A A, et al. Simultaneous wireless information and power transfer for Internet of things: novel receiver design and experimental validation. IEEE Internet of Things Journal, 2020, 7(4): 2996- 3012. doi: 10.1109/JIOT.2020.2964302
21	ASHRAF N, SHEIKH S A, AHMAD KHAN S, et al. Simultaneous wireless information and power transfer with cooperative relaying for next-generation wireless networks: a review. IEEE Access, 2021, 9, 71482- 71504.
22	UWAECHIA A N, MAHYUDDIN N M. Spectrum and energy efficiency optimization for hybrid precoding-based SWIPT-enabled mmWave mMIMO-NOMA systems. IEEE Access, 2020, 8, 139994- 140007. doi: 10.1109/ACCESS.2020.3013305
23	MALI M D, CHORAGE S S. Spectrally efficient multiple input multiple output non-orthogonal multiple access technique for future wireless communication[C]//Proceedings of the 2nd Asian Conference on Innovation in Technology. Washington D. C., USA: IEEE Press, 2022: 1-5.
24	ÖZCAN T, TURGUT A M Y. Constant envelope precoding and non-orthogonal multiple access for massive MIMO systems[C]//Proceedings of the 28th Signal Processing and Communications Applications Conference. Gaziantep, Turkey: IEEE Press, 2020: 1-4.
25	BENJEBBOUR A, LI A X, SAITO Y, et al. System-level performance of downlink NOMA for future LTE enhancements[C]//Proceedings of IEEE Globecom Workshops. Washington D. C., USA: IEEE Press, 2013: 66-70.
