基于改进YOLOv5s的PCB缺陷检测算法

doi:10.19678/j.issn.1000-3428.0070376

摘要/Abstract

摘要：

印刷电路板(PCB)的质量对工业电子产品的性能具有决定性的作用, 因此对PCB出厂质量的严格把控具有重要意义。PCB易出现的6类缺陷是评价PCB质量的主要参考依据, 针对现有的目标检测算法模型对PCB缺陷的检测精度低、体积庞大等问题, 提出改进的YOLOv5s-CMS模型。根据PCB缺陷的特点, YOLOv5s-CMS模型采用聚焦小目标信息的特征提取网络CCG(C2f-C3-Ghost)替换原有的特征提取网络, 使模型在特征提取阶段更加关注小目标的空间和梯度流信息; 在特征融合阶段, 提出一种多尺度跨层小目标特征融合网络(MCSTF-Net)来替换路径聚合网络(PANet), 在提高模型对PCB缺陷检测精度的同时大幅降低模型的参数量; 为进一步提升模型对小目标特征的理解程度, 将CCG网络和MCSTF-Net分别与SE(Squeeze-and-Excitation)注意力机制相结合, 在抑制无关通道的同时突出目标特征信息丰富的通道。消融实验结果表明, YOLOv5s-CMS模型对PCB缺陷检测的精确率、召回率、mAP@0.5和mAP@0.5∶0.95分别达到了98.1%、97.8%、98.4%和61.2%, 相比于YOLOv5s原模型分别提高了2.2、1.3、0.8和5.0百分点, 模型参数量同比减少了约46.1%。

关键词: 计算机视觉, YOLOv5s模型, 多尺度跨层特征融合, 印刷电路板缺陷, 小目标检测

Abstract:

The quality of Printed Circuit Boards (PCBs) plays a decisive role in the performance of industrial electronic products. Therefore, strict control of PCB factory quality is of considerable importance. The six types of defects that PCB are prone to are the primary basis for evaluating PCB quality. To address problems such as the low accuracy and large size of PCB defects detected by existing target detection algorithm models, an improved YOLOv5s-CMS model is proposed. According to the characteristics of PCB defects, the YOLOv5s-CMS model adopts a feature extraction network C2f-C3-Ghost (CCG) focusing on small target information to replace the original feature extraction network, such that the model pays more attention to the space and gradient flow information of small targets in the feature extraction stage. In the feature fusion phase, a Multi-scale Cross-layer Small Target Feature Fusion Network (MCSTF-Net) is proposed to replace the Path Aggregation Network (PANet), which can improve the accuracy of PCB defect detection while considerably reducing the number of parameters in the model. To further improve the model's understanding of small target characteristics, the CCG network and MCSTF-Net are combined with the Squeeze-and-Excitation (SE) attention mechanism to highlight the channels rich in target characteristics while suppressing irrelevant channels. The ablation experiment results showed that the accuracy, recall, mAP@0.5, and mAP@0.5∶0.95 of PCB defect detection using the YOLOv5s-CMS model reached 98.1%, 97.8%, 98.4%, and 61.2%, respectively. Compared to the original YOLOv5s model, the number of parameters increased by 2.2, 1.3, 0.8, and 5.0 percentage points, respectively, and the number of model parameters decreased by approximately 46.1%.

Key words: computer vision, YOLOv5s model, multi-scale cross-layer feature fusion, Printed Circuit Board (PCB) defect, small target detection

魏文泉, 莫宏伟. 基于改进YOLOv5s的PCB缺陷检测算法[J]. 计算机工程, 2026, 52(5): 226-238.

WEI Wenquan, MO Hongwei. PCB Defect Detection Algorithm Based on Improved YOLOv5s[J]. Computer Engineering, 2026, 52(5): 226-238.

https://www.ecice06.com/CN/Y2026/V52/I5/226

图/表 15

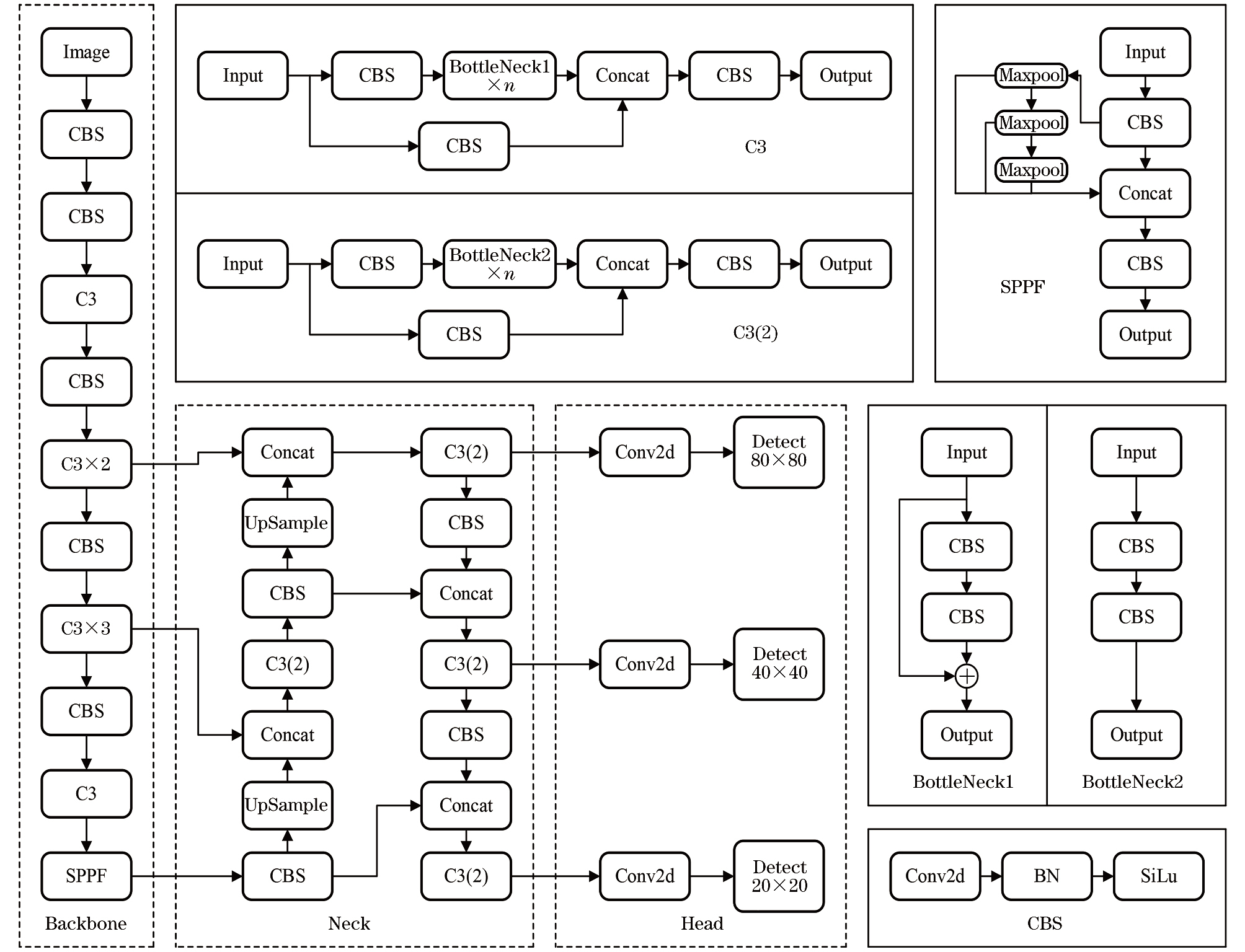

图1 YOLOv5s模型结构

Fig.1 YOLOv5s model structure

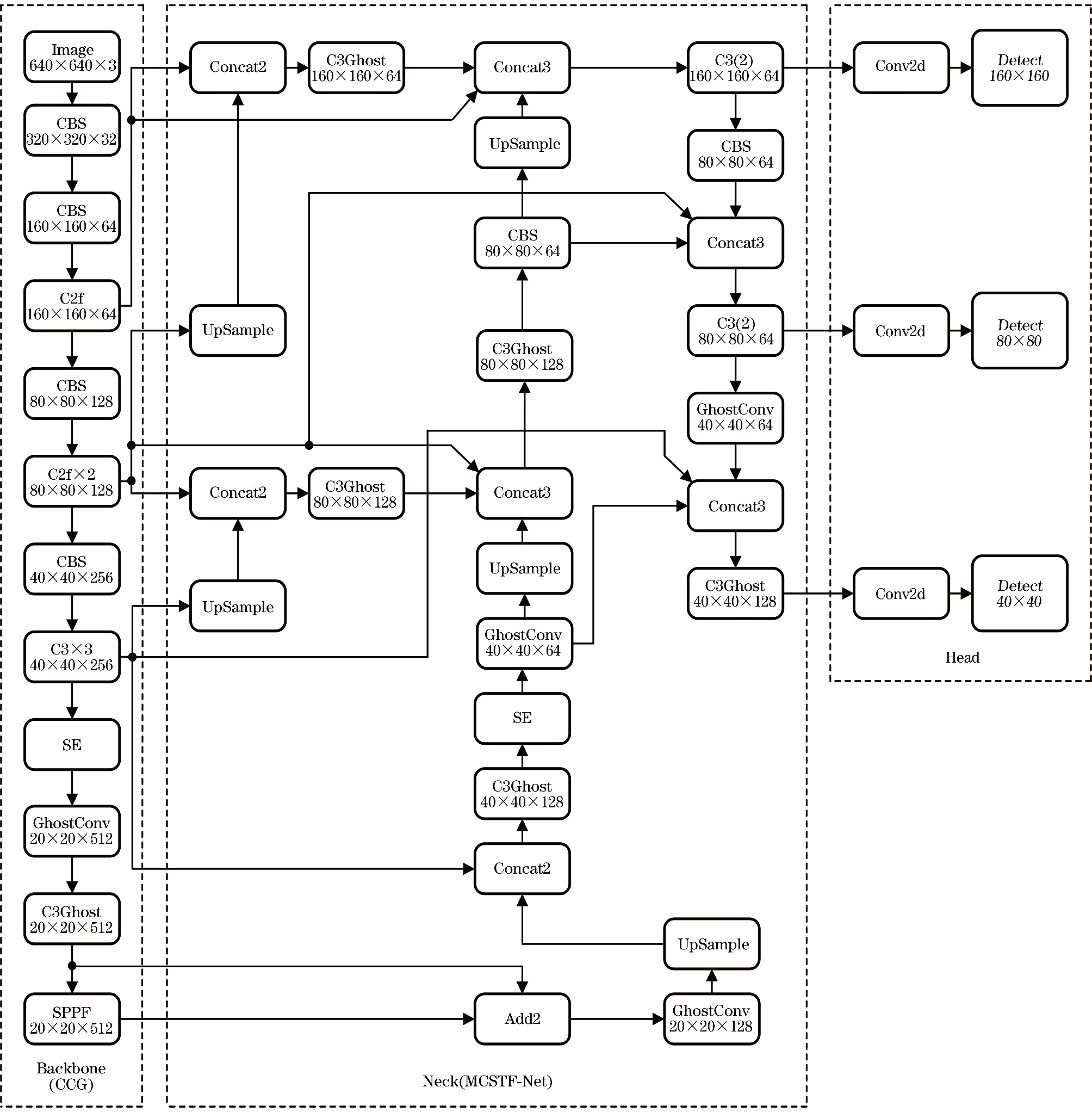

图2 改进后的YOLOv5s-CMS模型结构

Fig.2 Improved YOLOv5s-CMS model structure

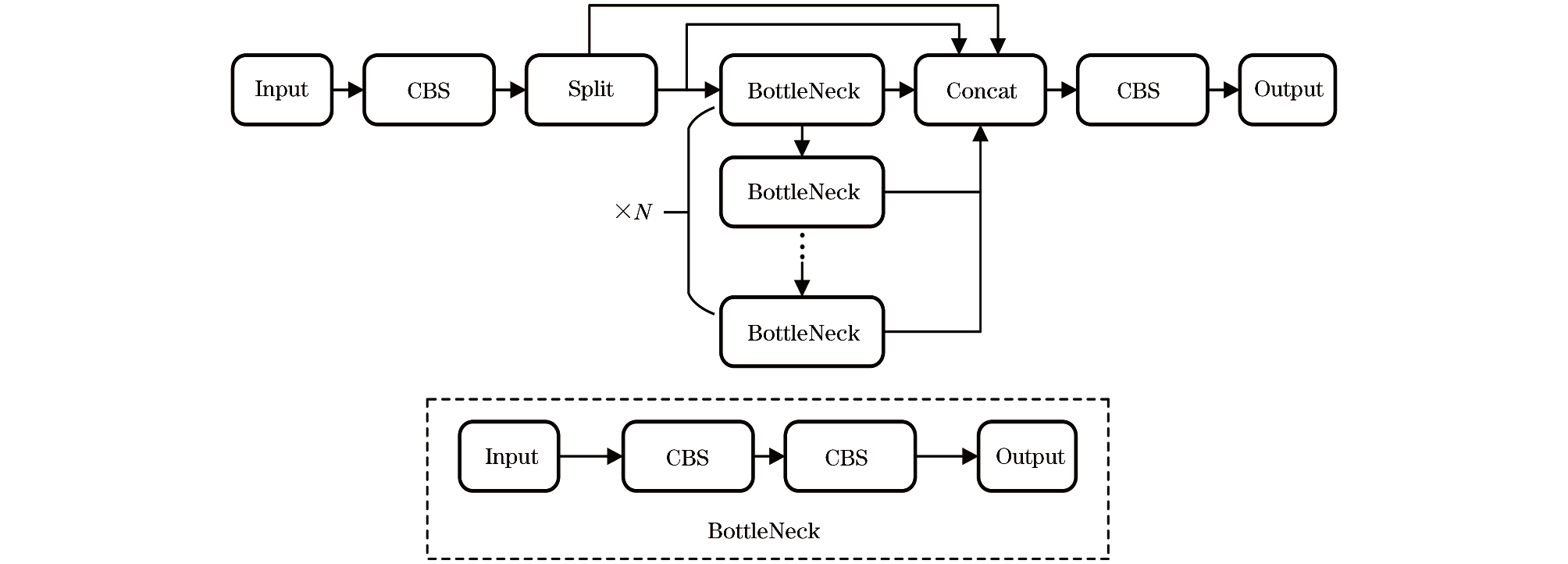

图3 C2f模块结构

Fig.3 C2f module structure

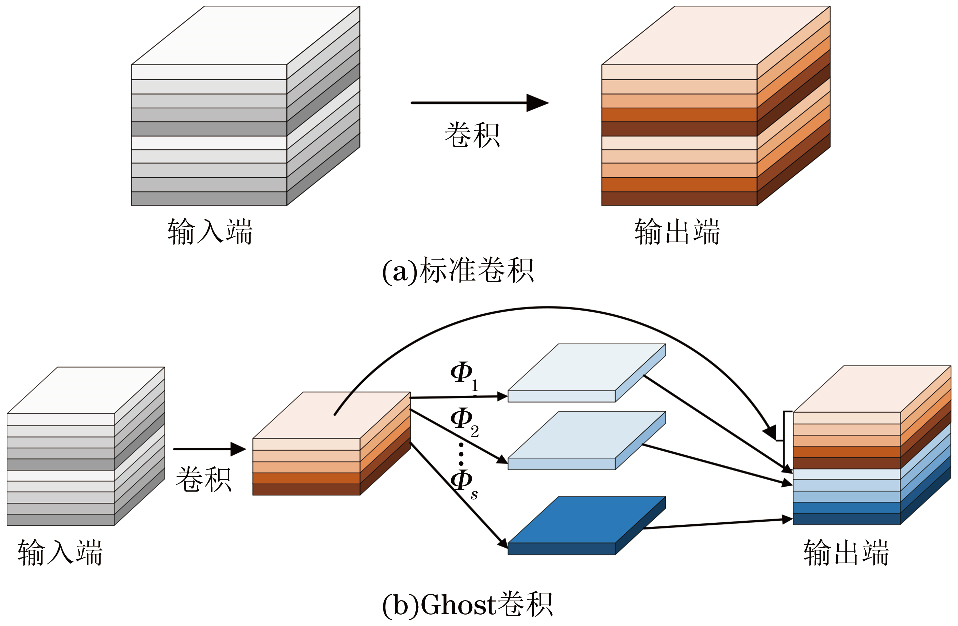

图4 标准卷积与Ghost卷积

Fig.4 Standard convolution and Ghost convolution

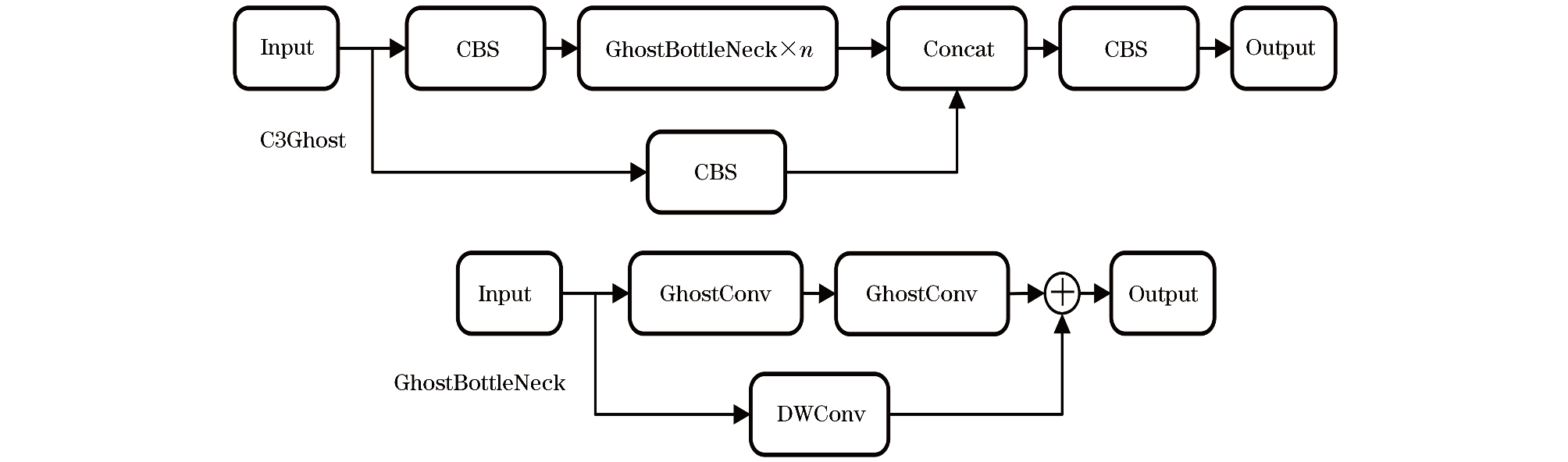

图5 C3Ghost模块结构

Fig.5 C3Ghost module structure

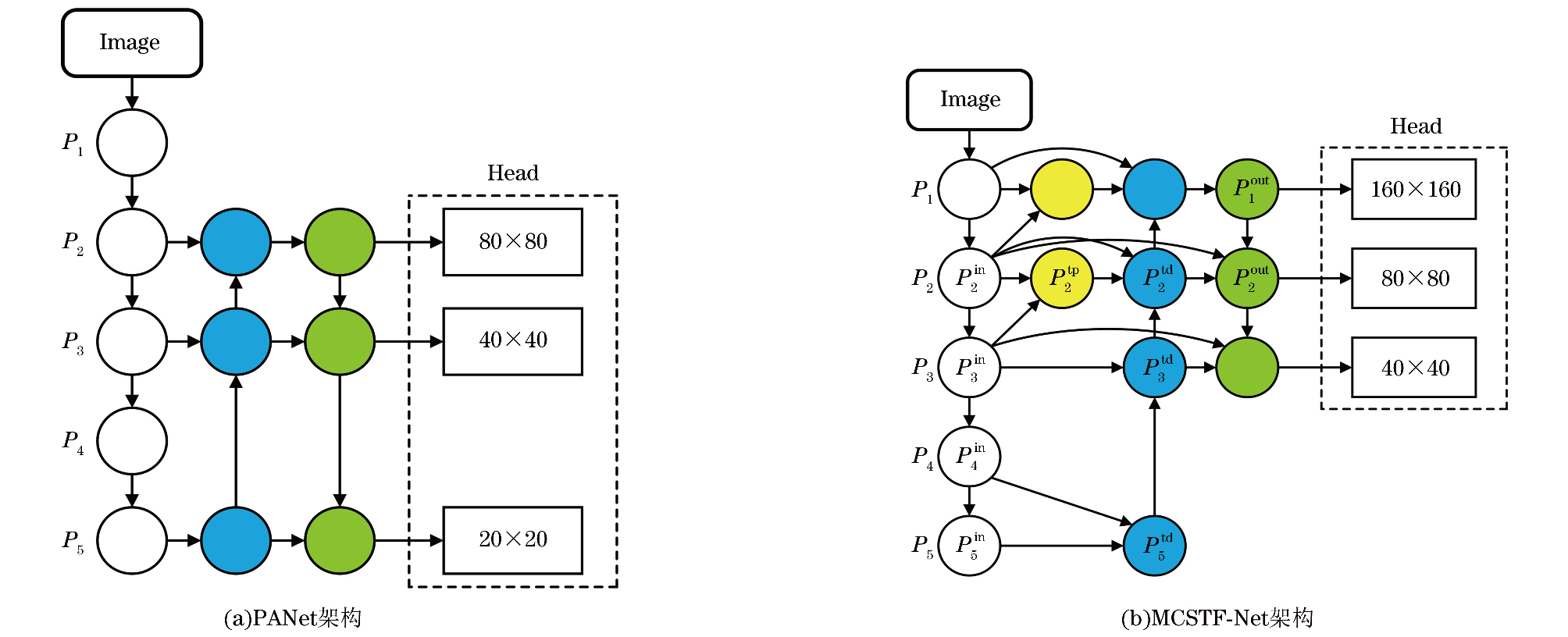

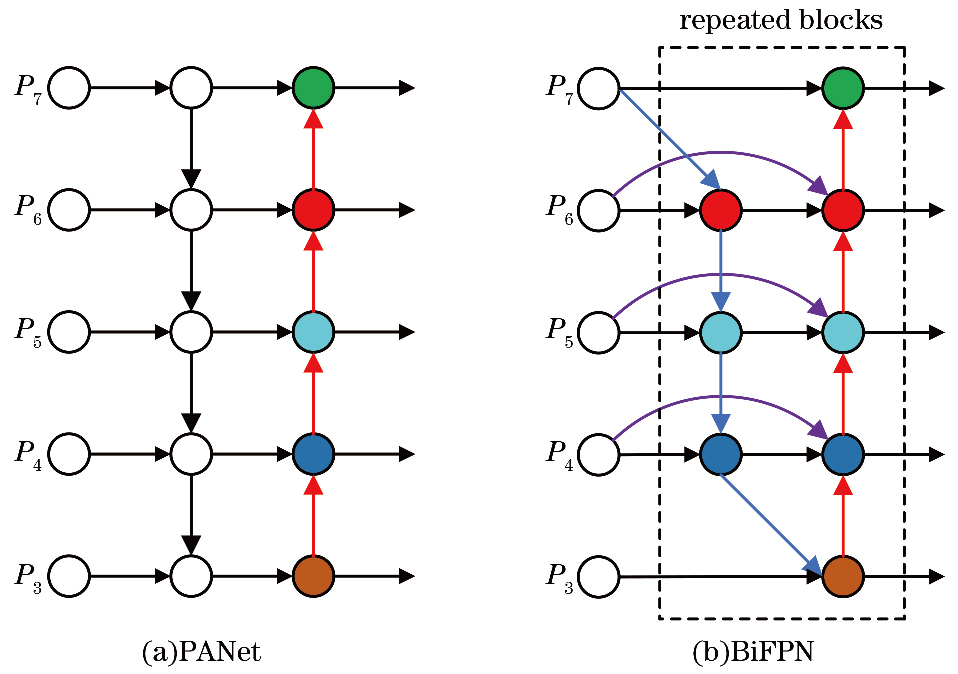

图6 PANet和BiFPN结构图

Fig.6 PANet and BiFPN structure diagrams

图7 改进前后模型的特征融合网络架构对比

Fig.7 Comparison of feature fusion network architecture of the model before and after improvement

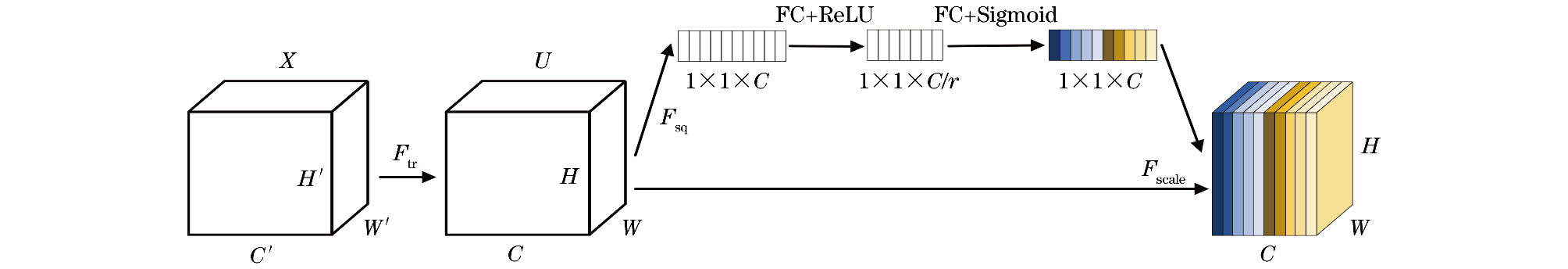

图8 SE注意力机制结构

Fig.8 SE attention mechanism structure

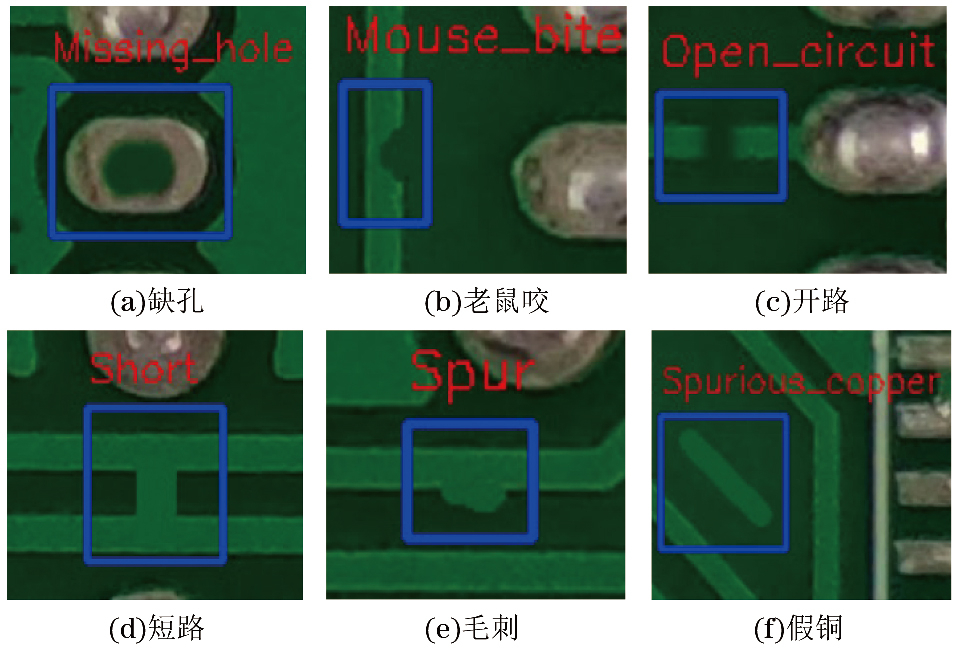

图9 PCB各类缺陷图

Fig.9 Various PCB defect diagrams

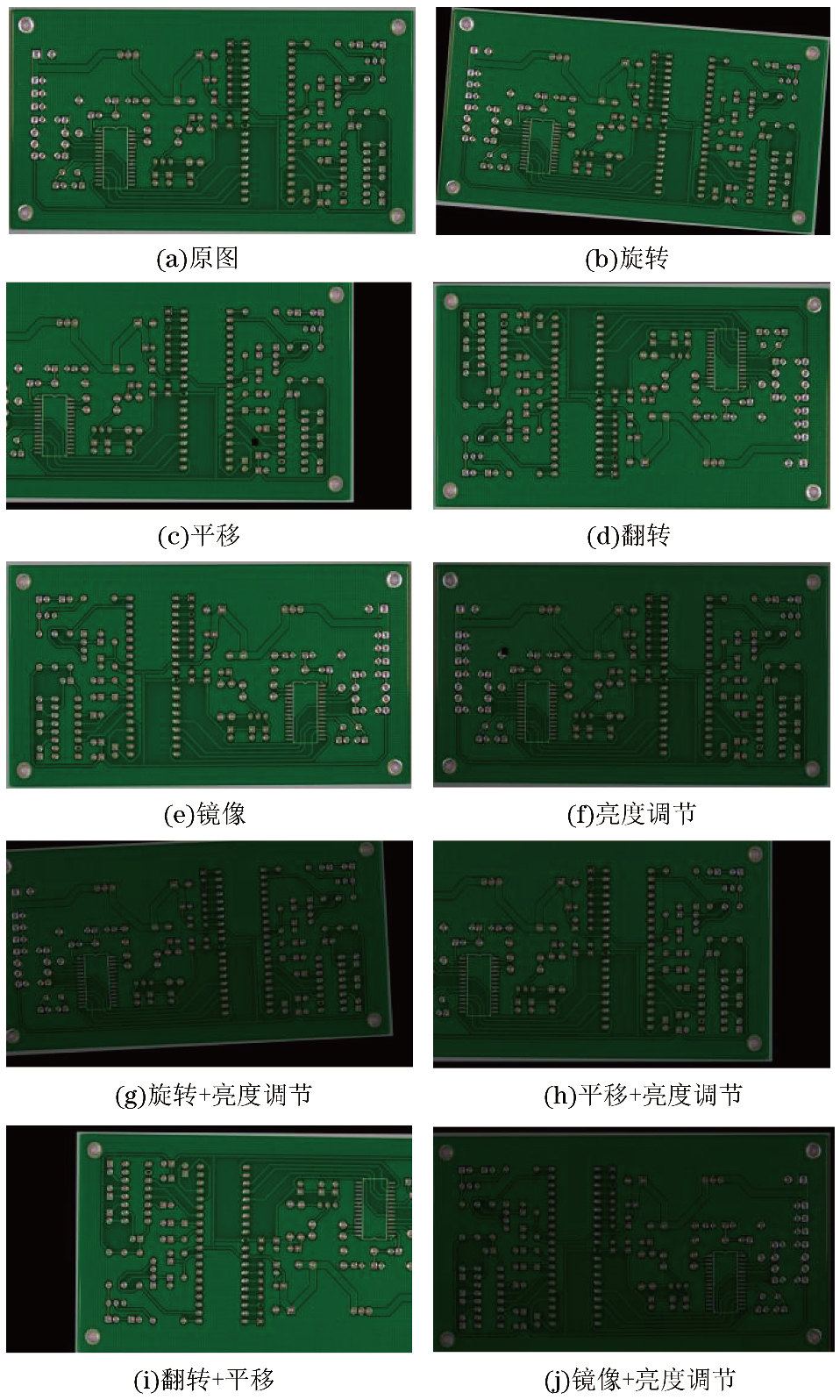

图10 数据增强后的部分样图

Fig.10 Partial sample images after data enhancement

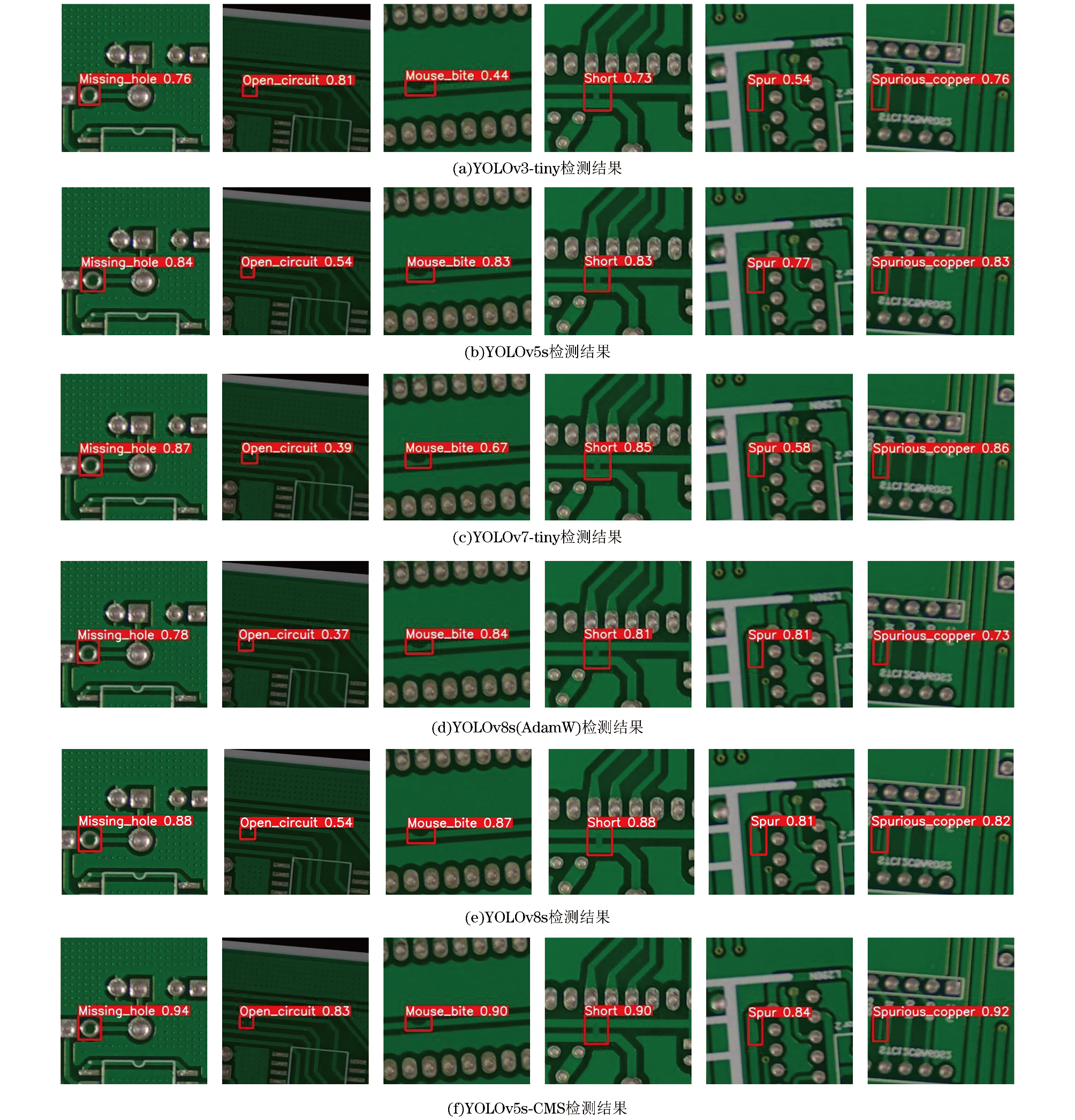

图11 不同模型对PCB各类缺陷的检测效果

Fig.11 The detection effect of different models on various PCB defects

图12 训练阶段的YOLOv5s-CMS模型权重在测试集上的表现

Fig.12 Performance of YOLOv5s-CMS model weights on the test set during the training phase

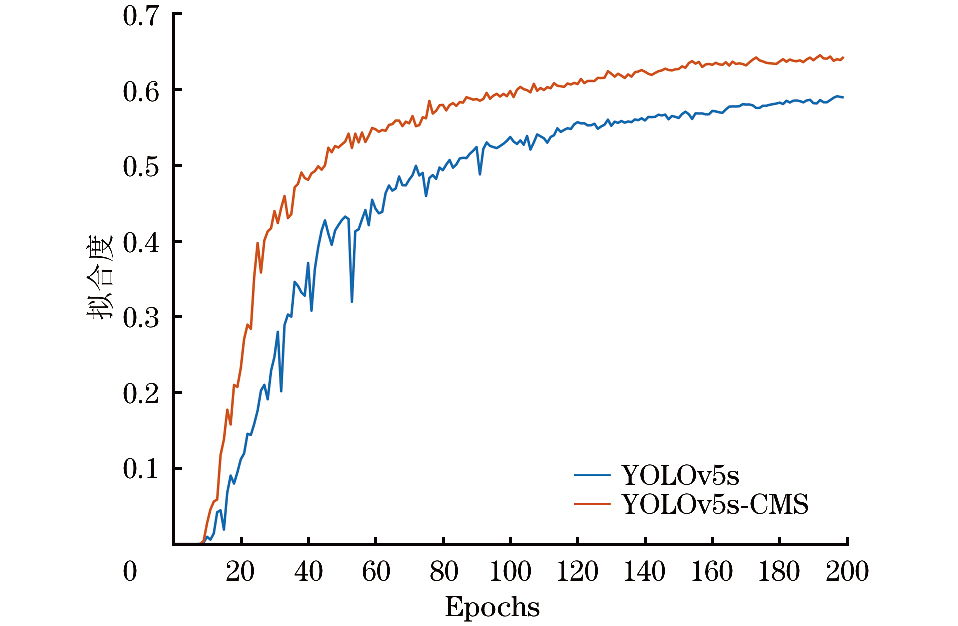

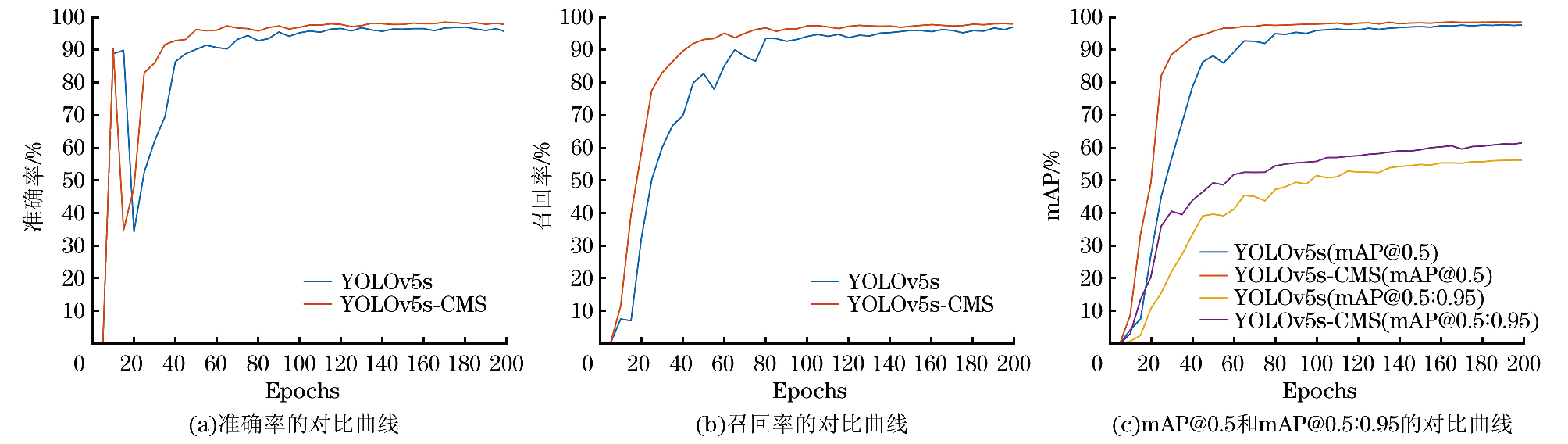

图13 改进前后的模型在训练阶段的拟合度随训练轮数变化

Fig.13 The fit degree of the model before and after improvement changes with the number of training rounds

参考文献 26
