基于关键点及光流的平面物体跟踪算法

doi:10.19678/j.issn.1000-3428.0057685

摘要/Abstract

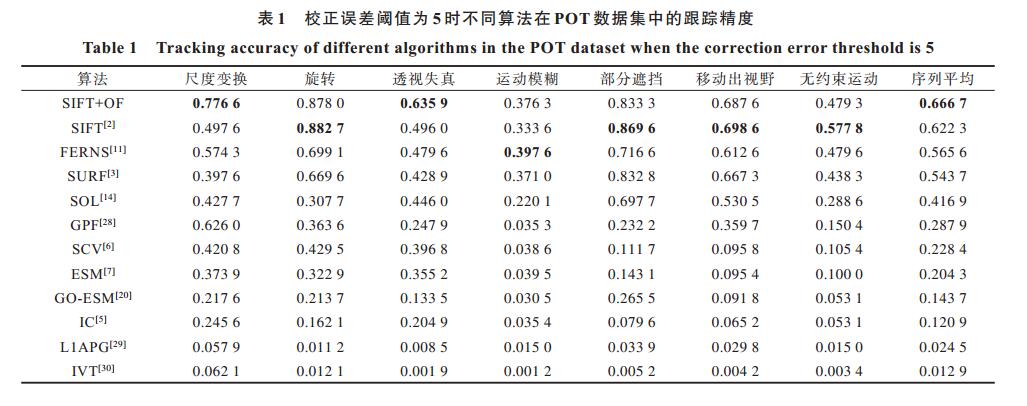

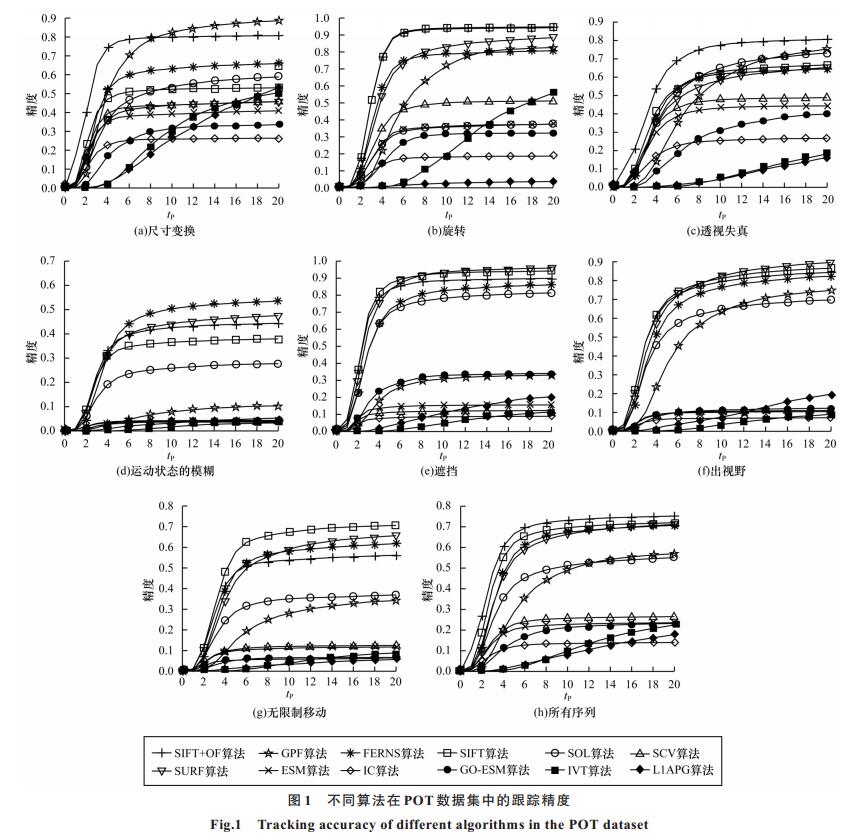

摘要： 为提高复杂场景下基于关键点的平面物体跟踪算法的鲁棒性，提出一种融合光流的平面物体跟踪算法。检测目标物体与输入图像的关键点及其对应描述符，由最近邻匹配方法构建目标与图像间关键点匹配集合，通过光流法构建相邻两张图像间关键点的对应关系，将已构建的关键点匹配集合与基于光流的对应关系通过加权平均的策略进行融合，得出修正的关键点匹配集合，根据关键点匹配估计目标物体在当前图像的单应性变换矩阵，从而完成目标跟踪。在POT数据集上的实验结果表明，与SIFT、FERNS等算法相比，在校正误差阈值为5时，该算法在所有图像序列上的平均跟踪精度达到66.67%，具有较好的跟踪性能。

关键词: 平面物体跟踪, 关键点, 光流法, 惩罚系数, 单应性变换

Abstract: To improve the robustness of the planar object tracking algorithm based on key point in complex scenes,a planar object tracking algorithm based on key point using optical flow is proposed.The key points and their corresponding descriptors of the target and the input image are detected,and the nearest neighbor matching method is used to construct the key point matching set for the target and the image.Then optical flow is adopted to construct the correspondences between key points of the two adjacent frames.The constructed key point matching set and the optical flow-based correspondences are fused with a weighted average strategy to obtain a refined key point matching set.Finally,the target is tracked by estimating the homography transformation between the target and the current image based on the key point matching result.Experimental results on the POT dataset show that when the alignment error threshold is 5,the average tracking precision of the proposed algorithm reaches 66.67% for all image sequences,outperforming SIFT, FERNS and other algorithms.

Key words: planar object tracking, keypoint, optical flow method, penalty parameters, homography transformation

中图分类号:

TP391.4

季皓宣烨, 梁鹏鹏, 柴玉梅, 王黎明. 基于关键点及光流的平面物体跟踪算法[J]. 计算机工程, 2021, 47(4): 234-240.

JI Haoxuanye, LIANG Pengpeng, CHAI Yumei, WANG Liming. Planar Object Tracking Algorithm Based on Key Points and Optical Flow[J]. Computer Engineering, 2021, 47(4): 234-240.

https://www.ecice06.com/CN/Y2021/V47/I4/234

图/表 3

参考文献

[1] LI Shanqing,TANG Liang,LIU Keyan,et al.A fast and adaptive object tracking method[J].Journal of Computer Research and Development,2012,49(2):383-391.(in Chinese)李善青,唐亮,刘科研,等.一种快速的自适应目标跟踪方法[J].计算机研究与发展,2012,49(2):383-391.
[2] LOWE D G.Distinctive image features from scale-invariant keypoints[J].International Journal of Computer Vision,2004,60(2):91-110.
[3] BAY H,TUYTELAARS T,VAN GOOL L.SURF:speeded up robust features[C]//Proceedings of European Conference on Computer Vision.Berlin,Germany:Springer,2006:404-417.
[4] LEPETIT V,FUA P.Keypoint recognition using randomized trees[J].IEEE Transactions on Pattern Analysis and Machine Intelligence,2006,28(9):1465-1479.
[5] BAKER S,MATTHEWS I.Lucas-Kanade 20 years on:a unifying framework[J].International Journal of Computer Vision,2004,56(3):221-255.
[6] RICHA R,SZNITMAN R,TAYLOR R,et al.Visual tracking using the sum of conditional variance[C]//Proceedings of IEEE International Conference on Intelligent Robots and Systems.Washington D.C.,USA:IEEE Press,2011:2953-2958.
[7] BENHIMANE S,MALIS E.Real-time image-based tracking of planes using efficient second-order minimization[C]//Proceedings of IEEE/RSJ International Conference on Intelligent Robots and Systems.Sendai,Japan:[s.n.],2004:943-948.
[8] WANG Tao,LING Haibin.Gracker:a graph-based planar object tracker[J].IEEE Transactions on Pattern Analysis and Machine Intelligence,2017,40(6):1494-1501.
[9] MIKOLAJCZYK K,SCHMID C.A performance evalua-tion of local descriptors[J].IEEE Transactions on Pattern Analysis and Machine Intelligence,2005,27(10):1615-1630.
[10] LIANG Pengpeng,WU Yifang,LU Hui,et al.Planar object tracking in the wild:a benchmark[C]//Proceedings of 2018 IEEE International Conference on Robotics and Automation.Brisbane,Australia:[s.n.],2018:651-658.
[11] OZUYSAL M,CALONDER M,LEPETIT V,et al.Fast keypoint recognition using random ferns[J].IEEE Transactions on Pattern Analysis and Machine Intelligence,2010,32(3):448-461.
[12] ZHAO Liming,LI Xiao,XIAO Jun,et al.Metric learning driven multi-task structured output optimization for robust keypoint tracking[C]//Proceedings of the 29th AAAI Conference on Artificial Intelligence.Austin,USA:AAAI Press,2015:356-367.
[13] WAGNER D,REITMAYR G,MULLONI A,et al.Real-time detection and tracking for augmented reality on mobile phones[J].IEEE Transactions on Visualization and Computer Graphics,2010,16(3):355-368.
[14] HARE S,SAFFARI A,TORR P H S.Efficient online structured output learning for keypoint-based object tracking[C]//Proceedings of 2012 IEEE Conference on Computer Vision and Pattern Recognition.Rhode,USA:[s.n.],2012:1894-1901.
[15] WANG Bin,WENG Zhengkui,WANG Kun,et al.Real-time tracking method for eye feature points based on Lucas-kanada optical flow algorithm[J].Computer Engineering,2015,41(7):244-249.(in Chinese)王彬,翁政魁,王坤,等.基于Lucas-Kanada光流法的人眼特征点实时跟踪方法[J].计算机工程,2015,41(7):244-249.
[16] ADELSON E H.The extraction of spatio-temporal energy in human an machine vision[C]//Proceedings of Workshop on Motion Representation and Analysis.Charleston,USA:[s.n.],1986:213-227.
[17] HORN B K P,SCHUNCK B G.Determining optical flow[C]//Proceedings of International Society for Optics and Photonics Conference on Techniques and Applications of Image Understanding.Kalifornien,USA:[s.n.],1981:319-331.
[18] NAGEL H H.On the estimation of optical flow:relations between different approaches and some new results[J].Artificial Intelligence,1987,33(3):299-324.
[19] BLACK M J,ANANDAN P.The robust estimation of multiple motions:Parametric and piecewise-smooth flow fields[J].Computer Vision and Image Understanding,1996,63(1):75-104.
[20] SINGH A.An estimation-theoretic framework for image-flow computation[C]//Proceedings of Workshop on Image Understanding.Pittsburgh,USA:Morgan Kaufmann Pub,1990:314.
[21] ANANDAN P.A computational framework and an algorithm for the measurement of visual motion[J].International Journal of Computer Vision,1989,2(3):283-310.
[22] HAGLUND L.Adaptive multidimensional filtering[D].Linköping,Sweden:Linköping University,1991.
[23] FLEET D J,JEPSON A D.Computation of component image velocity from local phase information[J].Inter-national Journal of Computer Vision,1990,5(1):77-104.
[24] ZHANG Wenda,XU Yuelei,MA Shiping,et al.Optical flow calculating method based on multi-scale V1-MT feedforward model[J].Computer Engineering,2017,43(9):205-209.(in Chinese)张文达,许悦雷,马时平,等.基于多尺度V1-MT前馈模型的光流计算方法[J].计算机工程,2017,43(9):205-209.
[25] DOSOVITSKIY A,FISCHER P,ILG E,et al.FlowNet:learning optical flow with convolutional networks[C]//Proceedings of IEEE International Conference on Computer Vision.Santiago,USA:[s.n.],2015:2758-2766.
[26] ILG E,MAYER N,SAIKIA T,et al.FlowNet 2.0:evolution of optical flow estimation with deep networks[C]//Proceedings of 2017 IEEE Conference on Computer Vision and Pattern Recognition.Honolulu,USA:[s.n.],2017:1647-1655.
[27] LUCAS B D,KANADE T.An iterative image registration technique with an application to stereo vision[C]//Proceedings of IEEE International Joint Conference on Artificial Intelligence.Washington D.C.,USA:IEEE Press,1981:674-679.
[28] KWON J,LEE H S,PARK F C,et al.A geometric particle filter for template-based visual tracking[J].IEEE Transactions on Pattern Analysis and Machine Intelligence,2014,36(4):625-643.
[29] BAO Chenglong,WU Yi,LING Haibin,et al.Real time robust l1 tracker using accelerated proximal gradient approach[C]//Proceedings of 2012 IEEE Conference on Computer Vision and Pattern Recognition.Washington D.C.,USA:IEEE Press,2012:1830-1837.
[30] ROSS D A,LIM J,LIN R S,et al.Incremental learning for robust visual tracking[J].International Journal of Computer Vision,2008,77(1/2/3):125-141.
[31] WU Y,LIM J,YANG M H.Object tracking benchmark[J].IEEE Transactions on Pattern Analysis and Machine Intelligence,2015,37(9):1834-1848.
