基于多元重映射的γ辐射场景图像增强方法

doi:10.19678/j.issn.1000-3428.0066322

摘要/Abstract

摘要：

γ辐射场景下CMOS图像传感器受高能光子影响，成像图像存在对比度不足、偏色等视觉退化问题，严重干扰γ辐射场景的清晰化可视化效果。为提升场景视觉图像质量，提出一种基于多元重映射的γ辐射场景图像增强方法，从提升图像对比度和消除颜色失真2个方面实现γ辐射场景的清晰可视化效果。针对γ辐射场景图像对比度不足的问题，利用限制对比度直方图均衡方法在抑制图像结构信息过度增强的同时提升图像对比度。针对γ辐射场景图像偏色的问题，采用颜色直方图重映射方法改善各颜色分量动态响应不均衡。通过分段非线性重映射对亮、暗区域进行不同程度的校正，解决在对比度提升及颜色校正过程中因亮暗像素同等尺度调节引起的图像局部过调问题。在真实γ辐射场景图像上进行多组对比实验，结果表明，相比典型图像增强方法，该方法在颜色、对比度、信息熵量化指标及视觉呈现中均取得较优的效果，图像质量综合评价指标最高可为3.140 76。

关键词: γ辐射, 图像增强, 对比度提升, 偏色校正, 非线性重映射

Abstract:

In γ radiation scenarios, CMOS image sensors are susceptible to the influence of high-energy photons. This leads to visual degradation problems, including insufficient contrast and color distortion in the captured images, ultimately hindering clear visualization of radiation scenes. To improve the visual image quality of the scene, a method based on multi-variate remapping is proposed as a γ radiation scene image enhancement method. It is implemented from two aspects: improving image contrast and eliminating color distortion to ensure clear visualization of radiation scenes. This method utilizes a limited contrast histogram equalization method to suppress excessive enhancement of image structural information while improving γ radiation scene image contrast. To address the issue of color deviation in γ radiation scene images, a color histogram remapping method is used to improve the uneven dynamic response of each color component. This involves using segmented nonlinear remapping to correct bright and dark regions to varying degrees, thus resolving the problem of local image overshoot caused by adjusting the same scale of bright and dark pixels during contrast enhancement and color correction. In reality, multiple comparative experiments are conducted on radiation scene images. The experimental results indicate that, when compared to typical image enhancement methods, this method achieves superior results in terms of color, contrast, information entropy quantification indicators, and visual presentation. The highest comprehensive evaluation index for image quality can reach 3.140 76.

Key words: γ radiation, image enhancement, contrast improvement, color cast correction, nonlinear remapping

方琳琳, 邓豪, 张华, 赵俊琴. 基于多元重映射的γ辐射场景图像增强方法[J]. 计算机工程, 2023, 49(11): 195-202.

Linlin FANG, Hao DENG, Hua ZHANG, Junqin ZHAO. Image Enhancement Method for γ Radiation Scene Based on Multi-Variate Remapping[J]. Computer Engineering, 2023, 49(11): 195-202.

https://www.ecice06.com/CN/Y2023/V49/I11/195

图/表 10

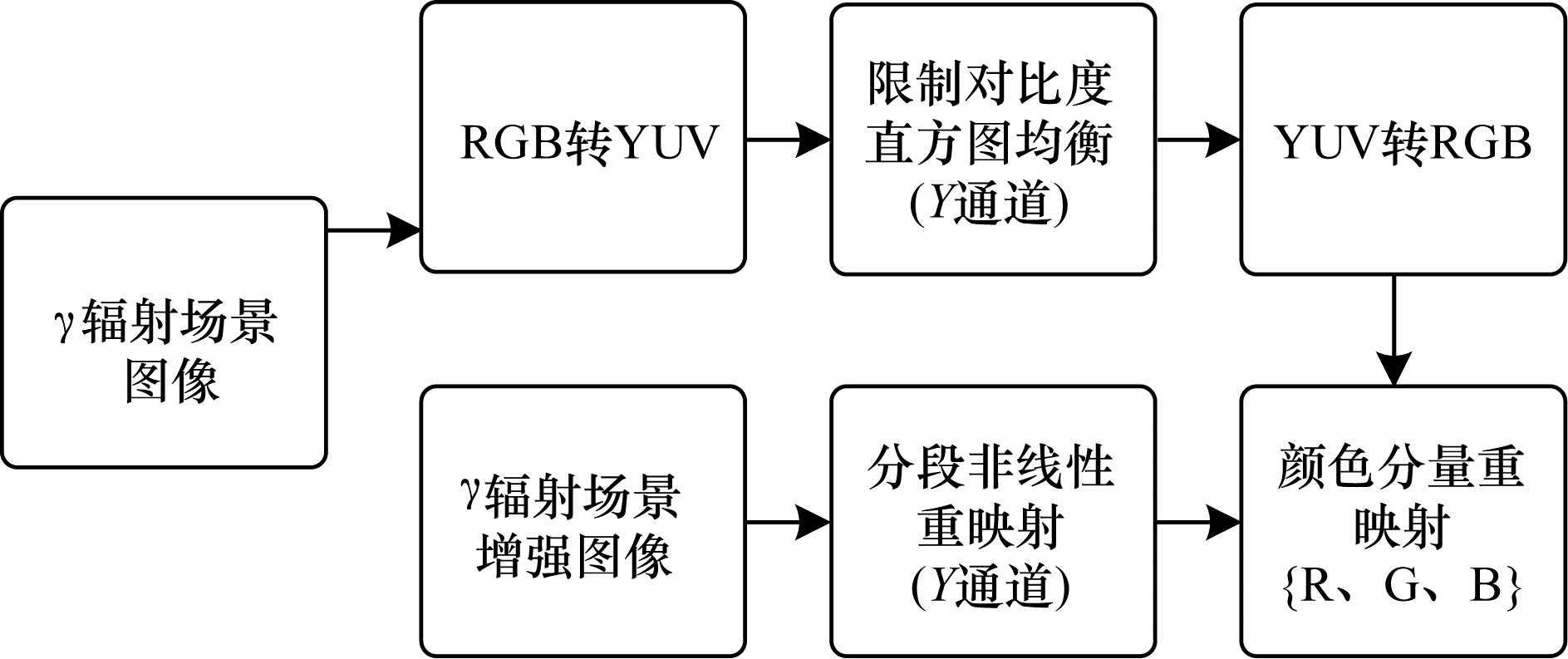

图1 γ辐射场景图像增强流程

Fig.1 Image enhancement procedure of γ radiation scene

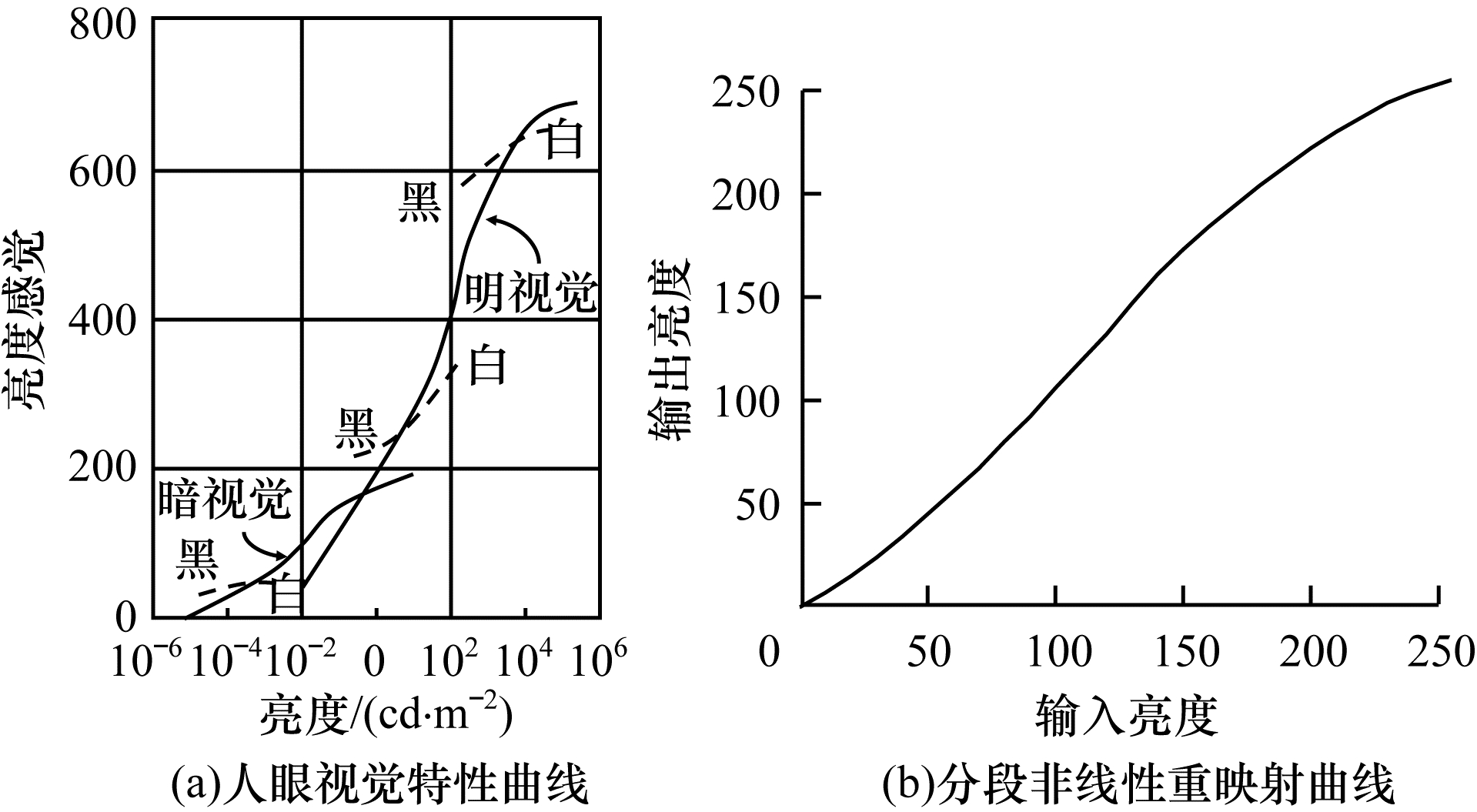

图2 亮度分布曲线

Fig.2 Brightness distribution curve

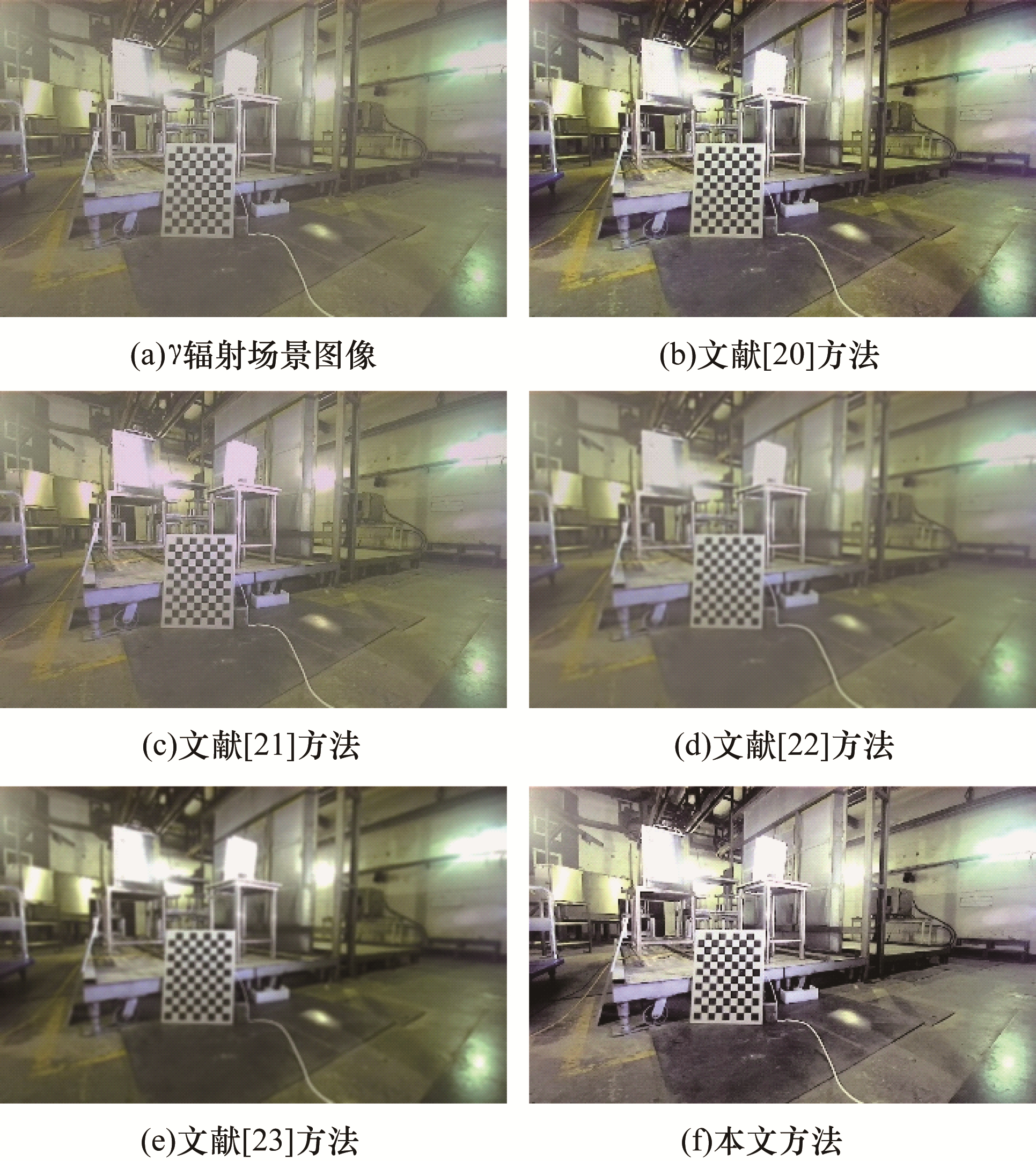

图3 γ辐射场景图像增强效果对比1

Fig.3 Comparison 1 of γ radiation scene image enhancement effects

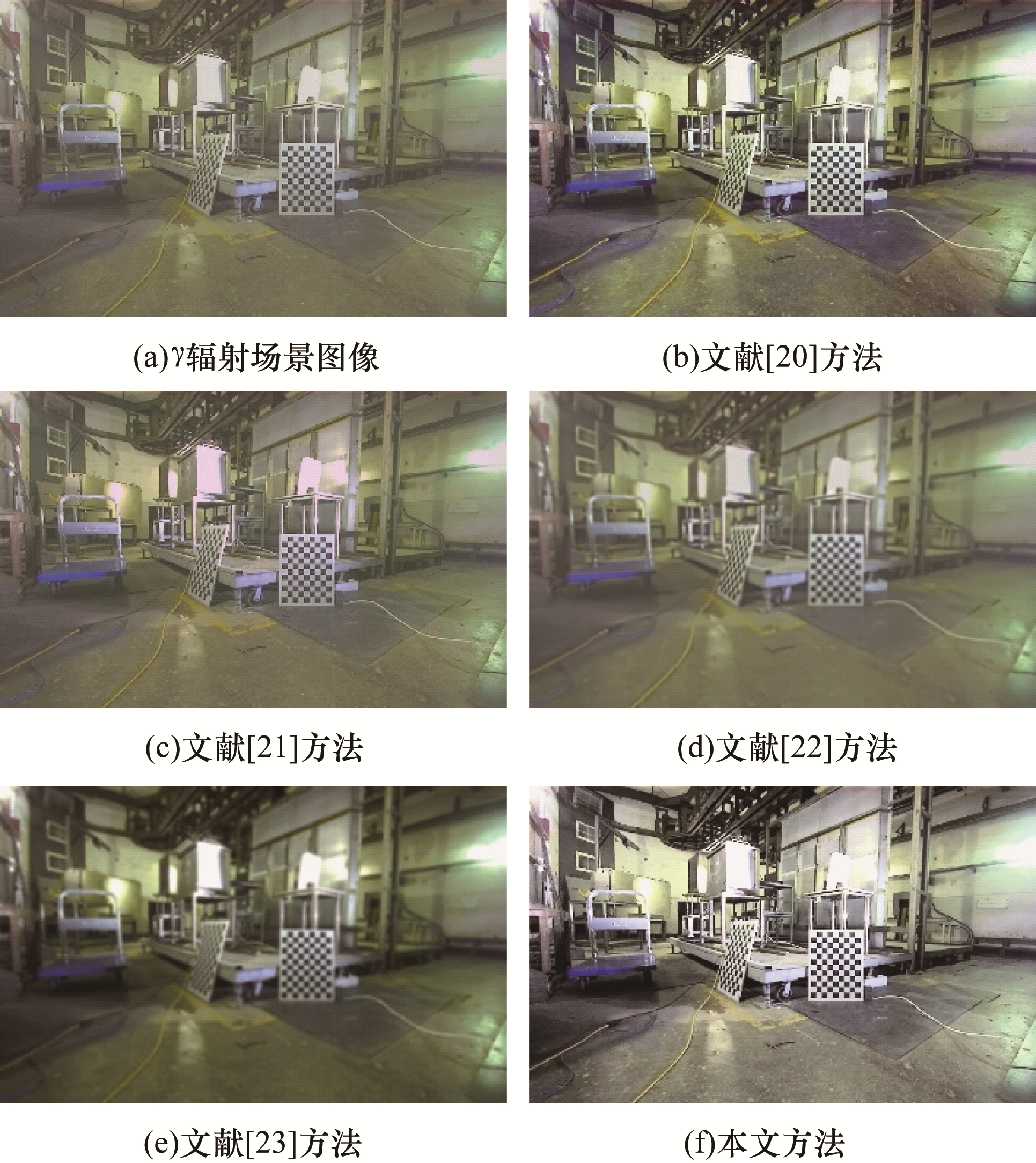

图4 γ辐射场景图像增强效果对比2

Fig.4 Comparison 2 of γ radiation scene image enhancement effects

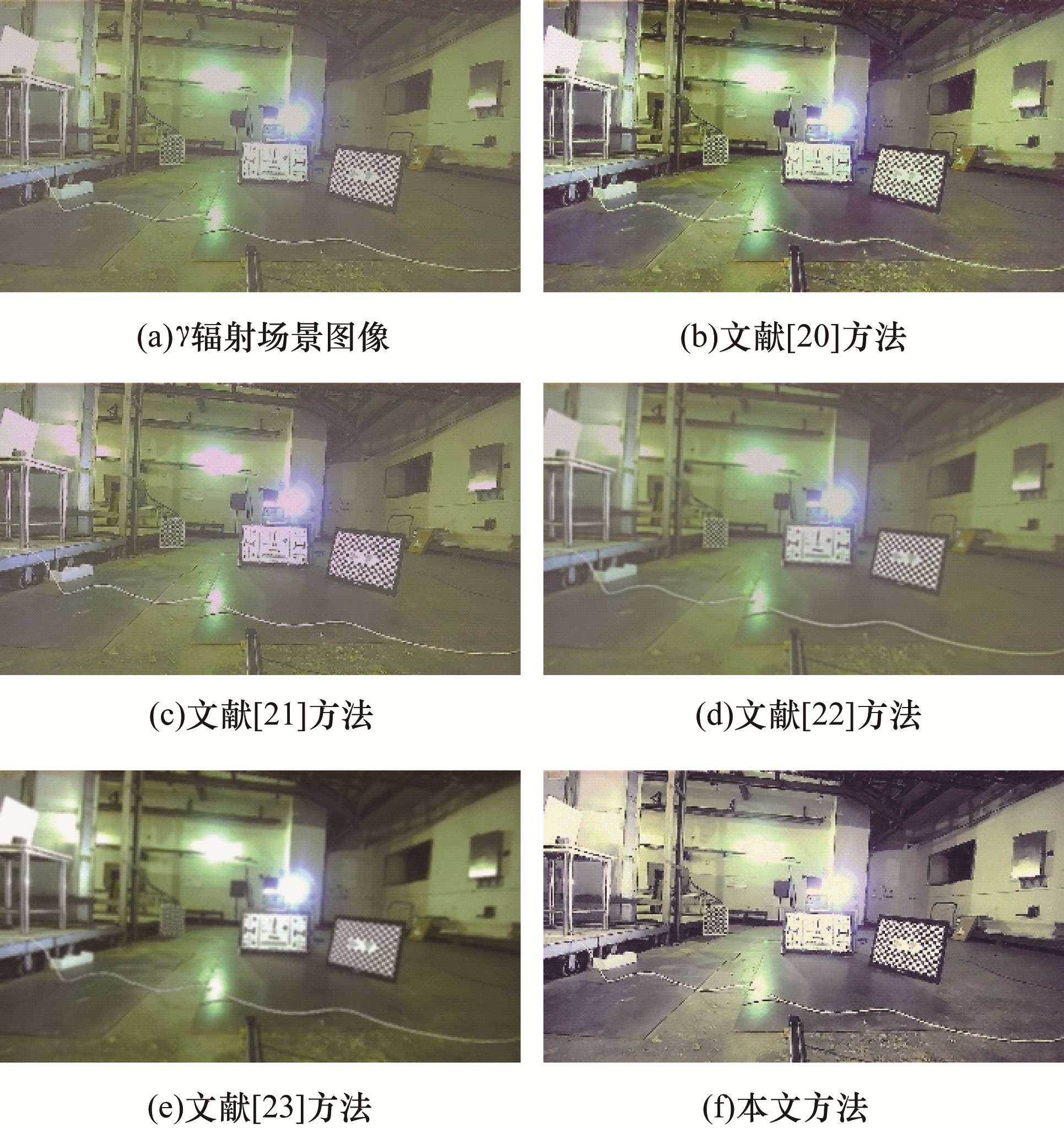

图5 γ辐射场景图像增强效果对比3

Fig.5 Comparison 3 of γ radiation scene image enhancement effects

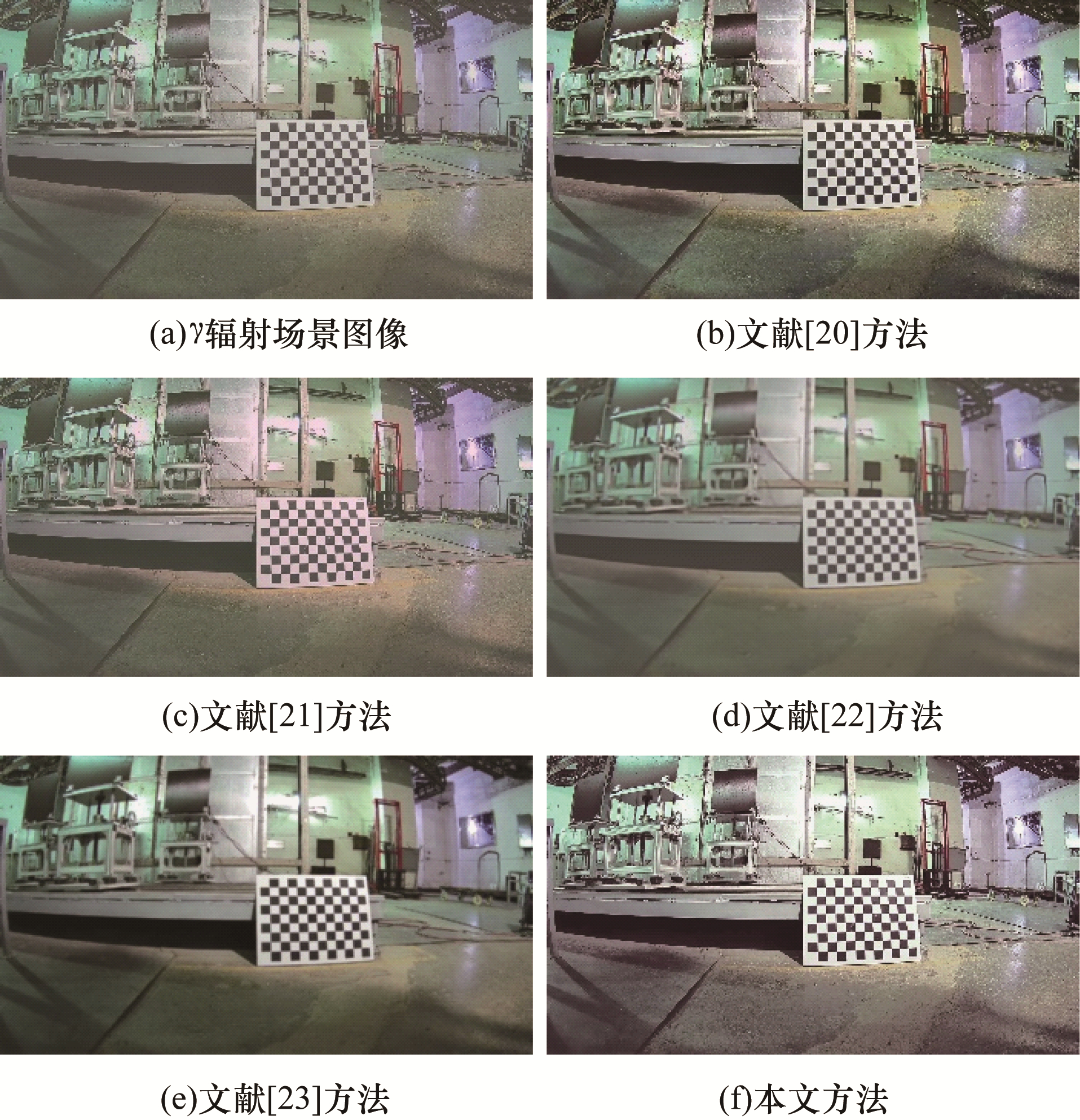

图6 γ辐射场景图像增强效果对比4

Fig.6 Comparison 4 of γ radiation scene image enhancement effects

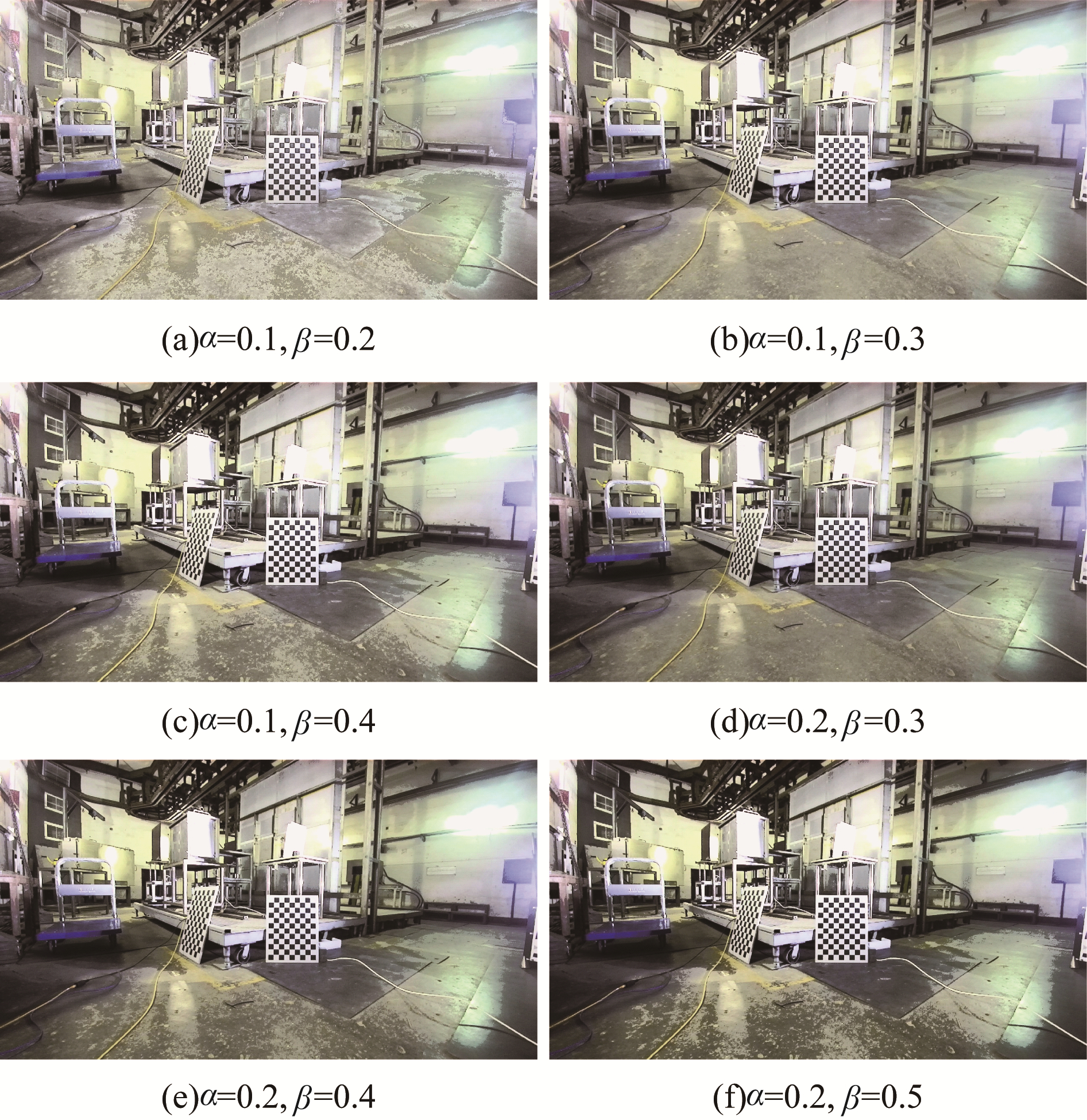

图7 当参数变化时场景1的图像增强效果

Fig.7 Image enhancement effects of scene 1 when parameters change

图8 当参数变化时场景2的图像增强效果

Fig.8 Image enhancement effects of scene 2 when parameters change

参考文献 26

1	管嘉焕, 任旭平, 邵伟恒, 等. 核电厂核辐射监测系统电磁敏感性研究. 核电子学与探测技术, 2021, 41 (6): 1103- 1109. URL
	GUAN J H, REN X P, SHAO W H, et al. Study on electromagnetic sensitivity of nuclear radiation monitoring system in nuclear power plant. Nuclear Electronics & Detection Technology, 2021, 41 (6): 1103- 1109. URL
2	王蕾, 王晓芬, 赵顺平. 核电基地周围辐射环境监督性监测概况. 辐射防护, 2019, 39 (2): 118- 123. URL
	WANG L, WANG X F, ZHAO S P. Environmental monitoring of radiation level around NPP bases in China. Radiation Protection, 2019, 39 (2): 118- 123. URL
3	白晗, 董正鹏, 崔誉文. 某核电厂大修期间弱贯穿辐射监测评价. 辐射防护通讯, 2021, 41 (2): 29- 31. URL
	BAI H, DONG Z P, CUI Y W. Observation on monitoring of weak penetration radiation during overhaul of a nuclear power plant. Radiation Protection Bulletin, 2021, 41 (2): 29- 31. URL
4	MUSTAFA W A, ABDUL KADER M M M. A review of histogram equalization techniques in image enhancement application[EB/OL]. [2022-10-20]. https://iopscience.iop.org/article/10.1088/1742-6596/1019/1/012026/pdf.
5	THANH L T, THANH D N H, HUE N M, et al. Single image dehazing based on adaptive histogram equalization and linearization of gamma correction[C]//Proceedings of the 25th Asia-Pacific Conference on Communications. Washington D. C., USA: IEEE Press, 2020: 36-40.
6	CHANG Y K, JUNG C, KE P, et al. Automatic contrast-limited adaptive histogram equalization with dual gamma correction. IEEE Access, 2018, 6, 11782- 11792. doi: 10.1109/ACCESS.2018.2797872
7	WANG P, WANG Z W, LV D, et al. Low illumination color image enhancement based on Gabor filtering and Retinex theory. Multimedia Tools and Applications, 2021, 80 (12): 17705- 17719. doi: 10.1007/s11042-021-10607-7
8	LIU S X, LONG W, HE L, et al. Retinex-based fast algorithm for low-light image enhancement. Entropy, 2021, 23 (6): 746. doi: 10.3390/e23060746
9	侯利霞, 聂丰英, 万里勇. 多尺度自适应Gamma矫正的低照图像增强. 云南大学学报(自然科学版), 2023, 45 (1): 57- 66. URL
	HOU L X, NIE F Y, WAN L Y. Low illumination image enhancement based on multi-scale adaptive Gamma correction. Journal of Yunnan University(Natural Sciences Edition), 2023, 45 (1): 57- 66. URL
10	NI Z K, YANG W H, WANG S Q, et al. Towards unsupervised deep image enhancement with generative adversarial network. IEEE Transactions on Image Processing, 2020, 29, 9140- 9151. doi: 10.1109/TIP.2020.3023615
11	徐超越, 余映, 何鹏浩, 等. 基于U-Net的多尺度低照度图像增强网络. 计算机工程, 2022, 48 (8): 215- 223. doi: 10.19678/j.issn.1000-3428.0062333
	XU C Y, YU Y, HE P H, et al. Multi-scale low-light image enhancement network based on U-Net. Computer Engineering, 2022, 48 (8): 215- 223. doi: 10.19678/j.issn.1000-3428.0062333
12	GUO C L, LI C Y, GUO J C, et al. Zero-reference deep curve estimation for low-light image enhancement[C]//Proceedings of Conference on Computer Vision and Pattern Recognition. Washington D. C., USA: IEEE Press, 2020: 1777-1786.
13	STIPETIĆ V, LONČARIĆ S. Local gray world method for single image dehazing[C]//Proceedings of the 8th International Conference on Signal, Image Processing and Pattern Recognition. New York, USA: ACM Press, 2020: 1-10.
14	AKAZAWA T, KINOSHITA Y, SHIOTA S, et al. N-white balancing: white balancing for multiple illuminants including non-uniform illumination. IEEE Access, 2022, 10, 89051- 89062. doi: 10.1109/ACCESS.2022.3200391
15	AFIFI M, BRUBAKER M A, BROWN M S. Auto white-balance correction for mixed-illuminant scenes[C]//Proceedings of Winter Conference on Applications of Computer Vision. Washington D. C., USA: IEEE Press, 2022: 934-943.
16	ZHANG W D, PAN X P, XIE X W, et al. Color correction and adaptive contrast enhancement for underwater image enhancement. Computers & Electrical Engineering, 2021, 91, 106981. URL
17	KANTI DHARA S, ROY M, SEN D, et al. Color cast dependent image dehazing via adaptive airlight refinement and non-linear color balancing. IEEE Transactions on Circuits and Systems for Video Technology, 2021, 31 (5): 2076- 2081. doi: 10.1109/TCSVT.2020.3007850
18	MUNIRAJ M, DHANDAPANI V. Underwater image enhancement by color correction and color constancy via Retinex for detail preserving. Computers and Electrical Engineering, 2022, 100, 107909. doi: 10.1016/j.compeleceng.2022.107909
19	DRAGO F, MYSZKOWSKI K, ANNEN T, et al. Adaptive logarithmic mapping for displaying high contrast scenes. Computer Graphics Forum, 2003, 22 (3): 419- 426. doi: 10.1111/1467-8659.00689
20	葛万凯, 赵世海, 范雨佳. 基于对比度受限直方图均衡化和非锐化掩模的织物表面瑕疵图像增强算法. 毛纺科技, 2021, 49 (12): 68- 74. doi: 10.19333/j.mfkj.20210404407
	GE W K, ZHAO S H, FAN Y J. Fabric surface defects image enhancement algorithm based on CLAHE and unsharp mask. Wool Textile Journal, 2021, 49 (12): 68- 74. doi: 10.19333/j.mfkj.20210404407
21	THAI B, DENG G, ROSS R. A fast white balance algorithm based on pixel greyness. Signal, Image and Video Processing, 2017, 11 (3): 525- 532. doi: 10.1007/s11760-016-0990-6
22	FENG Z, HAO S J. Low-light image enhancement by refining illumination map with self-guided filtering[C]//Proceedings of International Conference on Big Knowledge. Washington D. C., USA: IEEE Press, 2017: 183-187.
23	WANG W C, CHEN Z X, YUAN X H. Simple low-light image enhancement based on Weber-Fechner law in logarithmic space. Signal Processing: Image Communication, 2022, 106, 116742. doi: 10.1016/j.image.2022.116742
24	徐晓昭, 蔡轶珩, 刘长江, 等. 基于图像分析的偏色检测及颜色校正方法. 测控技术, 2008, 27 (5): 10-12, 21. doi: 10.19708/j.ckjs.2008.05.003
	XU X Z, CAI Y H, LIU C J, et al. Color cast detection and color correction methods based on image analysis. Measurement & Control Technology, 2008, 27 (5): 10-12, 21. doi: 10.19708/j.ckjs.2008.05.003
25	PANETTA K, GAO C, AGAIAN S. No reference color image contrast and quality measures. IEEE Transactions on Consumer Electronics, 2013, 59 (3): 643- 651. doi: 10.1109/TCE.2013.6626251
26	SHIN Y, JEONG S, LEE S. Efficient naturalness restoration for non-uniform illumination images. IET Image Processing, 2015, 9 (8): 662- 671. doi: 10.1049/iet-ipr.2014.0437
