基于加权张量低秩约束的多视图谱聚类

doi:10.19678/j.issn.1000-3428.0068270

计算机工程 ›› 2024, Vol. 50 ›› Issue (1): 129-137. doi: 10.19678/j.issn.1000-3428.0068270

基于加权张量低秩约束的多视图谱聚类

刘思慧¹, 高全学², 宋伟³, 谢德燕¹^,*()

1. 青岛农业大学理学与信息科学学院, 山东青岛 266109
2. 西安电子科技大学通信工程学院, 陕西西安 710071
3. 深圳大学微纳光电子学研究院, 广东深圳 518060

收稿日期:2023-08-21 出版日期:2024-01-15 发布日期:2023-12-19
通讯作者: 谢德燕
基金资助:
国家自然科学基金面上项目(61875130); 国家自然科学基金面上项目(62175159); 山东省自然科学基金面上项目(ZR202102180986); 广东省自然科学基金面上项目(2023A1515012888); 深圳市基础研究重点项目(JCYJ20200109113808048); 青岛农业大学人才启动项目(665/1120051); 青岛农业大学博士基金(663/1122014); 深圳大学医工交叉研究基金(86901/00000311)

Multiview Spectral Clustering Based on Weighted Tensor Low-Rank Constraint

Sihui LIU¹, Quanxue GAO², Wei SONG³, Deyan XIE¹^,*()

1. School of Science and Information Science, Qingdao Agricultural University, Qingdao 266109, Shandong, China
2. School of Telecommunications Engineering, Xidian University, Xi'an 710071, Shaanxi, China
3. Institute of Microscale Optoelectronics, Shenzhen University, Shenzhen 518060, Guangdong, China

Received:2023-08-21 Online:2024-01-15 Published:2023-12-19
Contact: Deyan XIE

摘要/Abstract

摘要：

现有基于图的多视图聚类方法通常难以同时考虑不同视图的潜在高阶相关信息和每个视图内的全局几何结构，导致聚类性能受限。为此，提出一种基于加权张量低秩约束的多视图谱聚类方法(WTLR-MSC)。根据多视图数据构建概率转移矩阵，将所有的概率转移矩阵构建为三阶张量，并借助鲁棒主成分分析思想将其分解为目标张量和误差张量。使用加权张量核范数约束目标张量的旋转张量，利用奇异值先验信息准确挖掘多视图数据的潜在高阶相关信息，并利用核范数约束目标张量的每个正切片以刻画每个视图内的全局几何结构。基于此建立数学模型，并设计有效的求解算法。在BBCSport、BBC4View、COIL20、UCI Digits 4个常用数据集上的实验结果表明，WTLR-MSC较ERLRT、MCA²M、MGL-WTNN等聚类方法的性能有显著提升，准确率、标准化互信息、F1值、精确率、召回率相较于次优方法最高提升约1.3、1.0、1.2、1.6和0.8个百分点，大幅增强了多视图聚类的稳健性。

关键词: 加权张量核范数, 谱聚类, 多视图谱聚类, 图学习, 张量低秩

Abstract:

Many existing multiview clustering methods fail to simultaneously exploit the high-order correlations embedded in different views and the global geometric structure of each single view, resulting in inadequate clustering performance. A Weighted Tensor Low-Rank constraint-based Multiview Spectral Clustering (WTLR-MSC) method is proposed in this study to address this limitation. First, a set of transition probability matrices are constructed from each single view. Second, a three-order tensor, which is decomposed into object and error tensors, is constructed using these matrices. The object tensor is rotated and constrained using the weighted tensor nuclear norm.Thus, the high-order correlations can be investigated efficiently. Simultaneously, the nuclear norm is applied to regularize each frontal slice of the object tensor to obtain the global geometric structure of each view. This study proposes an efficient optimization algorithm to solve the challenged mathematical optimization problem.Experiments on four datasets (BBCSport, BBC4View, COIL20, and UCI Digits) indicate that WTLR-MSC outperforms many state-of-the-art multiview methods, such as ERLRT, MCA2M, and MGL-WTNN. In terms of Accuracy (ACC), Normalized Mutual Information (NMI), F1-score, Precision, and Recall, WTLR-MSC improves by approximately 1.3, 1.0, 1.2, 1.6, and 0.8 percentage points, demonstrating an enhanced robustness of multiview clustering.

Key words: weighted tensor nuclear norm, Spectral Clustering(SC), Multiview Spectral Clustering(MSC), graph learning, tensor low-rank

刘思慧, 高全学, 宋伟, 谢德燕. 基于加权张量低秩约束的多视图谱聚类[J]. 计算机工程, 2024, 50(1): 129-137.

Sihui LIU, Quanxue GAO, Wei SONG, Deyan XIE. Multiview Spectral Clustering Based on Weighted Tensor Low-Rank Constraint[J]. Computer Engineering, 2024, 50(1): 129-137.

https://www.ecice06.com/CN/Y2024/V50/I1/129

图/表 10

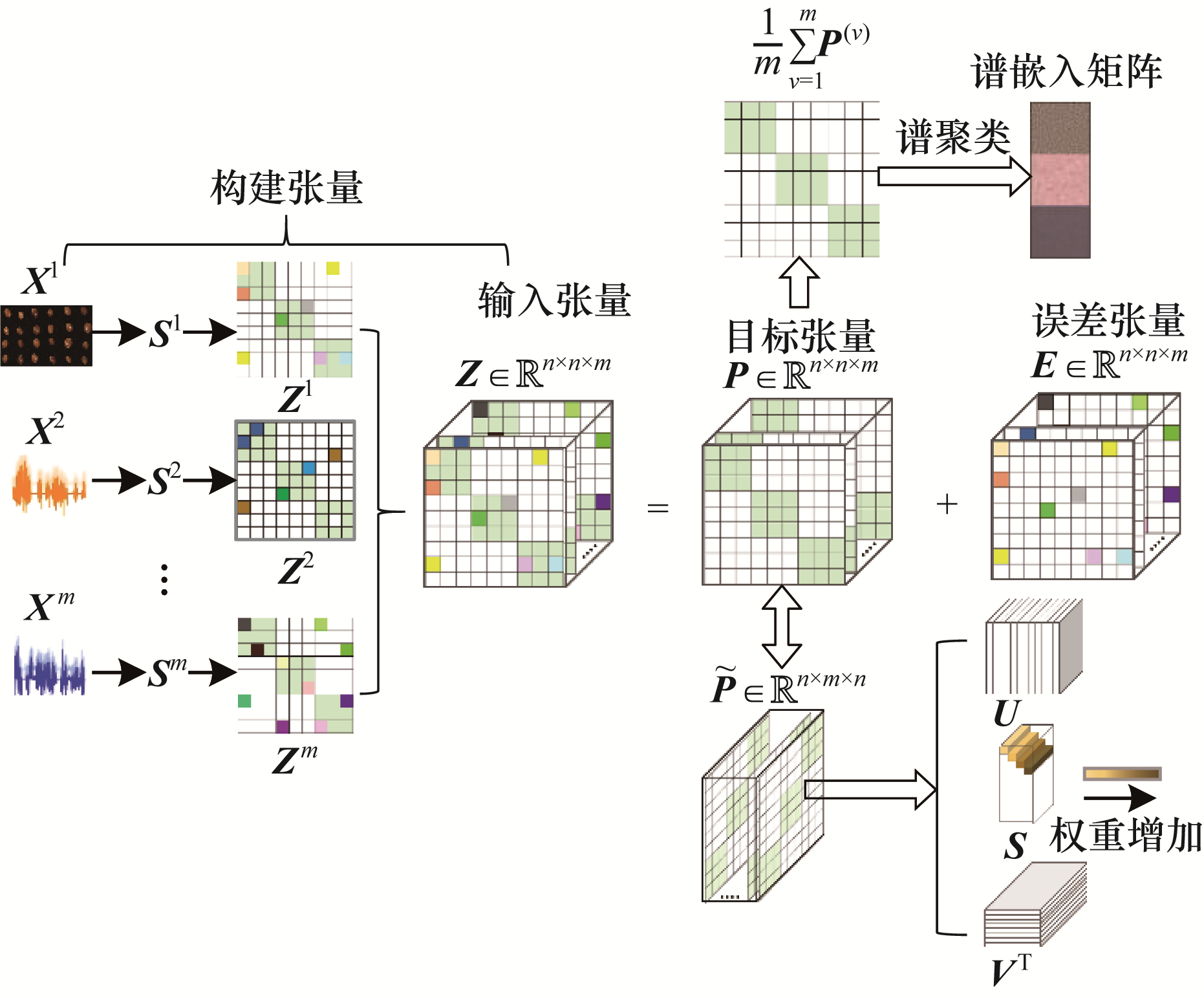

图1 WTLR-MSC方法框架

Fig.1 Framework of WTLR-MSC method

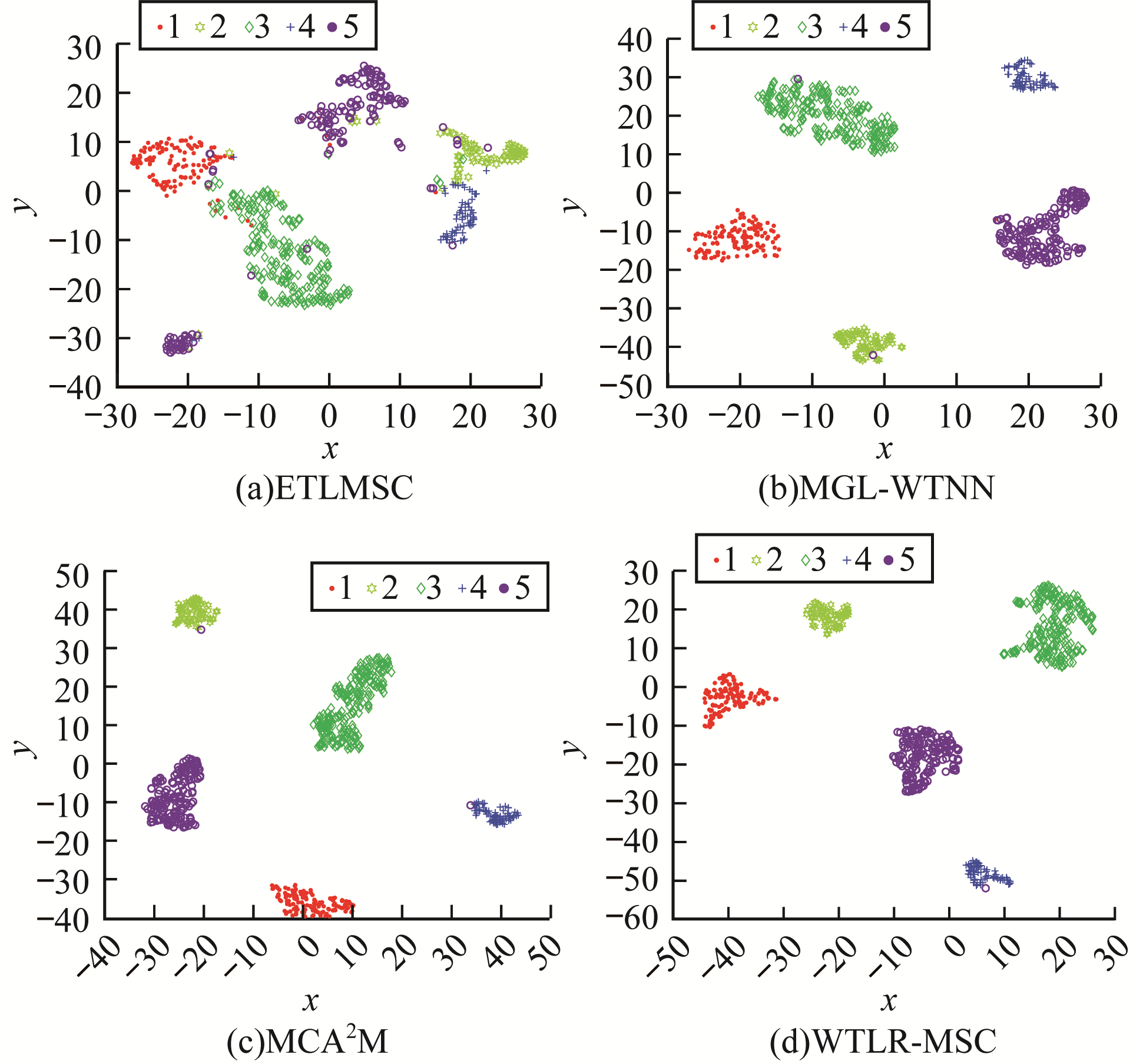

图2 BBC4view数据集的聚类结果可视化

Fig.2 Visualization of the clustering results on the BBC4view dataset

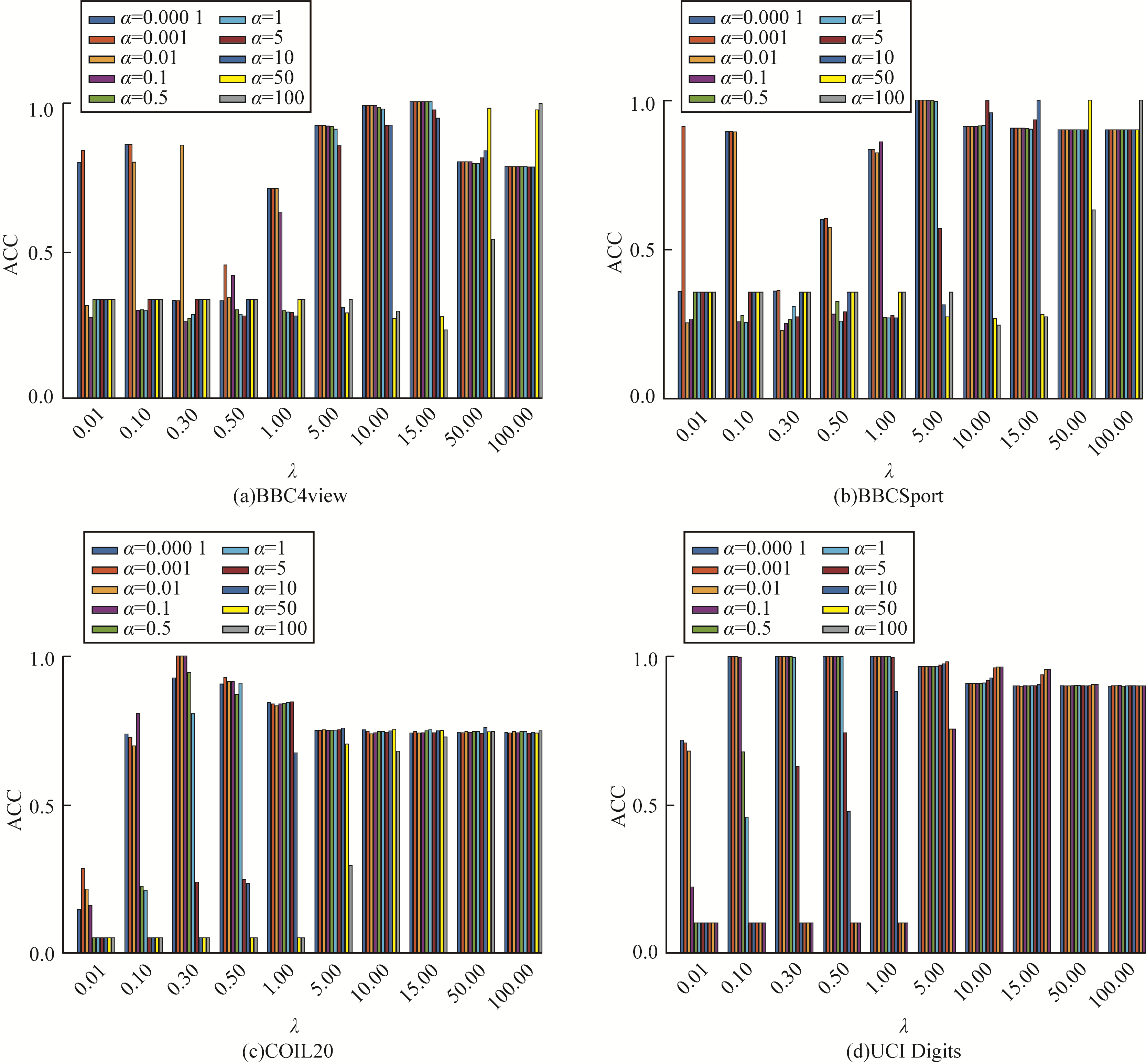

图3 ACC随参数

$ {\lambda } $

和

$ {\alpha } $

的变化

Fig.3 Variation of ACC with parameters

$ {\lambda } $

and

$ {\alpha } $

参考文献 25

1	JAIN A K, DUBES R C. Algorithms for clustering data. Englewood Cliffs, USA: Prentice Hall, Inc., 1988.
2	NG A, JORDAN M, WEISS Y. On spectral clustering: analysis and an algorithm[C]//Proceeding of International Conference on Neural Information Processing Systems: Natural and Synthetic. Berlin, Germany: Springer, 2001: 1-11.
3	宗林林. 多视角聚类研究[D]. 大连: 大连理工大学, 2017.
	ZONG L L. Multi-view clustering research[D]. Dalian: Dalian University of Technology, 2017. (in Chinese)
4	LI Z L, TANG C, LIU X W, et al. Consensus graph learning for multi-view clustering. IEEE Transactions on Multimedia, 2022, 24, 2461- 2472. doi: 10.1109/TMM.2021.3081930
5	范瑞东, 侯臣平. 鲁棒自加权的多视图子空间聚类. 计算机科学与探索, 2021, 15(6): 1062- 1073.
	FAN R D, HOU C P. Robust auto-weighted multi-view subspace clustering. Journal of Frontiers of Computer Science & Technology, 2021, 15(6): 1062- 1073.
6	SHI S J, NIE F P, WANG R, et al. Fast multi-view clustering via prototype graph. IEEE Transactions on Knowledge and Data Engineering, 2023, 35(1): 443- 455.
7	刘改, 吴峰, 刘诗仪. 基于张量图卷积的多视图聚类. 计算机系统应用, 2022, 31(4): 296- 302.
	LIU G, WU F, LIU S Y. Tensor graph convolution networks for multi-view clustering. Computer Systems & Applications, 2022, 31(4): 296- 302.
8	JIANG G Q, PENG J J, WANG H B, et al. Tensorial multi-view clustering via low-rank constrained high-order graph learning. IEEE Transactions on Circuits and Systems for Video Technology, 2022, 32(8): 5307- 5318. doi: 10.1109/TCSVT.2022.3143848
9	XIA R K, PAN Y, DU L, et al. Robust multi-view spectral clustering via low-rank and sparse decomposition[C]//Proceedings of AAAI Conference on Artificial Intelligence. Palo Alto, USA: AAAI Press, 2014: 2149-2155.
10	WU J L, LIN Z C, ZHA H B. Essential tensor learning for multi-view spectral clustering. IEEE Transactions on Image Processing, 2019, 28(12): 5910- 5922. doi: 10.1109/TIP.2019.2916740
11	XIE D, GAO Q, DENG S, et al. Multiple graphs learning with a new weighted tensor nuclear norm. Neural Networks, 2021, 133, 57- 68. doi: 10.1016/j.neunet.2020.10.010
12	ZHAO Y, YUN Y, ZHANG X, et al. Multi-view spectral clustering with adaptive graph learning and tensor schatten p-norm. Neurocomputing, 2022, 468, 257- 264. doi: 10.1016/j.neucom.2021.09.052
13	余瑶, 杜世强, 宋金梅. 面向多视图聚类的低秩张量表示学习. 计算机工程与应用, 2022, 58(13): 154- 163.
	YU Y, DU S Q, SONG J M. Low-rank tensor representation learning for multi-view clustering. Computer Engineering and Applications, 2022, 58(13): 154- 163.
14	LIU G C, LIN Z C, YAN S C, et al. Robust recovery of subspace structures by low-rank representation. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2013, 35(1): 171- 184. doi: 10.1109/TPAMI.2012.88
15	PARTRIDGE M, JABRI M. Robust principal component analysis[C]//Proceedings of 2002 IEEE Signal Processing Society Workshop. Washington D. C., USA: IEEE Press, 2002: 289-298.
16	WANG S, CHEN Y, JIN Y, et al. Error-robust low-rank tensor approximation for multi-view clustering. Knowledge-Based Systems, 2021, 215, 106745. doi: 10.1016/j.knosys.2021.106745
17	ZHOU D Y, HUANG J Y, SCHÖLKOPF B. Learning from labeled and unlabeled data on a directed graph[C]//Proceedings of the 22nd International Conference on Machine Learning. New York, USA: ACM Press, 2005: 1036-1043.
18	KILMER M E, MARTIN C D. Factorization strategies for third-order tensors. Linear Algebra and Its Applications, 2011, 435(3): 641- 658. doi: 10.1016/j.laa.2010.09.020
19	谢德燕. 基于图学习的多视图聚类[D]. 西安电子科技大学, 2019.
	XIE D Y. Multi-view clustering via graph learning[D]. Xi'an: Xidian University, 2019. (in Chinese)
20	XIE Y, TAO D C, ZHANG W S, et al. On unifying multi-view self-representations for clustering by tensor multi-rank minimization. International Journal of Computer Vision, 2018, 126(11): 1157- 1179. doi: 10.1007/s11263-018-1086-2
21	YANG J F, YIN W T, ZHANG Y, et al. A fast algorithm for edge-preserving variational multichannel image restoration. SIAM Journal on Imaging Sciences, 2009, 2(2): 569- 592. doi: 10.1137/080730421
22	NIE F P, CAI G H, LI X L. Multi-view clustering and semi-supervised classification with adaptive neighbours[C]//Proceedings of the 31st AAAI Conference on Artificial Intelligence. Palo Alto, USA: AAAI Press, 2017: 2408-2414.
23	CHEN Y Y, XIAO X L, PENG C, et al. Low-rank tensor graph learning for multi-view subspace clustering. IEEE Transactions on Circuits and Systems for Video Technology, 2022, 32(1): 92- 104. doi: 10.1109/TCSVT.2021.3055625
24	CHEN Y Y, XIAO X L, HUA Z Y, et al. Adaptive transition probability matrix learning for multiview spectral clustering. IEEE Transactions on Neural Networks and Learning Systems, 2022, 33(9): 4712- 4726. doi: 10.1109/TNNLS.2021.3059874
25	VAN DER MAATEN L, HINTON G. Visualizing data using t-SNE. Journal of Machine Learning Research, 2008, 9(11): 2579- 2605.
