基于空谱先验与高阶张量表示的超分辨率重建算法

doi:10.19678/j.issn.1000-3428.0069092

计算机工程 ›› 2025, Vol. 51 ›› Issue (9): 220-230. doi: 10.19678/j.issn.1000-3428.0069092

基于空谱先验与高阶张量表示的超分辨率重建算法

王震¹^,²^,³, 陈希爱²^,³^,*(), 杨超¹^,²^,³, 贾慧迪²^,³^,⁴, 韩志²^,³, 唐延东²^,³

1. 沈阳化工大学信息工程学院, 辽宁沈阳 110142
2. 中国科学院沈阳自动化研究所机器人学国家重点实验室，辽宁沈阳 110016
3. 中国科学院机器人与智能制造创新研究院，辽宁沈阳 110016
4. 中国科学院大学，北京 100049

收稿日期:2023-12-25 修回日期:2024-04-23 出版日期:2025-09-15 发布日期:2025-09-26
通讯作者: 陈希爱
基金资助:
国家自然科学基金(61821005); 中国科学院稳定支持基础研究领域青年团队计划(YSBR-041); 中国科学院青年创新促进会(2022196)

Super-Resolution Reconstruction Algorithm Based on Spatial-Spectral Prior and High-Order Tensor Representation

WANG Zhen¹^,²^,³, CHEN Xi′ai²^,³^,*(), YANG Chao¹^,²^,³, JIA Huidi²^,³^,⁴, HAN Zhi²^,³, TANG Yandong²^,³

1. College of Information Engineering, Shenyang University of Chemical Technology, Shenyang 110142, Liaoning, China
2. State Key Laboratory of Robotics, Shenyang Institute of Automation, Chinese Academy of Sciences, Shenyang 110016, Liaoning, China
3. Institutes for Robotics and Intelligent Manufacturing, Chinese Academy of Sciences, Shenyang 110016, Liaoning, China
4. University of Chinese Academy of Sciences, Beijing 100049, China

Received:2023-12-25 Revised:2024-04-23 Online:2025-09-15 Published:2025-09-26
Contact: CHEN Xi′ai

摘要/Abstract

摘要：

现有高光谱图像(HIS)超分辨率任务存在信息表示不充分、先验信息利用不足、重建精度不高的问题，严重影响后续图像处理任务精度。针对此问题，提出基于多-高光谱图像融合的非局部高阶张量表示算法，用于HSI超分辨率重建。通过k-means算法将图像划分为非局部相似块，将其构建成高阶张量，并利用张量火车所具有的均衡分解策略挖掘非局部高阶张量空间-光谱低秩冗余性。由于图像空间域中具有局部平滑特性，因此采用加权组稀疏正则项描述此特征，并构造加权光谱解混约束项来解决超分辨过程中光谱数据的融合失真问题，利用交替方向乘子法推导给出各变量具体求解计算过程。在公开的3个真实数据集CAVE、Pavia University、Indian Pines上的实验结果表明，与现有代表性超分辨率算法相比，所提算法的平均峰值信噪比(PSNR)和结构相似性(SSIM)分别提高0.290 8 dB、0.002，光谱角映射器(SAM)和全局相对误差指数分别降低了0.116°和3.1%。

关键词: 超分辨率, 融合, 非局部高阶张量, 张量火车, 光谱解混

Abstract:

Existing Hyper-Spectral Image (HSI) super-resolution tasks suffer from issues such as inadequate information representation, limited utilization of prior knowledge, and low reconstruction accuracy. These problems significantly affect the accuracy of subsequent image-processing tasks. To address this challenge, this study proposes a HSI super-resolution reconstruction algorithm based on spatial-spectral prior and high-order tensor representation. The algorithm divides image into non-local similar blocks using the k-means algorithm and constructs them into high-order tensors. The balanced decomposition strategy of the tensor-train is used to exploit the low-rank redundancy in these non-local high-order tensors. In addition, considering the local smoothness property in the image spatial domain, a weighted group sparse regularization term is employed. Furthermore, a weighted spectral unmixing constraint term is used to address fusion distortion issues in spectral data during processes, and the calculation process for each variable is presented using the alternating direction method of multipliers. In experimental evaluations on three publicly available real datasets—CAVE, Pavia University, and Indian Pines, the proposed algorithm improves the average Peak-Signal-to-Noise-Ratio (PSNR), Structural Similarity Index (SSIM) by 0.290 8 dB, 0.002, Spectral Angle Mapper (SAM) and global relative error index are reduced by 0.116° and 3.1%, respectively.

Key words: super-resolution, fusion, non-local high-order tensor, tensor-train, spectral unmixing

王震, 陈希爱, 杨超, 贾慧迪, 韩志, 唐延东. 基于空谱先验与高阶张量表示的超分辨率重建算法[J]. 计算机工程, 2025, 51(9): 220-230.

WANG Zhen, CHEN Xi′ai, YANG Chao, JIA Huidi, HAN Zhi, TANG Yandong. Super-Resolution Reconstruction Algorithm Based on Spatial-Spectral Prior and High-Order Tensor Representation[J]. Computer Engineering, 2025, 51(9): 220-230.

https://www.ecice06.com/CN/Y2025/V51/I9/220

图/表 14

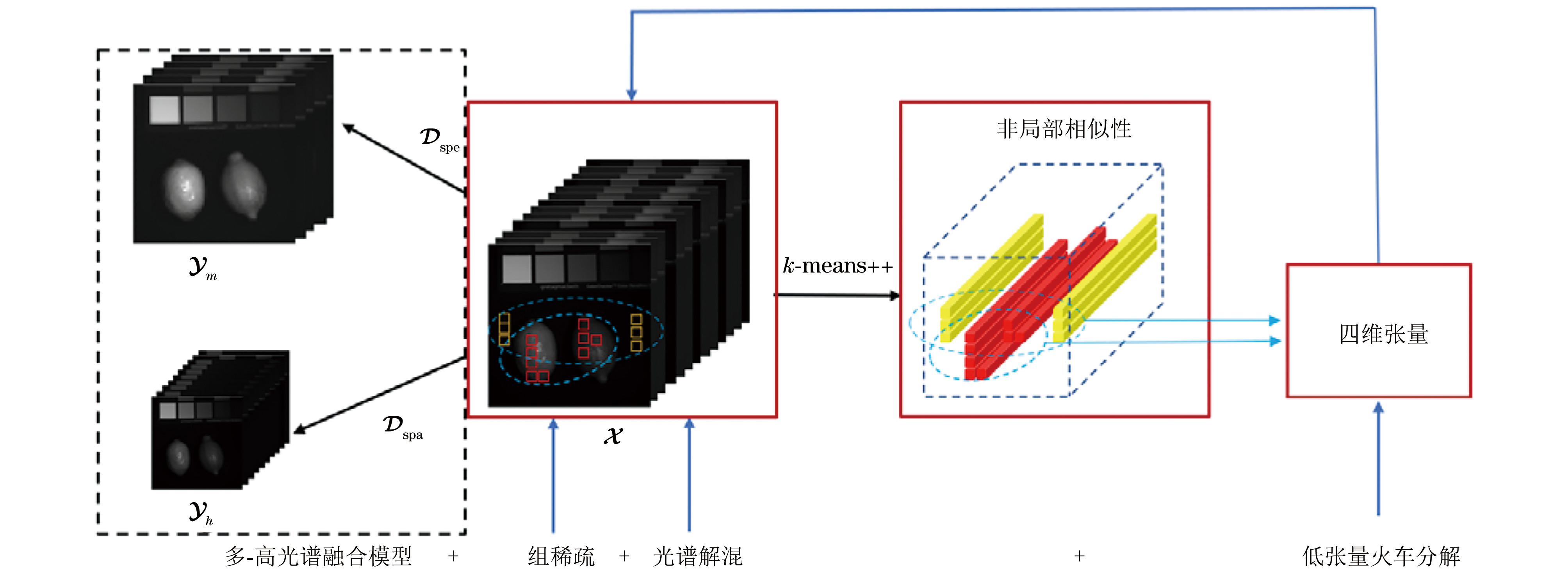

图1 所提算法的总框架

Fig.1 General framework of the proposed algorithm

图2 在数据集中不同场景的彩色图像

Fig.2 The color images of different scenes in datasets

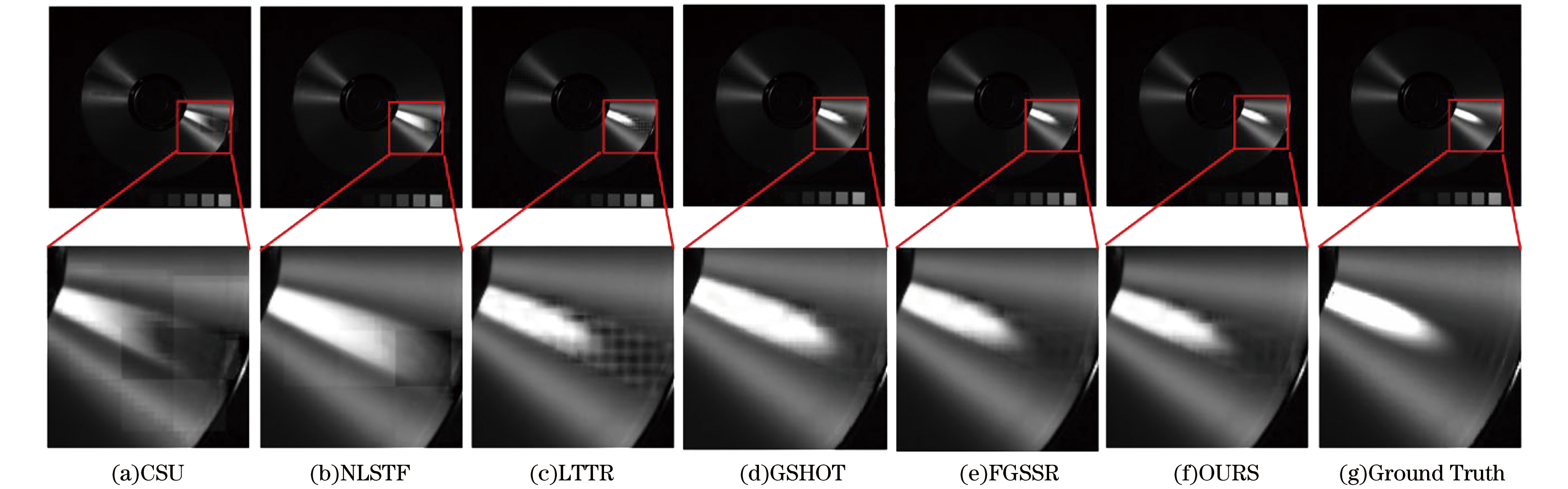

图3 不同方法重构后的CD图像细节展示

Fig.3 Detail show of CD images after reconstruction by different methods

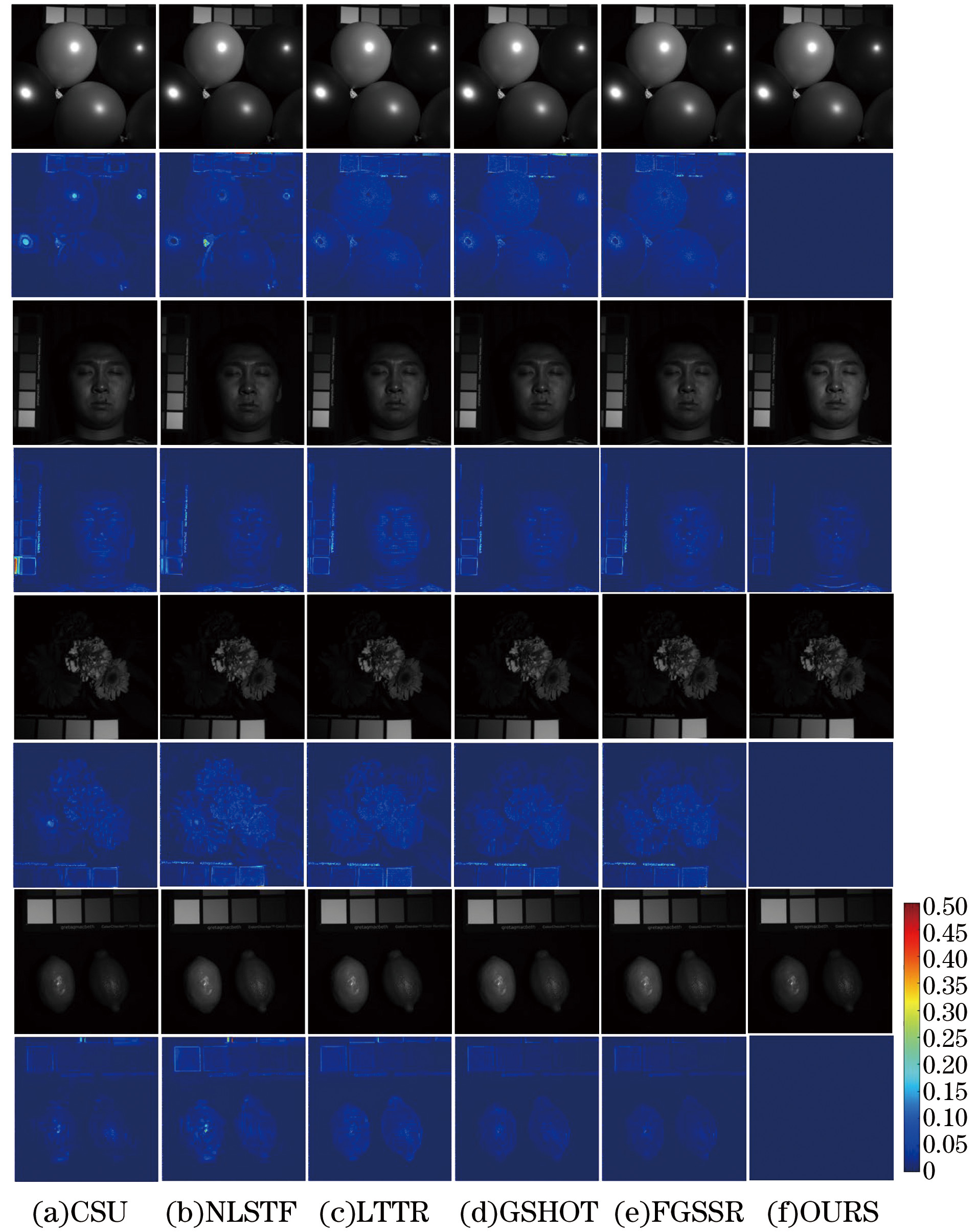

图4 不同方法重构后的CAVE图像

Fig.4 CAVE images after reconstruction by different methods

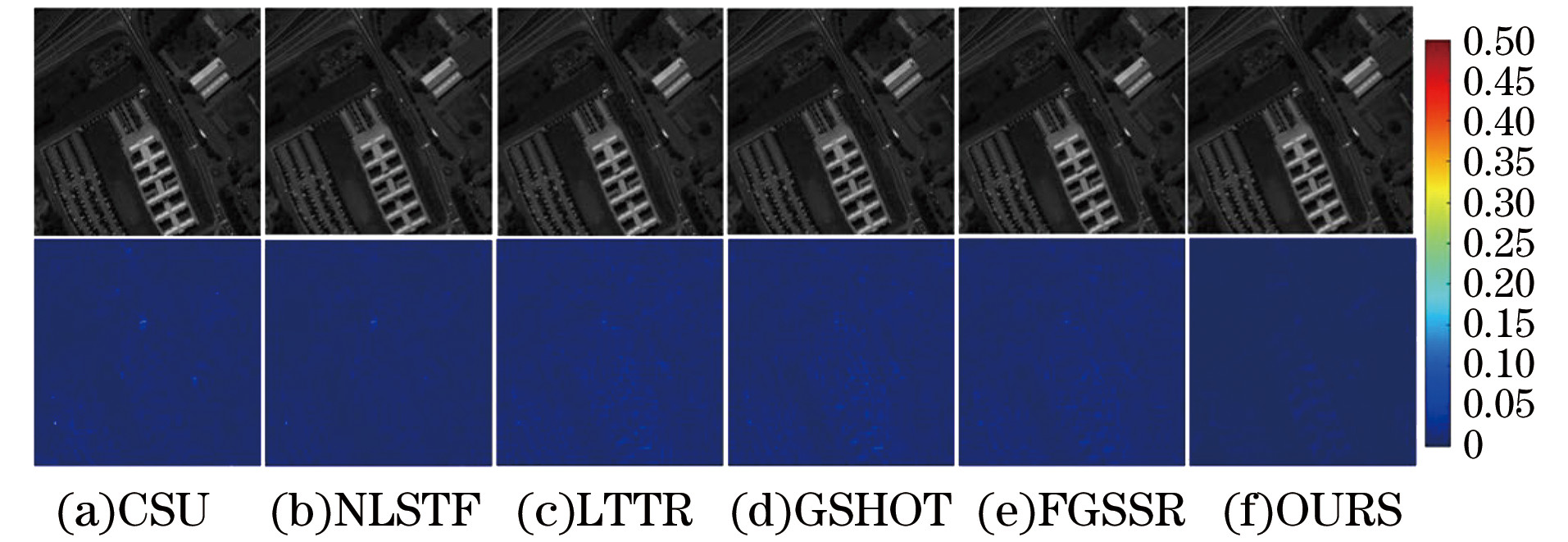

图5 不同方法重构后的Pavia University图像

Fig.5 Pavia University images after by different methods

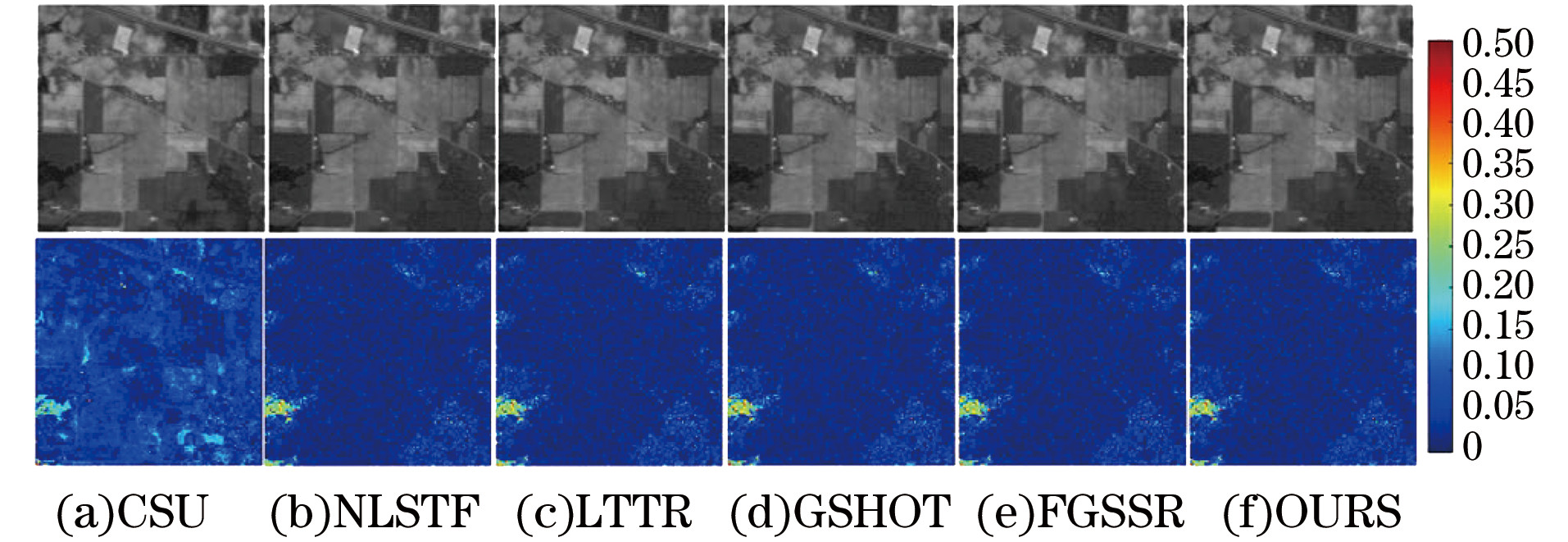

图6 不同方法重构后的Indian Pines图像

Fig.6 Indian Pines images after reconstruction by different methods

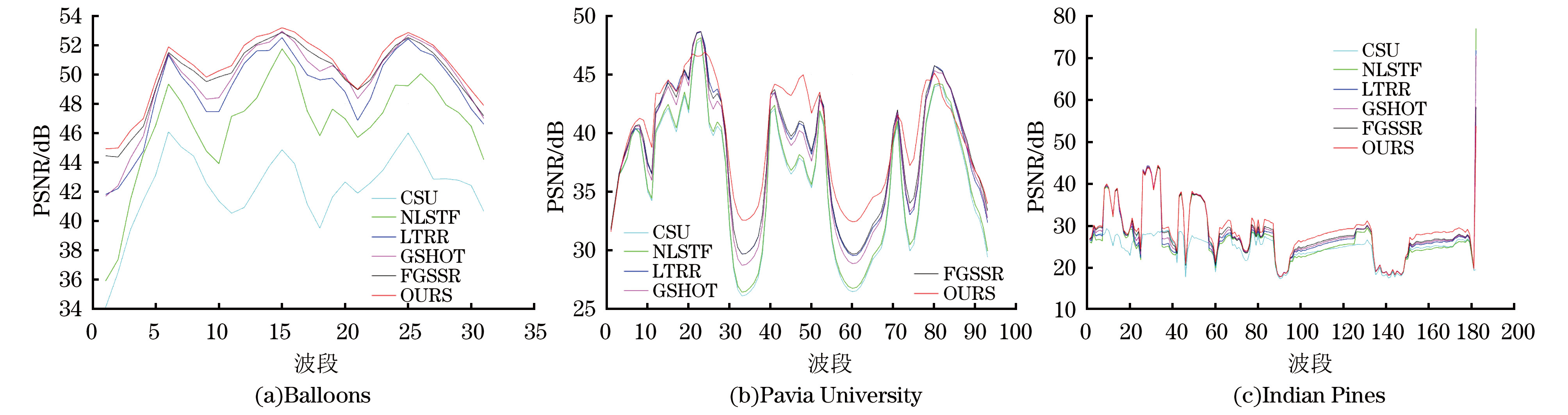

图7 不同方法重构的Balloons，Pavia University，Indian Pines数据每个波段的PSNR值

Fig.7 The PSNR values of each band of Balloons, Pavia University and Indian Pines datas reconstructed by different methods

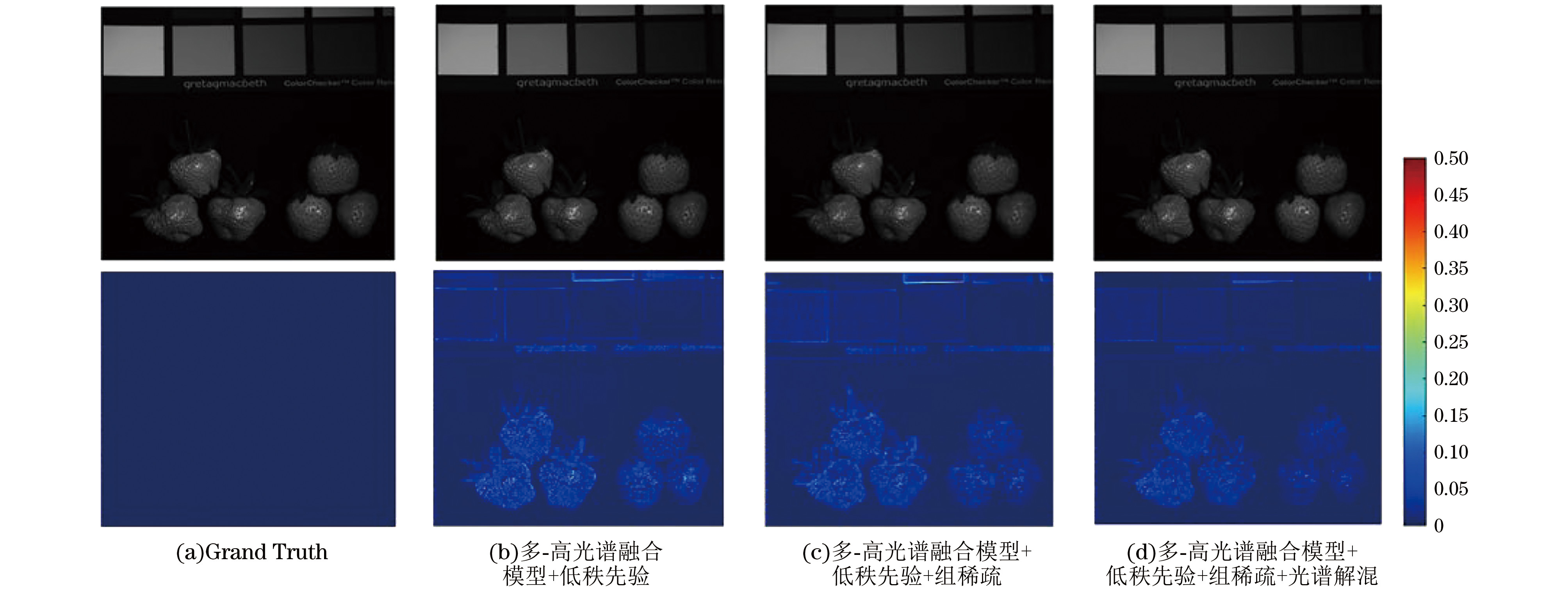

图8 消融实验的结果图

Fig.8 Results images of ablation experiment

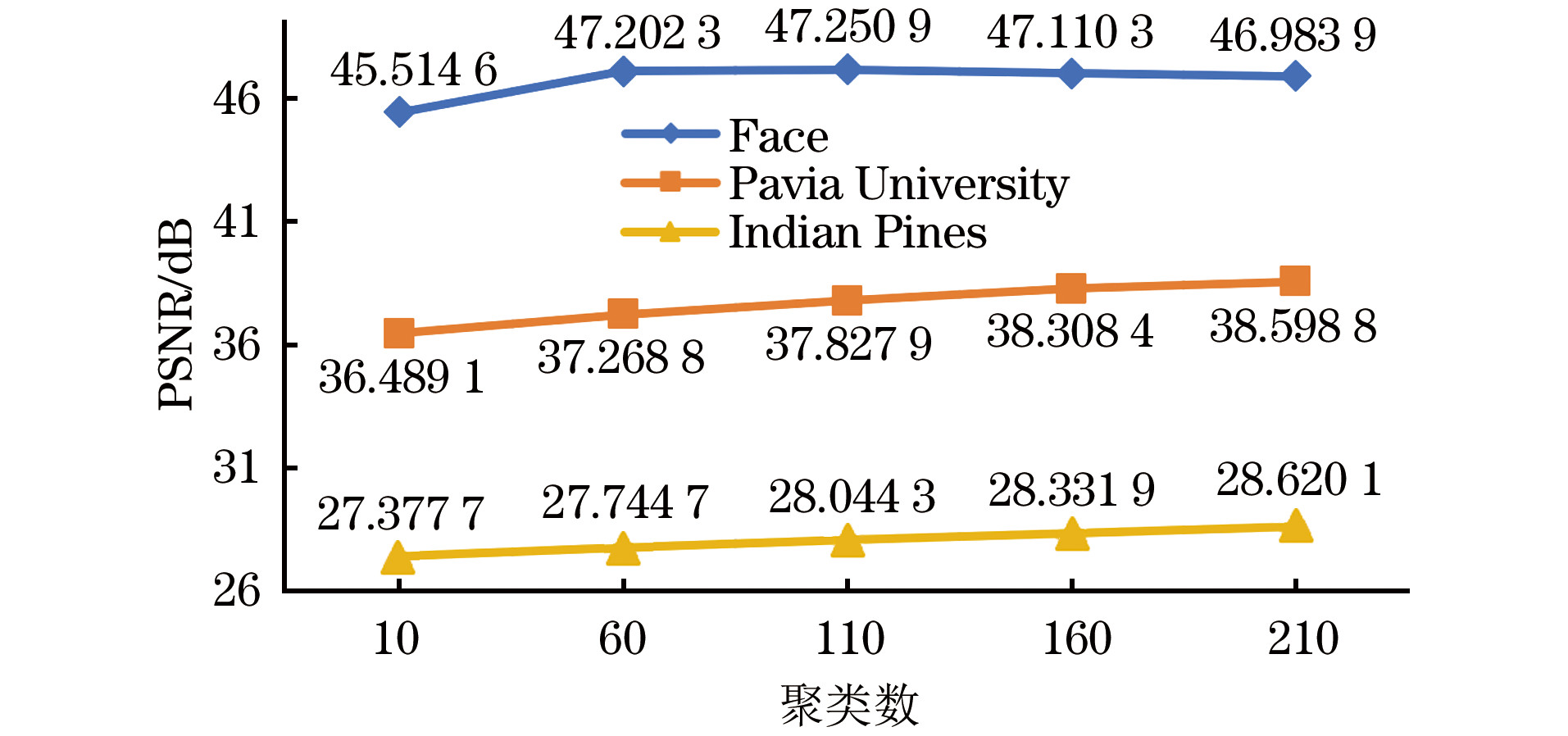

图9 聚类数对结果的影响

Fig.9 The effect of cluster number on the results

参考文献 25

1	逄涛, 张学敏, 姚亚洲, 等. 基于特征增强的光学遥感图像建筑物变化检测. 计算机工程, 2023, 49(4): 182- 187. URL
	FENG T, ZHANG X M, YAO Y Z, et al. Optical remote sensing image building change detection based on feature enhancement. Computer Engineering, 2023, 49(4): 182- 187. URL
2	谢树春, 陈志华, 盛斌. 增强细节的RGB-IR多通道特征融合语义分割网络. 计算机工程, 2022, 48(10): 230-237, 244. URL
	XIE S C, CHEN Z H, SHENG B. Detail-enhanced RGB-IR multichannel feature fusion network for semantic segmentation. Computer Engineering, 2022, 48(10): 230-237, 244. URL
3	刘鹏飞, 朱健晨, 万良易, 等. 低功耗异构计算架构的高光谱遥感图像分类研究. 计算机工程, 2022, 48(12): 9-15, 23. URL
	LIU P F, ZHU J C, WAN L Y, et al. Research on hyperspectral remote sensing image classification using low-power heterogeneous computing architecture. Computer Engineering, 2022, 48(12): 9-15, 23. URL
4	张少杰, 罗琼, 韩志, 等. 基于边信息的高光谱图像恢复模型. 计算机应用研究, 2021, 38(10): 3166-3171, 3195.
	ZHANG S J, LUO Q, HAN Z, et al. Hyperspectral image restoration model with side information. Application Research of Computers, 2021, 38(10): 3166-3171, 3195.
5	姚凯旋, 曹飞龙. 基于多输入密集连接神经网络的遥感图像时空融合算法. 模式识别与人工智能, 2019, 32(5): 429- 435.
	YAO K X, CAO F L. Spatial-temporal fusion algorithm for remote sensing images based on multi-input dense connected neural network. Pattern Recognition and Artificial Intelligence, 2019, 32(5): 429- 435.
6	陈贵强, 何军. 自然场景下遥感图像超分辨率重建算法研究. 计算机科学, 2022, 49(2): 116- 122.
	CHEN G Q, HE J. Study on super-resolution reconstruction algorithm of remote sensing images in natural scene. Computer Science, 2022, 49(2): 116- 122.
7	QI W, NICOLAS D, JEAN-YVES T. Fast fusion of multi-band images based on solving a sylvester equation. IEEE Transactions on Image Processing, 2015, 24(11): 4109- 4121. doi: 10.1109/TIP.2015.2458572
8	黄伟, 许蒙恩, 徐国明, 等. 贝叶斯稀疏表示高光谱图像超分辨率方法. 计算机科学与探索, 2018, 12(12): 1987- 1995.
	HUANG W, XU M G, XU G M, et al. Bayesian sparse representation for hyperspectral image super resolution. Journal of Frontiers of Computer Science & Technology, 2018, 12(12): 1987- 1995.
9	AKHTAR N, SHAFAIT F, MIAN A. Bayesian sparse representation for hyperspectral image super resolution[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Washington D.C., USA: IEEE Press, 2015: 3631-3640.
10	GHASRODASHTI E K, KARAMI A, HEYLEN R, et al. Spatial resolution enhancement of hyperspectral images using spectral unmixing and Bayesian sparse representation. Remote Sensing, 2017, 9(6): 541. doi: 10.3390/rs9060541
11	ZHAO Y Q, YI C, YANG J X, et al. Spectral super-resolution based on matrix factorization and spectral dictionary[C]//Proceedings of the 8th Workshop on Hyperspectral Image and Signal Processing: Evolution in Remote Sensing (WHISPERS). Washington D.C., USA: IEEE Press, 2016: 1-6.
12	DIAN R W, LI S T, FANG L Y, et al. Multispectral and hyperspectral image fusion with spatial-spectral sparse representation. Information Fusion, 2019, 49, 262- 270. doi: 10.1016/j.inffus.2018.11.012
13	DONG W S, FU F Z, SHI G M, et al. Hyperspectral image super-resolution via non-negative structured sparse representation. IEEE Transactions on Image Processing, 2016, 25(5): 2337- 2352. doi: 10.1109/TIP.2016.2542360
14	DIAN R W, LI S T, FANG L Y, et al. Hyperspectral image super-resolution via local low-rank and sparse representations[C]//Proceedings of IEEE International Geoscience and Remote Sensing Symposium. Washington D.C., USA: IEEE Press, 2018: 4003-4006.
15	LANARAS C, BALTASVIAS E, SCHINDLER K. Hyperspectral super-resolution by coupled spectral unmixing[C]//Proceedings of the IEEE International Conference on Computer Vision. Washington D.C., USA: IEEE Press, 2015: 3586-3594.
16	刘永峰, 王年, 王峰, 等. 基于谱间相似性的高光谱图像稀疏超分辨率算法. 红外与激光工程, 2019, 48(S1): 181- 192.
	LIU Y F, WANG N, WANG F, et al. Hyperspectral image super-resolution algorithm via sparse representation based on spectral similarity. Infrared and Laser Engineering, 2019, 48(S1): 181- 192.
17	ZHANG K, WANG M, YANG S Y, et al. Spatial-spectral-graph-regularized low-rank tensor decomposition for multispectral and hyperspectral image fusion. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2018, 11(4): 1030- 1040. doi: 10.1109/JSTARS.2017.2785411
18	DIAN R W, FANG L Y, LI S T. Hyperspectral image super-resolution via non-local sparse tensor factorization[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Washington D.C., USA: IEEE Press, 2017: 5344-5353.
19	ZARE M, HELFROUSH M S, KAZEMI K, et al. Hyper-spectral and multispectral image fusion using coupled non-negative tucker tensor decomposition. Remote Sensing, 2021, 13(15): 2930. doi: 10.3390/rs13152930
20	REN X X, LU L F, CHANUSSOT J. Toward super-resolution image construction based on joint tensor decomposition. Remote Sensing, 2020, 12(16): 2535. doi: 10.3390/rs12162535
21	DIAN R W, LI S T, FANG L Y. Learning a low tensor-train rank representation for hyperspectral image super-resolution. IEEE Transactions on Neural Networks and Learning Systems, 2019, 30(9): 2672- 2683. doi: 10.1109/TNNLS.2018.2885616
22	CHEN X A, GUO S Y, JIA H D, et al. Group sparsity regularized high order tensor for HSIs super-resolution[C]//Proceedings of International Conference on Intelligent Robotics and Applications. Berlin, Germany: Springer, 2022: 125-137.
23	PENG Y D, LI W S, LUO X B, et al. Hyperspectral image super-resolution via adaptive factor group sparsity regularization-based subspace representation. Remote Sensing, 2023, 15(19): 4847. doi: 10.3390/rs15194847
24	YANG J X, ZHAO Y Q, CHAN J C W. Hyperspectral and multispectral image fusion via deep two-branches convolutional neural network. Remote Sensing, 2018, 10(5): 800. doi: 10.3390/rs10050800
25	SUN W, REN K, MENG X, et al. MLR-DBPFN: a multi-scale low rank deep back projection fusion network for anti-noise hyperspectral and multispectral image fusion. IEEE Transactions on Geoscience and Remote Sensing, 2022, 60, 1- 14.
